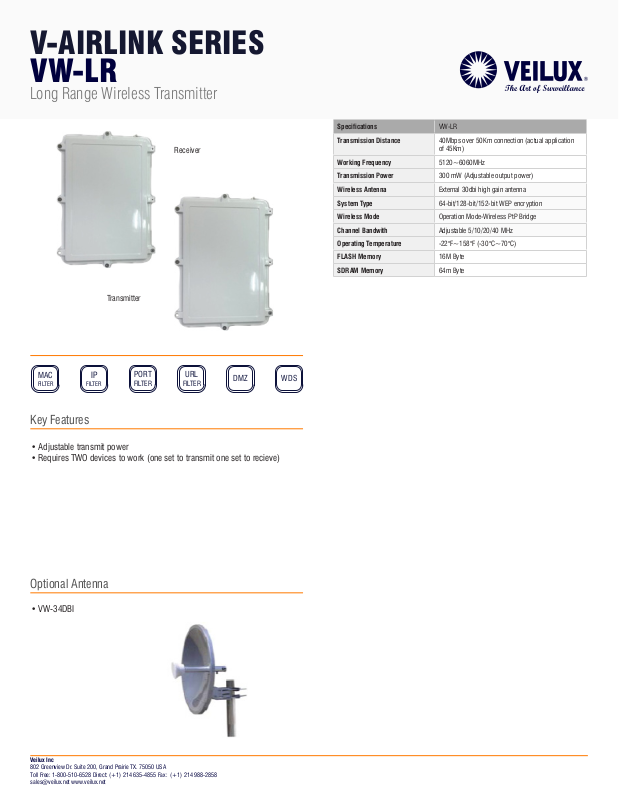

Veilux VW-LR Specsheet

V-AIRLINK SERIES

VW-LR

Long Range Wireless Transmitter

Receiver

Transmitter

Specifications VW-LR

Transmission Distance 40Mbps over 50Km connection (actual application

of 45Km)

Working Frequency 5120~6060MHz

Transmission Power 300 mW (Adjustable output power)

Wireless Antenna External 30dbi high gain antenna

System Type 64-bit/128-bit/152-bit WEP encryption

Wireless Mode Operation Mode-Wireless PtP Bridge

Channel Bandwith Adjustable 5/10/20/40 MHz

Operating Temperature -22°F~158°F (-30°C~70°C)

FLASH Memory 16M Byte

SDRAM Memory 64m Byte

MAC

FILTER

IP

FILTER

PORT

FILTER

URL

FILTER

DMZ WDS

Key Features

• Adjustable transmit power

• Requires TWO devices to work (one set to transmit one set to recieve)

Optional Antenna

• VW-34DBI
