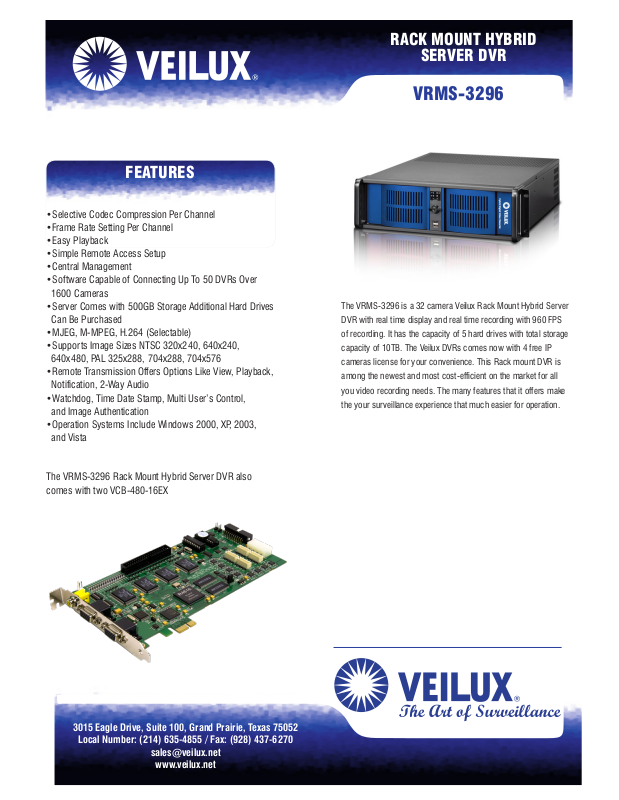

Veilux VRMS-3296 Specsheet

FEATURES

•Selective Codec Compression Per Channel

•Frame Rate Setting Per Channel

•Easy Playback

•Simple Remote Access Setup

•Central Management

•Software Capable of Connecting Up To 50 DVRs Over
1600 Cameras

•Server Comes with 500GB Storage Additional Hard Drives
Can Be Purchased

•MJEG, M-MPEG, H.264 (Selectable)

•Supports Image Sizes NTSC 320x240, 640x240,
640x480, PAL 325x288, 704x288, 704x576

•Remote Transmission Offers Options Like View, Playback,
Notification, 2-Way Audio

•Watchdog, Time Date Stamp, Multi User’s Control,
and Image Authentication

•Operation Systems Include Windows 2000, XP, 2003,
and Vista

RACK MOUNT HYBRID

SERVER DVR

VRMS-3296

The VRMS-3296 is a 32 camera Veilux Rack Mount Hybrid Server

DVR with real time display and real time recording with 960 FPS

of recording. It has the capacity of 5 hard drives with total storage

capacity of 10TB. The Veilux DVRs comes now with 4 free IP

cameras license for your convenience. This Rack mount DVR is

among the newest and most cost-efficient on the market for all

you video recording needs. The many features that it offers make

the your surveillance experience that much easier for operation.

The VRMS-3296 Rack Mount Hybrid Server DVR also
comes with two VCB-480-16EX

3015 Eagle Drive, Suite 100, Grand Prairie, Texas 75052

Local Number: [phone] / Fax: [phone]

[e-mail]

www.veilux.net

RACK MOUNT HYBRID

SERVER DVR

VRMS-3296

The Veilux 16 channel DVR capture board is our new product line of
capture boards, delivering extremely high quality video resolutions with
all the bells and whistles in the video surveillance camera industry. This
DVR capture board has been tested at thousands of locations worldwide
with extreme stability and power features. In comparison with Geovision
and Avermedia this capture board is very cost efficient. The capture board
also comes with a 2 year warranty to guarantee that you will have a great
product.

FEATURES

SPECIFICATIONS

ITEM VCB-480-16EX

Camera Inputs

Frame Rate for
Monitoring

Frame Rate for
Recording

Compression Algo­rithm

Image Size (Resolu­tion)

System CPU

Analog TV Output

No. of Sensor Input

No. of Alarm Output

P/T/Z Camera Control

Network for Remote

Remote Control

Remote Transmission

Watchdog

Time Date Stamp

Multi-Users Control

Audio Record

Image Authentication

Data Back Up

Case

Operation System

Slot Type (Interface)

5VDC Input

To Use 2-Cards

16 Channel

Live Display 480 FPS (NTSC) / 400 FPS (PAL)

Max. 480 FPS (NTSC) / 400 FPS (PAL)

MJEG, M-MPEG, H.264 (Selectable)

NTSC (320 x 240), (640 x 240), (640 x 480)

PAL (352 x 288), (704 x 288), (704 x 576)

P4 - 3.2GHz

Yes

16 Channel

4

Yes

TCP/IP Based Network, LAN, PSTN, ISDN

Setting, Display Control, Relay Output, P/T/Z Camera

View, Playback, Notification, 2-Way Audio

Yes

Yes

Yes (By Registration)

16 Channel

Yes

DVD, DAT, HDD, CD-RW

19” Rack Mount Type Case or Standard PC Case

Windows 2000, XP, 2003

PCI Express

Yes

Yes

The Veilux 16 Camera DVR Video Capture Board includes features like:

•Realtime display and records 480 FPS (NTSC) / 400 FPS (PAL)

•MJEG, MPEG4, H.264 (selectable per channel)

•Remote desktop VIA IE browser or client software

•Future expandability option up to 32 cameras

•TCP/IP based network, LAN, PSTN, ISDN

•Remote desktop setting, display control, relay output, P/T/Z camera

•Remote screen 1, 4, 9, 16, 32 channel split screens

•Remote control the P/T/Z camera, just as if you were at the local DVR

•Selectable recording option per camera

•Selectable frame rate recording per camera

•Selectable video compression recording per camera

•Watchdog for auto reboot hardware in case of power failure

•PCI-Express Board

•Expandable to 2 board for upto 32 cameras

•16 audio inputs option available

•Integrated with Point of Sale system for image text overlay

•Date timestamp overlay camera

•Central monitoring software option available to monitor up to
50 DVR systems

•Supports PDA Microsoft Windows Mobile 2003 Second Edition,
Microsoft Windows Mobile 5.0

•Supports Dynamic DNS Services

•Supports Audio, Sensors and Relays built into the Network Video Servers

•Optional supports up to 4 license plate recognition cameras, storing
license plates which can be triggered by motion sensor option

•Supports Veilux IP Cameras and 3rd party IP camera vendors, Axis, Acti,
Arecont, IQinvision, Vivotek, Eyeview, Grandeye, Dynacolor, CNB
