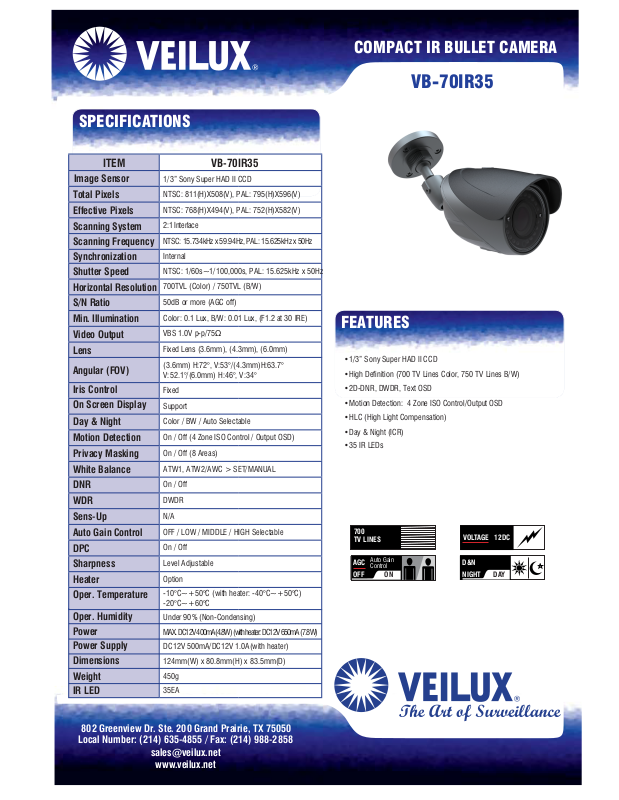

SPECIFICATIONS
ITEM VB-70IR35
Image Sensor
Total Pixels
Effective Pixels
Scanning System
Scanning Frequency
Synchronization
Shutter Speed
Horizontal Resolution
S/N Ratio
Min. Illumination
Video Output
Lens
Angular (FOV)
Iris Control
On Screen Display
Day & Night
Motion Detection
Privacy Masking
White Balance
DNR
WDR
Sens-Up
Auto Gain Control
DPC
Sharpness
Heater
Oper. Temperature
Oper. Humidity
Power
Power Supply
Dimensions
Weight
IR LED
1/3” Sony Super HAD II CCD
NTSC: 811(H)X508(V), PAL: 795(H)X596(V)
NTSC: 768(H)X494(V), PAL: 752(H)X582(V)
2:1 Interlace
NTSC: 15.734kHz x 59.94Hz, PAL: 15.625kHz x 50Hz
Internal
NTSC: 1/60s~1/100,000s, PAL: 15.625kHz x 50Hz
700TVL (Color) / 750TVL (B/W)
50dB or more (AGC off)
Color: 0.1 Lux, B/W: 0.01 Lux, (F1.2 at 30 IRE)
VBS 1.0V p-p/75Ω
Fixed Lens (3.6mm), (4.3mm), (6.0mm)
(3.6mm) H:72°, V:53°/(4.3mm)H:63.7°
V:52.1°/(6.0mm) H:46°, V:34°
Fixed
Support
Color / BW / Auto Selectable
On / Off (4 Zone ISO Control / Output OSD)
On / Off (8 Areas)
ATW1, ATW2/AWC > SET/MANUAL
On / Off
DWDR
N/A
OFF / LOW / MIDDLE / HIGH Selectable
On / Off
Level Adjustable
Option
-10°C~+50°C (with heater: -40°C~+50°C)
-20°C~+60°C
Under 90% (Non-Condensing)
MAX. DC12V 400mA(4.8W) (with heater: DC12V 650mA (7.8W)
DC12V 500mA/DC12V 1.0A(with heater)
124mm(W) x 80.8mm(H) x 83.5mm(D)
450g
35EA
COMPACT IR BULLET CAMERA
VB-70IR35
FEATURES
•1/3” Sony Super HAD II CCD
•High Definition (700 TV Lines Color, 750 TV Lines B/W)
•2D-DNR, DWDR, Text OSD
•Motion Detection: 4 Zone ISO Control/Output OSD
•HLC (High Light Compensation)
•Day & Night (ICR)
•35 IR LEDs
700
TV LINES
Auto Gain
AGC
Control
OFF ON
VOLTAGE 12DC
D&N
NIGHT DAY
