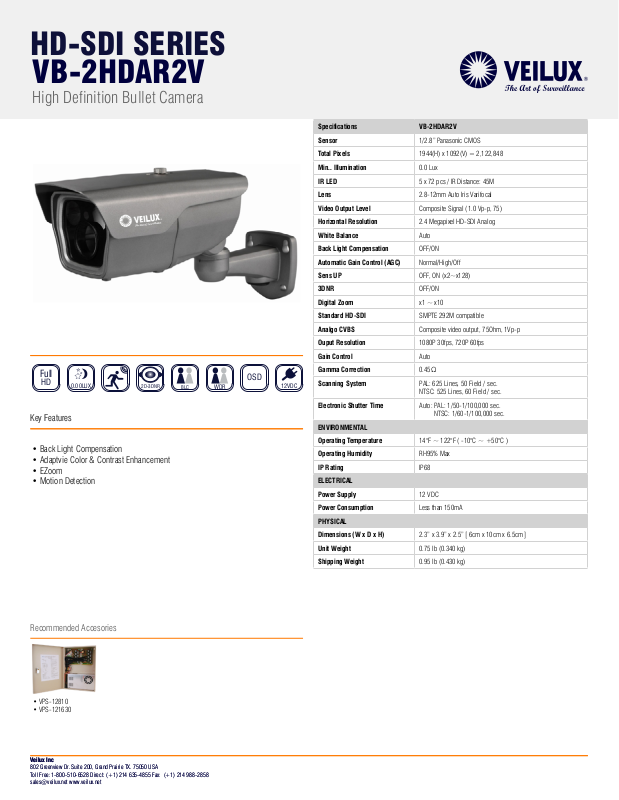

Veilux VB-2HD2ARV Specsheet
HD-SDI SERIES
HD-SDI SERIES
VB-2HDAR2V
High Definition Bullet Camera
Full
HD
0.00LUX
Key Features
Key Features
• Back Light Compensation
• Adaptvie Color & Contrast Enhancement
• EZoom
• Motion Detection
2D-3DNR
WDRBLC
OSD
12VDC
Specifications VB-2HDAR2V
Sensor 1/2.8” Panasonic CMOS
Total Pixels 1944(H) x 1092(V) = 2,122,848
Min.. Illumination 0.0 Lux
IR LED 5 x 72 pcs / IR Distance: 45M
Lens 2.8-12mm Auto Iris Varifocal
Video Output Level Composite Signal (1.0 Vp-p, 75)
Horizontal Resolution 2.4 Megapixel HD-SDI Analog
White Balance Auto
Back Light Compensation OFF/ON
Automatic Gain Control (AGC) Normal/High/Off
Sens UP OFF, ON (x2~x128)
3DNR OFF/ON
Digital Zoom x1 ~ x10
Standard HD-SDI SMPTE 292M compatible
Analgo CVBS Composite video output, 75Ohm, 1Vp-p
Ouput Resolution 1080P 30fps, 720P 60fps
Gain Control Auto
Gamma Correction 0.45Ω
Scanning System PAL: 625 Lines, 50 Field / sec.
NTSC: 525 Lines, 60 Field / sec.
Electronic Shutter Time Auto: PAL: 1/50-1/100,000 sec.
NTSC: 1/60-1/100,000 sec.
ENVIRONMENTAL
Operating Temperature 14°F ~ 122°F ( -10°C ~ +50°C )
Operating Humidity RH95% Max
IP Rating IP68
ELECTRICAL
Power Supply 12 VDC
Power Consumption Less than 150mA
PHYSICAL
Dimensions (W x D x H) 2.3” x 3.9” x 2.5” [ 6cm x 10cm x 6.5cm ]
Unit Weight 0.75 lb (0.340 kg)
Shipping Weight 0.95 lb (0.430 kg)
Recommended Accesories
• VPS-12810
• VPS-121630
