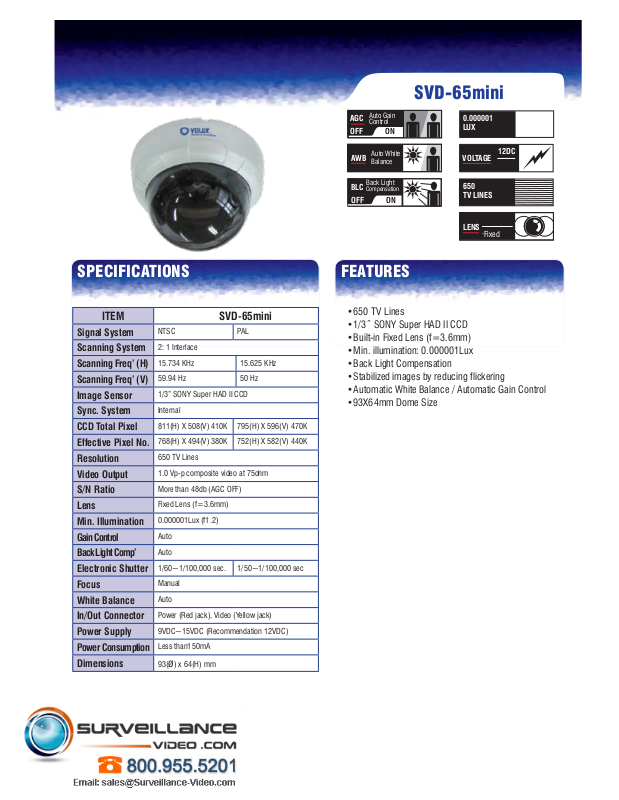

Veilux SVD-65MINI Specsheet

ITEM SVD-65mini

Signal System

NTSC PAL

Scanning System

2: 1 Interlace

Scanning Freq’ (H)

15.734 KHz 15.625 KHz

Scanning Freq’ (V)

59.94 Hz 50 Hz

Image Sensor

1/3” SONY Super HAD II CCD

Sync. System

Internal

CCD Total Pixel

811(H) X 508(V) 410K 795(H) X 596(V) 470K

Effective Pixel No.

768(H) X 494(V) 380K 752(H) X 582(V) 440K

Resolution

650 TV Lines

Video Output

1.0 Vp-p composite video at 75ohm

S/N Ratio

More than 48db (AGC OFF)

Lens

Fixed Lens (f=3.6mm)

Min. Illumination

0.000001Lux (f1.2)

Gain Control

Auto

Back Light Comp’

Auto

Electronic Shutter

1/60~1/100,000 sec. 1/50~1/100,000 sec

Focus

Manual

White Balance

Auto

In/Out Connector

Power (Red jack), Video (Yellow jack)

Power Supply

9VDC~15VDC (Recommendation 12VDC)

Power Consumption

Less than150mA

Dimensions

93(ø) x 64(H) mm

SVD-65mini

FEATURES

•650 TV Lines

•1/3˝ SONY Super HAD II CCD

•Built-in Fixed Lens (f=3.6mm)

•Min. illumination: 0.000001Lux

•Back Light Compensation

•Stabilized images by reducing flickering

•Automatic White Balance / Automatic Gain Control

•93X64mm Dome Size

SPECIFICATIONS

Auto Gain

AGC

Control

OFF ON

Auto White

AWB

Balance

Back Light

BLC

Compensation

OFF ON

0.000001
LUX

VOLTAGE

650
TV LINES

.

Vari-focal

LENS

.

Fixed

12DC

24AC
