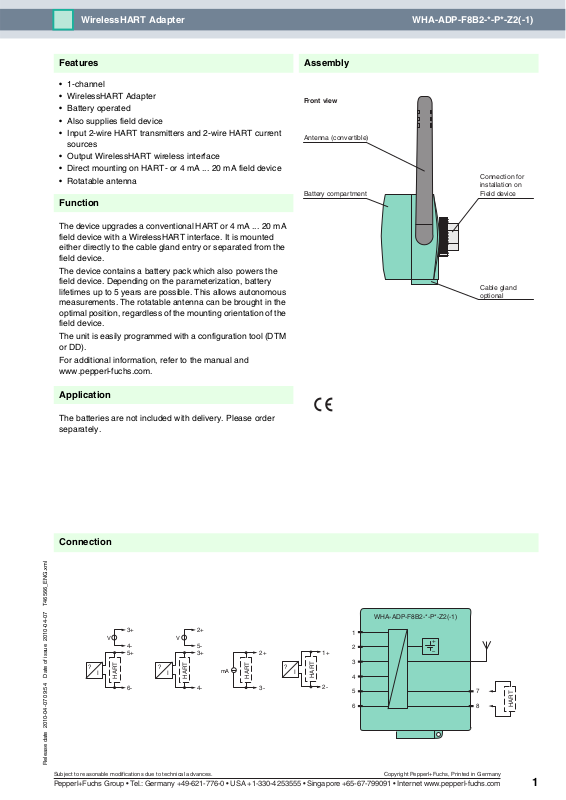

VEGA WHA-ADP-F8B2 User Manual

WirelessHART Adapter

WHA-ADP-F8B2-*-P*-Z2(-1)

Features

• 1-channel

• WirelessHART Adapter

• Battery operated

• Also supplies field device

• Input 2-wire HART transmitters and 2-wire HART current
sources

• Output WirelessHART wireless interface

• Direct mounting on HART- or 4 mA ... 20 mA field device

• Rotatable antenna

Function

The device upgrades a conventional HART or 4 mA ... 20 mA
field device with a WirelessHART interface. It is mounted
either directly to the cable gland entry or separated from the
field device.

The device contains a battery pack which also powers the
field device. Depending on the parameterization, battery
lifetimes up to 5 years are possible. This allows autonomous
measurements. The rotatable antenna can be brought in the
optimal position, regardless of the mounting orientation of the
field device.

The unit is easily programmed with a configuration tool (DTM
or DD).

For additional information, refer to the manual and
www.pepperl-fuchs.com.

Assembly

Front view

Antenna (convertible)

Battery compartment

Connection for
installation on
Field device

Cable gland
optional

Application

The batteries are not included with delivery. Please order
separately.

Connection

3+

V

4­5+

?

I

HART

6-

?

I

2+

V

5­3+

HART

mA

4-

2+

HART

3-

WHA-ADP-F8B2-*-P*-Z2(-1)

1

1+

?

I

HART

2-

2

3

4

5

6

+

–

7

8

HART

Release date 2010-04-07 09:54 Date of issue 2010-04-07 T46566_ENG.xml

Subject to reasonable modifications due to technical advances. Copyright Pepperl+Fuchs, Printed in Germany

Pepperl+Fuchs Group • Tel.: Germany [phone] • USA [phone] • Singapore [phone] • Internet www.pepperl-fuchs.com

1

Technical data WHA-ADP-F8B2-*-P*-Z2(-1)

Supply

Rated voltage 7.2 V DC , battery operated

Electrical specifications

Output rated operating current 4 ... 20 mA

Supply loop power for field devices

Input

Connectable field devices usable for:

Connection terminals 1, 2, 3, 4, 5, 6

Current 4 ... 20 mA

HART communication

Protocol HART 7.1, backward compatible

Number of devices - one passive 4 ... 20 mA/HART field device

Transfer rate 1200 Bit/s

Parameters primary/secondary master, preambles, retries and short address scan ranges

Output

Interface omnidirectional dipole antenna, adjustable in vertical plane

Output variables PV: loop current

Communication WirelessHART specifications

Transfer characteristics

Accuracy current input: 0.125 % of measuring range

Influence of ambient temperature current input: 5 µA/K

Indicators/settings

Display elements green LED: battry status

Controls 1 push botton for:

Configuration wired interface:

Parameter assignment - wireless transmit power: configurable to 0 dBm or 10 dBm (EIRP)

Directive conformity

Electromagnetic compatibility

Directive 2004/108/EC EN 61326-1:2006

Radio and telecommunication terminal
equipment

Directive 99/5/EC ETSI EN 300 328: V1.7.1 (2006-10), ETSI EN 301 489-17: V1.2.1 (2002-08), EN 60950:2001

Conformity

Protection degree IEC 60529

Shock resistance EN 60068-2-27

Vibration resistance EN 60068-2-64

Ambient conditions

Ambient temperature -40 ... 80 °C (-40 ... 176 °F)

Storage temperature -40 ... 85 °C (-40 ... 185 °F)

Release date 2010-04-07 09:54 Date of issue 2010-04-07 T46566_ENG.xml

Subject to reasonable modifications due to technical advances. Copyright Pepperl+Fuchs, Printed in Germany

Pepperl+Fuchs Group • Tel.: Germany [phone] • USA [phone] • Singapore [phone] • Internet www.pepperl-fuchs.com

voltage 8 ... 23 V DC, adjustable in steps of 0.1 V

- one point-to-point connection with a HART field device, or

- one point-to-point connection with a 4 ... 20 mA field device, or

- up to four externally powered HART field devices operating in multidrop mode

multiple wirings available , depending on operating mode

- up to 4 HART field devices in multidrop mode

SV, TV, QV:configurable according to user requirement

- adapter: temperature, battery voltage, energy consumed and estimated battery life-time

- 4 ... 20 mA device: scaled or linearized process value

- HART device: up to four process variables

- physical layer: IEEE 802.15.4.2006

- frequency band: 2.4 GHz (ISM band, licence free)

- transmission rate: 250 kBit/s

- max. transmit power: +10 dBm (EIRP)

- transmission range: outdoor 250 m, indoor 50 m (under reference conditions)

- communication standard: WirelessHART

yellow LED: communication status
red LED: device status

- device status

- enter/leave configuration mode

- join trigger

- factory reset

- HART 7.1, FSK compatible

- transmission rate: 1200 Bit/s

- used for device commissioning with an handheld terminal or a configuration tool (DTM)

- device variables mapping

- publishing of up to ten burst messages in a wireless network, period and trigger mode selectable

- notification of up to five events from adapter and/or connected device(s) in a wireless network

- scaling and linearization of 4 ... 20 mA signal of connected analog device

- tuning of supply parameters for the connected device

- locking/unlocking of device parameterization

2
