Operating Instructions
Electronics module
VEGAWAVE series 60
Contents
Contents
1 About this document
1.1 Function .............................
1.2 Target group ..........................
1.3 Symbolism used .......................
2 For your safety
2.1 Authorised personnel....................
2.2 Appropriate use........................
2.3 Safety instructions for Ex areas ............
2.4 Environmental instructions ................
3 Product description
3.1 Configuration..........................
3.2 Principle of operation ....................
3.3 Storage and transport ...................
4 Mounting
4.1 Mounting instructions....................
4.2 Mounting preparations ...................
4.3 Mounting steps ........................
5 Setup
5.1 Setup ...............................
3
3
3
4
4
4
4
5
5
5
6
6
6
8
6 Maintenance
6.1 Instrument repair .......................
7 Dismounting
7.1 Dismounting procedure ..................
7.2 Disposal .............................
8 Supplement
8.1 Technical data.........................
2 Electronics module - VEGAWAVE series 60
10
10
11
9
32356-EN-060822
About this document
1 About this document
1.1 Function
This operating instructions manual has all the information you
need for quick mounting and setup of a replacement
component. Please read this manual before you start setup.
1.2 Target group
This operating instructions manual is directed to trained,
qualified personnel. The contents of this manual should be
made available to these personnel and put into practice by
them.
1.3 Symbolism used
Information, tip, note
This symbol indicates helpful additional information.
Caution: If this warning is ignored, faults or
malfunctions can result.
Warning: If this warning is ignored, injury to persons and/or
serious damage to the instrument can result.
Danger: If this warning is ignored, serious injury to persons
and/or destruction of the instrument can result.
Ex applications
This symbol indicates special instructions for Ex applications.
l List
The dot set in front indicates a list with no implied sequence.
à Action
This arrow indicates a single action.
1 Sequence
Numbers set in front indicate successive steps in a procedure.
32356-EN-060822
Electronics module - VEGAWAVE series 60 3
For your safety
2 For your safety
2.1 Authorised personnel
All operations described in this operating instructions manual
must be carried out only by trained specialist personnel
authorised by the operator. For safety and warranty reasons,
any internal work on the instruments must be carried out only
by personnel authorised by the manufacturer.
2.2 Appropriate use
Oscillator WE 60 is a replacement oscillator for VEGAWAVE
series 60 vibrating level switches.
2.3 Safety instructions for Ex areas
Please note the Ex-specific safety information for installation
and operation in Ex areas. These safety instructions are part of
the operating instructions manual and come with the Exapproved instruments.
2.4 Environmental instructions
Protection of the environment is one of our most important
duties. That is why we have introduced an environment
management system with the goal of continuously improving
company environmental protection. The environment management system is certified according to DIN EN ISO 14001.
Please help us fulfil this obligation by observing the environmental instructions in this manual:
l Chapter "Storage and transport"
l Chapter "Disposal"
4 Electronics module - VEGAWAVE series 60
32356-EN-060822
3 Product description
3.1 Configuration
Product description
Scope of delivery
Area of application
Packaging
Storage and transport tem-
perature
The scope of delivery encompasses:
l Electronics module for VEGAWAVE series 60 (WE 60)
l Documentation
- this operating instructions manual
3.2 Principle of operation
The oscillator WE 60 is suitable for replacement in VEGAWAVE series 60 vibrating level switches.
3.3 Storage and transport
Your instrument was protected by packaging during transport.
Its capacity to handle normal loads during transport is assured
by a test according to DIN EN 24180.
The packaging of standard instruments consists of environ-
ment-friendly, recyclable cardboard. For special versions, PE
foam or PE foil is also used. Dispose of the packaging material
via specialised recycling companies.
l Storage and transport temperature see "Supplement -
Technical data - Ambient conditions"
l Relative humidity 20 … 85 %
32356-EN-060822
Electronics module - VEGAWAVE series 60 5
Mounting
4 Mounting
4.1 Mounting instructions
If the electronics module is defective, it can be replaced by the
user.
In Ex applications, only an instrument and an electronics
module with appropriate Ex approval may be used.
4.2 Mounting preparations
In general, all oscillators of series WE 60 can be interchanged.
If you want to use an oscillator with a different signal output,
you can download the corresponding operating instructions
manual from our homepage under Downloads.
4.3 Mounting steps
Mounting steps
Proceed as follows to exchange the electronics module:
1 Switch off power supply
2 Unscrew the housing cover
3 Lift the opening levers of the terminals with a screwdriver
4 Pull the connection cables out of the terminals
5 Loosen the two screws with a screw driver (Torx size T10
or slot 4)
1
2

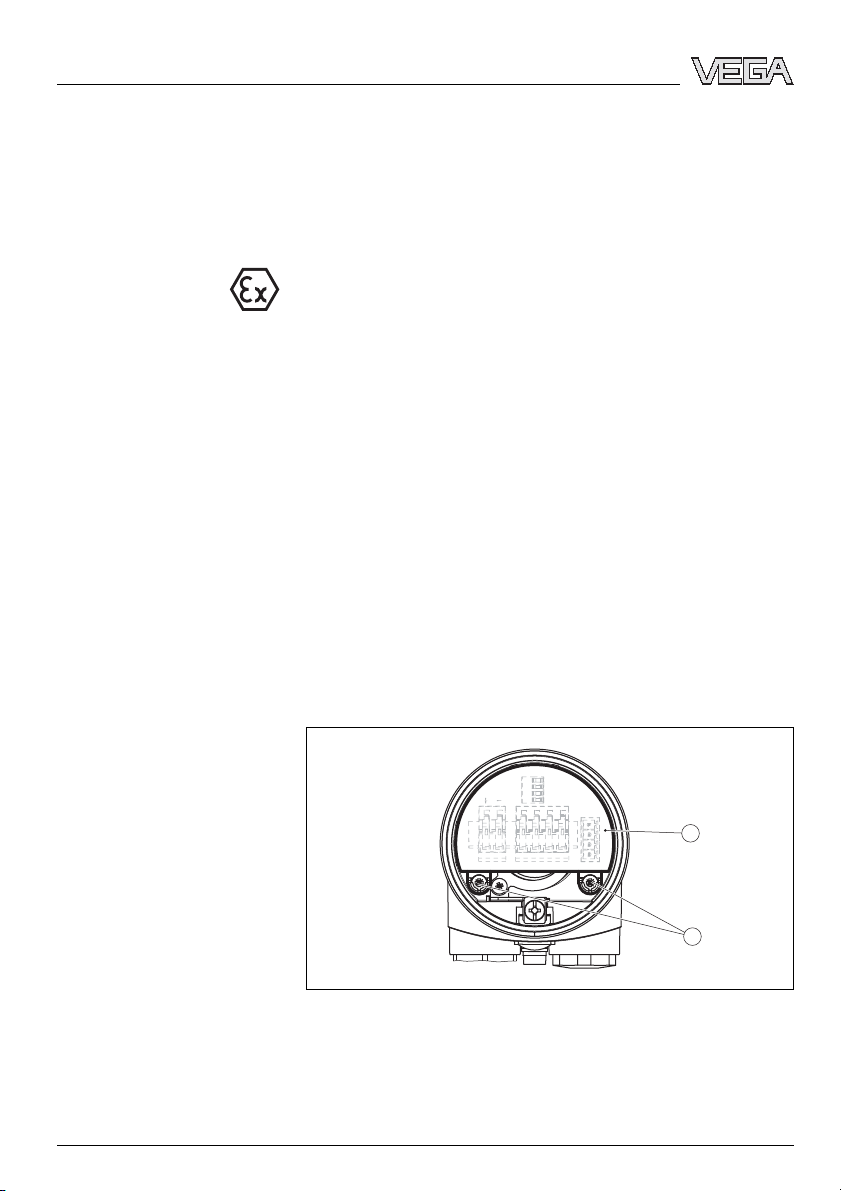

Fig. 1: Loosen the screws
1 Electronics module
2 Screws (2 pcs.)
6 Remove the old oscillator
32356-EN-060822
6 Electronics module - VEGAWAVE series 60
Mounting
7 Compare the new oscillator with the old one. The type label
of the oscillator must correspond to that of the old
oscillator. This applies particularly to instruments used in
hazardous areas.
8 Compare the settings of the two oscillators. Set the
adjustment elements of the new oscillator to the same
setting of the old one.
Information:
Make sure that the housing is not rotated during the electronics
exchange. Otherwise the plug may be in a different position
later.
9 Insert the oscillator carefully. Make sure that the plug is in
the correct position.
10 Insert the two hold screws and tighten them
11 Insert the wire ends into the open terminals according to
the wiring plan
12 Press the opening lever of the terminals downward, you will
hear the terminal spring closing
13 Check the hold of the wires in the terminals by lightly
pulling on them
14 Check the tightness of the cable entry. The seal ring must
completely encircle the cable.
15 Screw the housing cover back on
The electronics exchange is hence terminated.
As a rule, the exchange of the electronics must be
documented internally when used in Ex applications.
32356-EN-060822
Electronics module - VEGAWAVE series 60 7
Setup
5 Setup
5.1 Setup
Setup
When replacing the oscillator, make sure that all adjustment
elements are set to the settings of the old oscillator. Hence the
sensor is immediately ready for operation.
In general, all oscillators of series WE 60 can be interchanged.
If you want to use an oscillator with a completely different
signal output, you have to carry out the complete setup.
The necessary, suitable operating instructions manual can be
downloaded from our homepage under Downloads.
The adjustment should be carried out acc. to the description in
the operating instructions manual.
8 Electronics module - VEGAWAVE series 60
32356-EN-060822
Maintenance
6 Maintenance
6.1 Instrument repair
If a repair is necessary, please proceed as follows:
You can download a return form (23 KB) in the Internet from
our homepage
and Certificates - Repair form".
By doing this you help us carry out the repair quickly and
without having to call back for needed information.
l Print and fill out one form per instrument
l Clean the instrument and pack it damage-proof
l Attach the completed form and possibly also a safety data
sheet to the instrument
l Please contact the agency serving you for the address of
the return shipment
www.vega.com under: "Downloads - Forms
32356-EN-060822
Electronics module - VEGAWAVE series 60 9
Dismounting
7 Dismounting
7.1 Dismounting procedure
Take note of chapters "Mounting" and "Connecting to power
supply" and carry out the listed steps in reverse order.
7.2 Disposal
The replacement component consists of materials which can
recycled by specialised recycling companies. We have
purposely designed the electronic modules to be easily
separable.
WEEE directive 2002/96/EG
This replacement component is not subject to the WEEE
directive 2002/96/EG and the respective national laws (in
Germany, e.g. ElektroG). Pass the replacement component
directly on to a specialised recycling company and do not use
the municipal collecting points. They may only be used for
privately used products acc. to the WEEE directive.
Correct disposal avoids negative effects to persons and
environment and ensures recycling of useful raw materials.
Materials: see "Technical data"
If you cannot dispose of the replacement component properly,
please contact us about disposal methods or return.
10 Electronics module - VEGAWAVE series 60
32356-EN-060822
8 Supplement
8.1 Technical data
Technical data
are stated in the operating instructions manual of the appropriate sensor.
Supplement
32356-EN-060822
Electronics module - VEGAWAVE series 60 11
VEGA Grieshaber KG
Am Hohenstein 113
77761 Schiltach
Germany
Phone +49 7836 50-0
Fax +49 7836 50-201
E-mail: info@de.vega.com
www.vega.com
ISO 9001
All statements concerning scope of delivery, application,
practical use and operating conditions of the sensors and
processing systems correspond to the information avail-
able at the time of printing.
© VEGA Grieshaber KG, Schiltach/Germany 2006
Subject to change without prior notice 32356-EN-060822
