VEC-820KC Assembly Manual Super CW Audio Filter
INTRODUCTION
Thank you for purchasing the matching VEC-820KC Enclosure Kit. The VEC820KC is the all metal case for the VEC-820K CW Filter Kit. The VEC-820KC
consists of the full metal enclosure and all necessary hardware, including rubber
feet for making the installation of the VEC-820K quick and easy.
TOOLS AND SUPPLIES
Universal Kit-building Tools: Although your particular kit may require
additional items to complete, virtually all construction projects require a work
area outfitted with the following tools and supplies:
! 30-60 watt Soldering Iron
! High-temperature Iron Holder with a Moist Cleaning Sponge
! Rosin-core Solder (thin wire-size preferred)
! Needle Nose Pliers or Surgical Hemostats
! Diagonal Cutters or "Nippy Cutters"
! Wire Strippers
! Solder Sucker, Vacuum Pump, or Desoldering Braid
! Bright Desk Lamp
! Magnifying Glass
! 1/4" Nut Driver
! Small Phillips Screwdriver
! 7/16" and 1/2"open end wrenches
1
VEC-820KC Assembly Manual Super CW Audio Filter
PARTS LIST
The Parts List below is for the VEC-820KC. Please inventory all parts before
beginning case construction.

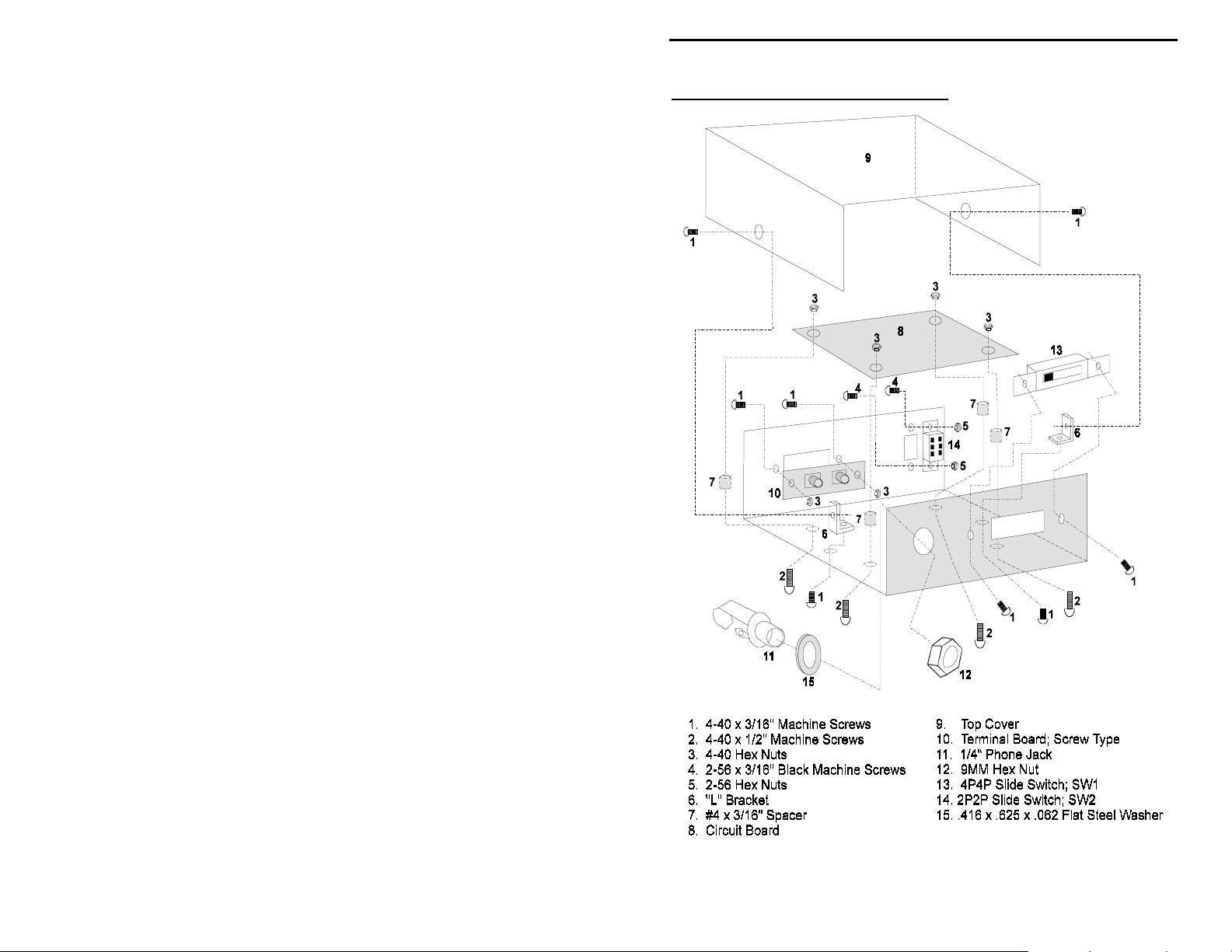

Parts List
"
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
In addition to the above pieces of hardware, you should still have a thin steel flat
washer, a 3/8" hex nut and the screws for the slide switch wired to the circuit
board. These parts were left over from the VEC-820K kit. You were asked not
to discard them, that they will be needed when you installed the circuit board in
an enclosure. If possible, you need to locate them.
Qty. Part Description
1 VEC-820K Cabinet Chassis
1 VEC-820K Cabinet Cover
1 Kit Decal Set; VEC-820
1 Flat Metal Washer; .416"x.625"x.062"
1 9MM Hex Nut
2 2-56 x 3/16" Machine Screws
2 2-56 Hex Nuts
6 4-40 Hex Nuts
1 Slide Switch; DPDT, 125VAC 3 Amp
1 1/4" Mono Phone Jack
1 Screw-on terminal Strip
1 Angled Solder Lug
1 1" x 1" Double -Sided Tape
4 Round Rubber Feet
2 Small Tapped "L" Brackets
6 4-40 x 3/16" Phillips Machine Screws
4 #4 x 3/16" Round Aluminum Spacers
4 4-40 x 1/2" Phillips Machine Screws
