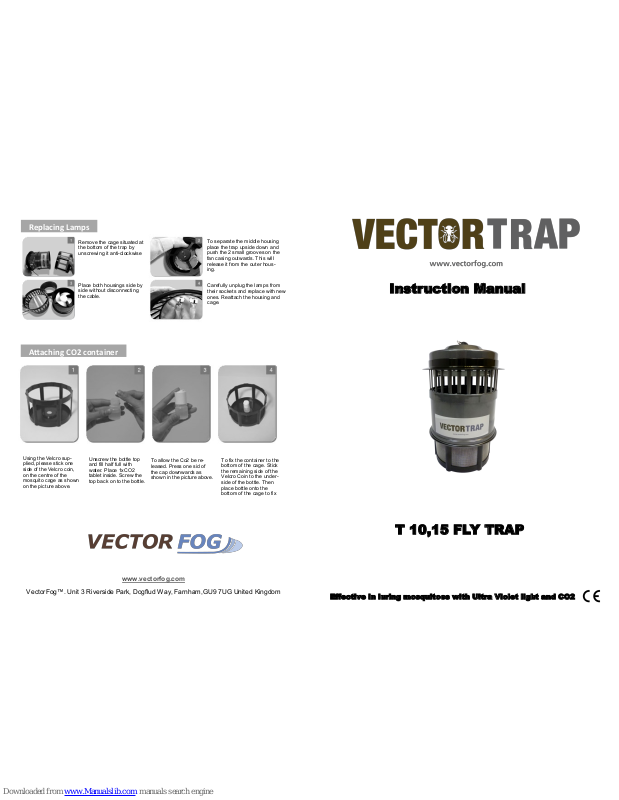

Vector Fog T 10, T 15 Instruction Manual

T 10,15 FLY TRAP

Instruction Manual

Effective in luring mosquitoes with Ultra Violet light and CO2

www.vectorfog.com

VectorFog™. Unit 3 Riverside Park, Dogflud Way, Farnham,GU9 7UG United Kingdom

Replacing Lamps

Remove the cage situated at
the bottom of the trap by
unscrewing it anti-clockwise

Place both housings side by
side without disconnecting
the cable.

To separate the middle housing
place the trap upside down and
push the 2 small grooves on the
fan casing outwards. This will
release it from the outer hous­ing.

Carefully unplug the lamps from
their sockets and replace with new
ones. Reattach the housing and
cage.

Aaching CO2 container

Using the Velcro sup­plied, please stick one
side of the Velcro coin,
on the centre of the
mosquito cage as shown
on the picture above.

Unscrew the bottle top
and fill half full with
water. Place 1xCO2
tablet inside. Screw the
top back on to the bottle.

To allow the Co2 be re­leased. Press one sid of
the cap downwards as
shown in the picture above.

To fix the container to the
bottom of the cage. Stick
the remaining side of the
Velcro Coin to the under­side of the bottle. Then
place bottle onto the
bottom of the cage to fix

VECTORTRAP TM ADVANCED MOSQUITO TRAP

Mosquitoes can be a real nuisance and their bites can cause irritation of the skin
including itching, redness and swelling. Mosquitoes are also vector carriers for
many diseases affecting humans and livestock. These include dengue, Yellow
Fever and Malaria.

Effective up 150m2, the Vectortrap

tm

T10&15 can help control the population of
mosquitoes and other small flying insects such as fruit flies and midges in food
restaurants, shops, public facilities, patio areas, greenhouses, stables and gar­dens.

HOW DOES IT WORK?

SPECIFICATIONS

FEATURES

1. Designed for indoor and Outdoor use

2. Ultra Violet and CO2 Lure

3. Low Noise

4. Easy to set up

The vectortraptm T10&15 trap works by luring the flying insects to the trap via UV
light &CO2 gas which replicates human or animal breath. Once the insects are in
catching distance, an electric fan sucks the insects into a mesh net.

This UV system is also Less noisy and cleaner than conventional Ultraviolet zap­pers. Our trap is ideal for bars& restaurants, patio areas and greenhouses.

Model T10 T15

Size Ø24x32cm Ø24x32cm

BL lamps 4Wx2(Quartz) 4Wx2(Quartz)

Electricity 220V, 60HZ 220V, 60HZ

Effective Area 99m²~150m² 99m²~150m²

Consumption 22W 22W

Material ABC ABC

CAUTION

1. Keep out of reach of children

2. Disconnect power before cleaning or servicing the trap.

3. Do not hang trap from the power cord.

4. Do not immerse the trap in water.

5. Do not operate the trap with a damaged power cord or plug.

6. Plug the trap correct voltage supply

7. Read and follow the instructions in this manual before operating the Trap.

WHERE TO PLACE THE TRAP

1. The Vectortrap T10&15 can be
used for indoor or outdoor.

2. Place the trap in a shaded area
protected from strong wind.

3. Using the wall hook and chain
provided hang the Vectortrap 1.5
~ 2m from the ground.

FITTING INSTRUCTIONS

1.Remove the trap from the carton box.

2. Once in place, unscrew the bottom housing (mesh cage and place the glue board

on the bottom.

3. Following the instructions for adding the CO2 on the back of this manual, fix the

bottle to the bottom housing as shown.

4. once the glue board and CO2 canister are fixed to the bottom housing, screw the

bottom housing back in place.

5. Plug the trap to the mains.
