Page 1
Please read this manual before using the equipment.
You must wear protective equipment (face/breathing mask, protective clothing, gloves,
etc.) when handling potentially hazardous chemicals.
It is advisable to wear ear plugs to protect the user from the high noise produced by the
machine
The interior of the machine heats up to extremely high temperatures. Do not add fuel or
chemicals during the operation of the machine or when it is hot after use.
Avoid fogging chemicals upwind.
Flammable butane gas (Cartridge Type)
Experts in Fogging Technology™
www.plagasexpress.com

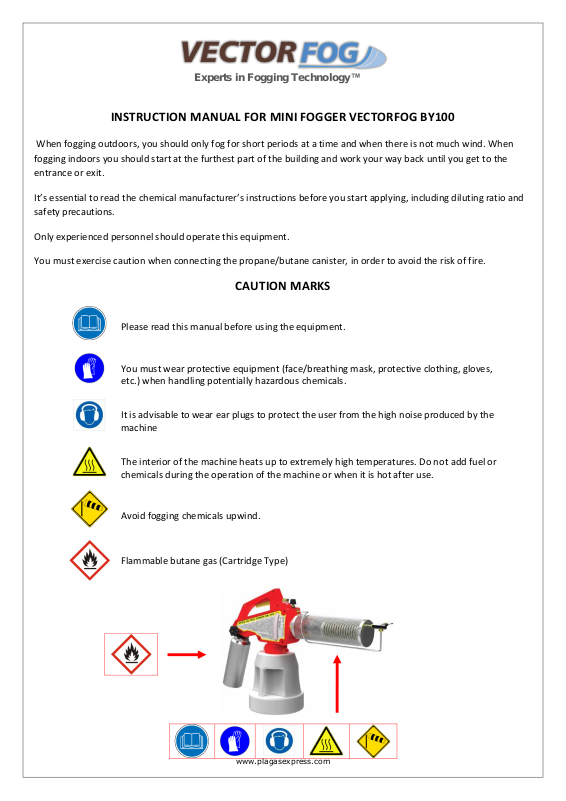

INSTRUCTION MANUAL FOR MINI FOGGER VECTORFOG BY100
When fogging outdoors, you should only fog for short periods at a time and when there is not much wind. When
fogging indoors you should start at the furthest part of the building and work your way back until you get to the
entrance or exit.
It’s essential to read the chemical manufacturer’s instructions before you start applying, including diluting ratio and
safety precautions.
Only experienced personnel should operate this equipment.
You must exercise caution when connecting the propane/butane canister, in order to avoid the risk of fire.

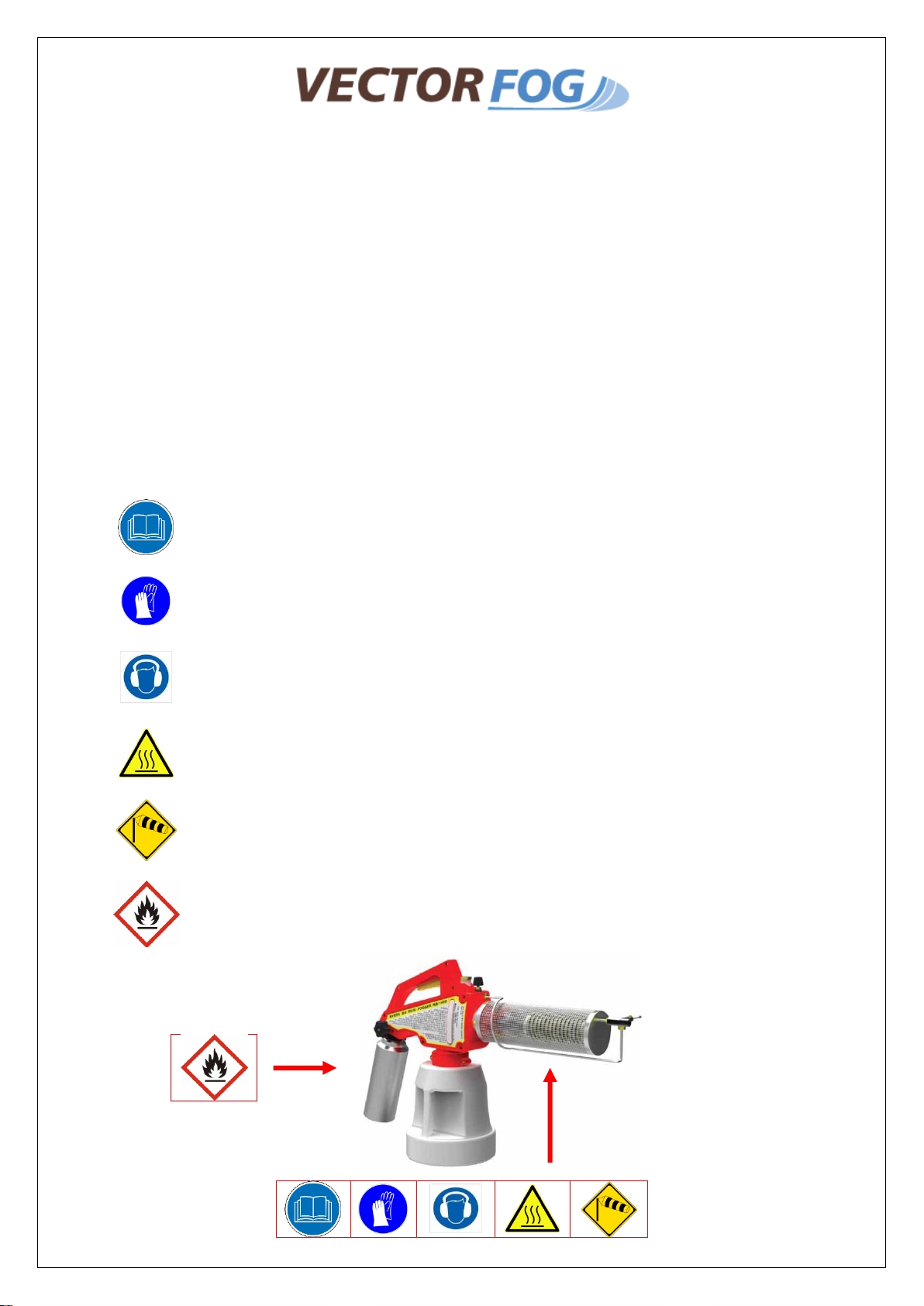

CAUTION MARKS
Page 2

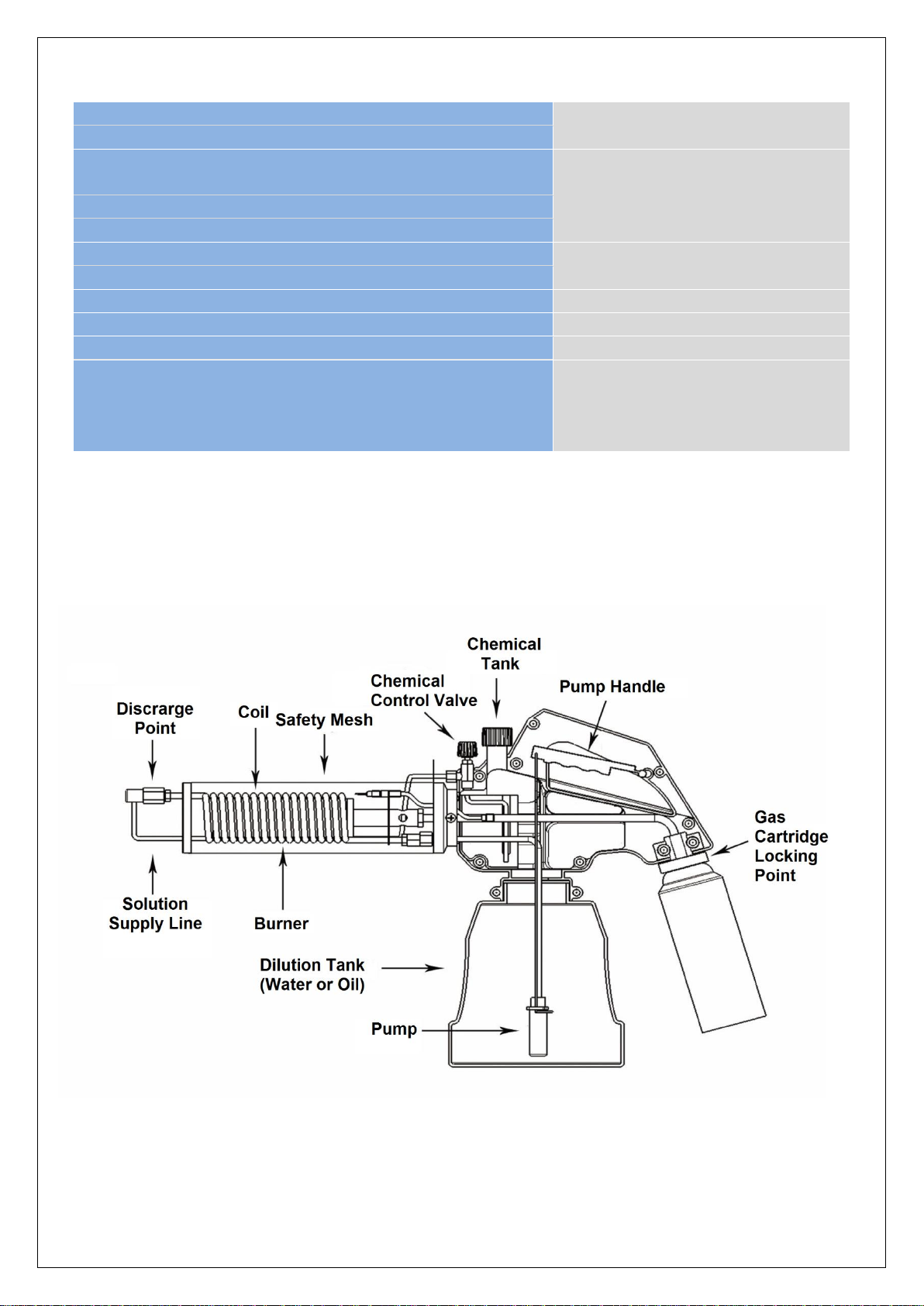

SPECIFICATIONS
Model
Mini Fogger BY-100
Dilutant Tank (Water or Oil)
2.8 Litres
Chemical Tank
(dilute chemical with a little oil or water to help emulsify)
400 ml
Fogging
Duel Function: Water or Oil Fogging
Flow Rate
2 LPH
Fuel
Propane/Butane Gas Cartridge
Chemical Output
1-5 Litres
Net Weight
1.70 Kg
Gross Weight
2.50 Kg
Dimension
610 x 175 x 400 (mm)
Accessories
1. Mini Fogger BY-100
2. Plastic Pump
3. Shoulder Strap
4. Manual
www.plagasexpress.com
VectorFog™ Mini Foggers are powered by a standard propane or butane gas cartridge. The gas is ignited by
a pietzo and the gas heats a metal coil tube. The water or oil dilutant is then heated and mixed with the
chemical to create a fog or mist. Thanks to its portability, the Mini fogger is ideal for fogging pesticides and
disinfectants in a multitude of locations such as in homes, patios, parks, silos, chicken coops and
greenhouses.
Page 3

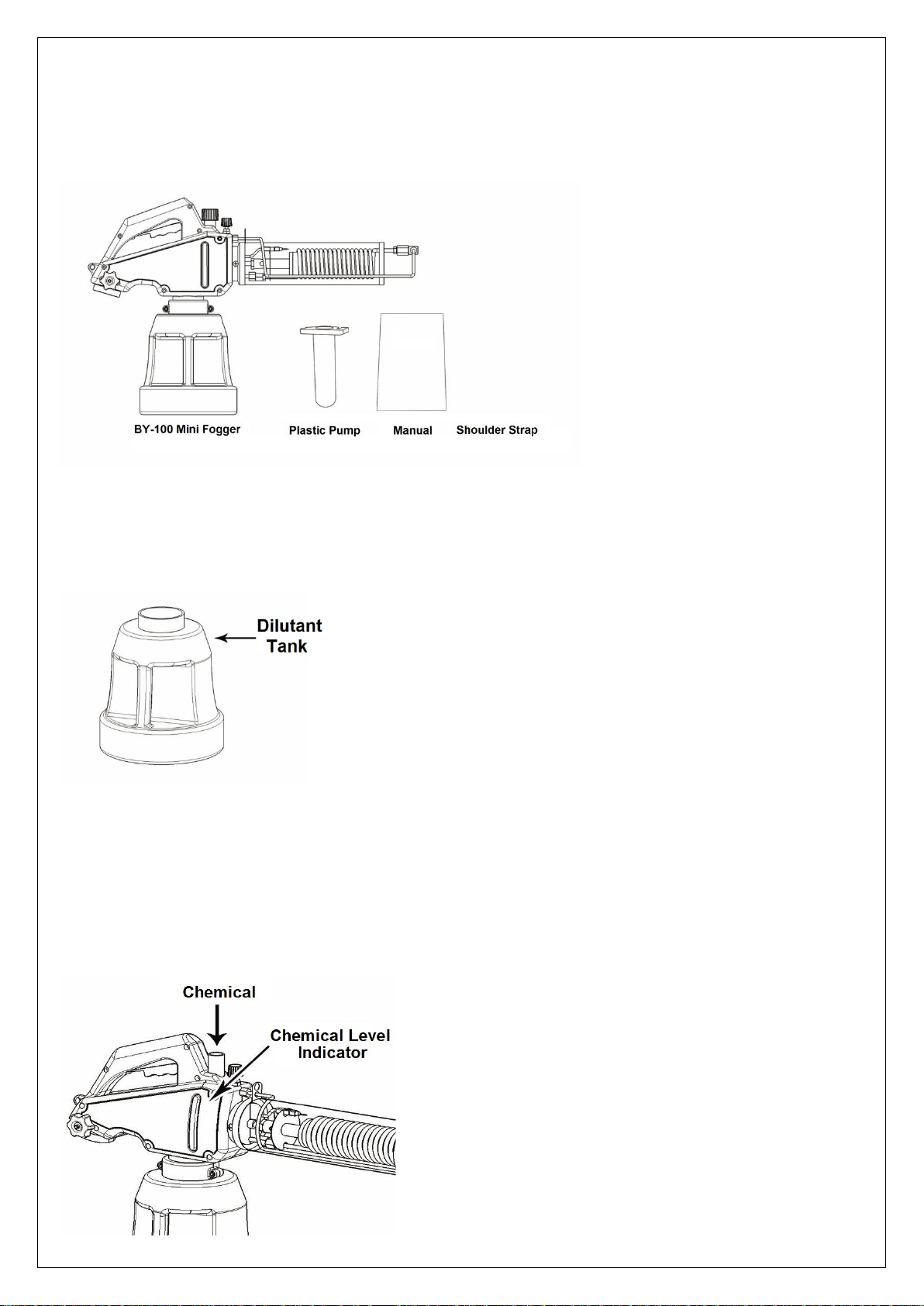

CHECKLIST BEFORE STARTING THE UNIT
www.plagasexpress.com
Unpacking the unit
When unpacking the unit, please make sure that that the machine is not damaged and that all the accessories
mentioned in this manual are not missing.
Fill the fuel tank
Unscrew the tank anticlockwise from the main body. Fill the tank with the dilutant of your choice. Water for water
based fogging or oil for oil based fogging. Do not to add more dilutant than it’s needed. Do not overfill the tank.
When you finish filling the tank, screw the tank tightly back to the main body in a clockwise direction.
Fill the chemical tank
Premix chemical with an oil or water based emulsifier prior to filling the chemical tank. Please refer to chemical
manufacturers instructions for correct ratio. Fill the special chemical mixture into the chemical tank. It is important
not to add more chemical mixture than it’s needed. Please check level on the window located on the side of the
machine. Maximum Level is 350ml.Leaving remaining chemicals in the tank after use could affect the performance of
the machine in the following session as deposits may solidify. When you finish filling the tank, close the tank cap
tightly.
Page 4

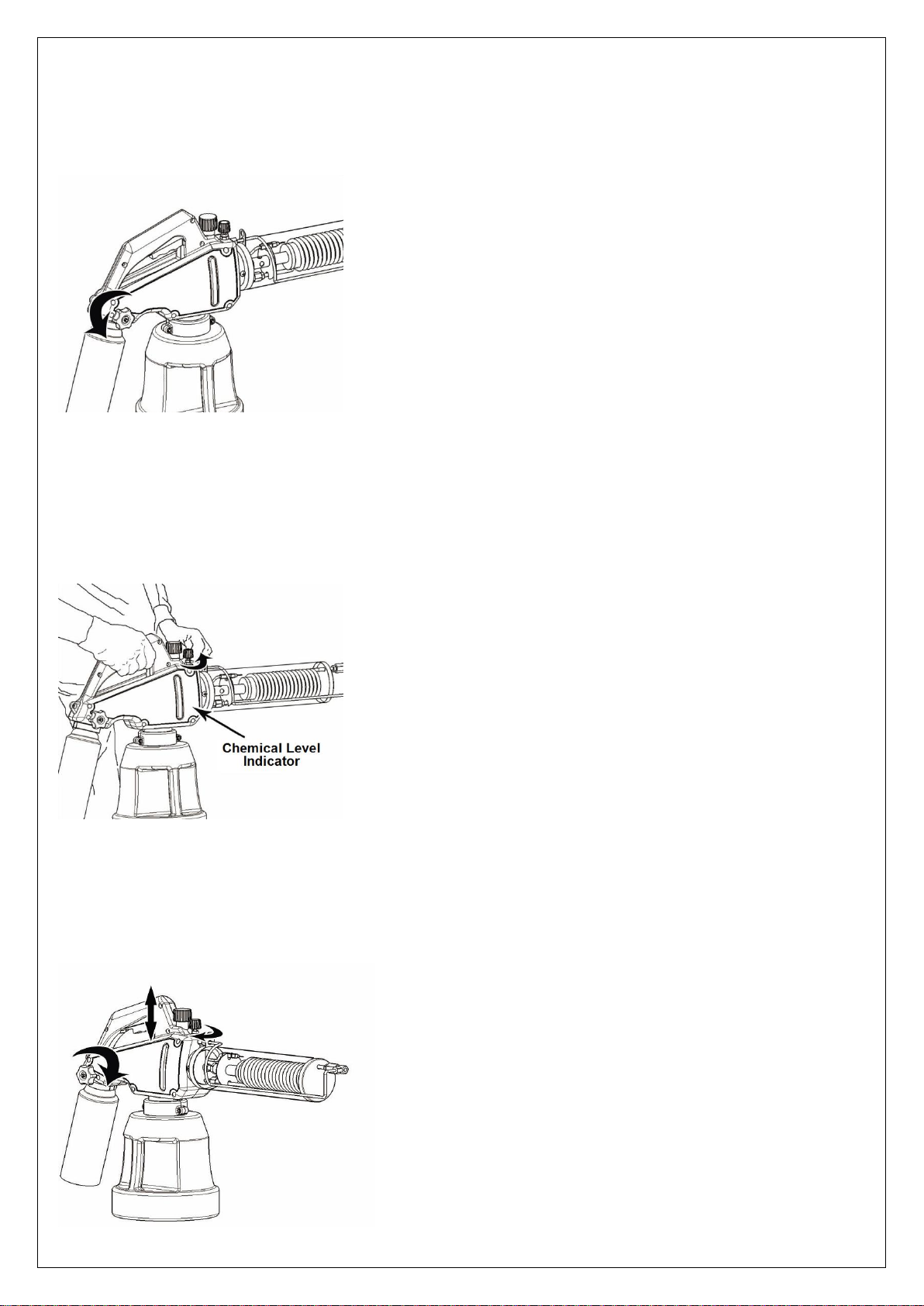

To turn on the machine
www.plagasexpress.com
Connect the propane/butane gas cartridge to the main body. Make sure is locked into position. Turn the gas supply
on by turning the valve anticlockwise, as shown in the diagram below. To start the machine, press the ignition switch
located on the left hand side of the machine. It is necessary to keep the machine on for about 10 seconds (if water
fogging) and/or 30 seconds (if oil fogging) to warm up before opening the chemical valve.
To start fogging
Once the machine has warmed to the required temperature, turn the chemical valve anticlockwise as shown in the
diagram below and press the trigger to start fogging. When the trigger is released, the fogging will pause. Note.
When oil fogging, please make sure all the oil has been consumed. Any oil still left in the coil after use could cause it
to block and not work on the next session.
To turn off the machine
Release the trigger. Turn the chemical supply valve clockwise to stop the supply of chemical. Turn off the gas supply
by turning the valve clockwise as shown on the diagram below. Remove gas cartridge. Note: When storing the
machine, please make sure no dilutant or chemicals are left in the tank.
