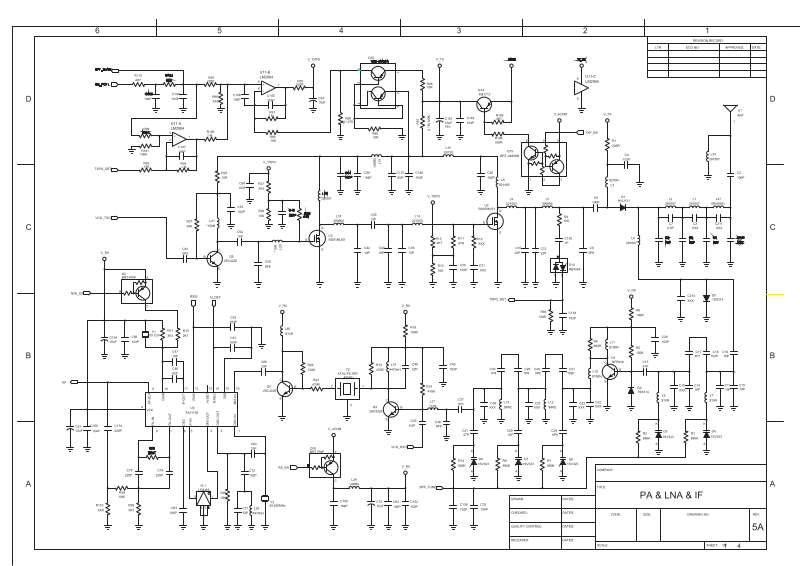

Page 1
Page 2
Page 3
Page 4
Page 5
Edited by Foxit PDF Editor
Copyright (c) by Foxit Software Company, 2004 - 2007
For Evaluation Only.
VECTOR VT-44 PRO
Page 6
VECTOR VT-44 PRO
Edited by Foxit PDF Editor
Copyright (c) by Foxit Software Company, 2004 - 2007
For Evaluation Only.
Page 7
Edited by Foxit PDF Editor
Copyright (c) by Foxit Software Company, 2004 - 2007
For Evaluation Only.
VECTOR VT-44 PRO
Page 8
VECTOR VT-44 PRO
Edited by Foxit PDF Editor
Copyright (c) by Foxit Software Company, 2004 - 2007
For Evaluation Only.
Page 9
Edited by Foxit PDF Editor
Copyright (c) by Foxit Software Company, 2004 - 2007
For Evaluation Only.
|---------------------------------------------------------------------------------|
VEKTOR VT-44 PRO
|---------------------------------------------------------------------------------|
|Item|Reference |Part Name |Manufacture|Value |Voltage R|Qtyg|
|----+--------------+-------------------+-----------+--------------+---------+----|
|1 |C1 |CAP0603,10P | |10P | |1 |
|2 |C2 |CAP0603,100P | |100P | |1 |
|3 |C3 |CAP0603,XXX | |XXX | |1 |
|4 |C4 |CAP0603,102P | |102P | |1 |
|5 |C5 |CAP0603,10P | |10P | |1 |
|6 |C6 |CAP0603,10P | |10P | |1 |
|7 |C7 |CAP0603,0.5P | |0.5P | |1 |
|8 |C8 |CAP0603,100P | |100P | |1 |
|9 |C9 |CAP0603,5P6 | |5P6 | |1 |
|10 |C10 |CAP0603,XXX | |XXX | |1 |
|11 |C11 |CAP0603,10P | |10P | |1 |
|12 |C12 |CAP0603,22P | |22P | |1 |
|13 |C13 |CAP0603,47P | |47P | |1 |
|14 |C14 |CAP0603,10P | |10P | |1 |
|15 |C15 |CAP0603,10P | |10P | |1 |
|16 |C16 |CAP0603,22P | |22P | |1 |
|17 |C17 |CAP0603,4P7 | |4P7 | |1 |
|18 |C18 |CAP0603,102P | |102P | |1 |
|19 |C19 |CAP0603,18P | |18P | |1 |
|20 |C20 |CAP0603,102P | |102P | |1 |
|21 |C21 |CAP0603,102P | |102P | |1 |
|22 |C22 |CAP0603,XXX | |XXX | |1 |
|23 |C23 |CAP0603,XXX | |XXX | |1 |
|24 |C24 |CAP0603,6P8 | |6P8 | |1 |
|25 |C25 |CAP0603,1P8 | |1P8 | |1 |
|26 |C26 |CAP0603,5P6 | |5P6 | |1 |
|27 |C27 |CAP0603,XXX | |XXX | |1 |
|28 |C28 |CAP0603,102P | |102P | |1 |
|29 |C29 |CAP0603,33P | |33P | |1 |
|30 |C30 |CAP0603,102P | |102P | |1 |
|31 |C31 |CAP0603,XXX | |XXX | |1 |
|32 |C32 |CAP0603,104P | |104P | |1 |
|33 |C33 |CAP0603,1P8 | |1P8 | |1 |
|34 |C34 |CAP\TC,10uF | |10uF |10V |1 |
|35 |C35 |CAP0603,15P | |15P | |1 |
|36 |C36 |CAP0603,6P8 | |6P8 | |1 |
|37 |C37 |CAP0603,3P3 | |3P3 | |1 |
|38 |C38 |CAP0603,XXX | |XXX | |1 |
|39 |C39 |CAP0603,15P | |15P | |1 |
|40 |C40 |CAP0603,18P | |18P | |1 |
|41 |C41 |CAP0603,27P | |27P | |1 |
|42 |C42 |CAP0603,10P | |10P | |1 |
|43 |C43 |CAP0603,0.5P | |0.5P | |1 |
|44 |C44 |CAP0603,102P | |102P | |1 |
|45 |C45 |CAP0603,102P | |102P | |1 |
|46 |C46 |CAP0603,82P | |82P | |1 |
|47 |C47 |CAP0603,10P | |10P | |1 |
|48 |C48 |CAP0603,22P | |22P | |1 |
|49 |C49 |CAP0603,102P | |102P | |1 |
|50 |C50 |CAP0603,102P | |102P | |1 |
|51 |C51 |CAP0603,104P | |104P | |1 |
|52 |C52 |CAP0603,104P | |104P | |1 |
|53 |C53 |CAP0603,102P | |102P | |1 |
|54 |C54 |CAP0603,15P | |15P | |1 |
|55 |C55 |CAP0603,6P8 | |6P8 | |1 |
|56 |C56 |CAP0603,104P | |104P | |1 |
|57 |C57 |CAP\TC,10uF | |10uF |10V |1 |
|58 |C58 |CAP0603,104P | |104P | |1 |
|59 |C59 |CAP0603,102P | |102P | |1 |
|60 |C60 |CAP0603,33P | |33P | |1 |
|61 |C61 |CAP0603,6P8 | |6P8 | |1 |
1
Page 10
Edited by Foxit PDF Editor
Copyright (c) by Foxit Software Company, 2004 - 2007
For Evaluation Only.
|62 |C62 |CAP0603,104P | |104P | |1 |
|63 |C63 |CAP0603,104P | |104P | |1 |
|64 |C64 |CAP0603,33P | |33P | |1 |
|65 |C65 |CAP0402,10P | |10P | |1 |
|66 |C66 |CAP0402,10P | |10P | |1 |
|67 |C67 |CAP0402,105P | |105P | |1 |
|68 |C68 |CAP0402,102P | |102P | |1 |
|69 |C69 |CAP0402,8P2 | |8P2 | |1 |
|70 |C70 |CAP0402,12P | |12P | |1 |
|71 |C71 |CAP0603,33P | |33P | |1 |
|72 |C72 |CAP0603,102P | |102P | |1 |
|73 |C73 |CAP\TC,10uF | |10uF |10V |1 |
|74 |C74 |CAP0603,220P | |220P | |1 |
|75 |C75 |CAP0603,220P | |220P | |1 |
|76 |C76 |CAP0402,102P | |102P | |1 |
|77 |C77 |CAP0402,XXX | |XXX | |1 |
|78 |C78 |CAP0402,8P2 | |8P2 | |1 |
|79 |C79 |CAP0402,10P | |10P | |1 |
|80 |C80 |CAP0402,0.5P | |0.5P | |1 |
|81 |C81 |CAP0402,15P | |15P | |1 |
|82 |C82 |CAP0402,100P | |100P | |1 |
|83 |C83 |CAP0402,102P | |102P | |1 |
|84 |C84 |CAP0402,0.5P | |0.5P | |1 |
|85 |C85 |CAP0402,0.5P | |0.5P | |1 |
|86 |C86 |CAP0402,8P2 | |8P2 | |1 |
|87 |C87 |CAP0402,12P | |12P | |1 |
|88 |C88 |CAP0402,10P | |10P | |1 |
|89 |C89 |CAP0402,12P | |12P | |1 |
|90 |C90 |CAP0402,4P7 | |4P7 | |1 |
|91 |C91 |CAP0402,XXX | |XXX | |1 |
|92 |C92 |CAP0402,6P8 | |6P8 | |1 |
|93 |C93 |CAP0402,102P | |102P | |1 |
|94 |C94 |CAP0402,105P | |105P | |1 |
|95 |C95 |CAP0603,103P | |103P | |1 |
|96 |C96 |CAP0603,105P | |105P | |1 |
|97 |C97 |CAP0603,103P | |103P | |1 |
|98 |C98 |CAP0603,104P | |104P | |1 |
|99 |C99 |CAP\TC,4.7uF | |4.7uF |10V |1 |
|100 |C100 |CAP\TC,0.22uF | |0.22uF |16V |1 |
|101 |C101 |CAP\TC,0.22uF | |0.22uF |16V |1 |
|102 |C102 |CAP\TC,0.22uF | |0.22uF |16V |1 |
|103 |C103 |CAP0603,105P | |105P | |1 |
|104 |C104 |CAP0603,104P | |104P | |1 |
|105 |C105 |CAP0603,102P | |102P | |1 |
|106 |C106 |CAP\TC,10uF | |10uF |10V |1 |
|107 |C107 |CAP0603,10P | |10P | |1 |
|108 |C108 |C4P\MCC,102P | |102P | |1 |
|109 |C109 |CAP0603,102P | |102P | |1 |
|110 |C110 |CAP0603,103P | |103P | |1 |
|111 |C111 |CAP0603,10P | |10P | |1 |
|112 |C112 |CAP0603,100P | |100P | |1 |
|113 |C113 |CAP0603,10P | |10P | |1 |
|114 |C114 |CAP0603,104P | |104P | |1 |
|115 |C115 |CAP0603,102P | |102P | |1 |
|116 |C116 |C4P\MCC,100P | |100P | |1 |
|117 |C117 |C4P\MCC,102P | |102P | |1 |
|118 |C118 |CAP0603,105P | |105P | |1 |
|119 |C119 |CAP0603,104P | |104P | |1 |
|120 |C120 |CAP0603,105P | |105P | |1 |
|121 |C121 |CAP0603,104P | |104P | |1 |
|122 |C122 |CAP0603,102P | |102P | |1 |
|123 |C123 |CAP0603,104P | |104P | |1 |
|124 |C124 |CAP0603,104P | |104P | |1 |
|125 |C125 |CAP0603,102P | |102P | |1 |
|126 |C126 |CAP0603,102P | |102P | |1 |
|127 |C127 |CAP0603,102P | |102P | |1 |
2
Page 11
Edited by Foxit PDF Editor
Copyright (c) by Foxit Software Company, 2004 - 2007
For Evaluation Only.
|128 |C128 |CAP0603,104P | |104P | |1 |
|129 |C129 |CAP0603,104P | |104P | |1 |
|130 |C130 |CAP0603,472P | |472P | |1 |
|131 |C131 |CAP0603,102P | |102P | |1 |
|132 |C132 |C4P\MCC,102P | |102P | |1 |
|133 |C133 |CAP0603,105P | |105P | |1 |
|134 |C134 |C4P\MCC,102P | |102P | |1 |
|135 |C135 |CAP0603,1P | |1P | |1 |
|136 |C136 |CAP0603,102P | |102P | |1 |
|137 |C137 |CAP0603,102P | |102P | |1 |
|138 |C138 |CAP0603,102P | |102P | |1 |
|139 |C139 |CAP0603,102P | |102P | |1 |
|140 |C140 |CAP0603,104P | |104P | |1 |
|141 |C141 |CAP\TC,10uF | |10uF |16V |1 |
|142 |C142 |CAP0603,102P | |102P | |1 |
|143 |C143 |CAP0603,104P | |104P | |1 |
|144 |C144 |CAP0603,104P | |104P | |1 |
|145 |C145 |CAP0603,103P | |103P | |1 |
|146 |C146 |CAP0603,102P | |102P | |1 |
|147 |C147 |CAP0603,104P | |104P | |1 |
|148 |C148 |CAP0603,100P | |100P | |1 |
|149 |C149 |CAP0603,104P | |104P | |1 |
|150 |C150 |CAP0603,100P | |100P | |1 |
|151 |C151 |CAP\TC,10uF | |10uF |16V |1 |
|152 |C152 |CAP0603,102P | |102P | |1 |
|153 |C153 |CAP0603,104P | |104P | |1 |
|154 |C154 |CAP\TC,10uF | |10uF |10V |1 |
|155 |C155 |CAP0603,102P | |102P | |1 |
|156 |C156 |CAP0603,104P | |104P | |1 |
|157 |C157 |CAP0603,104P | |104P | |1 |
|158 |C158 |CAP0603,104P | |104P | |1 |
|159 |C159 |CAP0603,104P | |104P | |1 |
|160 |C160 |CAP0603,104P | |104P | |1 |
|161 |C161 |CAP\TC,47uF | |47uF |6V |1 |
|162 |C162 |CAP\TC,10uF | |10uF |10V |1 |
|163 |C163 |CAP0603,104P | |104P | |1 |
|164 |C164 |CAP0603,102P | |102P | |1 |
|165 |C165 |CAP0603,102P | |102P | |1 |
|166 |C166 |CAP0603,102P | |102P | |1 |
|167 |C167 |CAP0603,105P | |105P | |1 |
|168 |C168 |CAP\TC,47uF | |47uF |6V |1 |
|169 |C169 |CAP0603,102P | |102P | |1 |
|170 |C170 |CAP0603,102P | |102P | |1 |
|171 |C171 |CAP0603,104P | |104P | |1 |
|172 |C172 |CAP0603,104P | |104P | |1 |
|173 |C173 |CAP\TC,4.7uF | |4.7uF |10V |1 |
|174 |C174 |CAP0603,220P | |220P | |1 |
|175 |C175 |CAP0603,104P | |104P | |1 |
|176 |C176 |CAP0603,104P | |104P | |1 |
|177 |C177 |CAP0603,104P | |104P | |1 |
|178 |C178 |CAP0603,102P | |102P | |1 |
|179 |C179 |CAP0603,104P | |104P | |1 |
|180 |C180 |CAP0603,102P | |102P | |1 |
|181 |C181 |CAP0603,104P | |104P | |1 |
|182 |C182 |CAP0603,104P | |104P | |1 |
|183 |C183 |CAP0603,102P | |102P | |1 |
|184 |C184 |CAP0603,104P | |104P | |1 |
|185 |C185 |CAP0603,102P | |102P | |1 |
|186 |C186 |CAP0603,105P | |105P | |1 |
|187 |C187 |CAP\TC,47uF | |47uF |6V |1 |
|188 |C188 |CAP\TC,10uF | |10uF |10V |1 |
|189 |C189 |CAP0603,104P | |104P | |1 |
|190 |C190 |CAP0603,104P | |104P | |1 |
|191 |C191 |CAP0603,104P | |104P | |1 |
|192 |C192 |CAP0603,104P | |104P | |1 |
|193 |C193 |CAP0603,102P | |102P | |1 |
3
Page 12
Edited by Foxit PDF Editor
Copyright (c) by Foxit Software Company, 2004 - 2007
For Evaluation Only.
|194 |C194 |CAP0603,105P | |105P | |1 |
|195 |C195 |CAP0603,22P | |22P | |1 |
|196 |C196 |CAP0603,105P | |105P | |1 |
|197 |C197 |CAP\TC,10uF | |10uF |10V |1 |
|198 |C198 |CAP0603,104P | |104P | |1 |
|199 |C199 |CAP0603,102P | |102P | |1 |
|200 |C200 |CAP0603,105P | |105P | |1 |
|201 |C201 |CAP0603,102P | |102P | |1 |
|202 |C202 |CAP\TC,10uF | |10uF |10V |1 |
|203 |C203 |CAP\TC,10uF | |10uF |10V |1 |
|204 |C204 |C4P\MCC,104P | |104P | |1 |
|205 |C205 |CAP0402,102P | |102P | |1 |
|206 |C206 |CAP0603,102P | |102P | |1 |
|207 |C207 |CAP0603,102P | |102P | |1 |
|208 |C208 |CAP0603,102P | |102P | |1 |
|209 |C209 |CAP0603,102P | |102P | |1 |
|210 |C210 |CAP0603,102P | |102P | |1 |
|211 |C211 |CAP0603,XXX | |XXX | |1 |
|212 |C212 |CAP0603,XXX | |XXX | |1 |
|213 |C213 |CAP0603,XXX | |XXX | |1 |
|214 |D1 |HVU131,HVU131 | |HVU131 | |1 |
|215 |D2 |1SS314,1SS314 | |1SS314 | |1 |
|216 |D3 |1SV322,1SV323 | |1SV323 | |1 |
|217 |D4 |1SV322,1SV323 | |1SV323 | |1 |
|218 |D5 |1SS314,1SS314 | |1SS314 | |1 |
|219 |D6 |1SV322,1SV323 | |1SV323 | |1 |
|220 |D7 |1SV322,1SV323 | |1SV323 | |1 |
|221 |D8 |1SV322,1SV323 | |1SV323 | |1 |
|222 |D9 |1SV322,1SV323 | |1SV323 | |1 |
|223 |D10 |1SV322,1SV323 | |1SV323 | |1 |
|224 |D11 |1SS314,1SS314 | |1SS314 | |1 |
|225 |D12 |1SV322,1SV323 | |1SV323 | |1 |
|226 |D13 |1SV322,1SV323 | |1SV323 | |1 |
|227 |D14 |DIODE\RB706F,RB706F| |RB706F | |1 |
|228 |D15 |DIODE\SMD,1SS355 | |1SS355 | |1 |
|229 |D16 |DIODE\SMD, | |1SR154-400 | |1 |
| | |1SR154-400 | | | | |
|230 |D17 |DIODE\SMD,1SS355 | |1SS355 | |1 |
|231 |FL1 |LTM455,CFW 455 F | |CFW 455 F | |1 |
|232 |L1 |IND\AIR\SMD,281007 | |281007 | |1 |
|233 |L2 |IND\AIR\SMD,281007 | |281007 | |1 |
|234 |L3 |IND\CHIP,$270N | |$270N | |1 |
|235 |L4 |IND\AIR\SMD,281007 | |281007 | |1 |
|236 |L5 |IND\AIR\SMD,300905 | |300905 | |1 |
|237 |L6 |IND\CHIP,$15N | |$15N | |1 |
|238 |L7 |IND\CHIP,$15N | |$15N | |1 |
|239 |L8 |IND\AIR\SMD1,501405| |501405 | |1 |
|240 |L9 |IND\AIR\SMD,221503 | |221503 | |1 |
|241 |L10 |IND\CHIP,$100N | |$100N | |1 |
|242 |L11 |IND\CHIP,$100N | |$100N | |1 |
|243 |L12 |IND\CHIP,$8N2 | |$8N2 | |1 |
|244 |L13 |IND\CHIP,$8N2 | |$8N2 | |1 |
|245 |L14 |IND\AIR\SMD,221503 | |221503 | |1 |
|246 |L15 |IND\CHIP,U0080 | |U0080 | |1 |
|247 |L16 |IND\AIR\SMD1,351607| |351607 | |1 |
|248 |L17 |IND\CHIP,*27N | |*27N | |1 |
|249 |L18 |IND\AIR\SMD,300904 | |300904 | |1 |
|250 |L19 |IND\CHIP,#470nH | |#470nH | |1 |
|251 |L20 |IND\CHIP,*18N | |*18N | |1 |
|252 |L21 |IND\CHIP,*100N | |*100N | |1 |
|253 |L22 |IND\CHIP,%100N | |%100N | |1 |
|254 |L23 |IND\CHIP,$10N | |$10N | |1 |
|255 |L24 |IND\CHIP,*100N | |*100N | |1 |
|256 |L25 |IND\CHIP,#470nH | |#470nH | |1 |
|257 |L26 |IND\CHIP,%100N | |%100N | |1 |
|258 |L27 |IND\CHIP,*100N | |*100N | |1 |
4
Page 13
Edited by Foxit PDF Editor
Copyright (c) by Foxit Software Company, 2004 - 2007
For Evaluation Only.
|259 |L28 |IND\CHIP,%18N | |%18N | |1 |
|260 |L29 |IND\CHIP,*100N | |*100N | |1 |
|261 |L30 |IND\CHIP,%18N | |%18N | |1 |
|262 |L31 |IND\CHIP,$15N | |$15N | |1 |
|263 |L32 |IND\CHIP,*100N | |*100N | |1 |
|264 |L33 |IND\CHIP,#1uH | |#1uH | |1 |
|265 |L34 |IND\AIR\SMD,281007 | |281007 | |1 |
|266 |L35 |281006,U0120 | |U0120 | |1 |
|267 |L36 |IND\CHIP,*100N | |*100N | |1 |
|268 |L37 |351607,351607 | |351607 | |1 |
|269 |L38 |IND\CHIP,U0080 | |U0080 | |1 |
|270 |L39 |IND\CHIP,*100N | |*100N | |1 |
|271 |L40 |IND\CHIP,U0080 | |U0080 | |1 |
|272 |L41 |IND\CHIP,U0080 | |U0080 | |1 |
|273 |L42 |IND\CHIP,U0080 | |U0080 | |1 |
|274 |L43 |IND\CHIP,U0080 | |U0080 | |1 |
|275 |L44 |IND\CHIP,U0080 | |U0080 | |1 |
|276 |L45 |IND\CHIP,#1uH | |#1uH | |1 |
|277 |L46 |IND\CHIP,&1uH | |&1uH | |1 |
|278 |L47 |IND\AIR\SMD, | |0R(0805) | |1 |
| | |0R(0805) | | | | |
|279 |LED1 |KPBA3010ESGC, | |KPBA3010ESGC | |1 |
| | |KPBA3010ESGC | | | | |
|280 |MIC1 |MIC-6,MIC-6 | |MIC-6 | |1 |
|281 |MT1 |TP1 | | | |1 |
|282 |MT2 |TP1 | | | |1 |
|283 |MT3 |TP1 | | | |1 |
|284 |MT4 |TP7 | | | |1 |
|285 |MT5 |TP1 | | | |1 |
|286 |MT6 |TP1 | | | |1 |
|287 |MT7 |TP1 | | | |1 |
|288 |MT8 |TP1 | | | |1 |
|289 |MT9 |TP1 | | | |1 |
|290 |MT10 |TP1 | | | |1 |
|291 |MT11 |TP1 | | | |1 |
|292 |OSC1 |TTS14V,TTS14V | |TTS14V | |1 |
|293 |PB1 |RD810S,RD810S | |RD810S | |1 |
|294 |PB2 |RD845E,RD845E | |RD845E | |1 |
|295 |PB3 |TACTSWTICH-45X30, | |45X30 | |1 |
| | |45X30 | | | | |
|296 |PB4 |TACTSWTICH-45X30, | |45X30 | |1 |
| | |45X30 | | | | |
|297 |PH1 |HLJ255-01,HLJ255-1 | |HLJ255-1 | |1 |
|298 |Q1 |TRNPN-SC82,BFP640 | |BFP640 | |1 |
|299 |Q2 |BRT-PNP,#P |Mitsubishi |#P | |1 |
|300 |Q3 |TRNPN-SC70,C4226 | |C4226 | |1 |
|301 |Q4 |TRNPN-SC70,C4226 | |C4226 | |1 |
|302 |Q5 |TRNPN-SC70,C4226 | |C4226 | |1 |
|303 |Q6 |TRNPN-SC70,C4226 | |C4226 | |1 |
|304 |Q7 |TRNPN-SC70,C4226 | |C4226 | |1 |
|305 |Q8 |TRNPN-SC70,C4226 | |C4226 | |1 |
|306 |Q9 |TRNPN-SC70,C4226 | |C4226 | |1 |
|307 |Q10 |TRD-UMT2N,UMT2N | |UMT2N | |1 |
|308 |Q11 |2SA1362,A1362 |Toshba |A1362 | |1 |
|309 |Q12 |BRT-UMD9N,UMD9N |ROHM |UMD9N | |1 |
|310 |Q13 |BRT-UMD9N,UMD9N |ROHM |UMD9N | |1 |
|311 |Q14 |TRPNP-SOT23,FMMT717| |FMMT717 | |1 |
|312 |Q15 |BRT-UMD9N,UMD9N |ROHM |UMD9N | |1 |
|313 |Q16 |BRT-PNP,#P |Mitsubishi |#P | |1 |
|314 |Q17 |BRT-PNP,#P |Mitsubishi |#P | |1 |
|315 |Q18 |TRNPN-SC70,C4116 |Toshba |C4116 | |1 |
|316 |Q19 |BRT-UMD9N,UMD9N |ROHM |UMD9N | |1 |
|317 |Q20 |BRT-PNP,#P |Mitsubishi |#P | |1 |
|318 |Q22 |BRT-NPN,#N |Mitsubishi |#N | |1 |
|319 |R1 |RES\SMD,220R | |220R | |1 |
|320 |R2 |RES0603,680K | |680K | |1 |
5
Page 14
Edited by Foxit PDF Editor
Copyright (c) by Foxit Software Company, 2004 - 2007
For Evaluation Only.
|321 |R3 |RES0603,680K | |680K | |1 |
|322 |R4 |RES0603,1K5 | |1K5 | |1 |
|323 |R5 |RES0603,150K | |150K | |1 |
|324 |R6 |RES0603,680R | |680R | |1 |
|325 |R7 |RES0603,680K | |680K | |1 |
|326 |R8 |RES0603,100R | |100R | |1 |
|327 |R9 |RES0603,680K | |680K | |1 |
|328 |R10 |RES0603,10K | |10K | |1 |
|329 |R11 |RES0603,47R | |47R | |1 |
|330 |R12 |RES0603,XXX | |XXX | |1 |
|331 |R13 |RES0603,4K7 | |4K7 | |1 |
|332 |R14 |RES0603,680K | |680K | |1 |
|333 |R15 |RES0603,2K7 | |2K7 | |1 |
|334 |R16 |RES0603,470K | |470K | |1 |
|335 |R17 |RES0603,3K3 | |3K3 | |1 |
|336 |R18 |RES0603,100R | |100R | |1 |
|337 |R19 |RES0603,470R | |470R | |1 |
|338 |R20 |RES0603,10K | |10K | |1 |
|339 |R21 |RES0603,3K3 | |3K3 | |1 |
|340 |R22 |RES0603,47R | |47R | |1 |
|341 |R23 |RES0603,470R | |470R | |1 |
|342 |R25 |RES0603,10R | |10R | |1 |
|343 |R26 |RES0603,120K | |120K | |1 |
|344 |R27 |RES0603,39K | |39K | |1 |
|345 |R28 |RES0603,10K | |10K | |1 |
|346 |R29 |RES0603,150K | |150K | |1 |
|347 |R30 |RES0402,100R | |100R | |1 |
|348 |R31 |RES0402,6K8 | |6K8 | |1 |
|349 |R32 |RES0402,330R | |330R | |1 |
|350 |R33 |RES0402,6K8 | |6K8 | |1 |
|351 |R34 |RES0402,22K | |22K | |1 |
|352 |R35 |RES0402,270K | |270K | |1 |
|353 |R36 |RES0402,47K | |47K | |1 |
|354 |R37 |RES0603,560K | |560K | |1 |
|355 |R38 |RES0603,68K | |68K | |1 |
|356 |R39 |RES0603,3K3 | |3K3 | |1 |
|357 |R40 |RES0402,68K | |68K | |1 |
|358 |R41 |RES0402,100R | |100R | |1 |
|359 |R42 |RES0402,100R | |100R | |1 |
|360 |R43 |RES0402,100K | |100K | |1 |
|361 |R44 |RES0402,330R | |330R | |1 |
|362 |R45 |RES0402,100R | |100R | |1 |
|363 |R46 |RES0402,6K8 | |6K8 | |1 |
|364 |R47 |RES0402,6K8 | |6K8 | |1 |
|365 |R48 |RES0603,56K | |56K | |1 |
|366 |R49 |RES0603,10K | |10K | |1 |
|367 |R50 |RES0603,16K | |16K | |1 |
|368 |R51 |RES0603,4K7 | |4K7 | |1 |
|369 |R52 |RES0603,22K | |22K | |1 |
|370 |R53 |RES0603,4K7 | |4K7 | |1 |
|371 |R54 |RES0603,100K | |100K | |1 |
|372 |R55 |RES0603,470R | |470R | |1 |
|373 |R56 |RES0603,1K | |1K | |1 |
|374 |R57 |RES0603,680R | |680R | |1 |
|375 |R58 |RES0603,680R | |680R | |1 |
|376 |R59 |RES0603,4K7 | |4K7 | |1 |
|377 |R60 |RES0603,1K5 | |1K5 | |1 |
|378 |R61 |RES0603,47K | |47K | |1 |
|379 |R62 |RES0603,100K | |100K | |1 |
|380 |R63 |RES0603,820K | |820K | |1 |
|381 |R64 |RES-MCC,4K7 | |4K7 | |1 |
|382 |R65 |RES0603,820R | |820R | |1 |
|383 |R66 |RES0603,@150K | |@150K | |1 |
|384 |R67 |RES0603,15K | |15K | |1 |
|385 |R68 |RES0603,390K | |390K | |1 |
|386 |R69 |RES0603,560K | |560K | |1 |
6
Page 15
Edited by Foxit PDF Editor
Copyright (c) by Foxit Software Company, 2004 - 2007
For Evaluation Only.
|387 |R70 |RES0603,470K | |470K | |1 |
|388 |R71 |RES0603,390K | |390K | |1 |
|389 |R72 |RES0603,10K | |10K | |1 |
|390 |R73 |RES0603,470K | |470K | |1 |
|391 |R74 |RES0603,4K7 | |4K7 | |1 |
|392 |R75 |RES0603,4K7 | |4K7 | |1 |
|393 |R76 |RES0603,@150K | |@150K | |1 |
|394 |R77 |RES0603,@47.5K | |@47.5K | |1 |
|395 |R78 |RES0603,27K | |27K | |1 |
|396 |R79 |RES0603,10K | |10K | |1 |
|397 |R80 |RES0603,0R | |0R | |1 |
|398 |R81 |RES0603,680K | |680K | |1 |
|399 |R82 |RES0603,6K8 | |6K8 | |1 |
|400 |R83 |RES0603,220R | |220R | |1 |
|401 |R84 |RES0603,220R | |220R | |1 |
|402 |R85 |RES0603,100K | |100K | |1 |
|403 |R86 |RES0603,33K | |33K | |1 |
|404 |R87 |RES1206,0.1R(1206) | |0.1R(1206) | |1 |
|405 |R88 |RES0603,33R | |33R | |1 |
|406 |R89 |RES0603,10K | |10K | |1 |
|407 |R90 |RES0603,@1.27K | |@1.27K | |1 |
|408 |R91 |RES0603,1 M | |1 M | |1 |
|409 |R92 |RES0603,10K | |10K | |1 |
|410 |R93 |RES0603,220R | |220R | |1 |
|411 |R94 |RES0603,1 M | |1 M | |1 |
|412 |R95 |RES0603,10K | |10K | |1 |
|413 |R96 |RES0603,680R | |680R | |1 |
|414 |R97 |RES0603,220K | |220K | |1 |
|415 |R98 |RES0603,XXX | |XXX | |1 |
|416 |R99 |RES0603,120K | |120K | |1 |
|417 |R100 |RES0603,1 M | |1 M | |1 |
|418 |R101 |RES0603,100K | |100K | |1 |
|419 |R102 |RES0603,100K | |100K | |1 |
|420 |R103 |RES0603,100R | |100R | |1 |
|421 |R104 |RES0603,2K2 | |2K2 | |1 |
|422 |R105 |RES0603,4K7 | |4K7 | |1 |
|423 |R106 |RES0603,330R | |330R | |1 |
|424 |R107 |RES0603,470R | |470R | |1 |
|425 |R108 |RES0603,2K2 | |2K2 | |1 |
|426 |R109 |RES0603,2K2 | |2K2 | |1 |
|427 |R110 |RES0603,XXX | |XXX | |1 |
|428 |R111 |RES0603,4M7 | |4M7 | |1 |
|429 |R112 |RES0603,100K | |100K | |1 |
|430 |R113 |RES0603,100K | |100K | |1 |
|431 |R114 |RES0603,100K | |100K | |1 |
|432 |R115 |RES0603,4K7 | |4K7 | |1 |
|433 |R116 |RES0603,820K | |820K | |1 |
|434 |R117 |RES0603,47K | |47K | |1 |
|435 |R118 |RES0603,10K | |10K | |1 |
|436 |R119 |RES0603,10K | |10K | |1 |
|437 |R120 |RES0603,22K | |22K | |1 |
|438 |R121 |RES0603,33K | |33K | |1 |
|439 |R122 |RES0603,33K | |33K | |1 |
|440 |R123 |RES0603,100K | |100K | |1 |
|441 |R124 |RES0603,220R | |220R | |1 |
|442 |R125 |RES0603,10K | |10K | |1 |
|443 |T1 |TP6 | | | |1 |
|444 |T2 |TP6 | | | |1 |
|445 |T3 |GF5P | | | |1 |
|446 |T4 |TP2 | | | |1 |
|447 |T5 |TP2 | | | |1 |
|448 |U1 |ANT | | | |1 |
|449 |U2 |RD07MVS1,RD07MVS1 | |RD07MVS1 | |1 |
|450 |U3 |RD01MUS1,RD01MUS1 | |RD01MUS1 | |1 |
|451 |U4 |TA31136,TA31136 | |TA31136 | |1 |
|452 |U5 |TG2216TU,TG2216 | |TG2216 | |1 |
7
Page 16
Edited by Foxit PDF Editor
Copyright (c) by Foxit Software Company, 2004 - 2007
For Evaluation Only.
|453 |U6 |MB15E03SL,MB15E03SL| |MB15E03SL | |1 |
|454 |U7 |ATA31166 | |ATA31166 | |1 |
|455 |U8 |HT46R24LQ,W4605 | |W4605 | |1 |
|456 |U9 |AD5243,AD5243 | |AD5243 | |1 |
|457 |U10 |TDA7052B,TDA7052B | |TDA7052B | |1 |
|458 |U11 |LM2904,2904 | |2904 | |1 |
|459 |U12 |XC6209B502MR,502MR |TOREX |502MR | |1 |
|460 |U13 |LMV358,LMV358 | |LMV358 | |1 |
|461 |U14 |XC6209B402MR,402MR |TOREX |402MR | |1 |
|462 |U15 |24LC02,24LC02 | |24LC02 | |1 |
|463 |XT1 |XTAL\3X9, | |4.194300MHz | |1 |
| | |4.194300MHz | | | | |
|464 |Y1 |DM455C2,455 C24 | |455 C24 | |1 |
|465 |Y2 |XTAL-FILTER,45MHz | |45MHz | |1 |
|466 |Y3 |UM-5,44.545MHz | |44.545MHz | |1 |
|---------------------------------------------------------------------------------|
8
Loading...
