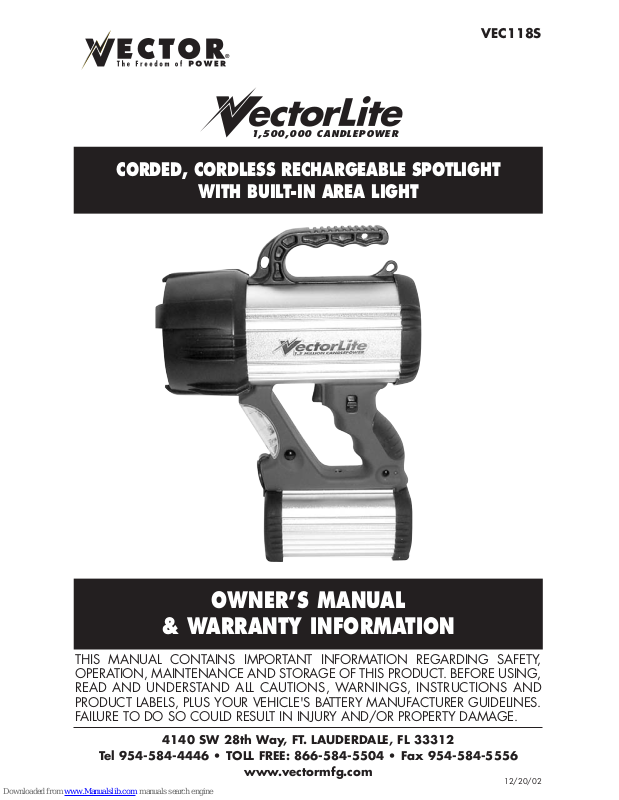

Vector VECTORLITE VEC118S Owner's Manual

VEC118S

THIS MANUAL CONTAINS IMPORTANT INFORMATION REGARDING SAFETY,
OPERATION, MAINTENANCE AND STORAGE OF THIS PRODUCT. BEFORE USING,
READ AND UNDERSTAND ALL CAUTIONS, WARNINGS, INSTRUCTIONS AND
PRODUCT LABELS, PLUS YOUR VEHICLE'S BATTERY MANUFACTURER GUIDELINES.
FAILURE TO DO SO COULD RESULT IN INJURY AND/OR PROPERTY DAMAGE.

OWNER’S MANUAL

& WARRANTY INFORMATION

4140 SW 28th Way, FT. LAUDERDALE, FL 33312

Tel [phone] • TOLL FREE: 866-584-5504 • Fax [phone]

www.vectormfg.com

12/20/02

CORDED, CORDLESS RECHARGEABLE SPOTLIGHT

WITH BUILT-IN AREA LIGHT

1,500,000 CANDLEPOWER

2

IMPORT

ANT SAFETY INSTRUCTIONS

WARNINGS: Contains non-spillable, sealed, lead acid battery. Must be recycled

or disposed of properly. DO NOT dispose of batteries in fire, as this may result
in an explosion. DO NOT open battery or short circuit, as this may cause the bat­tery to leak or get hot, causing personal injury. Any disposal questions call toll-free
[phone].

Please read instruction manual completely for all safety and warning instructions.

CAUTIONS: USE ONLY WITH AC AND DC CHARGING ADAPTERS THAT ARE

PROVIDED WITH UNIT. PLUG IN THE CHARGING ADAPTER AT THE SPOTLIGHT
FIRST, THEN PLUG INTO THE CHARGING SOURCE.

DURING RECHARGE:

DO NOT CHARGE FOR MORE THAN 24 HOURS USING AC CHARGING
ADAPTER

a) First use - typical charge time is 8-10 hours
b) Charge after first use - typical charge time is 10-12 hours, maximum.
c) If unit is not used for two months, typical charge time is 4 hours.
After recharge, disconnect charging adapter and wait 5 minutes before use.

1. Do not substitute power cords or charging adapters. Only charge with supplied AC
and DC charging adapters. Charging adapters for this unit supply 12 volts DC.

2. Do not submerge in water. This unit is not waterproof - it is water resistant.

3. Keep children away from spotlight. This is not a toy!

4. Lens gets very hot when spotlight is operating. Do not touch lens while operating.

5. Keep combustibles away from spotlight lens - extreme heat can cause fires.

6. Keep sharp objects away from lens - it is glass and it can break.

7. Do not drop or throw spotlight, it contains glass and sealed lead acid batteries.

8. Dispose of unusable batteries in a responsible manner. See battery disposal section.

9. Do not crush, cut, pull or expose charging adapter cords to extreme heat.

10. Keep charging adapter cords away from sharp edges.

11. Position charge adapter cords so that they do not become entangled or
become a safety hazard.

12. Do not shine spotlight in eyes.

3

1. INTRODUCTION

Congratulations on purchasing VectorLiteTMModel VEC118S, an advanced design
combination spotlight and long lasting, soft incandescent area light.
It uses two powerful proven-technology rechargeable, non-spillable, sealed, lead
acid batteries that allow for years of dependable use, recharge after recharge. It
was designed from the ground up to be the most versatile and
practical light for travel, camping, picnicking, tailgate parties and boating.
The spotlight gives you the kind of light you need, when and where you need it.

Extremely rugged construction protects the unit from most damage from vibration
and shock. It is water and dust resistant.

Two recharge adapters are supplied with the spotlight. It can be recharged from
any 110/120 volt 60 Hz AC receptacle. It can also be recharged and operated
from a 12 Volt DC power outlet. This allows recharge flexibility for use around
home, business or in the field. 12 volt DC power is available from most vehicles,
boats, jump starters and portable battery packs. Vector has a variety of portable
power products that would make ideal companions.

A 12 Volt accessory socket allows powering of any DC appliance that does not
exceed 10 amps.

2. ADDITIONAL FEA

TURES

• Powerful, pre-focused, replaceable quartz halogen bulb in spotlight.

• Incandescent area light provides up to 25 hours of continuous operation.

• Trigger switch lock maintains spotlight operation without squeezing trigger.

• Trigger switch lock locks trigger switch to OFF position or ON position.

• Rubber safety guard (bezel) around lens protects spotlight.

• Safety caps protect upper and lower battery compartments.

• Separate power switch for the area light.

• Comfortable pistol grip.

• LED lights while battery is charging.

• UL approved AC/DC recharge adapter.
