Vector VEC270S Owner's Manual

VEC270S

THIS MANUAL CONTAINS IMPORTANT INFORMATION REGARDING SAFETY,

OPERATION, MAINTENANCE AND STORAGE OF THIS PRODUCT. READ

CAREFULLY BEFORE USE, AND RETAIN FOR FUTURE REFERENCE.

4140 S.W. 28th Way, Ft. Lauderdale, FL 33312

Toll Free: [phone]

www.vectormfg.com

1

IF YOU SHOULD EXPERIENCE A PROBLEM WITH YOUR
PURCHASE CALL TOLL FREE [phone]. IN MOST

CASES A SERVICE REPRESENTATIVE CAN RESOLVE YOUR

PROBLEM OVER THE PHONE.

IF YOU HAVE A QUESTION OR COMMENT, GIVE US A

CALL, YOUR FEEDBACK IS VITAL TO THE SUCCESS OF

VECTOR’S QUALITY IMPROVEMENT PROGRAM.

OWNER’S MANUAL AND WARRANTY

INFORMATION

Air Compressor/Inflator

with Spotlight/Lantern Combo

KEY INFORMATION YOU

SHOULD KNOW:

• 260 PSI Compressor

•

Multi-use Inflator

•

Inflator Nozzles included

• AC and DC

Charger/Adapters

Included

CORDED • CORDLESS • RECHARGEABLE

3

2

1. SAFETY INFORMATION AND INSTRUCTIONS

1.1 SAFETY SYMBOLS

The following symbols will be used throughout this manual.

The following safety precautions must be followed at all times along with any
additional existing safety rules.

1.2 CHARGING INSTRUCTIONS

For best results, charge the battery in temperatures ranging from 65 degrees F
(18 degrees C) to 75 degrees F (24 degrees C). Inflator must be charged at least
24 hours using the 120 volt AC method prior to initial use.

A. INITIAL USE

The Vector Compressor/Inflator is shipped in a partially charged state (not fully
charged). The battery must be charged using the 120 volt AC method before
the initial use.

B. END OF USE/RECHARGE

When charge indicator runs down, recharge product before storing away,
using the 120 volt AC method.

C. MAINTENANCE/RECHARGE/STORED ITEM

Recharge the unit every 3 to 6 months even if the unit has not been used.

D. GENERAL SAFETY PRECAUTIONS

1. Completely read this product manual as well as all interactive applicable
manufacturers’ and/or vehicles’ manuals and safety guidelines.

2. Be familiar with the proper use of the unit and all interactive applicable
manufacturers’ products.

3. Never exceed recommended pressures or over inflate tires/inflatable
items. Bursting articles can cause serious injury. Always check pressure
with the pressure gauge. It is recommended to wear protective eyewear
when inflating tires/inflatable items.

4. Always wear protective clothing (i.e. no vinyl) and eyewear when using

INDICATES AN IMMINENTLY HAZARDOUS SITUATION
WHICH, IF NOT AVOIDED, WILL RESULT IN DEATH OR
SERIOUS INJURY.

INDICATES A POTENTIALLY HAZARDOUS SITUATION
WHICH, IF NOT AVOIDED, COULD RESULT IN DEATH OR
SERIOUS INJURY.

Indicates a hazardous situation which, if not avoided, MAY
result in minor or moderate injury.

Indicates important information that, if not followed, may
cause damage to equipment.

TABLE OF CONTENTS

1. SAFETY INFORMATION AND INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . .3

1.1. Safety Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

1.2. Charging Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

A. Initial Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

B. End of use/Recharge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

C. Maintenance/Recharge/Stored Item . . . . . . . . . . . . . . . . . . . .3

D. General Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . .3

2. INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

3. OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

3.1. 120 Volt AC Recharging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

3.2. 12 Volt DC/DC Recharging . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

3.3. Battery Indicator Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

4. COMPRESSOR/INFLATOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

4.1. Tire Inflation or Products With A Valve Stem . . . . . . . . . . . . . . . . .9

4.2. Other Inflatables Without Valve Stem . . . . . . . . . . . . . . . . . . . . .10

4.3. Typical Inflation Times For Products Without Valve Stems . . . . . . .10

5. 12 VOLT PORTABLE POWER SOURCE . . . . . . . . . . . . . . . . . . . . . . . .11

5.1. Estimated 12 Volt DC Usage Times . . . . . . . . . . . . . . . . . . . . . . .11

6. LANTERN/SPOT LIGHT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

7. REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

7.1. Spotlight Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

7.2. Fluorescent Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . . . . .12

7.3. Battery Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

7.4. Battery Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

8. FUSE REPLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

9. SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

5

4

20. There is a risk of explosive gases being released when lead acid batteries
are being charged or discharged. Failure to follow instructions may cause
property damage, explosive hazard, and/or personal injury.

21. DO NOT over inflate tires/inflatable items.

22. Although this unit contains a sealed, non-spillable, lead acid battery, it is
recommended to be kept upright during storage, use and recharging.
When using this unit in proximity to vehicle’s battery and engine, stand the
unit on a flat, stable surface, and be sure to keep all clamps, cords,
clothing and body parts away from moving vehicle components. Do not
smoke or use flammable items (matches, cigarette lighters, etc.) while
working on or near a vehicle’s battery or engine system.

23. Check unit periodically for wear and tear. Replace worn or defective parts
immediately; contact Vector Customer Service toll free [phone].

2. INTRODUCTION

Congratulations on selecting the VEC270S COMPRESSOR/INFLATOR with
Spotlight/Lantern Combo.

• This system is an advanced high-pressure (up to 260 PSI) multi-use air

compressor system and 12 volt DC power source that will provide years of
reliable service if maintained properly.

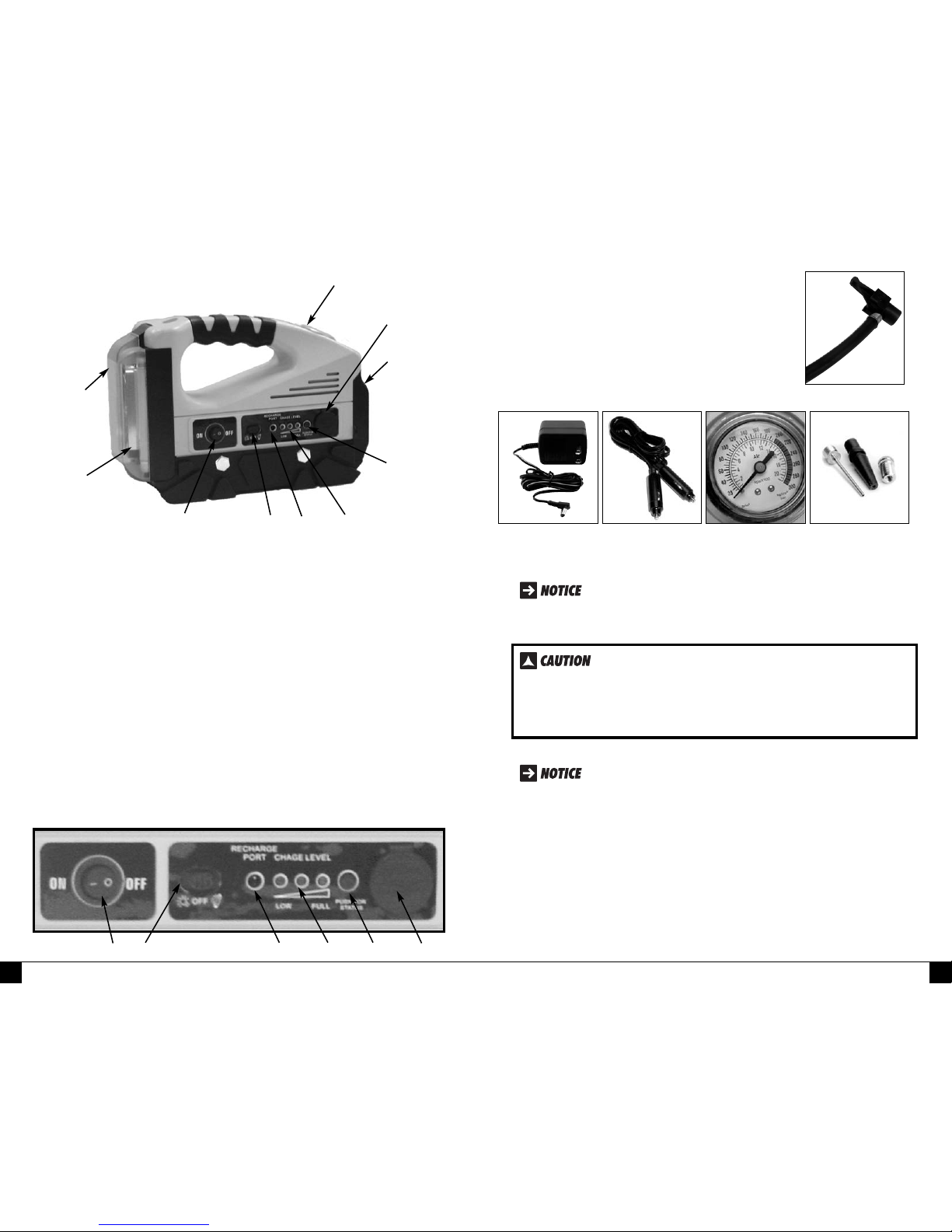

The VEC270S COMPRESSOR/INFLATOR is a compact, durable and portable
system that features:

• Standard tire valve chuck

• Ultra bright Spotlight/Lantern Combo

• 12 volt DC power source and outlet

It is ideal for use with Vector 12 volt DC cordless, portable, rechargeable
products and MAXX®SST DC/AC Power Inverters.

Use the VEC270S COMPRESSOR/INFLATOR to:
Operate: 12 volt DC fans, inflators, fluorescent worklights, cell phones*,

spotlights, TVs, portable radios, cassette or CD players, and more. *Can quick­charge a cellular phone by using the phone’s 12 volt DC adapter cord.

Operate: Certain 120 volt AC accessories (requires a Vector 12 volt DC power
inverter, sold separately)

The VEC270S system has an easy-to-read, series of LED (Light Emitting Diode)
charge indicators that show when the unit is fully charged, or the level of charge
in the battery. Charge level can be viewed when the "PUSH FOR STATUS"
button is pressed. When pressed, the LEDs will show the battery‘s power level
status (from Low to Full). The green LED full indicator illuminates when the unit
is fully recharged and charging can be discontinued.

A 12 volt DC accessory outlet is provided for use with appliances that can
operate from a vehicle 12 volt DC accessory outlet. This allows maximum
portability and utility when the VEC270S is used in remote locations.

this product: contact with battery acid may cause blindness and/or
severe burns. Be aware of first aid.

5. Never recharge more than 5 hours maximum using 12 volt DC
method/more than 35 hours maximum using 120 volt AC method.

6. To reduce risk of damage to plug and cord, pull by plug and not the cord
when disconnecting.

7. Never operate charger if it has received a sharp blow, been dropped, or

otherwise damaged in any way; take it to a qualified service technician or call
Vector Customer Service toll free [phone].

8. Never disassemble; take unit to a qualified service technician or call

Vector Customer Service when service or repair is required. Incorrect
reassembly may result in a risk of electric shock or fire and will void the
warranty.

9. To reduce risk of electric shock, unplug charger from outlet before

attempting to clean.

10. Always recharge unit after each use, recommended 120 volt AC method.

11. Avoid charging the battery at temperatures,

• Below 40 degrees F, (5 degrees C) or

• Above 105 degrees F (40 degrees C).

12. Never operate the unit near fire, flammable gas or liquid. Never expose

battery to fire or intense heat as it may explode. Before disposing of the
battery, protect exposed terminals with heavy-duty electrical tape to
prevent shorting (shorting can result in personal injury or fire).

13. Never operate the inflator after the battery indicator light comes on.

14. Never operate the inflator with the 120 volt AC recharging adapter

connected to the unit as the charger could become damaged.

15. Never leave unit unattended while in use.

16. Never put metal objects into the 12 volt DC power outlet. Never insert

anything other than the supplied power/recharging cords or
recommended appliance power/recharging cords into the 12 volt DC
charging/power outlet on this unit. Do not use any accessory that is not
recommended or provided by the manufacturer. Use only the supplied
cords/adapters for recharging this unit.

17. Always replace the fuse with the same type and amp rating. Never use a

higher amperage fuse rating.

18. Never submerge this unit in water. When charging the unit near water, do

not allow electrical cords and outlets to become moist, damp or wet ­electrical shock could result. Always protect the unit from rain, snow or
other sources of moisture. When charging unit from a 120 volt AC
electrical outlet, make sure area is dry. It is recommended to use an outlet
complete with a Ground Fault Interrupt (GFI) Switch.

19. Keep unit out of reach of children (whether stored, or in use)! All ON/OFF

switches should be in the OFF position when the unit is charging or not in
use. Make sure all switches are in the OFF position before connection to
a power source or load.
