Vector VEC029AC User Manual

VEC029AC

POWER

™

MULTI-FUNCTION

AC/DC JUMPSTART SYSTEM

VEHICLE JUMPSTARTER • 200 WATT INVERTER

260 PSI AIR COMPRESSOR • WORKLIGHT/LANTERN

OWNER’S MANUAL

& WARRANTY INFORMATION

THIS MANUAL CONTAINS IMPORTANT INFORMATION REGARDING SAFETY, OPERATION, MAINTENANCE AND STORAGE OF THIS PRODUCT. BEFORE USE, READ AND UNDERSTAND ALL CAUTIONS, WARNINGS, INSTRUCTIONS AND PRODUCT LABELS, PLUS YOUR VEHICLE’S BATTERY MANUFACTURER GUIDELINES. FAILURE TO DO SO COULD RESULT IN POSSIBLE INJURY OR PROPERTY DAMAGE.

4140 SW 28TH WAY, FT. LAUDERDALE, FL 33312

TEL 954-584-4446 • FAX 954-584-5556

IMPORTANT SAFETY INSTRUCTIONS

Read and Understand all Warnings, Cautions and Notes before operating Power City. Warnings alert the user to conditions that can cause property damage. Notes are important operational information.

KEEP THIS USER’S GUIDE FOR FUTURE USE.

JUMPSTART WARNINGS AND CAUTIONS

• There is risk of explosive gas being released when batteries are Improperly charged or

• Do not smoke while jump starting

• Only attempt to jumpstart a vehicle or boat in a well ventilated Area

• This power system is to be used ONLY on vehicles or boats with 12 volt DC

• Do not wear vinyl clothing when jumpstarting a vehicle - friction can cause dangerous

• Remove all metal jewelry - this can cause short circuits. Always use protective eyewear

• Never touch Power City red and black clamps together - this can cause dangerous

• Do not attempt to jumpstart a frozen battery

• After use as jumpstarter, turn off Safety Switch

• Keep out of reach of children.

• Vehicles that have on-board computerized systems may be damaged if vehicle battery is

• Excessive engine cranking can damage the vehicle's starter motor. If the engine fails to

• When Safety Switch is OFF, Polarity Alarm is enabled. If Cables are connected to

• If vehicle to be started has a Positive Grounded System (positive battery terminal is

• Replace worn or defective parts immediately - contact Vector Technical Support

• Skin: if battery acid comes in contact with skin, rinse immediately with water, then wash

• Eyes: if battery acid comes in contact with eyes, flush eyes immediately-for minimum of

alert the user to hazardous conditions that can be harmful to personnel. Cautions

discharged. Failure to follow instructions may Cause property damage, explosion hazard and/or personal injury

battery systems

static electricity sparks

when jumpstarting: contact with battery acid may cause blindness and/or severe burns.

sparks, power arcing and/or explosion

jumpstarted. Before jumpstarting this type of vehicle, read the vehicle's owner's manual to confirm that external-starting assistance is advised

start after the recommended number of attempts, discontinue jumpstart procedure and look for other problems that may need to be corrected

another battery and the alarm sounds, the cable connections must be switched. If alarm sounds, do not turn on Safety Switch.

connected to chassis): Replace steps 9 and 10 of the jump start procedure (below) with the following steps A and B, and then proceed to step 11

A. Connect negative (-) black clamp to vehicle battery 's negative terminal. B. Connect positive (+) red clamp to vehicle chassis or a solid, non-moving, metal

vehicle component or body part. DO NOT clamp directly to positive battery terminal or moving part.

Department at (954) 584-4446.

thoroughly with soap and water. If redness, pain, or irritation occurs, seek immediate medical attention.

15 minutes, seek immediate medical attention.

CONTENTS

1. INTRODUCTION ...................................................... 4

1.1 General Discription............................................................................. 4

1.2 Key Features....................................................................................... 5

1.3 Use Power City to ............................................................................... 5

1.4 Storage Location................................................................................. 6

2. USE AS A JUMPSTART SYSTEM .....................................6

2.1 Jumpstart Warnings ............................................................................5

3. USE AS A 12 VOLT DC PORTABLE POWER SUPPLY ........7

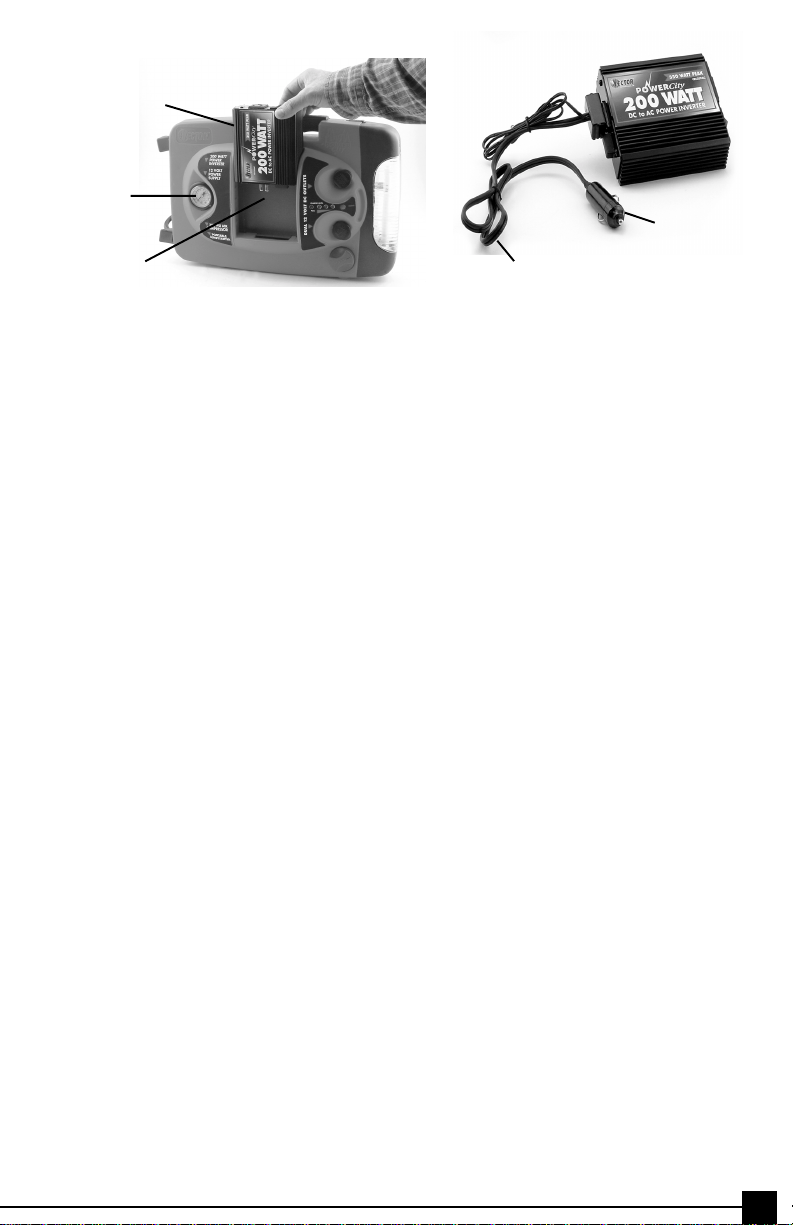

4. POWER INVERTER........................................................ 7

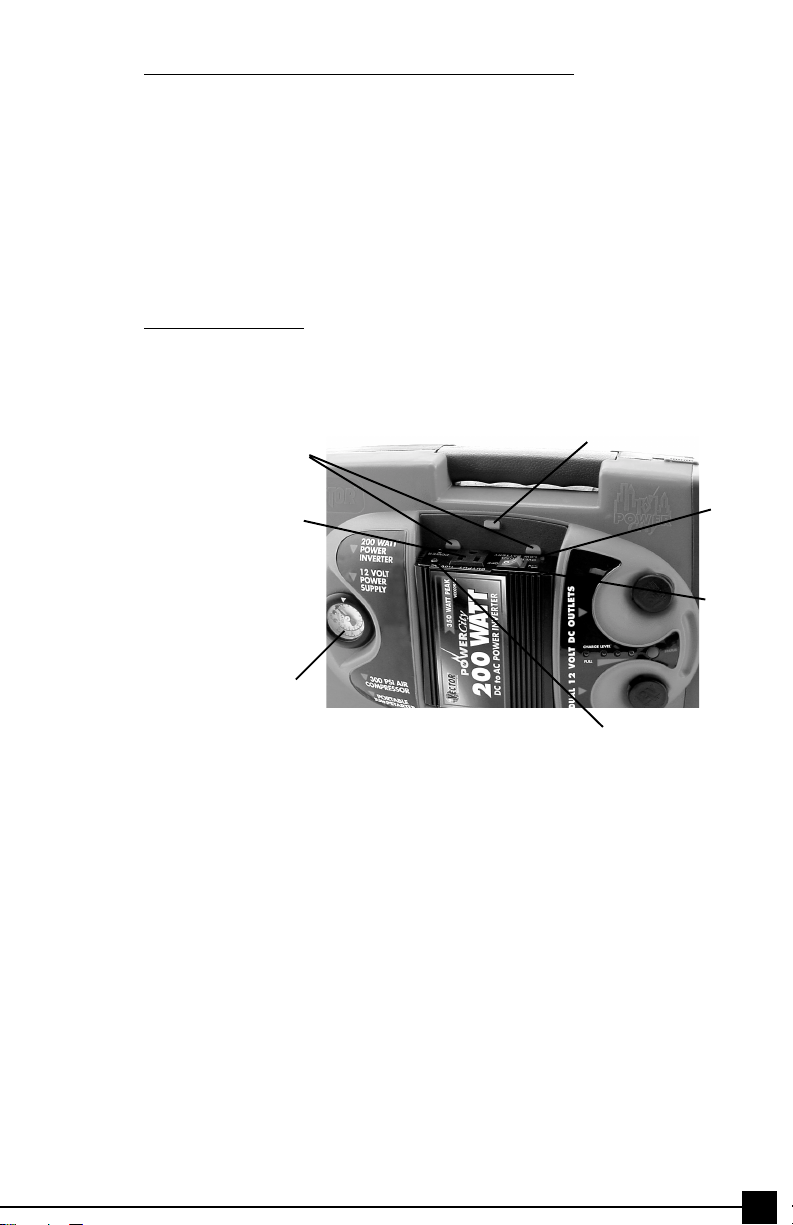

4.1 Inverter Operations ............................................................................. 8

4.2 Principles of Operations ...................................................................... 8

4.3 Connecting Inverter to Power Source Away from Unit ...........................8

4.3.1 Procedure for connecting inverter to remote DC Source ..................... 9

4.3.2 Operating Time ...............................................................................9

4.4 Powering an AC load ......................................................................... 9

4.5 Placement of the Power Inverter ...........................................................10

4.6 Operating Tips ................................................................................... 10

4.7 Inverter fuse replacement ....................................................................11

5. COMPRESSOR/TIRE INFLATOR .....................................11

5.1 Compressor Use ................................................................................. 11

5.2 Warnings ...........................................................................................11

5.3 Tire Inflation or products with a valve stem ...........................................12

5.4 Inflate other articles (without valve stem) .............................................. 12

5.5 Typical inflation times ..........................................................................12

6. LANTERN USE .............................................................. 12

6.1 Lantern Operation on main unit ...........................................................12

6.2 Lantern Operation detached from main unit .........................................13

6.2.1 Lantern Operation from DC source ...................................................13

6.2.2 Lantern Operation 110 Volt with AC recharge adapter...................... 13

6.3 Lamp Replacement .............................................................................. 14

7. RECHARGING POWER CITY’S BATTERY .................... 14

7.1 AC Recharging ................................................................................... 15

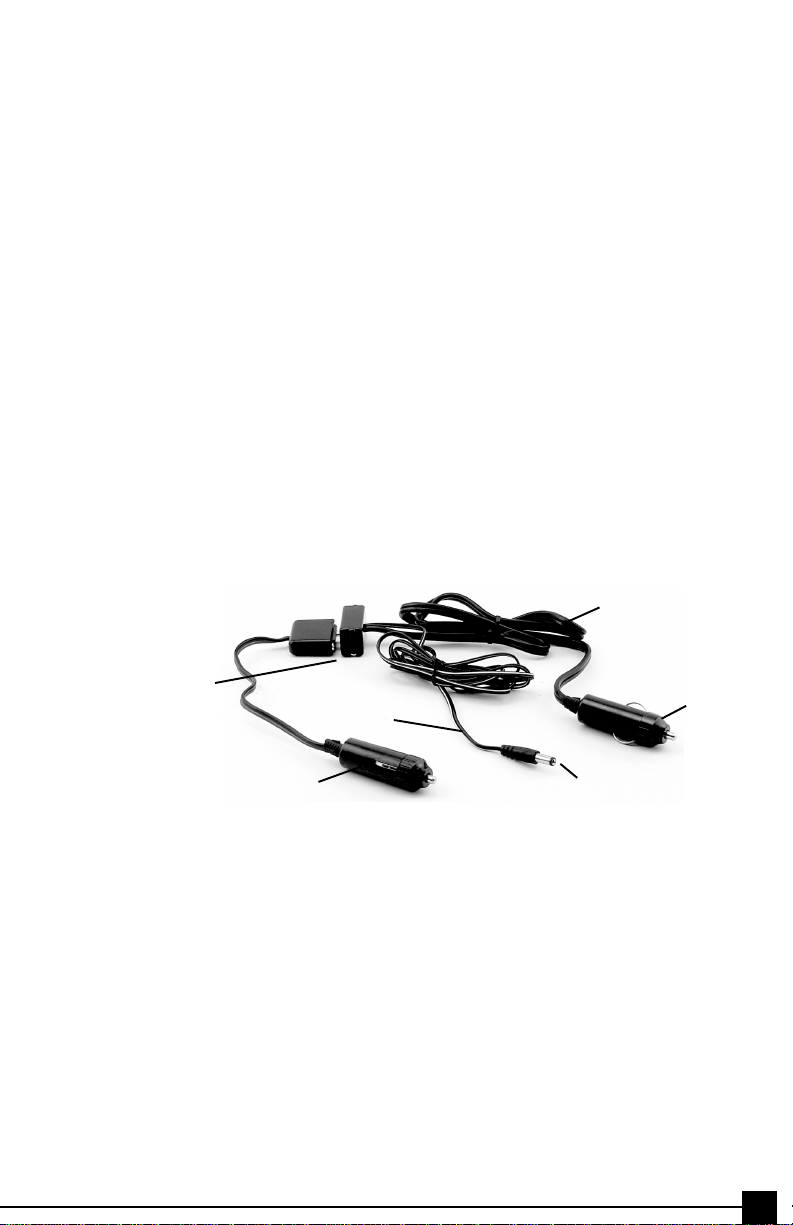

7.2 DC Recharge ...................................................................................... 15,16

7.3 Alternate DC Recharge ....................................................................... 16

7.4 Simultaneous DC Recharge and Inverter Operation ..............................16

8. MAINTENANCE/REPLACEMENT PARTS .................... 16

9. BATTERY DISPOSAL AND WARNINGS ...................... 16

10.SPECIFICATIONS...................................................... 17

11.WARRANTIES .......................................................... 18,19

1. INTRODUCTION

Congratulations on selecting the Vector Power City® Multi-Function AC/DC Power System. Power City is an advanced power and jumpstart system with unique features that set it far above the value and utility of ordinary jump starters. It supplies AC for 110 volt appliances to 200 watts, and DC for 12 volt appliances to 23 amps. It can jumpstart any vehicle with a standard 12 volt DC electrical system: boat, truck, car, airplane, RV, personal watercraft, snowmobile, tractor, etc. See Figure 1.

FIGURE 1

1.1 GENERAL DISCRIPTION

This advanced design is ideal for emergencies and can also enhance your fun by powering appliances on the road and at the campsite. Be sure to read and understand all WARNINGS and CAUTIONS before using this product. Please read this guide carefully before use to ensure optimum performance and avoid damage to the system or items that you are using it with.

Power City® has several exclusive features that set it apart from other similar devices. Primarily, it includes a special, patented, built-in mounting for a supplied, removable 12 VDC to 110 volt AC power inverter. This allows you to operate 110 volt AC devices to 200 watts, while still maintaining the Jump Starter's one-piece, compact styling. When the inverter is removed from the Main Unit it can be fully powered from any accessory socket that can provide up to 23 amperes at 12 VDC.

A removable Lantern operates from Power City’s self-contained battery. It can be operated attached to the Main Unit or removed from the Main Unit. Away from the Main Unit, the Lantern is powered using an extension cord attached to the Inverter Power Cable. This feature is invaluable when it becomes necessary to locate battery terminals while preparing to jumpstart a dead battery in the dark, changing a tire, etc.

Power City is also ideal to power 12 volt DC cordless, portable, rechargeable appliances with ratings up to 23 amperes. For information about Vector appliances, contact Vector Customer Support for the location of the nearest retailer.

1. INVERTER COVER

2. RETRACTED HANDLE

3. LANTERN ASSEMBLY LATCH

4. LANTERN ON/OFF

SWITCH

5. 12V ACCESSORY SOCKETS

6. MAIN POWER SAFETY SWITCH

7. CHARGE STATUS DISPLAY

8. CHARGE STATUS PUSHBUTTON

9. NEG. (BLACK) CLAMP

10. POWER INVERTER

11. COMPRESSOR GAUGE

12. POS. (RED) CLAMP

The unit has an easy-to-read, series of LEDs (Light Emitting Diodes) arranged as a Charge Status Display that shows when the unit is fully charged or the level of charge in the battery (from Low to Full). The Charge Status Display activates whenever the Charge Status Push-button is pressed or automatically during AC Recharge operations. Two 12 volt DC cigarette lighter-type sockets are provided for use with appliances that can operate from a cigarette lighter type accessory socket. Note that all exposed electrical sockets recharge ports have covers that help keep out dirt, dust and moisture. All covers must be open for use; closed after use.

Another feature is the high pressure, self-contained Air Compressor. This Compressor allows quick inflation of tires, sports balls and other small inflatables. An easy to read analog pressure gauge allows accurate pressure readings, so there’s no guesswork about critical tire pressures. Now there is no excuse for driving on under- or over-inflated tires. Three different types of adapter nozzles allow for easy connection to all popular inflatables. A Compressor On/Off slide switch located between the jumpstart clamps controls operation of the Compressor. The Air Compressor Hose and Connector Nozzle are stored on the back of the unit. See Figure 3.

FIGURE 2

1. NEGATIVE (BLACK) CLAMP

2. AIR COMPRESSOR ON/OFF SWITCH

3. AC RECHARGE PORT

4. POSITIVE (RED) CLAMP

5. AIR COMPRESSOR PRESSURE GAUGE

6. 110 VOLT AC CHARGER

1.2 KEY FEATURES

• ON/OFF safety power switch (no key required, no key to get lost!)

• Cordless/rechargeable-includes recharge adapters for standard 110 volt AC wall socket and vehicle's 12 volt DC accessory outlet using adapter cables

• Powerful-400 instantaneous cranking amps; 1800 peak amps

• Includes non-spillable, maintenance-free, heavy duty, 19 ampere hour sealed lead-acid battery

• Audible Polarity Alarm to warn of reverse polarity

• Requires no maintenance (other than recharging) for optimum operation

• Heavy duty, industrial grade copper clamps and #4AWG jumper cables-with exclusive recessed cable holsters

• Built-in 260 PSI Compressor with Lighted Gauge

• Built-in, removable Fluorescent Lantern

• Storage channels that keep jumper cables and the compressor hose out of the way until they are needed and allow Power City to securely lay against flat surfaces

• 110 volt AC charger is Underwriter Laboratories safety tested and listed

• Easy-to-read LED Battery Charge Status Display - activated by pressing the Charge Status Button and automatically activated during AC recharge

1.3 USE POWER CITY TO:

•J

umpstart (using heavy duty battery cable and clamps) any vehicle with a standard 12 volt DC

battery system: boat, truck, car, airplane, RV, personal watercraft, snowmobile, tractor, etc

• Power/Recharge: AC Laptop computers and printers, color TVs up to 13”, reading lamps, fans, small appliances and power hand tools, cellular phones, camcorders, power tool rechargeable batteries that have an appropriate recharging adapter with a 110 volt AC standard-type plug

• Operate (using 23 ampere rated 12 Volt Accessory Sockets): 12 volt DC Fans, fluorescent worklights, air compressors, spotlights, TVs, portable radios, cassette or CD players and more. Can operate and quick-charge a cellular phone by using the phone's 12 volt DC adapter cord

• Inflate truck, auto, motorcycle and trailer tires and small popular beach and camping accessories such as volley balls, soccer beach balls, saving valuable time and effort

• Illuminate areas: under the hood, inside tents, work areas while changing tires, etc. Lantern is removed from Main Unit and powered by Extension cord for light where you need it

NOTE: Other appliances may also be used with the Power City as long as they do not exceed

the 23 ampere limit of the units cigarette lighter type socket or the 200 watt limit of the inverter.

READ INSTRUCTION MANUAL AND PRODUCT LABELING CAREFULLY, BEFORE USING THIS PRODUCT. FOLLOW RECOMMENDED WARNINGS, CAUTIONS, AND SAFETY PROCEDURES AND MANUFACTURER'S GUIDELINES FOR YOUR VEHICLE BATTERY.

IMPORTANT: This unit is delivered in a partially charged state - you must fully charge it

before using it for the first time. Initial AC Charge should be for 24 hours.

Refer to Section 7 for use of Recharge Cables, AC Adapter and detailed charging instructions.

1.4 STORAGE LOCATIONS

Figure 3 shows all removable parts and their locations. Note the location of the storage channels for the jumper cables and compressor hose and nozzle. Two cables are supplied with Power City and they are the Inverter Power Cable with attached Lantern Extension cord and the DC Recharge Cable. They fit inside the Cable Storage Hatch. Three compressor hose adapters (nozzles) are also stored in the Cable Storage Hatch.

FIGURE 3

1. TIRE VALVE CONNECTOR

2. COMPRESSOR HOSE

3. AC/DC CHARGER

4. INVERTER POWER CORD, LANTERN EXTENTION CORD

5. CABLE & NOZZLES STORAGE COMPARTMENT

6. DC RECHARGE POWER CORD

7. CABLE STORAGE CHANNEL

8. NEGATIVE JUMPER CABLE

9. POSITIVE JUMPER CABLE

10. COMPRESSOR HOSE STORAGE CHANNEL

11. HANDLE

12. 3 COMPRESSOR HOSE ADAPTORS

2. USING POWER CITY AS A JUMPSTART SYSTEM

Read all Warnings, Cautions and Notes carefully before using these instructions.In particular read and understand the WARNINGS printed on inside cover.

2.1 JUMPSTART PROCEDURE

1. Turn Off ignition and all accessories (radio, a/c, lights, cell phone, etc.). Place vehicle in "park" and set the emergency brake.

2. Make sure Power City's Safety Switch is turned Off.

3. Observe jumpstarting negative or positive ground system, as follows: Negative ground (negative battery Terminal connected to chassis) - most common.

4. Make sure Power City's Main Unit Safety Switch is turned Off.

5. Carefully lift negative (black) jumper cable wire from storage channel starting at clamp end of cable.

6. Squeeze negative (black) clamp handles and slide clamp from holster.

7. Carefully lift positive (red) jumper cable wire from storage channel starting at clamp end of cable.

8. Squeeze positive (red) clamp handles and slide clamp from holster.

9. Connect positive (+) red clamp to vehicle's positive battery terminal.

10.Connect negative (-) black clamp to chassis or a solid, non-moving, metal vehicle component or body part - never clamp directly to negative battery terminal or moving part. If audible alarm sounds, DO NOT turn ON Safety Switch reverse polarity of cable connections.

11.Turn On Power City's Safety Switch

12.Start vehicle (crank engine in 5 - 6 second bursts) If engine won't start, seek help and go to step 15.

13.After vehicle starts turn Power City's Safety Switch to Off position.

14.Leave engine running.

15.Remove clamps (disconnect the negative (black) clamp first; followed by the positive (red) clamp and store cables and clamps.

16.Squeeze negative (black) clamp handles and slide clamp into holster.

17.Carefully press negative (black) jumper cable wire into storage channel starting at Lantern end of cable.

18.Squeeze positive (red) clamp handles and slide clamp into holster.

19.Carefully press positive (red) jumper cable wire into storage channel starting at Lantern end of cable.

20.Recharge Power City as soon as possible.
