Vector VEC010INV User Manual

OWNER’S MANUAL

& W ARRANTY INFORMA TION

START-IT®

COMP ACT ELITE

™

JUMP-START SYSTEM

Rechargeable DC Power Supply – 12 volt

PORTABLE • CORDLESS • RECHARGEABLE

VEC010INV

THIS MANUAL CONTAINS IMPORTANT INFORMATION REGARDING SAFETY, OPERATION,
MAINTENANCE AND STORAGE OF THIS PRODUCT. BEFORE USING, READ AND
UNDERSTAND ALL CAUTIONS, WARNINGS, INSTRUCTIONS AND PRODUCT LABELS, PLUS
YOUR VEHICLE’S BATTERY MANUFACTURER GUIDELINES. FAILURE TO DO SO COULD
RESULT IN INJURY AND/OR PROPERTY DAMAGE.

4140 SW 28TH WAY, FT . LAUDERDALE, FL 33312

TEL [phone] • TOLL FREE: 866-584-5504 • FAX [phone]

ww w.vectormfg.com

Vec010S manual 03/04 5/22/06 11:19 AM Page 1

2

SAFETY INFORMATION

Save these instructions

Be sure to read and understand all WARNINGS and CAUTIONS before using this product. Please
read this guide carefully before use to ensure optimum performance and avoid damage to the
system or items that you are using it with.

WARNINGS:

WARNING STATEMENTS IDENTIFY CONDITIONS OR PRACTICES

THA T M AY RESULT IN PERSONAL INJURY OR LOSS OF LIFE.

1) When working with lead acid batteries, always make sure immediate assistance is
available in case of accident or emergency.

2) Always use protective clothing and eyewear when using this product, contact with battery
acid may cause blindness and/or severe burns. Be aware of first aid procedures in case
of accidental contact with battery acid.

3) There is a risk of explosive gases being released when lead acid batteries are being
charged or discharged. Failure to follow instructions may cause property damage,
explosive hazard, and/or personal injury.

4) Make sure the safety switch is off before connecting battery clamps to discharged battery .

5) When charging unit from a 110/120 volt AC electrical outlet, in any wet or damp area,
make sure that the outlet used is protected by a ground fault interrupt (GFCI) outlet.

6) When charging the unit near water, do not allow the electrical cords and outlets to
get wet; electrical shock could result.

7) Jump-start procedures should only be performed in a safe, dry, well-ventilated area.

8) Always store battery clamps in built-in holsters when not in use. Never touch battery
clamps together - this can cause dangerous sparks, power arcing, and/or explosion.

9 When using this unit in proximity to the vehicle’s battery and engine, stand the unit on a

flat, stable surface, and be sure to keep all clamps, cords, clothing, and body parts away
from moving veh icle components.

10) Do not wear vinyl clothing when jump-starting a vehicle-friction can cause dangerous
static electricity sparks. Remove all jewelry or metal objects that could cause short circuits
or react with battery acid.

11 Always disconnect the negative (Black) jumper cable first: followed by the positive (Red)

jumper cable.

12) Never allow red and black clamps to touch each other or another common metal
conductor - this could cause damage to the unit and/or create sparking/explosion
hazard. Always store battery clamps in built-in holsters when not in use.

13) Do not expose battery to fire or intense heat as it may explode. Before disposing of the
battery , protect exposed terminals with heavy-duty electrical tape to prevent shorting
(shorting can result in injury or fire).

14) Do not smoke, use matches or cigarette lighters while working on a vehicle’s battery
system.

17) Keep unit out of reach of children (whether stored, or in use)!

Vec010S manual 03/04 5/22/06 11:19 AM Page 2

3

FIRST AID:

•

SKIN:

If battery acid comes in contact with skin, rinse immediately with water, then wash
thoroughly with soap and water. If redness, pain, or irritation occurs, seek immediate
medical attention.

•

EYES:

If battery acid comes in contact with eyes, flush eyes immediately for a minimum of 15

minutes - seek immediate medical attention.

IMPORTANT:

Although this unit is delivered in a partially-charged state -

yyyyoooouuuummmmuuuussssttttffffuuuullllllllyyyycccchhhhaaaarrrrggggeeeeiiiittttwwwwiiiitttthh

hh

tttthh

h

heeeessssuuuupppppppplllliiiieeeedddd111111110000////111122220000vvvvoooollllttttAAAACCCCcccchhhhaaaarrrrggggeeeerrrrffffoooorrrraaaaffffuuuullllllll22224444hhhhoooouuuurrrrssssbbbbeeeeffffoooorrrreeeeuuuussssiiiinnnnggggiiiittttffffoooorrrrtttthhhheeeeffffiiiirrrrssssttttttttiiiimmmmeeee....

You cannot overcharge the unit using the AC charger method.

CAUTIONS:

Caution statements advise against certain conditions and practices that may result in
damage to vehicles, appliances and/or the STAR T-IT Compact Elite Jump-start System.

1) Use only the supplied cords/adapters for recharging this unit. Do not recharge for more than
3-4 hours maximum using 12 volt DC method. Recharge unit after each use.

2) All ON/OFF switches should be in the OFF position when the unit is charging or not in use.
Make sure all switches are in the OFF position before connection to a power source or load.

3) Never insert anything other than the supplied power/recharging cords or recommended
appliance power/recharging cords into the 12 volt DC charging/power socket on this unit.
Do not use any accessory that is not recommended or provided by the manufacturer .

4) Do not use this unit to operate appliances that draw more than 12 amps.

5) This system is designed to be used only on vehicles with 12 volt DC battery systems.
Do not connect to a 6 volt or 24 volt battery system.

6) This system is not designed to be used as a replacement for a vehicular battery.
Do not attempt to operate a vehicle that does not have a battery installed.

7) V ehicles that have on-board computerized systems may be damaged if vehicle battery is
jump-started. Before jump-starting, read the vehicle owner’s manual to confirm that
external-starting assistance is advised.

8) Excessive engine cranking can damage a vehicle’ s starter motor . If the engine fails to start
after the recommended number of attempts, discontinue jump-start procedures and look for
other problems that may need to be corrected.

9) Although this unit contains a non-spillable battery, it is recommended that unit be kept
upright during storage, use, and recharging. To avoid possible damage that may shorten the
unit’s working life, protect it from direct sunlight, direct heat, and/or moisture.

10) Check unit periodically for wear and tear. Replace worn or defective parts immediately;

contact Ve ctor customer service department at [phone] or toll-free [phone].

11) Do not attempt to jump-start a frozen battery .

12) Never submerge this unit in water.

13) All wires, cables, and cords must be positioned so they cannot be tripped over or
damaged by moving parts, by pinching, or abrading.

Vec010S manual 03/04 5/22/06 11:19 AM Page 3

4

CONTENTS

1. INTRODUCTION..........................................................................5

1.1 FEATURES ..............................................................................5,6

1.2 ST ART–IT COMPACT ELITE APPLICATIONS ................................6

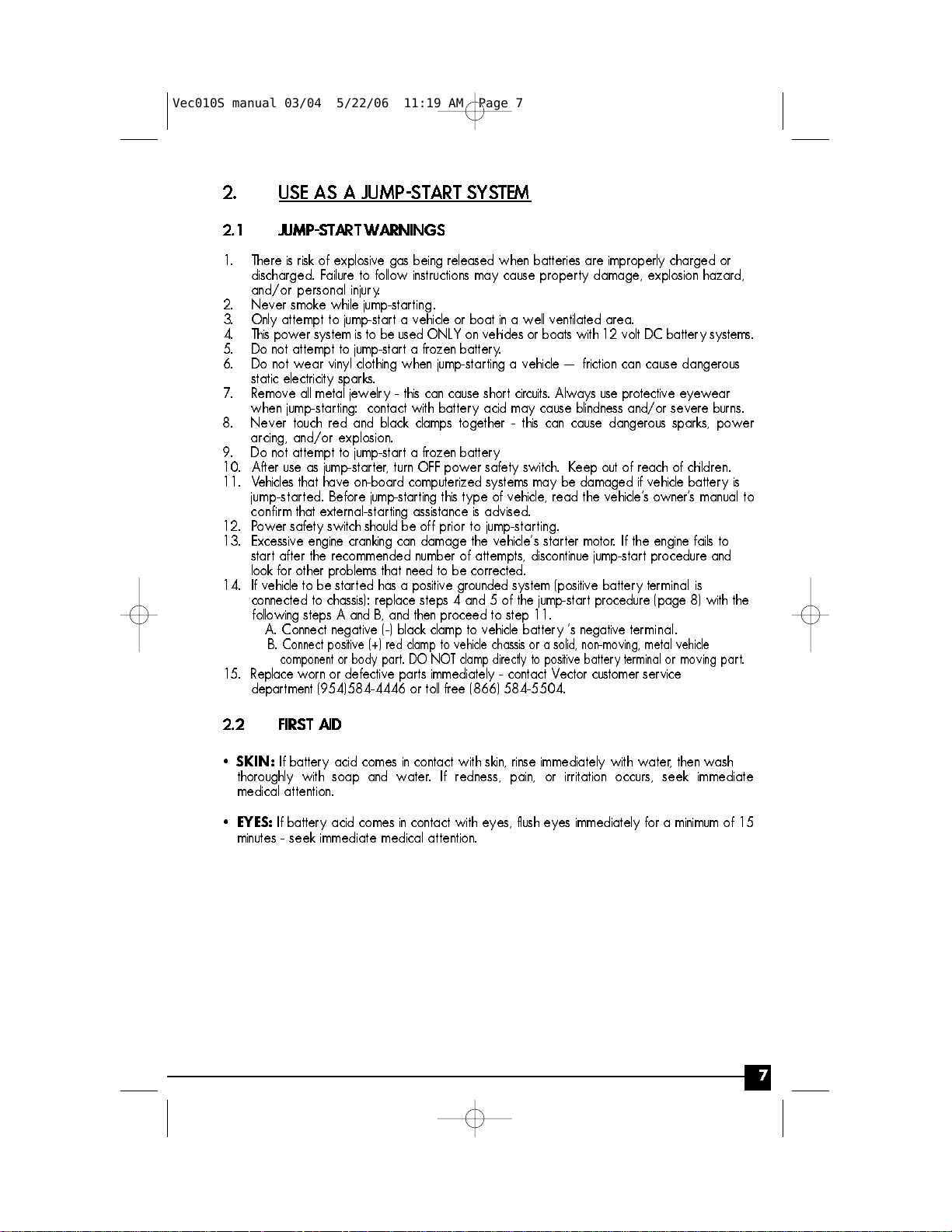

2. USE AS JUMP-ST A RT SYSTEM ..................................................7

2.1 JUMP-STA RTW ARNINGS............................................................7

2.2 FIRST AID..................................................................................7

2.3 JUMP-START PROCEDURE ..........................................................8

3. USE AS A 12 VOLT DC PORTABLE POWER SUPPLY ............8

4. CHARGING/RECHARGING......................................................9

4.1 AC RECHARGE ........................................................................9

4.2 DC RECHARGE ....................................................................9,10

5. MAINTENANCE - REPLACEMENT PART S ............................10

5.1 BULB REPLACEMENT ................................................................10

6. B ATTERY DISPOSAL ......................................................10

7. SPECIFICATIONS ..........................................................10

8. WARRANTY

..........................................................................11,12

Vec010S manual 03/04 5/22/06 11:19 AM Page 4

5

1. INTRODUCTION

This product has a sealed lead acid battery that should be kept at full charge. Recharge before
first use, immediately after each use, and every six months if not used. Failure to do this may
reduce the battery life dramatically.

Congratulations! Yo u have just purchased one of the finest Jump-Starter and 12 volt DC Systems
(VEC010S) on the market today. We have taken numerous steps in quality control and in
manufacturing processes to ensure that your product arrives in top condition and that it will
perform to your satisfaction.

In the rare event that your portable power source contains a damaged or missing item, does not
perform as specified, or requires warranty service, please call our T echnical Support T o ll Free
[phone]. Our technical service representative will expedite delivery of your part. If your
product needs warranty service, our technical service representative will help you obtain the
fastest remedy possible under the warranty. Save your purchase receipt, it is required for
warranty service.

The Start-it® Compact Elite™ is designed to be the ideal work, emergency and recreation power
source by powering DC appliances on the road, at the beach or wherever your travels take you.
It can also be used with other Vector 12 volt DC cordless, portable, rechargeable appliances rated
at 12 amps maximum. For information about Vector appliances, contact Vector Manufacturing,
Ltd. at [phone].

1111....11

11

FFFFEEEEAAAATTTTUUUURRRREEEESS

SS

Battery Charge Status

A series of (3) LED’s are arranged (2 red and 1 green) to display the level of charge (low to full)
in the battery . The left most RED LED indicates minimum battery charge. Charge the battery when
only a single LED is lit. The “center” LED (RED) indicates moderate battery charge level. When
the GREEN LED is lit, the battery is at “full charge.” The “charge status” LED’s will light when the
charge status button switch is pressed, or automatically during AC recharge operation. During
DC charging, the button switch can be pressed periodically to monitor the recharging progress.

12 V

olt DC Accessor

y Outlet
This accessory outlet is provided for use with appliances that are compatible. The DC accessory
outlet also allows for DC recharging from a vehicle or other 12 volt source.

12 VOLT DC
ACCESSORY
OUTLET

AC

RECHARGING

PORT

BATTERY CHARGE

LEVEL INDICATORS

KEYLESS ON/OFF
SAFETY POWER
SWITCH

ON/OFF
AREA LIGHT

PUSH BUTTON FOR
BATTERY STATUS
CHECK

BREAK-RESISTANT ABS
HOUSING

2 LED AREA LIGHT
