Vector V08 ENT M11, V08 ENT M75, V08 ENT M12 User Manual

VECTOR

V08 ENT M75
V08 ENT M11
V08 ENT M12

V 8 MODEL

DIESEL CYCLE

FOR MARINE APPLICATIONS

INSTALLATION DIRECTIVE

MAY 2006 EDITION

T E C H N O L O G I C A L E X C E L L E N C E

INSTALLATION DIRECTIVE MAY 2006

2

V08 ENT M75 - M11 - M12

We strongly recommend that you carefully read the indica­tions contained in this document: compliance with them
protects the engine against irregular operation and assures
its reliability, safeguarding sea-going and maintenance person­nel against accident hazards.
The indications contained in this directive pertain to the

V08 ENT M75

-

M11 - M12 engines and complement the
IVECO MOTORS publication “Guide to the Installation of
Marine Engines”, the reader should refer to for anything that
is not explained herein.
For more complete information about the engine, please
refer to the appropriate technical brochure.
Use of fuels and oils with different characteristics from
those set out in the operation and maintenance manual may
compromise the regular operation of the engine, limiting its
performance, reliability and working life.

Exclusive use of IVECO Original Par ts is a necessary condi­tion to maintain the engine in its original integrity.

Tampering, making modifications and using non original par ts
can jeopardize the safety of boat engineers and users.

To obtain spare parts, you must indicate:

- Commercial code, serial number and indications shown

on the engine tag;

- Part number of the spare as per spare part catalog.

The information provided below refer to engine charac­teristics that are current as of the publication date. IVECO
MOTORS reserves the right to make modifications at any
time and without advance notice, to meet technical or
commercial requirements or to comply with local legal and
regulatory requirements.

We refuse all liability for any errors and omissions.

The reader is reminded that the IVECO MOTORS Technical
Assistance Network is always at the Customer’s side with its
competence and professionalism.

Publication IVECO MOTORS edited by:
IVECO PowerTrain
Advertising & Promotion
Pregnana Milanese (MI)
www.ivecomotors.com

Printed P3D64V001 E - May 2006 Edition

FOREWORD

INSTALLATION DIRECTIVE

3

V08 ENT M75 - M11 - M12

MAY 2006

Page

CONTENTS

Indications for consultation

The different versions of the motors are generally shown
using the same pictures and descriptions, however important
differences are shown separately.

1. WARNINGS AND CAUTIONS 4

2. ENGINE PARTS AND COMPONENTS

6

3. INSTALLATION OVERVIEW 1

0

4. GENERAL INSTALLATION CRITERIA 1

1

5. TECHNICAL DATA FOR INSTALLATION 1

2

6. IDENTIFICATION DATA 1

4

7. FUEL LINE 1

5

8. ELECTRICAL EQUIPMENT 1

7

9. MAIN ANALOG INSTRUMENT PANEL 2

6

10. SECONDARY ANALOG INSTRUMENT PANEL 3

0

11. DRILLING PLANS FOR ANALOG PANELS 3

1

12. CUSTOMIZED INSTRUMENT PANEL 3

2

13. SENSORS FOR DETECTION
AND INSTRUMENT PANEL SIGNALLING 3

4

14. PREPARING THE ENGINE FOR FIRST START-UP 3

7

15. TESTS BEFORE THE FIRST START-UP 37

16. FIRST ENGINE START 3

8

17. EDC ECU INDICATION LIGHTS 4

0

18. UNDERWAY CHECKS 4

3

19. PREPARING THE ENGINE
FOR LONG IDLE PERIODS 44

20. ELECTRIC DIAGRAMS 4

6

21. APPENDIX 5

3

INSTALLATION DIRECTIVE MAY 2006

4

V08 ENT M75 - M11 - M12

To obtain the best engine performance, it is essential not to
deviate from the mission profile for which it was produced
and set up. The engine must not be used for purposes other
than those stated by the manufacturer. IVECO MOTORS is
willing to examine any need for particular installations befo­rehand. Use of an electronically controlled injection system,
in providing the engine with performance benefits, requires
that the installer and maintenance specialist comply with
some fundamental rules, which will become more and more
commonplace as use of such equipment becomes progressi­vely more widespread. Boat outfitters and maintenance spe­cialists are invited to closely follow the instructions contained
herein. No modifications to the engine, its accessories and
components, are allowed.

Failure to comply with the instructions that follow shall
void the warranty and relieve IVECO MOTORS of all
liabilities.

For personnel safety

Specialists and installers are cautioned to comply with
workplace safety rules and to adopt prescribed individual
protection devices when working.

o Drain the cooling, lubrication and fuel lines only after

the fluids have duly cooled. The pressurized cap of the
coolant line may be opened only after the engine has
duly cooled.

o Batteries contain a highly corrosive sulphuric acid solu-

tion: must never be upset and must be handled with
the utmost caution to prevent spillage. Ensure that the
battery compartment is adequately ventilated.

Handling

The engine must be handled by experienced personnel,
using the prescribed tool or a rocker arm that keeps the
lifting lines parallel and with adequate equipment in terms
of capacity and size. The two eyebolts provided for lifting the
engine alone must always be used simultaneously.

Installation

o Knife switches or battery breakers may be used on the

power supply line of the engine electronic unit, provided
they are not used to shut off the engine.

o Do not modify the wiring harnesses; their length may

not be modified: use only available extensions.

o Do not use electronic device wiring harnesses not com-

pliant with the IVECO MOTORS directive, in terms of
length, type of conductor, location, clamping, connection
of the shielding and ear th braids.

o To avoid any interference, the wiring harnesses of the

different on-board electronic devices must follow diffe­rent paths from those of the engine electronic systems.

o Do not connect any extraneous user device to the engi-

ne electrical equipment.

o Do not energize the on-board electrical system of the

boat without first verifying that there are no short cir­cuits.

o Do not branch pipes off to draw fuel from the engine

supply lines.

o Do not make any change to the engine’s hydraulic circui-

ts and components.

o Do not execute arc welding operations before removing

the electronic units from their seating, placing them at an
adequate safety distance.

o Do not subject electronic units to temperatures excee-

ding 80°C.

o Do not paint electrical components and their connec-

tions.

o Do not alter the data contained in the engine control

electronic unit.

o Comply with prescribed procedures and torque values

when tightening threaded elements.

Start-up

o Ready the engine following the procedure set out in

Chapter 14.

o When starting the engine the first time, have suitable

means available to cut off air intake in case of a runaway
condition.

o Start the engine after ensuring that it is complete with

every part specified by the manufacturer and required
by the installation, without attempting to star t it with
caps and occlusions to the lubrication, cooling and fuel
feed lines.

o Check that the fluid lines are perfectly sealed, especially

lines for fuels and lubricants, which may cause fires and
consequent harm to persons and equipment.

o Make sure that the various pipelines are not in contact

with warm surfaces or moving parts.

o The installing yard is required to carry out tests to

verify the functional compatibility between the electri­cal-electronic equipment of the engine and the other
electronic equipment present on the boat.

Tests and tuning up

o Never disconnect the batteries when the engine is run-

ning.

o Remove the electrical connections from the batteries

before any operation on the electrical system.

o Ensure that the battery terminals comply with the exact

polarity, are properly tightened and protected against
accidental short circuits and corrosion phenomena.

1. WARNINGS AND CAUTIONS

INSTALLATION DIRECTIVEMAY 2006

5

V08 ENT M75 - M11 - M12

o Do not connect or disconnect electrical connections

when electrical power supply is on.

o Do not cause sparks in the attempt to verify the presen-

ce of electrical voltage.

o Do not draw fuel through unfiltered lines.

o Do not clean the engine and its par ts with corrosive or

abrasive detergent substances, to avoid compromising
the integrity of electrical connections.

o The engine fluids and air, coolant, and oil filters discar-

ded after use must be properly stored and delivered to
appropriate collection centres.

Long engine inactivity periods

Before long periods of inactivity, ready the engine following
the procedure set out in Chapter 19.

INSTALLATION DIRECTIVE

6

V08 ENT M75 - M11 - M12

MAY 2006

2. ENGINE PARTS AND COMPONENTS

Figure 1A

05_001_V

9

4

12

10

3

1

1

2

11

8

14

15

13

5 6 7

18

16

17

1. Intake air filter - 2. EDC Electronic Central Unit - 3. Common rail high pressure injection pump - 4. Cooled turbo-charger -

5. Exhaust gas outlet - 6. Lever for switching fuel filters - 7. Engine coolant level sensor - 8. Water/water heat exchanger -

9. Pressurization cap for coolant tank - 10. Sea water pump - 11. Engine coolant pump - 12. Fuel filters - 13. Lifting padeyes -

14. Cylinder 1 electro-injector - 15. Cooled exhaust manifold - 16. Cylinder 4 electro-injector - 17. Lifting padeyes -

18. Air-sea water heat exchanger.

INSTALLATION DIRECTIVE

7

V08 ENT M75 - M11 - M12

MAY 2006

Figure 1B

05_008_V

9

15

13

10

11

16

20

7

1

2

7

3 6

12

8

14

5

4

17

19

23

22

21

24

18

1. Engine coolant tank - 2. Pressurization cap for coolant tank - 3. Exhaust gas outlet - 4. Cooled turbo-charger - 5. Common rail high
pressure injection pump - 6. EDC Electronic Central Unit - 7. Intake air filter - 8. Air-sea water heat exchanger - 9. Lifting padeyes -

10. Cylinder 8 electro-injector - 11. Lubricating oil dipstick - 12. Lubricating oil refill cap - 13. Cylinder 5 electro-injector - 14. Cooled
exhaust manifold - 15. Lifting padeyes - 16. Location of the low pressure fuel transfer pump - 17. Tap and fitting for lubricating oil

transfer - 18. Sacrificial anode - 19. Lubrication oil transfer electrical pump - 20. Sea water intake - 21. Alternator - 22. Lubricating

oil filters - 23. Engine coolant pump - 24. Electrical equipment wiring connectors.

INSTALLATION DIRECTIVE

8

V08 ENT M75 - M11 - M12

MAY 2006

05_002_V

3

6

14

9

15

11

13

1

2

7

54

12

8

16

10

Figure 2A

1. Lubricating oil filters - 2. Location of thermostatic valves - 3. Air-sea water heat exchanger - 4. EDC Electronic Central Unit -

5. Exhaust gas outlet - 6. Fuel inlet and outlet fittings - 7. Crankshaft sensor - 8. Cooled turbo-charger - 9. Lifting padeyes -

10. Cooled exhaust manifold - 11. Cylinder 8 electro-injector - 12. Lubricating oil dipstick - 13. Lubricating oil refill cap -

14. Cylinder 5 electro-injector - 15. Lifting padeyes - 16. Sea water intake.

INSTALLATION DIRECTIVE

9

V08 ENT M75 - M11 - M12

MAY 2006

05_009_V

5

1

7

11

10

8

9

6

32

4

12

Figure 2B

1. Exhaust gas outlet - 2. EDC Electronic Central Unit - 3. Air-sea water heat exchanger - 4. Location of thermostatic valves -

5. Fuel filters - 6. Lifting padeyes - 7. Cylinder 1 electro-injector - 8. Cooled exhaust manifold - 9. Cylinder 4 electro-injector -

10. Lifting padeyes - 11. Cooled turbo-charger - 12. Sacrificial anode (placed on the air/water heat exchanger).

INSTALLATION DIRECTIVE MAY 2006

10

V08 ENT M75 - M11 - M12

3. INSTALLATION OVERVIEW

Figure 3

The figure shows the set of components of an installation,
including those supplied with the engine equipment, standard
or optional, and those supplied or produced by the yard.
It provides a comprehensive picture of the operations
required to install the engine.
Components arrangement and illustrations are not binding
but merely indicative, subject to the choices made by yard
engineers according to their skills, available spaces and the
prescriptions set out herein.

05_003_V

1 2 3 4 5

6

7

8

9

1011

3

1. Main instrument panel - 2. Throttle actuator - 3. Exhaust gas outlet - 4. Fuel return pipe to tank - 5. Fuel suction pipe -

6. Prefilter with priming pump - 7. Sea water outlet from air/water heat exchanger - 8. To the filtered sea water intake -

9. Sea water decanter filter - 10. Sea water outlet from water/water heat exchanger - 11. Electrical system cabinet.

INSTALLATION DIRECTIVEMAY 2006

11

V08 ENT M75 - M11 - M12

4. GENERAL INSTALLATION CRITERIA

Accessibility

The engine must be located in such a way as to allow filling
and draining engine liquids when doing servicing operations.
Moreover, the relay box and the diagnostic push-button
present on it must be accessible, also when underway.

Anchoring

If anchoring is accomplished by interposing shock mounts,
they must be able to support the engine’s mass and the lon­gitudinal thrust exerted by the propeller shaft in motion.
If rigid mounting is adopted, particular care must be given to
support alignment and co-planarity.
Information on dimensions and fastening values are provided
in the “Installation Diagram”.

Combustion and ventilation air

Compliance with prescriptions on the quantity of air
required for combustion and ventilation assures a regular
operation of the engine even in adverse conditions and it
enables to deliver its maximum rated power (1).

Sea water line

It must be provided with an intake capable of preventing
the entr y of foreign bodies into the suction pipes. Between
the intake and the pump, it is best to interpose a gate to be
closed in emergencies or for extended idle periods and a
filter to stop the smaller impurities; it is also recommended
to install a suitably dimensioned and easily replaced zinc
anode.
The engine sea water line was provided by the manufacturer
with protection anodes to be replaced periodically.
The rubber hoses positioned along the pipeline shall be suffi­ciently rigid not to create choked areas caused by crushing (1).

Engine pre-heating

If the engine usage profile requires immediate delivery of
power at the highest rpm’s, it is recommended to install an
auxiliary pre-heater on the closed cooling loop.

Exhaust gas outlet

The exhaust gas outlet conduits shall be compliant with the
guidelines contained in the IVECO MOTORS publication
“Guide to the installation of marine engines”; it also provides
indications to compute the dimensions of the exhaust pipe­lines, which is the Yard’s responsibility.

Electric - electronic equipment

Provide a suitable arrangement of the relay box, and of the
optional electronic unit referring to the dimensions and posi­tion of the wire harnesses and the relative connectors.
Both units must be anchored in such a way as to dampen the
vibrations and stresses undergone by the hull while under­way and/or induced by the engine’s operation.

NOTE: Information about optional equipment are described
in the Chapter 21.

(1) The EDC engine electronic control is programmed to

reduce maximum deliverable power if the operating
parameters measured by the sensors show that criti­cal conditions have been reached, and if exceeded the
engine could be damaged.

INSTALLATION DIRECTIVE

12

V08 ENT M75 - M11 - M12

MAY 2006

5. TECHNICAL DATA FOR INSTALLATION

V08 ENT

M75

V08 ENT

M11

V08 ENT

M12

Engine intake and ventilation air when underway

Static vacuum allowed downstream of the air filter

kPa
mmH2O

≤ 3.5

≤ 350

≤ 3.5

≤ 350

≤ 3.5

≤ 350

Engine air intake flow rate

m3/h

≥ 3050 ≥ - ≥ 4000

Engine room ventilation air flow rate (excluding engine air intake)

m3/h

≥ 7950 ≥ - ≥ 6600

Static vacuum allowed in the engine room

kPa
mmH2O

≤ 0.1
≤ 10

≤ 0.1

≤ 10

≤ 0.1

≤ 10

Temperature allowed in the engine room

°C

≤ 45 ≤ - ≤ 40

Maximum engine room temperature exceed outside temperature

°C

≤ 15 ≤ 15 ≤ 15

Exhaust gas outlet

Allowed static back pressure

kPa
mmH2O

≤ 10

≤ 1000

≤ 10

≤ 1000

≤ 10

≤ 1000

Temperature at maximum power (turbocharger inlet)

°C

510 ± 25 - 660 ± 25

Flow rate at maximum power

kg/h

3550 - 4800

Riser outer diameter

mm

inches

-

-

-

-

-

-

Dry exhaust outer diameter

mm

inches

105

4

105

4

105

4

Diameter of circumference of distance between 6 locking holes

mm

inches

127

5

127

5

127

5

Fuel supply

Low pressure pump delivery at maximum rpm

l/h

400 400 400

Fuel temperature to allow maximum power

°C

≤ 70 ≤ 70 ≤ 70

Inner diameter, intake pipe

mm

≥ 14 ≥ 14 ≥ 14

Inner diameter, return pipe

mm

≥ 8 ≥ 8 ≥ 8

Thread on prefilter fittings

M

14 x 1.5 14 x 1.5 14 x 1.5

Thread on engine fittings

inches

UIC

1/2 1/2 1/2

Allowed intake vacuum

kPa
mmH2O

≤ 50

≤ 5000

≤ 50

≤ 5000

≤ 50

≤ 5000

Allowed intake pressure

kPa
mmH2O

≤ 20

≤ 2000

≤ 20

≤ 2000

≤ 20

≤ 2000

Open sea water cooling line

Intake pipe outer diameter

mm

inches

101

4

101

4

101

4

Pump delivery at maximum rpm

l/h

61000 - 78000

Allowed intake vacuum

kPa
mmH2O

≤ 20

≤ 2000

≤ 20

≤ 2000

≤ 20

≤ 2000

Discharge pipeline outer diameter from air/water heat exchanger

mm

inches

51

2

51

2

51

2

Discharge pipeline diameter outer from water/water heat exchanger

mm

inches

89

3½

89

3½

89

3½

INSTALLATION DIRECTIVE

13

V08 ENT M75 - M11 - M12

MAY 2006

Figure 4

Dimensions

V08 ENT

M75

V08 ENT

M11

V08 ENT

M12

Gear box oil heat exchanger

Thread on the intermediate engine fittings

inches UIC

- - -

Allowed engine inclination angles

Maximum longitudinal in continuous operation (static + dynamic) degrees/360 +20° +20° +20°

Maximum transversal in continuous operation(static + dynamic) degrees/360 ± 22°30’ ± 22°30’ ± 22°30’

Longitudinal for lubricating oil level check with standard dipstick degrees/360 0 ÷ 10° 0 ÷ 10° 0 ÷ 10°

Power takeoffs (optional)

2-race front pulley for “V” belts

Reference diameter mm - - -

Race dimension mm - - -

Power available per belt at 650 rpm

kW
CV

-

-

-

-

-

-

Power available per belt at 1300 rpm

kW
CV

-

-

-

-

-

-

2-race front pulley + elastic joint for flange

Torque available in engine axis

Nm
kgm

-

-

-

-

-

-

2-race front pulley + elastic joint for crankshaft

Torque available in engine axis

Nm
kgm

-

-

-

-

-

-

Radial force resulting from belt tension (*) N - - -

(*) For direction of the resulting radial force between 60° and 300° with reference to vertical axis

Moment of iner tia of rigidly added masses (*) kgm

2

- - -

Dimension in millimetres (inches)

2120 (83.4) 1220 (48)

1182 (46.5)

05_004_V

INSTALLATION DIRECTIVE

14

V08 ENT M75 - M11 - M12

MAY 2006

6. IDENTIFICATION DATA

Figure 6

Figure 5

The engine identification data are stenciled on a tag positioned over the engine coolant tank

Viale dell'Industria, 15/17 - 20010 Pregnana Mil.se MI - ITALY

ENGINE TYPE

ENGINE DWG

ENGINE S/N

COMMERC. TYPE / VERSION

POWER SET CODE

HOMOLOGATION

No

ENGINE FAMILY

POWER (KW)
AND SPEED (RPM)

YEAR OF BUILD

S. p. A.

04_039_C

05_002_V

INSTALLATION DIRECTIVE

15

V08 ENT M75 - M11 - M12

MAY 2006

7. FUEL LINE

Figure 7

For the installation, the following connections are required:

- from the tank to the prefilter

- from the prefilter to fitting to engine inlet

- from engine outlet fitting to the tank recirculation

Prefilter

The prefilter with priming pump, supplied separately from
the engine, must be fastened near the tank, in a relatively low
point of the line to allow for easy replacement the filtering
cartridge and/or the operation of the hand pump. Avoid the
use of additional mesh or paper filters along the feed lines
between prefilter and engine. To avoid introducing impuri­ties in the feeding lines inside the engine, do not place filter
cartridges pre-filled with fuel in the system.

Materials Characteristics

The fuel tank and the suction and return assembly must
withstand the continuous abrasion caused by a flow of fuel
oil of 250 l/h at a temperature of 90°C without noticeable
deformation or wear or release of material. Use of metal
tanks, preferably made of iron alloys, is allowed, provided

they are connected to the negative terminal of the battery
to prevent the accumulation of electrostatic charges.
Tanks must be provided with vents to avoid exceeding an
internal pressure of ± 5kPa (± 0.5 m of H2O column); their
shape and the suction assembly must be such as to assure a
suction at the maximum longitudinal and transverse inclina­tion allowed for the boat, with a residual quantity of fuel oil
considered “reserve”.
The suction inlet should be positioned in such a way as to
avoid taking in sludge. The return flow must be in such a way
as to facilitate the mixing of the returning fuel with the fuel
in the tank. If the tank is lower than the filter, then the return
pipe must always be submerged. The pipes and union fittings
of the fuel line must withstand a fuel oil flow rate of 250
l/h at a temperature of 90°C and a pressure of 3 bar (300
kPa) without noticeable deformation, wear or release of
material. Metal tubes, preferably made of iron alloys, are rec­ommended, taking care to connect each individual segment
to engine ground to avoid the accumulation of electrostatic
charges and inserting a vibration damper elastic joint on each
segment. The pipes used must be cer tified according to the
relevant Countries’ rules or to the standards issued by clas­sification Bodies.

05_012_V

1

2

4

5

6

7

8

3

1. Return and suction flows from the tank - 2. Prefilter - 3. Fuel fitting support - 4. Low pressure supply pump -

5. Fuel filters - 6. Lever for switching fuel filters - 7. Common rail high pressure injection pump - 8. Rail overpressure valve.

INSTALLATION DIRECTIVE

16

V08 ENT M75 - M11 - M12

MAY 2006

Fuel supply system scheme

Figure 8

Hydraulic connections

Figure 9

1. Vent fitting - 2. Compensation duct between two rails - 3. Common rail - 4. Electro-injector - 5. Low pressure limiter valve -

6. Vent fitting - 7. Twin-cylinder high pressure pump - 8. Pressure control solenoid valve - 9. Pressure sensor - 10. Common rail

overpressure valve - 11. Low pressure recirculation duct - 12. Fuel tank - 13. Prefilter - 14. Manual priming pump - 15. Vent fitting -

16. Recirculation valve for low pressure pump - 17. Low pressure mechanical feed pump - 18. By-pass valve for low pressure pump -

19. Lever for switching filters - 20. Fuel filters - 21. Filter exclusion valves.

1. Fitting for fuel outflow to the tank - 2. Fitting for for fuel inflow from prefilter - 3. Prefilter -

4. Fuel inlet pipe from the tank - 5. Fuel return pipe to the tank.

05_014_V

1

6

15

12

14 13

3 4 10

7

16

3 42

11

19

20

18

17

5

8

9

21

21

3

1 2

5

4

05_015_V

INSTALLATION DIRECTIVE

17

V08 ENT M75 - M11 - M12

MAY 2006

8. ELECTRICAL EQUIPMENT

Figure 10

The electrical equipment of the engine comprises a series of
components provided separately from the engine to enable
an easy and diversified installation, according to the Yard’s
design choices. The need to make accessible, at sea or under­way, the controls to the electrical components and to the
connector for diagnostics contained in the relay box may be
met through different installation arrangements.
Along with the coupling of all connectors provided in the
wire harnesses, completing the installation also requires the

connecting wire harness (12) for the sensor to detect the
presence of water in fuel (5), to complete the power line and
to connect the accumulator to the engine wire harness.
The connection of the J3 connector enables the electric
connection of the control module to the lubricating oil
pouring pump.
The JC connector is set for the connection to the emergency
stop button.

05_013_V

4

5

1

18

3

17

2

16

15

14

13

12

7

11

10

9

8

6

1. Indicator and control panel - 2. Electronic Central Unit - 3. Power line for electric star ter motor and alternator - 4. Sedimenting
prefilter - 5. Sensor to detect the presence of water in the fuel - 6. Control unit of the lubrication oil transfer electrical pump -

7. JG Connector - 8. JG1 Connector for control unit of the lubrication oil electrical pump - 9. JC Connector - 10. JF1 and JF2

connectors - 11. Relay box - 12. Wiring harness to be manufactured by the yard - 13. M Connector - 14. J4 Connector for the

electrical pre-lubrication pump - 15. J3 Connector for the electrical lubricating oil pump - 16. JA Connection - 17. JB Connection -

18. Instrument panel wire harness.

INSTALLATION DIRECTIVE

18

V08 ENT M75 - M11 - M12

MAY 2006

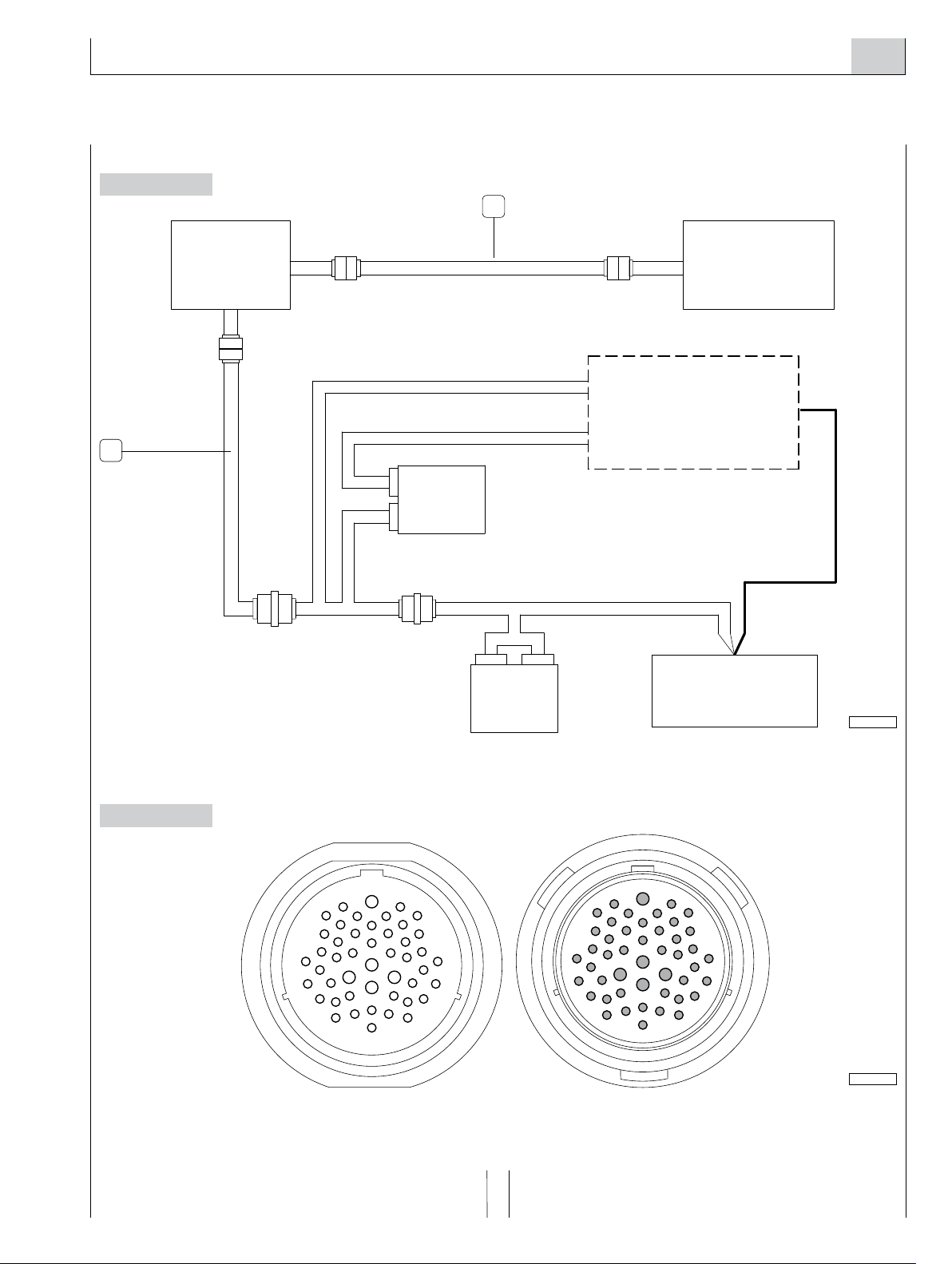

Synoptic

The wire harnesses provided with the engine include the connectors for all optional components which may be ordered and
their connections to the JB connector for the indication and control panel.

Figure 11

JB

JA

J1

J2

JG

JG1

JF2

JF1

GEAR BOX

ALTERNATOR

ELECTRIC STARTER

MOTOR

RELAY

BOX

BATTERY

EDC

ELECTRONIC

CENTRAL

UNIT

INDICATIONS AND

ALARMS SENSORS

05_006_V

11 2 53 4 6

V08 ENT M

INDICATIONS AND

ALARMS SENSORS

THROTTLE POSITION

SENSOR

EDC COMPONENTS

ELECTRO-INJECTORS

1. Connector for instrument panel connection wire harness - 2. Engine wire harness - 3. Connector for control unit of the
lubrication oil transfer electrical pump - 4. Connector for control unit of the electrical pre-lubrication oil -

5. Interface wire harness - 6. Power line.

INSTALLATION DIRECTIVE

19

V08 ENT M75 - M11 - M12

MAY 2006

Wire harness

Figure 12

05_005_V

4

6

5

¬

%$#¬*

¬

%$#¬*

0/0

0/

¬"

)3

+

8

/

--

''

3

0!

*"

'.

6)


&

*

*'

*

*

"!44 n"!44


&

*

*#

*'

7)

'(

4'#

( 0

0&

*

-

:

&

3

6

02

!

#

!0

"

%

%

%

%

%

%

%

%

*!

+

/





 







































 





 









































































































































































































A. Fuel temperature sensor - AP. Atmospheric pressure sensor - B. Crankshaft sensor for EDC - C. Camshaft sensor - E1/E8. Electro-injectors - F. Engine coolant temperature

sensor for EDC - GG. Alternator - GH. Grid heater power relay - GN. Neutral gear sensor (in installation with no sensor, do not remove the cap of the GN connector to avoid

compromising start engine function) - H. Combustion air pressure sensor for EDC - J. Low coolant level sensor (for alarm) - JB. Instrument panel connection wire harness -

JC. Emergency shut-off push-button (optional, installer’s responsibility) - J3. Connector for lubrication oil transfer electrical pump - J4. Connector for pre-lubrication electrical

pump - JF1, JF2. Relay box - JG. Lubrication oil transfer electrical pump control unit - JG1. Pre-lubrication electrical pump control unit - K,K1. Clogged air filter sensors (for alarm) -

M. Sensor to detect water in the fuel prefilter (for alarm) - MM. Electric starter motor - O,O1. Exhaust gas temperature sensors (for gauge) - P. Combustion air temperature

sensor for EDC - PA. Throttle position sensor - PF. Rail pressure control solenoid valve - PO. Lubrication oil transfer electrical pump - POP. Pre-lubrication electrical pump -

PR. Rail pressure sensor - S. Oil temperature sensor for EDC - S1. Engine oil temperature sensor (for gauge) - SI. Gear oil temperature sensor - T. Coolant temperature sensor

(for gauge) - TGC. Power relay for electric starter motor insulation (provision) - U. Clogged oil filter sensor (for alarm) - V. Engine oil pressure sensor for EDC - V1. Engine oil

pressure sensor (for gauge) - VI. Gear oil pressure sensor - WI. Low gear oil pressure sensor - X. Clogged blow-by filter sensor - Z. Clogged fuel filter sensor (for alarm).

INSTALLATION DIRECTIVE MAY 2006

20

V08 ENT M75 - M11 - M12

Power supply line

The power network must be carried out in order to avoid
using both the structure of engine and the structure of the
hull (if this is metallic). For this purpose the electrical star ter
motor and the alternator required for this equipment are
characterized by the presence of the terminals for electrical
connections both with the positive and with the negative
pole of the battery.

1. Alternator - 2. Electrical star ter motor - 3. Battery -

4. Engine wire harness.

The power supply line, to be built by the yard, comprises:

o A. Connection between the negative pole of the battery

and the terminal “–B” of the electric star ter motor
realized with a conductor having a cross section of at
least 95 mm2;

o B. Connection between the positive pole of the batte-

ry and the terminal “30” of the electrical star ter motor
realized with a conductor having a cross section of at
least 50 mm2;

o C. Connection between the “30” terminal of the alter-

nator to the positive “+B” terminal of the electric starter
motor, to close the power supply and recharge circuit
of the battery realized with a conductor having a cross
section of at least 50 mm2.

o D. Connection between the “−B” terminal of the alter-

nator to the positive “−B” terminal of the electric starter
motor, to close the power supply and recharge circuit
of the battery realized with a conductor having a cross
section of at least 50 mm2.

The connection of the electric equipment of the engine to
the battery has to be carried out via the two eyed terminals,
“+B” and “–B”, present on the wiring harness.

Figure 13

-

 )'3"

,



n"

Equipment power supply

05_113_C

B

C 4

1

2

A 3D

CAUTION

If magneto-thermal protecting breakers are installed on
the wiring lines of the engine control system, they must
not be used to stop the engine and in any case they must
be activated only a few seconds after shut-off.

INSTALLATION DIRECTIVE

21

V08 ENT M75 - M11 - M12

MAY 2006

Electrical starting motor

1. Excitation coil command (50) - 2. Positive power
pole (+B) - 3. Negative supply pole (−B).

Technical characteristics:

- Nominal supply voltage 24 V

- Absorbed power 8.5 kW

- Terminal connection “50”
tightening torque 2 to 3 Nm

- Terminal connection “+B”
tightening torque 20 to 30 Nm

- Terminal connection “

–BATT”

tightening torque 20 to 30 Nm

Figure 15

05_076_V

1

3

3

1

2

2

Alternator

Technical data:

- Nominal voltage 24 V

- Nominal current 90 A

- Terminal connection “+B” M8 x 1.25
tightening torque 12.5 Nm ± 20%

-

Terminal connection “–B” M6 x 1
tightening torque 6.0 Nm ± 20%

+B. (24 V) Power supply output terminal

–B. (0 V) Power supply output terminal

S. (Sense) Reference voltage of battery charge status

(connected to “+B” terminal or to be con­nected to the positive pole of the battery in
case of remote installation of the battery);

IG. (Ignition) Regulator enabling signal (connected to volt-

age “+ 15”, driven by key switch);

L. (Lamp) Power supply voltage of recharge/alarm indi-

cator light located on the panel.

Figure 14

05_112_C

- B

+ B

IG

S L

INSTALLATION DIRECTIVE MAY 2006

22

V08 ENT M75 - M11 - M12

Battery recharging

This is accomplished through the power supply line of
the electric starter motor and connection to the +B of
the alternator. The electronic regulator of the alternator
that equips the engine allows an effective control over the
battery recharging operation.
If, due to installation requirements, the batteries need to be
positioned at a distance from the engine, we recommend
increasing the cross section of the power line conductors
and verifying recharging effectiveness by measuring voltage
across the batter y poles.

For the best control of the battery recharge cabling the line
relating to the S terminal of the alternator directly to the
positive pole terminal of the battery (see figure 17).

Figure 17

Figure 16

Connect to positive
pole terminal of the
starter motor

B+

S

IG

L

05_073_V

B−

Connect to negative pole terminal
of the star ter motor

Connect to positive
pole terminal of the
battery

Connect to positive
pole terminal of the
starter motor

B+

S

IG

L

05_075_V

B−

Connect to negative pole terminal
of the star ter motor

IGS+B

L

05_074_V

Connect to positive pole
terminal of the battery

INSTALLATION DIRECTIVEMAY 2006

23

V08 ENT M75 - M11 - M12

Supplementary services battery

To assure that the engine can be started with a sufficient
quantity of energy, it is advisable to provide for the instal­lation of a supplementary battery, dedicated to supplying
power to the on-board electrical services. The power line to
recharge it may be constructed according to the indications
provided in Chapter 20.

If one engine is installed

The battery used for services may be recharged interposing
on the power supply line a relay actuated by the recharge
signal of the alternator’s electronic regulator (L).

If two engines are installed

The presence of two generators allows keeping the recharg­ing functions separated: the generator (G1) recharges the
battery (AC1) dedicated to star ting both engines and pow­ering both electrical/electronic control circuits, whilst the
generator (G2) recharges the battery (AC2) used to power
the services.

In two-engine applications, it is essential to connect the
engine grounds to a common potential; the solution pro­posed in Chapter 20 fully complies with this need, assuring
the full functionality and independence of the two circuits.

Relay Box

1. Control selector from bridge or engine room - 2. Power
supply switch of the engine electric circuits - 3. Start button

from engine room - 4. Reset button of the “maintenance

alarm” 5. Button for managing acceleration and deceleration

- 6. Connector for diagnostic instrument -

7. Blink code emission LED (EDC) - 8. Signalling LED of

maintenance interval expiration - 9. Signalling LED for fault

engine operating parameters (WARNING).

This shall be installed and anchored in such a way as to
dampen the vibrations and stresses occurring when under­way, and they shall be accessible during ser vicing operations
and when underway. The electrical commands positioned
on the panel allow controlling engine star ting and stopping
directly from the engine room, while excluding any possibil­ity that anyone may involuntarily star t the engine from the
bridge, during ser vicing operations.
On the relay box is located the multipolar connector (6),
protected by a screw-on lid, for connection with the com­puterized diagnostic tools prescribed by IVECO MOTORS.
Inside the box, anchored to a printed circuit board, are pres­ent the power management relays of some components and
the elements that protect the electrical lines against short
circuits or excessive current absorption. These components
perform a similar function to that of fuses, almost totally
avoiding the need to restore the electrical continuity of cir­cuits subjected to an anomaly condition. These components
are able to limit and eliminate short circuit currents without
melting, restoring their own and the circuit’s electrical conti­nuity, once the cause of the anomaly is removed.

Figure 18

"2)$'%

2//-

)'.)4)/. 34!24 20-

20-

%.').%

#(%#+

3

05_007_V

2 54 6

9 8 7

1

INSTALLATION DIRECTIVE MAY 2006

24

V08 ENT M75 - M11 - M12

Modality for inserting and disconnecting ECU
connectors

Both connectors are fastened to the ECU by means of
4 mm socket head screws. For the disconnection: loose
the screw until the connector is completely free. For the
insertion: fit the connector into the seat, fit the screw and
tighten it firmly.

Figure 20

05_048_V

Connections of the central electronic unit
(ECU) ADEM III

J1. Vessel side wiring connector - J2. Engine component wiring

connector - A. Ground connection of the ECU.

The connection of the central electronic unit, ECU, to
the EDC system, takes place by means of two 70-way
connectors.
The presence of the two connectors provides for a
subdivision of the wire harnesses to distribute the large
quantity of conductors and at the same time favour a quicker
identification of the lines during the service check operations
carried out by technical assistance personnel.
The connectors are polarized and equipped with fixing screws
to facilitate the insertion and disconnection operations and
guarantee the link.

Figure 19

J1 J2

A

05_010_V

INSTALLATION DIRECTIVEMAY 2006

25

V08 ENT M75 - M11 - M12

Sensor to detect water in fuel

1. Prefilter - 2. Conductor to be connected
with the negative battery terminal -

3. Sensor to detect water in fuel.

CAUTION

In order to enable the proper working of the sensor to
detect water in fuel, the prefilter support needs to be
electrically connected to the negative battery terminal.

In the engine models which use parts with insulated poles
it is necessary to electrically insulate the prefilter suppor t
from the boat mass and then connect the support with the
negative battery terminal.

Figure 22

Throttle lever position sensor

After testing the working condition of the linkage, adjust the
run of the ser vo components (see Chapter 15).

o With the throttle at idle setting, the potentiometer rod

has to be in the resting position;

o With the throttle at the stop, the potentiometer rod has

to be in the position of maximum run out.

Neutral gear sensor

CAUTION

When neutral gear sensor is installed remember to con­nect it to GN connector.
In installation with no sensor, do not remove the cap of
the GN

connector to avoid compromising start engine

function

.

Figure 21

05_018_V

2

1

3

05_019_V

INSTALLATION DIRECTIVE

26

V08 ENT M75 - M11 - M12

MAY 2006

9. MAIN ANALOG INSTRUMENT PANEL

Installation of the IVECO MOTORS onboard panel with
analog indicators entails connecting the panel’s JC connector
to the JB connector on engine wire harness, interposing the
appropriate extension wire harness available in 3, 5 and 7
metre-long versions. The JC-JB wire harness comprises 47
lines, each connected to the terminal identified on both con­nectors by the same number.

To the main panel is connected the JE connector, provided
for connection to the secondar y panel; in installations with­out secondar y panel, do not remove the cap of the JE con­nector to avoid compromising the electrical continuity of the
systems’ power supply circuit.

1. Coolant temperature gauge (TA) - 2. Revolution counter and hour counter (CG) - 3.Voltmeter (V) - 4. Buzzer (SA) -

5. Indications and alarms module (MS) - 6. Engine oil pressure gauge (MO) - 7. Connector for secondary instrument panel (JE) -

8. On board panel instrument light switch (L) - 9. Engine star t/stop key switch (CA) - 10. Engine stop push-button (usable only on
versions with excitation engine stop) - 11. Sound alarm inhibition push-button (P1) - 12. Connector for main panel wiring (JC) -

13. Cap with electrical continuity connection.

HOURS

oF

electronic
RPMx100

oC

V

bar

04_233_N

1

12

2

3 4 5

6

7

11 10 9 8

13

Figure 23

INSTALLATION DIRECTIVE

27

V08 ENT M75 - M11 - M12

MAY 2006

Synoptic of the connections of the analog panels

Figure 24

CONNECTORS OF THE EXTENSION WIRE HARNESS JB - JC, SEEN FROM THE COUPLING SIDE

Figure 25

The JC-JB wire harness comprises 47 lines, each connected
to the terminal identified on both connectors by the same
number.

To identify the functions served by the individual lines, refer
to the electrical diagrams in Chapter 20.

1. JB-JC Extension wire harness - 2. JE-JH Extension wire harness.

1

2

JC JB

32

47

18

28

45

17

29

44

16

42

43

31

46

30

7

11

12

24

38

1

5

6

13

14

15

4

40

2627

41

25

39

21

22

36

34

8

9

19

20

33

35

23

37

2

3

10

24

12

40

39

22

38

37

23

36

44

16

13

14

41

26

25

27

15

28

42

43

1

11

4

10

2

3

7

5

17

6

18

35

21

9

20

19

33

8

32

34

47

29

45

30

31

46

04_250_N

ENGINE

EQUIPMENT

MAIN

INSTRUMENT

PANEL

SECONDARY

INSTRUMENT

PANEL

RELAY

BOX

JB

JA

JF2

J1

EDC

JF1

J2

JH JH

JEJE

JC

JC

06_131_V

BATTERY

INSTALLATION DIRECTIVE MAY 2006

28

V08 ENT M75 - M11 - M12

Indications and Alarms Module

1. Engine overspeed (SSV) - 2. Presence of water in the fuel
prefilter (SAC) - 3. Low engine coolant level (SBLA) -

4. Alternator anomaly (SS) - 5. Clogged oil filter (SIFO)-

6. Clogged blow-by filter (SIFB) - 7. Pre-lubrication in progress

(SP) - 8. Clogged air filter (SIFA) - 9. Clogged fuel filter (SIFC) -

10. High coolant temperature (SATA) - 11. Low oil pressure

(SBPO) - 12. Pre/post heating (SCP) - 13. EDC Malfunction (EDC).

The Indications and Alarm Module comprises the indicator
lights and the electronic alarm interface, timing and stor­age circuit. It is programmed in such a way that when it is
powered, all indicator lights are lighted, with the exception
of those for “pre-lubrication”, “pre-post heating” and “EDC”
failure and a sound signal is emitted by the buzzer.
The buzzer may be silenced before the end of the test, acting
on the appropriate control.
During the star ting phase and for the subsequent 15 sec­onds, needed to stabilize the low oil pressure signal, all the
module’s functions are inhibited; once this time interval has
elapsed, every alarm state detected by the sensors will cause
the associated indicator to be lighted and the buzzer to be
powered; the exceptions are the “pre-lubrication” and “pre­post heating” indicators, given only visually.
When a new alarm state is detected, the indicator light will
flash to highlight the occurrence with respect to any others
which may be ongoing at the time. When the sound alarm is
shut off, the light indicator will remain lighted and the alarm
will be stored until the engine is stopped.

The standard set-up of the V08 ENT M75, V08 ENT M11
and V08 ENT M12 provides for use of the indicators: SBLA,
SIFA, SIFC, SIFO, EDC, SS.

2

4

8

13

1

3

5

6

9

12

10

11

7

04_234_N

Installation

In order to drill holes on the area where the panel is to be
mounted, refer to the dimensions indicated in Chapter 11.

Operation of the panel

After completing the electrical connections and engine
preparation, perform the tests required for the first star t, as
described in Chapter 18.
Verify the proper operation of the panel, proceeding as fol­lows:

o Make sure that the “ENGINE ROOM / BRIDGE” switch

of the Relay Box is in the “BRIDGE” position, then
turn the key switch to the first position and verify that
the instruments are powered and the Indications and
Alarms Module runs the alarm test for about 5 seconds
according to the procedures set out below.

o Once the test is complete, only the indications prescribed

for the engine not running must remain lighted: e.g.
“alternator charge” and “low oil pressure”; the analog
instruments must provide values consistent with the
relevant physical parameters.

Testing the engine start function

Turn the key switch in the second position and release it
quickly; the start function is fully controlled by the ECU and
begins when the key is released.

Checking indications

After starting the engine, verify whether the operating
modes of the Indications and Alarms Module are similar to
those set out below.
Using appropriate measuring instruments, verify the consis­tency of the indications provided by the analog instruments.
Verify the indication of the panel revolution counter, compar­ing it with the one measured by a reference instrument; if the
indication is different, proceed as described below.

Testing the engine stop function

The engine is stopped and the panel is disabled by returning
the key switch to the resting or zero position.
The panel has an engine stop push-button whose function is
only enabled in versions where the engine stops as a result
of the excitation of an actuator, i.e. engine versions requiring
certification by Certification Bodies.

Figure 26

INSTALLATION DIRECTIVEMAY 2006

29

V08 ENT M75 - M11 - M12

Revolution-counter calibration

1. Adjustment screw - 2. Panel lighting lamp.

Verify the indication of the panel revolution counter by
comparing it with the one measured with a reference
instrument; if it differs, operate the adjustment screw (1),
located in the rear part of the revolution counter, until
consistency is achieved; repeat the operation for different
engine rpms.

Maintenance

Should it become necessary to replace a panel light, remove
the lamp holder from the rear par t of the instrument (see
Figure 27A).

Figure 27A





04_255_N

2

1

Revolution-counter calibration

1. Calibration increasing button -

2.Calibration decreasing button.

Verify the indication of the panel revolution counter by com­paring it with the one measured with a reference instrument;
if it differs, press the button 1 and 2 situated on the rear
of the tachometer, until consistency is achieved; repeat the
operation for different engine rpms.

Maintenance

The board is illuminated by not-replaceable internal LEDs.

Figure 27B





06_113_V

1 2

INSTALLATION DIRECTIVE MAY 2006

30

V08 ENT M75 - M11 - M12

The connection is achieved by removing the cap on the JE
connector of the main panel, and connecting the JE connec­tor to the JH connector on the secondar y panel, interposing
the extension wire harness, available in 3, 5 and 7 metre-long
versions (see Fig. 19). The JE-JH wire harness comprises 12
lines, each connected to the terminal identified on both con­nectors by the same number (see fig. 24).

CONNECTORS OF THE JE-JH EXTENSION WIRE

HARNESS, SEEN FROM THE COUPLING SIDE

Installation

In order to drill holes on the area where the panel is to be
mounted, refer to the dimensions indicated in Chapter 11.

Operation of the secondary panel

After completing the electrical connection to the main panel
and engine preparation, and performing the tests required
for the first start (as described in Chapter 18), verify the
proper operation of the panel, proceeding as follows:

o Make sure that the “ENGINE ROOM / BRIDGE” switch

of the Relay Box is in the “BRIDGE” position, then turn
the key switch to the first position, thus enabling the
operation of both panels.

o Carry out the same tests for the secondar y panel as

were carried out for the main panel.

o Disable the secondary panel by bringing the key switch

on the main panel to the resting or zero position.

Testing the engine start and stop function.

With the panel enabled, press the green push-button until
the engine star ts, then release it; wait for engine rpm to sta­bilize before stopping it by pressing the red push-button.
The starting and stopping operations can be performed sev­eral times and consecutively from the secondary panel

Checking indications

Proceed in the same way as for the main panel.

10. SECONDARY ANALOG INSTRUMENT PANEL

Figure 29

Figure 28

1.Connector for secondar y panel wire harness (JH) - 2. Engine start push-button (CS) - 3. Revolution-counter (CG) -

4. Buzzer (SA) - 5. Indications and alarms module (MS) - 6. Engine stop push-button (AS) -

7. Sound alarm inhibition push-button (P1).

*% *(

1 6 6 1

7 12 12 7

electronic
RPMx100

04_240_N

04_251_N

INSTALLATION DIRECTIVE

31

V08 ENT M75 - M11 - M12

MAY 2006

11. DRILLING PLANS FOR ANALOG PANELS

Figure 30

Figure 31

Dimension in millimetres.

= =

225

285

264

Ø4

Ø4

Ø4

Ø4

==

140

200

26264 4

26 4

MAIN PANEL

04_022_C

= =

180

240

282

==

80

140

2828

28

Ø4

Ø4

Ø4

Ø4

2

2

SECONDARY PANEL

04_023_C

INSTALLATION DIRECTIVE MAY 2006

32

V08 ENT M75 - M11 - M12

12. CUSTOMIZED INSTRUMENT PANEL

Using only the components of the panel that are not wired
to allow the panel customization, they will have to be wired
using the 10 metre long wire harness, set up at one end for
coupling to the JB connector and at the opposite end with
conductors with free terminals with identifying numbering
on each wire. The conductors will have to be connected to
the individual components as indicated in the electrical and
wiring diagrams in Chapter 20.

CAUTION

To assure the functionality of the safeties pertaining to the
engine start/stop commands from the instrument panel or
engine room, it is mandatory to wire the key switch strictly
as shown in the electrical diagrams in Chapter 20.

The wiring details of the indications and alarms module
alone are provided below; indications for IVECO MOTORS
indicator instruments are shown in the related wiring dia­grams in Chapter 20.

JD Connector for indications and alarms
module

VIEW FROM THE SIDE INTEGRATED IN THE REAR PART

OF THE MODULE

Figure 34

VIEW FROM THE TERMINAL SIDE OF THE COUPLING

SIDE WIRING

connector

TRIDENT / ITT CANNON part TST 24PA00

terminal

female part 192990-0050

lid

rear part TST24AH0

JD connects the indications and alarms module to the elec­trical system of the engine (sensors, power supply, etc.).
The terminal part of the wire harness, supplied with the
module, must be completed using female terminals, as
described in the electrical diagram of Chapter 20.
For standard-equipped engines, to have the essential indica­tions available, the following ways must be wired: 1, 3, 7, 8,
9, 10, 11, 13, 14, 15, 16, 17, 18, 19 with the female terminals
supplied as standard equipment.

Figure 35

13

9

5

1

14 15

16

10 11 12

6

2

4

7 8

3

21 22 23 24

17 18 19 20

04_241_N

123

4

568 7

10

912 11

13141615

171820 19

212224 23

05_034_C

INSTALLATION DIRECTIVE

33

V08 ENT M75 - M11 - M12

MAY 2006

Functions of the JD terminals

PIN Description Electric level
OFF Indication ON Indication

1 Module power supply Positive (+B)

2 Not connected -

3 EDC Fault indication High (+B) Low (ground)

4 Not connected -

5 Pre-heating indication High (+B) Low (ground)

6 Pre-lubrication indication Open circuit High (+B)

7 Engine star t Power supply positive (+B) while star ting

8 Buzzer inhibition Negative (ground) during the request

9 Module power supply Negative (ground)

10 Sound alarm power supply Negative (ground) during the emission of sound

11 Clogged oil filter indication Open circuit Low (ground)

12 Clogged oil vapour filter indication (not applicable) Open circuit Low (ground)

13 Clogged air filter indication Open circuit Low (ground)

14 Clogged fuel filter indication Low (ground) Open circuit

15 Alternator fault indication High (+B) Low (1 to 3 V)

16 Low engine coolant level indication Open circuit Low (ground)

17 High coolant temperature indication Open circuit Low (ground)

18 Low engine oil pressure indication Open circuit Low (ground)

19 Presence of water in fuel indication Open circuit Low (ground)

20 Overloaded or runaway engine indication Open circuit High (+B)

21 Not connected -

22 Not connected -

23 Reception of data from main panel NMEA communication protocol (0 to 5 V)

24 Transmission of data to secondar y panel NMEA communication protocol (0 to 5 V)

CAUTION

To assure the utmost reliability and safety while underway, all installations must be provided with the following alarm indications:
(EDC) EDC failure

(SATA) high coolant temperature
(SBPO) low oil pressure

It is also recommended that the following indications are present:
(SAC) presence of water in the fuel prefilter

(SIFA) clogged air filter
(SS) alternator fault

INSTALLATION DIRECTIVE MAY 2006

34

V08 ENT M75 - M11 - M12

13. SENSORS FOR DETECTION AND INSTRUMENT PANEL SIGNALLING

Coolant temperature sensor

Resistor with negative temperature coefficient, providing the
signal for analog temperature indication.

Operating voltage from 6 to 24 V

Calibration range from 0° to 120 °C

Resistance value at 90°C 51.2 ± 4.3

Ω

Electrical poles isolated

Low level coolant sensor

Microswitch sensor controlled by the float of the coolant
tank.

Operating voltage: from 6 to 24 V

Condition for high level open

Maximum current 2 A not inductive

Electrical poles isolated

Oil pressure sensor

Rheostat component providing the signal for the analog
indication of pressure.

Operating voltage from 6 to 24 V

Calibration range from 0 to 10 bar

Resistance value at 0 bar 10

Ω +3/-5 Ω

Resistance value at 2 bar 52 ± 4

Ω

Resistance value at 4 bar 88 ± 4

Ω

Resistance value at 6 bar 124 ± 5

Ω

Maximum value of resistance 184

Ω

Operating temperature from - 25 to 100 °C

Electrical poles isolated

Figure 36

Figure 37

Figure 38

04_237_N

05_114_C

05_011_V

INSTALLATION DIRECTIVEMAY 2006

35

V08 ENT M75 - M11 - M12

Clogged air filter sensor

Vacuum switch, providing the signal for the clogged air filter
alarm indicator.

Operating voltage: from 6 to 24 V

Condition at ambient pressure normally open

Closing vacuum:

≥ -52 mbar

Operating temperature: -20 / +80 °C

Maximum current 0.1 A (not inductive)

Electrical poles isolated

Clogged oil filter sensor

Differential pressure switch, providing the signal for the
related indicator when pressure difference between inlet /
outlet oil filter is more then a limit value.

Operating voltage: from 6 to 24 V

Condition at ambient pressure normally open

Closing pressure: 2.4 ± 0.3 bar

Opening pressure: 1.8 ± 0.3 bar

Maximum current 3 A (not inductive)

Electrical poles isolated

Figure 40

Figure 41

Clogged fuel filter sensor

Figure 42

Pressure switch, providing the signal for the related indicator,
when the pressure at the fuel filter inlet is too high.

Operating voltage: from 6 to 24 V

Condition at ambient pressure normally closed

Opening pressure: 1.5 ± 0.1 bar

Maximum current 0.1 A (not inductive)

Electrical poles isolated

Exhaust gas temperature sensor

NiCr-Ni thermocouple sensor with insulated poles, pro­viding the signal for the analog indication of exhaust gas
temperature.

Temperature Voltage

°C mV

100 4.10

200 8.13

300 12.21

400 16.40

500 20.65

600 24.91

700 29.14

800 33.30

900 37.36

Figure 43

04_029_C

04_030_C

04_260_N

04_238_N

INSTALLATION DIRECTIVE MAY 2006

36

V08 ENT M75 - M11 - M12

CAUTION

In order to enable the proper working of the sensor to
detect water in fuel, the pre-filter support needs to be
electrically connected to the negative battery terminal.

In the engine models which use parts with insulated poles
it is necessary to electrically insulate the prefilter suppor t
from the boat mass and then connect the support with the
negative battery terminal.

Neutral gear sensor

CAUTION

When neutral gear sensor is installed remember to con­nect it to GN connector.
In installation without sensor, do not remove the cap of
the GN connector to avoid compromising start engine
function.

Sensor to detect water in fuel

Fuel resistivity sensor, integrated with the control and ampli­fication electronic circuit, providing the signal for the indica­torof the presence of water in the fuel.

Operating voltage from 12 to 24 V

Condition in the absence of water open circuit

Closed condition resistance of the liquid
≤ 1 MΩ

Operating temperature from -20 to +80 °C

Connections of the sensor detecting the presence of water
in fuel

1. M Connector of the engine wire harness -

2. Sensor detecting the presence of water in the fuel -

3.Wiring harness (outfitter’s responsibility).

The three pole connection between the sensor for detect­ing the presence of water in the fuel and the engine wire
harness must be produced by the outfitter according to the
position of the fuel prefilter in the boat.
Connection to the engine wire harness requires a METRI­PACK150 three-pole connector with three male terminals;
connection to the sensor requires a JUNIOR TIMER three­pole connector with three female terminals.

Figure 44

04_031_C

Figure 45

1 2 3

1 2 3

1 2 3

1 2 3

3

1

2

05_017_V

INSTALLATION DIRECTIVEMAY 2006

37

V08 ENT M75 - M11 - M12

14. PREPARING THE ENGINE FOR FIRST START-UP

15. TESTS BEFORE THE FIRST START-UP

1. Drain the residual 30/M protective oil from the sump.

2. Pour into the lubricating loop only lubricating oil of the
type and in the quantities set out in the Refilling Table.

3. Drain the CFB protective liquid from the fuel loop,
completing the operations as indicated under item 3. of
Chapter 19.

4. Remove the caps and/or seals from the engine intake,
exhaust, aeration and venting ports, restoring normal
conditions of use. Connect the inlet of the turbocharger
to the air filter.

5. Connect the fuel loops to the boat tank, completing
the operations set out in item 4. of Chapter 19. During
filling operations, connect the pipe returning fuel to the
tank to a collecting container, to prevent residues of CFB
protective liquid from ending up into the boat tank.

6. Verify and refill engine coolant as prescribed.

7. Remove from the engine the labels with the inscription
“ENGINE WITHOUT OIL”.

Although they are extremely important, “common sense”
checks such as the exposure of sensitive parts (plastics, wire

harness, electronic units, etc. ...) to heat, and those that for

years have characterized the quality of the work performed
in the yard, are not mentioned herein.
Tests of the proper operation of the engine and the com­ponents of the electronic control system may be performed
rapidly and with the utmost reliability using specific diagnostic
tools, available from IVECO MOTORS Technical Assistance
Centres.

Fuel tank suction

Verify the fuel suction at the maximum allowed longitudinal
and transverse inclination, with the residual quantity of fuel
considered “RESERVE”, such as to cause the reserve indica­tor light to be permanently lighted.

Throttle lever position sensor

In the positions of minimum and maximum travel, verify the
correlation between the position of the throttle control
valve on the bridge and the position of the sensor rod.

Instruments and control panel

Verify the efficiency of all light indicators, as described in the
related Chapters.

INSTALLATION DIRECTIVE MAY 2006

38

V08 ENT M75 - M11 - M12

16. FIRST ENGINE START

Before starting the engine, please make sure the sea water
gate valve is open, check the levels of the lubricating oil and
of the engine coolant, and complete venting the air from the
fuel feed loop, acting on the hand pump of the prefilter or
with the aid of a dedicated electrical pump. Loosen the vent
fitting on the prefilter and operate the pump until only fuel
without air flows out.

Venting fuel supply line

1. Prefilter vent fitting - 2. Vent fitting on the filter support -

3. Vent fitting on the high pressure pump.

o Loose the vent fitting on the prefilter (1) and operate

the pump until only fuel without air flows out. Tighten
the vent fitting.

o Loosen the vent fitting (2) on the filter support and

operate the pump until only fuel without air flows out.

o Tighten the vent fitting (2) and continue pumping during

the initial star t-up phases.

Make sure that the fuel that flows out of the fitting is not
dispersed in the environment.

Only if the engine starting is very difficult, stop the engine,
insert a hose on the vent fitting of the high pressure pump
(3), loose the junction and start the engine for a few seconds.
Stop the engine, remove the hose and tight the junction to
the prescribed torque value. Make sure that the fuel that
flows out of the fitting is not dispersed in the environment.
Start the engine.

CAUTION

Never attempt to vent the high pressure system as this is
useless and extremely dangerous.

CAUTION

Avoid accurately that fuel comes into contact with the
alternator belt.

Start-up procedures

1. Control selector from bridge or engine room -

2. Power supply switch of the engine electric circuits -

3. Start button from engine room -

4. Button for managing acceleration and deceleration.

The electrical equipment of this engine allows starting it
from the “engine room” and from the “bridge”.

NOTE

A few moments after start-up, make sure sea water is cor­rectly drained from the relevant circuit.

Starting the engine from the bridge

This is allowed only if the Relay box switch (1) is in the
“BRIDGE” position.
Procedures and warnings are provided in the operation and
maintenance manual.

Starting engine from the “bridge”

- Switch over the switch (1) of the relay box in the posi­tion “ENGINE ROOM”.

This operation excludes all the bridge controls and must be
absolutely avoided when the engine has been started.

- Switch over the switch IGNITION (2) to power the
electric circuits of the system and enable the controls
available on the panel.

- Press the button START (3) to start the engine.

WARNING

The engine start is fully controlled by the ECU; the start-up
phase begins when the button START is released.

Engine shut-off from “bridge”

The engine shut-off occurs switching over the switch IGNI­TION (2).
Bringing again the switch (1) in position “BRIDGE”, the use of
the controls will be disabled on the Box, enabling the start­up only the bridge controls.

Figure 44

Figure 43

05_016_V

1

2

3

"2)$'%

2//-

)'.)4)/. 34!24 20-

20-

%.').%

#(%#+

1 32 4

05_007_V

INSTALLATION DIRECTIVEMAY 2006

39

V08 ENT M75 - M11 - M12

RPM control

To allow easily to control engine RPM from the “engine
room”, a simultaneous acceleration/deceleration function
(RPM+/RPM-), active only when the switch (1) is in the
“ENGINE ROOM” position, and the switch (2) is in IGNI­TION position.

Acceleration (RPM +)

If, the engine is running, and RPM+ / RPM- push-button (4)
is held down in the “RPM+ position, then engine rpm are
progressively increased. The increase ends when the push­button is released, allowing the engine to run at the desired
rpm.

Deceleration (RPM −)

If the engine is running, and RPM+ / RPM- push-button is
held down in the “RPM-” position, a progressive reduction in
rpm is obtained. The reduction ends when the push-button is
released, allowing the engine to run at the desired rpm.
The set out engine speed will be kept until the next engine
shut-off.
The engine shut-off resets every previous configuration.

NOTE
The effect of the RPM + e RPM – controls varies according
to the duration of the operation:
it is achieved a very slow variation during the first 3 seconds;
continuing the operation, the regulation becomes much
more effective and enables to complete the full range of the
engine speed in a overall time of about 20 seconds.

CAUTION

Never operate the “BRIDGE - ENGINE ROOM” switch
when the engine is running.

Once the first star t-up phase is complete, verify that:
o There are no liquid leaks from the coolant loop pipeline

junction hoses.

o There are no exhaust gas leaks in the hull.

o In order to carry out the cooling system degassing, do as

follows:

1. Venting screw.

Stop the engine, then loose the venting screw (1) carefully to
degas the expansion tank. When the operation is completed,
tighten the screw to the prescribed torque, start the engine
and keep it up for a few minutes. Stop the engine and verify
the coolant level again, fill it up, if necessary.
Make sure that the coolant that flows out is not dispersed in
the environment.

o Complete the instrument panel operation tests as

described in the related Chapters.

o Verify that the power supply voltage across the batter y,

after about 15 minutes with the engine running, is no
less than about 26 V.

o Stop the engine and delete any “errors” which may have

been stored in the injection system ECU during the sta­bilization phases. The error deletion can be carried out
by the diagnostic instrument IVECO SERVICE TOOL.

1

05_009_V

Figure 45

INSTALLATION DIRECTIVE

40

V08 ENT M75 - M11 - M12

MAY 2006

17. EDC ECU INDICATION LIGHTS

CHECK Indication light

4. Reset button of the “maintenance alarm” -

7. Blink code emission LED (EDC) - 8. Signalling LED

of maintenance inter val expiration - 9. Signalling LED for fault

engine operating parameters (WARNING).

The ECU continuously monitors its own operating conditions,
as well as of the engine and of components connected to it
with complex auto-diagnosis routines.
The identification of anomalies causes:

- the anomaly data storage in the ECU.

- the blinking lighting of the fault indication light EDC on
the instrument panel.

- the lighting of the green indication light CHECK (7) on
the relay box.

The blinking lighting of the EDC fault indication light has
the purpose to inform about a detected anomaly, whose

identification is taken “reading” the blink code of the CHECK
indication light.
(Indications for decoding codes are in the following
chapter).
The code emission happens automatically and sequentially
when the anomalies are detected; the sum of the current
anomaly code is designated “list”.

Each single code is organized in 3-digit numerical blocks with
a fixed lighting duration equal to 0.6 s.

The pauses (switch-off time) have a different duration to
distinguish the given type of information:
pause between blinking of the same digit 0.36 s
pause between different digits of the same code 1.5 s
pause between different codes of the same list 3 s
pause between consecutive lists 6 s

The emission is continuative, i.e. the code list is repeated
consecutively with the same order; a 6-second pause
separates the list repetitions.

NOTE
Only the codes of the current anomalies are returned; a
temporary anomaly causes the emission of the associated
code for the whole period the anomaly is present. The
emission code stops when the operating conditions are
restored, while the data concerning the anomaly are stored
in the failure memory of the ECU.

The stored information are able to be decoded and erasable
by the IVECO SERVICE TOOL.

Figure 45

Example of emission of the anomaly codes:

"2)$'%

2//-

)'.)4)/. 34!24 20-

20-

%.').%

#(%#+

05_007_V

9 8 7

4

Figure 45

  

     

            

     

¬S

/&&

¬S ¬S ¬S ¬S ¬S ¬S ¬S ¬S ¬S ¬S

¬S ¬S

¬S

¬S ¬S ¬S ¬S¬S ¬S ¬S

¬S

/&&

EMISSION CODE 142

EMISSION CODES 142 AND 511

05_090_V

INSTALLATION DIRECTIVEMAY 2006

41

V08 ENT M75 - M11 - M12

WARNING Indication light

The ECU carries out a control activity on the operating
conditions through the analysis of the detected operating
parameters; it evaluates the behaviour of the single signals
emitted by the sensors and classifies the situation, according
to predetermined threshold, activating the red indication
light (9 figure 45).

Blinking indication light - warning level:

Lighting cycle of 0.6 s and pause of 0.24 s.
It indicates that the value is slightly above the normal
threshold; the user of the vessel does not notice any
difference in the engine behaviour.

Indication light constantly On - derating level:

It indicates that the value is significantly above the normal
threshold; the maximum power of the engine is reduced to
protect its intactness. The user of the vessel can notice the
reduction of the power of the engine.
NOTES
Only the current anomalies enable the behaviour specified
above; a temporar y anomaly causes the lighting of the
indication light, according to the modalities illustrated, for
the whole period the anomaly is present. The emission code
stops when the operating conditions are restored, while
the data concerning the anomaly are stored in the failure
memory of the ECU.
The signalling is available on the relay box only, and does not
involve any other indications on the instrument panel.

The stored information are able to be decoded and erasable
by the IVECO SERVICE TOOL.

SHUTDOWN (preliminary)

When the most critical thresholds exceed their normal
values, it can be enabled the forced engine shutdown.
The next time the engine is star ted, if the normal operation
are restored, there will not be any lighting signalling, while
the data concerning the anomaly are stored in the failure
memory of the ECU.

Parameter list that can cause warning, derating or shutdown
conditions:

Engine coolant high temperature
Intake air high temperature
Engine oil low pressure
Engine overspeed
Fuel high temperature
Engine oil low temperature
Engine oil high temperature
Rail low pressure
Rail high pressure
Loss on the high pressure fuel line
Intake air high pressure
Intake air low pressure
Power supply voltage

Signalling maintenance interval expiration

The lighting of the indication lights MAINTENANCE (8
figure 45), caused by the ECU, indicates the need to perform
the periodical lubricating oil replacement.
When the operation is performed, it is necessary to press
the button (4 figure 45) to restore the counter and begin a
new operating cycle. The signalling is available on the relay
box only, and does not involve any other signalling on the
instrument panel.

INSTALLATION DIRECTIVE

42

V08 ENT M75 - M11 - M12

MAY 2006

Component Anomaly Code

Cylinder 1 electro-injector open circuit/short circuit 111

Cylinder 2 electro-injector open circuit/short circuit 112

Cylinder 3 electro-injector open circuit/short circuit 113

Cylinder 4 electro-injector open circuit/short circuit 114

Cylinder 5 electro-injector open circuit/short circuit 115

Cylinder 6 electro-injector open circuit/short circuit 116

Cylinder 7 electro-injector open circuit/short circuit 117

Cylinder 8 electro-injector open circuit/short circuit 118

Air intake temperature sensor open circuit/short circuit to +B or to ground 133

Air intake pressure sensor open circuit/short circuit to +B or to ground 135

Flywheel sensor anomalous or missing signal 141

Timing system sensor anomalous or missing signal 142

Timing system sensor irregular mechanical behaviour 142

Relay for engine star t open circuit/short circuit 145

Atmospheric pressure sensor open circuit/short circuit to +B or to ground 152

Throttle position sensor anomalous or missing signal 154

Engine oil temperature sensor open circuit/shor t circuit to +B or to ground 156

Engine oil pressure sensor open circuit/short circuit to +B or to ground 157

Rail pressure sensor open circuit/short circuit to +B or to ground 159

Pressure limiter valve open circuit/short circuit 162

Pressure limiter valve irregular mechanic behaviour 162

Fuel temperature sensor open circuit/short circuit to +B or to ground 165

Engine temperature sensor open circuit/short circuit to +B or to ground 168

Relay for pre-post heating resistor open circuit/short circuit 178

Engine high temperature indication light open circuit/short circuit 191

Engine oil low pressure indication light open circuit/shor t circuit 192

Throttle control from relay box anomalous or missing signal 195

Battery voltage insufficient or excessive value 511

Power supply voltage 5 V connector J2 insufficient or excessive value 516

Power supply voltage 8 V insufficient or excessive value 517

Indication light Warning open circuit/short circuit 525

Indication light Maintenance open circuit/short circuit 526

Power supply voltage 5 V connector J1 insufficient or excessive value 599

Blink code table (temporary list)

INSTALLATION DIRECTIVEMAY 2006

43

V08 ENT M75 - M11 - M12

18. UNDERWAY CHECKS

ECU Temperature

Verify that the temperature of the surface of the electronic
engine control unit, after 30 minutes underway at full engine
power, is less than +70°C.

Engine compartment vacuum

Verify that value of ambient air pressure in the engine room
with the engine(s) at full load and maximum power output
complies with the value specified herein.

Combustion air temperature

Verify that the temperature in the engine room, after 30
minutes underway at full engine power, does not exceed
45°C (V08 ENT M75) or 50°C (V08 ENT M11 e V08 ENT
M12) and, in any case, does not exceed the value of external
temperature by more than 15°C.

Exhaust back-pressure

Verify that the value of back-pressure present at the inlet of
the exhaust gas conduit, with the engine(s) at full load and
maximum power output, complies with the value specified
herein.

Exhaust temperature

Verify that the temperature of the exhaust gases under
maximum engine power output conditions is close to the
prescribed value; to determine the propeller power absorp­tion curve, it will also be possible to obtain from the ECU
parameters the fuel injection values by using the IVECO
MOTORS tool.

Fuel temperature

Verify that the temperature of the fuel in the low pressure
line, while underway at full power and with a stable quantity
of fuel in reser ve, does not exceed 70°C. A higher value
would entail a reduction in engine performance. If the ten­dency to reach the maximum allowed temperature is noted,
install a heat exchanger for the fuel.

Pressure in the fuel supply line

To assure the regular operation of the engine and the reli­ability of the components of the fuel supply and injection
system, you need to verify that:

o vacuum in the fuel oil supply line to the low pressure

pump is less than 0.5 bar relative (5000 mmH2O);
pressure in the fuel oil supply line to the low pressure

pump is less than 0.5 bar relative (5000 mmH2O);

o pressure in the fuel oil return line to the tank is less than

0.2 bar relative (2000 mmH2O).

Measures are carried out inserting a “T” junction near the
fuel inlet and outlet, taking care to avoid any air suction. Val­ues are read at variable rpm, from idle to maximum, at 200
rpm inter vals.

If there are any symptoms indicating the possible presence of
air in the fuel supply line, a check may be made by inserting
a clear tube, arranged as an inverted U, before the engine
inlet junction.

INSTALLATION DIRECTIVE MAY 2006

44

V08 ENT M75 - M11 - M12

19. PREPARING THE ENGINE FOR LONG IDLE PERIODS

To prevent oxidation to the internal par ts of the engine and
to some components of the injection system, if idle periods
exceeding two months are expected, the engine needs to
be prepared with six-month periodicity, proceeding as
follows:

1. Drain the lubricating oil from the sump, after heating the
engine.

2. Pour 30/M protective oil (alternatively, oil conforming to
MIL 2160B Type 2 specifications) into the engine to the
“minimum” level marked on the dipstick.

Start the engine and let it run for about 5 minutes.

3. Drain the fuel from the injection line and from the filters,
taking care to prevent the fuel from coming in contact
with the alternator’s belt.

4. Connect the fuel line to a tank containing CFB protec

­tive liquid (ISO 4113) and assist the inflow of the liquid
by pressurizing the line and turning the engine over for
about 2 minutes, after excluding the operation of the
injection system. The required operation may be carried
out by directly polarizing the terminal 50 of the electric
starter motor with positive voltage 24 V, using a conduc­tor prepared for the occasion.

5. Nebulize 30/M protective oil at the rate of about 100 g
(10 g per litre of displacement) in both turbochargers,
while the engine is turning over as described above.

6. Close with suitable stoppers or seal with adhesive tape
all engine intake, exhaust, aeration and venting ports.

7. Drain the residual 30/M protective oil from the sump; it
may be re-used for 2 more engine preparation opera­tions.

8. Apply tags with the inscription “ENGINE WITHOUT
OIL” on the engine and onboard panel.

9. Drain the coolant, if it has not been mixed with anti­freeze and corrosion inhibiting agents, affixing tags to
indicate that the operation has been carried out.

If external parts of the engine are to be protected, spray
protective liquid OVER 19 AR onto unpainted metal par ts,
such as flywheel, pulleys and others; avoid spraying belts, con­nector cables and electrical equipment.

INSTALLATION DIRECTIVE

45

V08 ENT M75 - M11 - M12

MAY 2006

INSTALLATION DIRECTIVE

46

V08 ENT M75 - M11 - M12

MAY 2006

Wiring diagram key

General condition for the preparation and interpretation of wiring diagrams

o Key switch open

o Engine not running

o Liquids at efficient levels and pressures

Figure 48

20. ELECTRIC DIAGRAMS

30

50

50

70

34 950 8 30 31

85150

-

+

6

6

2

13

14

7

8

1

50

50 15

30

BRIDGE

2

2

22

7

21

10

7

7

20

8

8

5

8

21

10

12

6

62

6

9

232426

25

3

5 684 66 656361461241 59 38

1

4 7 812 112 310

B

917 812 116 2 310 4

BC

A

A

A

B

35

5

1

28

1

2

1

2

12

6

18

1

2

CU D

V

T AB

S

IG

95

104

16

4

1

2

17

11

5

15

ENGINE
ROOM

6444

5

8

19

27

11

23

16

16

17

1

11

10

31

32

35

3433

25

26

29

30

2827

48 53

52

3

RPM +

RPM -

SW5

21 28 29

13

131414

18

6 4

13

17

43

44

37

13 7

15

37

181812

12

313135

35

9

3

15

11 20

9 18

10 19

50

JC

JA

JB

BAT

BAT

AC

JF2

K4

DK4

CA

K1 K2

DK1

DK2

SW1

DK5

GG

F1

b

a

K5

JA

JB

M

PH

GH GH

GN GN

PA

JA

JF1

JA

MM

JF2

JA

JA

JC

JB

JA

JF1

JC

JB

JA

JF1

JF1

JA

JB

JC

J1

M

J4J4

JG1

POP

K3

DK3

JA

JF2

M

TGC

JF2

JA

SW2

SW3

IGNITION

START

JF1

JA

JF1

JA

JB

JF1

JF1

F2

JA

SW4

JB

JB

JB

L3

L2 L1

KR

DR

MS

JC

JB

JC

JB

JA

JF1

JF2

JA JF1

JA JF1

JA JF1

J1

SS

EDC

SBPO

SATA

SP

JB JB

JB

CG

JF1JAJF1

JA

TROLLING MODE

SLOW VESSEL MODE

4 3

2 1

JF1

+

-

4

21

R2

120?

9

JB

35

Component

terminal

Connection

JC: connector

8: terminal

Component

code

Terminal

connection

Minimum cable cross

section in mm

2

Component code or

connector code

Sk EDC J1 V08pi

INSTALLATION DIRECTIVEMAY 2006

47

V08 ENT M75 - M11 - M12

A fuel temperature sensor for EDC

AC battery

AP atmospheric pressure sensor

AQ engine shut-off push-button on main panel

AS engine shut-off push-button on secondary panel

B crankshaft sensor for EDC

C camshaft sensor

CA key switch

CS engine start push-button on secondary panel

E1/E8 electro-injectors

F engine coolant temperature sensor for EDC

GG alternator

GH grid heater power relay

GN

neutral gear sensor

H combustion air pressure sensor for EDC

J low coolant level sensor (for alarm)

JC emergency shut-off push-button (optional,

installer’s responsibility)

JF1, JF2 relay box

JG lubrication oil transfer electrical pump control unit

JG1 pre-lubrication electrical pump control unit

K,K1 clogged air filter sensors (for alarm)

L instrument panel light switch

L1 EDC blink code emission green LED

(on relay box panel)

L2 signalling red LED for fault engine operating

parameters (WARNING) (on relay box panel)

L3 signalling yellow LED of maintenance inter val

expiration (on relay box panel)

M sensor for detecting the presence of water in the

fuel prefilter (for alarm)

MM electric starter motor

MS IVECO MOTORS indications and alarms module

O,O1 exhaust gas temperature sensors (for gauge)

P combustion air temperature sensor for EDC

P1 sound alarm inhibition push-button

PA throttle position sensor

PF rail pressure control solenoid valve

PH grid heater

PO lubrication oil transfer electrical pump

POP pre-lubrication electrical pump

Electrical equipment component code

PR rail pressure sensor

QP main analog instrument panel

QS secondary analog instrument panel

S oil temperature sensor for EDC

SA buzzer

SI gear oil temperature sensor

S1 engine oil temperature sensor (for gauge)

SW1 engine control selector from bridge or engine

room (on relay box panel)

SW2 power supply switch of the engine electric circuits

(on relay box panel)

SW3 start button from engine room

(on relay box panel)

SW4 reset button of the “maintenance alarm”

(on relay box panel)

SW5 manual throttle control in engine room

(on relay box panel)

T coolant temperature sensor (for gauge)

TGC power relay for electric starter motor insulation

(provision)

U clogged oil filter sensor (for alarm)

V engine oil pressure sensor for EDC

VI gear oil pressure sensor

V1 engine oil pressure sensor (for gauge)

WI low gear oil pressure sensor

X clogged blow-by filter sensor (for alarm)

Z clogged fuel filter sensor (for alarm)

85150 ECU of the EDC system

(continues on next page)

INSTALLATION DIRECTIVE MAY 2006

48

V08 ENT M75 - M11 - M12

Connectors

J1 on the relay box panel for external diagnostic

tool

J1 70-pole EDC - boat components connections

J2 70-pole EDC - engine components connections

J3 lubrication oil transfer electrical pump

J4 pre-lubrication electrical pump

JA connection between engine wiring and interface

wire harness

JB ON ENGINE WIRE HARNESS

ready for connection to the main analog

instrument panel

JC ON MAIN ANALOG INSTRUMENT PANEL

ready for connection to the engine wire harness

JD IVECO MOTORS indications and alarms module

JE ON MAIN ANALOG INSTRUMENT PANEL

r ea dy for co nn ec tio n to th e s ec on dar y
a nal og i n str um e nt p an el

JF1,JF2 relay box

JH ON SECONDARY ANALOG INSTRUMENT PANEL

ready for connection to the main analog
instrument panel

Indicator lights

EDC EDC malfunction

SAC presence of water in fuel prefilter

SATA coolant high temperature

SBLA low coolant level

SBPO low oil pressure

SCP pre-post heating

SIFA clogged air filter

SIFB clogged oil vapour filter

SIFC clogged fuel filter

SIFO clogged oil filter

SIM expired programmed maintenance interval

SP pre-lubrication

SS alternator fault

SSV engine overspeed

Gauges

CG revolution-counter

MI gear box oil pressure

MO engine oil pressure

TA engine temperature

TI gear box oil temperature

TS exhaust gas temperature

V voltmeter

Relays contained in the relay box

K1 key switch electric discharge

K2 IGNITION switch electric discharge

K3 power supply to terminal 50 of the electric

starter motor

K4 start request signal, from key switch to EDC

electronic unit

K5 TGC control ready

KR EDC blink code emission LED control

Fuses contained in the relay box

F1- F2 self restoring (not replaceable)

INSTALLATION DIRECTIVE

49

V08 ENT M75 - M11 - M12

MAY 2006

EDC connector J1

30

50

50

70

34 950 8 30 31

85150

-

+

6

6

2

13

14

7

8

1

50

50 15

30

BRIDGE

2

2

22

7

21

10

7

7

20

8

8

5

8

21

10

12

6

62

6

9

23

24

26

25

3

2

24 3612

5 684 66 656361461241 59 38

9

1

4 7 812 112 310

B

A

9

1

7 812 116 2 310 4

BC

A

A

B

A

B

35

1

5

1

28

19

1

2

1

2

12

6

18

1

2

CU D

V

T AB

S

IG

L

95

104

16

4

1

2

17

11

5

15

ENGINE

ROOM

6444

5

8

19

27

11

23

16

16

17

1

11

10

31

32

35

3433

25

26

29

30

2827

48 53

52

3

RPM +

RPM -

SW5

21 28 29

13

13

14

14

18

6 4

13

17

43

44

37

13 7

15

37

18

18

12

12

31

31

35

35

9

3

15

11 20

9 18

10 19

50

JC

JA

JB

BAT

BAT

AC

JF2

K4

DK4

CA

K1 K2

DK1

DK2

SW1

DK5

GG

M

F1

b

a

K5

J3

JG

D1

JF1

JA

JA

JB

M

PH

GH GH

GN GN

PA

JA

JF1

JA

MM

JF2

JA

JA

JCJBJA

JF1

JCJBJA

JF1

JF1JAJB

JC

J1

PO

M

J4J4

JG1

POP

GG

K3

DK3

JA

JF2

M

TGC

JF2

JA

SW2

SW3

IGNITION

START

JF1

JA

JF1

JA

JB

JF1

JF1

F2

JA

SW4

JBJBJB

L3

L2 L1

KR

DR

MS

JC

JB

JC

JB

JA

JF1

JF2

JA JF1

JA JF1

JA JF1

J1

SS

EDC

SBPO

SATA

SP

JB JB

JB

CG

JF1

JA

JF1

JA

TROLLING MODE

SLOW VESSEL MODE

4 3

2 1

JF1

+

-

4

21

R2

120?

100?

9

JB

35

Sk EDC J1 V08pi

INSTALLATION DIRECTIVE

50

V08 ENT M75 - M11 - M12

MAY 2006

EDC connector J2

70

2

13

14

7

8

1

50 15

30

BRIDGE

2

2

22

7

7

7

20

8

8

5

8

21

ENGINE

ROOM

44

5

8

12

6

18

JF2

CA

K1 K2

DK1

DK2

SW1

F1

b

a

JF1

JA

JC

JB

JCJBJA

JF1

JF1JAJB

JC

SW2

IGNITION

JF1

JA

JF2

21

E4

2

1

38 46 28

2

1

E5 E6

2

1

39 47 29

2

1

E7 E8

2

1

6

BAT

6

+

BAT

–

1

62 61

J2

J1

1

2

PF

61 65

1 18 14

U

P

A B C A B C A B C

AP

85150

AC

37 45

2

1

E3

48 49

2 1

B

58 59

2 1

C

36 44 20

2

1

E1 E2

2

1

35

P

33

F

34

A

32

S

3 24 2

U

P

1 2 3

PR

41 40

U

P

H

42 25

U

P

V

1

2

1

2

1

2

1

2

63

31

32

35

3433

25

26

29

30

2827

48 53

52

3

31

32

35

3433

25

26

29

30

2827

53

52

JF1

JF1

F2

JA

JF1

JF1

F2

JA

Sk EDC J2 V08

INSTALLATION DIRECTIVE

51

V08 ENT M75 - M11 - M12

MAY 2006

Main analog instrument panel

Sk Quadro princ V08pi

JA

K4

DK4

BATT

AC

BATT

F1

JF1

JA

JF1

JA

T V1 S1

B+

M

GG

KK1

GG

J

X ZU

M

B+

WI

JA

JB

JC

JB

JC

JB

JC

O O1VI SI

JG1

J4

JB

JC

AS

AQ

P1

JE

JH

SA

JHLJE

CA

CG

SIFC

JD

SIFA

SAC

SS

EDC

SBPO

SATA

SIFO

SIFB

SBLA

SCP

TA MO V

MS

JD

SSV

SP

QP

K1

DK1

L2

L3

BRIDGE

SW1

ROOM

ENGINE

b

TROLLING MODE

SLOW VES. MODE

spia MAINT.

spia WARNING.

CAN_BUS (L)

CAN_BUS (H)

KR

JF2

JA

JF1 JA

JA

JF1

F2

JA

JF1

JF2

JA

JC

L1

JA

JF1 JA

JF2

J1

2

6361 65

85150

50

34

6

-

-

+

6

+

7

22

21 211

21

5

20

10

21

22

29

716

8

36

716

8 36

15

40 43

44

15

40 43

44

136 4

1346

1110

1110

9

9

1

3

2

S

L

IG

2

3 1

2

B

1

2

1

2

1 A

1

3

2

32

32

1

33

33

34

34

1

2

2

1

26

26

27

14

46

27

14

46

21

25

47 22

21

25

2247

41

41

45

39 23

42

45

39 23

42

19

30

18

19

30

18

3

3

35

12

38 31

35

12

38

31

17

20

24

28

20

17

28

24

6

C

29

37

29

37

10

10

50

4

4

15

34 12

30

89

7

1

1910

13

15

4

17

3

2

18 16

5

1112

206

14

4121 28 3859 30 31 64

–

+

–

+

1

2

7

8

13

14

3

25

26

29

30

2827

31

32

35

3433

5

5

28

14 14

18

126

17

13 13

1

3

9

15

10

500

000 1

40

X100

20

30

C C

3

1

2

INSTALLATION DIRECTIVE

52

V08 ENT M75 - M11 - M12

MAY 2006

Sk Quadro secon V08pi

C C

0

0

10

100

50

40

X100

20

30

0

10

50

40

X100

20

30

CG

50

15

30

CA

SA

TA MO V

CG

SA

4

3

2

3

4 1

JF1

3

1

JA

1

BAT
–

K1

BAT

+

JA

JB

28

3

JF2

JA

9

10

5

7

21

20

22

8

2 14

15

39

27

16

36 13

5

1

JC

JB

JC

L

8

2 14

15

39

27

16

36 13

5

MS

1

99 198

7

10

13

15

2

3

17

18

5

4

12

16

1411

6

24

AC

6

b

34

34

CS

MS

1

9 198

7

10

13

15

2

3

17

18

5

4

12

16

1411

6

23

38

J1 EDC

JD

JD

AS

3

4

6

5

8

7

109

11 12

12 11

10 9

7

8

5

6

3

4

P1

P1

AQ

* *

JE

JH

QS

QP

ENGINE

ROOM

BRIDGE

SW1

6

–

+

15

2

1

4 7

4 7

696

9

2

1

2

1

K4

6

JF2

12

18

DK1

DK4

JF1

JA

22

29

F1

JF2

JF1

F2

JA

JF1

1

2

7

8

13

14

25

26

29

30

2827

31

32

35
3433

Secondary analog instrument panel

* See main indicator and

control panel wiring diagram

INSTALLATION DIRECTIVE

53

V08 ENT M75 - M11 - M12

MAY 2006

123

478

56

10 912 11

1314

16

15

171820 19

212224 23

JBJB

1234

5678

min

X100

bar

psi

0

2

4

6

8

10

0

29

58

87

11 6

145

G

250

°F

°C

210175

105

120

100

40

80

VOLT

G

19 18 31 35 307232335 3413

8

292037

OFF

ON

START

16

24

28

32

1224 28

Sk Strumenti Quadr i VDO V08

10 meter long

wire harness

Connections Identifying numbering

on each wire

JD connector integrated in the rear par t

of the indications and alarms module

Wiring of a specific personalised instrument board

INSTALLATION DIRECTIVE

54

V08 ENT M75 - M11 - M12

MAY 2006

Sk Strumenti Quadr i VDO 1°+2° V08

123

4

56

10 912 11

1314

16

15

171820 19

212224 23

JBJB

1234

5678

min

X100

bar

psi

0

2

4

6

8

10

0

29

58

87

116

145

G

250

°F

°C

210175

105

120

1004080

VOLT

G

19 18 31 35 30 177232335 3413

123

4

7

8

56

10 912 11

1314

16

15

171820 19

212224 23

1234

5678

min

X100

bar

psi

0

2

4

6

8

10

0

29

58

87

116

145

G

250

°F

°C

210175

105

120

1004080

VOLT

G

8

292037

OFF

ON

START

16

24

28

32

38 12 324 28

16

24

28

32

7

8

MAIN PANEL SECONDARY PANEL

Wiring of the double personalised instrument board (main and secondary board)

INSTALLATION DIRECTIVE

55

V08 ENT M75 - M11 - M12

MAY 2006

Supplementary services battery recharge

M

5030

50

30

M

50

50

50

95

95

AC1

+

BAT

+

BAT

BAT

––

BAT

MM

4

4

4

4

GG1

B+

AC2

+

–

10

10

GG2

B+

1

1

MM

JA

19

19

JA

IE1

IE2

+

–

M

30 50

4

50

BAT

4

–

AC1

MM

+

BAT

50

GG

B+

10

95

JA

19

JA

4

30

86

87

85

–

AC2

+

10

10

RL

+

–

*

*

1

50

50

Key:

- AC1: Main Battery

- AC2: Batter y for auxiliary services

- IE1: Engine 1 electrical system

- IE2: Engine 2 electrical system

- RL: Relay 50A max.

*: Electrical power supply for ser vices

Single engine

installation

Two-engines

installation

Sk Accum_Servizi V

INSTALLATION DIRECTIVE

56

V08 ENT M75 - M11 - M12

MAY 2006

INSTALLATION DIRECTIVE

57

V08 ENT M75 - M11 - M12

MAY 2006

Page

21. APPENDIX

LUBRICATING OIL TRANSFER MODULE 5LUBRICATING OIL TRANSFER MODULE 54

PRE-LUBRICATION MODULE 54

INSTALLATION DIRECTIVE MAY 2006

58

V08 ENT M75 - M11 - M12

1. Oil discharge control.

Lubricating oil exhaust operations are simplified by the
presence of an electrical control system connected to the JG
connector of the interface wiring harness. Manual control for
exhaust operations is positioned on the front panel unit. For
safety reasons, control is enabled only with the key switch in
the “OFF” position.

1. Not used - 2. Not used.

The module (on request) is connected to the JG1 connector
of the interface wiring harness.
The task of pre-lubricating the engine’s internal components
is managed and controlled by the electronic circuit of the
module when the key switch is placed in “ON” position.

#(!2'%

$)3#(!2'%

1

/&&#(!2'%

%6$)3#(!2'%

/.

%6

1

2

04_037_C

LUBRICATING OIL TRANSFER MODULE PRE-LUBRICATION MODULE

Figure 1 Figure 2

04_036_C

IVECO S.p.A.

PowerTrain

Viale Dell’Industria, 15/17

20010 Pregnana Milanese - MI - (Italy)

Tel. [phone] - Fax [phone]

www.ivecomotors.com
