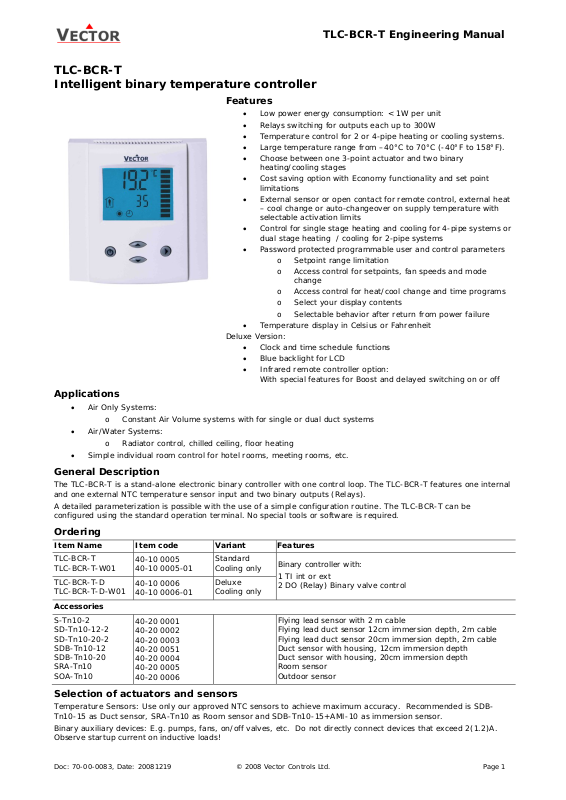

TLC-BCR-T Intelligent binary temperature controller

Features

• Low power energy consumption: < 1W per unit

• Relays switching for outputs each up to 300W

• Temperature control for 2 or 4-pipe heating or cooling systems.

• Large temperature range from –40°C to 70°C (-40°F to 158°F).

• Choose between one 3-point actuator and two binary

heating/cooling stages

• Cost saving option with Economy functionality and set point limitations

• External sensor or open contact for remote control, external heat – cool change or auto-changeover on supply temperature with selectable activation limit s

• Control for single stage heating and cooling for 4-pipe systems or dual stage heating / cooling for 2-pipe systems

• Password protected programmable user and control parameters

o Setpoint range limitation o Access control for setpoints, fan speeds and mode

change

o Access control for heat/cool change and time programs o Select your display contents o Selectable behavior after return from power failure

• Temperature display in Celsius or Fahrenheit

Deluxe Version:

• Clock and time schedule functions

• Blue backlight for LCD

• Infrared remote controller option:

With special features for Boost and delayed switching on or off

Applications

• Air Only Systems:

o Constant Air Volume systems with for single or dual duct systems

• Air/Water Systems:

o Radiator control, chilled ceiling, floor heating

• Simple individual room control for hotel rooms, meeting rooms, etc.

TLC-BCR-T Engineering Manual

General Description

The TLC-BCR-T is a stand-alone electronic binary controller with one control loop. The TLC-BCR-T feat ures one internal and one external NTC temperature sensor input and two binary outputs (Relays).

A detailed parameterization is possible with the use of a simple configuration routine. The TLC-BCR-T can be configured using the standard operation terminal. No special tools or software is required.

Ordering

Item Name Item code Variant Features

TLC-BCR-T TLC-BCR-T-W01

TLC-BCR-T-D TLC-BCR-T-D-W01

Accessories S-Tn10-2

SD-Tn10-12-2 SD-Tn10-20-2 SDB-Tn10-12 SDB-Tn10-20 SRA-Tn10 SOA-Tn10

40-10 0005 40-10 0005-01

40-10 0006 40-10 0006-01

40-20 0001 40-20 0002 40-20 0003 40-20 0051 40-20 0004 40-20 0005 40-20 0006

Standard Cooling only

Deluxe Cooling only

Binary controller with: 1 TI int or ext

2 DO (Relay) Binary valve control

Flying lead sensor with 2 m cable Flying lead duct sensor 12cm immersion depth, 2m cable Flying lead duct sensor 20cm immersion depth, 2m cable Duct sensor with housing, 12cm immersion depth Duct sensor with housing, 20cm immersion depth Room sensor Outdoor sensor

Selection of actuators and sensors

Temperature Sensors: Use only our approved NTC sensors to achieve maximum accuracy. Recommended is SDBTn10-15 as Duct sensor, SRA-Tn10 as Room sensor and SDB-Tn10-15+AMI-10 as immersion sensor.

Binary auxiliary devices: E.g. pumps, fans, on/off valves, etc. Do not directly connect devices that exceed 2(1.2)A. Observe startup current on inductive loads!

Page 2

TLC-BCR-T Engineering Manual

Technical Specification

Power Supply Operating Voltage 190 – 250 V AC 50/60 Hz Power Consumption Max 1W, 1.5 VA Electrical Connection Terminal Connectors Fuse 3A, 250VAC (Warranty void if replaced) Deluxe type only:

Signal Inputs Temperature Inputs

Signal Outputs Digital Switching Outputs

Environment Operation

Transport & Storage

Standards

General Dimensions (H x W x D) Front part: 21 x 88 x 88mm (0.8 x 3.5 x 3.5 in.)

Weight (including package) 260g

Power backup for real time clock

Range Resolution Accuracy

Switching type AC Switching power

Climatic Conditions Temperature Humidity

Climatic Conditions Temperature Humidity Mechanical Conditions

conform according to

EMC Standard 89/336/EEC EMEI Standard 73/23/EEC

Product standards

Automatic electrical controls for household and similar use Special requirement on

temperature dependent controls Degree of Protection IP30 to EN 60 529 Safety Class II (IEC 60536)

Mechanical Design and Installation

The unit consists of three parts:

1. The mounting plate made of galvanized steel.

2. The power case made of fire proof ABS plastic.

3. The front part made of white fire proof ABS plastic.

Installation

1. Arrange the wires to be connected and cut them to equal length.

2. Connect them to the terminals of th e power case according to wiring diagram

3. Clip the power case to the mounting plat e, pull the connection cable through the large central opening of the mounting plate. Insert the power case into the flush mounting box. Carefully arrange power wires.

4. Install the mounting plate to the flush mounting box. Make sure that the nipple with the front holding screw is facing to the ground. Make sure the screw heads do not stand out more than 5 mm of the surface of the mounting plate.

5. Connect the connection cable to the plug located on the back of the front part.

6. Slide the two latches located on the to p of the front part into the hooks of the mounting plate.

7. Lower the front part until located flat on the wall and the mounting plate is not visible anymore. Make sure the connection cable does not get into the way.

8. Tighten the front holding screw to secure the front par t to the mounting plate.

Mounting location

• On an easy accessible interior wall, approx. 1.5 m above the floor in an area of average temperature.

• Avoid direct sunlight or other heat sources, e.g. the area above radiators and heat emitting electrical

equipment.

• Avoid locations behind doors, outside walls and below or above air discharge grills and diffusers.

• Location of mounting is less critical if external temperature sensors are used.

Min 48h if charged for 24h RT Internal, external

-40°C…70°C (-40°F to 158°F)

0.1°C (0.1°F)

0.5°C (1°F) DO1…DO2

Relays 2(1.2) A, 250VAC (max fan power 300W)

To IEC 721-3-3 class 3 K5 0°C …50°C (32°F…122°F) <95% R.H. non-condensing

To IEC 721-3-2 and IEC 721-3-1 class 3 K3 and class 1 K3

-25°C…0°C (-13°F…158°F) <95% R.H. non-condensing class 2M2

EN 61 000-6-1/ EN 61 000-6-3

EN 60 730 –1 EN 60 730 – 2 - 9

Power case: 60 x 50 x 30mm (2.4 x 2.0 x 1.2 in.)

Page 3

Dimensions

Wiring Diagram

43 (1.7)

88 (3.5)

TLC-BCR-T Engineering Manual

Space required in flush mounting box: (H x W x D) 60 x 50 x 30mm (2.4 x 2.0 x 1.2 in.)

30 (1.2)

88 (3.5)

30 (1.2) 21 (0.8)

Distance for mounting screws: Horizontal and vertical: 45 to 63mm (1.8 to 2.5 in.)

Front part

Plug

CPU

Connection terminals

0V AC 2 220V AC

DO1 4 DO2

M 3A

Attention: Switching power is

TLC-BCR-T

Attention: Switching power is limited to 230VAC, 300W

EXT

GND

DO1

DO2

RT1

GND

Legend 1: 0V AC Neutral Power Supply

2: 230V AC Power Supply 3: DO1 = Heat for binary actuators 4-pipe systems

Stage 1 for binary actuators 2-pipe systems OPEN for 3-point actuators

4: DO2 = Cool for binary actuators 4-pipe systems Stage 2 for binary actuators 2-pipe systems CLOSE for 3-point actuators

5: RT

EXT

6: GND = Signa l Grou nd

Heat, Stage 1, Open Cool, Stage 2, Close

/ OC

EXT

GND

= External temperature sensor or open

contact

Connection Diagram

230V AC L

EXT

230V AC

EXT

5 6

3 4

HEAT

Stage 1

COOL

Stage 2

3-point

actuator

0V AC N

Page 4

TLC-BCR-T Engineering Manual

Display and Operation

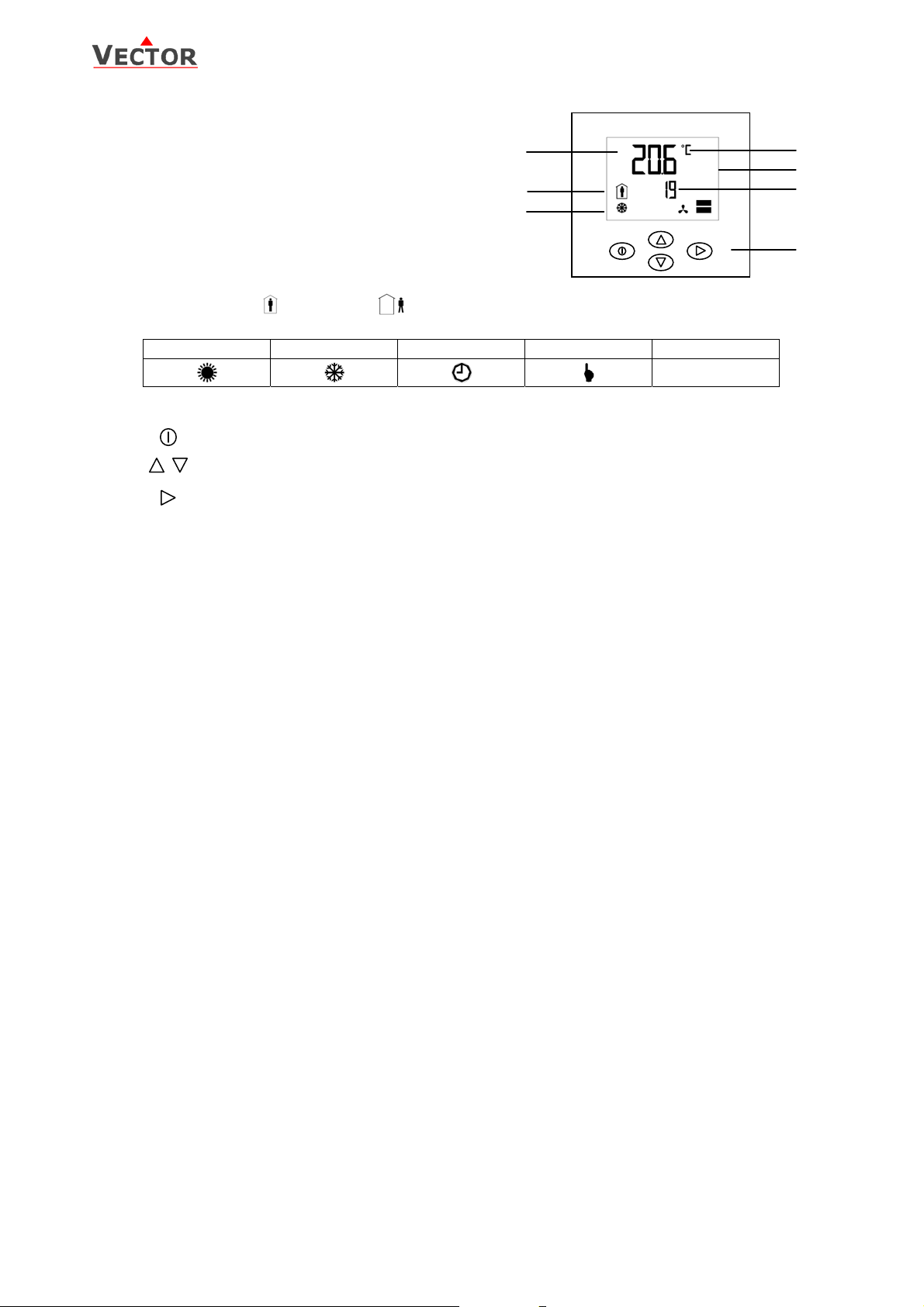

The operation terminal uses an LCD display and four operation buttons.

Legend:

1. 4-digit display of current value, time, control parameter or set point.

2. Unit of displayed value, °C, °F, % or none

3. Indication of active binary stage

4. 4-digit display of current value, time, control parameter or set point.

5. Operation modes:

6. Symbols:

Heating Active Cooling Active Schedule Set Manual Override Frost Protection

7. Buttons for operating the controller

POWER button: Pressing the button less than 2 sec toggles Economy and comfort modes. Pressing the button for more than 2 seconds switches the unit off.

UP and DOWN buttons: change setpoints and parameters

OPTION button: used for changing fan speed and accessing advanced setup. Acts as Enter in parameter changing menu.

8. Activation of heating or cooling coil is indicated by the blinking of the respective symbol in the lower left corner of the display.

Power Failure

All the parameters and set points are memorized and don’t need to be reentered. Depending on UP05 the unit will remain switched off, switch on automatically or return to the operation mode it was in before the power failure. The deluxe version includes a real time clock with a 48h backup battery powered through a super capacitor. The time does not need to be re-entered after a power failure.

Frost Protection

The controller will enter frost protection mode if the room temperature drops below 5° C (41°F). All heating outputs will be fully opened. Frost protection mode will be left once the temperature reaches 10°C (50°F). Frost protection display will remain until a button is pressed. Frost protection can be enabled/disabled using user parameter UP-09

Comfort mode, Economy mode, , OFF Energy Hold Off



Operation Modes

• Comfort: The unit is in full operat ion mode. All th e control fu nctions are o perating acco rding to their setpoints . The unit displays occupied mode.

• Economy: The set point is shifted according to parameters FC-04. The heating parameter is shifted down and cooling parameter up. The unit displays unoccupied mode. Fan speeds are limited to maximum medium fan speed. Economy operation may be disabled with UP-06.

• Energy Hold Off (EHO): The unit is switched off. All outputs are off. The temperature will still be monitored in order to activate the unit in case of frost. (If frost protection is enabled). Off and current time is displayed.

Activation of operation modes

• Via operation termina l

• Clock: (Deluxe version only) Operatio n mod es may automa tically be switched according to daytime and

weekday. The clock symbol will be indicated if time programs are activated.

• Infrared Remote Controller: (Deluxe version only) use OPR-1 to control the unit remotely

• Via external contact (comfort/economy)

Note: Time programs will not operate, if operation mode is set to OFF by remote control or if time is not set.

2 3 4

Page 5

TLC-BCR-T Engineering Manual

Clock Operation and Time Schedules (Deluxe Version)

TLC-BCR-T-D contains a real time clock. Up to 16 mode changes (not defined, Off, Economy, Comfort, University mode) based on weekdays and time may be programmed. See chapter operation on how to program switch times.

The different scheduled mode changes have these effects:

Name on display Function Override reset no Switching event not used OFF Operation mode changes to off mode Reset is active ECO Operation mode changes to economy mode Reset is not active ON Operation mode changes to comfort mode Re se t is not active UNI Operation mode does not change Reset is not active

UNI: University mode: This switching mode is used for rooms such as lec ture rooms and auditoriums that might be occupied during a certain time. During this time the reset is not active. The unit will not start itself when UNI mode is active. It still needs to be manually activated. This is to avoid unnecessary heating or cooling of such rooms while they are not occupied.

Override reset function: The override reset applies when the unit is manual ly swit ched on, whil e in s cheduled o ff mo de. The unit will switch automatically off when the reset time defined in UP13 expires. Setting UP13 to 0, disables the override reset.

A blinking clock indicates that the time needs to be set. Time programs will not operate if t he time is not defined. See chapter operation, advanced settings for instructions on how to set the time.

Error messages

The TLC-BCR-T may display the following error condition:

Err1: Temperature sensor faulty. The temperature sensor is damaged. Err2: External input for heat / cool auto change over missing or damaged. FP: Frost protection is active.

Page 6

TLC-BCR-T Engineering Manual

Operation of the Terminal Unit

Switching ON

The unit is switched on by pressing the POWER button. It will start up in comfort mode.

Changing between COMFORT and ECONOMY

Pressing the POWER button for less than 2 seconds toggles between ECONOMY and COMFORT modes. Economy mode may be disabled with UP06.

Switching OFF

Pressing the POWER button for more than 2 seconds, will switch the unit off. OFF and current time will be displayed in the LCD.

Standard display

This display mode is active if no UP/DOWN or OPTION button has been pressed during the previous 30 seconds. The contents of the large and small digits may be chosen with parameters UP-10 and UP-11.

Pressing UP/DOWN button will show the temperature setpoint in the small digits and room t emperature in the large digits.

Changing of set points

Press UP/DOWN buttons to change temperature setpoint. Changing of set points may be disabled with UP-01.

Accessing advanced settings

Pressing the option button for more than three seconds will start the advanced setup menu. The basic version wi ll o nly show heat/cool setup. The deluxe version will allow access to the time setting function.

The large LCD digits display SEL. The advanced setup menu accesses these settings: Hea t / Cool change, Clock setup, Time schedule. The menu may be left by pressing the POWER button or by not pressing a button for more than 5 minutes.

• Heat / Cool change. Pressing the OPTION button toggles Heating – Cooling mode. Access to Heat/Cool change may be disabled with UP-03

Clock Setup and Time Schedule (only available on Deluxe versions)

• Clock Setup. The current time is displayed in the small digits. Pressing the OPTION button will enter the clock setup. The minutes are blinking and may be changed with the UP/DOWN buttons. Pressing OPTION saves the minutes and steps to the hours. The hours are blinking. Pressing the OPTION button again will step to the weekday. DAY1-7 is displayed. Day 1 stands for the first working day (Monday) of a 5-day working week. (See schedule). Select the day according to current w eekday. Pressing Option again saves the settings and moves back to the SELECT menu.

• Time Schedules: press the option button while Pro is displayed in the small digi ts. Pro1 is now shown in the large digits, while the number 1 is blink ing. Select time program by using UP/DOWN buttons. There are a total of 4 time programs with each 4 switching times available. Enter the time program by pressing the OPTION button.

1. Activate or deactivate the time program. Choose ON or OFF with the UP/DOWN buttons

2. Select weekday(s) = d1-7, d1-5, d6-7, day1, day2, day3, day4, day5, day6, day7 The next steps define the switching mode and time. The bar indicator on the right side shows programming

progress. There are four switch times for each program.

3. Select desired operation mode. (no, OFF, ECO, ON, UNI), press OPTION to continue

 no = disables this switching time  OFF = switches unit Off, enables reset timer  ECO = sets operation mode to On and Economy, disables reset timer  ON = sets operation mode to On and Comfort, disables reset timer  UNI = Does not change operation mode, only disables reset timer

4. Select switching time 00:00 to 23:45 in 15-minute steps; press OPTION to continue.

5. Repeat steps 3 and 4 for each switching time. Access to time schedules may be disabled with UP-04

Page 7

TLC-BCR-T Engineering Manual

Setting of user parameters

The TLC-BCR-T is an intelligent controller and can be adapted to fit perfectly into your application. The control operation is defined by parameters. The parameters are set during operation by using the standard operation terminal.

The parameters may only be accessed by entering a code. There are two levels of parameters: User operation parameters for access control settings and Expert parameters for control functions and unit setup. The codes for user levels and expert levels are different. Only control experts should be given the control parameter code.

The parameters can be changed as follows:

1. Press UP and DOWN button simultaneously for three seconds. The display shows the software version in the large digits and the product code in the small digits.

2. Pressing the OPTION button will indicate CODE on the s mall digits and 000 on the large digits.

3. The code for accessing the user parameters is 009

4. Select this using UP or DOWN buttons.

5. Press OPTION button after selecting the correct code.

6. Once logged in, the parameter is displayed immediately.

7. Select the parameters with the UP/DOWN buttons. Change a parameter by pressing the OPTION button. The MIN and MAX symbols show up and indicate that the parameter may be modified now. Use UP or DOWN buttons to adjust the value.

8. After you are done, press OPTION or POWER in order to return to the parameter selection level.

9. Press the POWER button again so as to leave the menu. The unit will return to normal operation if no button is pressed for more than 5 minutes.

User Parameters

Parameter Description Setting Range Factory Setting

UP 00 Enable change of operation modes ON, OFF ON (Enabled) UP 01 Enable change of set points ON, OFF ON (Enabled) UP 02 Parameter not used ON, OFF ON (Enabled) UP 03 Enable change of heating/cooling mode ON, OFF W00: ON (Enabled)

UP 04 Enable access to Time programs ON, OFF ON (Enabled) UP 05 State after power failure:

UP 06 Enable Economy functionality ON, OFF ON (Economy ) UP 07 Celsius or Fahrenheit, Select ON for Fahrenheit, OFF for Celsius ON, OFF OFF (Celsius) UP 08 Calibration value of temperature sensor . This value is calibrated at

UP 09 Enable frost protection ON, OFF W00 = ON

UP 10 Select contents of Large LCD display in standard mode:

UP 11 Select contents of small LCD display in standard mode

UP 12

Deluxe only

UP 13

Deluxe only

0 = Switched OFF, 1 = Switched ON, 2 = state before power failure

manufacturing of the thermostat. If required it is possible to shift the temperature –10° to +10° in 0.1° K steps.

00 = OFF 01 = Setpoint 02 = Temperature Sensor 03 = Output State 04 = Clock 05 = Alternate Temperature Sensor

(use table of UP 10)

Clock display type: OFF = Show 24hour clock ON = Show 12hour clock (AM, PM)

Reset timer for override mode: Only available for deluxe version 0 = Reset of override mode is not active. 1…255 = delay in minutes to switch off device if ON/Economy

mode is activated while the unit is scheduled to be in OFF mode

0, 1, 2 2

-10…10 0

0…5 02

0…5 04 Deluxe:

ON, OFF OFF (24h)

0…255 60 (Min)

W01: OFF (Disabled)

(Frost Protection)

W01 = OFF

(No Frost Protection)

Temperature

show clock

01 Standard:

show setpoint

Page 8

TLC-BCR-T Engineering Manual

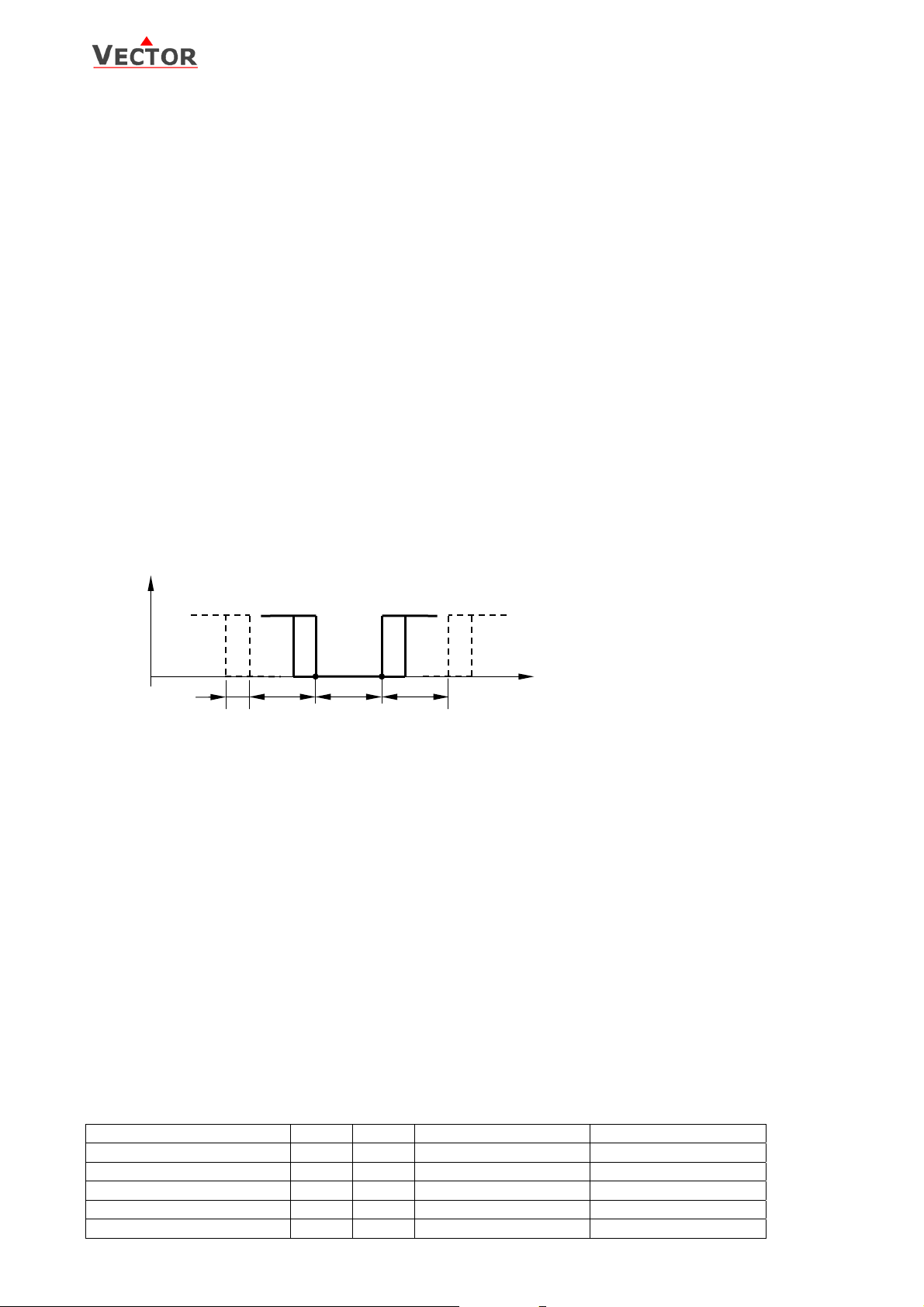

Control Functions

The controller is designed to control binary heating and/or cooling systems.

Setpoint

• Minimum and Maximum Set Point Limits: Limits the adjustable range of the loop set point. The limits for heating and cooling sequence may be chosen individually.

Control Sequence

• 4-pipe or 2-pipe system: 4-pipe systems use one heating and one cooling stage. Heating and cooling mode will switch according to demand. A delay is implemented to prevent unnecessary switching between heating and cooling mode: Heat – Cool change over delay. To disable the automatic switching set UP03 to OFF.

• Economy set point shift X

heating set point W shift X

• Dead Zone Span X

change the heating or cooling set points within adjustab le limits.

• Switching Hysteresis: Defines the difference between switching on and switching off of an output. A small hysteresis will increase the number of switching cycles and thus the wear on associated equipment.

• Switching Span: Defines the temperature difference required to switch on the next stage in case multiple stages are active (2-pipe system only).

• Delay OFF: Prevents a too short running cycle for the heating or cooling stage by setting a minimum running time. Delay OFF applies to all heating and cooling stages.

• Delay ON: Prevents a too short stopping cycle for heating or cooling stage by setting a minimum stopping time. Delay ON applies to all heating and cooling stages.

• Step by step switching: In order to reduce the startup load of large motors, multiple stages will be switched on and off step by step.

• Binary Control

SBY

H2, QR2

is reduced and the cooling set point WC increased by the value of the Economy set point

: The dead zone span lies between the heating and the cooling set point. The user can

OFF

SBY

T Room Temperature w

Offset Heating w

QC Offset Cooling HF Hysteresis

: This function shifts the set point while the operation mode is Economy. The

SBY

XDZ

H C

C1, QD1

SBY

Setpoint Heating Mode DZ Dead Zone

Setpoint Cooling Mode X

C2, QD2

[°C, F]

Economy Shift

SBY

Output Configuration

Two options are available: 3-point or binary.

3-point output

If 3-point is selected a 3-point actuator may be driven. The actuator has an open input and a close input. Applying power to the Open input will drive the valve or damper open, applying power to the close input will drive the valve or damper to the closed position. The running time of the actuator may be preset. We recommend to enter the maximum running time under maximum load in order to make sure that the valve can fully close and fully open in any circumstance.

In order to open the valve or damper DO1 will be activated for the preset amount of time. After the expiration of the running time DO1 and DO2 will be OFF. The valve is closed by activating DO2 for the preset amount of time.

Binary output

Two devices may be controlled in case the 3-point actuator setting is OFF. The following is true if reversing valve is disabled: If 2-pipe system is selected DO1 will activate stage 1 for heating and cooling and DO2 activates stage 2. For a 4-pipe system DO1 will control heating and DO2 the cooling device.

Reversing Valve

In binary output mode a reversing valve option is available. Select 1 if the reversing valve is to be activated while in heating mode, select 2 if the rever sing valve is active while the unit is in cooling mode.

Control Logic TLC-BCR

System type BC11 BC15 DO1 DO2 2 pipe system heat or cool OFF 0 Stage 1 Stage 2 4 pipe system Heating mode ON 0 Stage 1 (Heat) 4-pipe system Cooling mode ON 0 Stage 1 (Cool) 4-pipe reversing valve on Heat ON 1 Stage 1 Rev valve (in heat mode) 4-pipe reversing valve on Cool ON 2 Rev valve (in cool mode) Stage 1

Page 9

TLC-BCR-T Engineering Manual

Remote Enable:

The unit may be remote controlled by using the external input as open contact input. Opening the binary input will force the unit into the OFF operation mode. The operation mode cannot be overridden by using the terminal or time schedules. Activating the digital input returns control of the operation mode to the terminal and time schedule.

Occupation Sensor

Remotely control comfort and economy mode for example with an occupation sensor or key switch. If the binary input is deactivated for a selectable time the un it will change to stand by mode. For a key switch, set delay time to 0.

Heat / Cool change:

Control heat and cool setting of your controller from a central location. Choose if heat or cool is to be active when contact is open.

Auto Changeover with supply media temperature sensor:

The external input may be used to automat ically determine heating or cooling mode by measuring the temperatur e of the supply media. Connect a qualified passive sensor to the external input. Heating mode is activated once th e supply temperature is above the heating limit. Cooling is activated when the supply temperature is below the cooling limit. The limits may be defined in software. Standard is 16°C (61°F) for cooling and 28°C (83°F) for heating.

Auto Changeover with outside temperature sensor:

The external input may be used to automat ically determine heating or cooling mode by measuring the outdoor temperature. Connect a qualified passive sensor to the external input. Heating mode is activated once the supply temperature is below the heating limit. Cooling is activated when the supply temperature is above the cooling limit. The limits may be defined in software. Standard is 16°C (61°F) for heating and 28°C (83°F) for cooling.

Key Card:

The external input is connected to a key card in hotels. If input is closed the unit is in normal operation with the setpoint being chosen by the end user. When input is opened, the unit will change to economy mode. A preset setpoint defined with FC12 for heating and FC13 for cooling is used instead of the selected setp oint. The setpoint shift feature is disabled.

Page 10

TLC-BCR-T Engineering Manual

Configuration parameters for firmware version 2.1

The TLC-BCR-T can be adapted to wide variety of applications. The adaptation is done with parameters. The parameters can be changed on the unit without the need of additional equipment.

Identifying the firmware version

The parameters and functionality of controller depend on its firmware revision. It is therefore important to use a matching product version and parameter set. The firmware version is shown on the large LCD digits when pressing UP and DOWN buttons for more than 3 seconds simultaneously.

Control Parameters (Access Code: 241)

Warning! Only experts should change these settings! See user parameters for login procedure.

Parameter Description Range Standard

BC 00 Minimum setpoint limit in Heating mode -40…60°C (160°F) 16°C (61°F) BC 01 Maximum setpoint limit in Heating mode -40…60°C (160°F) 24°C (76°F) BC 02 Minimum setpoint limit in Cooling mode -40…60°C (160°F) 18°C (65°F) BC 03 Maximum setpoint limit in Cooling mode -40…60°C (160°F) 30°C (87°F)

Controls configuration

BC 04 Economy temperature shift 0…100°C (200°F) 5.0°C (10°F) BC 05 Switching Span Heating (only used in 2-pipe mode) 0…100°C (200°F) 1.5°C (3°F) BC 06 Switching Span Cooling (only used in 2-pipe mode) 0…100°C (200°F) 1.0°C (2°F) BC 07 Switching Hysteresis 0…100°C (200°F) 0.5°C (1°F) BC 08 Parameter not used ON, OFF OFF BC 09 Delay OFF (Minimum running time) 0…255s 10s BC 10 Delay ON (Minimum stopping time) 0…255s 10s BC 11 2-pipe or 4-pipe system: OFF = 2-pipe, ON = 4-pipe system ON, OFF ON BC 12 Dead zone between heating & cooling set point XDZ 0…100°C (200°F) 1.0°C (2°F) BC 13 Delay on Heat/Cool change over 0…255 min 5 min

Output configuration

BC 14 Output setting, Binary or 3-point:

OFF = Binary (DO1 Heating, DO2 Cooling) ON = 3-point output (DO1 OPEN, DO2 CLOSE)

BC 15 Reversing valve in binary mode (only for 4-pipe system. BC11 = ON)

0 = no reversing valve 1 = reversing valve while heating (DO1 Rev Valve, DO2 Stage 1) 2 = reversing valve while cooling (DO1 Stage 1, DO2 Rev Valve)

BC 16 Running Time in 3-point mode 0…255 s 90 s

Input configuration

BC 17 External input:

0 = No external input 1 = External temperature sensor 2 = Occupation sensor – Comfort / Economy 3 = Occupation sensor – Comfort / Off 4 = Heat / Cool change by open contact. Contact open = Heat 5 = Heat / Cool change by open contact. Contact open = Cool 6 = Auto-changeover based on supply temperature 7 = Auto-changeover based on outside temperature 8 = Key card with alternative setpoint

BC 18 Activation delay (Minutes) = the time the binary input needs to be open

before economy/off mode is activated.

BC 19 Auto-changeover limit cooling for supply temperature FC11 = 6

Auto-changeover limit heating for outside temperature FC11 = 7 or economy setpoint in heating mode if BC17 = 8

BC 20 Auto-changeover limit heating for supply temperature FC11 = 6

Auto-changeover limit cooling for outside temperature FC11 = 7 or economy setpoint in cooling mode if BC17 = 8

ON, OFF OFF

0...2 0

0…8 0

0…255 min 5 min

-40…60°C (160°F) 16°C (61°F)

-40…60°C (160°F) 28°C (83°F)
