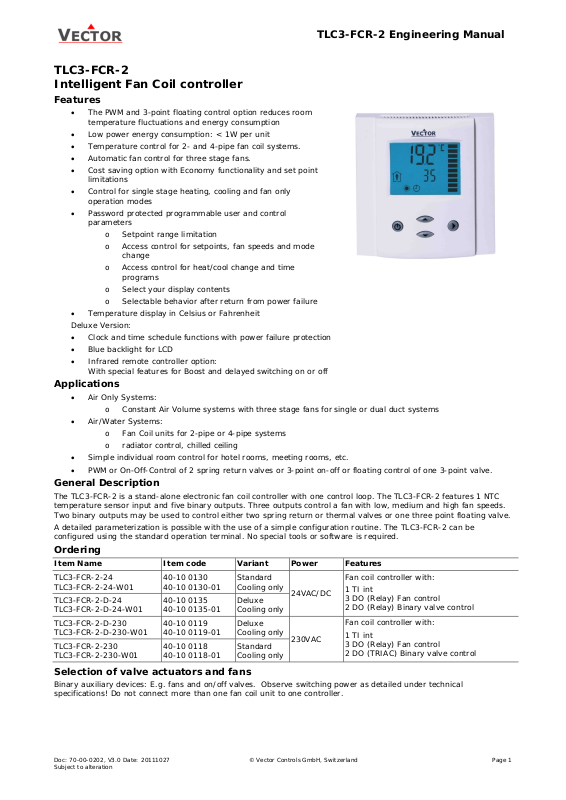

TLC3-FCR-2 Engineering Manual

TLC3-FCR-2 Intelligent Fan Coil controller

Features

• The PWM and 3-point floating control option reduces room temperature fluctuations and energy consumption

• Low power energy consumption: < 1W per unit

• Temperature control for 2- and 4-pipe fan coil systems.

• Automatic fan control for three stage fans.

• Cost saving option with Economy functionality and set point

limitations

• Control for single stage heating, cooling and fan only operation modes

• Password protected programmable user and control parameters

o Setpoint range limitation o Access control for setpoints, fan speeds and mode

change

o Access control for heat/cool change and time

programs

o Select your display contents o Selectable behavior after return from power failure

• Temperature display in Celsius or Fahrenheit

Deluxe Version:

• Clock and time schedule functions with power failure protection

• Blue backlight for LCD

• Infrared remote controller option:

With special features for Boost and delayed switching on or off

Applications

• Air Only Systems:

o Constant Air Volume systems with three stage fans for single or dual duct systems

• Air/Water Systems:

o Fan Coil units for 2-pipe or 4-pipe systems o radiator control, chilled ceiling

• Simple individual room control for hotel rooms, meeting rooms, etc.

• PWM or On-Off-Control of 2 spring return valves or 3-point on-off or floating control of one 3-point valve.

General Description

The TLC3-FCR-2 is a stand-alone electronic fan coil controller with one control loop. The TLC3-FCR-2 features 1 NTC temperature sensor input and five binary outputs. Three outputs control a fan with low, medium and high fan speeds. Two binary outputs may be used to control either two spring return or thermal valves or one three point floating valve.

A detailed parameterization is possible with the use of a simple configuration routine. The TLC3-FCR-2 can be configured using the standard operation terminal. No special tools or software is required.

Ordering

Item Name Item code Variant Power Features

TLC3-FCR-2-24 TLC3-FCR-2-24-W01

TLC3-FCR-2-D-24 TLC3-FCR-2-D-24-W01

TLC3-FCR-2-D-230 TLC3-FCR-2-D-230-W01

TLC3-FCR-2-230 TLC3-FCR-2-230-W01

40-10 0130 40-10 0130-01

40-10 0135 40-10 0135-01

40-10 0119 40-10 0119-01

40-10 0118 40-10 0118-01

Standard Cooling only

Deluxe Cooling only

Standard Cooling only

24VAC/DC

230VAC

Fan coil controller with: 1 TI int

3 DO (Relay) Fan control 2 DO (Relay) Binary valve control

Fan coil controller with: 1 TI int

3 DO (Relay) Fan control 2 DO (TRIAC) Binary valve control

Selection of valve actuators and fans

Binary auxiliary devices: E.g. fans and on/off valves. Observe switching power as detailed under technical specifications! Do not connect more than one fan coil unit to one controller.

Doc: 70-00-0202, V3.0 Date: 20111027 © Vector Controls GmbH, Switzerland Page 1 Subject to alteration

Page 2

(

)

(

)

TLC3-FCR-2 Engineering Manual

Technical Specification

Power Supply Operating Voltage -24 -230 AC voltage: 50/60Hz 22-26V AC/DC 210–250 VAC Power Consumption Max 1W, 1.5 VA Electrical Connection Terminal Connectors Deluxe type only: Power backup for real time clock Min 48h if charged for 24h Signal Inputs Temperature Inputs

Signal Outputs

Environment Operation

Transport & Storage

Standards

Product standards

Safety Class: for -24 types

Overvoltage Category: for -24 types

General Dimensions (H x W x D) Front part: 21 x 88 x 88mm (0.8 x 3.5 x 3.5 in.)

Material: Cover, back part

Weight (including package) for -24 types

Range Accuracy

Digital Switching Outputs

Switching Type

AC Switching power Digital Switching Outputs Switching Type

AC Switching power Insulation strength

between contacts and system electronics:

between neighboring contacts

Climatic Conditions

Temperature

Humidity

Climatic Conditions

Temperature

Humidity

Mechanical Conditions

conformity EMC Directive Low Voltage Directive

Automatic electrical controls for household and similar use Special requirement on temperature dependent controls

Electromagnetic compatibility for domestic sector

Degree of Protection IP30 to EN 60 529 Pollution Class II (EN 60 730-1)

for -230 types

Mounting Plate

for -120 and -230 types

Dimensions

RT Internal, External (Sxx-Tn10 sensor) 0…50 °C (32…122 °F)

0.5°C (1°F) DO1 to DO3

Relays 2A max.

DO4…DO5

-24: Relays 2A max.

3750V AC to EN 60 730-1 1250V AC to EN 60 730-1

To IEC 721-3-3 class 3 K5 0°C …50°C (32°F…122°F) <95% R.H. non-condensing

To IEC 721-3-2 and IEC 721-3-1 class 3 K3 and class 1 K3

-25°C…70°C (-13°F…158°F) <95% R.H. non-condensing class 2M2

2004/108/EC 2006/95/EC

EN 60 730 –1 EN 60 730 – 2 - 9

Emissions: EN 60 730-1 Immunity: EN 60 730-1

III (IEC 60 536) II (IEC 60 536)

I (EN 60 730-1) III (EN 60 730-1)

Power case: 60 x 50 x 32mm (2.4 x 2.0 x 1.3 in) Fire proof ABS plastic (UL94 class V-0)

Galvanized Steel standard: 255g (9.0oz), deluxe: 265g (9.3oz)

standard: 295g (10.5oz), deluxe: 305g (10.8oz)

-230: TRIAC

0.3A max

1.2

88 (3.5)

Doc: 70-00-0202, V3.0 Date: 20111027 © Vector Controls GmbH, Switzerland Page 2 Subject to alteration

0.8

Space required in flush mounting box: (H x W x D) 60 x 50 x 32mm (2.4 x 2.0 x 1.26 in.)

Distance for mounting screws: Horizontal and vertical: 45 to 63mm (1.8 to 2.5 in.)

Page 3

TLC3-FCR-2 Engineering Manual

Mounting location

• Install the controller on an easy accessible interior wall, approx. 1.5 m above the floor in an area of average temperature.

• Avoid direct sunlight or other heat sources, e.g. the area above radiators and heat emitting equipment.

• Avoid locations behind doors, outside walls and below or above air discharge grills and diffusers.

• Location of mounting is less critical if exter nal temperature sensors are used.

Installation

1. Connect the wires to be connected to the terminals of the power case according to wiring diagram

2. Install the mounting plate to the flush mounting box . Make sure that the nipple with the front holding screw is facing to the ground. Make sure the mounting screw heads do not stand out more than 5 mm (0.2”) off the surface of the mounting plate.

3. Ensure that the jumpers are set correctly.

4. Slide the two latches located on the top of the front part into the hooks at the upper side of the mounting plate.

5. Carefully lower the front part until the interconnector reaches the mounting-plate. Continue pressing in a gentle way until the front part is fully connected. While inserting the connectors, a slight resistance can be felt. This is normal. Do not use excessive force!

6. With a Philips-type screw driver of size #2, carefully tighten the front holding screw to secure the front part to the mounting plate. This screw is located on the front lower side of the unit. There is no need to tighten the screw too much.

Wiring Diagram

Powe

Description:

N Power supply: 0V Neutral L Power supply: -24: 24VAC/DC, -120: 120VAC, -230: 230VAC Y1 Binary output: Fan speed low Y2 Binary output: Fan speed medium Y3 Binary output: Fan speed high Y4 Binary output: Heating Valve or OPEN if in 3-point floating mode Y5 Binary output: Cooling Valve or CLOSE if in 3-point floating mode

2 L

1 N

Fan Low

Fan

Med

Fan

High

Heat /

Open

Cool /

T INT

TLC3-FCR-2

Doc: 70-00-0202, V3.0 Date: 20111027 © Vector Controls GmbH, Switzerland Page 3 Subject to alteration

Page 4

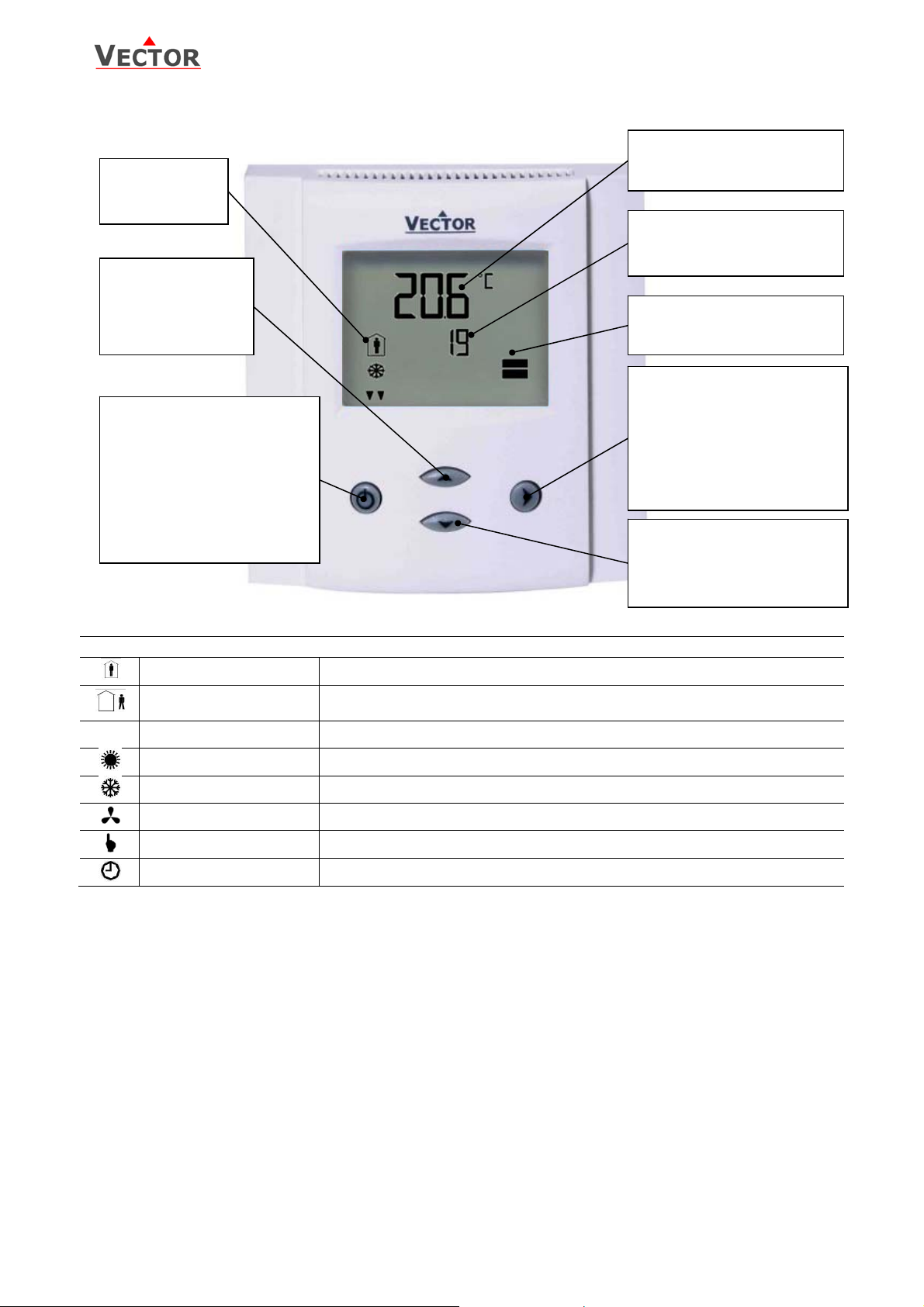

Display and Operation

Mode

Display of operation

mode

Up :

Increase setpoint (Parameter setting:

scroll menu options and parameters)

Left (POWER):

Press < 2 sec.: Toggle Economy Comfort mode or switch from OFF to ON

Press > 2 sec.: Turn unit OFF. Text OFF displayed with current time (deluxe) temperature (standard)

(Parameter setting: Return to previous level. ESC)

TLC3-FCR-2 Engineering Manual

Large Digits

Display of input or parameter value.

Small Digits

Display of setpoint, clock or parameter number.

Vertical Bar

(fan speeds 1-3 or proportional out

ut in 10% steps)

Right (OPTION)

Press < 2 sec.: Select fan speed: Low, medium, high or auto

Press > 2 sec.: Manual H/C change (Parameter setting: ENTER to

select menu option, accept parameter change)

Down:

Decrease setpoint (Parameter setting: scroll menu

options and parameters)

Operation mode

Comfort (occupied) All control functions operating per set points.

Set points shifted according to Parameters FC04. Economy mode and setpoint shift may be disabled with UP06

OFF

Economy (unoccupied):

Energy Hold Off Outputs are off, inputs monitored for alarm condition Heating Output activates if temperature lower than setpoint Cooling Output activates if temperature higher than setpoint Fan Fan is running, the vertical bars show active speed 1-3 Manual mode Manual override of fan speed, fan only mode or override of time schedule active. Schedule Deluxe only: Time schedule is act iv e

Power Failure

All the parameters and set points are memorized and do n o t need to be reentered. Depending on UP05 the unit will remain switched off, switch on automatically or return to the operation mode it was in before the power failure.

Deluxe version only: Timer operation and daytime setting will be retained for 24h. The controller has to be connected to a power supply for at least 10 hours for the backup function to operate accordingly.

Frost Protection

The controller will enter frost protection mode if the room temperature drops below 5°C (41°F). All heating outputs will be fully opened. Frost protection mode will be left once the temperature reaches 10°C (50 °F). Frost protection display will remain until a button is pressed. Frost protection can be enabled/disabled using user parameter UP-09

Error messages

Following error condition may be shown:

Err1: Error temperature sensor. The internal temperature sensor may be damaged or not present. FP: Steady: Frost protection is active.

Blinking: Frost protection activated in the past and is now inactive. Confirm with OPTION key.

Doc: 70-00-0202, V3.0 Date: 20111027 © Vector Controls GmbH, Switzerland Page 4 Subject to alteration

Page 5

TLC3-FCR-2 Engineering Manual

Manual heat – cool change

To manually change heating or cooling mode press the OPTION key for more than 2 seconds. Access to manual heat – cool change may be disabled by parameters.

For standard models: Press OPTION > 2 sec. SEL and H-C is displayed. For deluxe models: Press OPTION > 2 sec. SEL and current time is displayed. Press UP key twice. SEL and H-C is displayed. Press OPTION again to toggle Heating, Cooling and Fan only modes.

Clock operation

The deluxe model contains a quartz clock with battery back-up. Up to 4 time sched ules with each 4 mode changes based on time and day of the week may be programmed. A blinking clock indicates that the time has not been set or if the unit was without power for longer than 48 hours. The time needs to be set to allow time schedules to operate.

Clock setup

Press OPTION > 2 sec. SEL and current time displayed Press OPTION < 2 sec. to change time,

Minutes blink: UP/DOWN to changes, OPTION to save, Hours blink: UP/DOWN to changes, OPTION to save,

Press OPTION to save time,

DAY1 blinks: UP/DOWN to change, OPTION to save

Creating time schedules

Step 1: Selection and enabling of time schedules

Press OPTION > 2 sec. SEL and current time displayed Press UP:

SEL and PRO displayed, clock symbol blinks

Press OPTION:

PRO1 shows with 1 blinking. UP/DOWN select time sched ule group

Press OPTION

OFF/ ON blinks, UP/DOWN to change, OPTION to save

Step 2: Select weekdays

This time schedule will be active during the selected weekdays Press UP/DOWN to step through available options:

Press OPTION to save day selection

Step 3: Selected action of first switching event

One bar on the right side indicates the first switching event Press UP/DOWN to select action for first switching event:

Press OPTION to select switching time of first event

Step 4: Selected time of first switching event

Press UP/DOWN to select switching time:

Press OPTION to complete and select action of second switching event

Step 5: Select actions and time of switching event 2 - 4

Repeat Step 3 and Step 4 for the remaining switching events.

After completing the 4

Î UNI: University mode: This switching mode is used for rooms such as lecture rooms and auditoriums that might

Î A blinking clock indicates that the time needs to be set. Time programs wil l not operate if the time is not defined.

Î Access to time schedules may be disabled with UP-04

d1-7, d1-6, d1-5, d6-7, day1, day2, day3, day4, day5, day6, day7 Day 1 stands for Monday, day 2 for Tuesday and so forth

No = switching event not active OFF = switches unit off, Reset (UP17) active if switched to ON ma n ually. Eco = sets operation mode to On and Economy (Not occupied), reset (UP17) active if set to comfort manually On = sets operation mode to On and Comfort (Occupied) Uni = University mode, Reset (UP17) not active if manually activated

Select switching time 00:00 to 23:45 in 15-minute steps

If a switching event is not needed, s et it to “no” The bars on the right side indicate number of switching event

be occupied during a certain time. During this time the reset is not active. The unit will not start itself when UNI mode is active. It still needs to be manually activated. This is to avoid unnecessary heating or cooling of such rooms while they are not occupied.

See chapter operation, advanced settings for instructions on how to set the time.

switching event, the process returns to the selection of th e time schedule on step 1.

SEL H-C

SEL 00:00 DAY1 (Mon)

SEL PRO

Pro1-Pro4 OFF/ON

Pro1 d1-7

Pr01

08:00

Pr01

08:00

Doc: 70-00-0202, V3.0 Date: 20111027 © Vector Controls GmbH, Switzerland Page 5 Subject to alteration

Page 6

j i k l c d e f

TLC3-FCR-2 Engineering Manual

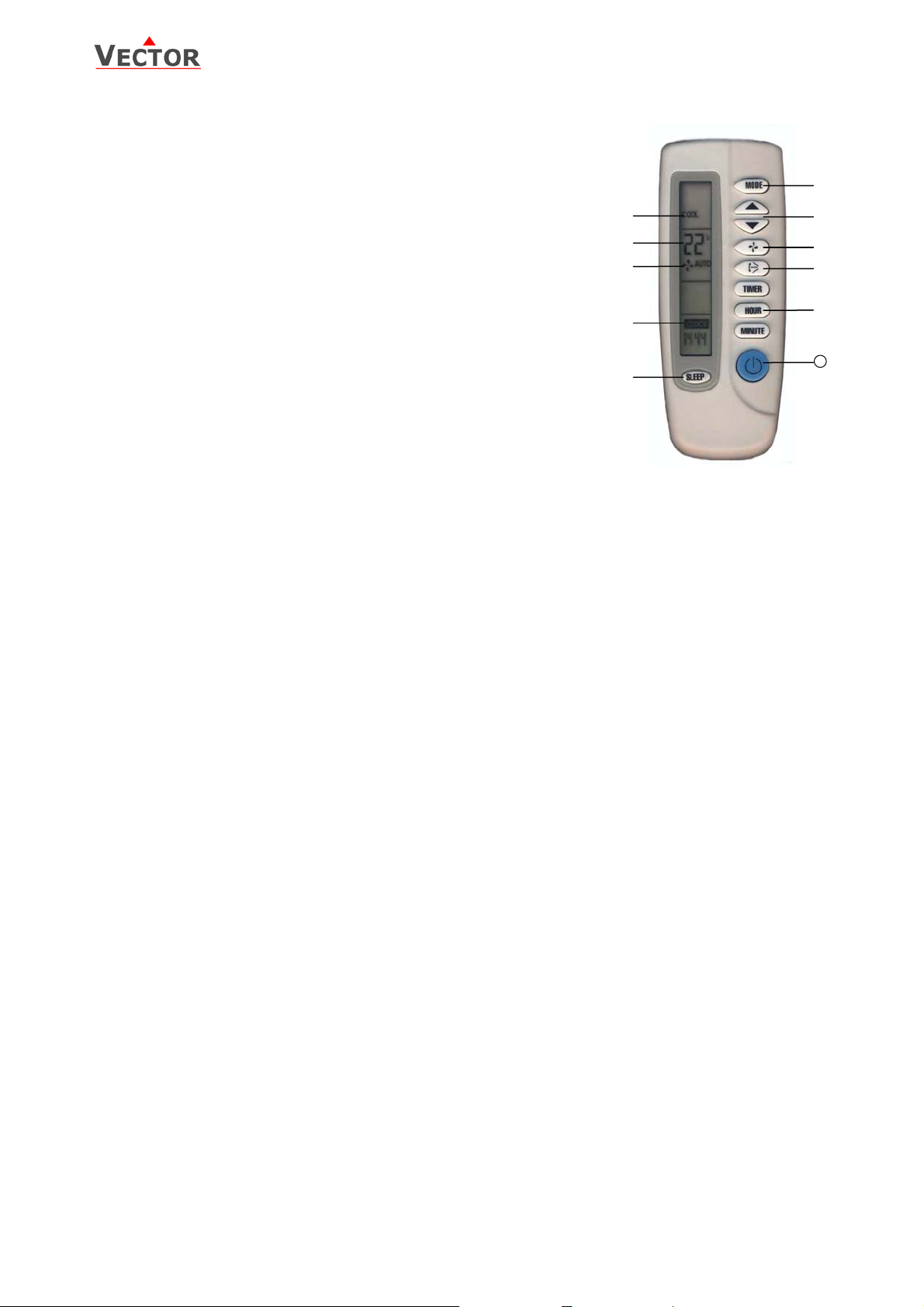

Operation with OPR-1

The deluxe version may be alternativ ely operated with an infrared remote controller.

1. Mode indication, Auto, Dry, Cool, Fan, Heat

2. 2-digit display of setpoint

3. Fan indication

4. 4-digit display of current time or delayed switching time

5. Economy button: Toggles Economy/Comfort mode

6. Mode button, changes operation modes

7. UP/DOWN Button: Set point adjustment buttons

8. FAN Button: Changes fan speed, low – medium – high or Auto

9. Boost button, activates full output for 5 Minutes

10. Time related buttons: Timer, Hour, Minute

11. POWER Button: Operation mode ON – OFF

Switching ON

The unit is switched on by pressing the POWER button. It will start up in comfor t mode.

Changing between COMFORT and ECONOMY

Pressing the SLEEP button toggles between ECONOMY and COMFORT modes.

Switching OFF

Pressing the POWER while the unit is on, will switch the unit off. The current time will be displayed in the LCD of OPR-1.

Changing of set points

Only the set points for the temperature loop may be changed. Set point range is 15 to 30 °C.

Changing of fan speeds

Repeatedly pressing the fan speed button steps through lo w, medium, high and automatic fan speeds. Automat ic fan speed will not be activated in FAN ONLY mode.

Boost

Pressing the boost button activates a 5 minute boost. The output will be fully opened for the period of 5 minutes independent of demand. This may be used to change stale air during a meeting break or when entering the room.

Clock settings

The remote controller contains a daytime clock. In order to set the clock, press HOUR and MINUTE button together until the clock starts blinking. Then set the correct time with the HOUR and MINUTE buttons. Confirm by pressing the TIMER button. The clock of the OPR will set the clock of th e controller.

Delayed switching

The unit may be delayed switched on or off using the timer button. Pressing the timer button once will display Timer ON if currently in OFF mode or TIMER OFF if currently in ON mode. Set the time when the unit is supposed to switch on or off using the HOUR and MINUTE buttons.

Mode changes

Repeatedly pressing the mode button may activate the following operation modes: HEAT, COOL and FAN ONLY. The mode change may be disabled using the UP parameters.

Note: The remote controller is currently only available in °C mode.

Doc: 70-00-0202, V3.0 Date: 20111027 © Vector Controls GmbH, Switzerland Page 6 Subject to alteration

Page 7

TLC3-FCR-2 Engineering Manual

Setting of user parameters

The TLC3-FCR-2 is an intelligent controller and can be adapted to fit perfectly into your fan coil application. The control operation is defined by parameters. The parameters are set during operation by using the standard operation terminal.

The parameters are password protected. There are two levels of parameters: User operation parameters for access control settings and Expert parameters for control functions and unit setup. The passwords for user levels and expert levels are different. Only control experts should be given the control parameter password.

The parameters can be changed as follows:

1. Press UP and DOWN button simultaneously for three seconds. The display will indicate the firmware version in the upper large digits and the revision in the lower small digits. Pressing any key will show: CODE.

2. Select a password using UP or DOWN buttons. Select 009 in order to get access to the user parameters, 241 for controls parameters. Press OPTION after selecting the correct password.

3. Once logged in, the parameter is displayed immediately

4. Select the parameters with the UP/DOWN keys. Change a parameter by pressing the OPTION key. The MIN and MAX symbols show up and indicate that the parameter may be modifi ed now. Use UP and DOWN key to adjust the value.

5. After you are done, press OPTION or POWER in order to return to the parameter selection level.

6. Press the POWER key again so as to leave the menu. The unit will return to normal operation if no key is pressed for more than 5 minutes.

User Parameters

Parameter Description Setting Range Factory Setting

UP 00 Enable change of operation modes ON, OFF ON (Enabled) UP 01 Enable change of set points ON, OFF ON (Enabled) UP 02 Enable manual control of fan speeds ON, OFF ON (Enabled) UP 03 Enable change of heating/cooling mode ON, OFF W00: ON (Enabled)

UP 04 Enable access to Time programs ON, OFF ON (Enabled) UP 05 State after power failure:

UP 06 Enable Economy (unoccupied) Mode.

UP 07 Celsius or Fahrenheit, Select ON for Fahrenheit, OFF for Celsius ON, OFF OFF (Celsius) UP 08 Calibration value of temperature sensor . This value is calibrated at

UP 09 Enable Frost Protection.

UP 10 Select contents of Large LCD display in standard mode:

UP 11 Select contents of small LCD display in standard mode

UP 12 Contents of vertical bar in standard mode

UP 13

Deluxe only

UP 14

Deluxe only

0 = Switched OFF, 1 = Switched ON, 2 = state before power failure

Shift the set point to a lower temperature in winter or higher temperature in summer in order to save energy. Economy mode may be activated through the POWER button, or with the external input (typically for key card switches in hotel rooms or motion detectors for meeting rooms.)

manufacturing of the thermostat. If required it is possible to shift the temperature –10° to +10° in 0.1° K steps.

Activates the output independent of operation mode when the control temperature drops below 5°C or 41°F. The controller returns to normal operation when the temperature increases above 10°C or 50°F.

00 = OFF 01 = Setpoint 02 = Temperature Sensor 03 = Output Fan Speed 04 = Clock

(use table of UP 10)

OFF = Fan Speed ON = Control output

Clock display type: OFF = Show 24hour clock ON = Show 12hour clock (AM, PM)

Reset: applies when the unit is manually switched on, while in scheduled off mode. The unit will switch automatically back to the scheduled mode when the reset time expires. 0 = Reset of override mode is not active. 1…255 = delay in minutes to switch off device

0, 1, 2 2

ON, OFF ON (Economy )

-10…10 0

ON, OFF W00 = ON

0…4 02

0…4 04 Deluxe:

ON, OFF OFF (FAN)

ON, OFF OFF (24h)

0…255 60 (Min)

W01: OFF (Disabled)

(Frost Protection)

W01 = OFF

(No Frost Protection)

Temperature

show clock

01 Standard:

show setpoint

Page 8

TLC3-FCR-2 Engineering Manual

Control configuration

Identifying the firmware version

The parameters and functionality of controller depend on its firmware revision. It is therefore important to use a matching product version and parameter set. The firmware version is shown on the large LCD digits when pressing UP and DOWN buttons for more than 3 seconds simultaneously.

Control Parameters (Access code: 241)

Warning! Only experts should change these settings! See user parameters for login procedure.

Parameter Description Range Standard

FC 00 Minimum setpoint limit in Heating mode -40…60°C (160°F) 16°C (61°F) FC 01 Maximum setpoint limit in Heating mode -40…60°C (160°F) 24°C (75°F) FC 02 Minimum setpoint limit in Cooling mode -40…60°C (160°F) 18°C (64°F) FC 03 Maximum setpoint limit in Cooling mode -40…60°C (160°F) 30°C (86°F)

Controls configuration

FC 04 Economy (unoccupied) Mode temperature shift:

The comfort (occupied) setpoint is shifted by the value set with parameter. If heating is active the comfort setpoint will be decreased, if cooling is active, the setpoint will be increased. (Enable with UP06.)

FC 05 Switching Span Heating,

Setting this value to 0 disables the auto fan speed function in heating mode

FC 06 Switching Span Cooling

Setting this value to 0 disables the auto fan speed function in cooling mode

FC 07 Switching Hysteresis is the difference between switching

on and switching off. A small hysteresis will increase the number of switching cycles and thus the wear on fan and relays contacts.

FC 08 Mold Protection:

In mold protection, the fan keeps running independent of

temperature as long as the unit is switched on. FC 09 Switching delay min running time of fan speed 0…255s 10s FC 10 Switching delay min stopping time of fan speed 0…255s 10s FC 11 Control option:

0 = Cooling only

1 = Heating only

2 = 2-pipe system

3 = 4-pipe system FC 12 Dead Zone Span:

The Dead Zone Span lies between the heating and the

cooling setpoint. The output is off while the temperature

is within the dead zone span. A negative dead zone is not

possible. FC 13 Heat/Cool Changeover Delay (if set to FC11 = 3):

A demand to switch between heating and cooling must

persist for the length of time set with this parameter

before the controller switches. Prevents activation of a

sequence during a short-term change in temperature in

order to protect equipment (with control overshoot for

example)

0…10.0°C (20.0°F) 5.0°C (10°F)

0…10.0°C (20.0°F) 1.5°C (3°F)

0…10.0°C (20.0°F) 1.0°C (2°F)

0…10.0°C (20.0°F) 0.5°C (1°F)

ON, OFF OFF

0…3 Default = 3

W01 = 0 W02 = 1 W03 = 2 W04 = 3

0…10.0°C (20.0°F) 1.0°C (2°F)

0…255 min 5 min

Page 9

TLC3-FCR-2 Engineering Manual

Control Configuration for PWM – 3-point floating mode

FC 14 P – band heating XPH 0-10.0°C (20.0°F) 2.0°C (4.0°F) FC 15 P – band cooling XPC 0-10.0°C (20.0°F) 2.0°C (4.0°F)

Î Proportional control (P-band)

The proportional control function calculates the output based on the difference between setpoint and measured value. The proportional band (P-band) defines the difference between setpoint and measured value which will result in a 100% output. Setting the proportional band to 0 disables proportional control.

Output configuration

FC 16 Output setting, Binary, PWM or 3-point:

0 = Binary or PWM (DO4 Heating, DO5 Cooling)

1 = 3-point binary output (DO4 open, DO5 close)

2 = 3-point floating output (DO4 open, DO5 close) FC 17 Running Time in 3-point mode 0…255 s 90 s FC 18 FC 19

Î 3-point floating:

For floating point outputs the running time o f the actuator used needs to be specified with F C 17. Running time is defined as the time required for the actuator to run from fully open to fully closed and vice versa. Actuators with a fixed running time are recommended. Once fully open or fully closed the running time for the actuator is extended for a full run-time cycle. This will allow the actuator position to be synchronized in case it has been moved during off time or an actuator with variable running time was used.

Î Pulse With Modulation (PWM)

In PWM mode the digital output will be switc hed on/off once per cycle. The on and off times are calculated according to the control sequence.

PWM cycle time heating, 0 disables PWM mode 0…100 min 0

PWM cycle time cooling, 0 disables PWM mode 0…100 min 0

0…2 0

Binary / PWM

Page 10

Notes:

TLC3-FCR-2 Engineering Manual
