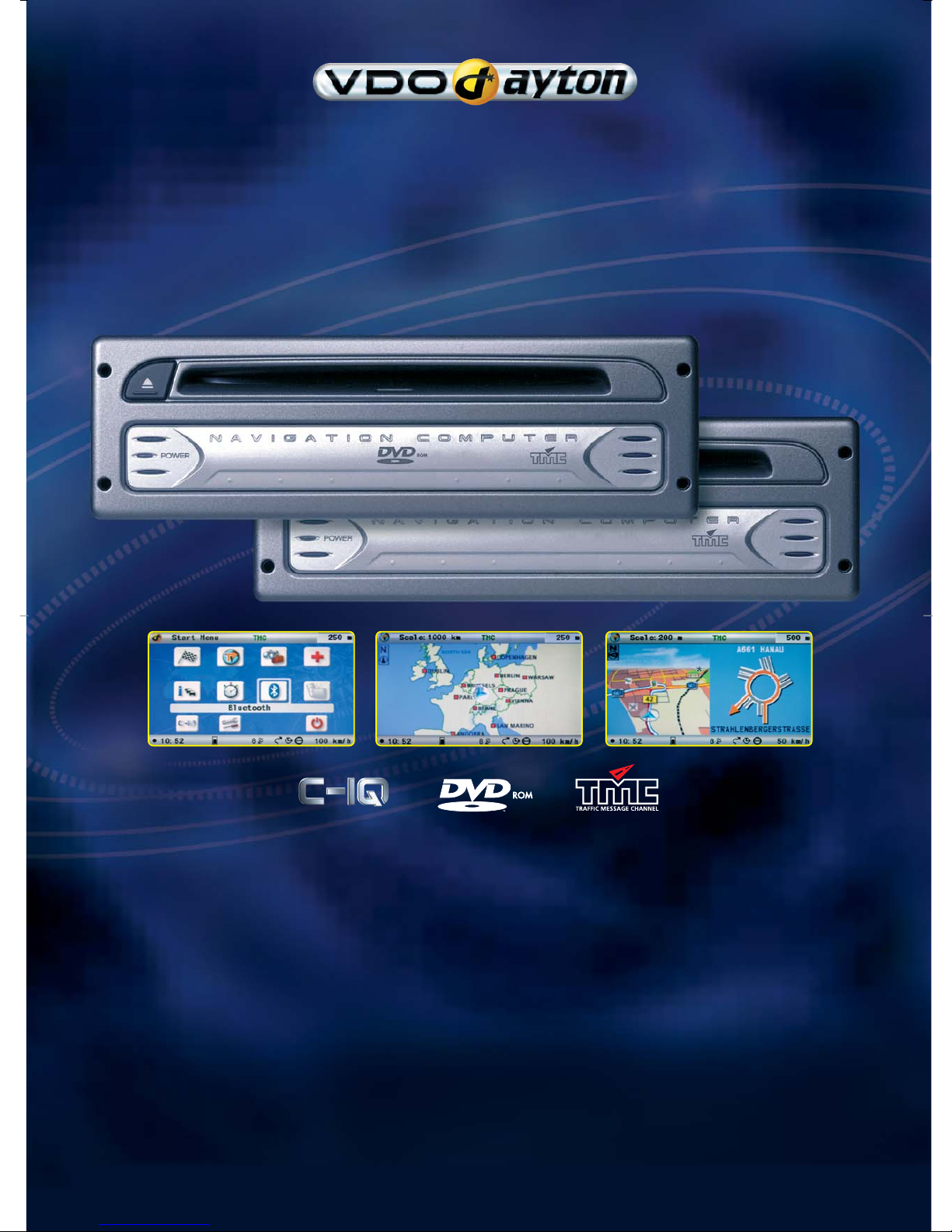

Page 1
PC 5700/PC 5600
Monitor Navigation Computer
DVD-ROM Drive (PC 5600: CD-ROM)
Integrated RDS-TMC Receiver
2D/3D Map View
Dynamic Navigation incl. Individual Adaptation
Extensive Destination Input Possibilities:
Country, city, street junction, house number
Postal/ZIP Code
QXS – Quick Access Street Search
Longitude/latitude
Points of Interest (POI) like petrol and train stations,
car parks and cinemas
Travel guides (e.g. Varta, Michelin)*
Options
Video components (e.g. Radio Module, Reversing Camera)
Telephone connection (also via Bluetooth®)
Steering Wheel Remote Control
* On extra cost
VDO Dayton. The Car Brand.
Car Multimedia Systems.
Intelligent Content on Demand
Page 2
Features
•
Pictogram- and Voice Guidance
• Route Criteria:
- Fast route
- Short route
- Prefer / Avoid motorways
- Avoid ferries / tunnels
- Avoid toll roads
- Optimized for traffic situation
•
9 Languages with 21 Voices
•
Dynamic Navigation
- Consider Traffic Congestions
- Adjustable Detour Preference
- Adjustable Traffic Horizon
•
Calculation alternative
Route (automatic, manual)
•
Traffic Information (with
TMC Receiver)
- Presentation on Map
- Cursor Selection on Map
- Graphical Information
(Distance to Traffic Jam,
Lenght of Traffic Jam,
Location etc.)
- Traffic Information on Route
- Detailed Event Information
- Detour Calculation
• 2D/3D Map View / Split Screen
•
Colourful Map presentation with adjustable Scale
(50 m ... 1,000 km)
•
6 Colour settings with day/
night switch
•
Address book for min. 200
entries (categories: Home,
Work, Business, Private)
•
Last Destinations: 20
•
Via Points: 25
•
Trip Computer:
- Current / average Speed
- Travel time / distance
(reset available)
- Programmable speed
warning
Features
•
Selectable status information
for three info status lines
(time, date, travel distance,
dynamic travel time, delay
time, dynamic arrival time,
altitude above sea level,
current speed)
•
Speed Dependent Volume
Control (SDVC)
•
Demo-Mode
• Blocking of disc eject
possible
Technical Data
•
Sensors
- 12 channel GPS receiver
- Gyroscope
- Speed signal interface
(digital, analogue)
•
Status LEDs
•
Temperature Range:
-20° C ... +60° C
•
Power Supply
- 12 V DC, - at GND
- Voltage Range: +9 V ... +16 V
- Current Consumption:
approx. 1 A
•
Dimensions (w x h x d):
DIN Housing, 180 x 51 x 160 mm
•
Connections
- Video-Out / Monitor:
RGB, CVBS (NTSC)
- Audio: Line-Out, 11 W /
8 Ohm (external
loudspeaker)
- RS 232 Interface
- D2B interface (connection
of system components)
- GPS antenna (SMB)
- FM antenna
- ISO connector
Monitors
•
MM 5600
- 6.5" TFT slide-out monitor,
16:9 format
- 1 DIN sized chassis
- RGB, PAL / NTSC
- Integrated loudspeaker/
infrared eye
- Automatic display
brightness control
•
MM 5500
- 7" TFT Monitor, 16:9 format
- RGB, PAL / NTSC
- Integrated loudspeaker/
infrared eye
- Automatic display
brightness control
• MM 5300
2
- 5.8” TFT monitor, 16:9 format
- RGB, PAL
- Integrated loudspeaker/
infrared eye
- Automatic display
brightness control
• MM 5010
- 5.8” TFT monitor, 16:9 format
- RGB, PAL
- Integrated loudspeaker/
infrared eye
- Automatic display
brightness control
• MM 2100
3
- 4” TFT rearview mirror
monitor, 4:3 format
- PAL / NTSC
- Integrated loudspeaker/
infrared eye
- Display brightness and
volume control
06/05, PC 5700/ PC 5600,
subject to modification
PC 5700 / PC 5600
Monitor Navigation Computer
C-IQ Intelligent Content on Demand
Once C-IQ is activated, you benefit from a wide range of products
including up to date road maps, travel guides and special country
products. Along with wide coverage, road maps come with free traffic
information (TMC) and up to 1.500.000 Points of Interest (POI). The
C-IQ update service automatically sends you the latest road maps free
of charge
1
. Activation takes just a few minutes anytime, anywhere.
Navigation content can be chosen on a daily or monthly basis with time
based payment.
DVD-ROM Drive (PC 5700)
With a storage capacity of 8.5 GB, the DVD has approx. 12x greater
memory capability compared to a CD. Currently all available European
street data is on the DVD and there is also an extensive travel guide,
including picture material. The same navigation computer is also CD-ROM
based available as PC5600. Maps for this type are split up on different
Region-Discs.
Integrated RDS-TMC Receiver
Traffic information is available through the integration of a TMC receiver.
The resulting combination of functions is not only better value for money
but simplifies the installation. It only requires a connection to the FMAntenna.
2D/3D Map View
Through the special software, the precise and smooth map is viewable in
the classic 2D or new 3D view. In the 3D view, additional Information, for
example street numbers, sight seeing possibilities and traffic information,
is blended into the horizon and removed from the foreground. You are
able to chose up to 5 POI categories you'd like to see.
Dynamic Navigation via TMC
The system is able to process traffic information, which is provided
through an integrated RDS-TMC receiver (Radio Data System - Traffic
Message Channel). This traffic information is evaluated and included in
the route calculation. The delta (travel time, distance) for the current
route is shown and the driver can decide whether he wants to drive the
alternative route or not. It is possible to customize the system's behaviour
for dynamic route planning.
Extensive Destination Input Possibilities
With the great number of input possibilities, virtually every destination
can be found. The destination input is supported by the 'Intelligent
Typewriter'. Only the alphabetic characters that are necessary will be
presented automatically, making destination selection considerably
simpler.
Connections
VDO Dayton. The Car Brand.
Car Multimedia Systems.
www.vdodayton.com
*Mounting sleeve not included
1
activation necessary
2
Available from top 2006
3
Default settings for PC 54XX and
higher = 16:9. Manual display
adjustment necessary for 4:3 format
(via navigation computer)
