WM IP Receiver v4.1 Admin Guide

Organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .v

Getting Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v

Font Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vi

Related Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vi

Printer-Friendly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vi

1. Getting Started

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Hardware Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Functional Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

IPR Power States . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

1. Connect the IPR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

2. Configure Network Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Assigning an IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

3. Login to IWS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

4. Select a Start Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Contents

2. Configuration

Using IWS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Logging In. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Saving Changes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

General Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Start Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Local-Mode URLs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Network Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Domain Name Servers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

SAP Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Management SAP Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Decoder Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Player Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Video Output Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Security Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Admin Interfaces. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Upgrade Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Pull-Upgrade Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Miscellaneous Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Splash Screen Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

VBrick WM IP Receiver Admin Guide iii

3. Status, Maintenance & Help

Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

System Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Power Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Default Device Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

4. Local Mode Configuration

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Configuring Streams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Customizing the Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

5. Software Upgrade

Upgrading an IPR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Uninstalling the IPRDownload Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Installing the Download Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Using ETV-IPRDownload . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Logging Upgrade Activities. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

6. Using the IPR

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Local-Fullscreen Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Portal Server Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Portal Server Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Local Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Using the Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

iv Contents

WM IP Receiver v4.1 Admin Guide

VBrick's WM IP Receiver is similar to a conventional set top box but is significantly more stable, rugged, and reliable. It is designed for 24x7 operation, and built for enterprise networks that require a high degree of stability, security, and scalability. The WM IP Receiver meets the demanding requirements of VBrick's EtherneTV Media Distribution System. The WM IPR plays Windows Media streams from VBrick WM appliances and Windows Media servers. The WM IPR is also a fully-featured VBrick EtherneTV client. This means that in addition to the ability to deliver video, the WM IPR will eventually provide scheduling, access logging, and device control from the Portal Server.

Organization

Getting Started

Configuration

Status, Maintenance & Help

Local Mode Configuration

Software Upgrade

Using the IPR

provides an overview of the IP Receiver and explains how to connect, configure, and login to the device.

explains all IPR configuration options including Start mode, network configuration, and security options.

explains how to check system information, reboot or shutdown the IPR, and launch a software upgrade.

explains how to configure the IPR for Local mode and how to create and upload customized pages.

explains how to use the ETV-IPRDownload application to upgrade the IPR software.

explains how to use the IPR to view Local, Fullscreen, or Portal Server streams.

Getting Help

If you need help, or more information about any topic, use the online help system. The

online help is cross-referenced and searchable and can usually find the information in a few seconds. Use the tree controls in the left pane to open documents and the up and down arrows to page through them. Use the one or more words in the box and press Enter. The search results will return pages that have all of the words you entered—highlighted in yellow (Internet Explorer only). The box is not case-sensitive and does not recognize articles (a, an, the), operators (+ and – ), or quotation marks. You can narrow the search by adding words.

Search box to find specific information. Simply enter

If you can't find the information you need from the online help, or from your certified VBrick reseller, you can contact VBrick Support Services usually answer your technical questions in 24 business hours or less. Also note that our publications team is committed to accurate and reliable documentation and we appreciate your feedback. If you find errors or omissions in any of our documents, please send e-mail to documentation@vbrick.com

VBrick WM IP Receiver Admin Guide v

and let us know. For more information about any VBrick

on the web. Support Services can

products, all of our product documentation is available on the web. Go to www.vbrick.com/ documentation to search or download VBrick product documentation.

Font Conventions

Arial bold is used to describe dialog boxes and menu choices, for example: Start > All Programs > VBrick

Blue Courier fixed-width font is used for code elements (C++, HTML) as well as filenames, directories, etc.

Black Courier fixed-width font is used to indicate user input in keyboard commands, scripts, etc.

Folder names and user examples are displayed in this sans serif font.

Folder names and user input are displayed in this bold sans serif font.

Italics are used to emphasize specific words or phrases.

Related Documents

For more information about using and configuring the WM IPR with the Portal Server, see the EtherneTV Portal Admin Guide. This document is available on the

VBrick EtherneTV page

at www.VBrick.com/documentation

Printer-Friendly

WM IP Receiver Admin Guide

WM IP Receiver Release Notes

T To save or print a PDF document:

1. Click once to open the PDF document in Acrobat Reader.

2. To save or print a PDF document, right-click and select

Save Target As or Print Target.

vi Preface

Getting Started

Topics in this chapter

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1. Connect the IPR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

2. Configure Network Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

3. Login to IWS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

4. Select a Start Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Overview

VBrick's EtherneTV Media Distribution System provides the ability to view live and stored WM (Windows Media) streams directly on a television or monitor by using the ETV IP Receiver. The IP Receiver is integrated with the EtherneTV Portal Server and the ETV video-on-demand (VOD) servers to enable viewing of stored and live WM streams. The IP Receiver can also be deployed as a standalone decoder without the need for a Portal Server.

Chapter 1

As explained on the following pages, the IPR can be configured to operate in one of three modes: includes a Portal Server, the IPR is directed to the Portal Server for user control—the graphics and user interface reside on the ETV Portal Server. When the IPR is deployed independently of the Portal Server, it comes equipped (in and internal graphics. The IP Receiver can be configured using a standard web browser.

Portal Server, Local (standalone), Local-Fullscreen (standalone). When the installation

Local mode) with a user interface

Figure 1. Ethernet-TV Media Distribution System

VBrick WM IP Receiver Admin Guide 1

The WM IP Receiver is a state-of-the-art decoder for WM streams originatin g from a VBrick WM appliance or a Windows Media streamin g server, or for strea ms hosted by a VBrick EtherneTV Portal S erver.

Figure 2. WM IPR – Top View

Hardware Specifications

Model WM IPR

Processor Intel® Pentium-M ® Processor 1.4 GHz

Chipset Intel 854 chipset with 3D graphics

Memory Standard: On Board DDR333 128 MB

Mass Storage 64 MB DOM

Input Device IR Remote Control

Front Panel Button: Power On/Off Indicators: Stand-By, Connected, Recording

Rear Panel • 10/100 Ethernet port

• One RCA jack for composite video output

• Two RCA jacks for stereo audio output (right/left)

• S-Video output connector

• Coaxial and Optical S/PDIF out (not used)

• Two USB 2.0 connectors

•VGA

Weight Less than 4.3 kg (9.4 lbs)

Dimension 308 (L) x 223 (D) x 60 (H) mm

Power AC 100~240V/47-63 Hz, 80W

Operating System Windows CE 5.0

Functional Specifications

Resolutions Composite/S-Video: NTSC (720x480), PAL (720x576)

VGA: 800x600, 1024x768, 1280x720, 1920x1080.

Protocols Multicast, HTTP, MMS

Video Sources VBrick WM Appliance, Windows Media Server.

Decode Rate 56Kbps–4 Mbps.

Video System Type NTSC or PAL.

Getting Started

EthernetTV Support

IR Remote All standard functions.

Configurable Modes

Outputs Composite, VGA, RCA audio.

Network Ethernet, DHCP, Manual IP configuration, IGMP v3.

Management • Remote Management via web browser.

Security Login required for user interface change or system changes.

Compatible with VBrick's ETV Portal Server (v4.1 or higher).

• Local (Static Program Guide).

• Local-Fullscreen (play configured program).

•Portal Server.

•Web Service.

• Telnet (future release).

IPR Power States

Once plugged into an AC power source, the IPR is always in one of three states: On, Off, or

Standby. Standby is a power saving mode in which the device is neither on or off. There are

two triangular silver buttons on the front panel. You can turn power on or off using the (upper) triangular silver button or by using the lower button has no function.

Power button on the remote control. The

On Turn the IPR on (from the off state) by briefly pressing the Power

button on the front panel or using the Power button on the remote control.

Off Turn the IPR completely off by pressing the Power button on the

front panel for five seconds or more. The IPR is off when unplugged or immediately after being plugged in.

Standby Put the IPR in Standby (from the on state) by pressing the Power

button on the remote control or by using the Shutdown command on the IWS Maintenance menu. To exit Standby, press Power on the remote control. In Standby, there is no network connectivity and the TV will be black.

1. Connect the IPR

The WM IP Receiver is shipped with all the cables and connectors you need to install the device. No software installation is required. The WM IPR is also shipped with the latest IPR software already installed. In the unlikely event you need to reinstall (or upgrade) the software, see Software Upgrade as shown in the following drawing. The WM IPR includes the following components:

•WM IP Receiver

• Remote Control with 2 AA Batteries

on page 27.) Connect the audio, video, and Ethernet cables

VBrick WM IP Receiver Admin Guide 3

•Power cable

• RCA connector

T To connect the IPR:

1. Using the provided RCA cable, connect the IPR video out to a TV monitor using the yellow video connector.

2. Using the provided RCA cable, connect the IPR audio out to a TV monitor using the corresponding red and white audio connectors.

3. Using customer-provided cables, connect the IP Receiver to your Ethernet network, using the

LAN port.

4. Connect a USB keyboard and mouse to the USB ports and install two AA batteries in the remote control.

5. Connect the IPR power cord to a powerstrip and power on the IPR using the triangular

Power button on the front panel.

Figure 3. WM IPR – Rear Panel

Composite Composite video out.

S-Video Connect to standard TV.

Audio Out Audio out left and right.

LAN Connect to local area network.

USB Ports (2) Connect USB mouse and/or keyboard.

VGA Connect to a standard TV or a projector with a VGA port.

Power Plug Connects to power cord.

Figure 4. WM IPR – Front Panel

Connected Yellow. Blinks when you press any button on remote control.

Standby Orange. Press Power button to toggle Standby on or off.

Recording Red. Steady red when a recording is in progress.

Power Green. Steady green when power is applied.

2. Configure Network Parameters

The IP Receiver is configured with DHCP (Dynamic Host Configuration Protocol) enabled and will automatically retrieve an IP address from a DHCP server if present. If a DHCP server is not available, you can configure the IP Receiver with a static IP address. The following steps explain how to login to the IPR the first time only. After this initial

configuration, you can login to the IPR using IWS.

Note By default, DHCP is used to retrieve a dynamic IP address for the IPR. If you are not

using a DHCP server, you must configure the IPR to use a static IP address as explained below.

T To configure network parameters:

1. Connect the TV, cables, keyboard, and mouse as explained above and power on the IPR. Wait for the box to completely power up before continuing.

2. When the Login page is displayed, log in to the Integrated Web Server (IWS) using the default username (admin) and password (admin).

3. Navigate to the Network Configuration and other network configuration parameters. Use this page to record the DHCP IP address for future use or to set a different IP address (see Assigning an IP Address below). If leaving the IPR in DHCP mode, be sure to record the IP address provided by the DHCP server for future access to IWS from a PC.

4. When done, click

Apply and then Logout.

5. Remove the USB keyboard and mouse. The next time you will login using the IPR's Integrated Web Server (IWS).

page which shows the IP Address, Hostname,

Getting Started

Note VBrick recommends using the initial management pages only to record (or set) the IP

address using a keyboard and a mouse. Do not change other IPR parameters until you logout, remove the keyboard and mouse, and login to the IWS management pages over a network connection.

Assigning an IP Address

T To assign a static IP address (optional):

1. Go to the

2. Change

Network configuration page.

DHCP Enable to Static and enter a valid IP Address.

3. Set other network parameters ( necessary. Contact a system administrator for the parameters to use on your network.

4. When done, click configure the IPR from a PC. Either logout from the console or wait (15 minutes) for the session to expire in order to manage the IPR over the network.

3. Login to IWS

You access the IP Receiver by typing its IP address in the Address field of a web browser such as Internet Explorer or Firefox. You login to the IPR's Integrated Web Server (IWS) using the default username and password (you can change these on the Security Configuration page). IWS is a web management application used to set or change configuration settings (see Using IWS

Subnet Mask, Gateway, Domain Name Server etc.) as

Apply and then Logout. If you do not logout, you will be unable to

on page 9 for more about IWS).

VBrick WM IP Receiver Admin Guide 5

T To login to the IP Receiver:

1. Type the IP address of the IPR in a browser, for example

http://<IPR_IPAddress>

2. Enter the Username and Password and click Login. This displays the Administrator Page. Use this page to access all system configuration parameters.

Figure 5. Login Page

User name Case-sensitive username. Default =

(read-only).

Password Case-sensitive password. Default =

(read-only).

Note If you have problems logging in because of a misconfigured IPR or lost IP address,

you can still launch IWS by pressing attached to the IPR. See Logging In

4. Select a Start Mode

The next step is to choose a Start mode from among the options explained below. The Start mode determines how the IPR will behave in your network environment when it's powered on. A network administrator will generally determine the requirements at your site. Note that if you are using a TV monitor to configure IWS, as soon as you select a mode.

T To set the Start mode:

1. After logging in as explained above, the

2. Select a Configuration on page 11 for more information about these options.

Start mode and press Apply, IWS closes and the TV switches to the selected

Start Mode from among the three choices listed below. See General

admin (all privileges) or public

Ctrl-Alt-F1 from a USB keyboard directly

on page 10 for more information.

Start mode based on the functional

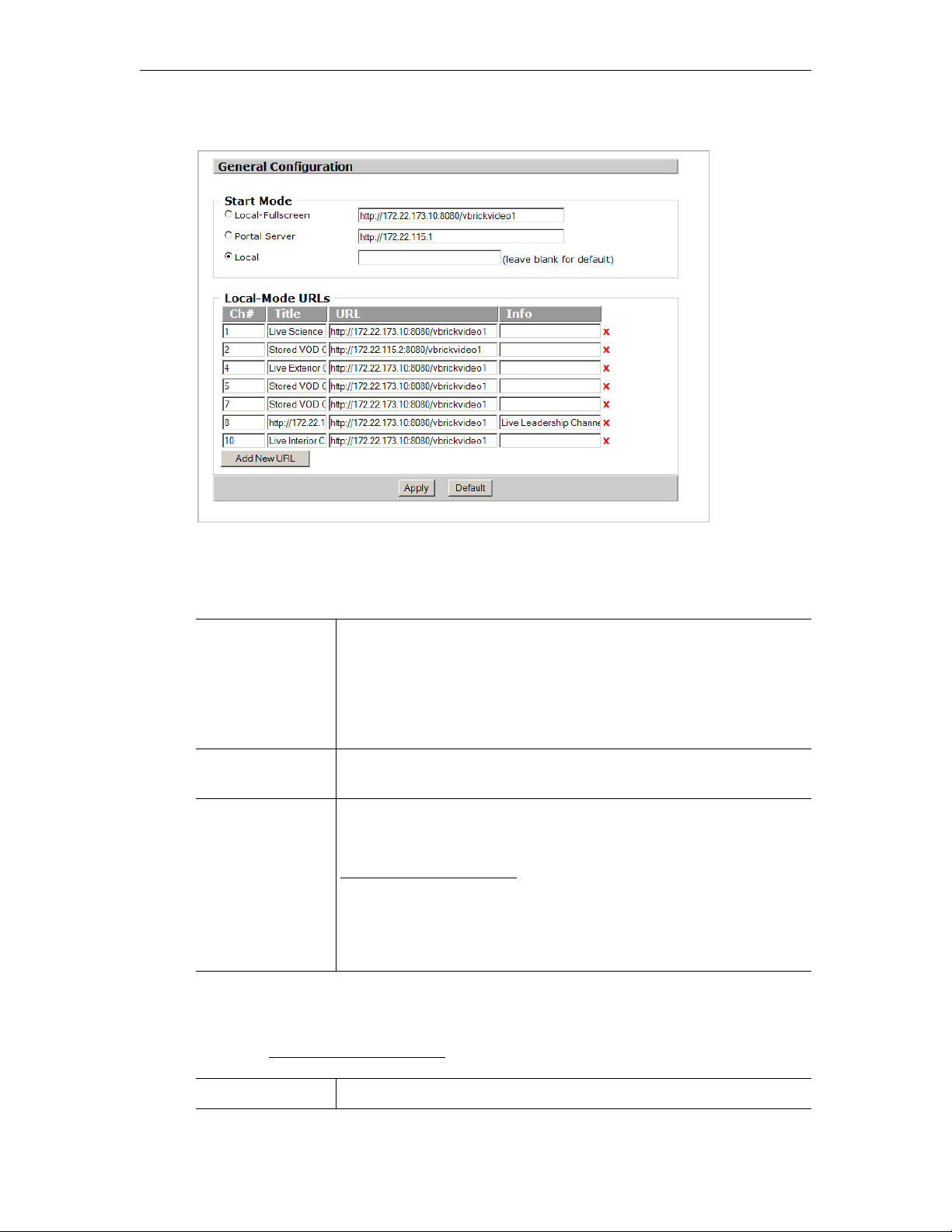

General Configuration page (Figure 6) opens.

Getting Started

Local-Fullscreen

The WM IPR can operate in a fullscreen mode. One channel is displayed and this stream uses the entire screen of the attached monitor. Table 1 below shows the URL syntax for Local-Fullscreen.

Portal Server

When installed with an ETV Portal Server, the features and options of the VBrick WM IPR are controlled through the VBrick Portal Server. See the Portal Server Admin Guide for more information.

Local

In Local mode, the IPR will retrieve and render the user interface web page from the configured local path. This is typically located on the IPR's file system. The program guide on the viewer web page will include the streams defined for page. See Local Mode Configuration

Local mode on the IWS configuration

on page 23 for more

information.

3. Press Apply to exit IWS and open the IPR interface in the selected mode

Tab le 1 . Local-Fullscreen URL Syntax

Stream Type URL Syntax

Multicast WM Multicast IP address of VBrick WM Appliance. On the WM

Appliance, go to Configuration: Encoder > Multicast and use the

Multicast URL, for example:

http://<ip_address>/vbs1multi.nsc

Unicast WM HTTP

(Live)

Unicast or HTTP (VOD)

HTTP URL of VBrick WM Appliance. On the WM Appliance, go to Configuration: Encoder > Server and use the example:

http://<ip_address>:8080/vbrickvideo1/group1

HTTP URL, for

If your WM Appliance is configured to serve multiple bit rates (MBR) you must configure the WM IPR with a group-specific URL, for example:

http://<ip_address>:8080/vbrickvideo1/group1

Depends on VOD server. The complete path including HTTP URL and publishing point, for example:

http://<ip_address>/VBP/MYWMVideos/myVideo.wmv

VBrick WM IP Receiver Admin Guide 7

+ 32 hidden pages

VBrick Systems VBrick Systems Switch User Manual v4.1

Specifications and Main Features

Frequently Asked Questions

User Manual
