CORDLESS
SlimVac
CORDLESS SLIM VAC WITH
DETACHABLE HANDHELD
LET’S GET STARTED.
VX50
VX51
VX52
VX53
vax.com.au
vax.co.nz
Let’s talk safety
Basic
safety
precautions
Don’ts
This vacuum cleaner is intended for household use only
and NOT for commercial or industrial use.
READ ALL THE INSTRUCTIONS BEFORE USING THIS APPLIANCE
• It is a battery-operated appliance, the battery being charged whilst inside the appliance.
• Only use the vacuum cleaner indoors and keep the area you’re cleaning well lit.
• Keep ngers, hair and loose clothing from moving parts and openings whilst using
the vacuum cleaner.
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities or lack of experience and knowledge
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety. Children should not play with
the vacuum cleaner. Cleaning and user maintenance should not be made by children
• Do not pull or carry by charger cord, use cord as a handle, close a door on cord, or
pull cord around sharp edges or corners. Do not place product on cord. Do not run
appliance on cord.
• Don’t handle the charger plug or use the vacuum cleaner with wet hands.
• Don’t use this vacuum cleaner if it has been dropped, damaged, immersed in water or
left outdoors.
• Don’t leave the vacuum cleaner in one spot for an extended period of time when the
brushbar is activated. This vacuum cleaner is tted with a rotating brushbar which if
left in one place may cause damage to the oor surface.
• Don’t attempt to remove blockages with sharp objects as this may cause damage to
the vacuum cleaner.
• Only Vax recommended tools and accessories should be used with this vacuum cleaner
• This vacuum cleaner does not stay upright without constant support, in between uses lie at on the
oor in a suitable location so it does not become a trip hazard or can be stepped on.
• Keep the charger and batteries in a dry place, and use them indoors only.
• Do not use charger with damaged cord or plug. If appliance or charger is not working as it should,
has been dropped, damaged, left outdoors or dropped into water, take it to a Vax authorised repair
agent prior to continuing use. Please contact our Customer Care Line on: AU: 1300 361 505 / NZ:
0800 800 900 (Mon-Fri 8.30am to 5.00pm) or visit www.vax.com.au / vax.co.nz for your nearest
Vax authorised repair agent.
Please keep instructions for further use.
• Don’t try to short the terminals of the battery and the charger.
• Don’t use the vacuum cleaner with incorrect voltage as this may result in damage or injury to the user.
The correct voltage is listed on the rating label.
• Don’t vacuum up hot coals, cigarette butts, ash, matches or smoking hot burning items or use in an
area where there may be harmful uids (chlorine, bleach, and ammonia drain cleaner).
• Do not vacuum hard or sharp objects such as glass, nails, screws or coins etc.
• Don’t not vacuum plaster dust, concrete dust or any other building or vitreous material.
• Do not vacuum our, baking soda or any other powder-based carpet refresher or deodoriser.
Do’s
• Always make sure the lter and dirt container are tted correctly before using
your vacuum cleaner.
• Always turn o and unplug from charger and remove the battery before carrying
out any maintenance.
• Turn o all controls on the vacuum cleaner before disconnecting or connecting the battery.
• Take extra care when cleaning on the stairs.
• Always protect the charger cord from heated surfaces or near open ames.
• Keep all openings clear and free from debris as this may aect the airow/suction.
• Store your vacuum cleaner in a cool, dry area. If lters have been cleaned as per
user guide instructions ensure they are thoroughly dry before storing away.
• Always use the charger supplied with the vacuum cleaner.
• Use only SAA approved 10amp extension cords, non-approved extension cords
may overheat. Care should be taken to arrange the extension cord as it can be a
trip hazard.
• Always carry the vacuum cleaner by the handle.
• Store your vacuum cleaner in a cool, dry area. Store the battery pack in a “charged” condition.
Minimum 30-50% charged for best battery life.
CAUTION: The battery used in this device may present a risk of re or chemical burn if mistreated.
Do not disassemble, heat or incinerate.
Replace battery with Vax battery only. Use of another battery may present a risk of re or explosion.
Dispose of used battery promptly. Keep away from children.
Do not disassemble and do not dispose of in re. Do not attempt to disassemble the battery or remove
any component projecting from the battery terminals.
The battery and charger have no user serviceable parts. Fire or injury may result.
Prior to disposal, protect exposed terminals with heavy insulating tape to prevent shorting.
WARNING: For best performance terminals on battery, battery charger and vacuum cleaner must be
clean and free from dust and dirt.
Do not attempt to recharge non-rechargeable batteries.
Thank you for buying this Cordless Slim Vac.
Contents
Taking care of your carpets and hard oors
The Cordless Slim Vac series is designed to make vacuuming carpets and hard oors
regularly, as eective and ecient as possible and this user guide will help you get the
most out of your machine.
Maintaining your carpets and hard oors will ensure they keep their appearance for longer
and Vax will help you take good care of them.
Taking care of your Cordless Slim Vac
Also inside this guide are instructions on maintaining your new machine, so that it’s ready
when you are to tackle your carpets and hard oors.
Taking care of you
We’re here if you need us. For trouble shooting,
simply call or visit:
Australia: 1300 361 505 vax.com.au
New Zealand: 0800 800 900 vax.co.nz
Let’s talk safety
Getting to know your machine
Getting started
Using your machine
Taking care of your machine
Let’s talk technical
Accessories
Notes
What to do if it goes wrong
Getting in touch
Cordless Slim Vac VX50
Included with
your machine
3-in-1 Tool
Cordless Slim Vac Pet
VX51
Pet Tool/Stair Tool
Cordless Slim Vac Pet+
VX52
Cordless Slim Vac
Pets & Total Home VX52 / VX53
Up Top Tool
Accessory Bag
Monday-Friday 8.30am to 5.00pm
Calls are charged at the standard local rate. Please make a note of the serial number and model number
of the product before calling.
Cordless Slim Vac
Total Home VX53
Hard Floor Tool
All models come with a charger, battery, wall
mount, 2 wall plugs, 2 screws and user manual.
Contents vary dependant on model purchased.
Getting to know your machine Getting started
Brushbar On/O button
On/O and charging light
Handheld release button
Reach wand
Power head/accessory
release clip
Filter cover release buttons
Handle
Battery charger inlet
Battery release
button
Dirt container release
button (hidden)
Dirt release button
On/O trigger
Continuous power
latch (hidden)
Battery
Dirt container
PLEASE READ ‘LET’S TALK SAFETY’ AT THE BEGINNING BEFORE USE
Before you begin
CAUTION: Always switch o the vacuum cleaner before connecting or disconnecting the handheld/attachments
or removing and emptying the dirt container.
IMPORTANT: The vacuum cleaner is equipped with overheat protection. If for any reason the vacuum cleaner does
overheat the thermostat will automatically turn the vacuum cleaner o. If this happens, remove the battery. Remove
and empty the dirt container also check the vacuum cleaner for blockages. Allow the vacuum cleaner to cool for
approximately 1 hour (if you have washed the lter please wait 24 hours for the lter to fully dry before putting back
into the machine).
For best cleaning results, lters require cleaning at least every 3 months and should be replaced every 12 months
depending upon use. If the vacuum cleaner is blocked, remove the battery before removing the blockage.
Assembling your Cordless Slim Vac
CAUTION: This vacuum cleaner is not free standing. In between uses or when carrying out any maintenance
always lie at on the oor in a suitable location so it does not become a trip hazard or can be stepped on.
Powered Head
Brushbar
Technical Specication Battery Specication
Name Cordless Slim Vac
Battery voltage 21.6V
Run time 22 minutes
Charge time 5.5 hours
Weight 2 kg
Dust bin capacity 0.4L
*
Type Lithium-ion rechargeable battery pack
Battery model no. VCBS216V
Voltage 21.6V
Capacity 2Ah / 43.2 wh
Use with Vax model YLS0121A - A260040
Charger ONLY
Charger Specication
Charger model no. YLS0121A - A260040
Input 100-240V ~ 50/60Hz 0.5A Max
Output 26V DC 400mA
Use with Vax Li-ion Battery VCSB216V ONLY
Accessories & Consumables
Filter Pack VX50F
Subject to technical change without notice. Turn o brushbar on hardoors. Images are illustrative only.
Line up the connector on
the reach wand with the
Powered Head. Push the
reach wand down onto
the Powered Head until it
clicks into place.
Push the handheld down
onto the reach wand until
it clicks into place.
The upright slim vacuum
cleaner is not free standing
and in between uses must
always be placed in the wall
bracket or laid at on the
oor, in a suitable location
so it does not become a trip
hazard or can be stepped on.
Getting started

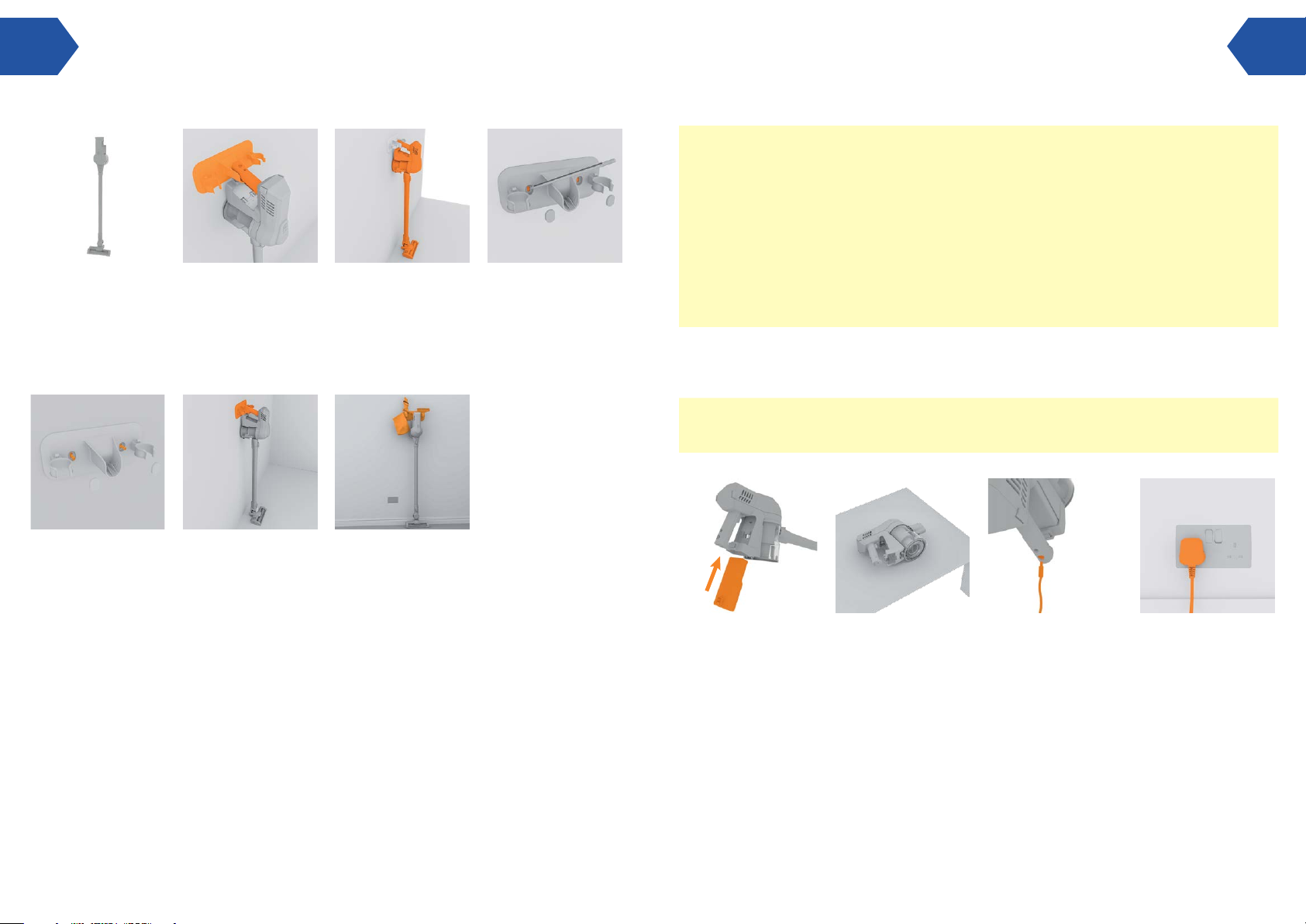

Fixing the wall bracket PLEASE READ ‘LET’S TALK SAFETY’ BEFORE USE
CAUTION: The battery used in this device may present a risk of re or chemical burn if mistreated. Do not
disassemble or heat above manufacturer’s maximum temperature limit (60° C/140°F) or incinerate. Replace battery
with Vax battery only. Use of another battery may present a risk of re or explosion. Dispose of used battery
promptly. Keep away from children. Do not disassemble and do not dispose of in a re. Do not attempt to disassemble
the battery or remove any component projecting from the battery terminals. The battery and charger have no user
serviceable parts. Fire or injury may result. Prior to disposal, protect exposed terminals with heavy insulating tape to
prevent shorting. The battery is to be disposed of safely at your local battery recycling centre.
For best performance, the terminals on both the battery and the appliance must be clean and free from dust and dirt.
Fully assemble the
vacuum but do not
attach the battery.
Attach the wall bracket
to the handle.
With the wall bracket
attached, stand the
vacuum close to the wall,
in the upright position
with the Powered Head
at on the oor.
Holding the wall bracket
rmly in place, carefully
remove the vacuum. Using
a pencil make a small
mark for each screw.
Do not attempt to recharge non-rechargeable batteries. The battery must be removed from the appliance before it
is scrapped. The appliance must be disconnected from the charger before use and when removing or installing the
battery into the machine. In case of battery leakages avoid any contact with the skin.
Installing and charging the battery
NOTE: The initial charge is 8 hours, charging will be required before rst use. The vacuum can be charged with
the handheld either attached to, or detached from, the reach wand. Failure to fully charge the battery before rst use
(initial charge 8 hours) may result in poor battery performance.
Getting started
Use both screws and wall
plugs to secure the wall
bracket to the wall. Place
covers over the screws.
Firmly press the vacuum
handle into the wall
bracket to secure.
The tools and the accessory
bag can also be stored on
the wall bracket.
Slide the battery into
the back of the handheld.
The battery will click
into position when
correctly tted.
To charge the machine,
detach the reach wand
and lie the handheld on
its side on a at stable
surface. You can also
charge the machine
whilst attached to the
wall mount. Make sure the
oorhead and wand are
attached together.
Insert the charger lead
into the charger inlet
located on the back of
the handle.
Plug the charger plug into
the mains.
Getting started
Using your machine
Charging the battery
WARNING: Do not use the vacuum cleaner when the machine is plugged in and charging.
WARNING: For best performance the terminals on the battery and vacuum cleaner must be clean and free from
dust and dirt. The life expectancy of the battery will vary depending on the usage of the vacuum cleaner.
CAUTION: When using the vacuum continuously the battery pack will become hot. A hot battery pack should be left
to cool before attempting to recharge. When a hot battery pack is placed into the vacuum, the light on the vacuum
may indicate the battery pack is not ready to charge. When the battery pack cools, the charger will automatically
begin charging.
The On/O and charging light will illuminate continuously
whilst the charger is connected.
Red light – The battery is charging.
Green light – The battery is charged (after 5.5 hours).
If charging for the rst time the initial charge
time is 8 hours.
CAUTION: This vacuum cleaner has a constantly rotating brushbar when the brushbar ‘ON’ is selected.
Never leave the vacuum cleaner in one spot for an extended period of time as this may damage the oor surface.
The brushbar should be ON for carpets and OFF for hard oors.
Using as a slim vacuum cleaner
Squeeze the trigger
located underneath the
handle, the machine will
switch ‘On’. The On/O
and charging light will
illuminate green indicating
the power is on and the
machine is charged.
Release the trigger to
switch the machine ‘O’.
For continuous power
squeeze the trigger and
push the ‘Continuous
power latch’ towards the
trigger. This will lock it
into the ‘On’ position and
will continue to power the
machine without having
to hold in the trigger.
Push the latch away from
the trigger to unlock and
release the trigger.
Press the brushbar’s
On/O button to activate.
Repeat this process to
de-activate the brushbar.
The brushbar should be
switched ON for carpets
and OFF for hard oors.
When the vacuum
cleaner is in use the On/
O and charging light
will illuminate and ash
red when the battery
is running low. When
the red light ashes the
machine will turn o in 20
seconds. The user should
recharge the machine.
Using your machine
Using your machine
Using as a handheld vacuum cleaner
Always take extra care when using the vacuum cleaner on the stairs.
Press the handheld
release clip. Pull to
separate the handheld
from the reach wand.
The reach wand when
attached to the Powered
Head/accessory is not
free standing, place safely
and securely to one side.
Choose an accessory
(pictures illustrated
dependent upon model).
Push the chosen
accessory into the
handheld until it
clicks into place.
Using as a reach slim vacuum cleaner
The reach wand can be used for hard to reach places.
Press the Power Head/
accessory release clip
and pull to remove the
Powered Head from the
reach wand.
Choose an accessory
(pictures illustrated
dependent upon model).
Push the chosen
accessory into the
reach wand until it
clicks into place.
Squeeze the trigger
located underneath the
handle, the machine will
switch ‘On’. The On/O
and charging light will
illuminate green indicating
the power is on and the
machine is charged.
Release the trigger to
switch the machine ‘O’.
Squeeze the trigger
located underneath the
handle, the machine will
switch ‘On’. The On/O
and charging light will
illuminate green indicating
the power is on and the
machine is charged.
Release the trigger to
switch the machine ‘O’.
For continuous power
squeeze the trigger and
push the ‘Continuous
power latch’ towards the
trigger. This will lock it
into the ‘On’ position and
will continue to power the
machine without having
to hold in the trigger.
Push the latch away from
the trigger to unlock and
release the trigger.
All of the accessories
including the Powered
Head can be attached
directly onto the handheld.
For continuous power
squeeze the trigger and
push the ‘Continuous
power latch’ towards the
trigger. This will lock it
into the ‘On’ position and
will continue to power the
machine without having
to hold in the trigger.
Push the latch away from
the trigger to unlock and
release the trigger.
The reach wand can be used for hard to reach places
and at dierent heights for above oor cleaning.
The upright slim vacuum
cleaner is not free standing
and in between uses must
always be placed in the
wall bracket or laid at
on the oor, in a suitable
location so it does not
become a trip hazard or
can be stepped on.
Taking care of your machine Taking care of your machine
Removing the battery Cleaning the post-motor lter
CAUTION: Always remove the battery from the vacuum cleaner before performing maintenance
or troubleshooting checks.
Lie the handheld on
its side on a at stable
surface. Press the
battery release button.
Slide the battery out from
the back of the handheld.
Emptying the dirt container
WARNING: Don’t over ll the dirt container to avoid blocking the air ow through the vacuum cleaner. Do not exceed
the MAX line indicated on the dust container.
CAUTION: Always remove the battery from the vacuum cleaner before performing maintenance or troubleshooting
checks. For continuous best performance the lter requires cleaning at least every 3 months and should be
replaced every 12 months depending upon use. Do not use your vacuum cleaner without the lters in place.
24hr
Press the lter cover
release buttons located
on both sides of the lter
cover and pull to remove
the lter from the machine.
Pull to separate the lter from the lter cover/holder.
Tap the lter and lter cover/holder over a bin to
remove any dirt/debris. Wash the lter under running
water if required (40 degrees max).
Allow 24hrs or until fully
dry before replacing.
Cleaning the lter and separator
CAUTION: Always empty the dirt container before cleaning the separator and lter and remove the battery, reach
wand/accessories from the handheld.
Press the handheld
release clip. Pull to
separate the handheld
from the reach wand.
Ensure the battery has been removed and hold the
handheld over a bin, press the dirt release button to
allow dirt/debris to fall out.
Turn the handheld
over and press the dirt
container release button.
Pull the dirt container
forward and up away from
the handheld to remove.
Twist the mesh lter
anti-clockwise to
unlock, lift to remove
from the separator.
Twist the separator
anti-clockwise to
unlock, lift to remove
from the handheld.
Taking care of your machine Let’s talk technical

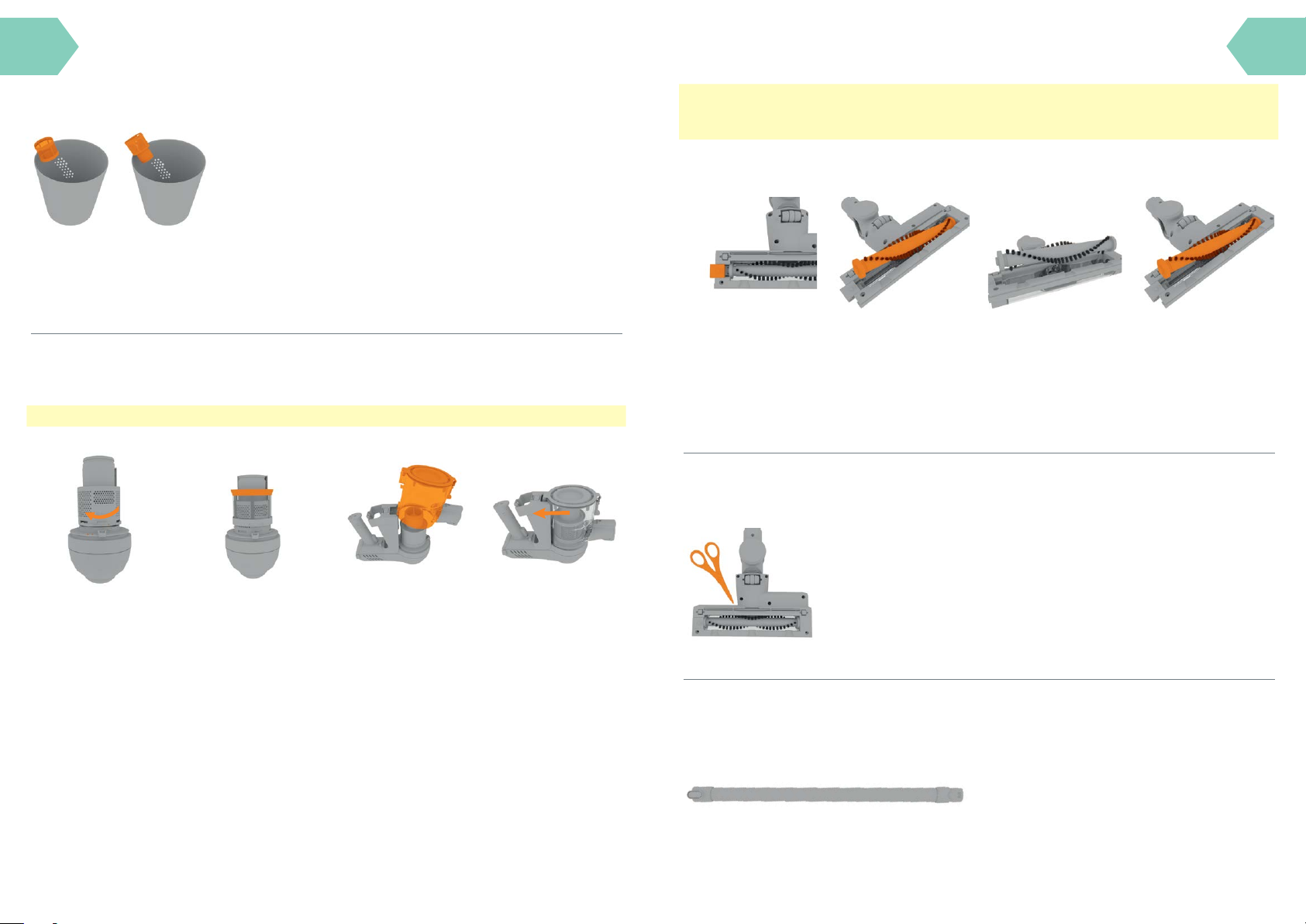

Cleaning the lter and separator
Tap the mesh lter and separator
over a bin to remove any dirt/
debris. Using a dry cloth wipe
away any remaining dirt/debris.
Retting the separator, lter and dirt container
CAUTION: Incorrect tting of the separator and lter will reduce suction.
Line up the arrows
around the side of the
separator with the arrows
on the handheld. Twist
the separator clockwise
locking it into place.
Ret the mesh lter
with the rim of the
lter at the top. Twist
the lter clockwise
and lock into place.
Tilt the dirt container
slightly forward and line
up onto the handheld.
When the dirt
container is seated
on the handheld push
the dirt container
backwards to lock
into place.
IMPORTANT: If the brushbar has been obstructed, the Motor Protection Sensor may have been activated and the
brushbar will seize. Remove the Powered Head from the machine and clear any obstruction. Ret the Powered
Head, switch on the vacuum cleaner by pressing the trigger and press the brushbar on/o button.
Removing and replacing the brushbar
Slide to release the
brushbar. The cover
can not be removed.
Lift to remove the left side
of the brushbar rst.
Clear any threads or hair
from both ends of the
brushbar and any dirt/
debris inside the housing
of the Powered Head.
When re-tting the
brushbar t the right side
into the housing rst.
Then line up and slot into
place the left side.
Removing blockages from the Powered Head
The brushbar should be removed from the Powered
Head before attempting to remove any blockages.
Using scissors, carefully remove any threads or hair
from around the brushbar and clear any dirt
or debris from Powered Head.
Removing blockages from reach wand
To test for a blockage in the reach wand, drop a small
ball of paper into the wand. The paper will drop through
if the wand is clear. Use a broom handle or similar blunt
object to remove any blockage.
Let’s talk technical
Accessories
Cleaning terminals
Using a dry cloth or soft
dusting brush remove any
dust/debris from terminals
on battery and inside the
handheld.
Also available Slim Vac Tools
Visit www.vax.com.au
Refer to ‘using your machine’ section for tool assembly instructions.
3-in-1 Tool
The multi functional 3 in 1 tool is ideal for use all around
the home without having to switch between tools. It’s
perfect for those tricky corners and crevices, great for
upholsteries such as; curtains and sofas, along with
dusting furniture and hard surfaces.
Pet Tool/Stair Tool
An ideal tool to help tackle those pet hairs! Simply
clip this tool onto the handheld and begin cleaning.
The rubber teeth are designed to agitate ne hair on
both carpets and hardoor. This tool is also great for
stair cleaning!
Up Top Tool
This handy tool allows you to tackle those high, hard to
reach areas. It’s perfect for reaching the top of curtains,
cupboards and wardrobes.
Hardoor Tool
Use this tool to safely clean delicate hard oor surfaces
without scung them.
Notes Notes
What to do if it goes wrong
Is there an accessory
missing?
Why does my vacuum
cleaner have no power?
Getting in touch
SolutionProblem
• Check the contents panel on the box to make sure the part is included
with your vacuum cleaner.
• Check the battery is inserted correctly into the vacuum cleaner.
• The battery may not be charged. Go to ‘Getting Started’.
• The terminals on the battery and vacuum cleaner may be dirty. Go to ‘Lets talk technical’.
• Battery might be too hot, remove and allow to cool for 1 hour.
• The vacuum cleaner has overheat protection which will cut the machine out. If this
has happened, switch o the vacuum cleaner. Remove and empty the dirt container
and check for blockages. Clean the lters and allow the vacuum cleaner to cool for
approximately 1 hour (if you have washed the lters you will need to wait 24 hours for
the lters to fully dry before putting them back into the vacuum cleaner).
Why isn’t the light on
the vacuum cleaner
lit when the battery
is charging?
Why won’t the vacuum
cleaner pick up?
Why won’t the
brushbar turn?
Why is dust escaping
from the vacuum?
• Check the battery charger is plugged in. Go to ‘Getting started’.
• Check the battery is inserted correctly into the handheld. Go to ‘Getting started’.
• The terminals on the battery and vacuum cleaner may be dirty. Go to ‘Lets talk technical’.
• The dirt container may not be correctly tted, remove the dirt container from the
vacuum cleaner and check it is assembled correctly, ret ensuring it’s locked into place.
• The separator is not correctly tted. Go to ‘Taking care of your machine’.
• The lters may be clogged, clean the lters. Go to ‘Taking care of your machine’.
• The dirt container may be blocked, empty the dirt container. Go to ‘Taking care of
your machine’.
• The brush on the Powered Head has not been activated. Go to ‘using your machine’.
• There maybe a blockage in the reach wand. Disconnect from the vacuum cleaner
and carefully remove any blockages. Go to ‘Let’s talk technical’.
• The brushbar has not been activated. Go to ‘using your machine’.
• The Powered Head/brushbar may be obstructed. Go to ‘Let’s talk technical’.
• The lters may be clogged, clean the lters. Go to ‘Taking care of your machine’.
• The separator may be clogged, clean the separator. Go to ‘Taking care of your machine’.
• Exhaust lter may be miss-assembled. Go to ‘Taking care of your machine’.
* Calls are charged at the standard local rate. Please make a note of the serial number and model number of the vacuum cleaner
before calling.
Distributed by Techtronic Industries Australia Pty. Ltd.
31 Gilby Road, Mt Waverley, VIC 3149 Australia.
Careline AU: 1300 361 505 www.vax.com.au
Careline NZ: 0800 800 900 www.vax.co.nz
Loading...
