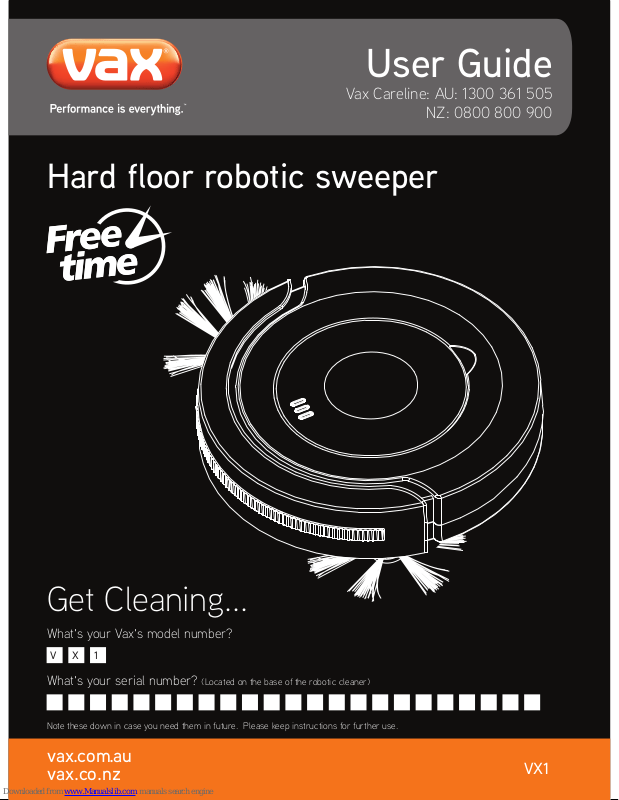

User Guide

Vax Careline: AU: 1300 361 505

NZ: 0800 800 900

Hard floor robotic sweeper

Get Cleaning...

What’s your Vax’s model number?

V X 1

What’s your serial number?

Note these down in case you need them in future. Please keep instructions for further use.

vax.com.au vax.co.nz

(Located on the base of the robotic cleaner)

VX1

Vax Careline: AU: 1300 361 505

NZ: 0800 800 900

vax.com.au vax.co.nz

Machine Overview

Components & attachments

Top Bottom

FEATURES

1. Side brushes

2. Bumper

3. “Battery low” LED indicator

4. “Dirt cup full” LED indicator & “Clog” LED indicator

5. “Charging” LED indicator

6. Cover

7. Finger guide

vax.com.au

vax.co.nz 2

8. Wheels

9. Intake

10. Cli sensors

11. Dusting sheet holder

12. Dusting sheet holder grips

13. Lower housing

14. Battery cover

15. Power switch

16. DC jack receptical

COMPONENTS & ATTACHMENTS

17. Robotic sweeper

18. Rechargable battery (NiMH)

19. Dusting sheet

20. Power supply / AC adapter

21. Dusting sheet holder

22. Side brushes

General Safety Information

vax.com.au vax.co.nz

FOR HOUSEHOLD USE ONLY.

When using the robotic sweeper, basic safety precautions should always be observed, including the following:

Concerning groups of persons

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

2. This appliance is not to be used as a toy; pay close attention when used by or near children.

3. Children should be supervised to ensure that they don’t play with the appliance.

Concerning the power supply

The appliance is charged with electrical power. There is always danger of electrical shock. Therefore pay particular attention to the following:

4. Never touch AC adapter or docking station with wet hands.

5. Never immerse appliance, docking station or AC adapter in water or other uids. Keep these components away from rain and moisture.

6. If you want to unplug the AC adapter from the socket, always pull directly on the plug. Never pull or carry the AC adapter via its power cord, use cord as a handle, close a door on cord or pull cord around sharp edges or corners as this can damage the cord and can increase the risk of re or electric shock. Do not abuse the power cord.

7. Ensure that the AC adapter’s power cord is not bent, pinched, rolled over and that it does not come into contact with heat sources.

8. Only charge the appliance if the voltage indicated on the AC adapter matches the voltage of your socket.

9. Only use the AC adapter and docking station supplied with the appliance to charge the robotic cleaner.

10. Always check the AC adapter’s power cord for possible damage before using it. To avoid damage do not wrap the cord around the charger for storage. Do not use an AC adapter with a damaged cord or plug. A damaged or entangled charger cord can increase the risk of re and electric shock.

11. Before cleaning or performing maintenance on the appliance, ensure that the AC adapter has been unplugged from the socket.

Concerning the batteries provided

Danger of injury and explosion due to improper handling of the batteries provided.

12. Do not replace the battery pack with other batteries or rechargeable batteries.

13. Only use the original battery pack contained in the robotic sweeper and only replace with a genuine Vax battery pack suitable for this model only.

Vax Careline: AU: 1300 361 505

NZ: 0800 800 900

General Safety Information

14. Before removing the battery pack, ensure that the AC adapter has been unplugged from the socket and the appliance is switched “o” (0).

15. Never short-circuit batteries, i.e. never touch both poles simultaneously, especially with metal objects.

16. Never take batteries apart, never deform them and never expose them to high temperatures. Improper handling can lead to liquid leaking from batteries. Avoid any contact with such liquid.

17. If any liquid gets on the skin wash immediately with soap and water. If the liquid gets into the eyes, ush them immediately with clean water for a minimum of 10 minutes and seek medical attention. Liquid ejected from the battery may cause irritation or burns. In an emergency situation contact professional help immediately!

18. Only use the AC adapter supplied with the appliance to charge the robotic sweeper.

Concerning appropriate storage, handling and use

19. Use only as described in this User Guide.

20. Do not store, use or charge the robotic sweeper outdoors, on wet surfaces or on raised surfaces such as tables and furniture or next to heat sources.

21. Do not use with any opening blocked; keep openings free of dust, lint, hair and anything that may interfere with the brushes.

22. Do not put objects on top of the appliance.

23. Do not modify or repair the appliance yourself. Please contact Vax for details of an authorised repair agent.

24. Do not use robotic sweeper to pick up: a. Water and any other liquid b. Toner (from laser printers) c. Anything that is ammable, burning or smoking such as cigarettes, matches or hot ashes d. Harmful or toxic materials such as chlorine, bleach, ammonia, drain cleaner etc. e. Hard or sharp objects such as glass, nails, screws, coins etc. f. Plaster dust, concrete dust or any other building or vitreous materials g. Flour, baking soda or any other powder-based carpet deodoriser

25. If appliance is not working as it should, has been dropped, damaged, left outdoors or dropped in water call Vax Careline for assistance. AU 1300 361 505 / NZ 0800 800 900

DAMAGE TO THE ROBOTIC SWEEPER AND PARTS CAUSED AS A DIRECT RESULT OF NOT ADHERING TO THE GENERAL SAFETY INFORMATION AND THE INSTRUCTIONS IN THIS USER GUIDE INVALIDATES THE WARRANTY.

This machine is intended for household use only, and NOT for commercial or industrial use.

PLEASE KEEP THESE INSTRUCTIONS FOR FURTHER USE.

vax.com.au

vax.co.nz 4

vax.com.au vax.co.nz

Operation

Random Edge FollowingCircular

How the robotic sweeper operates

This robotic sweeper is equipped with functions suitable for cleaning HARD FLOOR SURFACES in the home only, such as wood, tiles, and linoleum. This robotic sweeper has a three part cleaning routine that continuously repeats. The routine consists of Random, Circular, and Edge Following.

NOTE: This process will repeat until it is stopped or batteries run out of power.

NOTE: This product is intended for use in conned/enclosed spaces.

Continual 3 step cleaning process

NOTE: The cleaning program consists of 3 steps that occur in order and repeat. They are not selectable, they have been chosen for optimal eectiveness.

• The robot will start in random mode for 3 minutes then it will go to circular mode until it hits an edge, which

can be a wall, side of a dresser or edge of a stair.

• Then it will start its edge cleaning mode for 3 minutes and repeat starting with random mode again.

TIP: For more ecient cleaning and better results, use the robotic sweeper in small enclosed areas. If you have a larger area to clean try to segment it into smaller areas, moving the robotic sweeper from one area to another. Closing all entry doors is an easy way to conne a cleaning space. For example: if you have an L-shaped room, divide the room up into 2 rectangles. Start the robotic sweeper in 1 rectangle and when nished move it to the 2nd rectangle.

NOTE: The robotic sweeper is intended for bare oor cleaning only. For best results clear the area to be cleaned of any cords, rugs or mats.

TIP: Throw rugs and mats rolled up act as great barriers to enclose a desired cleaning area. Best performance and results come when the robotic sweeper is set up to clean in conned spaces where it cannot wander o.

Vax Careline: AU: 1300 361 505

NZ: 0800 800 900

Operation

Battery installation and removal

WARNING: To reduce the risk of injury from moving parts – turn power o (0=o), unplug charger and

then remove battery before servicing.

WARNING: Use only the battery that is supplied with the robotic sweeper. Risk of re or personal injury can occur if any other battery is used.

BOTTOM

1. Make sure the power switch (A) is turned OFF (0=OFF).

2. Open the battery cover (B).

3 Insert the battery into the battery compartment (C). Be sure to orient the battery contacts with those of the unit.

Slide cover to close.

4. To remove the battery, follow the above in reverse.

Battery life and replacement

The robotic sweeper is powered by a Nickel Metal Hydride (NiMH) rechargeable battery. The robotic sweeper’s battery can last for hundreds of cleaning cycles before a replacement is necessary.

For battery replacement, please call Customer Service: AUS: 1300 361 505 / NZ: 0800 800 900

vax.com.au

vax.co.nz 6

vax.com.au vax.co.nz

Operation

C D

Recharging the battery

WARNING: To reduce the risk of injury from moving parts – turn power o (0=o), unplug charger and

then remove battery before servicing.

WARNING: Use only the charger supplied with the robotic sweeper. Do not use any other chargers. Risk of re and personal injury can occur if any other charger is used.

NOTE: The robotic sweeper uses a charging timer so everytime you plug, and unplug it will start a new 4 hour charging cycle. So if you charge it the light is solid green, then unplug it and plug it back in, the green led light will ash and the robotic sweeper will charge for 4 hours again.

1. To ensure the best performance of the rechargeable battery and lengthen its life span, the battery is best used

after being fully charged for 4 hours every time. The charging function will be cut o automatically after continuously charging for 4 hours.

2. Before charging , make sure the battery is correctly installed and the power switch has been turned to “OFF”

position (0=OFF).

3. To charge, plug the power supply (A) into a wall outlet and plug the end of the power supply to the charging port

(B) on the robotic sweeper.

4. When charging, the “CHARGE” LED indication lamp (C) on the control panel will ash green, and it will stay

green when the battery is fully charged.

5. When the battery is low, the “BATTERY LOW” LED indication lamp (D) on the control panel will light up

and stay RED.

NOTE: If you forget to turn o the power before charging, after the cleaner is fully charged, you have to switch o the robotic sweeper and turn it on again to start cleaning.

TIP: To help ensure the robotic sweeper is ready to clean at its best, always clean the dirt cup and lter after each use. Keep robotic sweeper plugged in and charging when not in use.

TIP: If robot has been in storage please charge prior to using to have it clean at its optimal performance.

Vax Careline: AU: 1300 361 505

NZ: 0800 800 900

Operation

BOTTOM

1 2 30

Adjustment of cli sensors

Cli sensors prevent the robotic sweeper from falling o stairs and ledges. There are 3 sensors located on the underside of the robotic sweeper.

WARNING: to reduce the risk of injury from moving parts – turn power o (0=o ) and unplug charger before adjusting.

If the distance between the stair and the ground is short, please adjust both windows of “cli ” sensors (A) to “2” or “1” or “0” position to prevent the cleaner from falling down stairs. Please test it before working.

ATTENTION: If the colour of the  oor is dark (e.g. Black), and robot goes backwards continuously, close the window position to the “1” to increase the cli sensor’s sensitivity (C) position.

Installing side brushes for use in sweeping mode

WARNING: to reduce the risk of injury from moving parts – turn power o (0=o ) and unplug charger

before installation and removal/replacement.

To install

Push the brush directly onto the holder until it snaps into position.

To remove or replace

Hold the brush and pull upward to remove the brush as shown.

vax.com.au

vax.co.nz 8

vax.com.au vax.co.nz

Operation

Stoppers

Recess for the stopper

Dusting sheet

Press

Fold back

Press

Fold back

Press

Lift up

Push to the left

Installing the dusting sheet for use in dusting mode

WARNING: to reduce the risk of injury from moving parts – turn power o (0=o) and unplug charger

before installation and removal/replacement.

Place the dusting sheet on a at surface then centre the dusting sheet holder on the sheet (side with 4 stoppers facing upwards). Remove the 4 stoppers from their recesses.

Press the 2 bolts of the dusting paper holder into the 2 holes on the underside of the robotic sweeper. Ensure the dusting sheet is facing upwards (when the robotic sweeper is in the upside down position).

Fold back the hem of the dusting sheet on the two longest sides to the dusting holder. Place the 4 stoppers on top of the dusting sheet, then press them rmly into the recesses

- xing the dusting sheet to the dusting sheet holder.

To remove and replace the dusting sheet, lift up dusting sheet holder from the underside of the robotic sweeper.

Place this underside of the dusting sheet holder with dusting sheet on the robotic sweeper.

Vax Careline: AU: 1300 361 505

NZ: 0800 800 900

Operation

Start operation

The Robotic Sweeper has 2 modes of operation: sweeping mode and dusting mode.

NOTE: Do not use the robotic sweeper in sweeping mode and dusting mode at the same time.

If used in sweeping mode, remove the dusting sheet holder from the underside of the robotic sweeper. If used in dusting mode, remove the side brushes from the unit.

1. Be sure the dirt cup lter is installed properly.

2. Place the robotic sweeper in an open area in the room, and turn the Power ON (I=ON).

3. When the robotic sweeper runs out of power, the “BATTERY LOW” LED lamp on the unit will turn RED

and the robotic sweeper will automatically stop.

4. When the robotic sweeper is not in use or prior to recharging, make sure the power switch is in the “OFF”

position (0=OFF).

NOTE: If you want the robotic sweeper to stay within a particular room be sure to close the door otherwise the robot may roam from room to room.

NOTE: The robotic sweeper will stop where it is at when the battery runs out of power.

NOTE: For locating purposes, the robotic sweeper will beep twice every 60 seconds until the unit is turned o

and is plugged in to charge or until battery is completely depleted.

NOTE: Lights will ash green/red for a 8 seconds prior till the robot starts cleaning. Lights will continuously ash green/red when the robotic sweeper is in use. When the batteries are low the red LED will illuminate.

vax.com.au

vax.co.nz 10

vax.com.au vax.co.nz

Maintenance

(Keep your Vax as good as new)

Cleaning and the dirt cup and filter

WARNING: To reduce the risk of injury from moving parts – turn power o (0=o) and unplug charger

before cleaning.

Removing dirt cup

Lift the cover using the nger guide, unsnap the upper housing cover.

Remove the dirt cup assembly from the robotic sweeper.

Removing dirt cup

Open the upper cover of the dirt cup. Lift o the dirt cup cover (A).

FOR BEST PERFORMANCE: Each time the dirt cup is emptied, the lter should be cleaned as regular maintenance. Tap the lter rmly against the inside of a rubbish bin until the dirt stops falling from the lter. (Filter will be discoloured after use, this will not aect the lter’s performance.) Do not brush the lter. The cleaning instructions may vary depending on the dirt conditions. In some cases, more or less cleaning of the lter may be required.

Lift up and remove the lter by gripping the two tabs.

Empty the dirt cup into the rubbish bin.

For lter replacement, please call Customer Services on: AUS 1300 361 505 or NZ 0800 800 900.

Vax Careline: AU: 1300 361 505

NZ: 0800 800 900

Maintenance

(Keep your Vax as good as new)

Rinse dirt cup

Hold dirt cup and  lter under running water to rinse. DO NOT use soap/detergent. Tap excess water out of dirt cup and  lter. Allow dirt cup and  lter to COMPLETELY DRY for at least 24 hours before replacing it back to the robotic sweeper.

Cleaning nozzle

Reinstalling dirt cup

Once dry, reinstall the  lter and the dirt cup lid to the dirt cup. Then reinstall the dirt cup assembly into the unit. Return upper housing cover to robotic sweeper.

ATTENTION: Before starting the robotic sweeper, please ensure the dirt cup has been correctly installed.

Cleaning side brushes

After repeated use, dirt and dust may accumulate around the nozzle and it may reduce the working e ciency. To ensure the best performance, the nozzle should be cleaned periodically.

vax.com.au

vax.co.nz 12

1. Turn power OFF (O=OFF), turn the robotic sweeper up side down on a  at surface. Hold the brush and pull upward to remove the brush.

2. Reinstall the brushes after cleaning.

3. The side brushes can be rinsed, and if they become

mis-shaped, you can soak them in hot water to make them return to original shape. ALLOW TO COMPLETELY DRY FOR 24 HOURS.

NOTE: After being used for a period of time, the brushes need to be replaced for best performance.

vax.com.au vax.co.nz

FAQ’s

WARNING: To reduce the risk of personal injury, unplug the robotic hard oor sweeper before performing maintenance/troubleshooting checks.

Problem Possible reason Solution

Red LED stays after power on

Does not sweep when it is turned on

Moves backwards after being started

Side brush is bent, does not sweep well

Does not start

Clog indicator light on

Battery low power. Recharge battery.

Lifted from floor. Place back on floor.

On/off switch is in “OFF” (O=OFF) position. Switch to “ON” (I=ON) position.

Dirt cup filter is installed incorrectly. Install dirt cup filter correctly.

Adjust cliff sensors sensitivity to a lower

Floor is dark in colour.

Excessive use.

Battery is not installed correctly. Install battery correctly. See “Battery Installation”

Battery low power. Recharge battery (Turn cleaner “OFF” first)

Battery life has ended due to normal wear and tear

Clog in nozzle. Clean dirt cup and nozzle.

sensitivity setting. See “Adjustment of Cliff Sensors”

Replace brush. Call Customer Service: AUS: 1300 361 505 / NZ: 0800 800 900

Replace battery. Call Customer Service: AUS: 1300 361 505 / NZ: 0800 800 900
