2
3
c
e
a
f
g
i
1
2
3

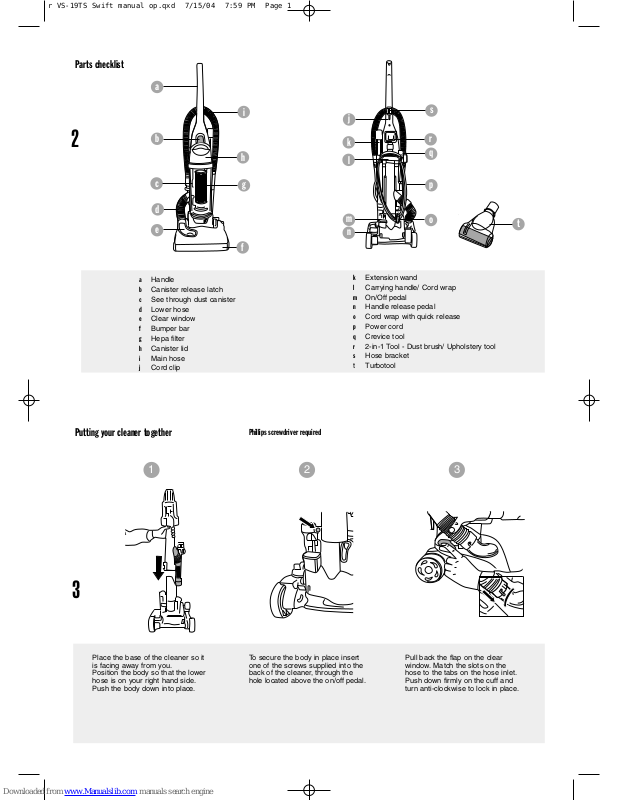

Putting your cleaner together
Place the base of the cleaner so it
is facing away from you.
Position the body so that the lower
hose is on your right hand side.
Push the body down into place.
To secure the body in place insert
one of the screws supplied into the
back of the cleaner, through the
hole located above the on/off pedal.
Pull back the flap on the clear
window. Match the slots on the
hose to the tabs on the hose inlet.
Push down firmly on the cuff and
turn anti-clockwise to lock in place.
Phillips screwdriver required
Parts checklist
a Handle
b Canister release latch
c See through dust canister
d Lower hose
e Clear window
f Bumper bar
g Hepa filter
h Canister lid
i Main hose
j Cord clip
r
p
o
n
j
k Extension wand
l Carrying handle/ Cord wrap
m On/Off pedal
n Handle release pedal
o Cord wrap with quick release
p Power cord
q Crevice tool
r 2-in-1 Tool - Dust brush/ Upholstery tool
s Hose bracket
tTurbotool
b
d
h
k
l
m
s
q
t
r VS-19TS Swift manual op.qxd 7/15/04 7:59 PM Page 1
4
5
4
5 6
Putting your vacuum cleaner together
Align the holes in the tool holder,
with the holes on top of the body.
Use two of the screws supplied to
secure the tool holder in place.
Do not over tighten.
With the hose clip on the handle
facing you place it onto the top of
the body of the cleaner.
7
8 9
Putting your vacuum cleaner together
Push down firmly and line up the
screw hole on the rear of the handle.
Use one of the screws supplied to
secure the handle on the body.
Insert the small end of the main
hose into the tool holder on the
right hand side.
r VS-19TS Swift manual op.qxd 7/15/04 7:59 PM Page 2
6
7
10
11
12
Putting your vacuum cleaner together
Using the handle attach the main
hose into the left hand side of the
cleaner. Press down firmly to
secure in place. The main hose can
then be secured in the top and side
of the tool holder.
Push the canister lid firmly on top of
the dust canister and place it onto
the cleaner. The canister lid will
snap into place in the body of the
cleaner.
Attach the tools to the tool holder.
The 2 in 1 tool fits over a post at
the back of the vacuum cleaner.
The crevice tool fits into a round
slot on the rear right hand side of
the tool holder. The extension wand
hose on the left hand side.
1
2 3
Operating the vacuum cleaner
Plug the cord into an electrical
outlet and turn on by pressing the
on/off pedal, located on the back
left of the cleaner.
To unlock the handle from the
upright position press the handle
release pedal down.
Move the handle to the desired
position (A) for storage and position
(B) for normal operation.
To clean under furniture, press
the release pedal again and use
position (C).
Cleaning carpets or hard flooring
A
B
C
r VS-19TS Swift manual op.qxd 7/15/04 8:00 PM Page 3
8
9
1
2 3
Operating the vacuum cleaner
Make sure the vacuum cleaner has
been switched off and is in an
upright position. Remove the lower
hose by twisting clockwise and
pulling away from the base of the
cleaner.
Remove the hose from the tool
Holder.
Slide the hose into the lower hose
with the tab facing upwards twist
together to secure.
Cleaning upholstery
4
5
6
Operating the vacuum cleaner
For hard to reach area’s when
additional hose length is required,
use the extension wand. It fits over
the end of the hose handle.
Choose the accessory that suits
your need or use the hose alone.
To fit the attachments push them
firmly on to the end of the extension
wand or hose handle. To remove
the tool, twist and pull apart gently.
When moving from one room to
another use the carrying handle at
the rear of the vacuum cleaner.
r VS-19TS Swift manual op.qxd 7/15/04 8:00 PM Page 4
10
11
1
2 3

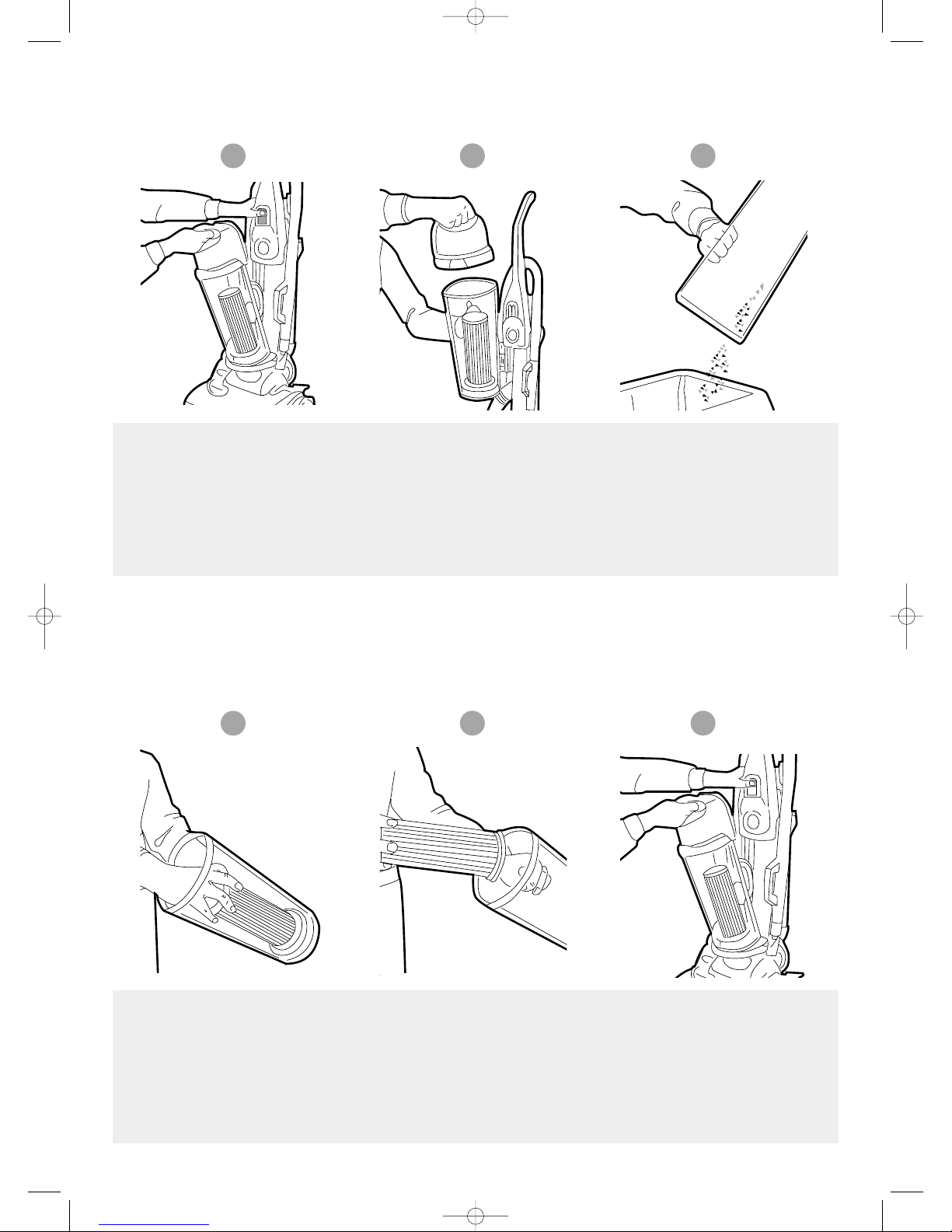

Emptying the dust canister
Make sure the vacuum
cleaner has been switched off and
unplugged from the mains supply.
To remove the dust canister from
the vacuum cleaner press the
release catch and pull it forward.
To remove the lid of the dust
canister hold the top and the side
handles firmly and turn the lid
anti-clockwise. Pull the lid away
from the body of the dust canister.
4
5 6
Emptying the dust canister
Twist and pull the filter out.
To clean it, tap it gently against the
side of a dustbin. Do not use a
brush to clean it as this may
damage the filter. Do not wash the
filter.
Empty the all the dust and dirt from
the dust canister.
Replace the filter into the dust
canister. Push it firmly into place to
prevent dust and dirt leaking out.
Replace the canister lid turning
clockwise and return the dust
canister to the body of the vacuum
cleaner
We recommend that the filter inside
the dust canister is replaced every
twelve months It should be cleaned
each time the dust cannister is
emptied.
r VS-19TS Swift manual op.qxd 7/15/04 8:00 PM Page 5
12
1
2
3

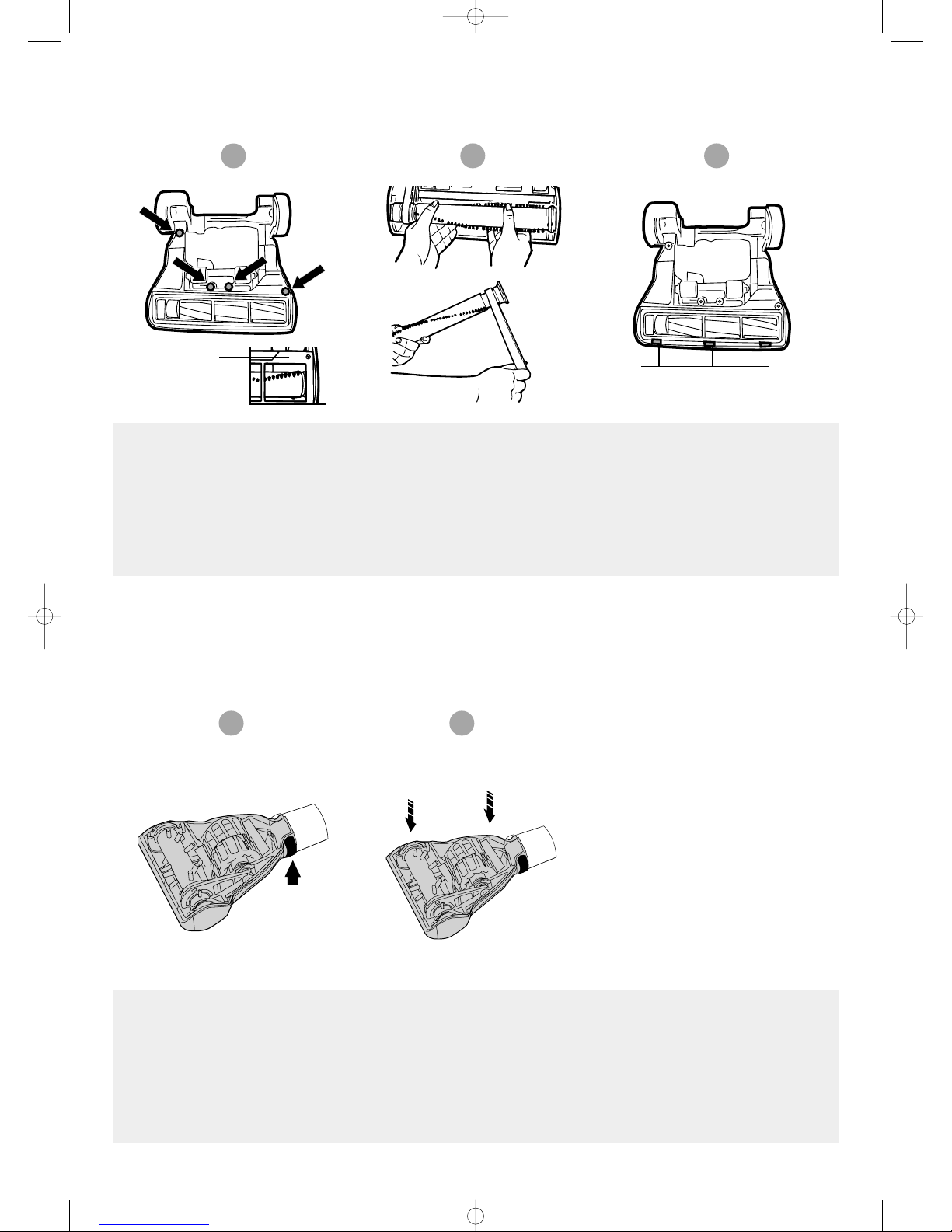

Belt or Brush removal and replacement
Unplug the vacuum cleaner from
the mains supply. Press the handle
release button and turn the vacuum
cleaner over so that the base lies
flat and face up. Use a screwdriver
to remove the four retaining screws
shown above.
Remove the nozzle guard.
Lift and remove the brush bar, then
slide the belt off the motor shaft
and dispose of it.
Place a new belt on the motor shaft
and then slip the brush bar through
the belt.
The belt should sit on the end of the
brush bar with no bristles against
the end cap. Re-fit the brush bar.
Ensure the end caps are in the
correct position. Rotate the brush
bar to check the belt is not twisted.
Replace the nozzle guard.
Align the tabs and re-fit the screws.
Phillips screwdriver required
nozzle guard
tabs
13
4 5
Rotate the locking ring 180º and
turn the turbo tool over.
Pivot the lower housing and then
remove and obstruction you find
underneath.
To reassemble ensure the tabs are
engaged and the pivot the lower
housing closed.
Removing debris from the
turbo tool
r VS-19TS Swift manual op.qxd 7/15/04 8:00 PM Page 6
Safety
• Do not leave the appliance when plugged in. Unplug it from socket when not in use.
• To prevent electric shock do not use outdoors or on wet surfaces.
• Not to be used as a toy. Close supervision is necessary when used by or near children or the infirm.
• Use only as described in this user guide.
• Use only the manufacturer’s recommended attachments.
• Do not use with a damaged cord or plug.
• Do not pull or carry by the cord, use the cord as a handle, allow the cord to come into contact with hot or
sharp surfaces or close a door on the cord.
• Do not unplug by pulling on the cord.
• Do not handle the plug or appliance with wet hands.
• Do not put any objects into openings or operate with openings blocked, keep them free of anything that may
reduce airflow.
• Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.
• Do not vacuum any glowing, burning or smoking particles.
• Do not use without the dust canister and filters in place.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids such as petrol, or use in areas where they may
be present.
• Keep the vacuum cleaner on the floor, only the hand held tools may be used on furniture.
• Do not use an extension cord with this vacuum cleaner.
• Do not attempt to remove blockages in the hose with sharp objects as they may cause damage.
• Store the vacuum cleaner indoors. Put the vacuum cleaner away after use to prevent tripping accidents.
• Using improper voltage may result in damage to the motor and possible injury to the user. The correct
voltage is listed on the ratings plate.
For further information in the UK, call the VAX HELPLINE : 0870 606 1248
15
Troubleshooting
Problem
Cleaner won’t run
Vacuum won’t pick up/
loss of suction
Dust escaping from the
Vacuum
Possible Cause
• Power cord not firmly pushed into
a mains socket.
• Blown fuse or tripped breaker.
• Lower hose not connected properly.
• Dust canister not installed correctly or full.
• Broken or worn belt.
• Clogged filter.
• Nozzle/hose or hose inlet is clogged.
• Dust Canister full.
• Dust canister not installed properly.
• Hose not installed correctly.
Possible solution
• Plug cord in firmly.
• Check fuse/breaker. Replace fuse/
breaker.
• Refer to page 3 for fitting information.
• See ‘Emptying the dust canister’.
• Replace the belt.
• Remove filter and clean.
• Remove nozzle/hose and remove
obstruction.
• Empty dust canister.
• See ‘Emptying the dust canister’.
• See ‘Putting your vacuum cleaner
together’.
14
r VS-19TS Swift manual op.qxd 7/15/04 8:00 PM Page 7

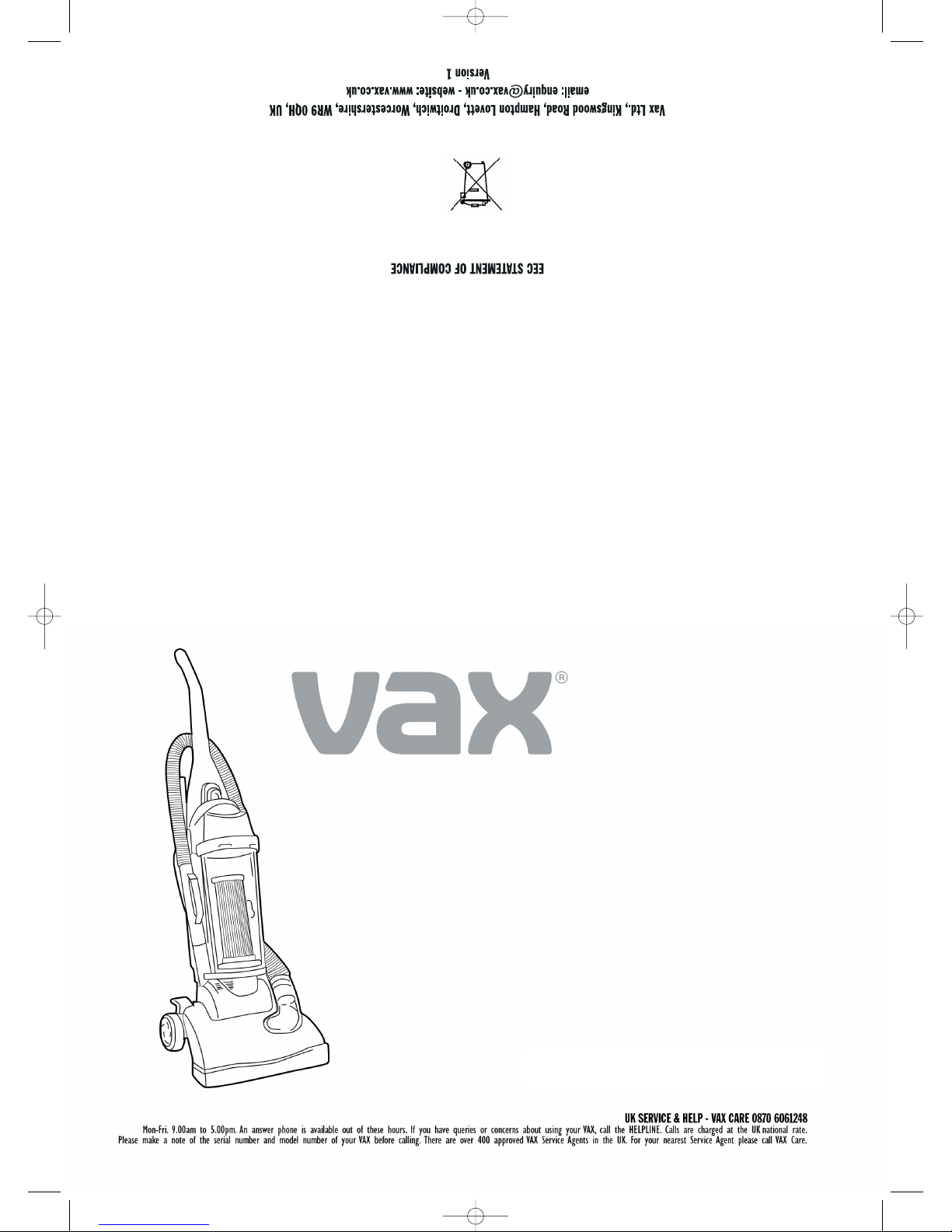

Easy Guide VS-18TS/VS-19TS
Manufacturer/EEC importer Vax Ltd hereby on our own responsibility declare that the products VS-18TS & VS-19TS are manufactured in compliance with the following:
Safety: 73/23/EEC Low Voltage Directive, as modified by 93/68/EEC
EMC: 89/336/EEC Electromagnetic Compatibility Directive, as modified by 93/68/EEC
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
Check with you local Authority or retailer for recycling advice.
r VS-19TS Swift manual op.qxd 7/15/04 8:00 PM Page 8
