Vax VRS5W User Manual

vax.co.uk
Please read carefully before using this cleaner.
Always fully extend the mains cable before use.
Retain for future reference.
instruction manual
Carpet Washer
Vax model number:
Vax Careline: (UK) 0844 412 8455
(ROI) 1-800 928 308
Version 1.0
VRS5W Powermax User Guide V1.0.qxd:V1.0 23/7/10 15:35 Page 1
VRS5W
1. Diagram
vax.co.uk
2
parts overview
1 Handle 2 Clean water tank release button 3 Clean water tank 4 Dirty water tank release latch 5 Dirty water tank handle 6 Exhaust filter 7 Brushbar (hidden) 8 Dirty water tank
9 Solution release trigger 10 Cord clip 11 Cord wrap 12 Cord 13 On/off button 14 Handle release pedal 15 Vax carpet cleaning solution
14
9
10
Fig.1/1
2
1
3
5
7
4
12
13
1
1
15
8
6
VRS5W Powermax User Guide V1.0.qxd:V1.0 23/7/10 15:35 Page 2
3
safety information
2. Safety Information
FOR HOUSEHOLD USE ONLY
When using the carpet washer, basic safety precautions should always be observed, including the following:
1. Do not leave the carpet washer unattended when plugged in. Unplug it from socket when not in use.
2. To prevent electric shock do not use outdoors.
3. Notto beused asa toy.Childrenshouldbe supervisedto
ensure that they do not play withthe appliance.
4. Thisappliance is not intended for use by persons (including children)with reduced physical, sensory or mental capabilities,or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible fortheir safety.
5. Use only as described in this manual.
6. Do not use the carpet washer if it has been dropped, damaged, left outdoors or dropped into water. Do not use the carpet washer with a damaged cord or plug. If the supply cord is damaged, it must be replaced by the manufacturer or a recommended Service Agent to avoid hazard and invalidating the guarantee.
7. Do not pull or carry by cord. Do not use the cord as a handle, close a door on the cord or pull cord around sharp edges or corners. Do not run the carpet washer over the cord. Keep the cord away from heated surfaces.
8. Do not unplug by pulling on the cord.
9. Do not handle the plug or carpet washer with wet hands.
10. Do not put any objects into openings or operate with openings blocked, keep them free of anything that may reduce airflow.
11. Keep hair, loose clothing, fingers and all parts of the body away from openings and moving parts.
12. Do not use the carpet washer on any glowing, burning or smoking particles.
13. Do not use without the solution tank and dirty water tank in place.
14. Turn off all controls before unplugging.
15. Do not use to pick up flammable or combustible liquids such as petrol, or use in areas where they may be present.
16. Keep the unit on the floor.
17. Do not use an extension cord.
18. Do not attempt to remove blockages with sharp objects as they may cause damage.
19. Store indoors put away after use to prevent tripping accidents.
20. Using improper voltage may result in damage to the motor and possible injury to the user. The correct voltage is listed on the rating label.
21. A hazard may occur if the carpet washer runs over the power supply cord.
22. To prevent dirty water from running into the motor, do not hold the appliance upside-down or lay on its side. Use appliance in normal cleaning position.
23. Take extra care when cleaning on stairs.
24. Do not carry appliance while motor is running.
WARNING: Always switch off and unplug your
machine from the electrical outlet before filling the clean water tank, emptying the dirty water tank, before assembling, opening, before connecting/ disconnecting the attachments, or carrying out maintenance or troubleshooting checks
.
NOTE: Carpets should be dry vacuumed
thoroughly before washing.
IMPORTANT: Cleaning filters maintains cleaning
performance. Vax recommends that your filters should be checked and cleaned periodically. If your filters are washable make sure they are completely dry before inserting back into the machine.
This machine is intended for household use only, and NOT for commercial or industrial use.
PLEASE KEEP THESE INSTRUCTIONS FOR FURTHER USE.
!
Motor Thermostat
IMPORTANT: The motor is equipped with a
thermal cut-out. If for any reason, the vacuum cleaner should over-heat, the thermostat will automatically turn the unit off. Should this occur, unplug the vacuum cleaner from the electrical outlet and turn off the switch. Remove the dirt container and empty. Clean the filters. Allow the cleaner to cool for approximately one (1) hour. To re-start, plug into an electrical outlet and switch back on.
!
Vax Careline: (UK) 0844 412 8455 (ROI) 1-800 928 308
!
!
VRS5W Powermax User Guide V1.0.qxd:V1.0 23/7/10 15:35 Page 3
vax.co.uk
4
assembly
3. How to Assemble
Use a crosshead screwdriver
Components
Assembly
Line up mid-section with base unit and slot into place (Fig 3/6).
Insert handle into mid-section ensuring that the solution trigger is at the back of the machine and the screw hole in the handle is lined up with the screw hole in the mid­section (Fig 3/7).
Insert and tighten (Fig 3/8).
Fig.3/5 - Clean Water Tank
Fig.3/6
Fig.3/7
Fig.3/4 - 3 Screws
Fig.3/3 - Handle
Fig.3/2 - Mid-Section
Fig.3/1 - Base Unit
Align screw holes
!
VRS5W Powermax User Guide V1.0.qxd:V1.0 23/7/10 15:35 Page 4
5
assembly / before cleaning
Twist cord holder until it is facing upwards (Fig 3/9).
Finally insert clean water tank and machine is fully assembled (Fig 3/10).
4. Before cleaning
IMPORTANT: Do not use the carpet washer as a dry vacuum.
1. Vacuum carpet thoroughly. Use a vacuum cleaner with a revolving brushbar for best results.
2. Remove as much furniture from the room as possible. If unable to remove the furniture, place plastic or foil under and around the legs until the carpet has dried completely.
Helpful hints for cleaning carpets:
IMPORTANT: Only use Vax carpet cleaning
solution. Using other solutions may cause
excess foaming. Excessive foam will prevent the machine from working effectively. Using other solutions will invalidate the guarantee.
1. Do not oversaturate carpet with cleaning solution
while using the carpet washer.
2. For heavily soiled areas, additional applications may
be necessary.
3. Allow plenty of time to dry carpet thoroughly.
4. Wipe cleaning solution from woodwork and wood to
prevent any damage.
5. Try not to walk on carpet until it is completely dry.
6. After carpet is thoroughly dry, vacuum the carpet
using a vacuum cleaner with a revolving brushbar.
7. Before cleaning, determine where to start and end,
making sure not to walk over previously cleaned areas.
Check for colour fastness:
Before cleaning carpet, test for colour fastness. Dampen a white cloth with solution. In a small hidden area of your carpet, gently rub the cloth over the area. Check each colour for colour bleeding. If the cloth remains clean, it should be safe to clean the carpet.
After cleaning:
Allow carpet to dry completely. Try not to walk on
the carpet until it is dry.
If it is necessary to walk on the carpet, place white
towels on the areas to be walked on.
If the carpet is not dry and the furniture must be
placed back in the room, use plastic or foil under the furniture to prevent staining the carpet.
Thoroughly clean the dirty water tank with warm
(max 40ºC) tap water.
Fig.3/8
Fig.3/9
Fig.3/9
!
Insert Screw
Insert Screw
Insert Screw
Vax Careline: (UK) 0844 412 8455 (ROI) 1-800 928 308
!
VRS5W Powermax User Guide V1.0.qxd:V1.0 23/7/10 15:35 Page 5
vax.co.uk
6
preparing the machine

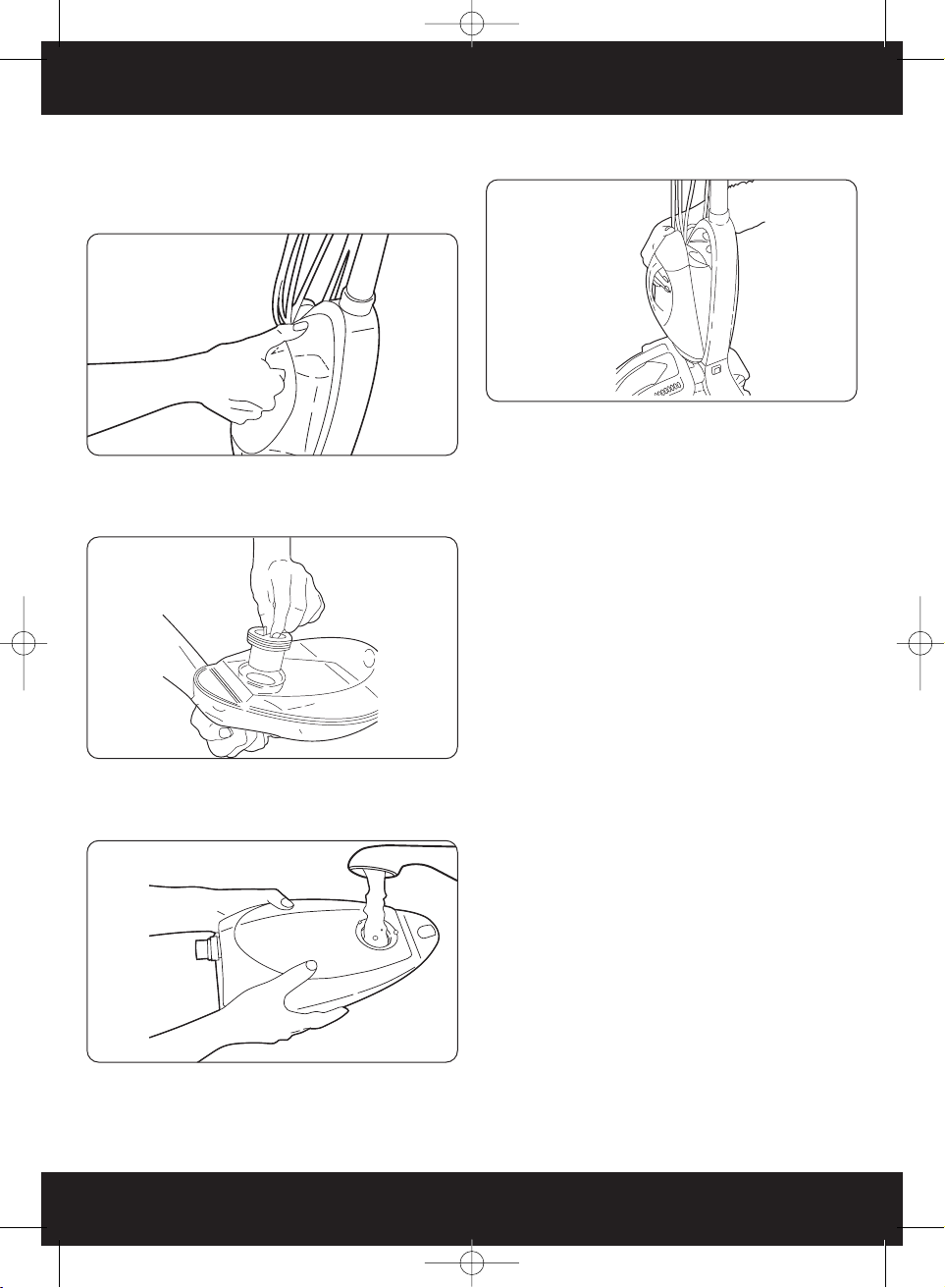

5. Preparing the Machine
Hold the handle of the clean water tank and press ‘PULL TORELEASE’. Tilt Clean Water Tank away from the carpet washer and remove (Fig 5/1).
Unscrew the measuring cap from the reverse side of the clean water tank. Fill measuring cap with solution (Use only 1 capful of solution per full tank). Pour into clean water tank (Fig 5/2).
Fill remainder of clean water tank with warm (max 40°C) tap water. Replace cap (Fig 5/3).
Place bottom of clean water tank into carpet washer and push back until it locks into place (Fig 5/4).
Fig.5/3
Fig.5/4
Fig.5/1
Fig.5/2
VRS5W Powermax User Guide V1.0.qxd:V1.0 23/7/10 15:35 Page 6
7
usage

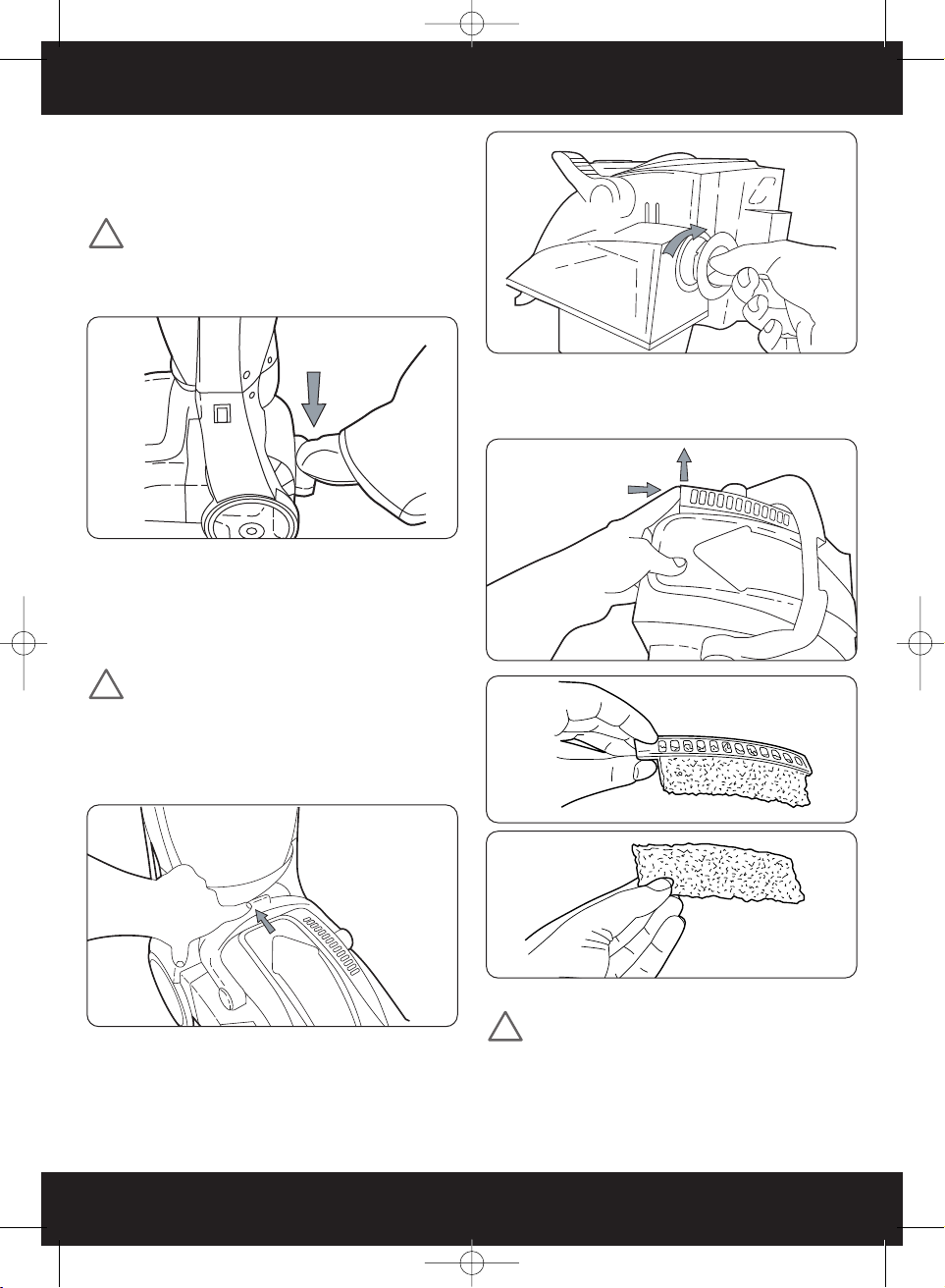

6. Usage
Plug cord into electrical socket. Turn on the machine by using the on/off switch located on the side of the machine.
IMPORTANT: Never leave unit unattended with power on. Turn off when emptying and filling
tanks. Do not over-saturate the carpet
Step onto handle release pedal to put the machine into cleaning position (Fig.6/1).
While depressing the solution spray trigger, pull carpet washer in a backward motion. Release the trigger and push the unit forward in the same path to agitate and remove dirty water and solution from carpet. (For more heavily soiled areas, repeat if necessary).
IMPORTANT: For best cleaning results use a
steady, moderate, forward and backward motion. Always work from back to front across the room to avoid stepping on wet carpet and lowering the pile.
When dirty water tank is full lift dirty water tank latch and remove from base unit using the handle (Fig.6/2).
Twist dirty water tank outlet cap to the left and remove, empty, rinse and replace (Fig.6/3)
When finished cleaning remove the dirty water tank and rinse with warm water and allow it to dry before storage. Also remove filter (as shown) rinse with warm water (max 40˚C) and allow it to dry thoroughly before storing.
IMPORTANT: Do not use any chemicals when cleaning.
NOTE: Do not store cleaner with solution in clean water tank or dirty water in dirty water tank. Mineral deposits and mildew can form with will affect the performance of the carpet washer.
!!!
!
Fig.6/2
Fig.6/3
Fig.6/4
Fig.6/1
Fig.6/5
Fig.6/6
Vax Careline: (UK) 0844 412 8455 (ROI) 1-800 928 308
VRS5W Powermax User Guide V1.0.qxd:V1.0 23/7/10 15:35 Page 7
vax.co.uk
8
troubleshooting / uk service and help
7. Troubleshooting
WARNING: To reduce risk of personal injury,
unplug carpet washer before servicing.
Problem: The carpet washer won't run
Cause: Not properly plugged into electrical outlet. Solution: Plug in firmly.
Cause: No electricity in electrical outlet. Solution: Check fuse or breaker.
Cause: On/off switch not turned on. Solution: Push on/off switch to ‘on’.
Cause: Blown fuse/tripped breaker. Solution: Reset circuit breaker or replace fuse.
9. Consumables
To purchase spares and accessories, please visit
vax.co.uk
Filter kit (1-1-130680-00)
8. UK Service & Help
Vax Careline
(UK) 0844 412 8455
(ROI) 1-800 928 308
Monday-Friday 8.30am to 6.30pm Saturday and Sunday 9.00am to 5.00pm
Any queries or concerns about using the Vax, call the Vax Careline.
Please make a note of the serial number and model number of the carpet cleaner before calling. For the nearest Service Agent, please call the Vax Careline.
vax.co.uk
10. Technical Specification
Voltage: 220 ~ 240V 50Hz Motor Power: 500W Clean water tank volume: 2.1 litres Dirty water tank volume: 1.7 litres Cord length: 5.9m Weight: 5.6kg
Subject to technical change without notice
!
VRS5W Powermax User Guide V1.0.qxd:V1.0 23/7/10 15:35 Page 8
9
technical specification
Vax Careline: (UK) 0844 412 8455 (ROI) 1-800 928 308
This page has been left intentionally blank
VRS5W Powermax User Guide V1.0.qxd:V1.0 23/7/10 15:35 Page 9
www.vax.co.uk
10
This page has been left intentionally blank
VRS5W Powermax User Guide V1.0.qxd:V1.0 23/7/10 15:35 Page 10
11
Vax Careline: (UK) 0844 412 8455 (ROI) 1-800 928 308
This page has been left intentionally blank
VRS5W Powermax User Guide V1.0.qxd:V1.0 23/7/10 15:35 Page 11
---
EEC STATEMENT OF COMPLIANCE
Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility, declare that
the VRS5W is manufactured in compliance with the following Directives:
Safety: 2006/95/EC Low Voltage Directive
EMC: 2004/108/EC Electromagnetic Compatibility Directive
Wasteelectrical products should not be disposed of withhousehold waste. Please recycle where
facilities exist. Check with your Local Authority or retailer for recycling advice.
Vax Ltd., Kingswood Road, Hampton Lovett, Droitwich, Worcestershire, WR9 OQH, UK
email: info@vax.co.uk - website: vax.co.uk
