Page 2
Let’s talk safety
This pressure washer is intended for household use only and
NOT for commercial or industrial use.
• This pressure washer is for outdoor use only.
Basic
safety
precautions
Don’ts
• It is your responsibility to check the suitability of the surface to be
cleaned. Vax UK Ltd cannot be held responsible for damage caused.
• Keep ngers, hair and loose clothing from moving parts and
openings whilst using the pressure washer.
• When using your pressure washer the recommended working
distance between the nozzle and surface area or object to be
cleaned is 30cm.
• Don’t leave the pressure washer unattended or running when not
in use for more than 5 minutes without depressing the trigger.
• Don’t use this pressure washer if it has been dropped, damaged
or immersed in water.
• Don’t use pressure washer if the power cord or plug is damaged.
Please contact our Customer Care Line on (UK) 0330 026 8455
(ROI) 1-800 928 308 (Mon-Fri: 8:30am to 6:30pm, Sat: 9:00am
to 5:00pm).
• Don’t handle the plug of the pressure washer with wet hands.
• Don’t use the pressure washer without supply hose (minimum
length 7.5m) in place and unwind the hose fully from reel.
Do’s
• Always wear suitable clothing footwear and eye protection whilst
using the pressure washer.
• Always connect the water supply, remove the lance and squeeze
the trigger to run water through the machine before switching the
power on.
• Always use a suitable hose connector to match the coupling on
the pressure washer with a non-return valve at tap end
of the supply hose.
• Always unplug the pressure washer before cleaning or carrying
out any maintenance.
• Always turn o and unplug the pressure washer before
disconnecting or connecting the hose, after use always
wrap the pressure hose and power cord around the
storage clips provided.
• Always release any built up pressure in the handle prior
Page 3
• This appliance can only be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children should not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
• Vax only recommend the use of Vax genuine accessories and solution to be
used with this pressure washer. The use of non-branded Vax accessories and
solution will invalidate your warranty.
• Don’t use the pressure washer without the water lter in place.
• Don’t pull or carry this pressure washer by the power cord. Don’t use the
power cord as a handle, pull the power cord around corners or sharp edges
or close a door over the power cord. Don’t unplug pressure washer by pulling
on the power cord.
• Don’t aim the pressure washer at people, animals, plants, electrical components,
wires, or the pressure washer itself.
• Don’t use the pressure washer on electrical components, damaged/delicate
paint surfaces, tyres, engines/motors.
• Don’t use the pressure washer with incorrect voltage as this may result in
damage or injury to the user. The correct voltage is listed on the rating label.
to disconnecting the hose and ensure water inlet lter is clean prior to storage
in a cool dry place.
• Use only CE approved 13amp extension cords with RCD, non-approved
extension cords may overheat. Care should be taken to arrange the extension
cord as it could be a trip hazard.
• Always make sure the power/extension cord is fully unwound and prevent the
power/extension cord from getting wet during use.
• Always replace the fuse in the plug with a British 13amp fuse. Always protect
the power cable from heated surfaces or near open ames.
• Always carry the pressure washer by the handle.
• Always check water hose and accessories are not damaged, broken or worn
before use.
PLEASE KEEP INSTRUCTIONS FOR FURTHER USE AND USE ONLY
AS INSTRUCTED IN THIS GUIDE.
Page 4
Thank you for buying this Pressure Washer.
Taking care of your outdoor cleaning
This pressure washer is designed to make outdoor cleaning tasks as e ective and effi cient
as possible and this user guide will help you get the most out of your machine.
Completing outdoor cleaning tasks using a Vax pressure washer will keep your outdoor
items and surfaces cleaner for longer.
Taking care of your Pressure Washer
Also inside this guide are instructions on maintaining your new machine, so that it’s always
ready when you are to tackle your outdoor cleaning tasks.
Taking care of you
We’re here if you need us. Instead of taking me back
to the shop, simply visit:
vax.co.uk/support or call:
(UK) 0330 026 8455 (ROI) 1-800 928 308
Monday-Friday 8:30am to 6:30pm, Saturday 9:00am to 5:00pm
Calls are charged at the UK local rate. Please make a note of the serial number and model number
of the product before calling.
Alternatively, you can write to us at:
Vax Ltd., Plot 302, Stonebridge Cross Business Park, Hampton Lovett, Droitwich, WR9 0LW, UK
This user guide can be found online at: vax.co.uk/support
Let us know what you think @VaxUK
Page 5
Contents
Let’s talk safety

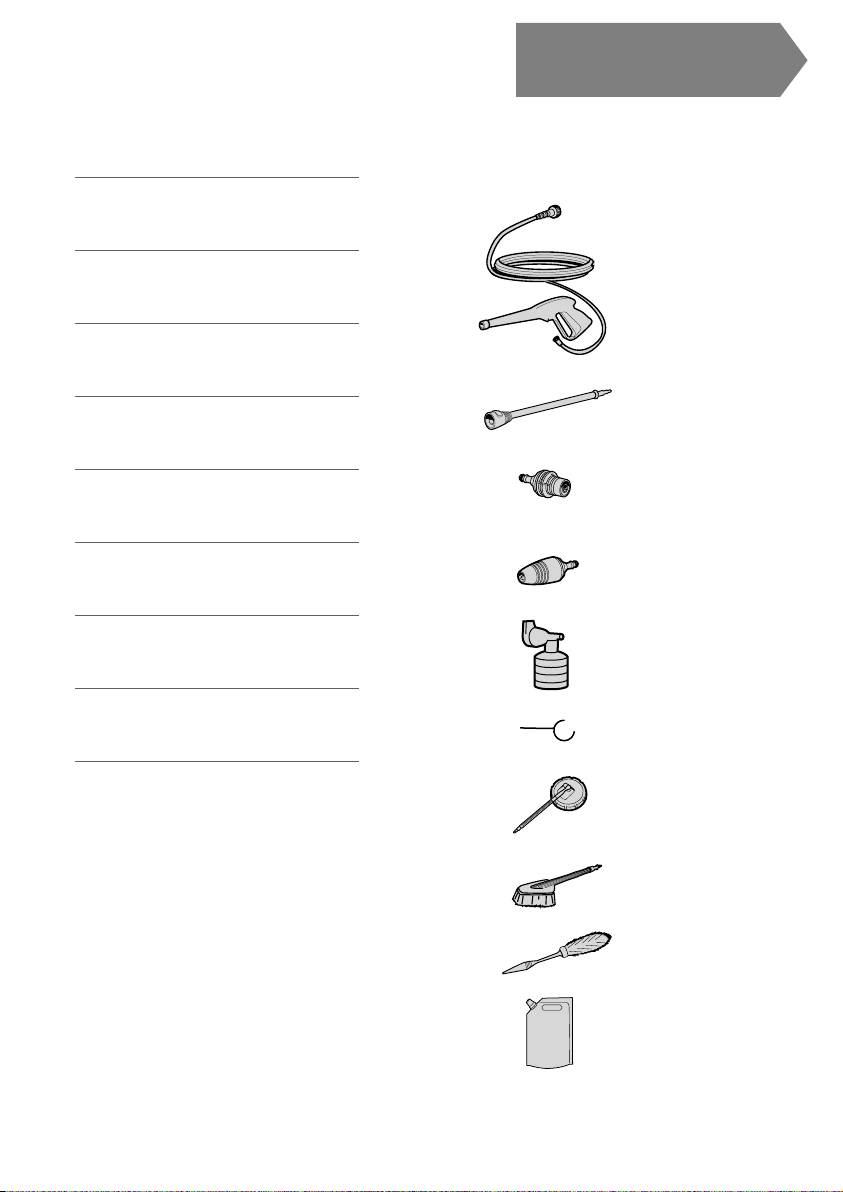

Power Wash Complete
Included with
your machine
Getting to know your machine
Getting started
Using your machine
Taking care of your machine
Let’s talk technical
What to do if it goes wrong
Getting in touch

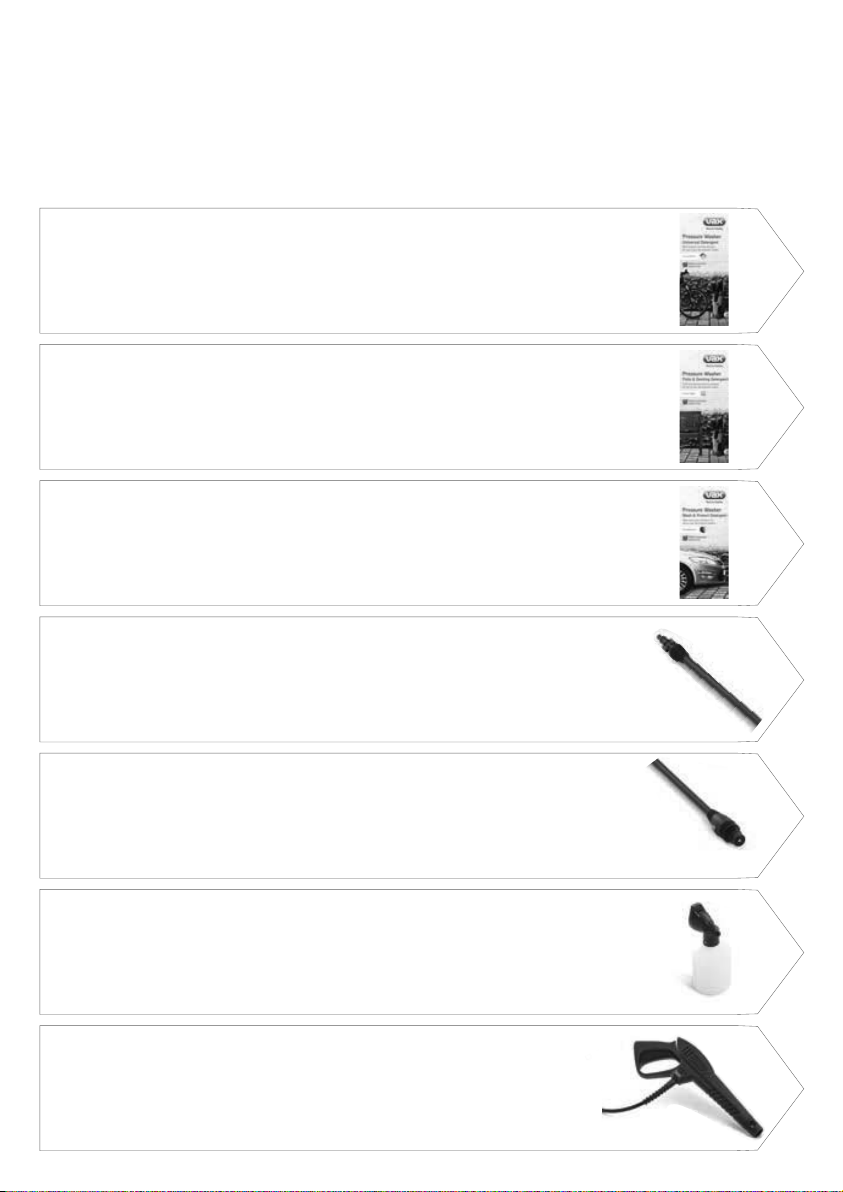

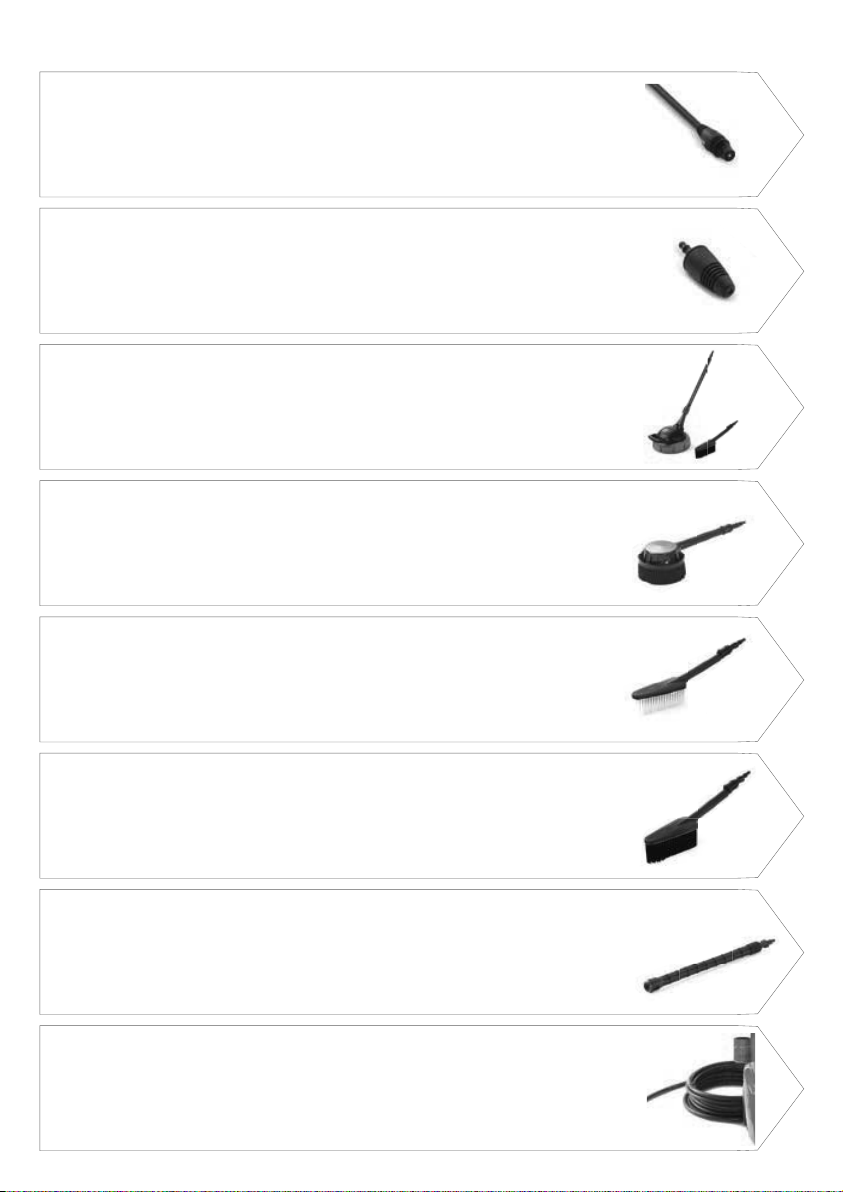

Accessories
Pressure Hose
Trigger Handle
Lance
Jet Nozzle
(orange nib)
Turbo Nozzle
Detergent Application Bottle
Nozzle Cleaning Tool
Small Patio Brush
Car Brush
Alloy Car Brush
Universal Detergent
Page 6

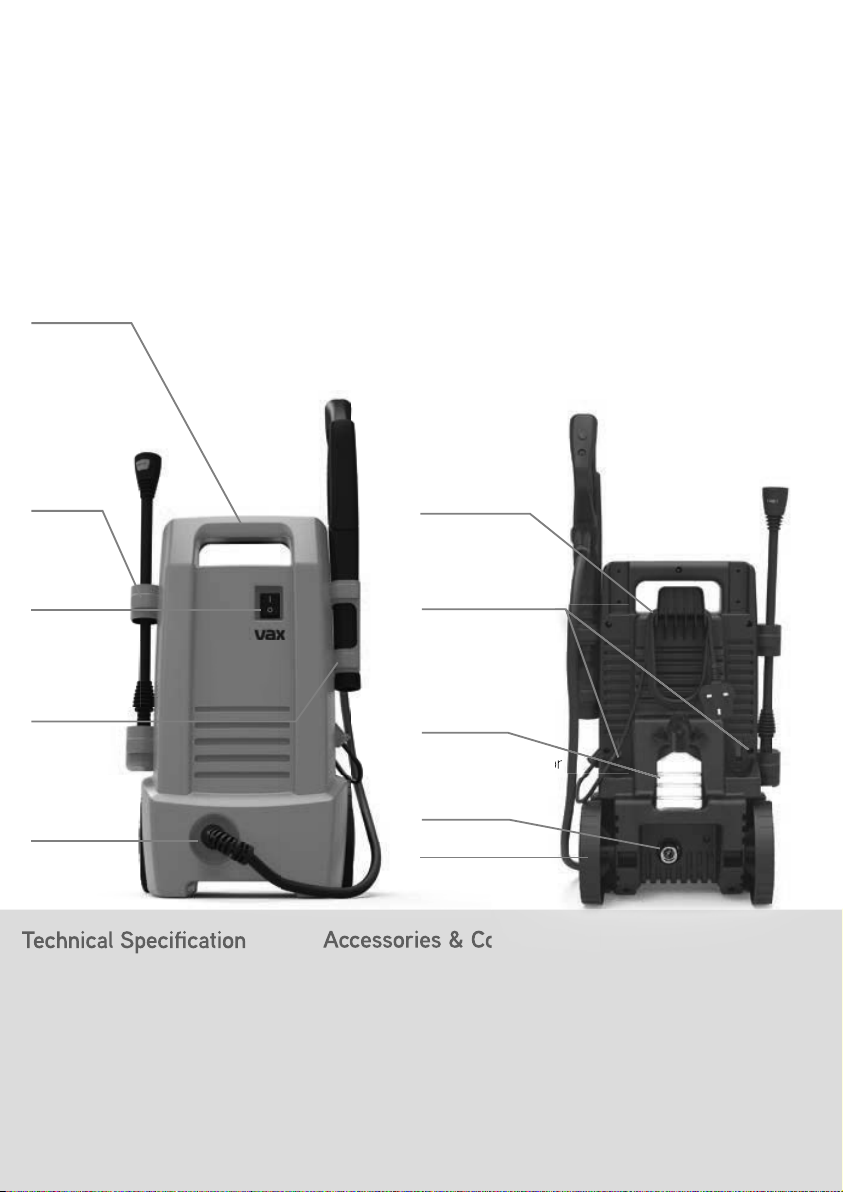

Getting to know your machine
Technical Specifi cation
Accessories & Consumables
Handle
Lance storage
Pressure hose
and power cable
storage hook
On/o switch
Trigger handle
storage
Water outlet
Technical Specifi cation
Name PowerWash Complete
Model VPW1WC
Voltage 220-240V
Wattage 1800W
Max Pressure 130 bar
Working Pressure 90 bar
Flow Rate 370L/hr
Subject to technical change without notice.
Nozzle storage
Solution bottle
storage
Water inlet connector
and water lter
(already installed)
Wheel
Accessories & Consumables
Universal Detergent
1-9-133398-00
Patio & Decking Detergent
1-9-133401-00
*To purchase consumables and accessories, please visit vax.co.uk
Wash & Protect
Vehicle Detergent
1-9-133400-00
Page 7
Getting started
PLEASE READ ‘LET’S TALK SAFETY’ AT THE BEGINNING BEFORE USE
Always make sure the pressure washer and water supply is o before connecting or disconnecting the hose
and accessories.
IMPORTANT: Always make sure the trigger safety lock is in the LOCKED position when not in use or
connecting/disconnecting the pressure hose.
Always check water hose, pressure hose, lance and accessories are not damaged broken or worn before use.
Preparing your pressure washer for use
UNLOCKED
LOCKED

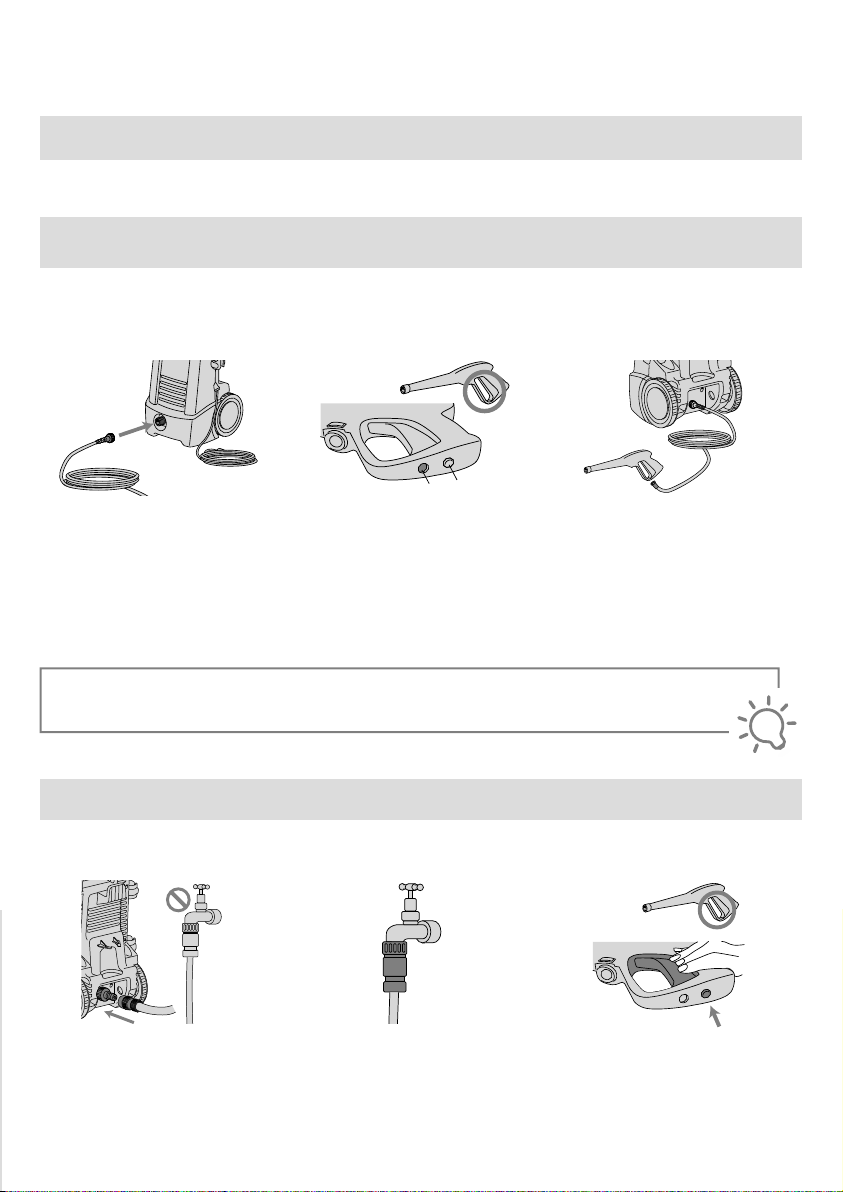

Push the pressure hose rmly to the
water outlet and turn the pressure
hose collar clockwise until tight.
After connecting pressure hose, lance and accessories check they are securely tted and locked in place
before turning on. Lance and nozzle must be attached to the hose for pressurised water to be produced.
IMPORTANT: Always use an RCD (Residual Current Device) adaptor when using this pressure washer.
A trigger safety lock is located
underneath the handle. The safety
lock should always be in LOCKED
position before connecting/
disconnecting the pressure hose
to the trigger handle.
To connect pressure hose to trigger
handle, press the pressure hose
release button and push pressure
hose to lock into position. Gently
pull the pressure hose to make
sure it is locked securely.
How to use
Make sure water supply is not
connected. Firmly push the water
hose pipe with suitable connector
onto the pressure washer water
inlet to lock into position.
Connect water hose pipe to
a suitable water supply and
turn water on.
Before plugging the machine in,
press unlock safety button on the
trigger handle and squeeze the
trigger until water starts to ow
through the nozzle.
TIP
Page 8
Using your machine
Whilst rmly pushing the lance into
the trigger handle turn clockwise to
lock into position.

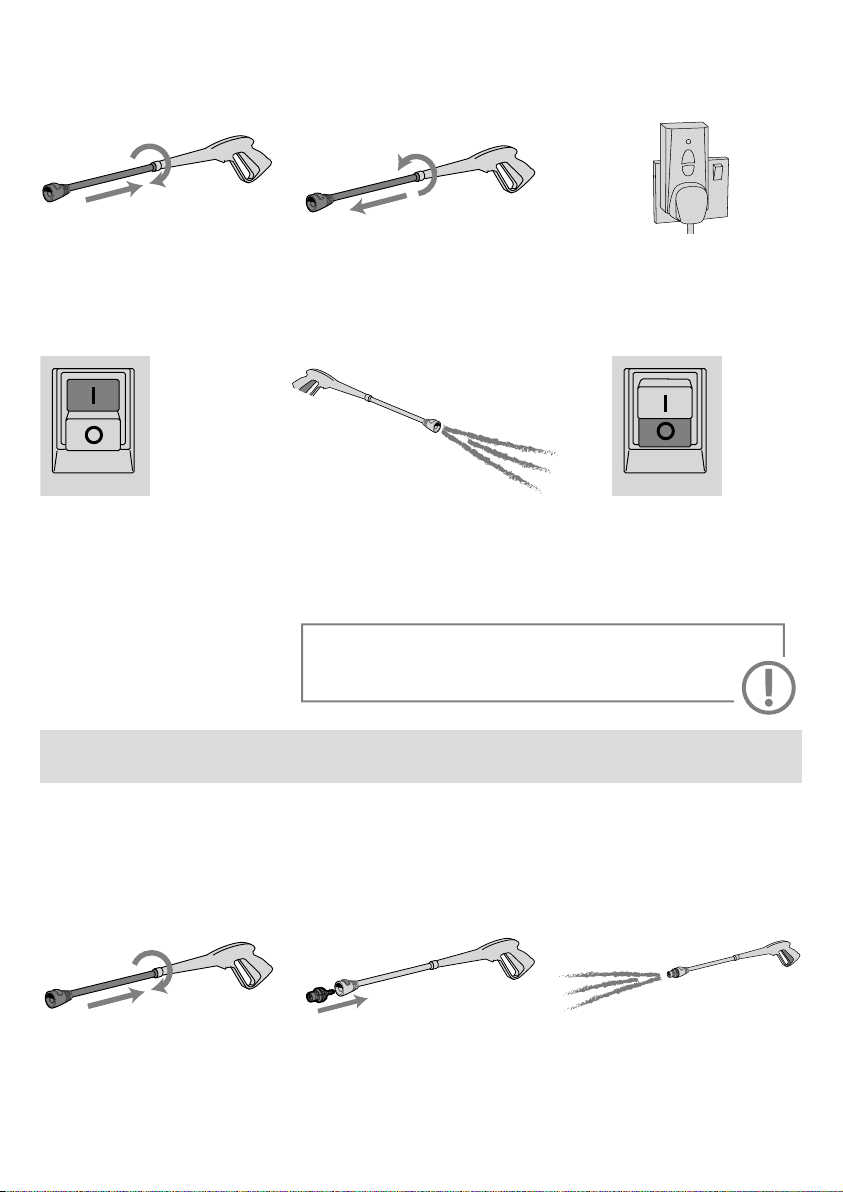

Push switch to ‘|’ position to turn
on. The machine will run for a
few seconds then stop but no
water will be released.
Choose accessory, push and twist
to lock into place.
Squeeze the trigger on the trigger
handle. The motor will start and high
pressured water jet will be released
from the nozzle.
Connect the power cord to the mains
supply via an RCD adaptor.
Push switch ‘O’ position to turn o .
CAUTION
Don’t aim the pressure washer directly at people, animals, plants,
electrical components, wires or the pressure washer itself.
IMPORTANT: Always make sure the machine is switched o and the safety button on the trigger handle is LOCKED
before connecting/disconnecting the lance, nozzle or accessories.
Lance and nozzle must be attached to the hose for pressurised water to be produced.
Jet nozzle has a wider spray and is ideal for use on surfaces areas such as cars, garden furniture, decking and boats.
Using your accessories

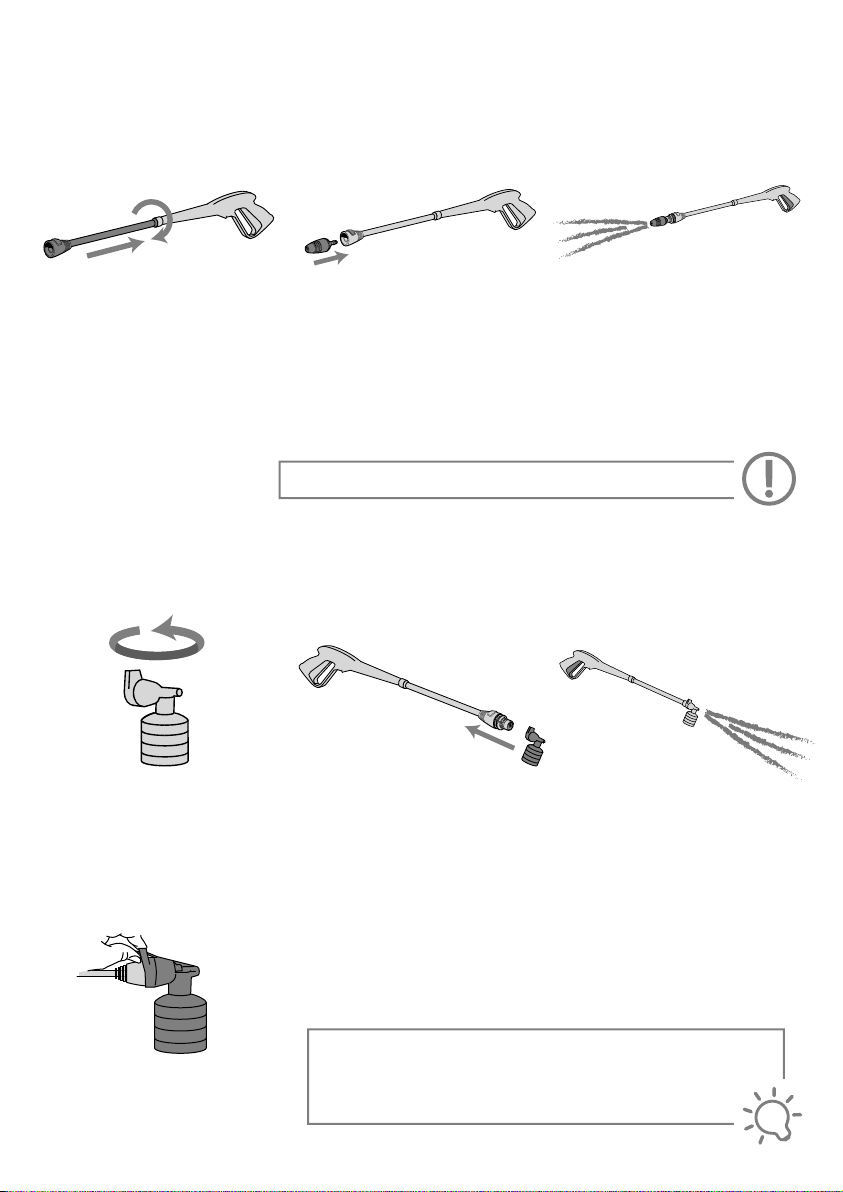

Jet nozzle (orange nib)
To attach the jet nozzle, t the lance
with a rm push and twist clockwise
to lock into place.
Hold down the release button on the
lance, push the jet nozzle and lance
rmly together until you hear an
audible ‘CLICK’. Release the button
and gently pull the jet nozzle to make
sure it is locked securely before use.
Switch the pressure washer on
and squeeze the trigger handle to
release a high pressured jet and
start cleaning.
Page 9
Using your machine
Turbo nozzle
Turbo nozzle has a more concentrated spray and is ideal for use on very dirty surfaces, patios or masonry. As it is not
tted with a pressure regulator it is not suitable for use on delicate or painted surfaces.
To attach the turbo nozzle, t the
lance with a rm push and twist
clockwise to lock into place.
Hold down the release button on
the lance, push the turbo nozzle
and lance rmly together until you
hear an audible ‘CLICK’. Release
the button and gently pull the turbo
nozzle to make sure it is locked
securely before use.
CAUTION
Never use the turbo nozzle on cars, tyres and engines.
Squeeze the trigger on the trigger
handle to release a high pressured
water jet, and start cleaning.
Using solution with your pressure washer
Solution can only be used when the jet nozzle is attached. The solution bottle will not t if the turbo nozzle is attached.
Fill the solution application bottle
with the diluted solution mix.
Turn the lid clockwise to lock.
Push the solution application bottle
onto the lance tted with jet nozzle
until you hear an audible click.
Gently pull the bottle to make sure
it is locked securely before use.
Switch the pressure washer on
and squeeze trigger to dispense the
water and solution mix.
To remove or re ll, lift the locking tab
to release the solution application
bottle from the jet nozzle.
Always rinse fresh water through your pressure washer for 1 minute
after using solution to prevent blockages.
To remove hose, lance, nozzle or accessories always squeeze trigger
until water stops to release pressure build up.
TIP
Page 10
Taking care of your machine
IMPORTANT: Always rinse fresh water through your pressure washer and accessories for 1 minute after using
solution to prevent blockages.
Maintenance
IMPORTANT: If using the pressure washer with water from a water butt, the water lter will require more
frequent cleaning.

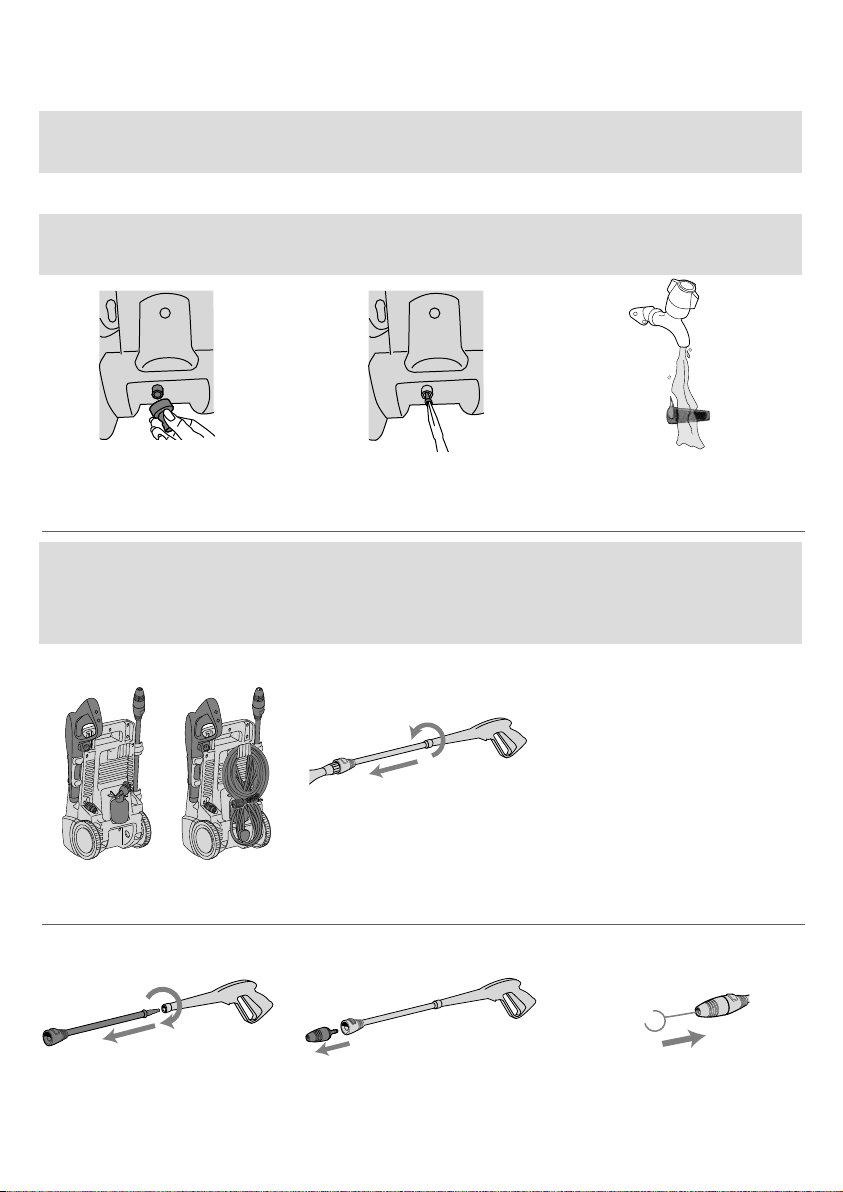

To access water lter unscrew
water inlet connector and remove.
IMPORTANT: Before storing your machine always make sure no water remains in the pressure washer, hose/
accessories. Once machine is switched o and before removing the nozzles, lance or trigger handle always squeeze
the trigger until no more water comes out, to prevent frost damage. Keep in a dry place above zero degrees and out
of the reach of children.
To remove water lter, pinch the
inner water lter tab with pliers
and gently pull.
Water lter can be rinsed under
running water periodically.
Storage
To remove the extension tube from
the trigger handle, rmly push and
Always store tools/cable/solution
tank into allocated slots.
twist the extension tube anticlockwise to unlock. Pull to remove.
Removing a blockage in the lance and nozzles
To remove the lance from trigger
handle rmly push and twist
the lance anti-clockwise, when
unlocked pull to remove.
To remove the nozzles press the
nozzle release button and pull.
Insert the nozzle cleaning tool into
the end of nozzles to remove any
dirt or debris.
Page 11
Let’s talk technical/Taking care of your machine
Using the patio brush (included in selected models only, see ‘Included with your machine’)

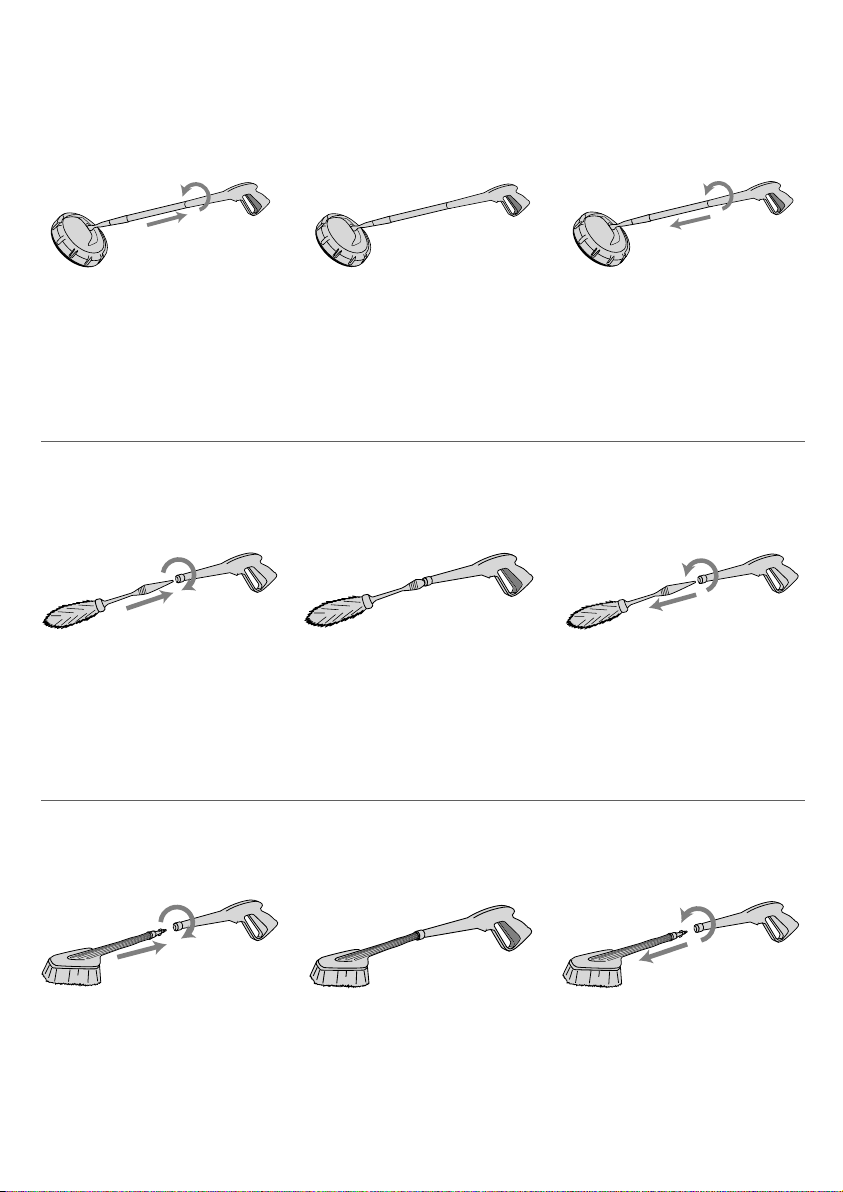

Attach the extension tube onto the
trigger handle, push rmly and twist
clockwise to lock into place.
Switch on the pressure washer and
squeeze the trigger to release the
rotary water spray.
To remove the extension tube from
the trigger handle, rmly push
and twist the extension tube anticlockwise to unlock. Pull to remove.
Using the alloy brush (included in selected models only, see ‘Included with your machine’)
Whilst rmly pushing the alloy brush
into the trigger handle turn clockwise
to lock into position.
Switch on pressure washer and
squeeze trigger to release water
spray or water and detergent mix.
To remove the alloy brush from the
trigger handle rmly push and twist
the lance anti-clockwise to unlock.
Pull to remove.
Using the car brush (included in selected models only, see ‘Included with your machine’)
Attach the car brush to the trigger
handle. Firmly push the car brush
and trigger handle together, turn
clockwise to lock into position.
Switch on the pressure washer and
squeeze the trigger to release water
spray or water and detergent mix.
To remove the brush from the trigger
handle rmly push and twist the
lance anti-clockwise to unlock. Pull
to remove.
Page 12
What to do if it goes wrong
SolutionProblem
• Check the ‘This pack contains’ panel on the box to make sure the part
is included with your machine.
There is an
accessory missing
• Make sure the On/O switch is set to the ‘I’ position.
The
•
trigger has not been squeezed. The pressure washer will be
Why won’t my pressure
washer turn on?
Why won’t the water
/detergent dispense?
silent, to activate squeeze the trigger handle.
The plug may
•
Check
•
the fuse in the plug if this needs replacing, always replace with
a British 13amp fuse.
Check if y
•
The po
•
Line on (UK) 0330 026 8455 (ROI) 1-800 928 308.
• The pump may have stopped, make sure the On/O switch is set to
the ‘I’ position and check the plug fuse.
The pump may
•
to poor water supply. Check the water ow rate to your water supply.
Hose may
•
any blockages. Straighten out the hose to ensure no kinks and check
the hose pipe connections to the tap and water inlet.
Ther
•
and squeeze the trigger to release water before the machine is
switched on.
Check as
•
your machine’ pages. Nozzle/accessory may be blocked, clear
any blockages and clean with nozzle cleaning tool. Go to ‘Lets talk
technical’ page.
• Turbo nozzle attached, remove and attach jet nozzle. No solution will be
released when using the turbo nozzle, go to ‘Using your machine’ page.
our RCD has been tripped, if it has tripped, reset it.
wer cord maybe damaged. Please contact our Customer Care
be blocked or kinked, check for leaks in the hose and clear
e may be an air lock. To remove, unlock the trigger safety lock
sembly of solution application bottle Go to the ‘Using
not be fully pushed into the electrical socket.
have stopped. This may be because of overheating due
hy won’t my
W
pressure washer reach
operating pressure?
Lance and nozzle not at
•
attached to the hose for pressurised water to be produced. Go to
‘Using your machine’.
Hose may
•
any blockages. Straighten out the hose to ensure no kinks and check
the hose pipe connections to the tap and water inlet.
Nozzle/
•
nozzle cleaning tool. Go to the ‘Lets talk technical’ page.
• Remove and clean the water inlet lter. Go to the ‘Taking care of your
machine’ page.
Check
•
be blocked or kinked, check for leaks in the hose and clear
accessory may be blocked, clear any blockages and clean with
the water ow rate to your water supply.
tached. A lance and nozzle must be
Page 13
Getting in touch
†
†
Registration required. Terms and conditions apply, see vax.co.uk for details.
* Calls are charged at the UK local rate. Please make a note of the serial number and model number of the pressure washer before calling.
Page 14
Accessories
Don’t forget your accessories!
Order at: www.vax.co.uk/spares-and-solutions
Universal detergent 1-9-133398-00
Universal detergent to aid the break down and removal of stubborn dirt, moss, and grime.
Patio & Decking detergent 1-9-133401-00
Patio & decking detergent to aid the break down and removal of stubborn dirt from patio
and decked areas.
Wash & Protect vehicle detergent 1-9-133400-00
Wash & protect vehicle detergent to aid the removal of road dirt, oil and grease from vehicles,
and provide short term protection against weathering conditions.
Standard lance 1-9-133749-00
Standard lance connection between your trigger handle and attachments.
Detergent nozzle 1-9-133759-00
A detergent nozzle to directly apply detergent to surfaces to help loosen dirt, moss, and grime.
Attachable detergent bottle 1-2-133752-00
A detergent nozzle to directly apply detergent to surfaces to help loosen dirt, moss, and grime.
Trigger handle 1-2-133750-00
A smooth shape hand handle with an easy squeeze trigger and a built in safety lock for easy
on/o trigger release.
Page 15
Jet nozzle 1-9-133754-00
Jet nozzle to apply concentrated pressure to dislodge dirt and grime on all surface types.
Turbo nozzle 1-9-133753-00
A high pressure turbo nozzle to blast away tough embedded dirt from high traffi c areas.
Patio cleaning set 1-9-133767-00
A large circular cased brush, supplied with an extension tube for cleaning concentrated areas
quickly and effi ciently. Ideal for: Patios, Decking, Driveways, Garage doors.
Rotary brush 1-9-133766-00
A rm bristled brush with 360 degree rotation, providing extra scrub power for an extra clean.
Ideal for: Car alloy wheels, Car grills.
Car brush 1-9-133765-00
A soft bristled brush, perfect for agitating tough dirt from sensitive surfaces.
Ideal for: Car mirrors, Car body.
Outdoor brush 1-9-133769-00
A handy outdoor brush, perfect for gently removing dirt from various outdoor surfaces.
Ideal for: Garden furniture, Conservatories.
Extension bar 1-9-133768-00
An additional connection tube providing you extra reach.
Replacement hose (10m) 1-9-133751-00
An additional high pressure hose, highly durable and resistant to weather conditions.
Page 16
GET IN TOUCH
EEC Statement of Compliance: Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility, declare that the
VPW1WC is manufactured in compliance with the following Directives: Safety: 2006/95/EC Low Voltage Directive.
EMC: 2004/108/EC Electromagnetic Compatibility Directive.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your
Local Authority or retailer for recycling advice.
© 2015 Vax Limited. All rights reserved. The VAX trade mark and Vax lozenge is the property of Techtronic Floor Care
Technology Ltd and is registered in the EU and may be pending or registered in other countries.
Loading...
