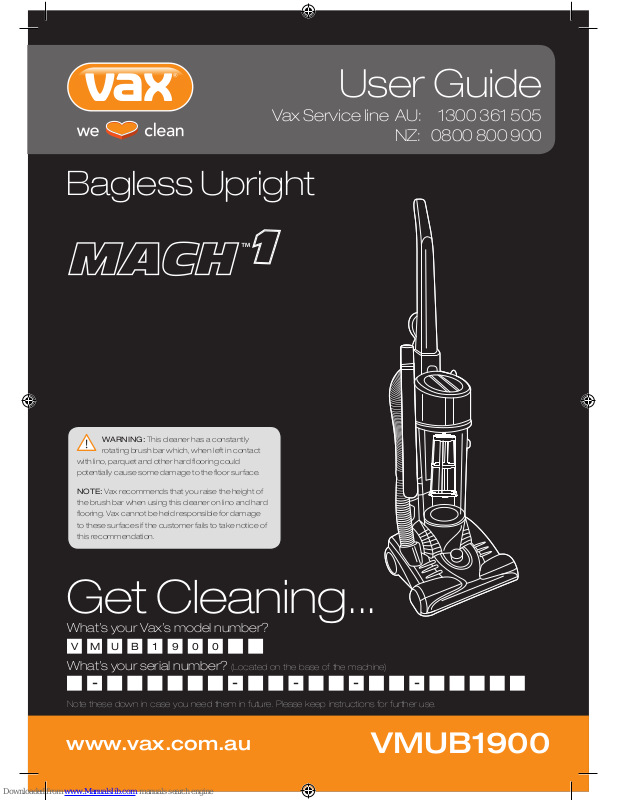

Vax VMUB1900, MACH1 VMUB1900 User Manual
Get Cleaning...
Bagless Upright
User Guide
www.vax.com.au
VMUB1900
What’s your Vax’s model number?
What’s your serial number? (Located on the base of the machine)
Note these down in case you need them in future. Please keep instructions for further use.
Vax Service line AU: 1300 361 505
NZ: 0800 800 900
- - - - -
V M U B 1 9 0 0
WARNING: This cleaner has a constantly
rotating brush bar which, when left in contact
with lino, parquet and other hard flooring could
potentially cause some damage to the floor surface.
NOTE: Vax recommends that you raise the height of
the brush bar when using this cleaner on lino and hard
flooring. Vax cannot be held responsible for damage
to these surfaces if the customer fails to take notice of
this recommendation.
™
Vax Service line
AU: 1300 361 505 / NZ: 0800 800 900
2
Machine Overview
1
2
4
6
8
3
5
7
1
Handle
2
Dirt container release
3
Dirt container handle
4
Dirt container lid
5
Filter & Filter Shroud
6
Dirt container
7
Carpet height adjuster
8
Brush bar
9
Dusting brush
10
Crevice tool and
extension wand
11
Hose
12
Hose guides
13
Lower hose
14
Power on/off
15
Handle release
16
Wheels
1
2
9
12
14
15
4
6
8
10
11
13
12
16
3
5
7
WARNING: This cleaner has a
constantly rotating brush bar which,
when left in contact with lino, parquet and
other hard flooring could potentially cause
some damage to the floor surface.
NOTE: Vax recommends that you raise
the height of the brush bar when using
this cleaner on lino and hard flooring. Vax
cannot be held responsible for damage to
these surfaces if the customer fails to take
notice of this recommendation.
www.vax.com.au
3
General Safety Information
FOR HOUSEHOLD USE ONLY.
When using the vacuum cleaner, basic safety precautions
should always be observed, including the following:
1. Only use the vacuum cleaner indoors on dry surfaces.
2. Turn off the vacuum cleaner controls before disconnecting
or connecting from the mains supply.
3. Always unplug the vacuum cleaner before connecting or
disconnecting the vacuum hose and accessories.
4. Children should be supervised to ensure that they do not
play with the appliance.
5. This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
6. Use only as described in this manual. Use only Vax
recommended attachments.
7. Do not use the vacuum cleaner if it has been dropped,
damaged, left outdoors or dropped into water. Do not
use the vacuum cleaner with a damaged cord or plug.
If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
8. Do not pull or carry by cord. Do not use the cord as a
handle, close a door on the cord or pull cord around sharp
edges or corners. Do not run the vacuum cleaner over the
cord. Keep the cord away from heated surfaces.
9. Do not handle the plug or vacuum cleaner with wet hands.
Do not use outdoors or on wet surfaces.
10. Do not put any objects into openings. Do not use with
any openings blocked and do not restrict airflow. Keep
all openings free of dust, lint, hair or anything that might
reduce airflow.
11. Keep hair, loose clothing, fingers and all parts of the body
away from openings and moving parts.
12. Do not pick up hot coals, cigarette butts, matches or any
hot, smoking or burning objects.
13. Do not pick up flammable or combustible materials
(lighter fluid, petrol, kerosene etc.) or use in the presence
of explosive liquids or vapours.
14. Do not vacuum up harmful or toxic material (chlorine,
bleach, ammonia, drain cleaner etc.).
15. Do not vacuum up hard or sharp objects such as glass,
nails, screws, coins, etc.
16. Do not use without ALL of the filters in place.
17. Take extra care when vacuuming on stairs.
18. Keep vacuuming area well lit.
19. Store the vacuum cleaner in a cool, dry area.
20. Turn off the on/off switch before unplugging the
vacuum cleaner
21. Use only SAA approved 10 amp extension cords. Non-
approved cords may overheat. Care should be taken to
arrange the cord so that the cord cannot be tripped over.
22. Damaged cord to be replaced by manufacturer or
authorised Vax service agent.
23. We recommend the use of a residual current device with
a residual current rating of 30mA or less.
WARNING: Always switch off and unplug the
vacuum cleaner from the electrical outlet before
assembling, opening or emptying the dirt container, or
before connecting/disconnecting the attachments.
CAUTION: The vacuum cleaner is a very powerful
unit. Before plugging the cord into the electrical outlet,
make sure the switch is in the ‘off’ position. Hold the vacuum
cleaner firmly when starting and in use.
IMPORTANT: If the inlet, hose or telescopic tube is
blocked, switch off the vacuum cleaner and remove
the blockage(s) before re-starting the vacuum cleaner.
IMPORTANT: Cleaning filters improves vacuum
performance. Vax recommends that your filters
should be checked and cleaned periodically. If your filters
are washable make sure they are completely dry before
inserting back into the vacuum cleaner.
IMPORTANT: The motor is equipped with a thermal
cut-out. If for any reason the unit should overheat, the
thermostat will automatically turn the unit off. Should this
occur, unplug the vacuum cleaner from the electrical outlet
and turn off the switch. Remove dirt container and empty.
Clean filters. Allow the unit to cool for approximately one hour.
To re-start, plug into an electrical outlet and switch back on.
This vacuum cleaner is intended for household use
only and NOT for commercial or industrial use.
PLEASE KEEP INSTRUCTIONS FOR FURTHER USE.
Vax Service line
AU: 1300 361 505 / NZ: 0800 800 900
4
Operation
IMPORTANT: Always unplug the vacuum cleaner
from the electrical outlet before assembling or
removing the accessories.
Tool required: Phillips head screwdriver
1. Place the base of the cleaner so it is facing away from you.
Position the body so that the lower hose is on your right
hand side. Push the body down into place.
2 To secure the body in place insert two screws supplied into
the back of the cleaner, through the hole located above
the hose guide.
3. With the cord clip on the handle facing you place it onto
the top of the body of the cleaner.
4. Push down firmly and line up the hole on the rear of the
handle. Insert lock piece into hole and screw into place
with the long screw.
5. Using the handle attach the main hose into the left hand
side of the cleaner. Press down firmly to secure in place.
The main hose can then be secured in the top and side of
the hose holder.
6. Push the dirt container lid firmly on top of the dirt container
and place it onto the cleaner. The canister lid will snap into
place in the body of the cleaner.
7. Attach the tools to the tool holder. The dusting brush fits
over a post at the back of the vacuum cleaner.
The crevice tool fits into the extension wand. The extension
wand is located on the right hand side.
