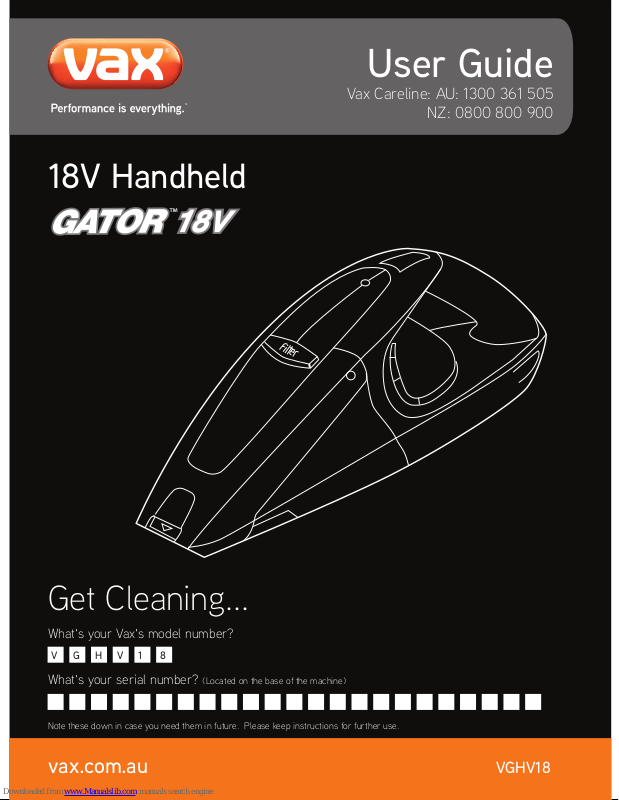

18V Handheld
User Guide
Vax Careline: AU: 1300 361 505
NZ: 0800 800 900
Get Cleaning...
What’s your Vax’s model number?
V G H V 1 8
What’s your serial number?
Note these down in case you need them in future. Please keep instructions for further use.
vax.com.au VGHV18
(Located on the base of the machine)
Vax Service line: AU: 1300 361 505
NZ: 0800 800 900
Machine Overview
2
3
4
1
6
7
9
11
10 8
Handle
1 6 11
Power On/ O button
2 7
Charging LED
3 8
4 9
Filter access button
5 10
Filter assembly
Pleated lter
Pre-screen
Gator™ Series Dirt cup
Gator™ Series Dirt cup door
Inbuilt crevice tool
5
Gator™ Series Dirt cup
release buttons (2)
Charging port
12
Exhaust vent
13
Charger
14
13
1211
Accessories
vax.com.au 2
514
General Safety Information
FOR HOUSEHOLD USE ONLY.
When using the vacuum cleaner, basic safety precautions should
always be observed, including the following:
1. Do not charge the unit outdoors.
2. Turn off the handheld before connecting or disconnecting from
the mains supply.
3. Children should be supervised to ensure that they do not play
with the appliance.
4. This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by person responsible for their safety.
5. Use only as described in this manual. Use only the
manufacturer’s recommended attachments.
6. Do not use the vacuum cleaner if it has been dropped,
damaged, left outdoors or dropped into water.
7. Do not abuse the cord. Keep the cord away from heated
surface. Do not pull the cord around sharp edges or corners.
Do not close the cord in a door.
8. Do not handle the plug or appliance with wet hands.
9. This product contains rechargeable Nickel Cadmium batteries.
Do not throw batteries into fire or expose them to high
temperatures, as they may burst.
10. Do not use with any opening blocked; keep free of dust, lint,
hair, and anything that may reduce airflow.
11. Keep hair, loose clothing, fingers and all parts of the body away
from openings and moving parts.
12. Do not pick up hot coals, cigarette butts, matches or anything
hot, smoking or burning objects.
13. Do not pick up flammable or combustible materials (lighter
fluid, petrol, kerosene, etc) or use in the presence of explosive
liquids or vapour.
14. Do not vacuum harmful or toxic material (chlorine bleach,
ammonia, drain cleaner, etc).
15. Do not use without the filter in place.
16. Do not vacuum hard or sharp objects such as glass, nails,
screws, coins, etc.
17. Do not vacuum plaster dust, concrete, or any other building
or vitreous material.
18. Turn off all controls before unplugging.
19. Take extra care when cleaning on stairs
20. Store the appliance indoors in a cool, dry area.
21. Use only the charger supplied by the manufacturer
to recharge the battery.
IMPORTANT: For dry debris use only
WARNING: Always switch off and unplug the handheld from
the electrical outlet before assembling, opening or emptying
the dirt container, or before connecting/disconnecting the
attachments or performing any maintenance.
IMPORTANT: Remove the battery from the appliance before
recycling. For further information please contact your local
waste management centre.
NOTE: Do not use the vacuum cleaner with a damaged cord
or plug. If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
IMPORTANT: Cleaning filters improves vacuum performance.
Vax recommends that they should be checked and cleaned
periodically (depending on level of use). Make sure all filters are
completely dry before inserting back into the vacuum cleaner.
This machine is intended for household use only, and NOT
for commercial or industrial use.
PLEASE KEEP THESE INSTRUCTIONS FOR FURTHER USE.
3
Vax Service line: AU: 1300 361 505
NZ: 0800 800 900
Operation
Charging
NOTE: Use only the charger supplied by the manufacturer to recharge.
IMPORTANT: Before rst use, charge your unit for at least 16 hours.
Power switch must be in the OFF position.
The indicator light will come on to indicate that the appliance is charging.
The light will not change when the unit is charged.
It is normal for the charger to become warm to touch when charging.
If the operating time gets shorter after repeated use, let the unit run until
it slows down. Recharge for 16 hours and repeat monthly for best results..
Operating the appliance
Tools
NOTE: Crevice tool is retractable
A crevice tool is built-in
to the nozzle and can be
extended by pulling the
extension piece until it
locks into position.
On/O Switch
The extension can be
retracted by depressing
the arrow button near the
front of the nozzle and
pushing the extension back
into the nozzle.
vax.com.au 4
Operation
Emptying the dirt container
To open, press both buttons either
side of the dirt container
simultaneously.
Empty over a bin.
5
Vax Service line: AU: 1300 361 505
NZ: 0800 800 900
Maintenance
24hr
Cleaning the Nozzle
(Keep your Vax as good as new)
IMPORTANT: The condition of the lter aects the performance
of your machine. Please check and clean the lter periodically
(depending on the level of use).
IMPORTANT: Do not use the handheld without the lter in place.
Depress the dirt container removal
button and pull nozzle away
from unit.
Tap lter against bin.
Hold nozzle over a bin. Grasp lter
gently and pull out.
Allow to dry for 24 hrs.
Shake excess dirt from dirt container.
Tap against bin for better result.
Return lter to dirt container.
vax.com.au 6
Maintenance
To re-attach dirt container
Align bottom of the dirt container
rst and clip nozzle on.
(Keep your Vax as good as new)
7
Vax Service line: AU: 1300 361 505
NZ: 0800 800 900
FAQ’s
WARNING: To reduce the risk of personal injury, unplug the vacuum cleaner before performing
maintenance/troubleshooting checks.
Problem Solution
Why will the handheld not run?
Why won’t the handheld pick up?
Why won’t the battery recharge?
The battery may not be charged. To charge the battery, the power switch must be in the ‘OFF’
position. The red light shows the unit is charging. The initial charge should be for 16 hrs.
For further assistance, please call us on: AU: 1300 361 505 or NZ: 0800 800 900
The nozzle or crevice tool may be blocked, remove the obstruction.
The filter may be clogged or dirty, clean the filter. Refer to Maintenance Section.
The battery charge is getting weak, let the battery run until is slows and recharge.
The dirt container is full, empty the container.
For further assistance, please call us on: AU: 1300 361 505 or NZ: 0800 800 900
Check the vacuum is switched off.
The charger may not be inserted correctly.
Check the mains power is switched on.
The electrical outlet may not be working, check the fuse or breaker and consult an electrician.
For further assistance, please call us on: AU: 1300 361 505 or NZ: 0800 800 900
vax.com.au 8
Other Information
Vax Service & Help
Vax Careline:
Australia 1300 361 505
New Zealand 0800 800 900
Monday-Friday 8.30am to 5.00pm
If you have queries or concerns about using your Vax, call the Vax Careline. Calls are charged at the standard
local rate. Please make a note of the serial number and model number of the vacuum cleaner before calling.
For the nearest Service Agent, please call the Vax Customer Careline or visit vax.com.au
Technical Specication
Handheld Unit
Capacity: 250mL
Weight: 1.66kg
Filter: Washable
Battery & Charger
Battery Voltage: 18V
Runtime: 7 minutes
Charger Output: 220-240V ~50Hz
Inital Charge Time: 16 hours
Battery Type: NiCad
Subject to technical change without notice.
N197
Double
Insulated
Indoor
Use
Read
Instructions
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
Check with your Local Authority or retailer for recycling advice.
9
Vax Service line: AU: 1300 361 505
NZ: 0800 800 900
Notes
vax.com.au 10
Level 1, 660 Doncaster Road, Doncaster, Australia 3108.
www.vax.com.au Service Line: AU: 1300 361 505 / NZ: 0800 800 900
Distributed by Techtronic Industries Pty. Ltd.
