Vax VC-H4510E-1/2/3, VC-H4510ES-11/12/13, VC-HT4510E-1/2/3, VC-HT4510ES-11/12/13 User Manual
User Guide
VC-H4510E/ VC-HT4510E
VC-H4510E-1/2/3 ~220-240V 50Hz 1600W/1800W/2000W
VC-H4510ES-11/12/13 ~220-240V 50Hz 1600W/1800W/2000W
VC-HT4510E-1/2/3 ~220-240V 50Hz 1600W/1800W/2000W
VC-HT4510ES-11/12/13 ~220-240V 50Hz 1600W/1800W/2000W
Suzhou Kingclean Floorcare Co.,Ltd
Xiang Yang Road,Suzhou New Disrtict,Jiangsu, P.R.China
1
READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER
IMPORTANT SAFETY INSTRUTIONS
WARNING_
To reduce the risk of fire, electric shock, or injury:
1. Do not leave vacuum cleaner when plugged in. Unplug from outlet when not in use
and before cleaning or servicing.
2. Do not use outdoors or on wet surfaces.
3. Do not allow to be used as a toy. Close attention is necessary when used by or near
children.
4. Use only as described in this manual. Use only manufacture’s recommend
attachments.
5. Do not use with damaged cord or plug. If the vacuum cleaner is not w orking as it
should, has been dropped, damaged, left outdoors, or dropped into water, return it
to a service center.
6. Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord
around sharp edges or corners. Do not run the vacuum cleaner over cord. Keep cord
away from heated surfaces.
7. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
8. Do not handle plug or the vacuum cleaner with wet hands.
9. Do not put any object into openings . Do not use with any opening blocked, keep
free of dust, lint, hair and anything that may reduce air flow.
10. Keep hair, loose clothing, fingers and all parts of body away from openings and
moving parts.
11. Turn off all controls before unplugging .
12. Use extra care when cleaning on stairs.
13. Do not use to pick up flammable or combustible liquids , such as gasoline ,or use
in areas where they may be present .
14. Hold plug when rewinding onto cord re el . Do not allow plu g t o whip when rewinding.
15. Unplug before connecting the hose .
16. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
17. Do not use without dust bag and/or filters in place .
18.If the supply cord is damaged, it must be replaced by the manufacturer or its
service agent or a similarly qualified person in order to avoid a hazard.
2
SAVE THESE INSTRUTIONS
PRECAUTIONARY MEASURES
If the opening that sucks in the air, the suction pipe or the telescopic wand stick
on pipe are blocked, you should switch off the vacuum cleaner at once. First
clear the blocked substance before you attempt to start the vacuum cleaner
again
.
1. Do not operate the vacuum
cleaner too close to heaters
and like radiators, cigarette
butts etc.
2. Before you insert the plug
into th e wall contact, make
sure your hand is dry.
3. Before you start using the
vacuum cleaner, please remove
large or sharp objects from the
floor in order to prevent that the
paper filter is damaged.
3
4. When you want to pull the plug
from the wall contact, please do
this at the plug itself and not by
means of the electrical cable.
This vacuum cleaner is equipped with a plug and a cable which rolls up
automatically.If anything gets damaged, both the plug and the cable must be
repaired by a qualified repairman or electrician.
ASSEMBLING VACUUM CLEANER
Always remove the plug from the power socket before fitting or removing
accessories!
1.Connecting vacuum cleaner
1. Fitting the flexible hose
Insert flexible hose into the air intake duct
on the top of appliance. Press until it clicks
into position.
Removing the flexible hose:
Removing the plug from the power socket. To release the flexible hose firmly from
the air intake duct.
2.Fitting the extension tubes and accessories
a. Fitting the extension tube to the handle.
4
b. Fitting the extension tubes.
c. Fitting the brush to the extension tube.
d. Fitting Floor brush
Floor Brush
Extension Tube
Ideal for the daily cleaning on carpets and hard floors.
Clean on the carpet
5
Clean on the hard floor
2. Cleaning tools use
The crevice tool and dusting brush are stored on the accessories holder.
1.Crevice tool:
For radiators, crevices, corners, baseboards and between cushions.
2.Dusting brush, only in addition with crevice tool:
For the furniture, venation, blinds, book, lamp shades and shelves.
INSTRUCTIONS FOR USE
Before using appliance, unwind a sufficient length of cable and insert the plug
into the power socket. A yellow mark on the power cable shows the ideal cable
length. Don’t expend the cable beyond the red mark.
1.Press the ON/OFF button to switch the appliance on.
6
2. To rewind the power cable, press the rewind button with one hand and guide the
cable with the other hand to ensure that it does not whip causing damage.
MAINTENANCE
1. Changing of the dust bag
Always operate the cleaner with dust bag installed.
If you forget to attach the dust bag or attach it in the wrong manner, the
dust cover may not close completely.
7
1. After removing the flexible tube, open the front cover .
2. Rotate the support of the bag to the correct position.
3. Remove the dust bag from the Bag Support.
4. Replace the paper bag when it is full of dirt and put in a new one.
5. Close the cover by passing down until it is locked.
2.Spilling rubbish from the dust cup
Always operate the cleaner with the dust compartment subassembly
whole installed.
If you forget to attach HEPA and filter or attach its in the wrong manner, the
dust compartment subassembly may not rinse.
After removing the flexible tube, open the front cover
①
and raise the dust cup’s handle.
Take out the dust cup.
②
Press the lock of dust cup .
③
④ Carry away the dust cap and Spill rubbish.
Replace the dust compartment subassembly until it is locked.
⑤
8
3.Cleaning and changing filter
Filter for air-inlet should be cleaned at least twice a year or when it becomes
visible solid.
Always operate the cleaner with filter installed.
Otherwise, reduced suction or motor damage may be result.
Disconnect from electrical outlet, before cleaning filter.
Do not use a washing machine to rinse filter.
Do not use hair drier to dry it.
1. Changing filter for air-inlet
① Pull dust bag upward
② Remove filter.
Put the filter
③
back.
2. Changing filter for air-outlet
① Open the front cover .
When open the front cover, the HEPA for air-outlet is found.
②
9
③ Take the HEPA out and change a clean one.
Close the front cover.
④

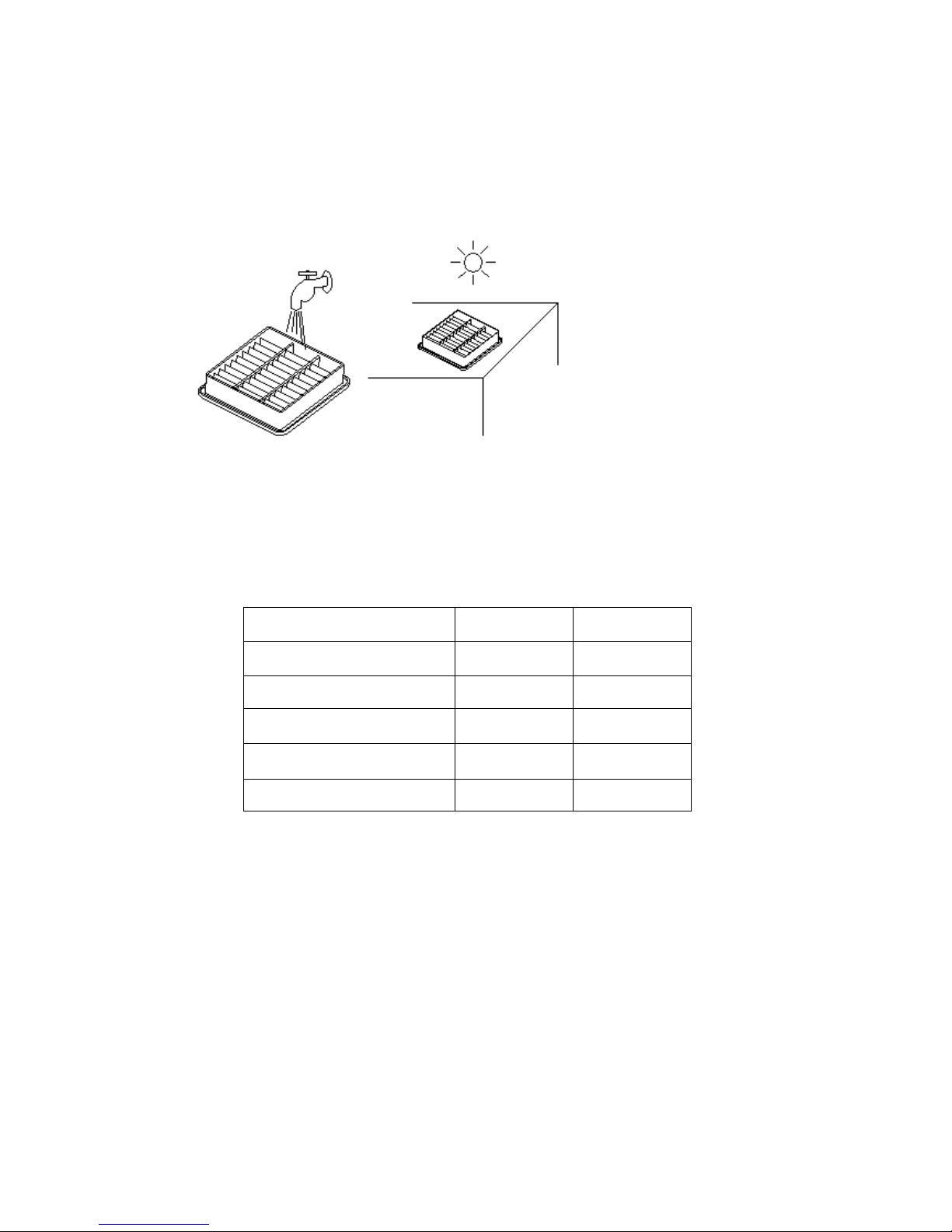

3.Cleaning HEPA
Rinse HAPE in lukewarm water and dry HEPA completely.
Technical Specifications
Type
Rated load (V)
Rated frequency（Hz）
Rated input power（W）
Maximal vacuum（Kpa）
Yawp（dB）
VC-H4510 VC-HT4510
230 230
50 50
2000 2000
24 24
82 82
10
