Vax V-118, Force 2 V-118 Instruction Manual

www.vax.co.uk

Please read carefully before using this cleaner.

Always fully extend the mains cable before use.

Retain for future reference.

Vax careline

0870 6061248

instruction manual

Bagless cylinder

Vax model number:

V-118

Vax V-118 User Guide.qxd:V-118 User Guide 25/6/07 12:35 Page 1

V-118

1. Diagram

www.vax.co.uk

2

parts overview

1

6

2 3 4

5

Fig.1/1

Fig.1/2

1 Dirt container locking button
2 Carry handle
3 Auto cord rewind
4 On/off button
5 Post-motor filter
6 Wheel
7 Dirt container
8 Dirt container handle

9 Dirt container safety latch
10 Telescopic tube
11 Combination floor head
12 Dusting brush
13 Crevice tool
14 Upholstery tool
15 Flexible hose

11

9

8

12

7

10

13 14

15

Vax V-118 User Guide.qxd:V-118 User Guide 25/6/07 12:35 Page 2

3

V

ax Careline 0870 606 1248

safety information

2. Safety Information

For Household Use Only

When using the vacuum cleaner, basic safety precautions
should always be observed, including the following:

1. Only use the vacuum cleaner indoors on dry
surfaces.

2. Turn off the vacuum cleaner controls before
connecting or disconnecting from the mains supply.

3. Always unplug the vacuum cleaner before
connecting or disconnecting the vacuum hose and
accessories.

4. Children should be supervised to ensure that they
do not play with the appliance.

5. The appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.

6. Use only as described in this manual.
Use only the manufacturer’s recommended
attachments.

7. Do not use the vacuum cleaner if it has been
dropped, damaged, left outdoors or dropped into
water. Do not use the vacuum cleaner with a
damaged cord or plug. If the supply cord or plug is
damaged, return the vacuum cleaner to a Vax
Authorised Service Agent or suitably qualified
person for examination, repair or adjustment.

8. Do not pull or carry by the cord. Do not use the cord
as a handle, close a door on the cord or pull the cord
around sharp edges or corners. Do not run the
vacuum cleaner over the cord. Keep the cord away
from heated surfaces.

9. Do not handle the plug or vacuum cleaner with wet
hands. Do not use outdoors or on wet surfaces.

10. Do not put any objects into openings. Do not use
with any openings blocked and do not restrict air
flow. Keep all openings free of dust, lint, hair or
anything that may reduce airflow.

11. Keep hair, loose clothing, fingers and all parts of the
body away from openings and moving parts.

12. Do not pick up hot coals, cigarette butts, matches or
any hot, smoking or burning objects.

13. Do not pick up flammable or combustible materials
(lighter fluid, petrol, kerosene, etc) or use in the
presence of explosive liquids or vapours.

14. Do not vacuum up harmful or toxic material (chlorine
bleach, ammonia, drain cleaner, etc).

15. Do not vacuum up hard or sharp objects such as
glass, nails, screws, coins, etc.

16. Do not use without the filters in place.

17. Take extra care when vacuuming stairs.

18. Keep vacuuming area well lit.

19. Store the vacuum cleaner indoors in a cool, dry area.

20. Turn off the on/off switch before unplugging the
vacuum cleaner.

21. Use only CE-approved 13 amp extension cords.
Non-approved extension cords may overheat. Care
should be taken to arrange the cord so that the cord
cannot be pulled or tripped over.

WARNING: Always switch off and unplug the

vacuum cleaner from the electrical outlet
before assembling, opening or emptying the dirt
container, or before connecting/disconnecting the
attachments.

CAUTION: The vacuum cleaner is a very

powerful unit. Before plugging the cord into
the electrical outlet, make sure the switch is in the
‘off’ position.

IMPORTANT: If the inlet, hose or telescopic

tube is blocked, switch off the vacuum cleaner
and remove the blockage(s) before re-starting the
vacuum cleaner.

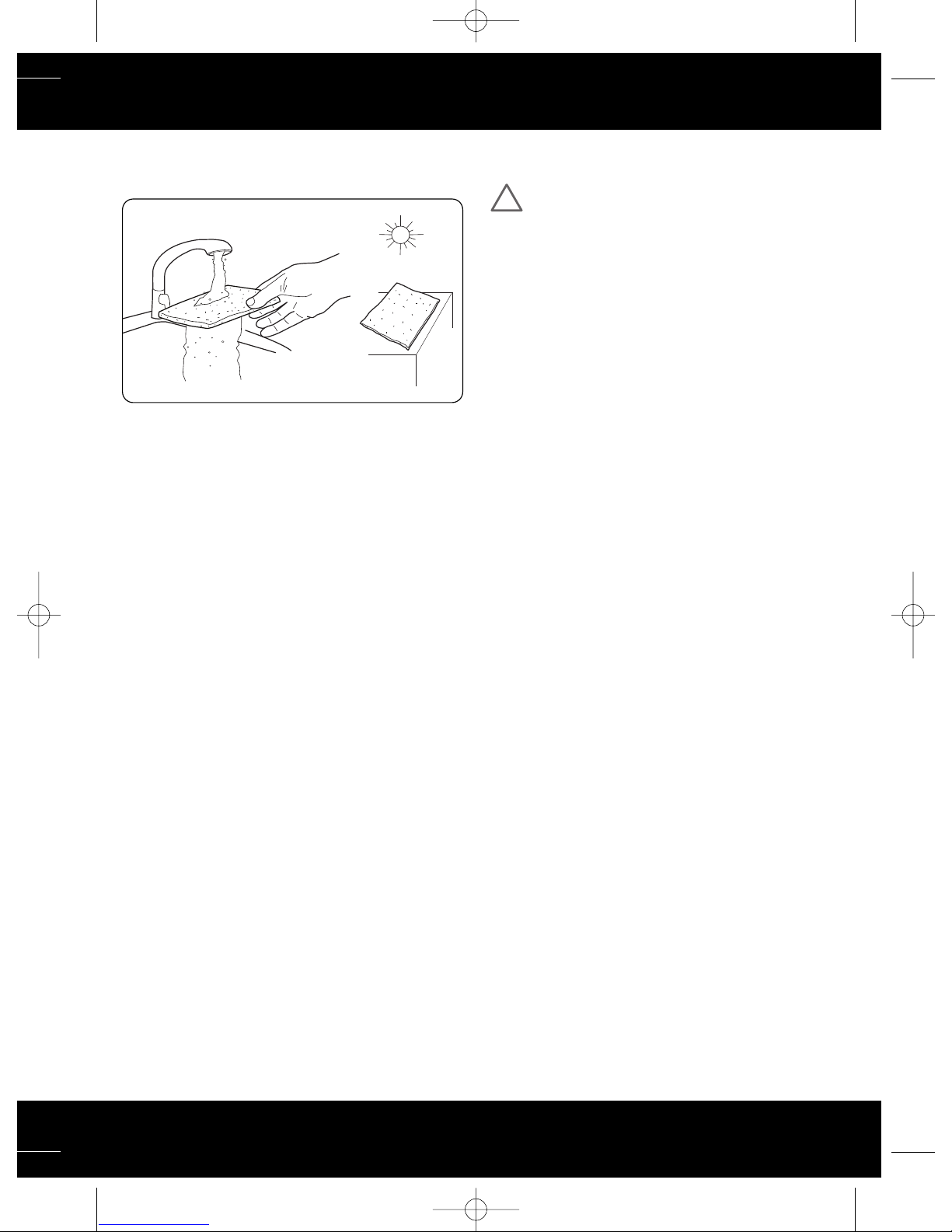

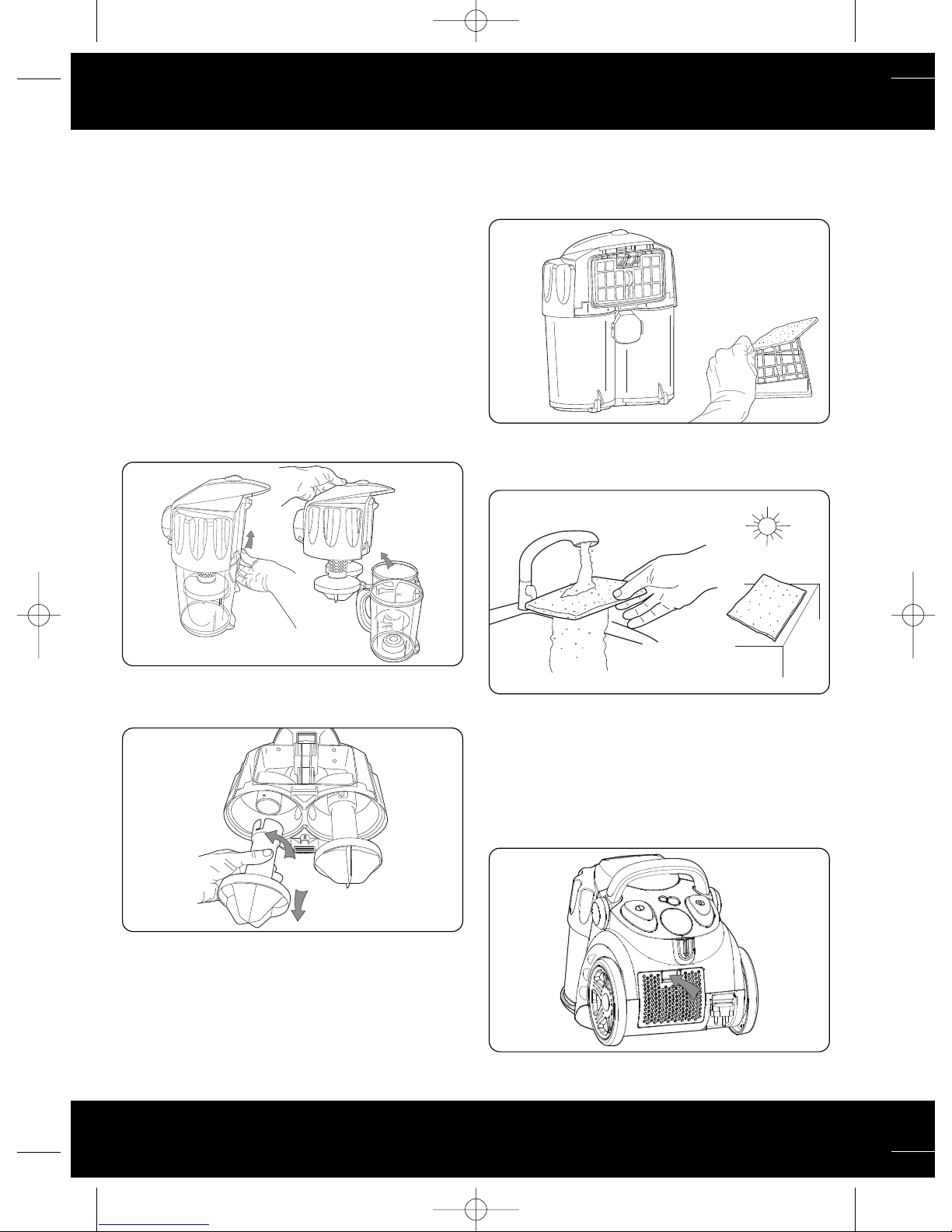

IMPORTANT: Cleaning filters improves vacuum

performance. Make sure all the filters are
completely dry before inserting back into the vacuum
cleaner.

This vacuum cleaner is intended for household use only
and not for commercial or industrial use.

!!!

!

Motor Thermostat

IMPORTANT: The motor is equipped with a thermal

cut-out. If for any reason, the vacuum cleaner should
over-heat, the thermostat will automatically turn the
unit off. Should this occur, unplug the vacuum cleaner
from the electrical outlet and turn off the switch.
Remove the dirt container and empty. Clean the
filters. Allow the cleaner to cool for approximately one
(1) hour. To re-start, plug into an electrical outlet and
switch back on.

Vax V-118 User Guide.qxd:V-118 User Guide 25/6/07 12:35 Page 3

www.vax.co.uk

4

assembly / operation

3. How to Assemble

IMPORTANT: Always unplug the vacuum cleaner
from the electrical outlet before assembling or

removing the accessories.

1. Insert the flexible hose into the inlet on the main body
of the vacuum cleaner. Push in until it clicks into
position (Fig.3/1).

2. Push the telescopic extension tube on to the end of
the handle (Fig.3/2).

3. The telescopic extension tube can be lengthened or
shortened by pushing the button in and sliding the
tube apart or together as required (Fig.3/3).

4. Fit the combination floor head by pushing onto the
extension tube (Fig.3/4).

4. How to Operate

Cord Release

Fully unwind the power cord. A yellow mark on the power
cord indicates the recommended cord length. Do not
exceed the cord length beyond the red mark.

On/Off Button

Insert the power plug into the electrical outlet. Ensure the
vacuum cleaner is switched off.

Press the on/off button located on the top of the vacuum
cleaner and press the button again to turn the vacuum
cleaner off.

Carpet Cleaning

For carpet and rug cleaning press the rocker switch on the
combination floor head to raise the brushes.

Hard floor cleaning

For hard floor cleaning, press the rocker switch on the
combination floor head to lower the brushes.

Cord Rewind

To rewind the power cord, press the cord rewind button,
located on the top of the vacuum cleaner, and guide the
power cord with one hand. This will prevent the cord from
whipping which could cause damage or injury.

Carry Handle

Use the carry handle located on the top of the machine to
move the vacuum cleaner from room to room.

Hose Storage

For convenience there is a slot located located on the rear
of the vacuum cleaner where the floor tool and hose can
be parked for carrying and storage.

Power Indicator

Located on the top of the machine, a green light will
indicate that the machine is working correctly.

Blocked Central Filter Indicator

Located behind the carry handle on the unit, the indicator
light will illuminate red when the filter or dirt container has
become blocked. Empty the dirt container and check the
filters.

Fig.3/1

Fig.3/2

Fig.3/3

Fig.3/4

!
