instruction manual

Bagless cylinder

Vax model number:

V-107

Vax V-107 User Guide.qxd 8/12/06 11:00 Page 1

V-107

1. Diagram

www.vax.co.uk

2

parts overview

1

2

8

Fig.1/1

1 Telescopic tube
2 Combination floor head
3 Flexible hose

4 Dirt container handle
5 Cord rewind button
6 Variable power dial

7 On/off button
8 Dirt container
9 Wheel

7

6

9

3

4

5

1

2

Fig.1/2

3 4

5

1

C

ombina

tion floor head

2

Crevice tool

3

Dus

ting brush a

ttachmen

t

4

Small vacuuming tool

5

T

elesc

opic tube

Vax V-107 User Guide.qxd 8/12/06 11:00 Page 2

3

Vax Careline 0870 606 1248

safety information

2. Safety Information

For Household Use Only

When using the vacuum cleaner, basic safety precautions
should always be observed, including the following:

1. Only use the vacuum cleaner indoors on dry
surfaces.

2. Turn off the vacuum cleaner controls before
connecting or disconnecting from the mains supply.

3. Always unplug the vacuum cleaner before
connecting or disconnecting the vacuum hose and
accessories.

4. Close attention is necessary when used by or near
children. Do not allow children to use as
a toy.

5. Use only as described in this manual.
Use only the manufacturer’s recommended
attachments.

6. Do not use the vacuum cleaner if it has been
dropped, damaged, left outdoors or dropped into
water. Do not use the vacuum cleaner with a
damaged cord or plug. If the supply cord or plug is
damaged, return the vacuum cleaner to a Vax
Authorised Service Agent or suitably qualified
person for examination, repair or adjustment.

7. Do not pull or carry by the cord. Do not use the cord
as a handle, close a door on the cord or pull the cord
around sharp edges or corners. Do not run the
vacuum cleaner over the cord. Keep the cord away
from heated surfaces.

8. Do not handle the plug or vacuum cleaner with wet
hands. Do not use outdoors or on wet surfaces.

9. Do not put any objects into openings. Do not use
with any openings blocked and do not restrict air
flow. Keep all openings free of dust, lint, hair or
anything that may reduce airflow.

10. Keep hair, loose clothing, fingers and all parts of the
body away from openings and moving parts.

11. Do not pick up hot coals, cigarette butts, matches or
any hot, smoking or burning objects.

12. Do not pick up flammable or combustible materials
(ligh

ter fluid, petrol, kerosene, etc) or use in the

presence of explosive liquids or vapours.

13. Do not vacuum up harmful or toxic material (chlorine
bleach, ammonia, drain cleaner, etc).

14.

Do no

t v

acuum up hard or sharp objects such as

glass, nails, scr

e

ws, coins, etc.

15. Do not use without the filters in place.

16. Take extra care when vacuuming on stairs.

17. Keep vacuuming area well lit.

18. Store the vacuum cleaner indoors in a cool, dry area.

19. Turn off the on/off switch before unplugging the
vacuum cleaner.

20. Use only CE-approved 13 amp extension cords. Non­approved extension cords may overheat. Care should
be taken to arrange the cord so that the cord cannot
be pulled or tripped over.

WARNING: Always switch off and unplug the

vacuum cleaner from the electrical outlet
before assembling, opening or emptying the dirt
container, or before connecting/disconnecting the
attachments.

CAUTION: The vacuum cleaner is a very

powerful unit. Before plugging the cord into
the electrical outlet, make sure the switch is in the
‘off’ position. Hold the vacuum cleaner firmly when
starting and in use.

IMPORTANT: If the inlet, hose or telescopic

tube is blocked, switch off the vacuum cleaner
and remove the blockage(s) before re-starting the
vacuum cleaner.

IMPORTANT: Washing filters improved vacuum

performance. Make sure all the filters are
completely dry before inserting back into the vacuum
cleaner.

This vacuum cleaner is intended for household use
only and not for commercial or industrial use.

!!!

!

Motor Thermostat

IMPORTANT: The motor is equipped with a thermal

cut-out. If for any reason, the vacuum cleaner should
o

ver-heat, the thermostat will automatically turn the
unit off. Should this occur, unplug the vacuum cleaner
from the electrical outlet and turn off the switch.
R

emo

v

e the dirt c

on

tainer and empty. Clean the
filters. Allow the cleaner to cool for approximately one
(1) hour. To re-start, plug into an electrical outlet and
switch back on.

Vax V-107 User Guide.qxd 8/12/06 11:00 Page 3

www.vax.co.uk

4

assembly

3. How to Assemble

IMPORTANT: Always unplug the vacuum cleaner
from the electrical outlet before assembling or

removing the accessories.

Tool required:

Phillips screwdriver

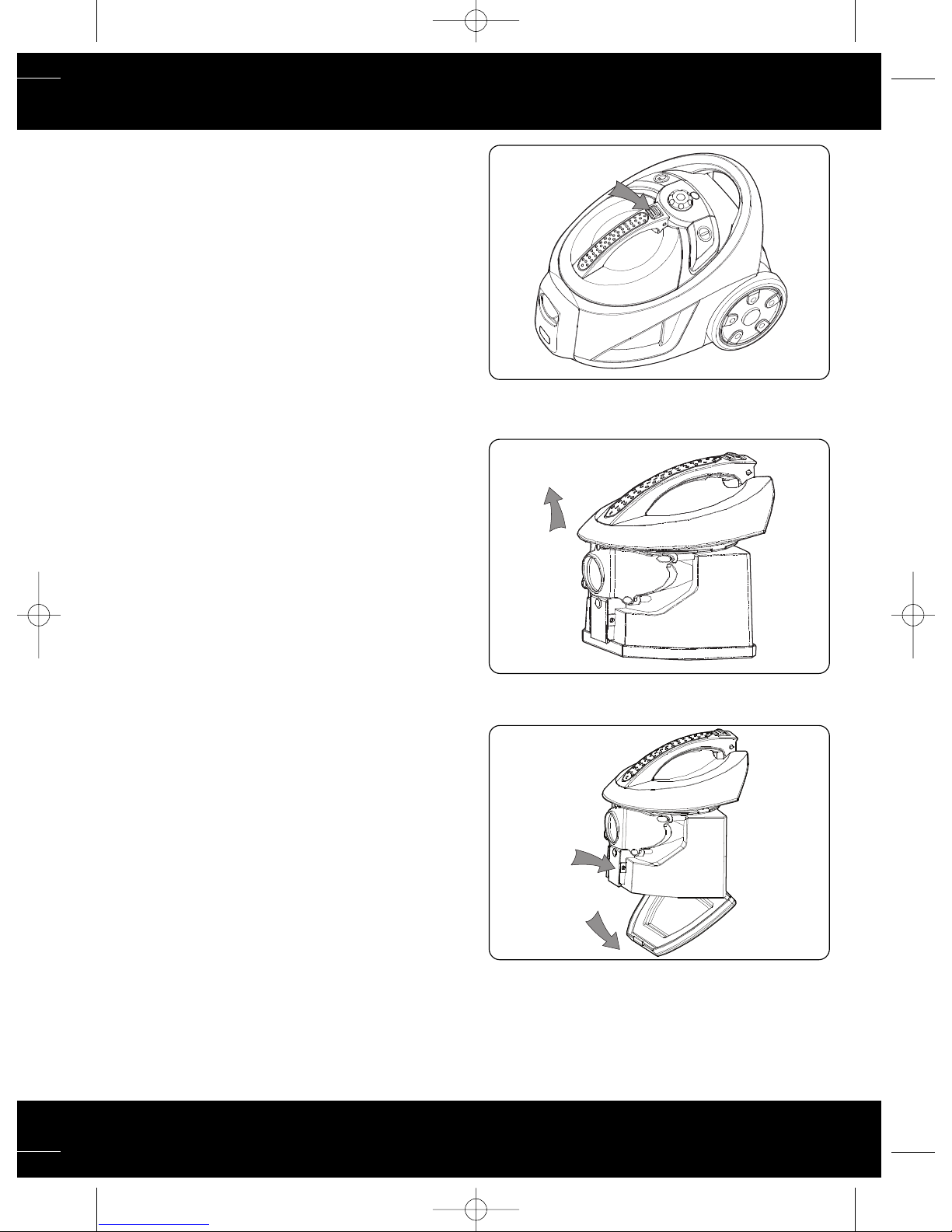

Insert the flexible hose into the inlet on the main body of
the vacuum cleaner. Push in until it clicks into position
(Fig.3/1).

Push the telescopic tube onto the end of the handle
(Fig.3/2).

The telescopic tube can be lengthened or shortened by
pushing the button in and sliding the tube apart or
t

oge

ther as r

equired (Fig.3/3).

4. Fit the combination floor head by pushing on to the
telescopic tube tube (Fig.3/4).

Fig.3/1

Fig.3/4

Fig.3/2

Fig.3/3

!
