vax.co.uk
Please read carefully before using this cleaner.
Always fully extend the mains cable before use.
Retain for future reference.
Vax careline
0870 6061248
instruction manual
Handheld Steamer
Vax model number:
V-084B Series
V-084B Series User Guide.qxd:V-084B Infinity User Guide 6/5/09 16:20 Page 1
All manuals and user guides at all-guides.com
all-guides.com
2
parts overview
vax.co.uk
1. Diagram
V-084B
1 Steam reservoir
2 Nozzle
3 Steam power adjuster
4 Steam reservoir lid
5 Steam trigger
6 Steam trigger safety latch
7 Handle
8 Steam ready and power on/off indicators
9 Extension hose
10 Stiff bristle brush
11 Detail tool
12 Steam nozzle
13 Window tool
14 Mattress / upholstery tool
15 Cotton cloth
16 Steam reservoir jug
10
13 15
1614
11
12
9
Fig.1/1
1
2
3
4
7
5
6
8
V-084B Series User Guide.qxd:V-084B Infinity User Guide 6/5/09 16:20 Page 2
All manuals and user guides at all-guides.com
3
V
ax Careline 0870 606 1248

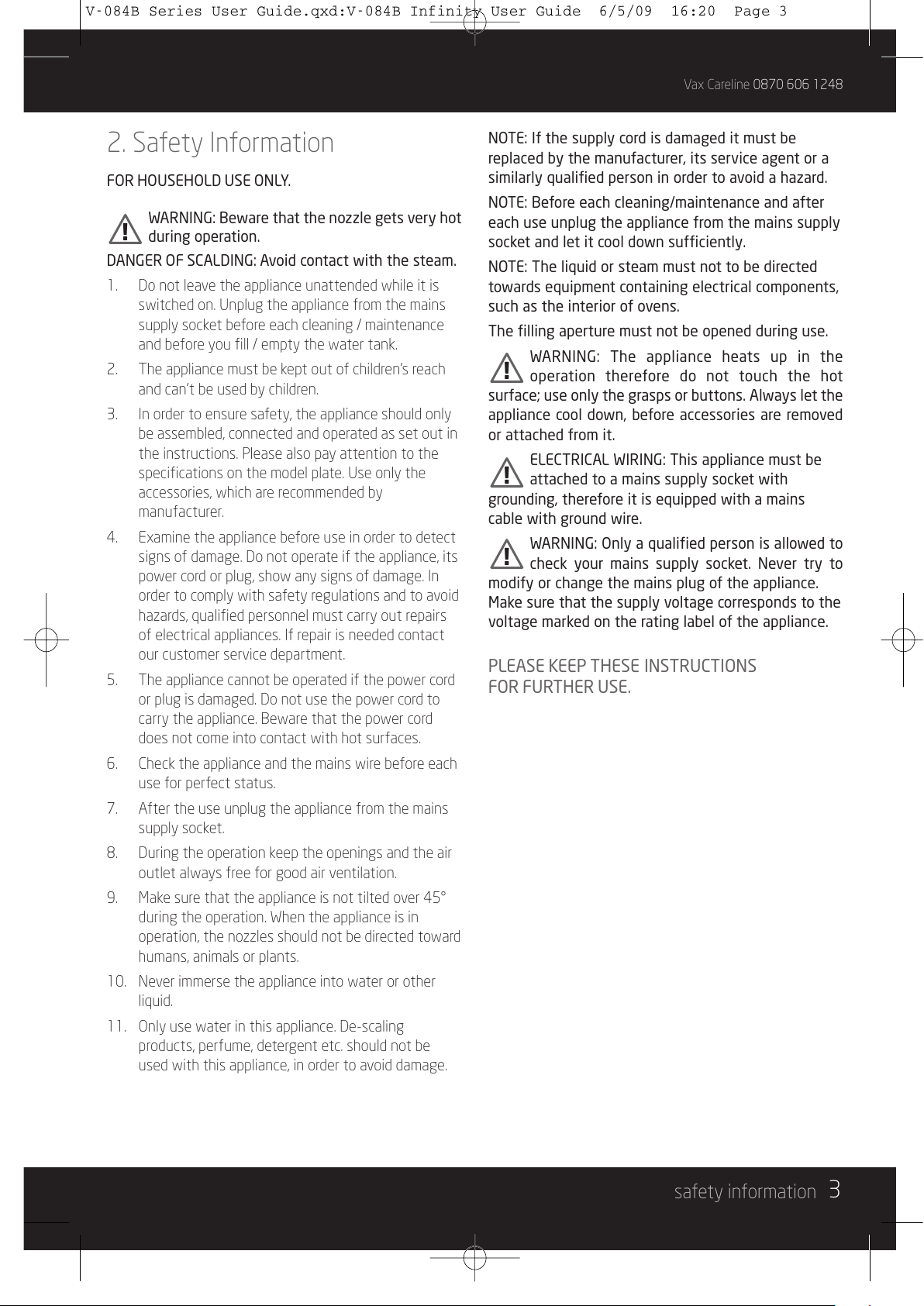

safety information
2. Safety Information
FOR HOUSEHOLD USE ONLY.
WARNING: Beware that the nozzle gets very hot
during operation.
DANGER OF SCALDING: Avoid contact with the steam.
1. Do not leave the appliance unattended while it is
switched on. Unplug the appliance from the mains
supply socket before each cleaning / maintenance
and before you fill / empty the water tank.
2. The appliance must be kept out of children’s reach
and can’t be used by children.
3. In order to ensure safety, the appliance should only
be assembled, connected and operated as set out in
the instructions. Please also pay attention to the
specifications on the model plate. Use only the
accessories, which are recommended by
manufacturer.
4. Examine the appliance before use in order to detect
signs of damage. Do not operate if the appliance, its
power cord or plug, show any signs of damage. In
order to comply with safety regulations and to avoid
hazards, qualified personnel must carry out repairs
of electrical appliances. If repair is needed contact
our customer service department.
5. The appliance cannot be operated if the power cord
or plug is damaged. Do not use the power cord to
carry the appliance. Beware that the power cord
does not come into contact with hot surfaces.
6. Check the appliance and the mains wire before each
use for perfect status.
7. After the use unplug the appliance from the mains
supply socket.
8. During the operation keep the openings and the air
outlet always free for good air ventilation.
9. Make sure that the appliance is not tilted over 45°
during the operation. When the appliance is in
operation, the nozzles should not be directed toward
humans, animals or plants.
10. Never immerse the appliance into water or other
liquid.
11. Only use water in this appliance. De-scaling
products, perfume, detergent etc. should not be
used with this appliance, in order to avoid damage.
NOTE: If the supply cord is damaged it must be
replaced by the manufacturer, its service agent or a
similarly qualified person in order to avoid a hazard.
NOTE: Before each cleaning/maintenance and after
each use unplug the appliance from the mains supply
socket and let it cool down sufficiently.
NOTE: The liquid or steam must not to be directed
towards equipment containing electrical components,
such as the interior of ovens.
The filling aperture must not be opened during use.
WARNING: The appliance heats up in the
operation therefore do not touch the hot
surface; use only the grasps or buttons. Always let the
appliance cool down, before accessories are removed
or attached from it.
ELECTRICAL WIRING: This appliance must be
attached to a mains supply socket with
grounding, therefore it is equipped with a mains
cable with ground wire.
WARNING: Only a qualified person is allowed to
check your mains supply socket. Never try to
modify or change the mains plug of the appliance.
Make sure that the supply voltage corresponds to the
voltage marked on the rating label of the appliance.
PLEASE KEEP THESE INSTRUCTIONS
FOR FURTHER USE.
!!!
!
V-084B Series User Guide.qxd:V-084B Infinity User Guide 6/5/09 16:20 Page 3
All manuals and user guides at all-guides.com
vax.co.uk
4
accessories
3. Attaching the Accessories
WARNING: For the sake of safety, the plug
must be unplugged from socket before
attaching the accessories.
WARNING : This appliance should not be used
directly on soft plastics, non pre-treated wood
or cold glass. To ensure steam can be used on the
desired surface a small test run should be conducted
to prevent damage.
1. Long Nozzle
Insert the steam nozzle onto the main body (Fig.3/1).
When the long nozzle reaches the jet nozzle base twist the
long nozzle to the right until it locks safely into place
(Fig.3/2).
2. Detail Nozzle
The detail nozzle can be used to clean corners. Insert the
detail nozzle on to the steam nozzle directly (Fig.3/3).
3. Stiff Bristle Brush
The nylon brush attachment can be used to clean coarse
surfaces. Push the nylon brush nozzle (as with the detail
nozzle) as far as it will go to fix into place (Fig.3/4).
4. Upholstery Tool
The upholstery tool can be in conjunction with the
window tool to clean windows and other smooth
surfaces (Fig.3/5).
Fig.3/1
Fig.3/4
Fig.3/5
Fig.3/2
Fig.3/3
!
!
V-084B Series User Guide.qxd:V-084B Infinity User Guide 6/5/09 16:20 Page 4
All manuals and user guides at all-guides.com
5
V
ax Careline 0870 606 1248
accessories / preparation
It can also be used with the cotton cloth for cleaning
upholstery (Fig.3/6).
The Upholstery Tool is fitted by pushing it onto the
nozzle. The cotton cloth is fitted by stretching it over the
end of the upholstery tool. The window tool is fitted by
clipping it onto the upholstery tool using the two bottom
hooks and the large hook at the top to secure it (Fig.3/7).
4. Preparation for Use
Press down the steam reservoir lid and turn to release
(Fig.4/2).
Remove the steam reservoir lid by twisting anti-clockwise.
Fill with water using large jug. Replace lid (Fig.4/2).
Connect the power supply.
Wait for between 30 & 60 seconds for the water to heat
and then depress and hold the steam trigger to release
the steam (Fig.4/3).
Fig.3/6
Fig.3/7
Fig.4/1
Fig.4/2
Fig.4/3
V-084B Series User Guide.qxd:V-084B Infinity User Guide 6/5/09 16:20 Page 5
All manuals and user guides at all-guides.com
vax.co.uk
6
preparation / troubleshooting
The amount of steam generated can be adjusted by the
knob at the front of the steamer (Fig.4/4).
When not in use (ie. during warm up or cool down after
use) the steam trigger can be locked by sliding the
safety catch to the right (Fig.4/5).
Please note the indicators at the base of the unit:
The right LED illuminates when the steamer is on. The
left LED illuminates when the steamer is ready to use
(Fig.4/6).
5. Troubleshooting
WARNING: To reduce the risk of personal
injury, unplug the vacuum cleaner before
performing maintenance or troubleshooting
checks.
PROBLEM: Appliance does not start.
Cause: Not properly plugged into electrical outlet.
Solution: Plug in firmly.
Cause: No electricity in electrical outlet.
Solution: Check fuse or breaker.
Cause: Internal fuse blown.
Solution: Have the fuse changed by a qualified
electrician.
Cause: No water in reservoir.
Solution: Fill water reservoir.
PROBLEM: No steam
Cause: No water in reservoir.
Solution: Fill water reservoir.
PROBLEM: Water runs out from the nozzle.
Cause: Too much water in the reservoir.
Solution: Reduce water in the reservoir.
Cause: Appliance tilted too far
Solution: Hold appliance in an upright position.
Cause: Appliance not hot enough.
Solution: Let the appliance heat up for longer before
depressing the steam trigger.
PROBLEM: Water ‘cooks’ during filling.
Cause: Water reservoir still hot.
Solution: Allow to cool before filling.
PROBLEM: Accessory comes loose.
Cause: Accessory not correctly attached
Solution: Refer to user guide for correct fitting
information.
PROBLEM: All solutions exhausted, but steamer is
still not working.
Cause: Appliance may be damaged.
Solution: Contact the Vax Careline.
Fig.4/5
Fig.4/6
!
Fig.4/4
V-084B Series User Guide.qxd:V-084B Infinity User Guide 6/5/09 16:20 Page 6
All manuals and user guides at all-guides.com
all-guides.com
7
V
ax Careline 0870 606 1248
uk service & help / technical specification
6. UK Service & Help
Vax Care 0870 6061248
Monday-Friday 8.30am to 6.30pm
Saturday-Sunday 9.00am to 5.00pm
Any queries or concerns about using the Vax, call the
Vax Careline. Calls are charged at the UK national rate.
Please make a note of the serial number and model
number of the carpet cleaner before calling. There are
over 400 approved Vax Service Agents in the UK. For the
nearest Service Agent, please call the Vax Careline.
www.vax.co.uk
7. Technical Specification
Voltage: 220-240V ~50Hz
Wattage: 1200 W
Water volume: Steam Tank 260 ml
Cord length: 3 m
Weight: 1.8 kg
Subject to technical change without notice.
V-084B Series User Guide.qxd:V-084B Infinity User Guide 6/5/09 16:20 Page 7
All manuals and user guides at all-guides.com
---
EEC STATEMENT OF COMPLIANCE
Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility, declare that the
Vax V-084B Series Handheld Steam Cleaner is manufactured in compliance with the following Directives:
Safety: 2006/95/EC Low Voltage Directive
EMC: 2004/108/EC Electromagnetic Compatibility Directive
Wasteelectrical products should not be disposedof with household waste. Please recycle where
facilities exist. Check with your Local Authority or retailer for recycling advice.
Vax Ltd., Kingswood Road, Hampton Lovett, Droitwich, Worcestershire, WR9 OQH, UK
email: info@vax.co.uk - website: vax.co.uk
