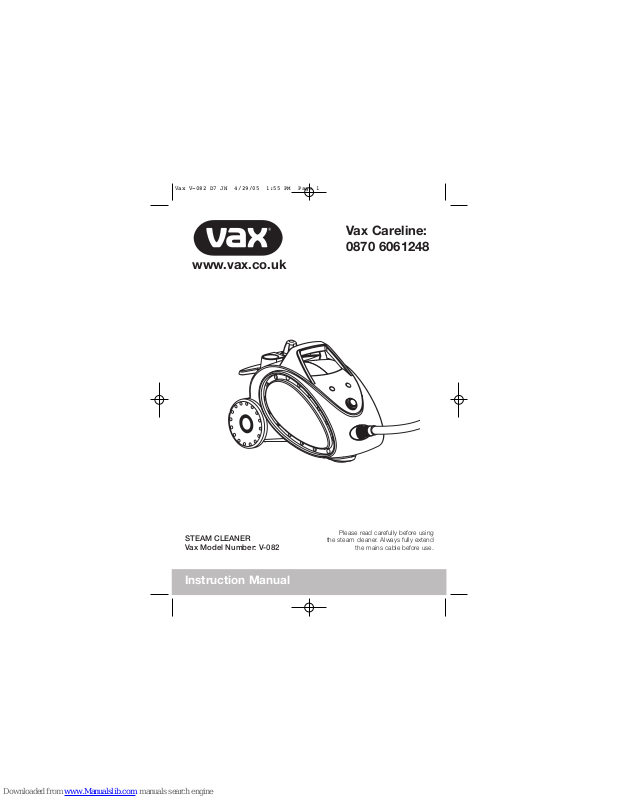

Vax V-082 Instruction Manual

Vax Careline:
0870 6061248

Instruction Manual

Please read carefully before using

the steam cleaner. Always fully extend

the mains cable before use.

www.vax.co.uk

STEAM CLEANER
Vax Model Number: V-082

Vax V-082 D7 JN 4/29/05 1:55 PM Page 1

1 Steam gun with hose and connector
2 Water tank empty indicator
3 Steam ready indicator
4 On/off switch and indicator
5 Water filler cap
6 Tool holder
7 Cable wind

8 2 extension tubes

9 Detail nozzle
10 Brushes for detail nozzle
11 Carpet/floor nozzle
12 Triangular nozzle
13 Mirror/window tool
14 Large cleaning cloth
15 Funnel

1. Diagram

Parts Overview

2

Fig.1/1

1

2

4

3

5

6

7

8

12

14

13

11

9

10

15

Vax V-082 D7 JN 4/29/05 1:55 PM Page 2

3

2. Safety Information

FOR HOUSEHOLD USE ONLY.
When using the steam cleaner, basic safety precautions
should always be observed, including the following:

1. Do not leave the steam cleaner unattended when
plugged in. Unplug it from socket when not in use.

2. To prevent electric shock do not use outdoors.

3. Not to be used as a toy. Close supervision is
necessary when used near children.

4. Use only as described in this manual.

5. Do not use with a damaged cord or plug. If the
supply cord and/or plug is damaged, they must be
replaced by the manufacturer, a Vax Service Agent
or similarly qualified persons in order to avoid
hazard.

6. Do not pull or carry by the cord, use the cord as a
handle, allow the cord to come into contact with
hot or sharp surfaces or close a door on the cord.

7. Do not unplug by pulling on the cord.

8. Do not handle the plug or steam cleaner with wet
hands.

9. Do not put any objects into openings or operate
with openings blocked.

10. Do not use without the filler cap in place.

11. Turn off all controls before unplugging.

12. Keep the steam cleaner on the floor.

13. Do not use an extension cord.

14. Do not attempt to remove blockages with sharp
objects as they may cause damage.

15. Store indoors, put away after use to prevent
tripping accidents.

16. Using improper voltage may result in damage to the
steam cleaner and possible injury to the user. The
correct voltage is listed on the rating label.

17. This steam cleaner is intended for household use
only.

18. A hazard may occur if the steam cleaner runs over
the power supply cord.

19. The steam cleaner must be kept level during
operation.

20. Never immerse the steam cleaner in water or other
liquids.

21. Keep the steam cleaner away from rain and
moisture. The steam cleaner is not suitable for
outdoor use.

Safety Information

22. Only use the steam cleaner in containers/pools
that are not filled with water or other liquids.

23. Do not operate the steam cleaner without water in
the tank. Always top up with water in good time.

24. Empty the water tank when the steam cleaner is not
in use.

25. Never fill the tank with anything other than water.
Never put additives (such as perfume, stain remover
or products containing alcohol) in the water as they
may damage the steam cleaner or make it
dangerous to use.

26. Always remove the mains plug from the socket and
allow this steam cleaner to cool down completely
before topping up with water.

27. Do not overfill the tank. Do not exceed the
maximum prescribed filling level. Please use the
funnel included.

28. Ensure that the water tank’s closure cap has been
screwed down fully before use.

29. Only carry the steam cleaner by the carry handle.

30. D o not touch any hot areas on the steam cleaner. It
is normal for the steam cleaner to heat up during
operation.

31. Do not use the steam cleaner to treat any items of
clothing that are still being worn on the body.

32. The force and heat of the steam may have an
adverse effect on some materials. Always check
whether a surface is suitable for treatment with the
steam cleaner by carrying out a test beforehand on
a concealed area.

33. Always include these operating instructions if
passing the steam cleaner on to a third party.

34. Never aim the steam cleaner at people, animals or
plants (risk of scalding). Do not aim the steam
cleaner at electrical systems or wires.

35. Do not operate the steam cleaner without
supervision. Please always switch the steam
cleaner off and remove the mains plug from the
socket if leaving the work area.

36. The steam cleaner is fitted with a thermostat and a
thermal cut-out as protection against overheating.

37. Accessories become hot during use - allow them
to cool down before handling.

Vax V-082 D7 JN 4/29/05 1:55 PM Page 3

NOTE: It is advisable to use distilled water to prevent
limescale deposits if your water is very hard (over

2.5mmol/l or 21˚dH). Otherwise boil the water first to
extend the life of the steam cleaner.

IMPORTANT: Do not exceed the maximum quantity
of 1.1 litres when filling the tank.

3. Screw the filler cap firmly back on by turning it
clockwise while pressing down.

Connection to Mains Supply

1. Plug the steam cleaner mains plug into an
electrical outlet and switch the steam cleaner on
by pressing the on/off switch. The light on the
switch will come on (Fig.3/3).

4

How to Operate

Fig.3/2

Filling the Tank

IMPORTANT: Never unscrew the tank cap during use.

The tank is under pressure.
IMPORTANT: Do not operate a damaged appliance or

damaged accessories.
IMPORTANT: This steam cleaner is not intended for

commercial use.
NOTE: Carpets should be dry vacuumed thoroughly

before using the steam cleaner.
NOTE: If the supply cord is damaged, it must be

replaced by the manufacturer, a Vax service agent or
similarly qualified persons in order to avoid hazard.

3. How to Operate

1. The steam cleaner has a built-in water tank
holding 1.1 litres. Switch the steam cleaner off and
remove the mains plug from the socket. The
steam cleaner must always be disconnected from
the mains when filling or topping up with water.
Unscrew the filler cap by pressing the cap down
and simultaneously turning it anti-clockwise
(Fig.3/1).

2. Use the funnel supplied when filling with water
(Fig.3/2).

IMPORTANT: Only fill with pure water without
additives of any kind, e.g. perfume, cleaning agents,
alcohol, as they could damage the steam cleaner
and make it dangerous to use.

Fig.3/1

Fig.3/3
