vax.co.uk
Please read carefully before using this cleaner.
Always fully extend the mains cable before use.
Retain for future reference.
instruction manual
Steam Cleaner
Vax model number:
V-081 Series
compact cleaner
Vax Careline: (UK) 0844 412 8455
(ROI) 1-800 928 308
Version 1.0
V-081 Series User Guide.qxd:User Guide 22/4/10 17:26 Page 1
2

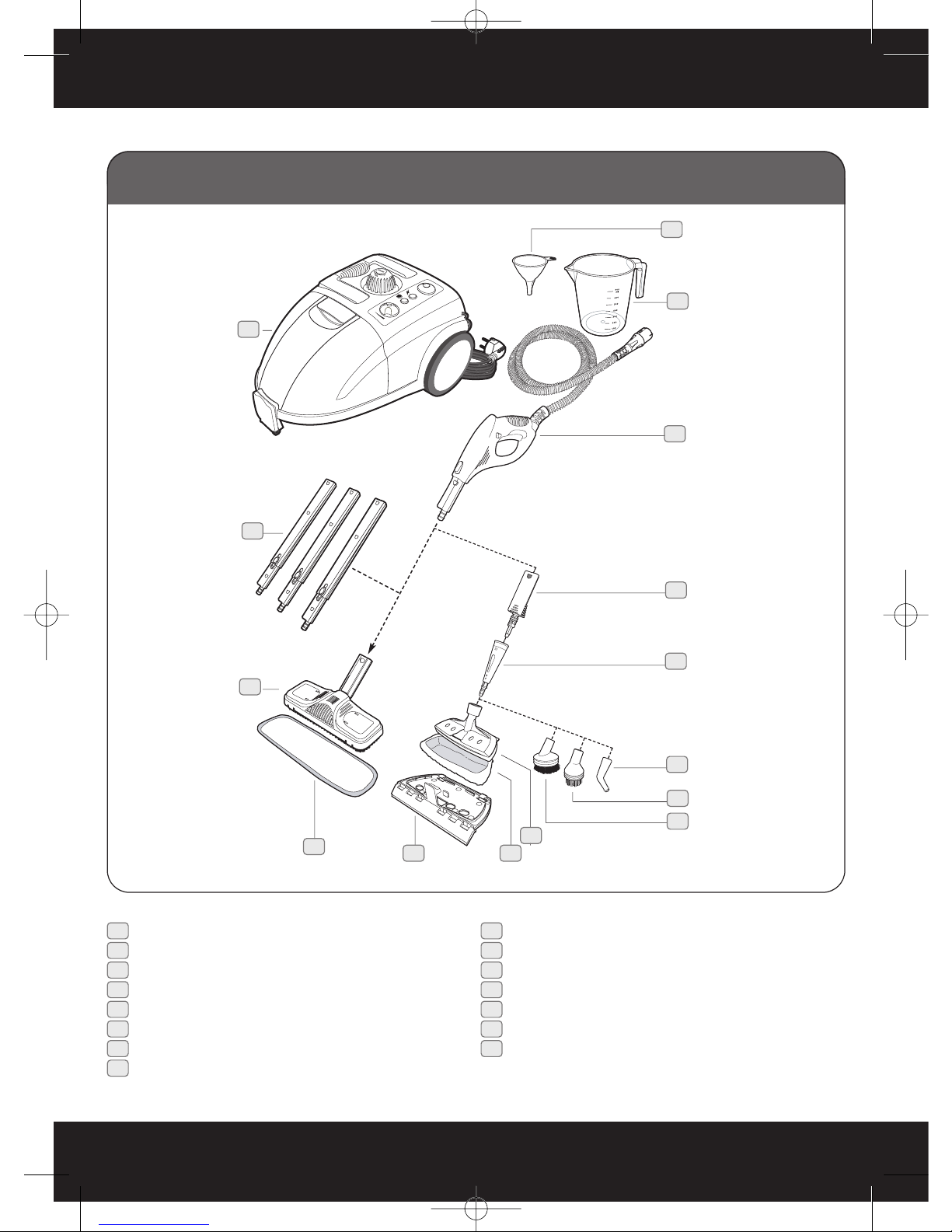

parts overview
vax.co.uk
1. Diagram
V-081 Series
1 Funnel
2 Measuring jug
3 Steam gun with hose and connector
4 Accessory adaptor
5 Detail nozzle
6 Jet nozzle attachment
7 Nylon brush
8 Metal brush
9 2-in-1 attachment (steam attachment)
10 Cotton cover
11 2-in-1 attachment (window attachment)
12 Large cleaning cloth
13 Floor nozzle
14 3 extension tubes
15 Steam cleaner
Fig.1/1
1
2
3
4
5
6
7
8
9
1011
12
13
14
1
5
V-081 Series User Guide.qxd:User Guide 22/4/10 17:26 Page 2
3
safety information
2. Safety Information
FOR HOUSEHOLD USE ONLY.
When using the steam cleaner, basic safety
precautions should always be observed,
including the following:
1. Do not leave the steam cleaner unattended when
plugged in. Unplug it from socket when not in use.
2. To prevent electric shock do not use outdoors.
3. Not to be used as a toy. Close supervision is
necessary when used near children or the infirm.
4. Use only as described in this manual.
5. Do not use the vacuum cleaner if it has been
dropped, damaged, left outdoors or dropped into
water. Do not use the vacuum cleaner with a
damaged cord or plug. If the supply cord is
damaged, it must be replaced by the manufacturer
or a recommended Service Agent to avoid hazard
and invalidating the guarantee.
6. Do not pull or carry by the cord, use the cord as a
handle, allow the cord to come into contact with hot
or sharp surfaces or close a door on the cord.
7. Do not unplug by pulling on the cord.
8. Do not handle the plug or steam cleaner with wet
hands.
9. Do not put any objects into openings or operate
with openings blocked.
10. Do not use without the tank cap in place.
11. Turn off all controls before unplugging.
12. Keep the steam cleaner on the floor.
13. Do not use an extension cord.
14. Do not attempt to remove blockages with sharp
objects as they may cause damage.
15. Store indoors, put away after use to prevent tripping
accidents.
16. Using improper voltage may result in damage to the
steam cleaner and possible injury to the user. The
correct voltage is listed on the rating label.
17. This steam cleaner is intended for household use
only.
18. A hazard may occur if the steam cleaner runs over
the power supply cord.
19. The steam cleaner must be kept level during
operation.
20. Never immerse the steam cleaner in water or other
liquids.
21. Keep the steam cleaner away from rain and
moisture. The steam cleaner is not suitable for
outdoor use.
22. Do not operate the steam cleaner without water in
the tank. Always top up with water in good time.
23. Empty the water tank when the steam cleaner is
not in use.
24. Never fill the tank with anything other than water.
Never put additives (such as perfume, stain remover
or products containing alcohol) in the water as they
may damage the steam cleaner or make it
dangerous to use.
25. Always remove the mains plug from the socket and
allow this steam cleaner to cool down completely
before topping up with water.
26. Do not over fill the tank. Do not exceed the
maximum prescribed filling level. Please use the
measuring jug and funnel included.
27. Ensure that the water tank’s closure cap has been
screwed down fully before use.
28. Only carry the steam cleaner by the carry handle.
29. Do not touch any hot areas on the steam cleaner. It
is normal for the steam cleaner to heat up during
operation.
30. Do not use the steam cleaner to treat any items of
clothing that are still being worn on the body.
31. The force and heat of the steam may have an
adverse effect on some materials. Always check
whether a surface is suitable for treatment with the
steam cleaner by carrying out a test beforehand on
a concealed area.
32. Always include these operating instructions if
passing the steam cleaner on to a third party.
33. Never aim the steam cleaner at people, animals or
plants (risk of scalding)! Do not aim the steam
cleaner at electrical systems or wires.
34. Do not operate the steam cleaner without
supervision. Please always switch the appliance off
and remove the mains plug from the socket if
leaving the work area.
35. The steam cleaner is fitted with a thermostat and a
thermal cut-out as protection against overheating.
36. Accessories become hot during use - allow them to
cool down before handling.
37. Please ensure all parts are correctly fitted before
using the product.
38. Do not use your steam cleaner if damaged/ faulty.
Please call our Vax Careline on 0844 412 8455.
PLEASE KEEP THESE INSTRUCTIONS
FOR FURTHER USE.
!
Vax Careline: (UK) 0844 412 8455 (ROI) 1-800 928 308
V-081 Series User Guide.qxd:User Guide 22/4/10 17:26 Page 3
vax.co.uk
4
assembly
3. Assembly
IMPORTANT: Never unscrew the tank cap during
use. The tank is under pressure.
IMPORTANT: Do not operate a damaged appliance
or damaged accessories.
IMPORTANT: This steam cleaner is not intended
for commercial use.
NOTE: Carpets should be dry vacuumed thoroughly
before using the steam cleaner.
NOTE: If the supply cord is damaged, it must be replaced
by the manufacturer, a Vax service agent or similarly
qualified persons in order to avoid hazard

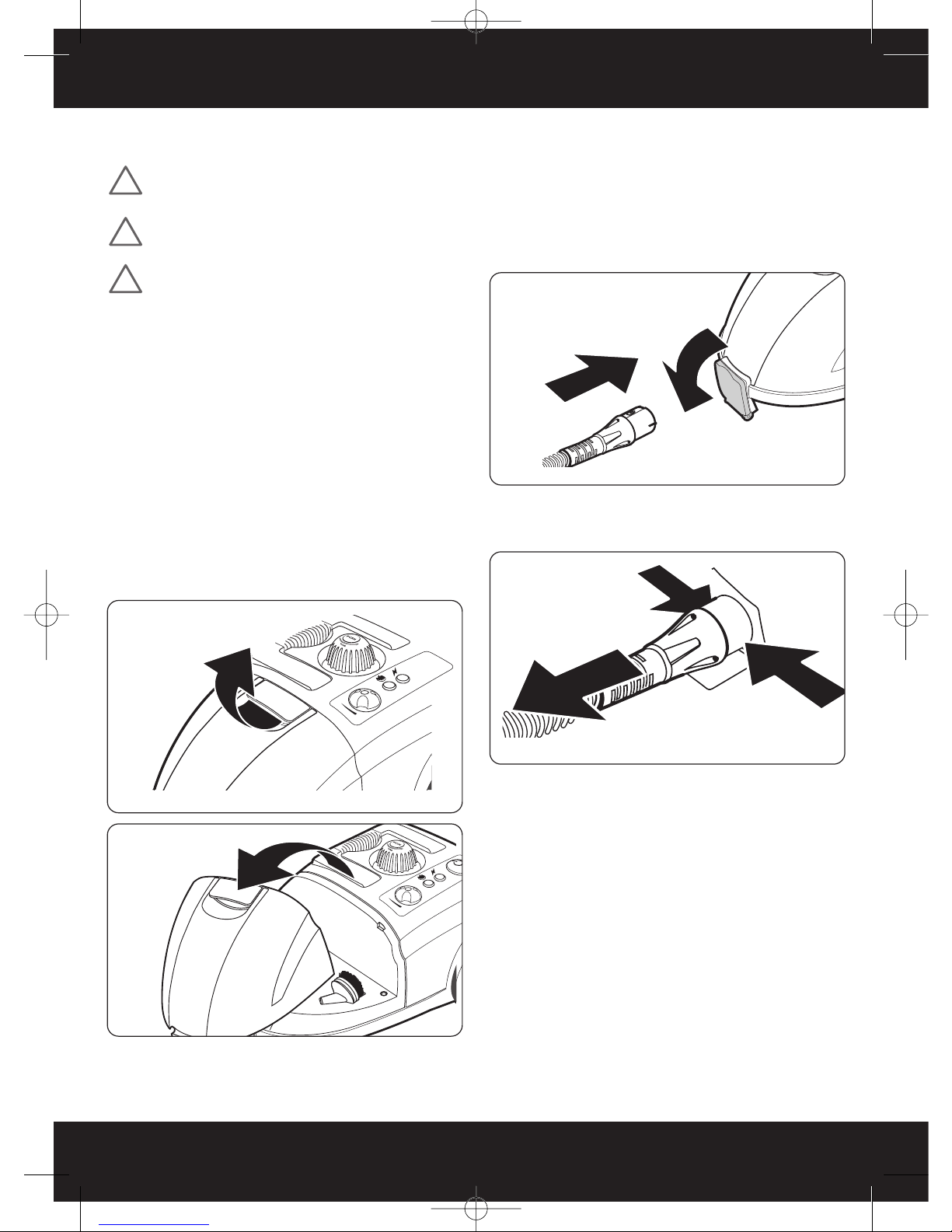

The hose with steam gun must be connected to the
appliance and the desired accessory must be attached
before the steam cleaner can be used. The steam cleaner
has an accessories compartment that houses the detail
nozzle, both brush nozzles, the jet nozzle and the 2-in-1
nozzle. Open the accessories compartment by pulling the
locking handle upwards and lifting the transparent cover
of the accessories compartment off towards the front
(Figs.3/1 and 3/2).
the cover. Slide the nose of the cover into the recess
above the steam socket and press it down firmly at the
back until the cover clicks into place.
First of all connect the hose to the steam socket on the
front of the steam cleaner. To do this, flip the black cover
flap down and push the connector of the hose firmly into
the steam socket until it clicks into place (Fig.3/3).
To remove the hose, press in both release buttons on the
right-hand and left-hand sides of the steam connector
and pull it out of the steam socket (Fig.3/4).
Extension Tubes
Assemble the extension tubes if the steam cleaner is to
be used to clean floors or difficult to reach areas. To do
this, push the open end of a tube onto the steam gun.
Push it onto the steam gun until the release button of
the steam gun clicks into place (Fig.3/5). Add one, two or
all three extension tubes as required.
Fig.3/1
Fig.3/4
Fig.3/2
Fig.3/3
!!!
1
2
V-081 Series User Guide.qxd:User Guide 22/4/10 17:26 Page 4
5
assembly/ operation
Press in the appropriate release button and pull the tubes
apart with a downward movement to take the extension
tube off again (Fig.3/6).
4. How to operate
WARNING: The steam cleaner must always be
disconnected from the mains when filling or
topping up with water.
Filling the tank
The steam cleaner has a built-in water tank holding 1.6
litres. Unscrew the tank cap (Fig.4/1) by pressing the cap
down and simultaneously turning it anti-clockwise. Use
the funnel and measuring jug supplied when filling with
water (Fig.4/2).
NOTE: Only fill with pure water without additives of any
kind, e.g. perfume, cleaning agents, alcohol, as they could
damage the machine and make it dangerous to use.
It is advisable to use limescale deposits if your water is
very hard (over 2.5mmol/l or 21°dH). Otherwise boil the
water first to extend the life of the steam cleaner.
IMPORTANT: Do not exceed the maximum
quantity of 1.6 litres when filling the tank!
Screw the tank cap firmly back on by turning it clockwise
while pressing down.
NOTE: The heating up time will be shortened if warm
water is used when filling.
Fig.3/5
Fig.3/6
!
Fig.4/2
Fig.4/1
Release button
Release button
CLICK
Steam trigger
Vax Careline: (UK) 0844 412 8455 (ROI) 1-800 928 308
!
V-081 Series User Guide.qxd:User Guide 22/4/10 17:26 Page 5
vax.co.uk
6
operation

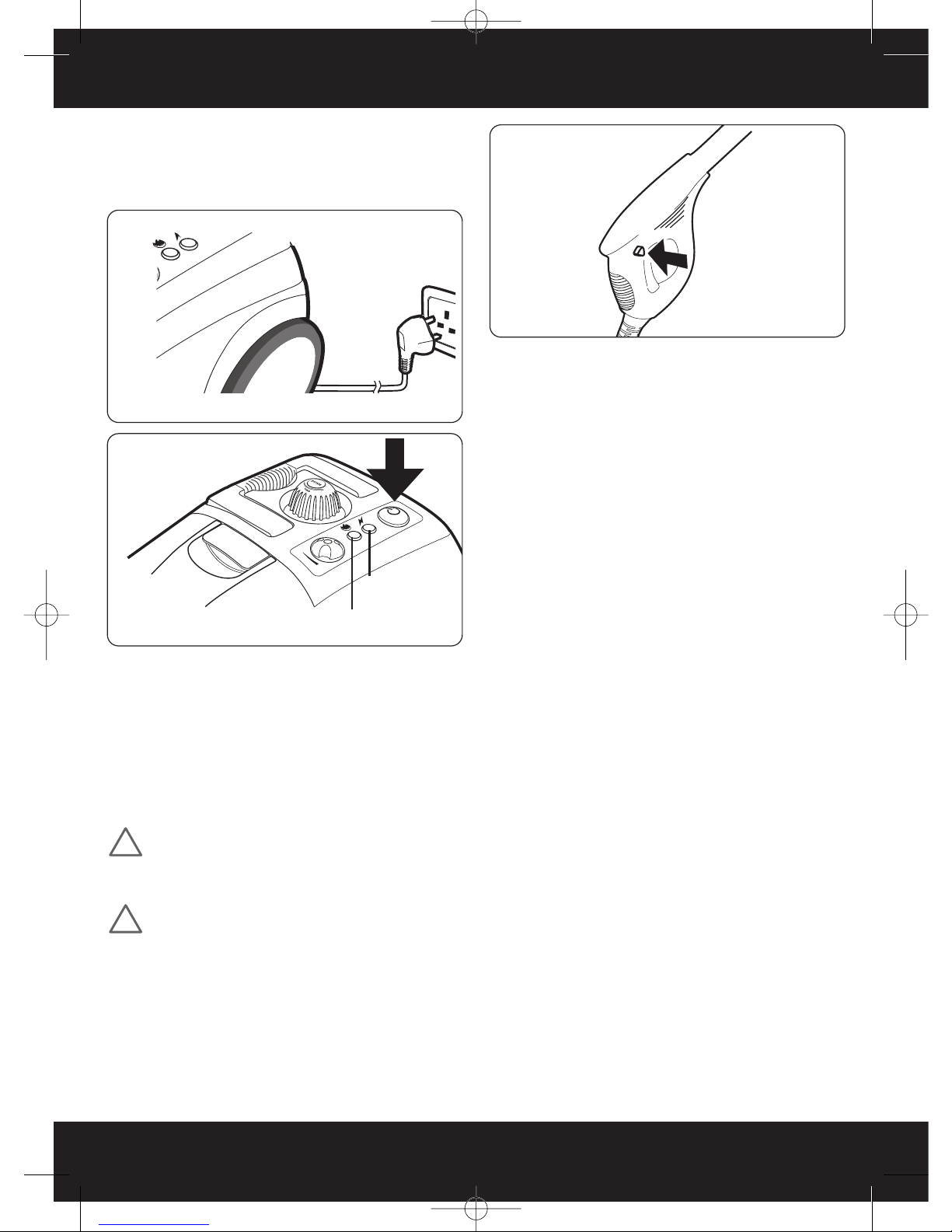

Connection to Mains Supply
Plug the steam cleaner mains plug into a properly
installed socket (Fig.4/3) and switch the steam cleaner on
by pressing the on/off switch (Fig.4/4).
The green operating pilot lamp and the orange heating
pilot lamp (Fig.4/4) light up. The operating pilot lamp
lights up as soon as the steam cleaner has been plugged
in and switched on. The heating pilot lamp indicates that
the steam cleaner is currently heating up. The operating
temperature is reached after approx. 11 minutes and the
orange heating pilot lamp goes out. The appliance is now
ready for use.
Using the Steam Cleaner
IMPORTANT: Never aim the steam outlet of the
steam gun at people, animals, plants or electrical
systems (e.g. oven or socket). There is a risk of
scalding or electric shock.
IMPORTANT: Before use please check all
connections are fitted securely together.
NOTE: Residual steam continues to escape for a few
seconds after switching off the steam function.
Release the locking device (child-proof device) by pushing
the triangular pin on the right-hand side of the steam
gun in towards the left (Fig.4/5).
Hot steam now escapes if the steam button is operated.
First of all hold the steam gun over an old cloth to absorb
any initial spray water. Operate the steam button until
the steam is emitted evenly. Cleaning can now begin.
NOTE: Always test the steam cleaner first on
inconspicuous or invisible areas of the surfaces or fabrics
to be cleaned to check their tolerance to hot steam.
• Steam may result in bleaching of painted/ varnished
wood.
• Steam may discolour shiny plastics.
• Acrylic, velvet and linen react very sensitively to the hot
steam.
• Do not use the steam cleaner on Dralon fibres without
first having carried out a suitability test on a concealed
area.
For understandable reasons, the manufacturer cannot be
held responsible for damage to objects, materials, people,
animals or plants that occurs due to unsuitable use of hot
steam or due to improper use of the appliance.
NOTE: The steam cleaner is fitted with an overheating
cut-out. The steam cleaner switches off automatically on
reaching a temperature of 180°C to prevent overheating.
Disconnect from the mains immediately by removing the
plug. The steam cleaner may be operated again after a
30-minute cooling period.
Do not aim the steam outlet at one point for too long.
Loosen the dirt by moving the steam jet backwards and
forwards. The flow rate of the steam emitted can be
regulated by turning the steam controller and can be
adjusted to the level required. Turn the steam controller
clockwise for less steam and anti-clockwise for more
steam (Fig.4/6).
Fig.4/3
Fig.4/4
Fig.4/5
!
!
Operating
pilot lamp
Heating pilot lamp
V-081 Series User Guide.qxd:User Guide 22/4/10 17:26 Page 6
7
operation/ accessories
Do not tip or tilt the steam cleaner by more than 45°
during use and ensure that the appliance always stands
on a firm base. One full tank is enough for a maximum of
50 minutes use. Do not leave the machine unsupervised
while switched on and if necessary use the child-proof
lock to secure the steam switch. To do this, press the
triangular pin on the left-hand side of the steam gun in
to the right.
IMPORTANT: The housing and accessories
become hot during operation. Allow the steam
cleaner to cool down before changing the
accessories. Never open the tank cap whilst the steam
cleaner is switched on as the tank is under pressure.
Topping Up with Water
The tank must be topped up if the steam flow emitted
starts to decrease. Switch off the steam cleaner by
pressing the on/off switch. The green operating pilot
lamp goes off. Press the steam button on the steam gun
to release the remaining pressure and then lock the gun.
Remove the mains plug from the socket and allow the
appliance to cool down. Vax recommend allowing the
steam cleaner to cool for at least 15 minutes. Open the
tank cap by pressing it down and turning it anticlockwise.
WARNING: Hot steam may escape on opening.
There is a risk of burns from the cap thread and
the tank.
Top up with water using the measuring jug and funnel
then carefully close the tank cap again. The steam
cleaner can now be plugged in again and switched on.
The steam cleaner is ready for use as soon as the heating
pilot lamp goes off.
5. Accessories
Floor Nozzle
Attach the floor nozzle to the end of the extension tube.
Ensure that the nozzle clicks into place on assembly
(Fig.5/1).
The floor nozzle is ideal for cleaning washable wall and
floor coverings. It may be used with or without the
cleaning cloth. However, Vax recommend using the cloth
to protect coverings in the case of sensitive surfaces
such as wood or linoleum.
Place the floor nozzle on the cleaning cloth and secure
the overhanging material under the cleaning cloth clips
on the left and right. Press on the inner sides of the
holder, then open the clips and the cleaning cloth can be
secured in place (Fig.5/1).
To take the floor nozzle off again, press in the
appropriate release button (see Fig.5/2) and pull the
nozzle off with a downward movement.
MIN
MAX
Fig.4/6
Fig.5/1
Fig.5/2
!
!
Vax Careline: (UK) 0844 412 8455 (ROI) 1-800 928 308
V-081 Series User Guide.qxd:User Guide 22/4/10 17:26 Page 7
vax.co.uk
8
accessories
Accessory Adaptor
The steam cleaner has a range of different attachment
nozzles to enable the most effective and thorough
cleaning of different surfaces. First assemble the
accessory adaptor so that these attachments can be
connected to the steam hose. The accessory adaptor can
be attached directly to both the steam gun and the end
of one or more extension tubes.
Ensure that the adaptor is firmly pushed on until it clicks
into place (Fig.5/3). Press in the appropriate release
button and pull apart with a downward movement to take
the adaptor off again
Detail Nozzle
The detail nozzle may be used on its own for cleaning or
may also be fitted with one of the brush nozzles, the jet
nozzle or the 2-in-1 nozzle. This detail nozzle is attached
using a bayonet-style fitting.
Push the nozzle onto the accessory adaptor and give it a
firm quarter-turn in the direction of the arrow stamped on
the nozzle (Fig.5/4).
Reverse the sequence to take the detail nozzle off again:
twist the nozzle a quarter-turn in the opposite direction
to the arrow and pull it off with a downward movement.
Jet Nozzle
Simply push the jet nozzle firmly onto the detail nozzle to
attach it (Fig.5/5). This nozzle makes it possible to clean
hard to reach places such as corners, joints and toilets
with ease. The jet nozzle may be removed by pulling it off
with a downward movement.
Brush Nozzles
The two brush attachments are pushed firmly onto the
detail nozzle in the same way as the jet nozzle. Even the
most stubborn dirt can be removed e.g. from blinds,
central heating radiators, valves, etc using the small nylon
brush (Fig.5/6). The larger metal brush (Fig.5/7) is suitable
for heavy staining on less sensitive materials such as
stainless steel or stone. The brush nozzles are removed
by simply pulling them off with a downward movement.
Fig.5/3
Fig.5/4
Fig.5/5
Fig.5/6
Fig.5/7
CLICK
2 in 1
nozzle
Metal brush
Metal
brush
Nylon
brush
Nylon
brush
Jet
nozzle
Detail
nozzle
Accessory
adapter
V-081 Series User Guide.qxd:User Guide 22/4/10 17:26 Page 8
9
accessories/ cleaning

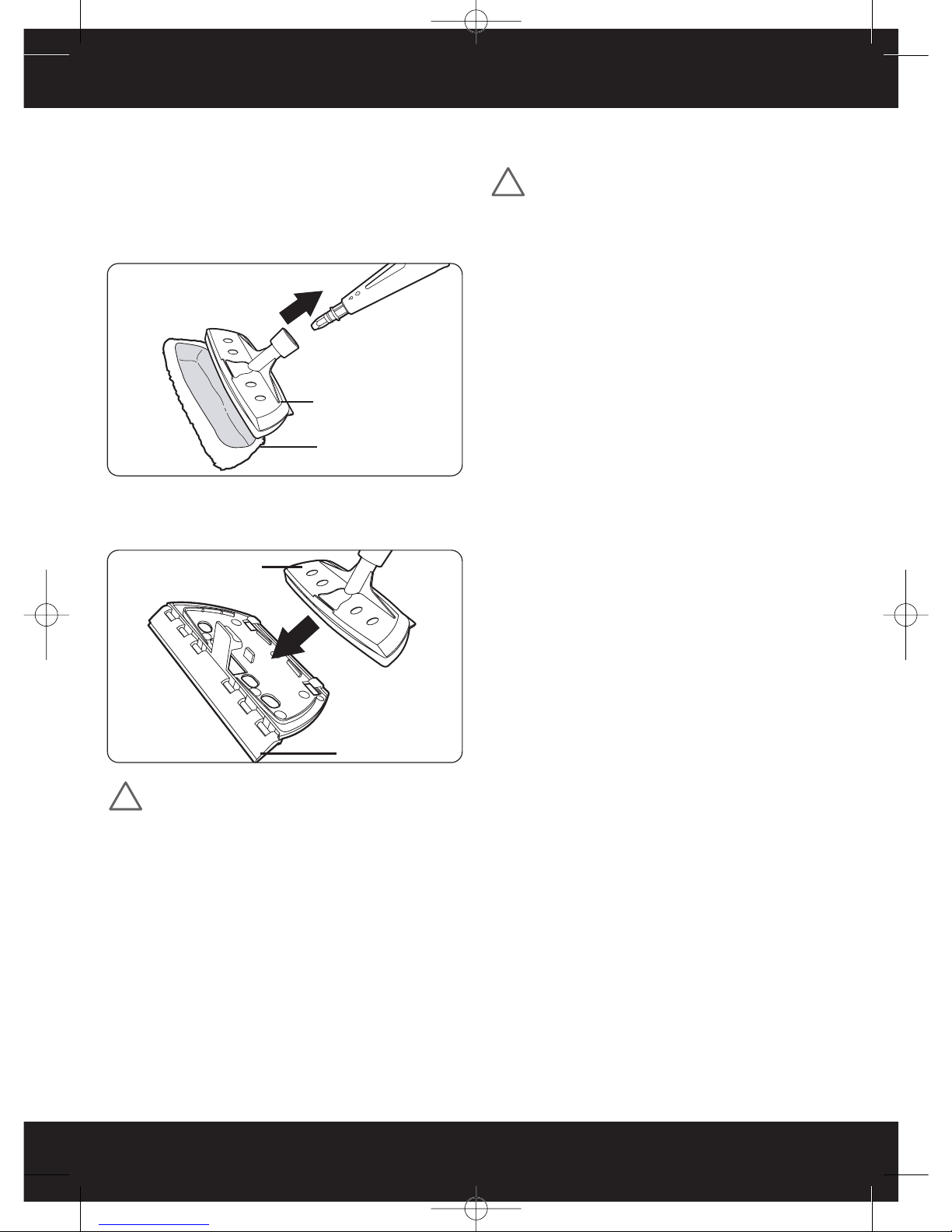

2-in-1 Nozzle
The 2-in-1 nozzle consists of a right-angled steam
attachment onto which the window cleaner can be
attached. Push the right-angled steam attachment firmly
onto the detail nozzle. Pull the cotton cover over the
nozzle for more thorough cleaning and to protect the
work surface (Fig.5/8).
Fix the window cleaner with the rubber blade to the right
angled steam attachment if windows, mirrors or tiles are
to be cleaned (Fig.5/9).
IMPORTANT: Glass may crack if subjected to
thermal shock. Pre-heat areas of glass prior to
steam cleaning by spraying steam in a wider arc from a
distance of 20–25cm. Slowly reduce the distance to
10–15cm to heat the glass up further.
6. Cleaning
IMPORTANT: Always ensure before cleaning or
maintaining the steam cleaner that it is switched
off and unplugged from the mains. Only clean the steam
cleaner by wiping over the housing with a slightly
moistened cloth. Do not use any cleaning agents,
abrasives or alcohol since they may damage the housing.
Vax recommend that the tank be rinsed out after 5 filling
operations at the latest if water hardness is above 1.8
mmol/l (10°dH). Information regarding local water
hardness may be obtained from the water or utility
company. Vax recommend filling the water tank with
water and giving it a good shake to clean it. This will
loosen any limescale that has been deposited on the
bottom of the steam cleaner. Pour out the water and
allow the tank to dry out completely before closing it. The
water tank should be treated with limescale remover
approx. every 6 months to prolong the steam cleaner’s
life. Place one (or at most two) limescale removal sticks in
1 litre of warm water (50°C) and fill the water tank with
it. Allow the solution to work for approx. 30 minutes then
pour away the water with the dissolved solids. Repeat
this process if necessary then rinse out the tank with
water.
Fig.5/8
Fig.5/9
!
!
Steam attachment
Steam attachment
Window cleaning
attachment
Cotton cover
Vax Careline: (UK) 0844 412 8455 (ROI) 1-800 928 308
V-081 Series User Guide.qxd:User Guide 22/4/10 17:26 Page 9
vax.co.uk
10
storage/ troubleshooting
7. Storage
Switch the steam cleaner off. The green operating pilot
lamp goes off. Press the steam button on the steam gun
(Fig.7/1) to release the remaining pressure. Secure the
steam gun by pushing the locking pin on the left hand
side of the handle in to the right.
Remove the mains plug from the socket and allow the
appliance to cool down. Empty the water tank so that no
deposits can settle (Fig.7/2).
The steam cleaner must have cooled down completely
before being put away. Store the steam cleaner so that it
is out of the reach of children. The extension tube with
assembled floor nozzle may be inserted in the parking
holder on the back of the steam cleaner for storage
purposes or for short breaks while working.
8. Troubleshooting
WARNING: To reduce the risk of personal injury,
unplug the steam cleaner before performing
maintenance or troubleshooting checks.
PROBLEM: Operating pilot lamp fails to light.
Cause: The steam cleaner is not plugged into a
socket or is not switched on.
Solution: Insert the mains plug into a socket or switch
the steam cleaner on.
Cause: The socket is faulty.
Solution: Check the socket by unplugging the steam
cleaner and plugging in a different appliance.
Cause: The power cable is damaged.
Solution: Have the cable replaced by a Vax Service
Agent.
PROBLEM: No steam is emitted when the steam
button is pressed.
Cause: The child proof lock is preventing release of
the steam button.
Solution: Push the pin on the right-hand side of the
steam gun inwards and to the left.
Cause: The water tank is empty
Solution: Top up with water.
PROBLEM: Only a very small amount of steam flows
out.
Cause: The steam controller is set to minimum.
Solution: Turn the steam controller anticlockwise until
sufficient steam is emitted.
PROBLEM: The steam cleaner takes a very long time to
heat up.
Cause: The water tank is furred up.
Solution: De-scale the water tank.
Fig.7/1
Fig.7/2
!
V-081 Series User Guide.qxd:User Guide 22/4/10 17:26 Page 10
11
uk service & help / technical specification
9. UK Service & Help
Vax Careline:
(UK) 0844 412 8455
(ROI) 1-800 928 308
Monday-Friday 8.30am to 6.30pm
Saturday-Sunday 9.00am to 5.00pm
Any queries or concerns about using the Vax, call the
Vax Careline. Please make a note of the serial number and
model. For the nearest Service Agent, please call the Vax
Careline.
vax.co.uk
10. Technical Specification
Voltage: 220-240V ~50Hz
Wattage: 1500 W
Steam pressure: 3.5 bar (max)
Permissible pressure 5 bar
Water tank: 1.6 litres (max)
Weight: 4.5 kg (without accessories)
Subject to technical change without notice.
Vax Careline: (UK) 0844 412 8455 (ROI) 1-800 928 308
V-081 Series User Guide.qxd:User Guide 22/4/10 17:26 Page 11
---
EEC STATEMENT OF COMPLIANCE
Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility, declare that the
Vax V-081Series is manufactured in compliance with the following Directives:
Safety: 2006/95/EC Low Voltage Directive
EMC: 2004/108/EC Electromagnetic Compatibility Directive
Wasteelectrical products shouldnot be disposed of with household waste. Pleaserecycle where
facilities exist. Check with your Local Authority or retailer for recycling advice.
Vax Ltd., Kingswood Road, Hampton Lovett, Droitwich, Worcestershire, WR9 OQH, UK
email: info@vax.co.uk - website: vax.co.uk
V-081 Series User Guide.qxd:User Guide 22/4/10 17:26 Page 12
Loading...
