EEC STATEMENT OF COMPLIANCE
Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility declare that the product
V-043 Power Reach is manufactured in compliance with the following:
Safety: 73/23/EEC Low Voltage Directive, as modified by 93/68/EEC
EMC: 89/336/EEC Electromagnetic Compatibility Directive, as modified by 93/68/EEC
Waste electrical products should not be disposed of with household waste. Please recycle where
facilities exist. Check with your Local Authority or retailer for recycling advice.
V
ax Ltd., Kingswood Road, Hampton Lovett, Dr
oitwich, W
or
cestershire, WR9 0QH, UK
email: info@vax.co.uk - website: www.vax.co.uk
V
ersion 1
V043_Artwork.qxd 30/3/06 12:01 Page 1
Vax Careline:
0870 6061248
Instruction Manual
Please r
ead car
efully befor
e using
the cleaner. Always fully extend
the mains cable before use.
www.vax.co.uk
BAGLESS UPRIGHT VACUUM CLEANER
Vax Model Number: V-043
V043_Artwork.qxd 30/3/06 12:01 Page 2
1. Diagram
Parts Overview
1
4
5
6
9
11
8
7
2
17
16
18
15
14
FRONT
BACK
12
13
11
12
2
1 Telescopic handle
2 On/off button
3 Height adjuster button
4 Dirt container lid
5 HEPA filter
6 Dirt container
7 Brushbar height adjuster
8 Vacuum head
9 Wheel
10 Foot pedal
11
Power cor
d
12 Auto cord rewind
13 Extendable hose
14 Handle release button
15 Crevice tool
16 Dusting brush
17 Hose connector
18 Dirt container button release
3
10
Fig.1/1
V043_Artwork.qxd 30/3/06 12:01 Page 3
2. Safety Information
FOR HOUSEHOLD USE ONLY.
When using the vacuum cleaner, basic safety precautions
should always be observed, including the following:
1. Only use the vacuum cleaner indoors on dry
surfaces.
2. Turn off the vacuum cleaner controls before
connecting to or disconnecting from the mains
supply.
3. Always unplug the vacuum cleaner before
connecting or disconnecting the vacuum hose.
4. Close attention is necessary when used by or near
children. Do not allow children to use as a toy.
5. Use only as described in this manual. Use only
the manufacturer’s recommended attachments.
6. Do not use the vacuum cleaner with a damaged
cord or plug. Do not use the vacuum cleaner if it
has been dropped, damaged, left outdoors or
dropped into water. Return the vacuum cleaner to
a Vax Authorised Service Agent or suitably
qualified person for examination, repair or
adjustment.
7. Do not pull or carry by the cord. Do not use the
cord as a handle, close a door on the cord or pull
the cord around sharp edges or corners. Do not
run the vacuum cleaner over the cord. Keep the
cord away from heated surfaces.
8. Do not handle the plug or vacuum cleaner with
wet hands. Do not use outdoors or on wet
surfaces.
9. Do not put any objects into openings. Do not use
with any openings blocked and do not restrict air
flow. Keep all openings free of dust, lint, hair or
anything that may reduce airflow.
10. Keep hair, loose clothing, fingers and all parts of
the body away from openings and moving parts.
11. Do not pick up hot coals, cigarette butts,
matches or any hot, smoking or burning objects.
12. Do not pick up flammable or combustible
materials (lighter fluid, petrol, kerosene, etc) or
use in the presence of explosive liquids or
vapours.
13. Do not vacuum up harmful or toxic material
(chlorine bleach, ammonia, drain cleaner, etc).
14. Do not vacuum up hard or sharp objects such as
glass, nails, screws, coins, etc.
15. Do not use without the filters in place.
16. Use extra care when vacuuming on stairs.
17. Keep vacuuming area well lit.
18. Store the vacuum cleaner indoors in a cool,
dry area.
19. Turn off the switch before unplugging.
20. Use only CE-approved 13 amp extension cords.
Non-approved extension cords may overheat.
Care should be taken to arrange the cord so that
the cord cannot be pulled or tripped over.
WARNING: Always switch off and unplug the vacuum
cleaner from the electrical outlet before assembling,
opening or emptying the dirt container, or before
connecting/disconnecting the attachments.
CAUTION: The vacuum cleaner is a very powerful unit.
Before plugging the cord into the outlet make sure the
switch is in the ‘off’ position. Hold the vacuum cleaner
firmly when starting and in use.
IMPORTANT: If the inlet or hose is blocked, switch off
the vacuum cleaner and remove the blockage(s)
before re-starting the vacuum cleaner.
IMPORTANT: Cleaning filters improves vacuum
performance. Make sure all filters are replaced back
into the vacuum cleaner before using.
This vacuum cleaner is intended for household use
only and not for commercial or industrial use.
PLEASE KEEP THESE INSTRUCTIONS FOR
FURTHER USE.
Safety Information
Motor Thermostat
IMPORTANT: The motor is equipped with a thermal
cut-out. If for any reason, the vacuum cleaner
should over-heat, the thermostat will automatically
turn the unit off. Should this occur, unplug the
vacuum cleaner from the electrical outlet and turn
off the switch. Remove the dirt container and empty.
Clean the filters. Allow the cleaner to cool for
approximately one (1) hour. To re-start, plug into an
electrical outlet and switch back on.
3
V043_Artwork.qxd 30/3/06 12:01 Page 4

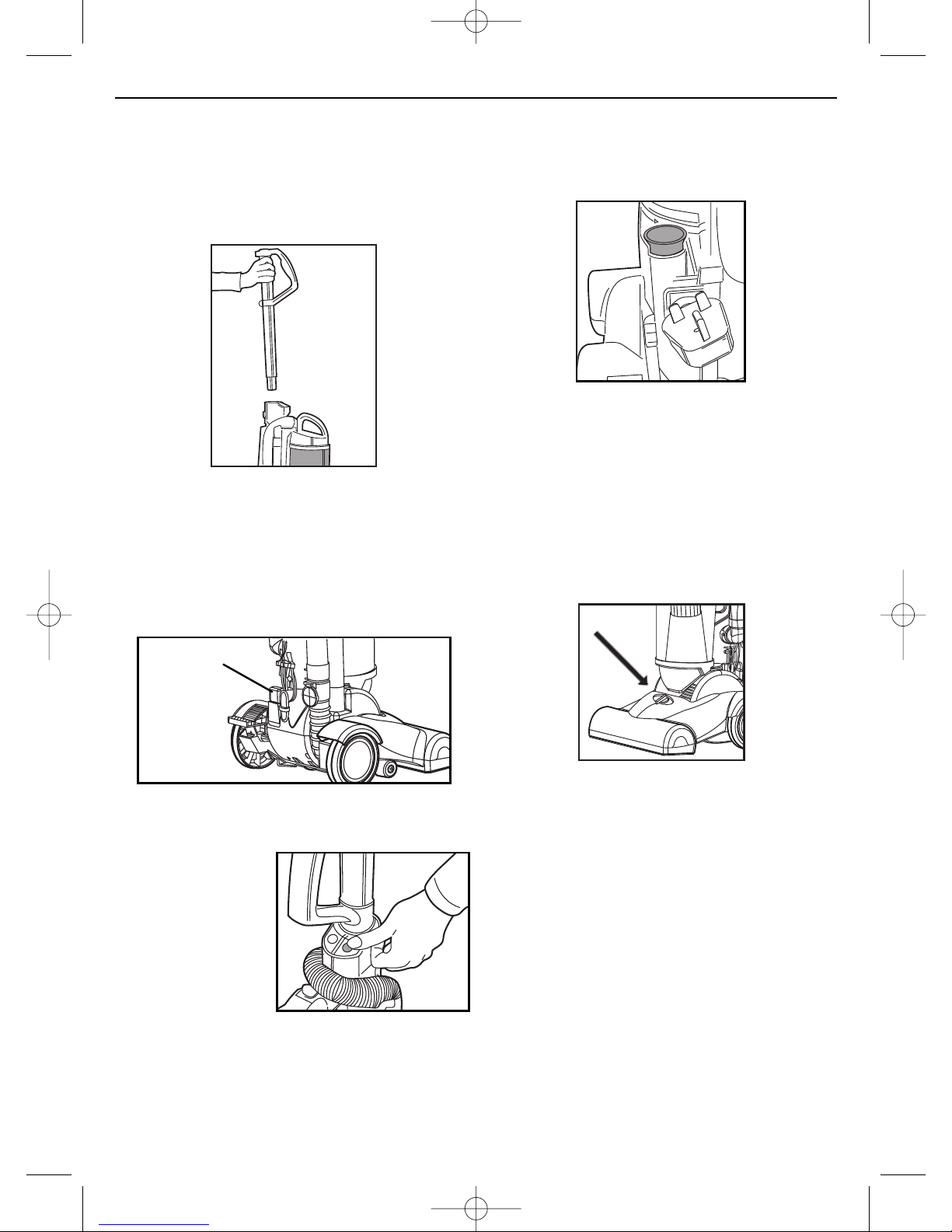

4. How to Operate
On/off pedal
Plug the cord into an electrical outlet. Turn the vacuum
cleaner on by pressing the on/off switch located on the
lower side of the cleaner (Fig.4/1). The cleaner can be
turned off by pressing the on/off switch again.
Telescopic Handle
The telescopic handle allows you to adjuster the height of
the vacuum cleaner
making it easier to
reach difficult areas.
Push the handle
adjuster button to push
the handle up and
down. (Fig.4/2)
The telescopic handle
can also be used as an
extension tube when using the accessories.
IMPORTANT: Always remove the power plug from
the electrical outlet before assembling or removing
accessories.
1. Insert the handle into the top of the vacuum cleaner.
(Fig.3/1).
Use & Function / How to Operate
On/off
switch
3. Use & Function
4
Auto cord rewind
After each use, turn the vacuum cleaner off and unplug
from the electrical outlet. Press the pedal for the cord
rewind to draw the power cord automatically. (Fig.4/3)
Adjustment for floor types
The front of the vacuum cleaner has a brushbar
height adjuster that raises and lowers the brushbar
to suit the type of carpet. With the cleaner NOT
connected to the electrical outlet, set the
adjustment to the lowest setting for maximum
cleaning. If the cleaner is difficult to move, push the
knob to the next highest setting until the vacuum
cleaner is comfortable to push. The brushbar must
reach the carpet for effective cleaning. (Fig.4/4)
Caution: The brushbar continues to rotate while
the hose is removed or in use and at all times when
the vacuum cleaner is on. Keep hair, loose clothing,
fingers and all parts of the body away from the
brush area while the vacuum cleaner is on. The
vacuum cleaner must be away from the brush area
while the vacuum cleaner is on. The vacuum
cleaner must be in the upright position to lift the
rotating brushbar off the carpet when cleaning
above the floor. Vax recommend that the brushbar
height adjuster is turned to its highest position
when using tools.
Fig.3/1
Fig.4/1
Fig.4/2
Fig.4/3
Fig.4/4
(See section 5).
V043_Artwork.qxd 30/3/06 12:01 Page 5
To use the telescopic handle, release the handle by
pushing the handle release button and attach the
hose to the top of the telescopic handle (Fig.5/3).
Attach the desired accessory to the end of the
telescope handle (Fig.5/4).
Accessories/Dirt Container & Filter: Removal & Replacement
5
5. Accessories
Crevice Tool
Use the crevice tool for radiators, crevices, corners,
skirting boards and between cushions.
Dusting brush
Use the dusting brush on soft furnishings.
Attaching the Accessories
The crevice tool and dusting brush can be used
with or without the telescopic handle. To attach the
accessory to the hose, remove the hose from the
machine (Fig.5/1) and push the accessory onto the
end (Fig.5/2).
6. Dirt Container & Filter:
Removal & Replacement
IMPORTANT: Always unplug the vacuum cleaner from
the electrical outlet before opening the dirt container.
IMPORTANT: Do NOT use the vacuum without the
HEPA filter in place.
1. To remove the dirt container, press the dirt container
release button and lift away from the vacuum
cleaner (Fig 6/1).
2. Release the bottom of the dirt container by pushing
the button located at the back of the dirt container.
(Fig.6/2).
3. Empty all the dirt from the container (Fig.6/3).
4. Remove the filter by
twisting anti-clockwise
and pulling out (Fig.6/4).
NOTE: The HEPA filter may
be washed by running it
under the tap. We
recommend washing it once
a month or when suction
appears r
educed.
Always allow to air dry for
24 hours before replacing into the vacuum.
Fig.5/1
F
ig.6/1
Fig.6/2
Fig.6/3
Fig.6/4
Fig.5/2
Fig.5/3
Fig.5/4
V043_Artwork.qxd 30/3/06 12:01 Page 6

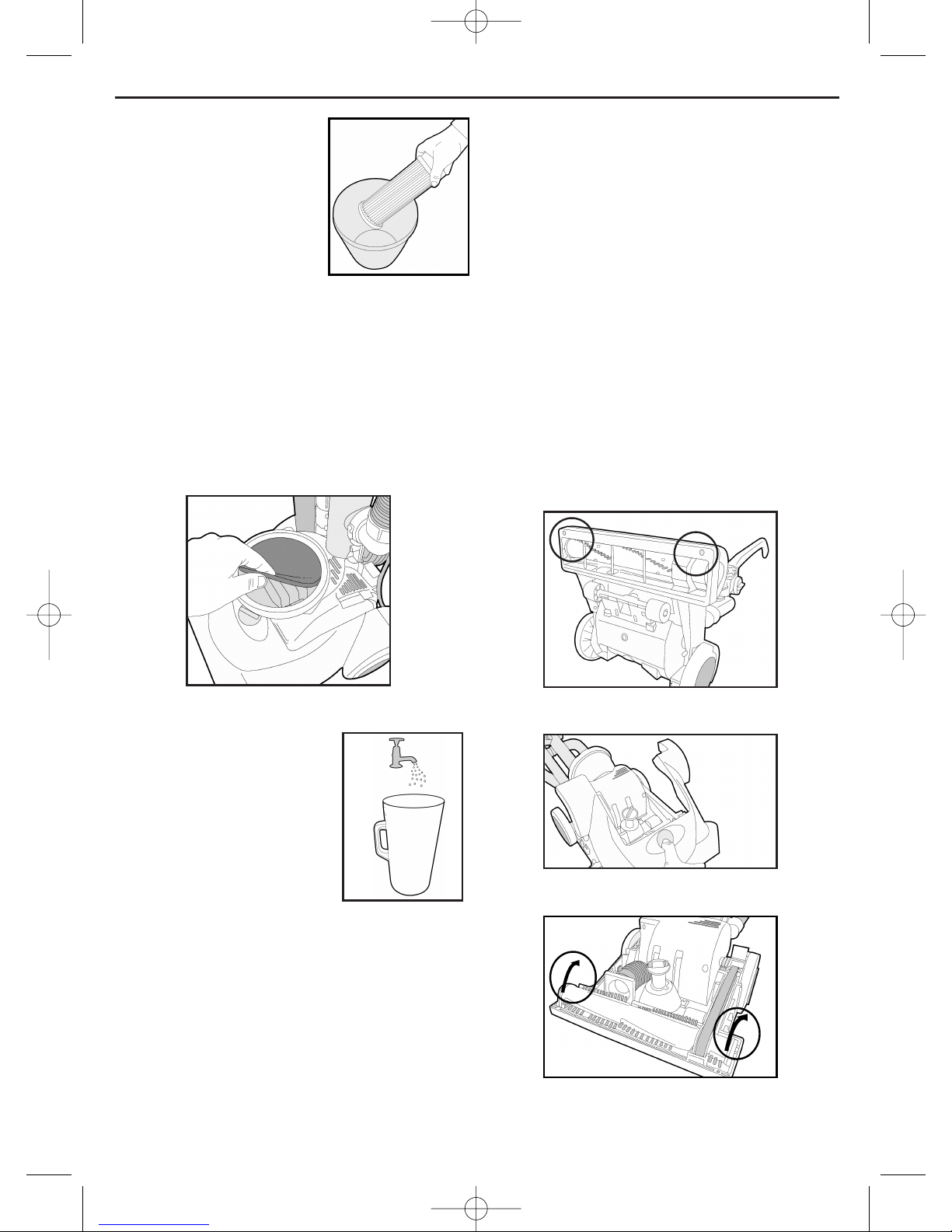

5. Firmly tap clean the HEPA
filter until no more dust is
observed falling out
(Fig.6/5).
NOTE: The white material in
the HEPA filter will discolour
over time -This is NORMAL and
will NOT affect the performance
of the filter.
WARNING: Always empty the dirt container and clean
the HEPA filter before each use and during prolonged
usage. Never over fill the dirt container, remove dirt and
clean the HEPA filter each time the dirt container is
emptied during prolonged usage or risk motor damage.
Cleaning the Pre-Motor Filter
Underneath the dirt container is a pre-motor filter.
If found to be defective, please replace (Fig.6/6).
Cleaning the Dirt Container
WARNING: To reduce the risk of electric shock, the
power cord must be
disconnected before removing
the dirt container, HEPA filter,
changing the filters or performing
maintenance / troubleshooting
checks.
• The dirt container can be
washed in lukewarm water
(max 40ºC) (Fig.6/7).
• Do not use strong detergents.
•
Ensur
e that the dirt container is fully dry befor
e
putting back on the vacuum cleaner. Do not wash
in dishwasher.
7. Rotating Brushbar:
Removal & Replacement
Tools required: Phillips screwdriver.
WARNING: To reduce the risk of electric shock, the
power cord must be disconnected before removing
the dirt container, HEPA filter, changing the filters or
performing maintenance/troubleshooting checks.
Occasionally, the power nozzle drive belt will require
changing, the frequency will depend upon the amount
of vacuum use.
1. Turn vacuum off and unplug from power supply.
Press handle release button and lay vacuum cleaner
on a flat, level surface.
2. Using a Phillips screwdriver, remove the four (4)
screws on the underside of the cleaner (Fig.7/1)
to release the top cover of the vacuum head
(Fig.7/2).
Dirt Container & Filter: Removal & Replacement/Rotating Brushbar: Removal & Replacement
6
Fig.6/5
Fig.6/6
Fig.7/1
Fig.6/7
Fig.7/2
Fig.7/3
V043_Artwork.qxd 30/3/06 12:02 Page 7
3. Lift the right side of the brushbar and lift the left
hand side and remove the brushbar from the
vacuum cleaner head (Fig.7/3).
4. Remove the worn or broken belt from the motor
drive shaft.
5. Carefully remove any belt residue that may exist in
the belt area before replacing with a new belt.
6. Loop the new belt first over the motor drive shaft
and then over the agitator pulley.
7. Insert the right side of the brushbar in first by
placing the end cap down in the slot and then so
the same with the left side. Press firmly to make
sure that each end is completely inserted.
8. Check to make sure that the belt is centred on the
agitator pulley and that the brushbar turns.
9. Replace the vacuum head cover by screwing in the
four (4) screws on the underside of the vacuum
cleaner.
8. Clearing Blockages
1. Switch the vacuum cleaner off and disconnect the
power plug from the electrical outlet.
2. The flexible hose can be disconnected from the
vacuum cleaner by turning anti-clockwise and
pulling away from the machine (Fig.8/1). Remove
any blockages found then reconnect the hose
securely.
Clearing Blockages
7
Fig.8/1
V043_Artwork.qxd 30/3/06 12:02 Page 8
8
T
roubleshooting
9. Troubleshooting
WWAARRNNIINNGG::
TO REDUCE RISK OF PERSONAL INJURY UNPLUG VACUUM CLEANER BEFORE SERVICING
PROBLEM: Cleaner won’t run
C
ause:Not properly plugged into electrical outlet.
Solution: Plug in firmly.
Cause: No electricity in electrical outlet.
Solution: Check fuse or breaker.
Cause: On/off switch not turned on.
Solution: Push on/off switch to on.
Cause: Motor thermostat tripped.
Solution: Reset motor thermostat (see page 3).
Cause: Blown fuse/tripped breaker.
Solution: Reset circuit breaker or replace fuse.
PROBLEM: Cleaner won't pick up
Cause: Full or clogged dirt container.
Solution: Clean dirt container.
Cause: Wrong pile height setting.
Solution: Adjust brushbar height adjuster .
Cause: Clogged nozzle.
Solution: Remove obstruction.
Cause: Clogged dirt inlet.
Solution: Remove vacuum cleaner head cover and remove obstruction.
Cause: Clogged hose.
Solution: Remove obstruction.
Cause: Broken belt.
Solution: Replace belt.
Cause: Hose not inserted fully.
Solution: Push hose in securely.
Cause: Dirty filters.
Solution: Clean/change filters.
PROBLEM: Accessories won't pick up
Cause: Accessories not attached correctly.
Solution: Refer to page 6 for fitting information.
PROBLEM: Cleaner picks up moveable rugs or pushes too hard
Cause: Wrong pile height setting.
Solution: Adjust setting on brushbar height adjuster .
PROBLEM: Brushbar does not turn
Cause: Broken belt.
Solution: Replace belt.
Cause: Belt installed incorrectly.
Solution: Check belt.
PROBLEM: Air flow restricted with attachment use
Cause: Attachment use restricts air flow.
Solution: Check attachment.
Cause: New carpet debris clogging air path.
Solution: Remove obstruction.
V043_Artwork.qxd 30/3/06 12:02 Page 9
9
T
roubleshooting
10. UK Service & Help
Vax Care 0870 6061248
Monday-Friday. 9.00am to 5.00pm.
An answerphone will be available out of these hours.
Any queries or concerns about using your Vax, call the
Vax Careline. Calls are charged at the UK national rate.
Please make a note of the model number and serial
number of your Vax before calling. There are over 400
approved Vax Service Agents in the UK. For the
nearest Vax Service Agent, please call the Vax Careline
or visit www.vax.co.uk
www.vax.co.uk
11. Technical Specification
Voltage: 240V ~50Hz
Wattage: 1500W
Capacity: 2.9 litres
Filter System: Pleated paper HEPA filter
Pre-motor
Cord length: 5.5m
Weight: 7.3kg
Subject to technical change
without notice.
V043_Artwork.qxd 30/3/06 12:02 Page 10
10
V043_Artwork.qxd 30/3/06 12:02 Page 11
11
V043_Artwork.qxd 30/3/06 12:02 Page 12
Loading...
