Vax DUAL V-124, V-033 Instruction Manual

www.vax.co.uk

Please read carefully before using this cleaner.

Always fully extend the mains cable before use.

R

e

tain f

or future reference.

Vax careline

0870 6061248

instruction manual

Carpet washer

Vax model number:

V-124

Vax V-124 User Guide v5.qxd 21/9/07 16:38 Page 1

V-124

1. Diagram

www.vax.co.uk

2

parts overview

1

3

2

4

9

12

14

15

13

1

9

1

8

21

22

23

5

6

8

17

16

7

10

11

Fig.1/1

1 Handle grip
2 Solution trigger
3

On/off switch
4 Wash/rinse switch
5 SpinScrub handtool
6 Carry handle
7 Clean water tank handle
8 Clean water tank
9 Solution container

10 Recovery tank handle
11 Recovery tank
12

Recovery tank latches
13 Brush setting selector
14 Solution tube connection port
15

Edge cleaners
16 Nozzle
17

Hose connection port
18 Cord hook

19 Hose
20 Hose/tool caddy
21

Stair/upholstery tool
22 Cord/hose hook
23 Handle release pedal
24

Wheels
25 Vax carpet cleaning solution

20

24

25

Vax V-124 User Guide v5.qxd 21/9/07 16:38 Page 2

3

Vax Careline 0870 606 1248

safety information

2. Safety Information

FOR HOUSEHOLD USE ONLY.

When using the carpet washer, basic safety precautions
should always be observed, including the following:

1. Do not leave the carpet washer unattended when
plugged in. Unplug it from socket when not in use.

2. To prevent electric shock do not use outdoors.

3. Not to be used as a toy. Children should be supervised to
ensure that they do not play with the appliance.

4. This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning the use of the appliance by a person
responsible for their safety.

5. Use only as described in this manual.

6. Do not use with a damaged cord or plug. If the supply
cord and/or plug is damaged, they must be replaced
by the manufacturer, a Vax Service Agent or similarly
qualified persons in order to avoid hazard.

7. Do not pull or carry by the cord, use the cord as a
handle, allow the cord to come into contact with hot
or sharp surfaces or close a door on the cord.

8. Do not unplug by pulling on the cord.

9. Do not handle the plug or carpet washer with wet
hands.

10. Do not put any objects into openings or operate with
openings blocked, keep them free of anything that
may reduce airflow.

11. Keep hair, loose clothing, fingers and all parts of the
body away from openings and moving parts.

12. Do not use the carpet washer on any glowing,
burning or smoking particles.

13. Do not use without the solution tank and dirty water
tank in place.

14. Do not use the carpet washer without the dust bag
in place.

15. Turn off all controls before unplugging.

16.

Do no

t use to pick up flammable or combustible
liquids such as petrol, or use in areas where they may
be present.

17. Keep the unit on the floor.

18. Do not use an extension cord.

19. Do not attempt to remove blockages with sharp
objects as they may cause damage.

20. Store indoors put away after use to prevent tripping
accidents.

21. Using improper voltage may result in damage to the
motor and possible injury to the user. The correct
voltage is listed on the rating label.

22. A hazard may occur if the carpet washer runs over
the power supply cord.

23. To prevent dirty water from running into motor, do
not hold the appliance upside-down or lay on its side.
Use appliance in normal vacuuming position.

24. Use extra care when cleaning on stairs.

25. Do not carry appliance while motor is running.

NOTE: Carpets should be dry vacuumed thoroughly
before washing.

NOTE: The unit must be unplugged from the mains
socket outlet after use, and before cleaning or
maintaining the unit.

IMPORTANT: This unit is not intended for
commercial use.

PLEASE KEEP THESE INSTRUCTIONS
FOR FURTHER USE.

!

Vax V-124 User Guide v5.qxd 21/9/07 16:38 Page 3

www.vax.co.uk

4

assembly

3. Assembly

Attach Upper Handle

Remove clean water tank (upper tank) from cleaner
(Fig.3/1).

NOTE: If the cord protector (A) on back of handle
should become dislodged during unpacking, make sure
it is repositioned properly before continuing with
assembly of your cleaner.

With the arrow (B) on the cord protector pointing down,
press groove (C) in the cord protector into slot in the lower
handle (Fig.3/2).

With cord hook to back of cleaner, push upper handle down
onto lower handle (Fig.3/3).

Push bolts into holes on front of handle. If bolts will not go
through hole easily, handle is not pushed completely down.
Place nuts in recessed areas on back of the handle. Hold
each nut in place while tightening each bolt securely (from
the front of the handle) with a Phillips screw driver
(Fig.3/4).

NOTE: Only two nuts are needed on this model. The
extra nut is not required but has been provided for
your convenience.

Replace clean water tank (upper tank) by positioning
bottom first. Press tank into place (Fig.3/5)

Attach Hose/Cord Hook

Insert tabs on hook into slots on back of cleaner. Snap
hook onto cleaner (Fig.3/6).

Fig.3/1

Fig.3/4

Fig.3/5

Fig.3/6

Fig.3/3

Fig.3/2

A

B

C

Vax V-124 User Guide v5.qxd 21/9/07 16:38 Page 4

5

Vax Careline 0870 606 1248

assembly

A

ttach Hose/Tool Caddy

The hose/tool caddy is designed to be used either on the
cleaner for easy access to the tools and hose, or if the
tools are not going to be used, it can be removed and hung
for storage.

If you do not want to attach the caddy to the cleaner at
this time, proceed to the “Storing Hose and Tools” section
for proper hose placement on the caddy.

Slide tabs (A) on caddy into slots (B) on back of cleaner
(Fig.3/7).

Rotate top of caddy toward cleaner handle. Slide caddy
down so notch (A) on caddy rests in hook (B) on cleaner
(Fig.3/8).

Identify the hose parts before storing hose (Fig.3/9):
A. Nozzle connector end
B.

Solution tube

S

toring Hose and Tools

Press hose, a few centimetres from nozzle connector end,
into caddy. Bring hose up and over top of caddy.

Press hose into opposite side of caddy. Loop hose at
bottom of cleaner and press into top of hook.

Loop hose over top of caddy again. Slide hose clip toward
end of hose. Snap tab on hose connector into hose clip.
Repeat on other end of hose.

Press solution tube into opposite side of clip.

Snap stair/upholstery tool onto caddy.

Fig.3/7

Fig.3/8

Fig.3/9

Fig.3/10

A

A

A

B

B

B

Vax V-124 User Guide v5.qxd 21/9/07 16:38 Page 5

www.vax.co.uk

6

operation

4. Operation

Before You Begin Cleaning

Vacuum thoroughly

- For carpet, use a Vax vacuum
cleaner with an brushbar for best results. Vacuum
upholstery with a vacuum cleaner with cleaning tool
attachments. Use a crevice tool to reach into tufts and
folds. Do not use the Dual V cleaner as a dry vacuum
cleaner. For upholstery, always check the manufacturers
guidelines before washing.

Test for colorfastness - Wet a white absorbent cloth with
the solution. In a small, hidden area, gently rub the surface
with the dampened cloth. Wait ten minutes and check for
colour removal or bleed with white paper towel or cloth. If
surface has more than one colour, check all colours.

When cleaning entire floor, move furniture out of area
to be cleaned (may not be necessary if only high traffic

areas are to be cleaned). For furniture too heavy to move,
place aluminum foil or wax paper under legs. This will
prevent wood finishes from staining carpet. Pin up
furniture skirts and curtains.

On/Off Switch

To turn cleaner ON, push switch down. To turn cleaner OFF,
push switch up (Fig.4/1).

Handle Release Pedal

S

tep on pedal to lower handle to operating position.
Handle does not lock into a single position but “floats” to
allow convenient operation (Fig.4/2).

To Transport

To move your cleaner from room to room, put handle in
upright and locked position, tilt cleaner back on wheels and
push forward (Fig.4/3).

Carrying Handle

The cleaner may also be lifted by placing a hand above the
upper clean solution tank handle as shown (Fig.4/4).

Automatic Shut Off

When the r

ec

o

v

ery tank (lo

w

er tank) is full the aut

omatic
shutoff mechanism will shut off the cleaner suction
(suction will be noticeably reduced).

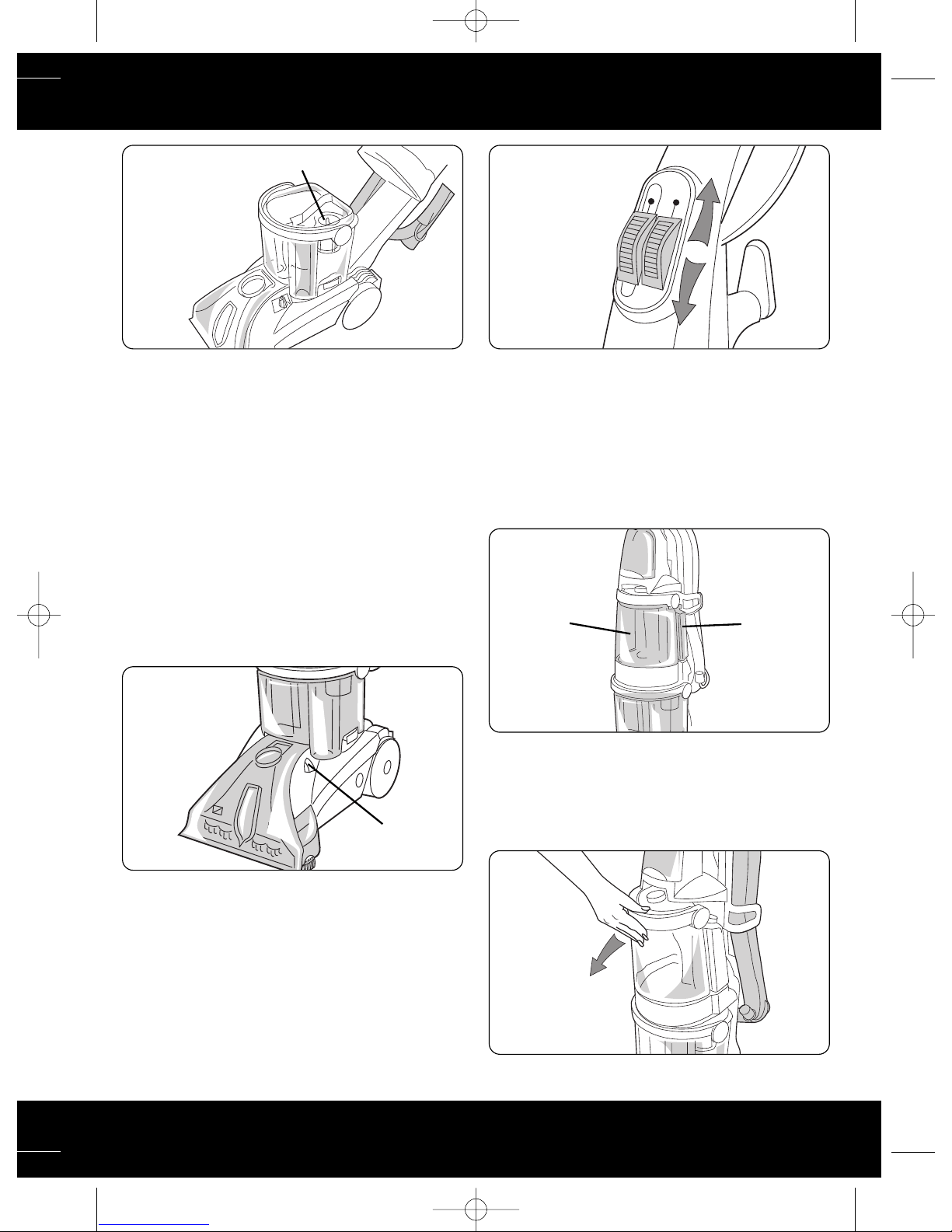

At that time, the yellow float disk will rise to the top of the
recovery tank lid (A) (Fig.4/5).

O

N

O

F

F

W

A

SH

A

U

T

O

R

I

N

S

E

R

i

n

s

e

Fig.4/1

Fig.4/4

Fig.4/2

Fig.4/3

Vax V-124 User Guide v5.qxd 21/9/07 16:38 Page 6
