LET’S GET STARTED.
CORDLESS SLIM VAC WITH
DETACHABLE HANDHELD
TBT3V1B1
TBT3V1P1
TBT3V1P2
TBT3V1B2
TBT3V1F1
TBT3V1H1
Blade
CORDLESS
Let’s talk safety
Don’ts
• Don’t charge the vacuum cleaner outdoors, or leave the charger
connected to the mains when not in use.
• Don’t use this vacuum cleaner if it has been dropped, damaged,
immersed in water or left outdoors.
• Don’t handle the charger plug or use the vacuum cleaner with
wet hands.
• Don’t run over the charger cord or use the vacuum cleaner if the
charger cord or plug is damaged. Please contact our Customer Care
Line on: 0330 026 8455 (Mon-Fri 8:30am to 6:30pm, Sat 9:00am
to 5:00pm).
• Don’t use the charger cord as a handle, pull the charger cord around
corners or sharp edges, or close a door over the charger cord.
Do’s
• Always turn o and unplug the vacuum cleaner from the
charger before carrying out any maintenance. Please refer to
the appropriate section in the user guide to review necessary
precautions.
• Always make sure the lter and dirt container are tted correctly
before using your vacuum cleaner.
• Always switch o the vacuum cleaner before disconnecting or
connecting the reach wand and accessories.
• Keep all openings clear and free from debris as this may aect the
airow/suction.
• Take extra care when using the vacuum cleaner on the stairs.
Basic
safety
precautions
This vacuum cleaner is intended for household use only
and NOT for commercial or industrial use.
• This vacuum cleaner does not stay upright without constant
support, in between uses lie at on the oor in a suitable location
so it does not become a trip hazard or can be stepped on.
• Only use the vacuum cleaner indoors on dry surfaces and keep
the area you’re cleaning well lit.
• Keep ngers, hair and loose clothing away from moving parts
and openings whilst using the vacuum cleaner.
• Don’t unplug charger by pulling on the charger cord.
• Don’t vacuum up hard or sharp objects such as glass, nails, screws, coins, etc.
• Don’t attempt to remove blockages with sharp objects as this may cause damage
to your vacuum cleaner.
• Don’t vacuum up hot coals, cigarette butts, matches or smoking hot burning items
or use in an area where there may be harmful uids (chlorine, bleach and ammonia
drain cleaner).
• Don’t use the vacuum cleaner with incorrect voltage or charger as this may result in
damage or injury to the user. The correct voltage is listed on the ratings label.
• Don’t leave the vacuum cleaner in one spot for an extended period of time when the
brushbar is activated. This vacuum cleaner is tted with a rotating brushbar which
if left in one place may cause damage to the oor surface.
• If charging the vacuum cleaner through an extension cord, use only CE approved
13amp extension cords, non-approved extension cords may overheat. Care should
be taken to arrange the extension cord as it can be a trip hazard.
• Always replace the fuse in the plug with a British 13amp fuse.
• Always protect the power cable from heated surfaces and open ames.
• Store your vacuum cleaner in a cool, dry area. If lters have been cleaned as per
user guide instructions ensure they are thoroughly dry before storing away.
• Always use the charger supplied with the vacuum cleaner.
• The battery must be disposed of safely (for further information, read the Getting
Started section).
Please keep instructions for further use.
• This vacuum cleaner can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the vacuum cleaner in a safe way and understand the hazards
involved. Children should not play with the vacuum cleaner. Cleaning and user
maintenance should not be made by children without supervision.
• Only Vax recommended charger, tools and accessories should be used with this
vacuum cleaner.
• The battery must be removed from the appliance before it is scrapped.
Thank you for buying this Vax Cordless Blade.
Taking care of your carpets and hard oors
The Vax Cordless Blade series is designed to make vacuuming carpets and hard oors
regularly, as eective and ecient as possible and this user guide will help you get the
most out of your machine.
Maintaining your carpets and hard oors will ensure they keep their appearance for longer
and Vax will help you take good care of them.
Taking care of your Vax Cordless Blade
Also inside this guide are instructions on maintaining your new machine, so that it’s ready
when you are to tackle your carpets and hard oors.
Let us know what you think @VaxUK
Taking care of you
We’re here if you need us. Instead of taking me back
to the shop, simply visit our online support:
vax.co.uk/support
Still need to get in touch?
Our UK based Customer Care Team are here to support you - for help with assembly,
operational/performance problems or buying and tting new accessories. Whether you wish to chat,
use Facebook, Twitter or call, you can nd all our contact details at vax.co.uk/contactus
This user guide can be found online at: vax.co.uk/support
Contents
Cordless Blade 32V
Cordless Blade 24V
Let’s talk safety
Getting to know your machine
Getting started
Using your machine
Taking care of your machine
What to do if it goes wrong
Getting in touch
Accessories
Included with
your machine
All models come with a charger, wall mount,
3 screws and user manual.
Contents vary dependent on model purchased.
Crevice Tool
Dusting Brush
Pet/Stair Tool
+
Cordless Blade
32V Pro
+
Cordless Blade
32V Ultra
+
Cordless Blade
24V Pro
+
Cordless Blade
24V Ultra
Getting to know your machine
Name Vax Cordless Blade 24V
Battery voltage See product rating label
Run time 35 minutes
Charge time 4 hours
Weight 2.4 kg
Dust bin capacity 0.6L
Name Vax Cordless Blade 32V
Battery voltage See product rating label
Run time 45 minutes
Charge time 4 hours
Weight 2.5 kg
Dust bin capacity 0.6L
Technical Specication
Subject to technical change without notice.
Turn o brushbar on hard oors. Images are illustrative only.
Foam lter
1-7-138744
Pre-motor lter
1-7-138743
Pet/Stair tool
1-9-138760
Accessories & Consumables
To purchase consumables and
accessories, please visit vax.co.uk
Battery level indicator
Dirt container lid
Dirt container release button
Reach wand
Powered Head/
accessory release clip
Powered Head
Brushbar
Dirt container
Handheld release button
On/O button
Handle
Boost mode on/o button
Brushbar on/o button
Charging port
Filter cap
Battery level gauge
Battery level indicator
Getting started
Assembling your upright slim vacuum cleaner

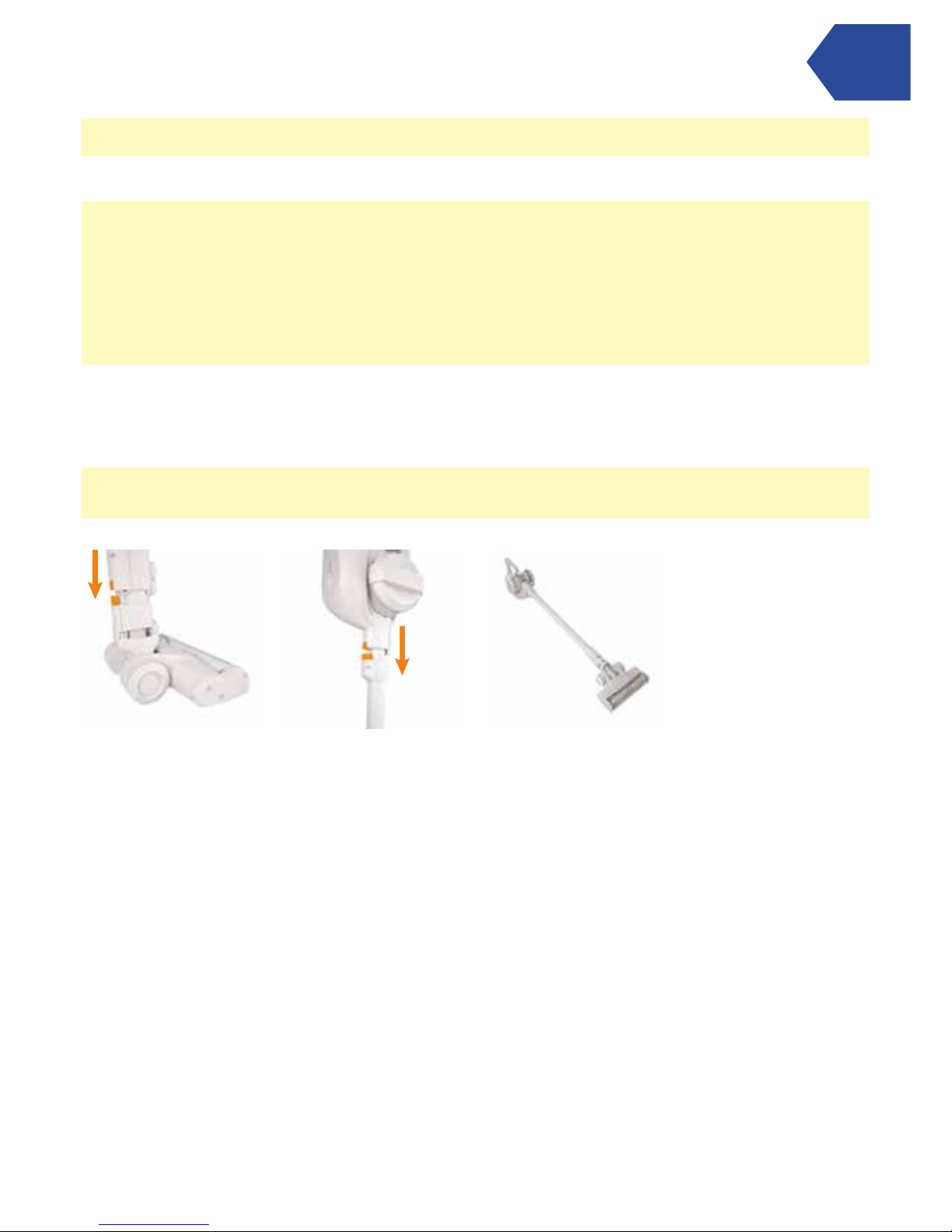

Line up the connector on
the reach wand with the
Powered Head. Push the
reach wand down onto
the Powered Head until it
clicks into place.
Push the handheld down
onto the reach wand until
it clicks into place.
The vacuum is not free
standing and in between
uses must always be placed
in the wall bracket, or laid
at on the oor in a suitable
location, so it does not
become a trip hazard or
can be stepped on.
PLEASE READ ‘LET’S TALK SAFETY’ AT THE BEGINNING BEFORE USE
Before you begin
CAUTION: Always switch o the vacuum cleaner before connecting or disconnecting the handheld/attachments
or removing and emptying the dirt container.
For best cleaning results, lters require cleaning at least every 3 months and should be replaced every 12 months
depending upon use.
CAUTION: This vacuum cleaner is not free standing. In between uses or when carrying out any maintenance
always lie at on the oor in a suitable location so it does not become a trip hazard or can be stepped on.
Getting started
Fixing the wall bracket
Fully assemble
the vacuum.
Use both screws and wall
plugs to secure the wall
bracket to the wall. Place
covers over the screws.
Slot the wall bracket through the groove
and lift upwards into position.
Firmly press the vacuum
handle into the wall
bracket to secure.
Choose a position where
you would like to keep the
vacuum stored, preferably
near a mains supply. With
the wall bracket attached,
stand the vacuum close
to the wall, in the upright
position with the Powered
Head at on the oor.
Using a pencil make
a small mark for
each screw.
Holding the wall bracket
rmly in place, carefully
lift and remove the
vacuum away from
the wall bracket.
PLEASE READ ‘LET’S TALK SAFETY’ BEFORE USE
CAUTION: The battery used in this device may present a risk of re or chemical burn if mistreated. Do not
disassemble or heat above manufacturer’s maximum temperature limit (60°C/140°F) or incinerate. Use of another
battery may present a risk of re or explosion. Dispose of used battery promptly. Keep away from children. Do not
disassemble and do not dispose of in a re. Do not attempt to disassemble the battery or remove any component
projecting from the battery terminals. The battery and charger have no user serviceable parts. Fire or injury may
result. Prior to disposal, protect exposed terminals with heavy insulating tape to prevent shorting. The battery is to
be disposed of safely at your local battery recycling centre.
Do not attempt to recharge non-rechargeable batteries. The battery must be removed from the appliance before it
is scrapped. The appliance must be disconnected from the charger/supply mains before use and when removing
or installing the battery into the machine. In case of battery leakages avoid any contact with the skin. Contact our
Customer Care Line on: 0330 026 8455 (Mon-Fri 8:30am to 6:30pm, Sat 9:00am to 5:00pm).
Charging the vacuum cleaner
To charge the machine,
detach the reach wand
and place the handheld
on its base. You can also
charge the machine
whilst attached to the
wall mount.
Insert the charging lead
into the charging port
located on the base of
the handle.
Plug the charging plug
into the mains.
Getting started
NOTE: The initial charge is 4 hours, charging will be required before rst use. The vacuum can be charged with
the handheld either attached to, or detached from, the reach wand. Failure to fully charge the battery before rst
use (initial charge 4 hours) may result in poor battery performance.
Charging the battery
WARNING: Do not use the vacuum cleaner when the machine is plugged in and charging.
NOTE: Once the battery is fully depleted the vacuum will still turn on for a few seconds. Plug in the charger until
fully charged. The machine can remain on the battery charger once fully charged. The life expectancy of the
battery will vary depending on the usage of the vacuum cleaner.
White light – The battery is charged (after 4 hours).
Red light – The battery is low.
If charging for the rst time the initial charge time is 4 hours.
Getting started
Using your machine
Using as a stick vacuum cleaner
To turn the machine on,
press the on/o button
located on the handle.
To activate and deactivate
the brushbar, press the
brushbar on/o button
located on the dial.
The machine will always
start with the brushbar
turned o.
For additional cleaning
time, deactivate the boost
mode located on the dial.
The machine will always
turn on in boost mode.
CAUTION: For use on delicate hard oors, the brushbar must be turned o to enable slow suction.
To prevent any damage being sustained test on an inconspicuous area of the ooring.
When the vacuum cleaner
is in use the charging
lights will indicate how
much charge is remaining.
When the rst bar starts
to ash red this indicates
the battery is running low
(<25%).
Place your foot on the
Powered Head and pull
the handle backwards
to recline.
CAUTION: Always take extra care when using the vacuum cleaner on the stairs.
Using as a handheld vacuum cleaner
Using your machine
Press the handheld
release clip. Pull to
separate the handheld
from the reach wand.
The reach wand, when
attached to the Powered
Head/accessory, is not
free standing. Place safely
and securely to one side.
Choose an accessory
(pictures illustrated
depending on model).
Push the chosen
accessory into the
handheld until it
clicks into place.
All of the accessories
including the Powered
Head can be attached
directly onto the handheld.
To turn the machine on.
Press the on/o button
located on the handle.
Using your machine
Using as a reach stick vacuum cleaner
Press the Powered Head/
accessory release clip
and pull to remove the
Powered Head from the
reach wand.
Choose an accessory
(pictures illustrated
dependent upon model).
Push the chosen
accessory into the
reach wand until it
clicks into place.
To turn the machine on,
press the on/o button
located on the handle.
The reach wand can be used for hard to reach places.
The reach wand can be used for hard to reach places
and at dierent heights for above oor cleaning.
The vacuum is not free
standing and in between
uses must always be
placed in the wall bracket,
or laid at on the oor in a
suitable location, so it does
not become a trip hazard
or can be stepped on.
Taking care of your machine
Cleaning the lter and separator
Emptying and cleaning the dirt container
Press the handheld
release clip. Pull to
separate the handheld
from the reach wand.
The reach wand when
attached to the Powered
Head/accessory is not
free standing. Place safely
and securely to one side.
Hold the handheld over a bin, press the dirt release
button to allow dirt/debris to fall out.
CAUTION: Always empty the dirt container before cleaning the separator and lter. Remove the reach wand/
accessories from the handheld. Incorrect tting of the separator and lter will reduce suction. Always switch o
the vacuum cleaner before carrying out any maintenance or troubleshooting. Do not use your vacuum cleaner
without the lters in place.
WARNING: Don’t over ll the dirt container to avoid blocking the air ow through the vacuum cleaner.
To access the lter and separator twist the cap anti-clockwise and pull out.
To put the cap back on, push the cap into the unlock position ensuring it is tted
correctly and twist clockwise to lock.
Taking care of your machine
Reassemble lter and separator
Remove the lter
from the lid.
Tap the lter, foam and
separator over a bin
to remove any dirt and
debris. Do not wash
the separator.
Wash the foam and
lter under running
water (max 40°C).
Leave for 24hrs or until
fully dry before replacing.
24hr
24hr
TIP
For best cleaning results, lters require cleaning every 3 months or as needed.
1 - SEPARATOR 2 - FOAM
3 - FILTER 4 - LID
Step 1: place foam (2)
into separator (1).
Step 2: place lter (3)
into lid (4) with the pull
tab facing up.
Step 3: attach back
onto machine
IMPORTANT: If the brushbar has been obstructed, the Motor Protection Sensor may have been activated and the
brushbar will seize. Remove the Powered Head from the machine and clear any obstruction. Ret the Powered
Head, switch on the vacuum cleaner by pressing the trigger and press the brushbar on/o button.

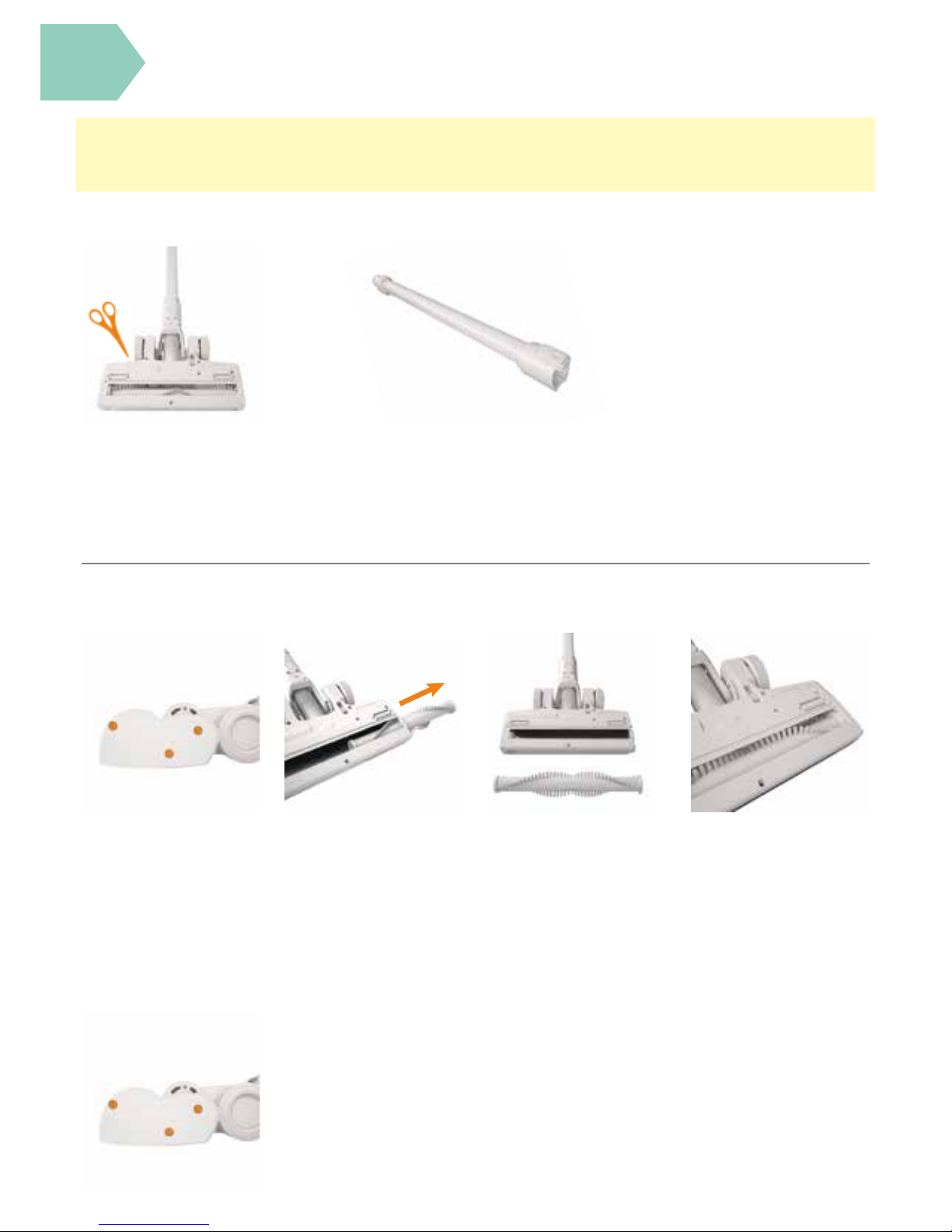

Removing and replacing the brushbar and belt
On the base of the
oorhead, nd letter
A engraved to indicate
the side of the brushbar
cap. Using a screwdriver,
unscrew the three
screws to remove
the brushbar cap.
On the base of the oorhead, nd letter B engraved to
indicate the side of the belt cap. Using a screwdriver,
unscrew the three screws to remove the belt cap.
Once the cap is removed,
slide the brushbar out.
Clear any threads or hair
from around the brushbar
and any dirt/debris
inside the housing of the
Powered Head.
When re-tting the
brushbar, slide it back
into place ensuring the
brushbar end cap ts
into position. Realign the
cap and screw securely
back on.
Removing blockages from the Powered Head and reach wand
Using scissors, remove
any threads or hair from
around the brushbar and
clear any dirt or debris
from Powered Head.
To test for a blockage in the reach wand, drop a small ball
of paper into the wand. The paper will drop through if the
wand is clear. Use a broom handle or similar blunt object to
remove any blockage.
Let’s talk technical
Accessories
Refer to ‘using your machine’ section for tool assembly instructions.
Vax Cordless Blade tools
Also available Vax Cordless Blade Tools
Order at: www.vax.co.uk/spares-and-solutions
Pet/Stair Tool
1-9-138760
An ideal tool to help tackle those pet hairs! Simply clip this
tool onto the handheld and begin cleaning. The rubber
teeth are designed to agitate ne hair on both carpets and
hardoor. This tool is also great for stair cleaning!
Dusting Brush
1-9-138759
The dusting brush is ideal for dusting furniture
and hard surfaces such as sofas and shelving.
Crevice Tool
1-9-138758
The crevice tool is ideal for use all around the home.
It’s perfect for those tricky corners and crevices.
SolutionProblem
• Check the contents panel on the box to make sure the part is included
with your vacuum cleaner.
There is an
accessory missing
• The battery may not be charged. Go to ‘Getting Started’.
• The motor thermostat may have tripped. If this has happened, switch o the vacuum
cleaner. Remove and empty the dirt container and check for blockages. Clean the lters
and allow the vacuum cleaner to cool for approximately 1 hour (if you have washed the
lters you will need to wait 24 hours for the lters to fully dry before putting them back
into the vacuum cleaner).
Why does my vacuum
cleaner have no power?
• Check the battery charger is plugged in. Go to ‘Getting started’.
Why isn’t the light on
the vacuum cleaner
lit when the battery
is charging?
• The dirt container may not be correctly tted, remove the dirt container from the
vacuum cleaner and check it’s assembled correctly, ret ensuring it’s locked into place.
• The separator is not correctly tted. Go to ‘Taking care of your machine’.
• The lters may be clogged, clean the lters. Go to ‘Taking care of your machine’.
• The dirt container may be blocked, empty the dirt container. Go to ‘Taking care of
your machine’.
• The brush on the Powered Head has not been activated. Go to ‘Using your machine’.
• There may be a blockage in the reach wand. Disconnect from the vacuum cleaner
and carefully remove any blockages. Go to ‘Let’s talk technical’.
• Brushbar may be blocked, this will activate the brushbar motor thermostat.
Why won’t the vacuum
cleaner pick up?
What to do if it goes wrong
• The brushbar has not been activated. Go to ‘using your machine’.
• The Powered Head/brushbar may be obstructed. Go to ‘Let’s talk technical’.
Why won’t the
brushbar turn?
Why is dust escaping
from the vacuum?
• The lters may be clogged, clean the lters. Go to ‘Taking care of your machine’.
• The separator may be clogged, clean the separator. Go to ‘Taking care of your machine’.
• The separator may be misassembled or not locked in correctly.
Getting in touch
†
Registration required. Terms and conditions apply, see vax.co.uk for details. 1 year guarantee on battery.
* Calls are charged at the UK local rate. Please make a note of the serial number and model number of the product before calling.
GET IN TOUCH
0330 026 8455 VaxVacuumsinfo@vax.co.uk vax.co.uk @VaxUK
EU Statement of Compliance: Manufacturer/EU importer: Vax Limited, hereby on our own responsibility, declare that the
TBT3V1B1/ TBT3V1P1/TBT3V1P2/TBT3V1B2/TBT3V1F1/TBT3V1H1 are manufactured in compliance with the following Directives:
Safety: 2014/35/EU Low Voltage Directive. EMC: 2014/30/EU Electromagnetic Compatibility Directive.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your
Local Authority or retailer for recycling advice.
© 2016 Vax Limited. All rights reserved. The VAX trade mark and Vax lozenge are the property of Techtronic Floor Care
Technology Ltd and are registered in the EU and may be pending or registered in other countries.
This marking on the product(s) and/or accompanying documents means that used electrical and electronic equipment (WEEE)
should not be mixed with general household waste. For proper treatment, recovery and recycling, please take this product(s) to
designated collection points where it will be accepted free of charge. Disposing of this product correctly will help save valuable
resources and prevent any potential negative eects on human health and the environment, which could otherwise arise from
inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point.
Loading...
