www.vava.com
NORTH AMERICA
E-mail: support@vava.com
Tel: 1-888-456-8468
(Monday-Friday: 9:00 – 17:00 PST)
US Distributor: SUNVALLEYTEK INTERNATIONAL INC.
Address: 46724 Lakeview Blvd, Fremont, CA 94538
EUROPE
E-mail:
support.uk@vava.com(UK)
support.de@vava.com(DE)
support.fr@vava.com(FR)
support.es@vava.com(ES)
support.it@vava.com(IT)
EU Importer: ZBT International Trading GmbH
Address: Halstenbeker Weg 98C, 25462 Rellingen, Deutschland
ASIA PACIFIC
Te l : 03-5542-0238（10-18時/土日祝除く））
JP Importer: 株式会社SUNVALLEY JAPAN
Address: 〒104-0032 東京都中央区八丁堀３丁目18-6 PMO京橋東９F
MANUFACTURER
Shenzhen NearbyExpress Technology Development Co.,Ltd.
Address: 333 Bulong Road, Shenzhen, China, 518129
Learn more about the EU Declaration of
Conformity: https://www.vava.com/downloads-VA-VD002-CE-Cert.html
VA-VD002
MADE IN CHINA

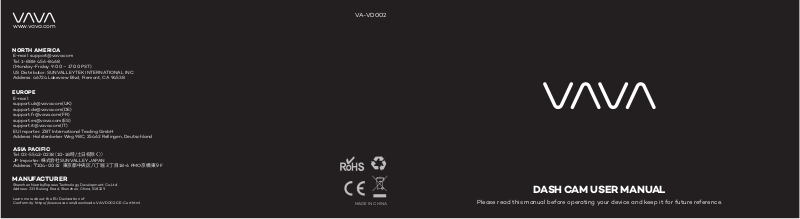

DASH CAM USER MANUAL
Please read this manual before operating your device and keep it for future reference.
What’s in the Box
Note: The package contents may vary according to different orders.
Product Diagram
⑧
①
VAVA Dash Cam Mount Car Charger Snapshot Button
Charging Cable Crowbar Cable Clips
Rear Camera
Connecting Cable
Rear Camera
User Manual
⑨
②
③
④
⑤
⑥
⑦
1. Car Mount
2. Micro USB Port
3. Type-C Port
4. Power / Working Status LED
5. WiFi Status LED
6. Reset Button
7. Micro SD Card Slot
8. Sticker
9. Mini USB Port
01/02
Product Specifications Memory Card Installation
CPU
Camera Sensor
Lens (FOV)
Max Video Resolution
G-sensor
Video Clip / Photo Format
Wireless Connections
Power Input
Built-in Battery Capacity
Operating Temperature
NT96663
Sony IMX307（Front Camera）
Sony IMX323 (Rear Camera)
Full 6G +1 IR Lens (155°)
Full 4G+1 IR Lens (126°)
1920*1080@60FPS
1280*720@30FPS
3-axis Accelerometer
MP4 / JPG
Wi-Fi（between your smart phone and the Dash Cam）
Bluetooth（between the Snapshot and the Dash Cam）
5V / 1.5A
320mAh
-10°C~50°C / 14°F~122°F
Note: 1. Don’t install or remove the Micro SD card when the Dash Cam is powered on to avoid breakage of the card.
2. Please format the Micro SD card regularly for a better user experience. Remember to backup your f iles before
formatting the memory card..
For reliable operation, please use a Class 10 microSD/TF card with a capacity of 16GB, 32GB, 64GB or 128GB.
Brands Recommended：Sandisk / Kingston / Samsung / Transcend
① Insert a card with the gold contacts facing down. Push the card until it clicks into place.
② To remove the card, gently push it until it clicks and pull it out of the slot.
03/04
