Vava VA-AD011 User Manual

VAVA AROMA DIFFUSER

User Guide

Specifications

Model

Power source

Water tank capacity

Working time

Mist output (continuous misting)

Ultrasonic frequency

VA-AD011

DC 5V 0.55A

30 ml / 1.04 oz.

≥3 hours

5±2 ml / 0.18±0.07 oz. per hour

3.0±0.1 MHz

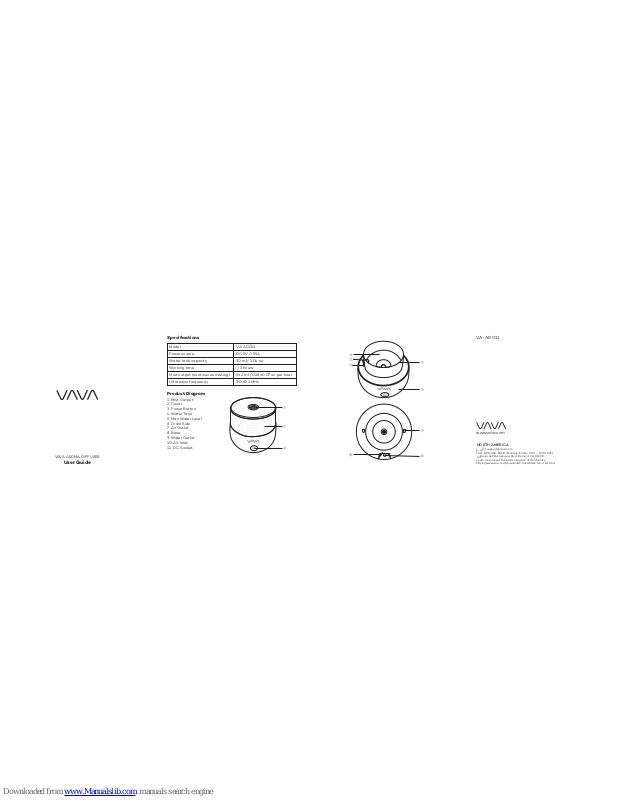

Product Diagram

1. Mist Output

2. Cover

3. Power Button

4. Water Tank

5. Max Water Level

6. Drain Side

7. Air Outlet

8. Base

9. Water Outlet

10. Air Inlet

11. DC Socket

VA-AD011

www.vava.com

E-mail: [e-mail]
Tel: [phone] (Monday-Friday: 9:00 – 17:00 PST)
Address: 46724 Lakeview Blvd, Fremont, CA 94538

NORTH AMERICA

Learn more about the EU Declaration of Conformity:
https://www.vava.com/downloads-VA-AD011-CE-Cert.html

Troubleshooting Guide

Solution

Connect to power

Refer to the instructions

Add water into water tank

Power off and place in a
well ventilated area for 10
minutes

Get rid of some water

Clean the water tank as
instructed

Please add water

Cap on the cover properly

Move the unit to a well
ventilated area

Cause

No power

Did not press the Mist
Button

No water in water tank

The diffuser is getting too
hot

Water exceeding max level

Stain built up inside water
tank

Not enough water

Cover not properly
covered

Temperature and humidity
of environment is too high

Problem

No mist
coming
out

Abnormal
mist

Wate r
leakage

Adding Water

·Remove th e cover.

·Add up to 30 ml / 1.04 oz water into the water tank.

·Add 1 - 2 drops of essential oil into the water.

·Put the cover back on.

How to Use

·Connect the USB cable to a power source. The diffuser is now in

standby status. Make sure there is enough water inside the tank.
Use the Power Button to control the mist and light mode.

Mist Mode

1. Press the Power Button to enter continuous misting mode, the light
will turn on.

2. Press again to enter intermittent misting mode where the misting
turns on and off respectively for 30 seconds with the lighting on.

3. Press a third time to return to continuous misting mode.

4. Press and hold for 1.5 seconds to turn off the mist and light.

Note: The unit will stop working once there’s not enough water.

Light Mode

·In continuous misting mode, press the Power Button twice to turn
on / off the light.

Important

·Stop using when there is no water in the tank.

·Do not power on when the lid is not properly covered.

·Do not use essential oil directly. Always mix it with water.

·Do not use synthesized essential oil as it may damage the unit. Use

natural essential oil only.

Caution

·Do not alter or repair the unit. Return to the manufacturer for

repairing.

·If a bad odor or anything unusual is detected, turn off immediately.

·Do not remove power plug with wet hands.

·Do not place near any heat source or under direct sunlight.

·Keep away from other electric appliances prone to humidity

damage.

·If not in use, regularly clean the unit. Store in a dry and cool place.

·Do not leave the unit unattended around children when plugged in.

·Do not clean the device from its base.

Clean water tank as
instructed, use after air
drying

Clean water tank as
instructed, use clean
water

Use natural essential oil

Unit is new

Dirty water

Synthesized essential oil

Bad /
strange
smell
