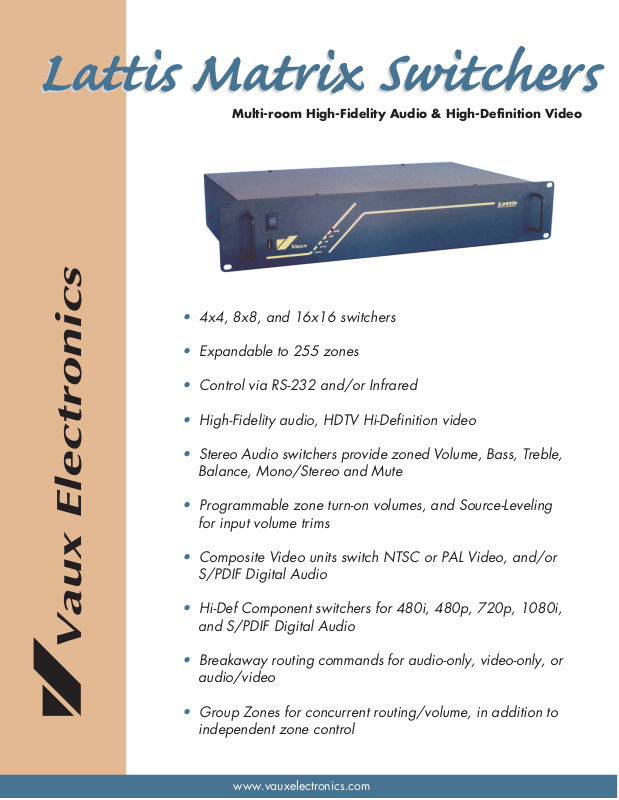

Vaux Electronics LE-1600-A Brochure

Lattis Matrix Switchers

Lattis Matrix Switchers

Multi-room High-Fidelity Audio & High-Definition Video

• 4x4, 8x8, and 16x16 switchers

• Expandable to 255 zones

• Control via RS-232 and/or Infrared

• High-Fidelity audio, HDTV Hi-Definition video

• Stereo Audio switchers provide zoned Volume, Bass, Treble,

Balance, Mono/Stereo and Mute

• Programmable zone turn-on volumes, and Source-Leveling

for input volume trims

• Composite Video units switch NTSC or PAL Video, and/or

S/PDIF Digital Audio

• Hi-Def Component switchers for 480i, 480p, 720p, 1080i,

and S/PDIF Digital Audio

Vaux Electronics

• Breakaway routing commands for audio-only, video-only, or

audio/video

• Group Zones for concurrent routing/volume, in addition to

independent zone control

www.vauxelectronics.com

Stereo Audio Switching with
Volume/Bass/Treble Control

Vaux Matrix Switcher

Zone 11

Zone 10

Zone 9

Src 16

Src 15

Src 14

Src 13

Src 12

Src 11

Src 10

Src 9

Zone 3

Zone 2

Zone 1

Src 8

Src 7

Src 6

Src 5

Src 4

Src 3

Src 2

Src 1

Vaux Electronics, Inc. Made in U.S.A.

Zone 14

Zone 13

Zone 12

Zone 6

Zone 5

Zone 4

Src-4Src-3Src-2Src-1

Zone 15

Zone 7

Zone 16

Zone 8

Zone 8Zone 7Zone 6Zone 5Zone 4Zone 3Zone 2Zone 1Src 8Src 7Src 6Src 5Src 4Src 3Src 2Src 1

Mem-

IR

Erase

In

I/O Power

Vaux Electronics, Inc.

Made in U.S.A.

Mem-

IR

Erase

In

I/O Power

Vaux Electronics, Inc.

Made in U.S.A.

IR
In

Zone-4Zone-3Zone-2Zone-1

Lattis Matrix Switcher
Model No. LE-1600A
Serial No: 000000
Power: 12VDC, 1A

Control

Ctrl-InCtrl-Out

Lattis Matrix Switcher
Model No. LE-800A
Serial No: 000000
Power: 12VDC, 1A

Control

Ctrl-InCtrl-Out

Lattis Matrix Switcher
Model No. LE-400A
Serial No: 000000
Power: 12VDC, 1A

Control Power

Ctrl-InCtrl-Out

Lattis LE-1600A, LE-800A, and LE-400A switchers accept line-level
audio sources, and provide each zone with independent control of
source-selection (routing) and volume levels. These high-fidelity matrix
switchers allow each zone to have adjustable bass, treble, balance,
min, and max levels. Each zone has an adjustable initial turn-on
volume level, and volume taper rates for switching. A zone can be
set to Mono mode, with independent control over left and right volumes.
Source-Leveling trims input sources to the same level. A ribbon-cable
expansion option daisy-chains sources to multiple switchers.

LE-1600A

16x16 Stereo Audio

LE-800A

8x8 Stereo Audio

LE-400A

4x4 Stereo Audio

Audio and Video Switching

Vaux Electronics, Inc. Made in U.S.A.

Vid-Out A

Vid-Out B

IR

Zone 8

Mem-

In

Erase

I/O Power

Zone 7Zone 6Zone 5Zone 4Zone 3Zone 2Zone 1Src 8Src 7Src 6Src 5Src 4Src 3Src 2

Src-Out

Src-In

Vaux Matrix Switcher

Video

L

Audio

R

Src 1

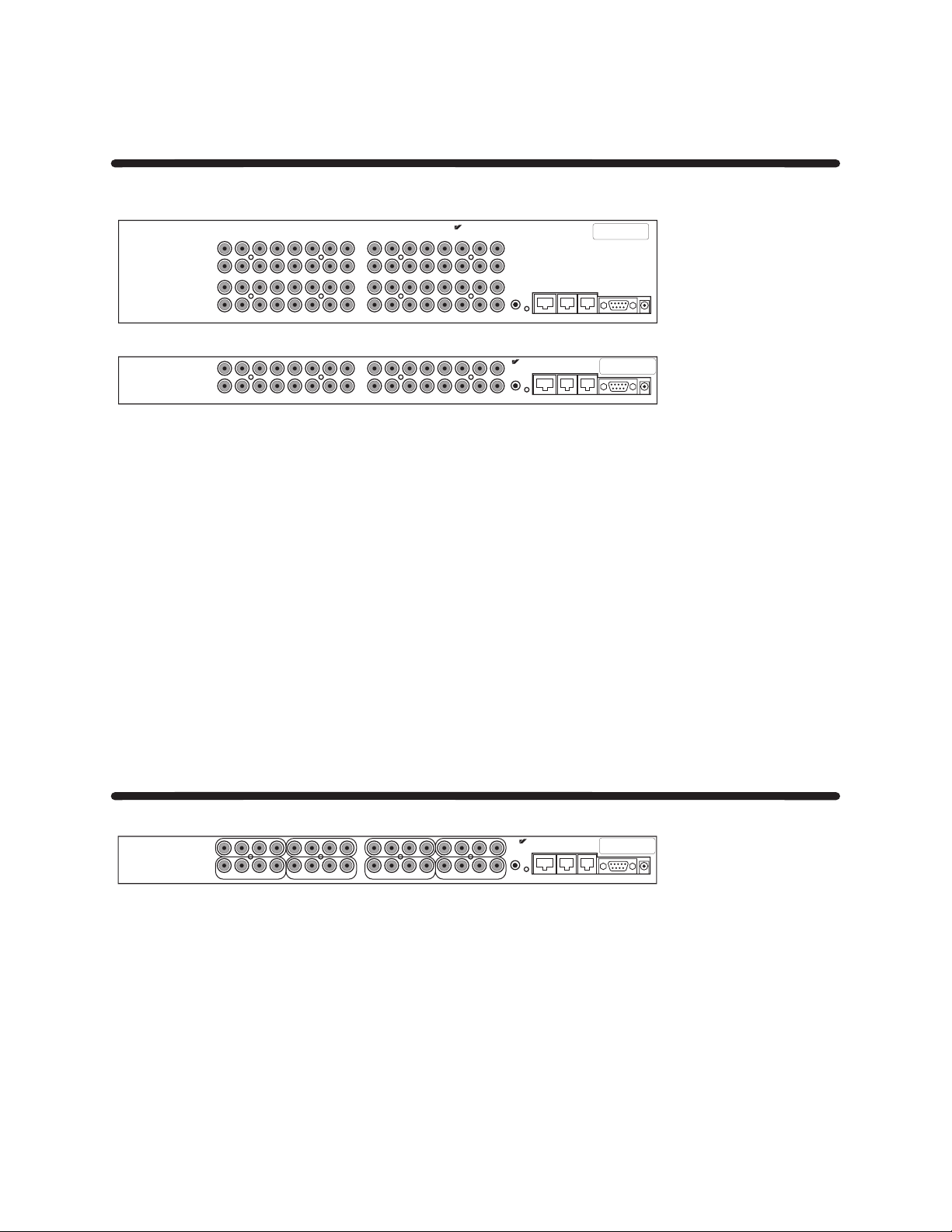

The Lattis LE-800AV switcher combines an 800A and 800V into one chassis,
maintaining all features such as volume/bass/treble control. Audio and video
can be switched together, or independently. For example, the audio section
may be used for whole-house audio distribution, while the video section is used
for camera selection. The video section may also be used for S/PDIF digital­audio routing. As with all Lattis switchers, multiple units may be daisy-chained
for expanding the zones (up to 255). A short modular control cable interconnects
the units, so RS-232 and IR connections are made to only one switcher.

Lattis Matrix Switcher
Model No. LE-800AV
Serial No: 000000
Power: 12VDC, 1A

LE-800AV

8x8 Audio/Video

Ctrl-InCtrl-Out

Control

Composite Video and/or

Digital Audio Switching

Lattis Matrix Switcher
Model No. LE-1600V
Serial No: 000000
Power: 12VDC, 1A

LE-1600V

16x16 Video and/or

Control

Ctrl-InCtrl-Out

Lattis Matrix Switcher
Model No. LE-800V
Serial No: 000000
Power: 12VDC, 1A

Control

Ctrl-InCtrl-Out

Src-Out

Src-In

Src-Out

Src-In

Src-Out

Src-In

Vaux Matrix Switcher

Video

Zone 11

Zone 10

Zone 9

Src 16

Src 15

Src 14

Src 13

Src 12

Src 11

Src 10

Src 9

Video

Zone 3

Zone 2

Zone 1

Src 8

Src 7

Src 6

Src 5

Src 4

Src 3

Src 2

Src 1

Video

Vaux Electronics, Inc. Made in U.S.A.

Zone 14

Zone 13

Zone 12

Zone 6

Zone 5

Zone 4

Zone 15

Zone 7

Zone 16

Zone 8

Zone 8Zone 7Zone 6Zone 5Zone 4Zone 3Zone 2Zone 1Src 8Src 7Src 6Src 5Src 4Src 3Src 2Src 1

Mem-

IR

Erase

In

I/O Power

Vaux Electronics, Inc.

Made in U.S.A.

Mem-

IR

Erase

In

I/O Power

Lattis LE-1600V and LE-800V video matrix switchers are capable of
NTSC or PAL composite video, and/or S/PDIF digital-audio switching.
These units may be used in conjunction with our stereo audio switchers,
or independently, for providing video and digital-audio routing solutions.
RS-232 control using VauxProtocol, allows commands for switching
audio/video sources, or breakaway control for audio-only or video-only
routes. Each source input has a buffered output above it, and each zone
output has two jacks, for driving one or two 75-ohm cables. Zone outputs
can run up to 250-feet on RG-6 or RG-59 coaxial cable.

Digital-Audio

LE-800V

8x8 Video and/or

Digital-Audio

NEW!

Hi-Def Component HDTV Video

and Digital Audio Switching

S2S4Z1

Z3

Component-Video (Pr,Y,Pb)
Std-Def: 480i, 480p
Hi-Def: 720p, 1080i

Digital-Audio/Composite-Vid
(DA/C)

Src-1

Src-3

The new Lattis LE-400HD, is a component-video and digital-audio
matrix switcher. This unit can route four Hi-Def or Std-Def component
sources, to four HDTV monitors up to 250 feet away. In addition to
the component video channels, a S/PDIF digital-audio channel, or
composite-video channel, may be routed as well. The switcher
handles Std-Def 480i signals, Progressive-Scan 480p, as well as
Hi-Def 720p and 1080i formats. Additionally, it may be combined
with any of our other switchers for various signal routing needs.
All Lattis switcher may be controlled with RS-232 ascii commands from
a control system, and/or infrared commands from a Vaux remote control,
or IR-learning keypad or remote.

DA/CPbYPrDA/CPbYPrDA/CPbYPrDA/CPbYPr

Z2

Vaux Electronics, Inc.

Made in U.S.A.

Z4

Mem-

IR

Erase

In

I/O Power

Lattis Matrix Switcher
Model No. LE-400HD
Serial No: 000000
Power: 12VDC, 1A

Control

Ctrl-InCtrl-Out

LE-400HD

4x4 Hi-Def Component

Video and Digital-Audio

NEW!

Lattis Family Specifications:

Stereo Line-Level Audio Section:

Volume Adjustment Range (2 dB/step; off < -80 dB) –64 to +6 dB

Bass Adjustment Range (3 dB/step) –12 to +12 dB
Treble Adjustment Range (3 dB/step) –12 to +12 dB
Input Impedance 47K ohm typ.
Output Impedance 100 ohm typ.
Frequency Response (into 47K ohm load) 20 Hz to 100 KHz

Input Signal Handling 2 Vrms max.

Zone Programmable: Min/Max/Initial Volume, Mute level, Mono/Stereo, etc.

Component-Video, Composite-Video, and Digital-Audio Sections:

Input and Output Impedance 75 ohms

Bandwidth 50 MHz

Differential Gain 0.5% typ.

Differential Phase 1 degree typ.

Non-Linearity 0.5% typ.

Component-Video (Y, Pb, Pr), Hi-Def 720p, 1080i

Component-Video (Y, Pb, Pr), Std-Def 480i, 480p

Composite-Video NTCS and PAL

Digital-Audio (coaxial) S/PDIF (IEC 958)

Connectors

Stereo Line-Level Audio (Red/Wht) Phono (gold)

Audio Source Daisy-Chain (-RE option; 2 to 10 switchers) 34-P ribbon

Component-Video (Grn/Blu/Red) Phono (gold)

S/PDIF Digital-Audio (Yel) Phono (gold)

Composite-Video (In:Blk, Out:Yel) Phono (gold)
RS-232 Control Port (9-pin female D-sub) DE9-F
Ctrl-In Expansion Port (RS-232 and IR Daisy-Chain) 6P6C
Ctrl-Out Expansion Port (RS-232 and IR Daisy-Chain) 6P6C

I/O Port 8P8C

Infrared IR-In Control Port (40-KHz modulated) 3.5 mm phone

Power Adapter (auto-polarity) 2.1 mm

Other:

Switcher Warranty (parts and labor) (remote controls: 1 year) 5 years

Power Adapter (2.1mm) 12 VDC @ 1000 mA

Dimensions (2U rack chassis) (48cm W x 8.9cm H x 25cm D) 19" W x 3.5" H x 10" D

Dimensions (1U rack chassis) (48cm W x 4.4cm H x 25cm D) 19" W x 1.75" H x 10" D

Dimensions (1/2U rack chassis) (22cm W x 3.8cm H x 15cm D) 8.5" W x 1.5" H x 6" D

A

E

Y

0

1

1993-2003

Made in USA

R

S

Specifications

Vaux Electronics, Inc.

PHONE: [phone]
FAX: [phone]
www.vauxelectronics.com • [email protected]

www.vauxelectronics.com

BR-LE-0803

Lattis, Aris, Altrix, MediaMation, and Vaux are trademarks of Vaux Electronics, Inc.
Other trademarks are owned by their respective companies.

Product specifications and availability are subject to change without notice.
For the latest information, contact Vaux Electronics, Inc.
©2003 Vaux Electronics, Inc. All rights reserved. Printed in the U.S.A.
