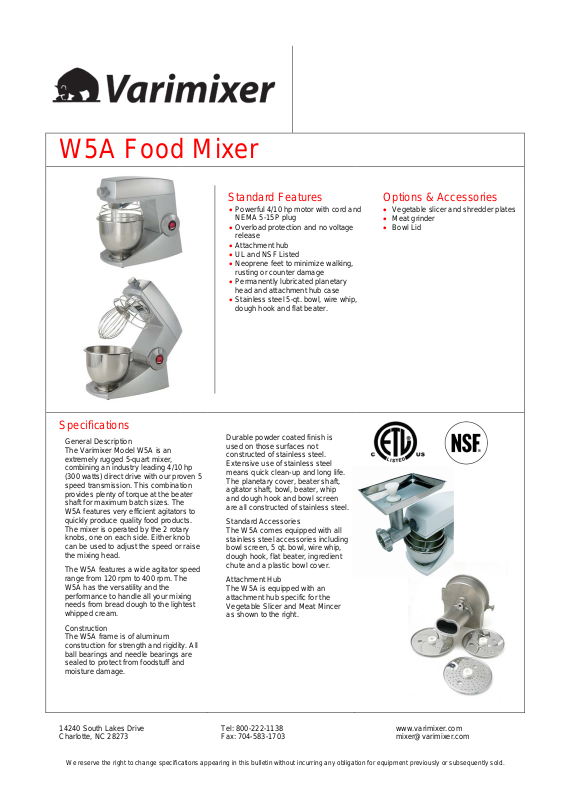

Varimixer W5A User Manual
W5A Food Mixer
Standard Features
• Powerful 4/10 hp motor with cord and
NEMA 5-15P plug
• Overload protect i on and no voltage
release
• Attachment hub
• UL and NSF Listed
• Neoprene feet t o minimize walki ng,
rusting or counter damage
• Permanently l ubricated planetary
head and attachment hub case
• Stainless steel 5-qt. bowl, wire whip,
dough hook and flat beater.
Specifications
General Description
The Varimixer Model W5A is an
extremely rugged 5-quart mixer,
combining an industry leading 4/10 hp
(300 watts) direct drive with our proven 5
speed transmission. This combination
provides plenty of torque at the beater
shaft for maximum batch sizes. The
W5A features very efficient agitators to
quickly produce quality food products.
The mixer is operated by the 2 rotary
knobs, one on each side. Either knob
can be used to adjust the speed or raise
the mixing head.
The W5A features a wide agitator speed
range from 120 rpm to 400 rpm. The
W5A has the versatility and the
performance to handle all your mixing
needs from bread dough to the lightest
whipped cream.
Construction
The W5A frame is of aluminum
construction for strength and rigidity. All
ball bearings and needle bearings are
sealed to protect from foodstuff and
moisture damage.
Durable powder coated finish is
used on those surfaces not
constructed of stainless steel.
Extensive use of stainless steel
means quick clean-up and long life.
The planetary cover, beater shaft,
agitator shaft, bowl, beater, whip
and dough hook and bowl screen
are all constructed of stainless steel.
Standard Accessories
The W5A comes equipped with all
stainless steel ac cessories including
bowl screen, 5 qt. bowl, wire whip,
dough hook, flat beater, ingredient
chute and a plastic bowl cover.
Attachment Hub
The W5A is equipped with an
attachment hub specific for the
Vegetable Slicer and Meat Mincer
as shown to the right.
Options & Accessories
• Vegetable slic er and shredder plates
• Meat grinder
• Bowl Lid
14240 South Lakes Drive Tel: 800-222-1138 www.varimixer.com
Charlotte, NC 28273 Fax: 704-583-1703 mixer@varimixer.com
We reserve the right to change specifications appea ri ng in this bull e tin wi thout incurring any obligation for equipment previo usl y or su bse que nt l y sold .
DIMENSIONS
MODEL
NO.
CAPACITY
OVERALL SIZE (CM)
NET
WEIGHT
SHIPPING INFORMATION
HEIGHT
WIDTH
LENGTH
WEIGHT
CLASS
CU. FT.
DIMENSIONS
W5A
Large Bowl.
5-Qt.
15 ¾”
9 ½”
21 ¼”
44 lbs.
52 lbs.
85
25
H
W
L
%AR= weight of water
Bowl shown with optional plastic Bowl Lid
(40.05 cm)
(24.13 cm)
(53.975 cm)
(19.958 kg)
(23.58 kg)
18”
(45.72 cm)
24”
(60.96 cm)
18”
(45.72 cm)
ELECTRICAL DATA FOR MOTOR
*115VAC Supply/60 HZ/1
Phase Feed Wires incl.
Ground.......................................................3
Motor Power ......................HP .............4/10
Amperes, full load .............A ............ .........3
Power cord included with plug NEMA 5-15P
MIXING SPEED
Agitator Speed ..................Min. ....... .. ...120
Agitator Speed .............. ... .Max ............400
Standard tools: Stainless Steel Wire Whip, hook and beater.
14240 South Lakes Drive Tel: 800-222-1138 www.varimixer.com
Charlotte, NC 28273 Fax: 704-583-1703 mixer@varimixer.com
We reserve the right to change specifications appea ri ng in this bull e tin wi thout incurring any obligation for equipment previo usl y or su bse que nt l y sold .
weight of flour
Batch size and/or speed reduction is required if any of the
following conditions exist.
1. High Gluten Flour
2. AR % under 40%
3. Water Temperature under 65 Degrees F
*On the nominal motor voltage, + or - 10% tolerance is
allowed.
