Column 1993-Present W30
Fig. No.
Description
Order Number
1
Screw M6 x 10
STA 5080
2
Rear Access Plate
31-22.7
3
Upper NSF Cover Plate
31-270
4
Lock Nut M5
STA 5834
5
Washer
STA 6027
6
Lower NSF Cover Plate
31-271
7
Plug Button
31-306
8
Motor Bracket Mount
31-148
9
Lockwasher
STA 6056
10
Screw M8 x 25
STA 5625
11
Bushing
STA 2515
12
Column
31-22MO
13
Rollpin , Column
30-70.1
14
Top Lid
9106926
15
Threaded Rubber Bushing
STA 6580
16
Screw M6 X 20
STA 5017
17
Ground Screw
STA 5232
18
Arrow
15-245
19
Plug Button
STA 6519
20
Bushing
STA 2520
21
Bushing
STA 2520
22
Knee Pad
30-212
23
Foot
30N-213
24
Foot 3MM
30N-214.3
25
Foot 6MM
30N-214.6
Bowl Arm Microswitch 1993-Present W30
Fig. No.
Description
Order Number
1
Bowl Arm Microswitch (White)
140-173
1A
Bowl Arm Microswitch (Black)
31-242Harness (Bowl Arm Micro)
31-194.11
3
Screw
STA 5662
Bowl Arms 1993-Present W30
Fig. No.
Description
Order Number
1
Bowl Arm Left
30N-23
1A
Bowl Arm Right
30N-24
2
Extension Tube
30-693Eye Bolt
30-804Lift Pin
31-675Bowl Arm Shaft
31-686Ball Red
STA 3308
7Lifting Nut Complete
30-65M
8
Lifting Nut
15-659Crank Shaft
27-63M
10
Extension Tube Complete
30-69M
11
Lifting Lever Assembly
27-62M
12
C-Clip
STA 3580
13
Screw
STA 5088
14
Roller
31-128
15
Bowl Arm Shaft
31-6816C-Clip
STA 3467
17
See fig 1
See fig 1
18
Bushings
STA 2522
19
Bowl Arm Roller Shaft
31-127
20
Fitted Bolt M8 X 25
STA 5690
21
Nut M12
STA 5827
22
Washer
STA 6044
23
Cotterpin
STA 6205
24
Shock Absorber
40P-600M
25
Lifting Bolt
27-8326Snap Ring 19U
STA 3407
27
Key
STA 2020
Planetary Head 1993-Present W30
Fig. No.
Description
Order Number
1
Planetary Head Assembly
30-2M
2
Lower Head Assembly
30-2.1M
3
Upper Head Assembly
40-34Snap Ring
30-3M
5
Distance Tube
STA 3520
6
Eccentric Disc
40-141
7
Snap Ring
30-368Main Shaft Assembly
STA 3520
10
Key
STA 2030
11
Snap Ring
STA 3425
12
Washer
STA 6043
13
Needle Bearing w/race
30-101
14
Seal
30-108R
15
Needle Bearing
See Figure 13
16
Eccentric Head
30-217Groove Pin 08 x 24
STA 6460
18
Snap Ring
STA 3522
19
Bayonet Shaft
30-3320Snap Ring
STA 3472
21
Key
STA 2038
24
Distance Piece
40-34
24B
Distance Piece
40-3425Sealed Ball Bearing
30-100
26
Upper Needle Bearing
30-9627Upper Rim Pinion
30-31
27B
Disc
STA 6046
28
Lower Pinion
30-3229Bolt
STA 5641
30
Bolt
STA 5640
31
Lock Washer
STA 6055
32
Sealed Ball Bearing
30-9733Stainless Steel Headcap
30-272
34
Rubber Ring
30-209
35
V-Belt
40-90.1
36
V-Belt Planetary Pulley
40-129A
37
Sealed Ball Bearing
40-9838Sealed Ball Bearing
40-9939Screw M10 x 40
STA 5346
40
Lock Washer
STA 6057
41
Gear Wheel Rim
30-1
Speed Lever 1993-Present W30
Fig. No.
Description
Order Number
1
Speed Lever
30N-47M
2
Disc with Arrow
30N-47.10
3
White Clamp
30N-47.20
4
Knob
STA 3306
5
Snap Ring 30U
STA 3414
6
Screw 8 x 13
STA 5247
7
Screw M8 x 60
STA 5439
8
Nut M8
STA 5810
TRANSMISSION
Fig. No.
Description
Order Number
W301WASHER
STA 6018
3
DRIVE PIN
30-285
4
BEARING
15-103
6
BUSHING
STA 2505
7
V-BELT PULLEY
27-128
8
SHAFT
15-41
10
GREASE NIPPLE
STA 3220
11
SNAP RING 25U
STA 3410
12
BEARING
27-102
13
SNAP RING 52I
STA 3514
14
FORK RING
15-1715DISTANCE TUBE
15-143
16
ARM FOR BEARING ASSEMBLY
30-617SCREW
STA 5348
18
WASHER
STA 6010
19
SPECIAL VARI-BELT
27-91
21
THREADED NIPPLE/REDUCER
15-156
23
GREASE NIPPLE
STA 3220
24
WASHER
STA 6018
25
DRIVE PIN
30-285
27
SCREW
STA 5602
28
MOVABLE PULLEY / MOTOR
15-15M
29
BUSHING
STA 2505
30
FORK RING
15-1731CLAMPING RING
27-227
32
KEY
STA 2011
34
SCREW
STA 5018
35
SCREW
STA 5612
36
MOTOR MOUNT PLATE
60-6137NUT
STA 5810
38
NUT
STA 5895
39
STUD BOLT/LOW SPEED ADJ.
31-305
40
SUPPORT BRACKET
20-26.1
41
BOLT/HIGH SPEED ADJ.
STA 5446
42
WASHER
STA 6010
43
BOLT
STA 5345
44
LOWER FORK
27-1645UPPER FORK
20-1946TENSION SPRING
20-275
47
RACK
15-4648NUT M16
STA 5815
49
SNAP RING 19U
STA 3407
50
WASHER
STA 6040
51
BOLT
STA 5433
52
WASHER
STA 6026
55
MOTOR PULLEY ASSEMBLY
15-59M
56
PEDESTAL PULLEY ASSEMBLY
27-6M
57
TOP PULLEY F/ PEDESTAL
15-13M
58
SLIDING PULLEY F/ PEDESTAL
15-15M
59
BALL / BLACK
STA 3306
60
SPEED LEVER ASSEMBLY
30N-47M
61
DISC W / ARROW
30-47.10
62
SCREW
STA 3414
63
WHITE CLAMP
30-47.11
64
SNAP RING 30U
STA 3414
65
LOWER MOTOR PULLEY
15-13.1M
BELT DRIVE 1993-Present
9 KEY STA 2022
20 BEARING 15-103
W30

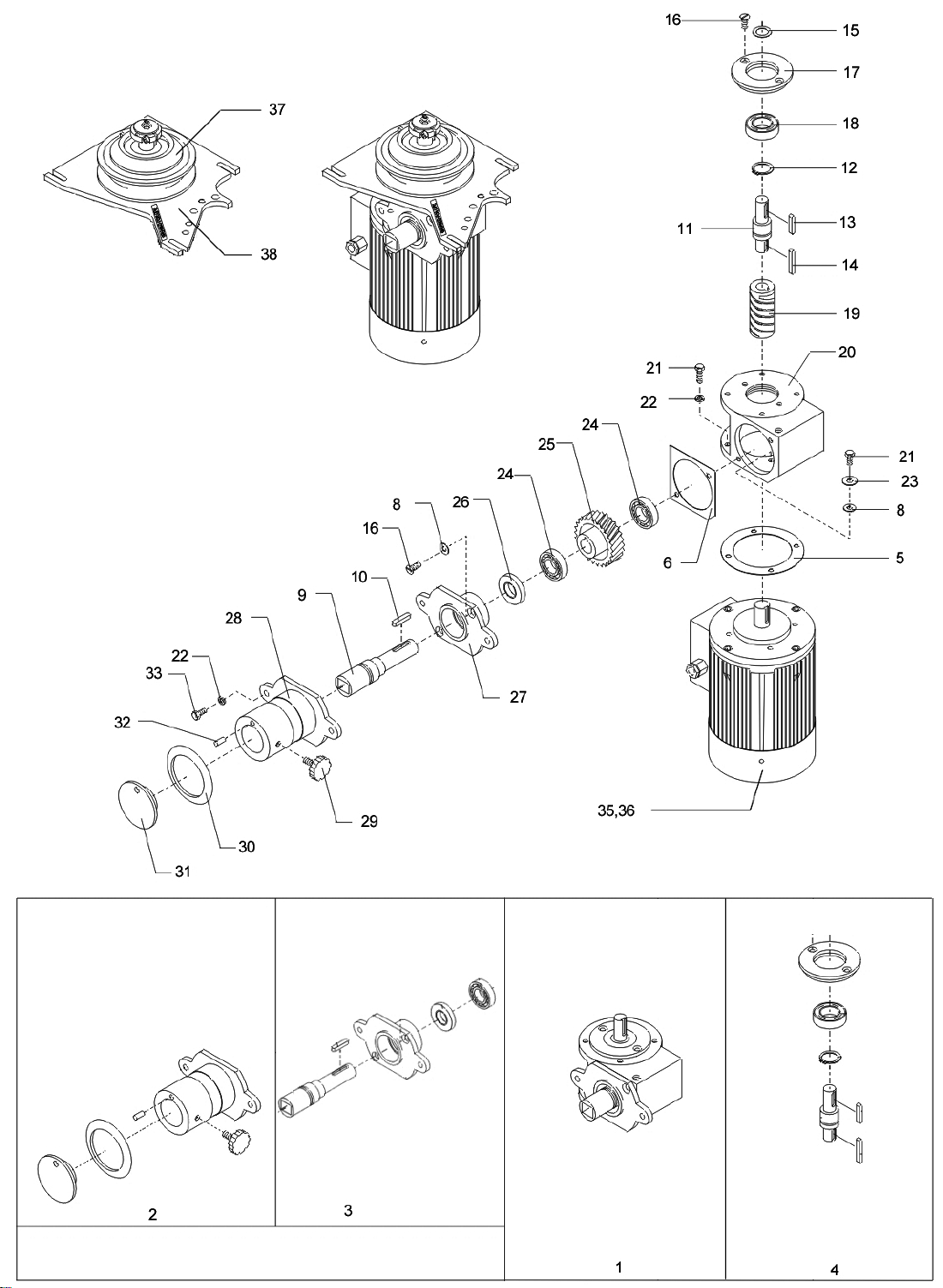

Attachment Drive 1993-Present W30
Fig. No.
Description
Order Number
1
Attachment Drive Assembly
15-10M
2
Ahub
15-83Drive shaft Assembly
15-5M
4
Gear Cover Assembly
15-11M
5
Use RTV
6
Use RTV
8
Seal Washer
STA 5908
9
Drive Shaft
15-5010Key
STA 2032
11
Gear Shaft
20-5212snap Ring
STA 3410
13
Key
STA 2007
14
Key
STA 5018
15
Washer
STA 6054
16
Screw M8 x 20
STA 5018
17
Gear Case Cover
15-1118Sealed Ball Bearing
20-104
19
Worm
20-4920Gear Case
15-1021Screw M8 x 25
STA 5433
22
Lock Washer
STA 6056
23
Washer
STA 6020
24
Sealed Ball Bearing
15-105
25
Worm Wheel
20-926Seal
20-107
27
Bearing Hub
15-528Hub
15-829Finger Screw
STA 5561
30
Screw M8 X50
15-211
31
End Cover
15-214
32
Roll Pin
STA 6316
33
Screw M8 X 20
STA 5322
34
Gear Grease
860/150-0
35
Motor 3 Phase 3 HP
60-85.52
36
Motor 1 Phase 3 HP
60-85.62
37
Motor Pulley Assembly
15-59M
38
Motor Mount Plate
60-61

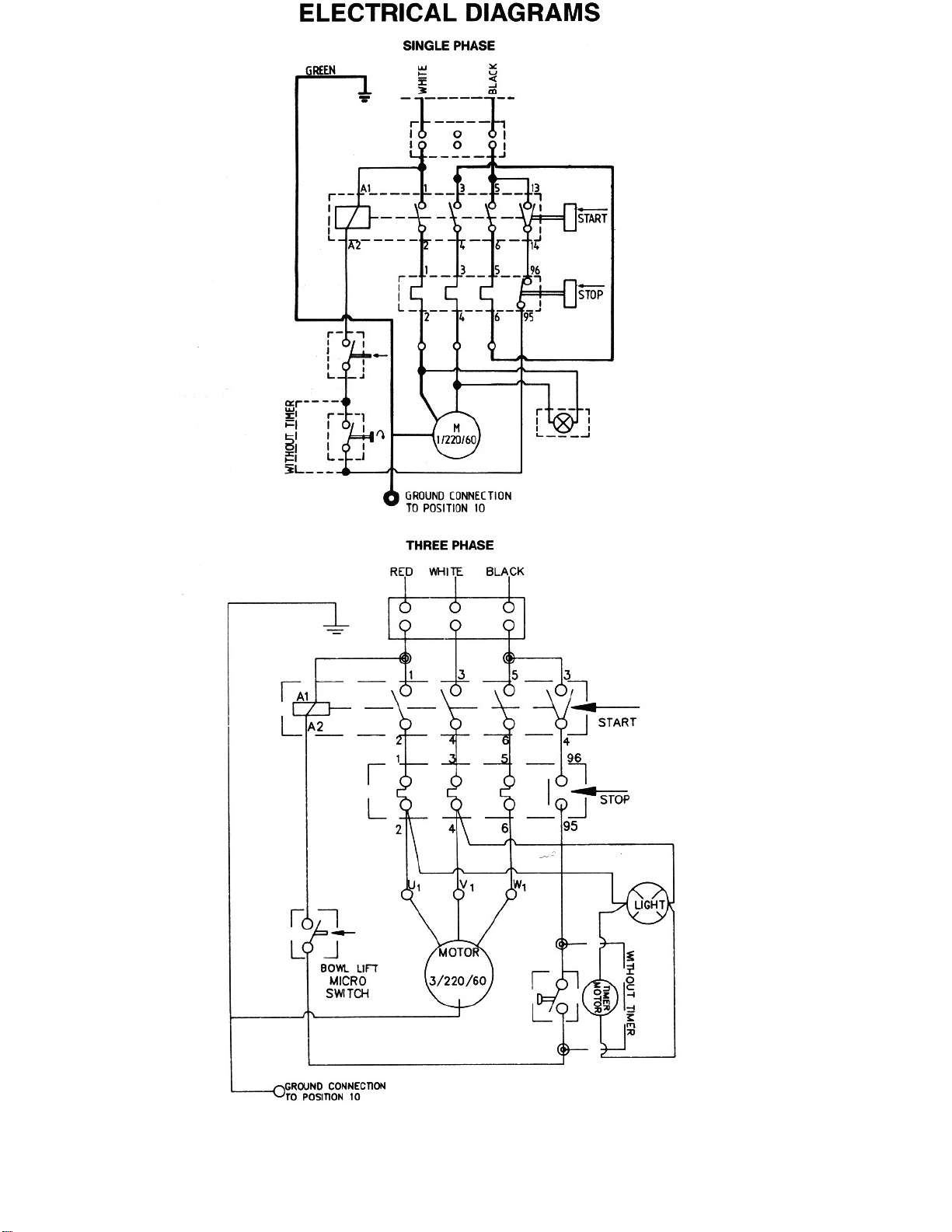

Electrical System 1985-1997 W30
Fig. No.
Description
Order Number
1
Instrument Panel
27-149
2
On Button
30-174
3
Off Button
30-175
4
Pilot Light
27-186.1
56Screw
STA 5275
7
Plug Button
STA 6130
8
Screw
STA 5080
9
Screw
STA 5121
10
Contactor Bracket
27-151
11
Contactor CI9 (3 Phase)
20-88.4
Contactor CI16 (1 Phase)
100-88.5
12
Thermal Overload (3 Phase)
20-88.22
Thermal Overload (1 Phase)
20-88.24
13
Auxiliary Switch
20-88.45
14
Cover
27-152
15
Cable Inlet
STA 3000
16
Nut
STA 3010
17
Capnut
STA 5823
18
Bowl Lift Microswitch 1985-1993
27-172
19
Cable (14/4)
20-194.15
20
Cable (14/3)
20-194.02
21
Timer
30-188.15
22
Terminal Box
30-192
Electrical System 1985-1997 W30
Fig. No.
Description
Order Number
1
Cable Inlet
STA 3000
2
Nut
STA 3010
3
Cover
31-152
4
Ground Clamp
30-453
56Front panel
140-149.1
7
Ground Clamp
31-457
8
Nut
STA 5897
9
Screw
STA 6483
10
Cable Inlet
STA 3017
11
Screw
STA 5080
12
Screw
STA 5232
13
Timer (220V)
30-188.15
13A
Timer (115V)
20-188.15
14
Stop Switch w/contact
31-174.3
15
Start Switch w/contact
31-174.2
17
Contactor (1 Phase 220V)
100-88.5
17A
Contactor (3 Phase 220V)
20-88.4
17B
Contactor (1 Phase 115V)
100-88.11
17C
Contactor (3 Phase 480V)
20-88.91
18
Thermal Overload (3 Phase 480V)
20-88.21
18A
Thermal Overload (3 Phase 220V)
20-88.22
18B
Thermal Overload (1 Phase 230V)
20-88.24
18C
Thermal Overload (1 Phase 115V)
100-88.30
BOWL SCREEN
Fig. No.
Description
Order Number
1
BOWL SCREEN ASSEMBLY
225/30A
3
BLACK BALL
STA 3307
4
LOCKWASHER
STA 6056
5
FRONT SCREEN
56G40-21
6
CHUTE
56G20-280
7
REAR SCREEN
56G30-22
9
SET SCREW
STA 5665
10
SWITCH ASSEMBLY
56P30-15
11
SCREW
STA 5251
12
BRACKET
56P30-15
13
MICROSWITCH
56SN20-30
14
NUT M6
STA 5819
15
SCREW M6 X 50
STA 5250
16
HARNESS
30-193M
17
NOTCHED CAM
56SN30-22
18
BODY BUSHING
56SN30-21
19
NUT F/ BUSHING
56SN30-24
20
CAM
56SN30-23
21
NUT
56G30-26
22
NUT
STA 5810
1993-Present
W30
BOWL SCRAPER
Fig. No.
Description
Order Number
W301SCRAPER HOLDER
42R30-101M
2
BOWL SCRAPER
224/30A
3
BOWL SCRAPER
224/15
(DOWNSIZE)
4
HOLDER WITH BLADE
42R30-102
5
HOLDER WITH BLADE
42R30A-102
(DOWNSIZE)
6
NYLON BLADE W/SCREWS
42RN30-104
7
NYLON BLADE W/SCREWS
42RN30A-104
(DOWNSIZE)
1986-2000
W30
KEYHOLE SCRAPER2000-PRESENT W30
Fig. No.
Description
Order Number
1
Scraper Holder
42R30-101M
2
Bowl Scraper Assembly
224/30A
3
Bowl Scraper Assembly (Downsize)
224/15
4
Holder with Nylon Blade
42R30-202
5
Holder with Nylon Blade (Downsize)
42R30A-202
6
Nylon Blade
42RN30-204
7
Nylon Blade (Downsize)
42RN30A-204
Bowl and Tools W30
Fig. No.
Description
Order Number
STANDARD BOWL AND TOOLS
1
Dough Hook
213/30A
2
Hook Pin
30-793Wire Whip
207/30A
5
Tool Pin
STA 6261
6
Flat Beater/Paddle
205/30A
7
Stainless Steel Bowl
203/30A
OPTIONAL 15 QT BOWL AND TOOLS
10
Dough Hook (15 QT)
213/15
11
Wire Whip (15 QT)
207/15
12
Flat Beater/Paddle (15 QT)
205/15
13
Stainless Steel Bowl (15 QT)
203/15

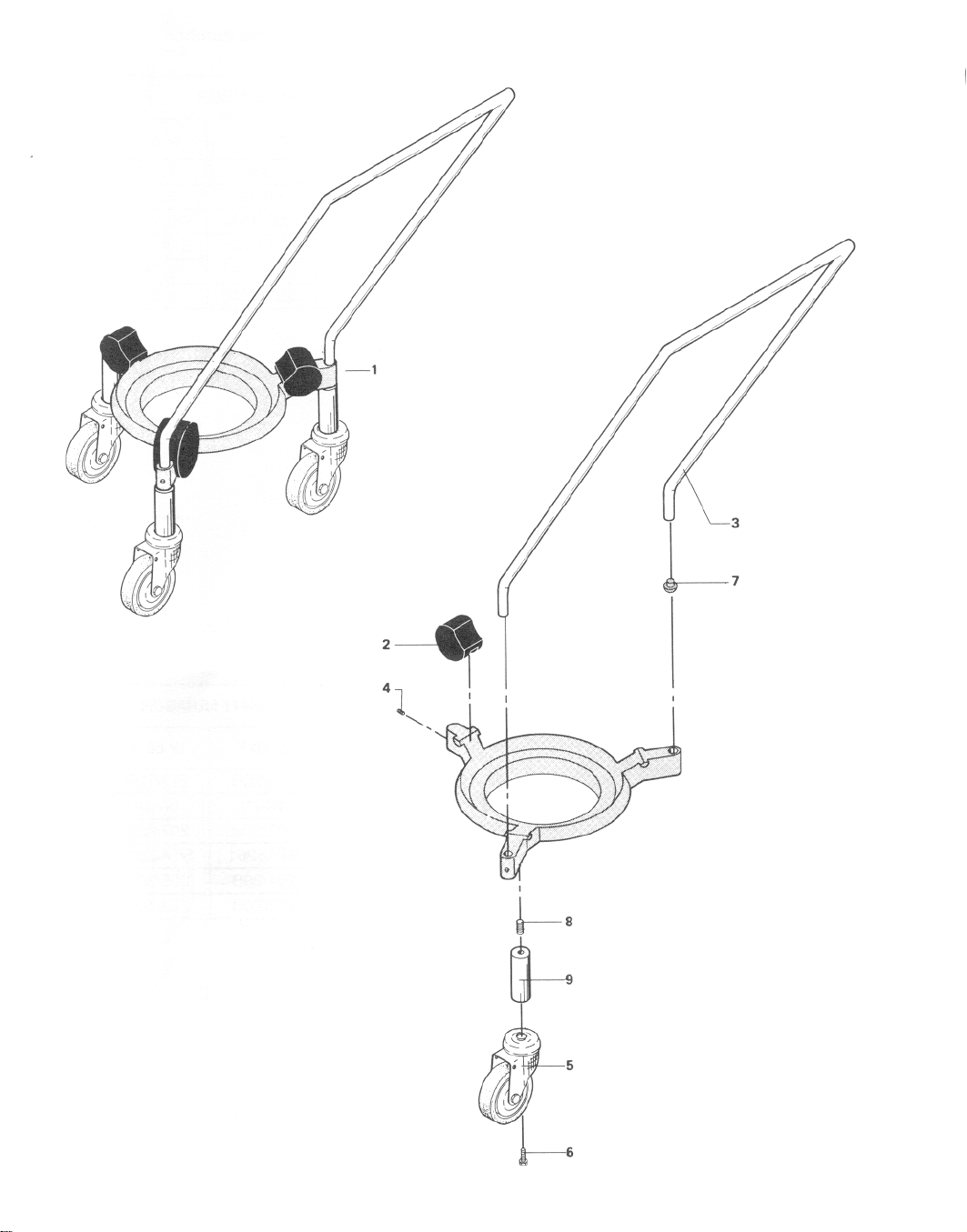

Bowl Truck W30
Fig. No.
Description
Order Number
BOWL TRUCK FOR 30 QT BOWL
1
Bowl Truck
215/30A
2
Rubber Block
30-206
3
Handle
22R270
5
Castor
22R30-520
6
Screw
STA 5602
7
Plug Button
STA 6513
8
Screw
STA 5608
9
Distance Piece (155MM)
22R140.1-1W
BOWL TRUCK FOR 15 QT BOWL
1A
Bowl Truck
215/15
9
Distance Piece (190MM)
22R140.1-9W
