Varimixer V30, V40, V60 Operation Manual

012016

SPARE PART AND OPERATION MANUAL

FOOD MIXER

Models V30, V40, and V60

1

Caution -READ BEFORE OPERATING- Caution

Varimixer recommends that mixer operators be at least 18 years of age and be thoroughly trained
on the use of the mixer.

Varimixer recommends that the following precautions be adopted to help make the mixer operation
safer and more efficient.

........- All operators should be at least 18 years of age.

- All operators should be thoroughly trained before being allowed to operate the mixer.

- NEVER reach into the bowl when the mixer is running.

- Do not wear loose clothing or rings while operating the mixer.

- Stop the mixer and lower the bowl before adding ingredients, scraping the bowl, removing the

............agitator, or removing the product.

- Stop the mixer before removing or installing attachments into the drive hub.

- Do not attempt to assemble or disassemble attachments while mounted into the drive hub.

- Always use the pusher plate with the slicer/meat grinder attachments.

- NEVER bypass the safety mechanisms supplied on the mixer. Doing so can cause injury and

............is the responsibility of the user to insure these safety mechanisms are operating properly.

2

LIMITED WARRANTY

Varimixer warrants its commercial mixers to the original purchaser against defects in material or manufacture for a period of one
year from the date of original purchase, subject to the following exclusions and limitations. The warranties provided by Varimixer
do not apply in the following instances:

EXCLUSIONS

1. In the event that the equipment is improperly installed. Proper installation is the responsibility of the installer, proper installation
procedures are covered in the Varimixer Spare Parts and Operations Manual.

2. In the event that the equipment is improperly maintained. Proper maintenance is the responsibility of the user. Proper mainte­nance procedures are covered in the Varimixer Spare Parts and Operations Manual.

3. In the event that failure or malfunction of the appliance or any part thereof is caused by abnormal use or is otherwise not attribut­able to a defect in material or manufacture.

4. In the event that the appliance , by whatever cause, has been materially altered from the condition in which it left the factory.

6. On parts which would normally be worn or replaced under normal conditions.

7. With regard to adjustments and/or calibrations. Checking of and changes in adjustments and calibrations are the responsibility of
the installer, Proper installation is the responsibility of the installer, proper installation procedures are covered in the Varimixer
Spare Parts and Operations Manual.
If any oral statements have been made regarding the appliance, such statements do not constitute warranties and are not part of the
contract of sale. This Limited Warranty constitutes the complete, final and exclusive statement with regard to warranties.

..

THIS LIMITED WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ALL OTHER WARRANTIES WHETHER..

WRITTEN, ORAL OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY WARRANTY OF..MERCHANTABILITY

OR FITNESS FOR PARTICULAR PURPOSE OR WARRANTY AGAINST LATENT..DEFECTS.

LIMITATIONS OF LIABILITY

In the event of warranty claim or otherwise, the sole obligation of Varimixer shall be the repair and/or replacement at the option of
Varimixer, of the appliance or component or part thereof Such repair or replacement shall be the expense of Varimixer except that
travel over 100 miles or two hours, overtime, and holiday charges shall be,, the expense of the purchaser. Any repair or replacement
under this warranty does not constitute an extension of the origin, warranty for any period for the appliance or for any component
part thereof. Parts to be replaced under this warranty will be repaired or replaced at the option of Varimixer with new or functionally
operative parts. The liability of Varimixer on any claim of any kind, including claims based on warranty, expressed or implied, con­tract, negligence, strict liability or any other theories shall be solely and exclusively the repair or replacement of the product as stated
herein, an such liability shall not include, and purchaser specifically renounces any rights to recover, special, incidental, consequen­tial or other damages of any kind whatsoever, including, but not limited to, injuries to persons or damage to property, loss of profits
or anticipated profits, or loss of use of the product.

TO SECURE WARRANTY SERVICE

If you claim a defect covered by this Limited Warranty, first direct your claim to the local Authorized Service Agency, giving model,
serial and code numbers, voltage, a description of the problem and your sales slip. If this procedure fails to be satisfactory to you,
you may write to the Varimixer National Service Manager, 14240 South Lakes Drive, Charlotte, NC 28273; you should include the
information listed above.

3

TABLE OF CONTENTS

INSTALLATION INSTruCTIONS .......................................................................................................5

CONSTruCTION OF ThE mIxEr: ....................................................................................................6

ThE mAxImum CApACITy OF ThE mIxEr: .......................................................................................6

rECOmmENdEd mAxImum SpEEdS: ...............................................................................................7

rECOmmENdEd mAxImum SpEEdS FOr ATTAChmENT huB ...............................................................7

ErrOr COdES: ..........................................................................................................................7

OpErATION OF ThE mIxEr: .......................................................................................................... 8

STArT-up AFTEr STOp AT hIgh SpEEd: ........................................................................................8

OvErLOAd: ...............................................................................................................................8

COrrECT uSE OF TOOLS: ...........................................................................................................9

CLEANINg: .................................................................................................................................9

mAINTENANCE ANd LuBrICATION: ................................................................................................9

grEASE TypES: .........................................................................................................................9

LIST OF ErrOrS ANd pOSSIBLE SOLuTION: ................................................................................ 10

AdjuSTmENT OF SpECIAL v-BELT: ..............................................................................................10

AdjuSTmENT OF SpEEd: ...........................................................................................................10

AdjuSTmENT OF BOwL FIxINg: ..................................................................................................12

AdjuSTmENT OF BOwL CENTErINg: ........................................................................................... 12

AdjuSTmENT OF BOwL hEIghT: .................................................................................................12

mIxEr SpArE pArTS ................................................................................................................13

mAChINE COLumN ............................................................................................................ 15

BOwL ArmS ....................................................................................................................17

pLANETAry hEAd .............................................................................................................19

TrANSmISSION ..................................................................................................................21

SpEEd LEvEr ASSEmpLy ..................................................................................................23

ATTAChmENT drIvE gEArBOx .......................................................................................... 25

ELECTrICAL pANEL ..........................................................................................................27

BOwL SCrEEN .................................................................................................................29

ATTAChmENTS ANd OpTIONAL prOduCTS ..........................................................................31

4

Read this page entirely BEFORE beginning installation.

INSTALLATION INSTRUCTIONS

UNDER NO CIRCUMSTANCES ARE THE SPEED LEVER, BOWL LIFT LEVER, OR THE BOWL

ARMS TO BE USED TO MOVE THE MIXER INTO PLACE. DAMAGE WILL RESULT TO THE UNIT.

IT IS RECOMMENDED THAT THE TOP LID BE REMOVED BEFORE MOVING THE UNIT.

The mixer must be mounted with the rubber feet, which neutralize both shaking and rusting. Spacers
can be inserted under the mixer’s feet if the floor is uneven. The mixer can be bolted to the floor if
desired.
Before the mixer is connected to power, it should be checked that the voltage and frequency on the
rating plate is correct in relation to the place of installation. The rating plate is located on the rear
right side of the mixer. The electrical connection box is located at the top rear of the mixer.

WARNING

Electrical and grounding connections must comply with applicable portions of the National Electrical
Code and/or other local electrical codes.

Wire Color Codes

White-Phase 1
Red -Phase 2
Black-Phase 3

Green-Ground

No Neutral is used

1. Lower the bowl lift lever.

4. Close bowl screen if equipped.

2. Remove the bowl and all tools.

Timer

Start/Stop

5. Set timer to 10 minutes and
push “start” .

5

3. Raise the bowl lift.

6. Insure cover is rotating in
the correct direction.

CONSTruCTION OF ThE mIxEr:

Safety switch for lid (not standard)

Lift/lowering of bowl

Motor relay /

thermal over-

load relay

Fuse

Safety switch for

safety guard

Speed

adjustment

Size of

Maskin-

mixer

størrelse

V30 2 HP
V40 3 HP
V60 3 HP

Motor

ThE mAxImum CApACITy OF ThE mIxEr:

Product V30 V40 V40P V60

Dough, Bread 65%AR
Dough, Bread 50%AR
Dough, Donut - Yeast
Dough, Donut - Cake
Pie Dough
Cookie, Dough

Mufns

Mashed Potatoes

Pancakes, Wafes

Whipped Cream
Cake, Layer
Eggs & Sugar
Icing, Fondant
Egg Whites
Cake, Cup
Cookies, Sugar

35 lbs. 45 lbs. 55 lbs. 90 lbs.
23 lbs. 35 lbs. 45 lbs. 75 lbs.
34 lbs. 42 lbs. 52 lbs. 70 lbs.
34 lbs. 41 lbs. 51 lbs. 60 lbs.
31 lbs. 37 lbs. 47 lbs. 58 lbs.
20 lbs. 30 lbs. 40 lbs. 50 lbs.
35 lbs. 40 lbs. 50 lbs. 60 lbs.
26 lbs. 30 lbs. 30 lbs. 46 lbs.
14 qts. 16 qts. 16 qts. 28 qts.

6 qts. 9 qts. 9 qts. 12 qts.
35 lbs. 45 lbs. 45 lbs. 69 lbs.
14 lbs. 18 lbs. 20 lbs. 28 lbs.
20 lbs. 25 lbs. 30 lbs. 40 lbs.

1.5 qts. 1.75 qts. 1.75 qts. 2 qts.
38 dz. 46 dz. 63 dz. 81 dz.
58 dz. 69 dz. 75 dz. 115 dz.

Safety switch

for bowl lift

weight of liquids

%AR =

weight of our

Batch size and/or speed reduction may be necessary
due to one of the following conditions:

1. High Gluten Flour

2. AR% under 40%

3. Water Temp. under 65 degrees F.

Water Weights
1 Gallon = 8.33 lbs.
1 Quart = 2.08 lbs.
1 Pint (16 oz.) = 1.04 lbs.
1 Cup = 0.52 lbs.

AV Donut Weight
Yeast Raised = 1 1/2 oz. per dz.
Cake Raised = 1 lb. per dozen

6

rECOmmENdEd mAxImum SpEEdS:

rECOmmENdEd mAxImum SpEEdS FOr ATTAChmENT huB

MIN MAX
1 2 3 4 5

ErrOr COdES:

If the mixer is overloaded, the motor will stop and will be shown for ‘overheat’ in the display.

• Allow the mixer to cool down.

• After a short time, the display will change to normal mode.

• The mixer can be started again. See also the section “Start-up after stop at high speed” on page 8.

7

OpErATION OF ThE mIxEr:

A) Open the bowl screen and place the bowl in the bowl arms.

OBS: The bowl arms must be in lowest position and the

bowl must be pushed all the way into the bowl arms. The
bowl’s “centre ear” must be turned in towards the mixer
(g.2 and g.3).

B) Place the mixing tool in the bayonet shaft. The pin on the

tool must be turned into the bayonet hole (g.2).

C) Raise the bowl to working position by turning the handle

for bowl lift in the direction of the arrow (g.2), ensure that
the bowl is placed correctly. Close the bowl screen.

D) The mixing time can be set on the timer using the and

buttons. The mixer stops automatically when the mixing
time has run out. (If the mixer stops at high speed when
the mixing time runs out, follow the instructions “Start-up

after stop at high speed” before starting the mixer again).

E) Start the mixer by pressing (g.1)
F) Turn the speed selector lever (g. 4) to the rear until the

required speed has been obtained, (notice the recom­mended maximum speeds on page 3).

The speed must be changed only when the mixer
is running.
The mixer must not be started when loaded in high
speed position.

Fig. 1 Operation panel.

Timer/
Display

Time
down

Time up

Emergency stop

Fig. 2

Mixer with open
safety guard,
lowered bowl and
mounted tool.

Start/Stop

G)

Before the mixer is stopped, the speed selector lever

must be moved back to lowest speed (g.4).

Stop the mixer by pressing (g.1)

H)

STArT-up AFTEr STOp AT hIgh SpEEd:

This procedure is used in all cases where the mixer has been
interrupted at high speed, either because the mixer has been
stopped using , the mixing time has run out, the emergency
stop is activated or the

1)

Lower the bowl and remove the tool from the bayonet

Raise the bowl arms, either empty or with the bowl.

2)

bowl screen

is opened:

.

3) Close the bowl screen, start the mixer and move the
speed selector lever back to lowest speed.

Switch off the mixer . Now the mixer can be started as usual.

4)

OvErLOAd:

Do not overload the mixer. Sticky and heavy doughs can
overload the mixer. Overloading is further exacerbated
if the speed of the mixing tool is increased beyond the
recommended values or if a wrong mixing tool is used.
Large lumps of fat or cooled ingredients must be cut into
small parts before they are placed in the bowl.

Fig. 3

Mixer seen from
above, the bowl has

been pushed all the
way into the bowl arms.

Notice: the centre
“ear” of the bowl is
facing the mixer

First “ear”

Second “ear”

Fig. 4 Speed selector lever

Centre
“ear”

Longer time overload will interrupt the mixer.

will be written in the mixer’s display. After a short
while the display will change back to normal mode and
you can start the mixer again as described in “Start-up
after stop at high speed”.

8

COrrECT uSE OF TOOLS:

mAINTENANCE ANd LuBrICATION:

Whips should not be struck against hard objects
as e.g. the edge of the bowl. This will make the
life of the tool shorter due to increasing deformity .

Recommended applications for tools:

Whip Beater Hook

Cream Cake dough Bread dough

Egg whites Butter cream Dark bread

Mayonnaise Wafe dough and the like

and the like Minced meat

and the like

For production of mashed potatoes the special
wing whip or the whip with thicker wires should be
used, alternatively use the beater and the whip.

NOTE: Speed should never exceed 150 RPM when
using the dough hook. Our dough hook is designed to
give you optimum product on low speed.

CLEANINg:

The mixer should be unplugged before cleaning to

prevent accidental starting while cleaning.

The innitely variable gear must be lubricated regularly, i.e.

a lubrication interval of approx. 60 hours of operation.

Lubrication of innitely variable gear:

OBS. Special grease !!(Use the grease gun delivered to­gether with the mixer). Start the mixer and increase the speed
to approx. 50%. Stop the mixer (use the emergency stop)
and open the lid on the top of the mixer. On the top of each
of the two pulley set shafts is a grease nipple (g. 5 point

1). Press grease through the grease nipples.
until the grease gun feels hard to press or until grease comes

out between the shaft and the pulleys.

The mixer must not be started until the screws which
hold the lid are inserted.

Start the mixer, and set the speed back to low speed.

Stop the mixer and ll the grease gun with new grease so

that it is ready for next time.

Lubrication of other movable parts:

The movable parts of the bowl arms, the shaft and the lift­ing rod must also be lubricated with oil. Remove the rear
covering and lubricate the marked points with an oil can.

(g.5 pkt.2)

The mixer should be cleaned daily or after use.
The mixer should be cleaned with a soft cloth and clean

water. Sulphonated soaps should be used with caution
as they destroy the mixer’s lubricants.

Never use high pressure cleaning for the
mixer.

Parts made of aluminum should not be used
to strongly acidic, highly alkaline or highly
salty foodstuffs, which may attack aluminum
without coating.

Tools of aluminium must not be washed with
strong alkaline detergents (pH between 5

and 8).

The soap suppliers can recommend the correct type of
soap.

The inside of the beater shaft should be cleaned once a
day with warm, soapy water.

Dough hook Cleaning: Special care should be given to
cleaning the dough hook. We recommend that it be
cleaned and sanitized in a commercial dish machine. An
alternate cleaning procedure is to vigorously scrub the
hook with a hot.water and detergent solution. Use a
heavy bristled brush. After cleaning, sanitize the hook by
rinsing it with a 50 ppm solution of sodium hypochlorite.

grEASE TypES:

Grease for the pulley set shafts:Castrol High T emperature
Grease.

On repair of the planetary head: Grease the toothed wheel
and the toothed rim with Nye Gel 868VH,(PN 868VH), the
needle bearings in the planetary head must not be lubricated
with this type of grease they should be lubricated with PN
Sapphire 2. Do not use any another type of grease than
the one stated here.

On repair of the attachment hub: Fill the attachment hub with

GreaseWay LiCa 80

g.5

Cleaning of attachment hub: after use of the attach­ment drive this should be wiped inside with a soft cloth.

9

LIST OF ErrOrS: pOSSIBLE SOLuTION:

A rattling sound from the closed part of the mixer. Adjustment of special v-belt
The mixer starts “striking” when kneading dough Adjustment of special v-belt

which normally causes no problems.
The mixer changes its speed by itself. Adjustment of special v-belt

The minimum and the maximum speeds are changing. Adjustment of speed.
The bowl is too tight or too loose. Adjustment of bowl xing
The tool hits the sides of the bowl. Adjustment of bowl centering
The tool hits the bottom of the bowl. Adjustment of bowl height

Prior to a possible repair or adjustment, switch off the mixer by disconnecting the power cable.

AdjuSTmENT OF SpECIAL v-BELT:

The distance (X) (Fig. 6) is only indicative as it depends
on the tolerance of the special V-belt.

1. Start by tightening the v-belts (*).

2. Tighten the special V-belt (A) by moving one or two
washers from (V) to (T).

3. Start the mixer and leave it running while the nut (U)

is tightened. Do not tighten it too much.

4. On the front pulley set the stud (E) on the varispeed
collar (F) must be placed inside the lower fork (G) and
on the rear pulley set outside the fork for belt tightener

(B), (both must point backwards).

5. Tolerances in the transmission might cause that the

special V-belt (A) is hitting the pins of the pulley sets
when the speed has been adjusted. In such cases
the distance (X) must be reduced.

6. Then follow the section:

“Adjustment of speed”

AdjuSTmENT OF SpEEd:

1. The stop screws (J) (Fig. 6) on the speed lever
should be adjusted so that the measurement (H) is
1-2 mm on the front and the rear pulley, at low and
high speed, respectively. Tighten the counter nuts

(K) when the speed is correctly adjusted.

2. Tolerances in the transmission might cause that the
special V-belt (A) is hitting the pins of the pulley sets
(Z) when the speed has been adjusted In such cases
the distance (X) must be reduced, see “Adjustment
of special v-belt”, and the speed must be readjusted.

10

V30 = 11 1/2 " +/- 1/8"
(X) V40 = 11 1/2" +/- 1/8"
V60 = 12" +/- 1/8"

g.6 Adjustment of special V-belt and speed

5

11

AdjuSTmENT OF BOwL FIxINg:

The bowl arms must be raised to normal working posi­tion. Loosen the counter nuts (1) (g. 7) and remove the
cotter pins (2). Turn the bolts (3) until correct xing of the
bowl is achieved. By turning the bolts out of the extension

tube the xing is increased. Start by turning one of the

bolts half a revolution.
The adjusting diameter shall be measured inside be-

tween the bowl arms:

g.7 Adjustment of bowl xing and bowl centering

Adjusting diameter:

V30 = 14 1/4”
V40 = 15 13/32”
V60 = 17 47/64”

AdjuSTmENT OF BOwL CENTErINg:

Loosen the counter nuts (1) (g. 7) and remove the cotter
pins (2). T urn the bolts (3) until the bowl is in the centre of

the mixer. In order not to alter the xing of the bowl, one of

the bolts must be turned out of the extension tube and the
other into the extension tube. Use the at beater to check
that the bowl is correctly centred and turn the planetary
head with your hand before the voltage is connected.

AdjuSTmENT OF BOwL hEIghT:

The distance (X) is measured from the bottom side
of the bayonet hole to the surface on the bowl arms
on which the bowl rests (fig.7a). The bowl arms
must be lifted to normal working position.

V30 = 6 3/8”
(X): V40 = 6 3/8”
V60 = 6 15/16”

Adjusting diameter

g.7b Adjustment of bowl height:

Lower the bowl arms down on a wooden block so that
the weight of the bowl arms are not loading the lifting
system. Loosen the counter nut (1), (g.7b). Take out
the cutter pin (2). Take out the lifting rod (3). The lifting
bolt (4) is now loose and can be turned out or into the
lifting nut (5), until the correct height of the bowl arms
has been reached.

g.7a Measuring of bowl height:

12

mIxEr SpArE pArTS

13

11

25

14

1

13

18

16

19

17

20

10

12

15

4

7

7

2

6

5

22

3

21

8
9

23

24

14

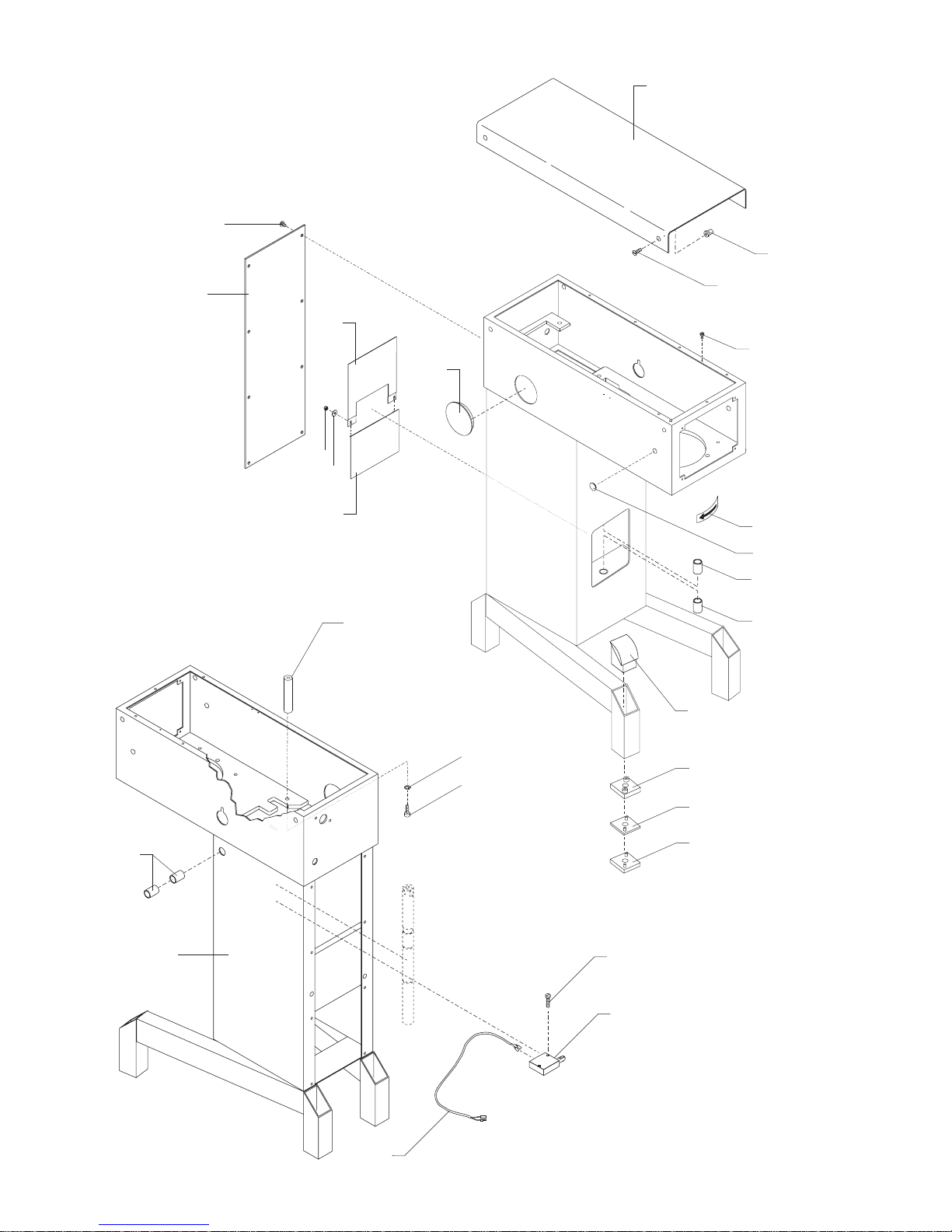

mAChINE COLumN

FIG.

PART NUMBER per MODEL NUMBER

NO.

DESCRIPTION V30 V40 V60

0

Top Lid Threaded Bushing ......................STA 6580 .................................STA 6580 ...........................STA 6580

1.

Knee Pad ................................................30N-212 ...................................30N-212 .............................60N-212

2.

Intermediate Piece 6 MM ........................30N-214.6 ................................30N-214.6 ..........................60N-214.6

3.

Indicator Arrow ........................................15-245 ......................................15-245 ................................15-245

4.

Column....................................................AR31-22M0 ..............................AR31-22M0 ........................AR61-22M0

5.

Lift Lever Bushings .................................STA 2515 ................................. STA 2515 ...........................STA 2515

6.

Bowl Arm Shaft Bushings .......................STA 2520 .................................STA 2520 ...........................STA 2520

7.

Intermediate Piece 3 MM ........................30N-214.3 ................................30N-214.3 ..........................60N-214.3

8.

Foot .........................................................30N-213 ...................................30N-213 .............................60N-213

9.

Lid Screw ................................................STA 5017 .................................STA 5017 ...........................STA 5017

10.

Access Plate Screw ................................STA 5080 ................................. STA 5080 ...........................STA 5080

11.

Ground Screw .........................................STA 5232 .................................STA 5232 ...........................STA 5232

12.

Rear Access Plate .................................. 27-22.7 ..................................... 27-22.7 ...............................60-22.7

13.

Top Lid ....................................................AR31-21 ...................................AR31-21 .............................AR61-21

14.

Plug Button No Hub ................................15-73 ........................................15-73 ..................................15-73

15.

Upper NSF Plate Cover ..........................31-270 ......................................31-270 ................................61-270

16.

Lower NSF Plate Cover ..........................31-271 ......................................31-271 ................................61-271

17.

Lock Nut NSF Plate ................................STA 5834 ................................. STA 5834 ...........................STA 5834

18.

Washer ....................................................STA 6027 .................................STA 6027 ...........................STA 6027

19.

Motor Mount ............................................AR31-148E ..............................AR31-148E ........................AR61-148E

20.

Motor Mount Bolt ....................................STA 5625 ................................. STA 5625 ...........................STA 5625

21.

Lock Washer ...........................................STA 6056 .................................STA 6056 ...........................STA 6056

22.

Screw ......................................................STA 5662 .................................STA 5662 ...........................STA5270

23.

Micro Switch "CE" IP65 ..........................81-173 ......................................81-173 ................................81-173

24.

Wire for Micro Switch ..............................AR31-194.11 ............................AR31-194.11 ......................AR81-194.11

25.

15

5

7

3

11

14

13

13

12

13

11

14

15

2

15

10
24

23

16
11

9

19

6

8

17
18

1

20
21
22

W40-600W

23

4

30-69M

AR31-23/24.1M2

27-62M

16

BOwL ArmS

FIG.

NO.

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

PART NUMBER per MODEL NUMBER

DESCRIPTION V30 V40 V60

Bowl Arm Set ..................................AR31-23/24.1M2 ................................. ? .....................................60N-23

Shock Absorber, assy ......................... W40-600M ...............................W40-600M ..........................W60-600M

Crank Arm ............................................R27-63ME ...............................R27-63ME ..........................R60-63ME

Bowl Arm Shaft ....................................AR31-68.1 ...............................AR31-68.1 .......................... AR61-68.1

Bowl Lift Lever, assy ..............................27-62M .................................... 27-62M ...............................60-62M

Black Ball ............................................. STA 3308 .................................STA 3308 ............................STA 3308

Key B6 x 6 x 15 .................................... STA 2020 .................................STA 2020 ............................STA 2020

Washer (s) ...........................................STA 6044 .................................STA 6044 ............................STA 6044

Snap Ring ............................................ STA 3407 .................................STA 3407 ............................STA 3407

Lifting Nut .................................................15-65 .......................................15-65 ..................................15-65

Cotter Pin ............................................. STA 6205 .................................STA 6205 ............................STA 6205

Jam Nut................................................ STA 5827 .................................STA 5827 ............................STA 5827

Extension Tube, assy .............................30-69M .................................... 30-69M ...............................60-69M

Shoulder Bolt ....................................... STA 5690 .................................STA 5690 ............................STA 5690

Eyebolt ..................................................R30-80E .................................. R30-80E .............................R30-80E

Lifting Bolt ................................................27-83 .......................................27-83 ..................................60-83

C-Clip ................................................... STA 3580 ................................STA 3580 ...........................STA 3580

Lift Bolt Pin ...........................................W40-603E ...............................W40-603E ............................AR31-67

Bowl Arm Bushing ................................ STA 2522 .................................STA 2522 ............................STA 2525

Bowl Arm Roller Screw ........................STA 5088 .................................STA 5088 ............................STA 5088

Bowl Arm Roller ......................................31-128 .....................................31-128 ................................ 31-128

Bowl Arm Roller Shaft .............................31-127 .....................................31-127 ................................31-127

Snap Ring ............................................ STA 3467 .................................STA 3467 ............................STA 3460

Nut ....................................................... STA 5827 .................................STA 5827 ............................STA 5827

17

14

2

3

5

1
1A
1B

4
4A
4B

6

7
8

9

15

18

15

14

20

23
24

16

17

19

21

22

10

26

6

5

11

12

A

13

36

27

28

29

31
32

31

33

34

37

25

26

30

35

B

C

D

E

F

G

18

pLANETAry hEAd

FIG.

NO.

0

1.
1A.
1B.

2.

3.

4.
4A.
4B.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.

27.

28.

29.

30.

31.

32.

33.

34.

35.

36.

37.

DESCRIPTION

V30

V-Belt (60 HZ) 3 per unit .................40-90.1 (A29) ................................. 40-90.1 (A29) ...................................... 60-90.1 (A35)

V-Belt (50 HZ) 3 per unit
V-Belt Single Cog Belt
Snap Ring
Washer
Planetary Pulley (60 HZ )
Planetary Pulley (50 HZ )
Pulley Single Cog Belt
Bearing
Snap Ring
Bolt M10 x 40 MM
Washer
Main Bearing
Distance Tube
Gear Wheel Rim

Screw for Cover....................................STA 5044

Planetary Cover white Plastic
Distance Piece
Snap Ring
Snap Ring
Eccentric Disc
Bearing
Needle Bearing
Key 8 x 7 x 20 mm
Upper Rim Pinion
Lower Rim Pinion
Main Shaft
Bearing Race, sold as
Lower Half Eccentric Head
Lockwasher
Bolt
Seal, sold as
Needle Bearing w/ race, sold as
Hex Bolt
Distance Piece
Bearing
Snap Ring
Key(s)
Bayonet Shaft
S/S Headcap
Black Rubber Ring

.............................................STA 3425 ........................................ STA 3425 .............................................STA 3427

................................................ STA 6043 .......................................STA 6043 .............................................STA 6047

...................................................R30-98 ..............................................40-98 ...................................................60-98

.............................................STA 3526 ........................................ STA 3526 .............................................STA 3528

.................................................STA 6057 ........................................ STA 6057 .............................................STA 6057

...........................................R40-3 ................................................40-3 .....................................................60-3

........................................40-141 .............................................40-141 .................................................60-141

......................................30-jan ................................................40-1 .....................................................60-1

........................................40-34 ...............................................40-34 ...................................................60-37

.............................................STA 3520 ........................................ STA 3520 .............................................STA 3523

.............................................STA 3472 ........................................ STA 3474 .............................................STA 3474

..........................................30-36 ...............................................40-36 ...................................................60-36

..................................................R30-100 ............................................40-100 .................................................60-100

........................................30-96 ...............................................40-96 ...................................................60-96

...............................................30-30 ...............................................40-30 ...................................................60-30

..........................................STA 6055 ........................................ STA 6057 ............................................STA 6057

.......................................................STA 5640 ........................................ STA 5645 .............................................STA 5646

.........................................R30-101Z ........................................R40-101Z .............................................R40-101Z

................................................STA 5641 ........................................ STA 5646 .............................................STA 5650

........................................30-37 ...............................................40-34 ...................................................60-37

....................................................30-97 ...............................................40-97 ...................................................40-97

.............................................STA 3522 ........................................ STA 3526 .............................................STA 3526

...................................................STA 2038 ........................................ STA 2040 ..........................................STA 2034 (2)

.........................................30-33D ............................................ 40-33D .................................................60-33D

..........................................30-272 .............................................40-272 .................................................60-272

........................40-90Z .............................................40-90Z .................................................60-90Z

...............................N/A ..................................................N/A ...................................................... N/A

......................40-129A ...........................................40-129A ...............................................60-129A

.......................40-129 .............................................40-129 .................................................60-129

...............................N/A ..................................................N/A .......................................................N/A

.............................. STA 5346 ....................................... STA 5346 .............................................STA 5346

........................................ STA 5044 .............................................STA 5044

............AR30-162H .....................................AR40-162H .........................................AR60-162H

...............................STA 2030 ........................................ STA 2030 .............................................STA 2030

....................................30-31 ...............................................40-31 ...................................................60-31

....................................30-32 ...............................................40-32 ..................................................60-32N

..........................R30-101Z ........................................R40-101Z .............................................R40-101Z

.......................30-2 .................................................40-2 .....................................................60-2

..........R30-101Z ........................................R40-101Z .............................................R40-101Z

.................................30-209 .............................................40-209 .................................................60-209

V40

PART NUMBER per MODEL NUMBER

V60

A

Planetary Head, Assemply

B

Main Shaft, Assemply

C

Main bearing, Assemply

D

Eccentric head

E

Eccentric head, Assemply

F

Eccentric disc, Assemply

G

Needle bearing, Assemply

......................................R30-2Z ............................................R40-2Z .................................................R60-2Z

...............W30-2.2M .......................................W40-2.2M ........................................... W60-2.1M

.........................R30-30Z .......................................... R40-30Z .............................................R60-30.1Z

......................R40-3Z ............................................ R40-3Z .................................................R60-3Z

.................R30-2.2Z .........................................R40-2.2Z .............................................R60-2.1Z

...................R30-36Z .......................................... R40-36Z ...............................................R60-36Z

.................R30-101Z ........................................ R30-101Z .............................................R40-101Z

19

A

B

2

5, 28

26

20

TrANSmISSION

FIG.
NO.

0

1.

2.

3.

4.

5.

6.

7.

7A .

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.

27.

28.

29.

30.

31.

32.

33.

34.

35.

36.

37.

38.

39.

40.

41.

42.

43.

44.

45.

46.

47.

48.

49.

50.

51.

52.

53.

PART NUMBER per MODEL NUMBER

DESCRIPTION

Washer ...............................................STA 6018 .........................................STA 6018 .........................................STA 6018

Upper Pulley, assemply ........................15-13M ..............................................15-13M ............................................. 60-13M

Pin.........................................................30-285

Bearing .................................................15-103 ...............................................15-103 ...............................................15-103

Lower Pulley, assemply ........................15-15M ..............................................15-15M ............................................. 60-15M

Bushing

V-Belt Pulley .........................................27-128 ............................................... 27-128 ...............................................60-128

Single Cog Belt Pulley .............................N/A ....................................................N/A ....................................................N/A

Shaft ......................................................15-41 .................................................15-41 .................................................60-41

Key......................................................STA 2024 ..........................................STA 2024 ...........................................STA 2024

Grease Nipple

Snap Ring ..........................................STA 3410 ..........................................STA 3410 ...........................................STA 3410

Bearing .................................................27-102 ...............................................27-102 ...............................................27-102

Snap Ring

Fork Ring ..............................................15-17.1 ..............................................15-17.1 ............................................. 15-17.1

Distance Piece ......................................15-143 ...............................................15-143 ...............................................15-143

Arm for Bearing .....................................30-jun ................................................30-jun ................................................30-jun

Bolt......................................................STA 5348

Washer ...............................................STA 6033 ..........................................STA 6033 ...........................................STA 6033

Vari-Drive Belt ........................................ 27-91 .................................................27-91 .................................................60-91

Bearing

Reducer (22mm X 1.50) ....................... 15-156 ...............................................15-156 ...............................................15-156

Grease Nipple (12mm x 1.75) ............STA 3220 ..........................................STA 3220 ...........................................STA 3220

Washer ...............................................STA 6018 ..........................................STA 6018 ...........................................STA 6018

Lower Motor Pully, assemply

Pin for Motor Pulley .............................. 30-285 .............................................. 30-285 ............................................. 60-285

Motor pulley shaft, assemply ...............15-59Z ..............................................15-59Z ...............................................60-59Z

Screw

Upper Pulley, assemply ........................15-15M ..............................................15-15M ............................................. 60-15M

Bushing ...............................................STA 2505 ..........................................STA 2505 ...........................................STA 2505

Fork Ring

Clamping Ring ...................................... 27-227 ...............................................27-227 ...............................................27-227

Key......................................................STA 2011 ..........................................STA 2011 ...........................................STA 2011

Motor plate mount screw ....................STA 5018 ..........................................STA 5018 ...........................................STA 5018

Screw

Motor Mount Plate .............................R60-61.1E .........................................R60-61.1E .........................................R60-61.1E

Rack Bracket ....................................R15-18.2M4 ......................................R15-18.2M4 ......................................R15-18.2M4

Nut ......................................................STA 5812 ..........................................STA 5812 ...........................................STA 5812

Washer Nut

Stud Bolt Low Speed ...........................30N-305 ............................................30N-305 ............................................30N-305

Trestle ..................................................R20-26.1 ...........................................R20-26.1 ........................................... R20-26.1

Stop Bolt High Speed .........................STA 5444 ..........................................STA 5444 ...........................................STA 5444

Washer

Bolt......................................................STA 5345 ..........................................STA 5345 ...........................................STA 5345

Front Fork ...........................................R27-16M4 .........................................R27-16M4 .........................................R27-16M4

Rear Fork

Spring ..................................................40P-275 ............................................40P-275 .............................................40P-275

Toothed Rack Shaft ............................... 15-46 .................................................15-46 .................................................15-46

Nut ......................................................STA 5815 ..........................................STA 5815 ...........................................STA 5815

Snap Ring ...........................................STA 3407 ..........................................STA 3407 ...........................................STA 3407

Belt Tension Washers

Bolt......................................................STA 5433 ..........................................STA 5433 ...........................................STA 5433

Washer ...............................................STA 6026 ..........................................STA 6026 ...........................................STA 6026

Grease gun

...............................................STA 2505 ..........................................STA 2505 ...........................................STA 2505

.....................................STA 3220 ..........................................STA 3220 ...........................................STA 3220

...........................................STA 3514 ..........................................STA 3514 ...........................................STA 3514

.................................................15-103 ...............................................15-103 ...............................................15-103

.............. 15-13.1M .........................................15-13.1M ..........................................60-13.1M

...................................................STA5602 ........................................... STA5602 ...........................................STA5602

..............................................15-17.1 ..............................................15-17.1 ............................................. 15-17.1

..................................................STA 5612 ..........................................STA 5612 ...........................................STA 5612

.........................................STA 5895 ..........................................STA 5895 ...........................................STA 5895

...............................................STA 6010 ..........................................STA 6010 ...........................................STA 6010

...............................................20-19 .................................................20-19 .................................................20-19

.........................STA 6040 ..........................................STA 6040 ...........................................STA 6040

...........................................15-142 ...............................................15-142 ...............................................15-142

V30

...............................................30-285 ...............................................60-285

..........................................STA 5348 ...........................................STA 5348

V40

V60

A

Motor pulley assemply .................... R15-59.1Z .........................................R15-59.1Z .........................................R60-59.1Z

B

Motor Pulley Bottom Half Assy ......R15-13.1M ........................................R15-13.1M ........................................R60-13.1M

21

Speed lever assemply

22

FIG.

NO.

0

1.

2.

3.

4.

5.

6.

SpEEd LEvEr ASSEmpLy

PART NUMBER per MODEL NUMBER

DESCRIPTION

V30

Speed Lever, assemply ..............W30-47M .....................................W30-47M ...................................W30-47M

Disc with Arrow ...........................30N-47.10....................................30N-47.10 .................................30N-47.10

White Clamp ..............................AR30-47.11 .................................AR30-47.11 ...............................AR30-47.11

Black Knob .................................. STA 3306 .....................................STA 3306 ...................................STA 3306

Snap Ring ................................... STA 3414 .....................................STA 3414 ...................................STA 3414

Screw .......................................... STA 5247 .....................................STA 5247 ...................................STA 5247

V40

V60

23

Bearing Hub Assemply ................................RN30-5.6M

Worm shaft assemply ...................................RN30-52M

29
29A
29B
29C
29E
29F
29G

RN30-5.6MRN30-52M

24

ATTAChmENT drIvE gEArBOx

FIG.

NO.

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.

27.

28.

29.
29A.
29B.
29C.
29D.
29E.

29F.

29G.

PART NUMBER per MODEL NUMBER

DESCRIPTION

V30

Bearing Hub ...........................................15-5 .....................................................15-5 .................................................15-5

Wormwheel ............................................20-9 .....................................................20-9 .................................................20-9

Gear Case

Gear Case Cover..................................15-11 ...................................................15-11 ...............................................15-11

Worm Gear ...........................................20-49 ...................................................20-49 ...............................................20-49

Gear Shaft

Attachment Drive Shaft # 12 ...............30-50.6 .................................................30-50 ...............................................30-50

Key.....................................................STA 2032.............................................STA 2032 ........................................ STA 2032

Bearing ................................................20-104 .................................................20-104 .............................................20-104

Seal......................................................20-107

Gasket - Use RTV Silicone ..................20-300 .................................................20-300 .............................................20-300

Gasket - Use RTV Silicone ................STA 5908.............................................STA 5908 ........................................ STA 5908

Gasket - Use RTV Silicone ..................20-301 .................................................20-301 .............................................20-301

Key.....................................................STA 2007.............................................STA 2007

Key.....................................................STA 2011 .............................................STA 2011 .........................................STA 2011

Snap Ring ..........................................STA 3410.............................................STA 3410 ........................................ STA 3410

Screw

Bearing ................................................15-105 .................................................15-105 .............................................15-105

Bolt.....................................................STA 5433 .............................................STA 5433 .........................................STA 5433

Seal Washer ......................................STA 5908.............................................STA 5908 ........................................STA 5908

Washer ..............................................STA 6020.............................................STA 6020 ........................................STA 6020

Washer ..............................................STA 6054.............................................STA 6054 ........................................STA 6054

Lock Washer

Rubber Ring ........................................15-211 .................................................15-211 .............................................15-211

Hub #12 ............................................R15-8.6M0 ..........................................R15-8.6M0 ...................................... R15-8.6M0

Bolt.....................................................STA 5322.............................................STA 5322 ........................................ STA 5322

Thumbscrew #12

Washer ..............................................STA 6056.............................................STA 6056 ........................................STA 6056

Motor 2HP 1 phase 115V .................W60-85.61 .................................................N/A .................................................. N/A

Motor 2HP 1 phase 208V ................W60-85.61 ...........................................W60-85.61 ............................................ N/A

Motor 3HP 1 phase 208V

Motor 2HP 3 phase 208V .................W60-85.52 ...........................................W60-85.52 ............................................ N/A

Motor 3HP 3 phase 208V .......................N/A ......................................................N/A .............................................W60-85.52

Motor 2HP 3 phase 480V ..................R60-85.1 ..................................................N/A .................................................. N/A

Motor 3HP 3 phase 480V

Motor 4HP 3 phase 480V .......................N/A ......................................................N/A .............................................R100-85.1

............................................15-10 ...................................................15-10 ...............................................15-10

............................................20-52 ...................................................20-52 ...............................................20-52

.................................................20-107 .............................................20-107

.................................................STA 5018.............................................STA 5018 ........................................ STA 5018

...................................... STA6056 .............................................STA6056 .........................................STA6056

.................................4R-125 ................................................4R-125 ............................................ 4R-125

......................N/A ......................................................N/A ..............................................60-85.61

.......................N/A .................................................R60-85.1 ............................................. N/A

V40

........................................ STA 2007

V60

25

11

12

4

13

3, 3A

10

15

14

9

17

16

8

19

18

20

2

1

24

23

6

5

7

21

Front panel, assemple (inclusive print) .......AR31-530.3M

Cover for front panel, assemply ................... AR31-152.1Z

22

AR31-530.3M

19

26

AR31-152.1Z

ELECTrICAL pANEL

FIG.

NO.

1.

2.

3.

3A.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

DESCRIPTION

V30

Front Panel VL1, assemply ....................................................AR31-530.3M ....................AR31-530.3M .............AR31-530.3M

Gasket VL1 Front Panel
Cover for 1x115V, 1x208V, 3x208V
Cover for 3x480V

.............................................................................................STA 5897 ..........................STA 5897 ................... STA 5897

Nut

Emergency Stop Actuator........................................................AR31-174.11

Emergency Stop Adapter

Contact Element NC..................................................................31-174.14

Fuse Holder Complete
Fuse 1.5A, Slow
Grounding Clamp

Screw.........................................................................................STA 5232

Cover Button
Cable Inlet

............................................................................................STA 5801 ..........................STA 5801 ................... STA 5801

Nut
Cable Inlet only for 3x480V
Contactor 1x115V
Contactor 1x208V, 3X208V, 3X480V
Thermal Overload 1x115V
Thermal Overload 1X208V
Thermal Overload 3X208V, 3X480V
Auxiliary Switch 1x115V
Auxiliary Switch 1X208V, 3X208V
Auxiliary Switch 3X480V
Capacitor 1x208V, 3x208V
Transformer 3x480V
Main Circuit Cable 1x115V,
Main Circuit Cable 1X208V, 3X208V, 3X480V
Lead Cable 1X115V
Lead Cable 1X208V
Lead Cable 3X208V
Lead Cable 3X480V
Motor Cable 1x115V

Motor Cable 1x208V.................................................................W30-194.2

Motor Cable 3x208V..............................................................W41-194.250M

Motor Cable 3x480V..............................................................W41-194.251M

........................................................................................Se page 23 ........................Se page 23 .................Se page 23

Motor

.......................................................................R20E-418.2 ......................R20E-418.2 .................R20E-418.2

.............................................................................STA 6519 ..........................STA 6519 ................... STA 6519

.................................................................................STA 3002 ..........................STA 3002 ................... STA 3002

............................................................AR31-562 ..........................AR31-562 ...................AR31-562

..............................................31-152 ..............................31-152 .........................31-152

.......................................................................31-152.4 ............................31-152.4 .....................31-152.4

.................... AR31-174.11 ...............AR31-174.11

........................................................AR31-174.12 ....................AR31-174.12 ...............AR31-174.12

..........................31-174.14 ................... 31-174.14

..............................................................20E-416.1 ..........................20E-416.1 ...................20E-416.1

......................................................................AR31-458 ..........................AR31-458 ...................AR31-458

..........................STA 5232 ...................STA 5232

....................................................... STA 3118 ..........................STA 3002 ................... STA 3002

.....................................................................R100-88.13 ..............................N/A ............................. N/A

........................................R100-88.8 ..........................R100-88.8 ...................R100-88.8

........................................................R100-88.30 ..............................N/A .............................N/A

........................................................R20-88.24 ..........................R20-88.24 ...................R20-88.24

.........................................R20-88.22 ..........................R20-88.22 ...................R20-88.22

............................................................R20-88.44 ...............................N/A .............................N/A

.............................................R20-88.44 ..........................R20-88.44 ...................R20-88.44

...........................................................R20-88.47 ..........................R20-88.47 ...................R20-88.47

....................................................AR31-85.320M ..................AR31-85.320M ...........AR31-85.320M

.................................................................AR10E-430 ........................AR10E-430 .................AR10E-430

..................................................WR31-194.355M .........................N/A .............................N/A

.....................WR31-194.350M ..............WR31-194.350M .........WR31-194.350M

.................................................................W30-194.3 ..............................N/A .............................N/A

.................................................................W30-194.3 ........................W30-194.3 ..................W30-194.3

.............................................................WR41-194.150M ..............WR41-194.150M .........WR41-194.150M

.............................................................WR41-194.151M ..............WR41-194.151M .........WR41-194.151M

.................................................................W30-194.2 ..............................N/A .............................N/A

........................W30-194.2 ..................W30-194.2

..................W41-194.250M ...........W41-194.250M

..................W41-194.251M ...........W41-194.251M

V40

PART NUMBER per MODEL NUMBER

V60

27

9

18

15

16

2
4

12

17

14

9

18

11

13

16

8

10

1

7

6

3

5

28

BOwL SCrEEN

FIG.

NO.

0

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.

18.

DESCRIPTION

V30

Bowl Screen Kit .........................14030-0018 ......................................... ? ..................................................?

Nut ...............................................STA 5810 .....................................STA 5810 ....................................STA 5810

Knob.............................................STA 3307 .....................................STA 3307 ....................................STA 3307

Lock Washer ................................STA 6056 .....................................STA 6056 ....................................STA 6056

Bowl Screen Front ........................225/30F .......................................225/40F ......................................225/60F

Chute ..........................................56G20-280 .................................. 56G20-280 ..................................56G20-280

Bowl Screen Rear .........................225/30R .......................................225/40R ......................................225/60R

Cam ........................................... 56SN30-23 ................................. 56SN30-23..................................56SN30-23

Set Screw ....................................STA 5665 .....................................STA 5665 ....................................STA 5665

Bracket Assembly ........................56P30-15 .....................................56P30-15 ....................................56P30-15

Screw ...........................................STA 5251 .....................................STA 5251 ....................................STA 5251

Nut ...............................................56G30-26 .................................... 56G30-26 ....................................56G30-26

Microswitch ................................ 56SN20-30 ................................. 56SN20-30..................................56SN20-30

Jam Nut .......................................STA 5819 .....................................STA 5819 ....................................STA 5819

Screw ...........................................STA 5250 .....................................STA 5250 ....................................STA 5250

Nut for Bushing .......................... 56SN30-24 ................................. 56SN30-24..................................56SN30-24

Notched Cam ............................. 56SN30-22 ................................. 56SN30-22..................................56SN30-22

Body Bushing ............................. 56SN30-21 ................................. 56SN30-21..................................56SN30-21

V40

PART NUMBER per MODEL NUMBER

V60

29

1,2

5

6

6

6

22

20

24
23

21

19

3, 4

18

17

16

7, 8

9

10

11, 12, 13, 14

6

6

15

34

25, 26

27

28

29

30
31, 31A

32

33

30

ATTAChmENTS ANd OpTIONAL prOduCTS

PART NUMBER per MODEL NUMBER

FIG.
NO.

0

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.

27.

28.

29.

30.

31.

31A

32.

33.

34.

DESCRIPTION

V30

Stainless Steel Bowl (Standard) ..................203/30A ...........................................203/40A ..........................................203/60

Stainless Steel Bowl (Downsize)
Dough Hook (Double Pin)
Dough Hook (Downsize)
Tool Pin (Double)
Tool Pin
Wing Whip
Wing Whip (Downsize)
S/S Flat Beater
Flat Beater (Downsize, Aluminum)
Wire Whip (Heavy Duty)
Wire Whip (Heavy Duty, Downsize)
S/S Wire Whip
S/S Wire Whip (Downsize)
Wire Whip Reinforced
Bowl Scraper
Bowl Scaper(downsize)
Holder w/Blade

Holder w/Blade (downsize).....................42RN30A-202

Nylon Blade

Nylon Blade (downsize)...........................42RN20-204

Scraper Holder

Screw..........................................................STA5652

Washer
Bowl Truck
Bowl Truck (Downsize Bowl)
Bowl Truck Handle
Set Screw
Bowl Truck Frame

Screw.........................................................STA 5608

Spacer (For Standard Bowl)
Spacer (For Downsize Bowl)

Castor, Dual Wheel Bowl Truck...............22R150-520

Bolt
Rubber Block (4 per bowl truck)

......................................................STA 6261 .........................................STA 6261 .......................................STA 6263

...................................................209/30A ...........................................209/40A ..........................................209/60

............................................204/30A ...........................................204/40A ..........................................204/60

................................................N/A ...................................................N/A .............................................207/60

............................................. 42RN30P ..........................................224/40A ..........................................224/60

........................................42RN30-202 .....................................42AR41-202 ...................................42R60-202

.............................................42RN30-204 ......................................42R40-204 ....................................42R60-204

...................................... 42RN30-101M .................................42AR41-101M ................................42R40-101M

.......................................................STA6029 ..........................................STA6029 .......................................STA6029

...................................................215/30A ...........................................215/40A ..........................................215/60

..................................................STA 5675 .........................................STA 5675 .......................................STA 5675

............................................................STA 5131 .........................................STA 5131 .......................................STA 5131

..............................213/15 ............................................213/20B .........................................213/30B

.........................................30-79D .............................................30-79D ..........................................30-79D

...................................N/A ...............................................209/20B .........................................209/30B

..............................221/30A ...........................................221/40A .............................................N/A

....................................N/A ...................................................N/A .............................................221/60

............................42RN30AP .......................................42AR41AP ......................................224/30B

......................................22R277 ............................................ 22R277 ......................................... 22R277

.....................................22R30-41 .........................................22R30-41 ......................................22R30-41

..................203/15 ............................................203/20B .........................................203/30B

.......................... 213/30D ...........................................213/40D .........................................213/60D

...............205/15 ............................................205/20B .........................................205/30B

...............N/A ...................................................N/A ............................................221/30B

...........................207/15 ............................................207/29B .........................................207/30B

.................................. 42AR41A-202 ................................ 42R60A-202

.....................................42R40A-204 ................................. 42R60A-204

.......................................... STA5652 .......................................STA6552

........................215/15 ............................................215/20B .........................................215/30B

.........................................STA 5608 .......................................STA 5608

...................22R140.1-1W ......................................22R140.8 .......................................22R140.3

..................22R140.1-2W ...................................22R140.1-9W ............................... 22R140.1-9W

.....................................22R150-520 ..................................22R150-520

...................30-206 .............................................30-206 ...........................................30-206

V40

V60

31

14240 South Lakes Drive
Charlotte, NC 28273
[phone]
www.varimixer.com

32
