Vantec UGT-PC210 User Manual

5-Port USB 2.0

PCI Host Card

User Manual

Model: UGT-PC210

All brand names and trademarks are properties of their respective owners.

w w w . v a n t e c u s a . c o m

Features and Benefits

z VIA VT6212 chipset
z PCI 32-bit 33MHz Interface
z Compliant with USB specification revision 2.0
z Backward compatible with USB 1.1 Specification
z Hot-swapping feature allows you to connect/disconnect

devices without first turning system off

z Supports high-speed (480Mbps), full-speed (12Mbps), and

low-speed(1.5Mbps) data transfer modes for simultaneous
operation of multiple USB 2.0/1.1 devices

z Connects up to 127 USB Device Simultaneously on each

port

z Works with a various type of USB devices including hubs,

removable drives, digital cameras, scanner, CD-RWs,
DVD-ROMs, PC video cameras, printers, and more…

z Four (4) external USB 2.0 ports
z One (1) internal USB 2.0 port (Sharing with first external

USB port UJ1)

UGT-PC210Page2



Package Contents

z 1 x 5-Port USB 2.0 PCI Host

Card

z 1 x User’s Manual

System Requirements

z Windows® 2000 SP4 / XP SP1 or later / Server 2003 / Vista
z Available PCI slot

Hardware Description

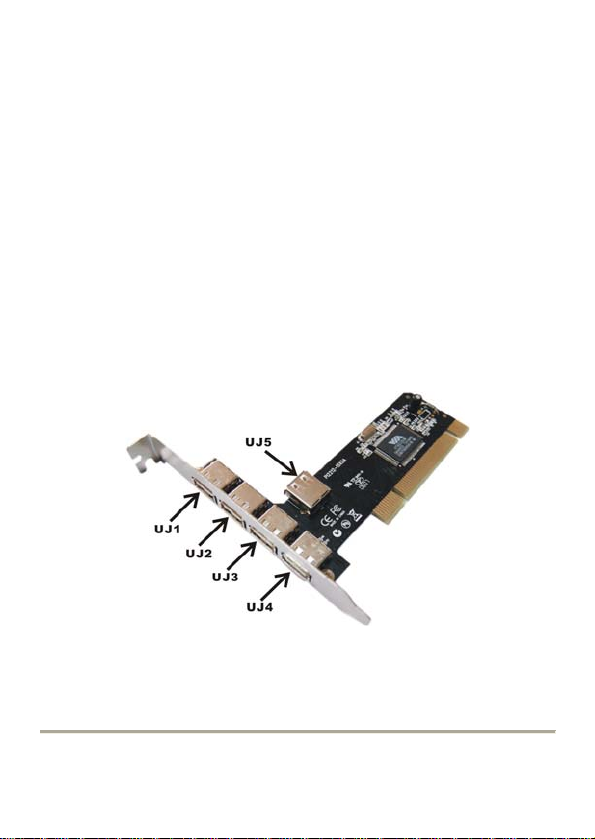

Before installing the 5-Port USB 2.0 PCI Host Card, please see
the photo below highlighting the available USB ports of the card.

Note: The Internal Port (UJ5) shares with first External Port
(UJ1).

UGT-PC210Page3



Hardware Installation

1. Turn Off the power to your computer.

2. Unplug the power cord and remove your computer’s cover.

3. Remove the slot bracket from an available PCI slot.

4. To install the card, carefully align the card’s bus connector
with the selected PCI slot on the motherboard. Push the
board down firmly.

5. Replace the slot bracket’s holding screw to secure the card.

6. Replace the computer cover and reconnect the power cord.

Driver Installation

For Windows® XP/2000

Windows® XP/2000 will automatically detect and install the
correct driver for the 5-Port USB 2.0 PCI Host Card.
However, please ensure you have the latest Service Pack
Installed.

For Windows® XP
z Windows® XP Service Pack 1 or later
For Windows® 2000
z Windows® 2000 Service Pack 4 or later

For Windows® Server 2003/Vista

UGT-PC210Page4



Windows® Server 2003/Vista has built-in driver support for this
controller. Just install the board and Windows will automatically
detect and install the correct drivers for it. No additional driver is
necessary.

To Verify Driver Installation

1. Right click My Computer, then click Manage. Click Device
Manager.

2. Double click Universal Serial Bus controllers option.

- USB Root Hub

(USB 2.0 Root Hub in Windows® 2000)

- USB Root Hub

- USB Root Hub

- VIA Rev 5 or later USB Universal Host Controller

(VIA USB Universal Host Controller in Windows® 2000)

- VIA Rev 5 or later USB Universal Host Controller

(VIA USB Universal Host Controller in Windows® 2000)

- VIA USB Enhanced Host Controller
