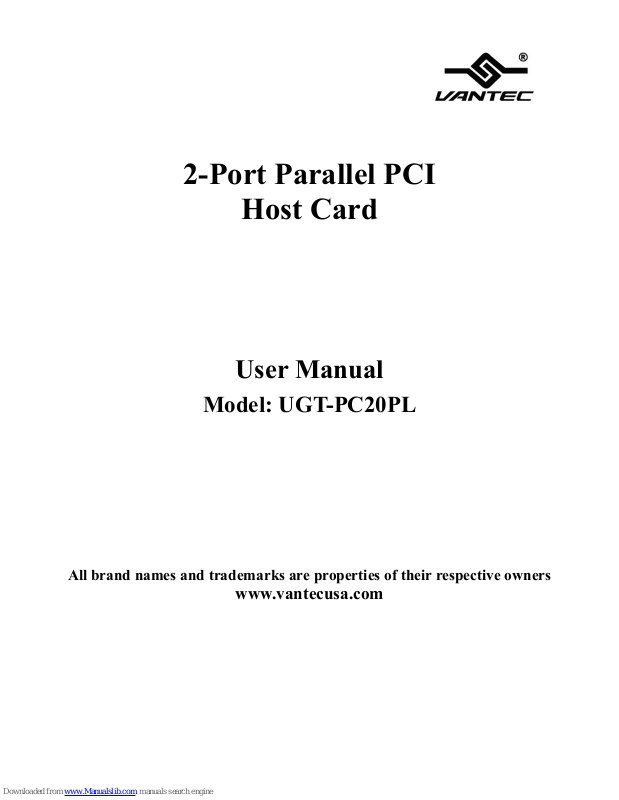

2-Port Parallel PCI
Host Card
User Manual
Model: UGT-PC20PL
All brand names and trademarks are properties of their respective owners
www.vantecusa.com
Page 2
UGT-PC20PL Page 2
Contents
Features and Benefits .................................................... 3
System Requirements .................................................... 3
Package Contents ........................................................... 3
Hardware Installation ...................................................... 3
Driver Installation ............................................................ 4
Page 3
UGT-PC20PL Page 3
Features and Benefits
Compliant with PCI Local Bus Specification, Revision 2.3
Add two IEEE 1284 Parallel Ports on system
Easy Plug and Play
Automatic selects IRQ & I/O address
Supports Standard Parallel Port (SPP), Enhanced Parallel (EPP) &
Enhanced Capability Port (ECP)
Faster data rates up to 1.5Mbytes/sec
PCI 32-bit
2 x DB25 female parallel connectors
System Requirements
Windows XP/Vista/7/8 (32/64 bit)
Available PCI slot
Package Contents
1 x 2-Port Parallel PCI Host Card
1 x Bracket with one DB25 female parallel port
1 x Driver CD
1 x User Manual
2 x Low Profile Brackets
Hardware Installation
1. Turn off the power to your computer.
2. Unplug the power cord and remove your computer’s cover.
3. Remove the slot bracket from an available PCI slot.
Page 4
UGT-PC20PL Page 4
4. To install the card, carefully align the card’s bus connector with
the selected PCI slot on the motherboard. Push the board down
firmly.
5. Replace the slot bracket’s holding screw to secure the card.
6. Secure the computer cover and reconnect the power cord.
Driver Installation
1. Insert the provided CD into your CD-ROM drive.
2. At the Windows Desktop, click Start, and then Run.
3. When the prompt displays
For Windows XP/Vista/7/8 32-bit – Enter “D:\UGT-
PC20PL\Windows\32Bit\PCISetup.exe” (where “D” is the
designation of your CD drive)
For Windows XP/Vista/7/8 64-bit – Enter “D:\UGT-
PC20PL\Windows\64Bit\PCISetup.exe” (where “D” is the
designation of your CD drive)
4. Follow the on-screen instructions to complete the installation.
