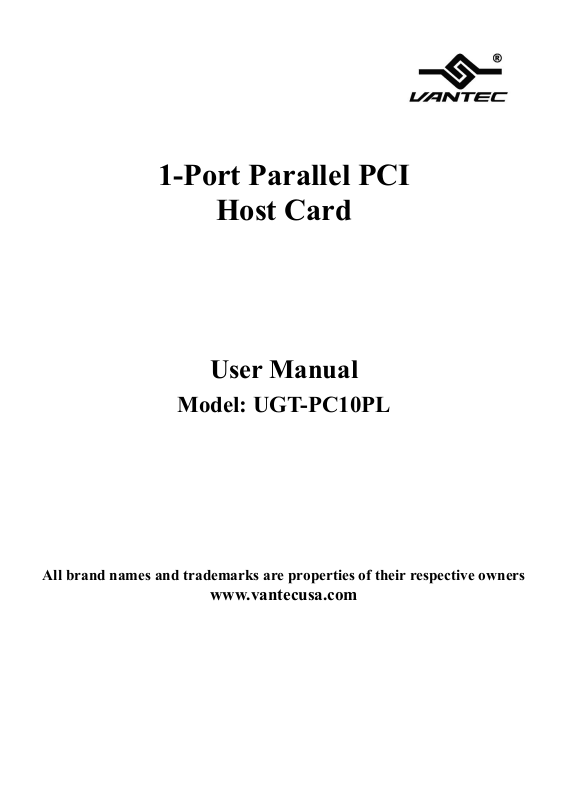

1-Port Parallel PCI
Host Card
Model: UGT-PC10PL
All brand names and trademarks are properties of their respective owners
www.vantecusa.com
User Manual
Page 2
Contents
Features and Benefits .................................................... 3
System Requirements .................................................... 3
Package Contents ........................................................... 3
Hardware Installation ...................................................... 3
Driver Installation ............................................................ 4
UGT-PC10PL Page 2
Page 3
Features and Benefits
Compliant with PCI Local Bus Specification, Revision 2.3
Windows XP/Vista/7/8 (32/64 bit)
Available PCI slot
1 x 1-Port Parallel PCI Host Card
1 x Driver CD
1 x User Manual
1 x Low Profile Bracket
1. Turn off the power to your computer.
2. Unplug the power cord and remove your computer’s cover.
Add one IEEE 1284 Parallel Port on system
Easy Plug and Play
Automatic selects IRQ & I/O address
Supports Standard Parallel Port (SPP), Enhanced Parallel (EPP) &
Enhanced Capability Port (ECP)
Faster data rates up to 1.5Mbytes/sec
PCI 32-bit
1 x DB25 female parallel connector
System Requirements
Package Contents
Hardware Installation
UGT-PC10PL Page 3
Page 4
3. Remove the slot bracket from an available PCI slot.
4. To install the card, carefully align the card’s bus connector with
6. Secure the computer cover and reconnect the power cord.
the selected PCI slot on the motherboard. Push the board down
firmly.
5. Replace the slot bracket’s holding screw to secure the card.
Driver Installation
1. Insert the provided CD into your CD-ROM drive.
2. At the Windows Desktop, click Start, and then Run.
3. When the prompt displays
For Windows XP/Vista/7/8 32-bit – Enter “D:\UGT-
PC10PL\Windows\32Bit\PCISetup.exe” (where “D” is the
designation of your CD drive)
For Windows XP/Vista/7/8 64-bit – Enter “D:\UGT-
PC10PL\Windows\64Bit\PCISetup.exe” (where “D” is the
designation of your CD drive)
4. Follow the on-screen instructions to complete the installation.
UGT-PC10PL Page 4
