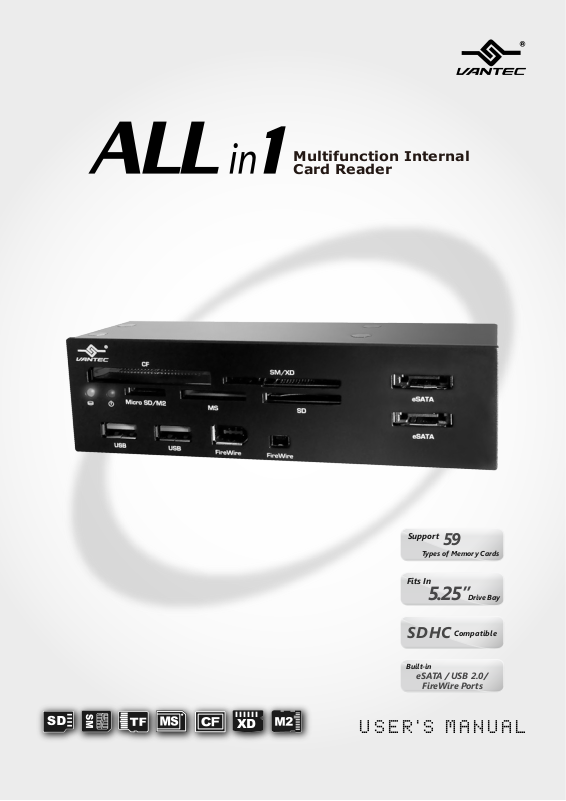

Multifunction Internal
Card Reader
Support
59
Types of Memory Cards
Fits In
Drive Bay
5.25”
SDHC
Built-in
Compatible
eSATA / USB 2.0/
FireWire Ports
USER’S MANUAL
Package Contents :
All in 1 Multifunction Internal Card Reader
1
All in 1 Multifunction Internal Card Reader
2
Installation Screws
3
User’s Manual
1
2
3
User’s
Manual
5.25" Mounting Bracket Included !
Multifunction Internal
Card Reader
Support
Fits In
SDHC
Built-in
USER’S MANUAL
59
Types of Memory Cards
Drive Bay
5.25”
Compatible
eSATA/USB 2.0/
FireWire Ports
TRADEMARKS
MS-DOS, Microsoft, Windows NT/2000/ME/XP/Vista are trademarks of Microsoft Corporation.
Apple, Macintosh and Mac are trademarks of Apple Computer.
*All other third-party brands and names are the property of their respective owners.
Table of Contents :
1. Introduction ...............................................................................................................02
2. Features/Specifications..................................................................................03
3. System Requirements/Parts Layout .................................................04
4. Installation ...................................................................................................................05
5. FAQ/Warranty............................................................................................................ 07
6. Contact ............................................................................................................................ 08
Table of Contents
1
1. Introduction :
From digital cameras to PDAs, data storage is a
crucial piece to all these devices. Unfortunately,
with so many different types of memory cards,
accessing them can quickly turn your computer
into a mess of wires and adapters. The Vantec
All-in-1 Multifunction Internal Card Reader brings
you a convenient and compact way to share and
exchange files stored in your flash memory cards
from one simple panel. In addition, with the extra
eSATA, USB 2.0, and FireWire ports which support
plug & play and hot swapping, the multifunction
panel brings more ports to the front of your
computer allowing easier access and transfer of
data. The Vantec All-in-1 Multifunction Internal
Card Reader is your best choice for an internal card
reader solution.
Multifunction Internal
Card Reader
Introduction
2
2. Features / Specifications :
All in 1 Multifunction Internal Card Reader
Features:
• Read/Write to 59 Types of Memory Cards
• No Adapter Required for Micro SD (T-flash)
• Fits in Any Standard 5.25” Drive Bay
• Simultaneously Transfer Data Between Memory Cards
• Two eSATA / Two USB2.0 / FireWire Ports
• Transfer Rates Up to 3Gbps W/ eSATA
• Transfer Rates Up to 480Mbps W/ USB 2.0
• Transfer Rates Up to 400Mbps W/ FireWire 400
• Plug & Play and Hot Swapping
Specifications :
• Model: UGT-CR955-BK
• Ports: eSATA / USB 2.0 / FireWire 400
• Transfer Rate: Up to 3 Gbps (eSATA)
Up to 480 Mbps (USB 2.0)
Up to 400 Mbps (FireWire 400)
• Dimension: 145 x 79 x 43 ( L x W x H ) mm
• Material: Aluminum & Plastic
• Memory Cards Support :
*card adapter required.
SD
MS
CF
MMC
MD
Micro SD
XD
SM
SD / SDHC / MINI SD / HS MINI SD / EXTREME SD / EXTREME III SD / ULTRA SD / ULTRA II SD /
ULTRA II SD PLUS / SD-ULTRA-X / ULTRA SPEED SD / SD PRO / SD ELITE PRO / HS SD
MS / MS PRO / MS DUO / MS PRO DUO / MS MG PRO / MS MG / MS MG DUO / MS MG PRO DUO /
EXTREME MS PRO / MS SELECT/ EXTREME III MS PRO / ULTRA II MS PRO / HS MS MG PRO / HS MS
MG PRO DUO / HS MS PRO / HS MS PRO DUO / MS ROM
CF I / CF II / CF 3.0 / EXTREME III CF / EXTREME CF / ULTRA II CF / HS CF / XS-XS CF / CF
ELITE PRO / CF PRO / CF PRO II
MMC / MMC 4.0 / HS MMC / HS RS MMC / RS MMC / RS MMC 4.0 / MMC Mobile / MMC Plus / MMC
micro*
IBM MD / HITACHI MD / MAGIC STOR MD
Micro SD / T-Flash / M2
XD
SM
Features/Specifications
3
3. System Requirements / Parts Layout :
Intel Pentium II 350 MHz-compatible
Microsoft Windows 2000/XP/ Vista
1. USB port, eSATA port, FireWire 400
(1394a) port
2. For USB 2.0 speeds, the system must
support USB 2.0 specifications
3. For FireWire speeds, the system must
support FireWire specifications
4. For SATA speeds , the system must
support SATA specifications
Parts Layout:
Mac G3 processor & greater
Mac OS 9.2 & greater
1. USB port, eSATA port, FireWire 400
(1394a) port
2. For USB 2.0 speeds, the system must
support USB 2.0 specifications
3. For FireWire speeds, the system must
support FireWire specifications
4. For SATA speeds , the system must
support SATA specifications
All in 1 Multifunction Internal Card Reader
Micro SD/M2
SDSM/XD
CF
USB
Ports
MS
FireWire
Ports
System Requirements / Parts Layout
4
eSATA Ports
4. Installation :
All in 1 Multifunction Internal Card Reader
(5-1) Please remove the side panels of the case to
gain access to the chassis. Once inside,
remove the 5.25" front panel where you wish
to place the card reader. ( Figure 5-A )
(5-2) Insert the UGT-955-BK into the 5.25" bay as
shown in the figure. ( Figure 5-B )
( Figure 5-A )
( Figure 5-B )
(5-3) Tighten the screws of both sides. ( Figure 5-C )
(5-4)
Plug two SATA cables(Red) into the SATA
ports on the motherboard. ( Figure 5-D )
(SATA Cable)
SATA
Installation
( Figure 5-C )
( Figure 5-D )
5
Installation :
Plug the two USB cables from the device to
(5-5)
the USB ports on the motherboard (Please
consult the user's manual from the
motherboard for the location of the USB
ports)
(Figure5-E)
(USB Cable)
Plug one 1394 cable to the 1394 port
(5-6)
on the motherboard.(Please consult
the user's manual from the motherboard for the location of the port)
( Figure 5-F)
(1394 Cable)
( Figure 5-E )
( Figure 5-F )
Lastly, put the side panels back on the
(5-7)
case and secure with the screws.
( Figure 5-G)
CAUTION :
The USB cable is similar to the 1394 cable, please
check the plug carefully and consult the user's manual
from your motherboard. If the USB cable or 1394 cable
is plugged on the wrong position , it can cause
damage to the motherboard and to any connected
devices.
Installation
( Figure 5-G )
6
5. FAQ / Warranty :
1.
Why is the power indicator not
Q:
illuminating?
2.
Q:
Why is the eSATA port not working?
A:
Please check the connection from the USB cable.
(1)Please check the connection of the SATA cable
A:
to your motherboard.
(2)Some motherboards cannot support hotswapping using SATA. Please confirm with
your motherboard manufacturer or your PC
supplier for compatibility.
WARNING :
The All in 1 Multifunction Internal Card Reader
comes with a 1 year limited warranty (90 day parts) .
If your unit should become defective within that
time frame, please go to http://www.vantecusa.com
for information on how to receive warranty
exchange or repair. Cosmetic defects and missing
parts are not covered under this warranty. Please
check the contents of the unit to make sure you
received all parts. Also, check for any cosmetic flaws.
If any parts are missing or if there are cosmetic
defects, please contact the retailer from which you
purchased the unit immediately and ask for a
replacement.
Warranty/FAQ
7
6. / Contact :
Contact
Vantec Thermal Technologies
43951 Boscell Rd.
Fremont, CA 94538
tel: 510-668-0368
fax: 510-668-0367
website: www.vantecusa.com
Copyright © 2009 Vantec Thermal Technologies. All Right Reserved.
All Registered Trademarks Belong To Their Respective Companies.
