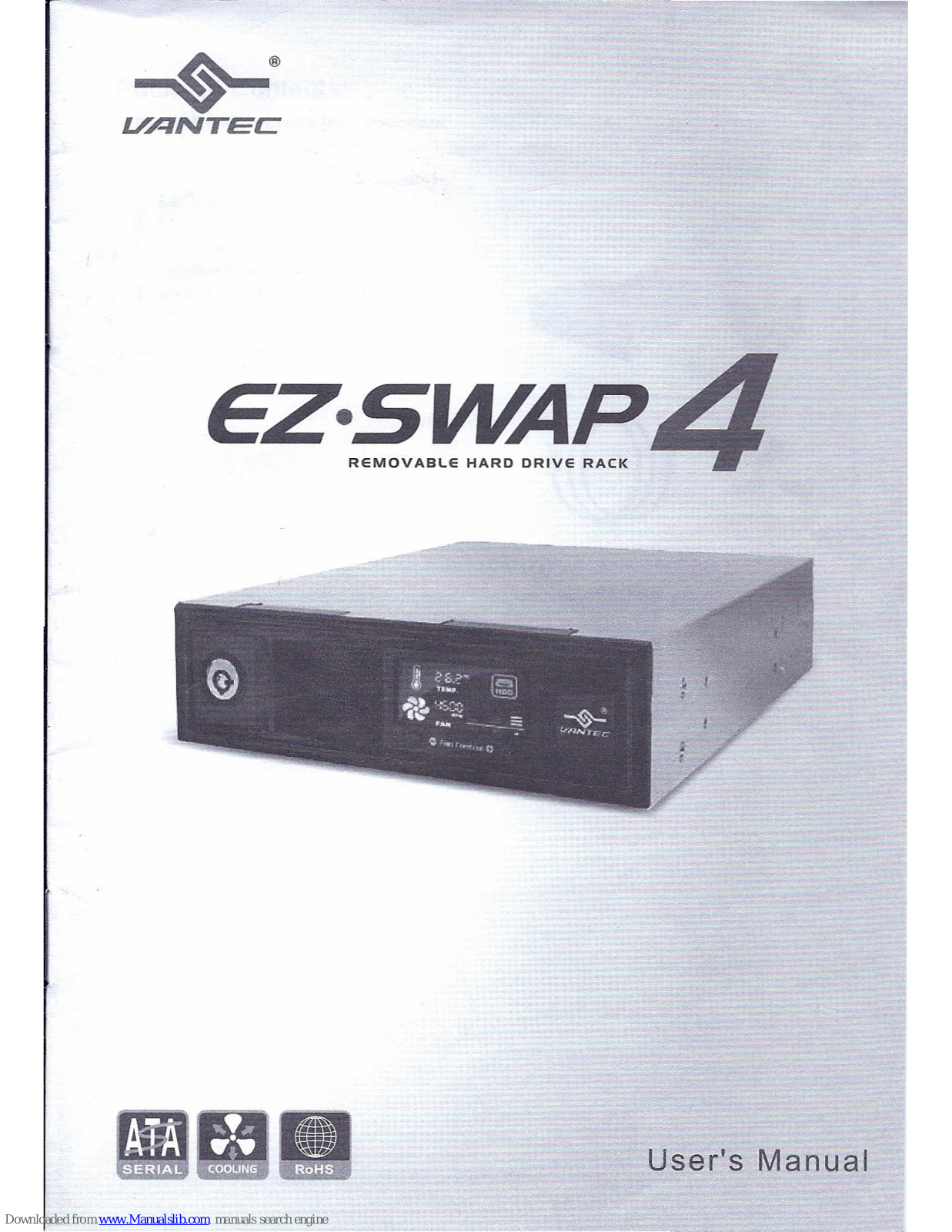

Page 1
--.-®
VANTEC
User's Manual
Page 2

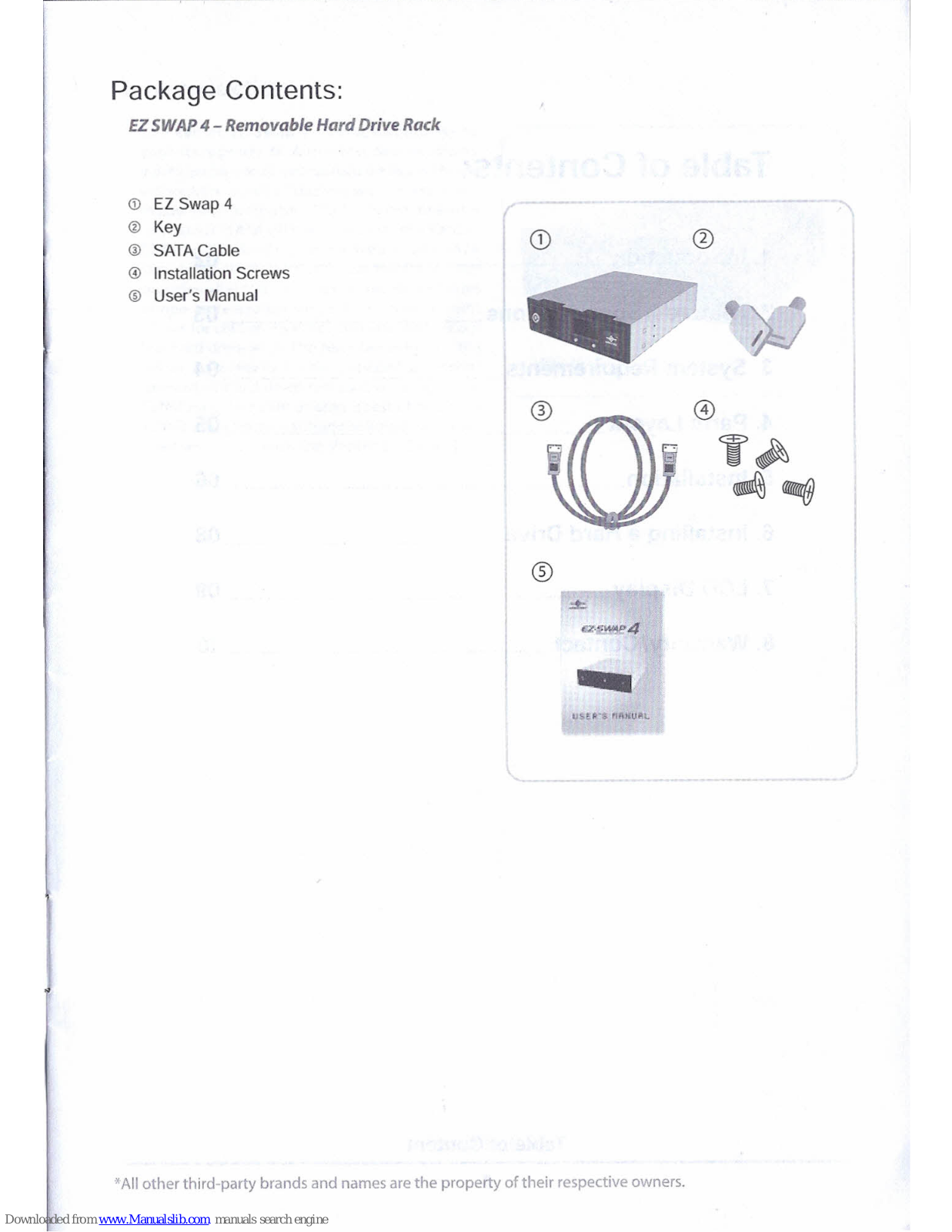

Package Contents:
EZ SWAP
4 -
Removable Hard Drive Rack
(j)
EZ Swap 4
(j)
Key
(j)
SATACable
(j)
Installation Screws
® User's Manual
®~nil
V
'All other third-party brands and namesarethe property oftheir respectiveowners.
Page 3

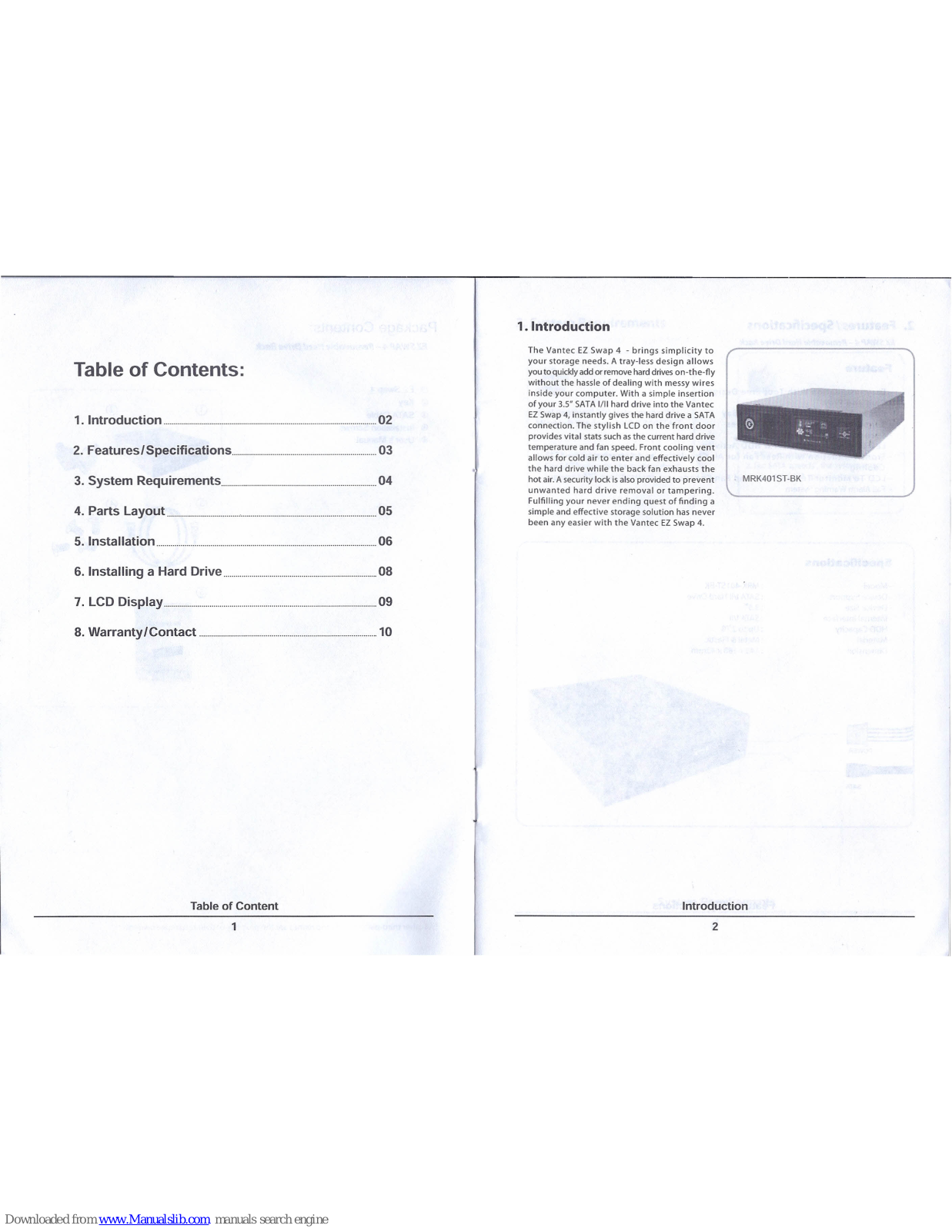

Table of Contents:
1. Introduction ..
. 02
2. Features/Specifications
...............03
3. System Requirements
u ... u .... u.. .....u ..
04
4. Parts Layout ....
.05
5. Installation
...u u
06
6. Installing a Hard Drive
u •••• • ••••••••••• u••••
os
7.
LCD Display
.u ..u.uu.u.u......u u..
09
S. Warranty/Contact
u.u
10
Table of Content
1
1. Introduction
The Vantec EZ Swap 4 - brings simplicity to
your storage needs. A tray-less design allows
youto quicklyaddorremove harddriveson-the-fly
without the hassleof dealing with messy wires
inside your computer. With a simple insertion
of your 3.5" SATA1/11hard drive into the Vantec
EZSwap 4, instantly gives the hard drive a SATA
connection. The stylish LCDon the front door
provides vital stats such as the current hard drive
temperature and fan speed. Front cooling vent
allows for cold air to enter and effectively cool
the hard drive while the back fan exhausts the
hot air. A security lock is also provided to prevent
unwanted hard drive removal or tampering.
Fulfilling your never ending quest of finding a
simple and effective storage solution has never
been any easier with the Vantec EZ Swap 4.
Introduction
2
MRK401 ST-BK
Page 4

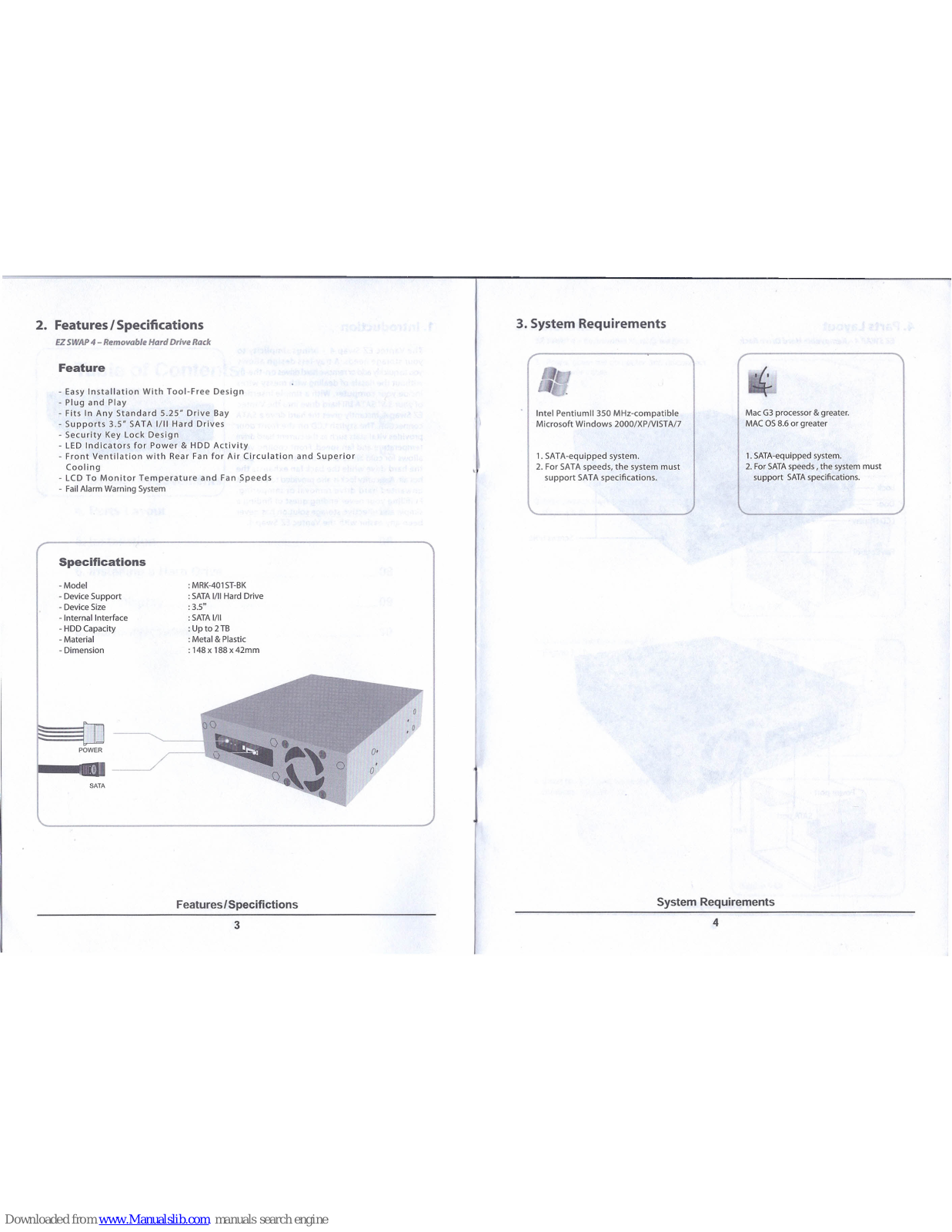

2. Features I Specifications
EZ SWAP4-Removable Hard Drive Rack
Feature
- Easy Installation With Tool-Free Design
- Plug and Play
- Fits In Any Standard 5.25" Drive Bay
- Supports 3.5" SATA
1/11
Hard Drives
- Security Key Lock Design
- LED Indicators for Power & HDD Activity
- Front Ventilation with Rear Fan for Air Circulation and Superior
Cooling
- LCD To Monitor Temperature and Fan Speeds
- Fail Alarm Warning System
Specifications
-Model
- Device Support
- Device Size
-Internal Interface
- HDD Capacity
-Material
- Dimension
: MRK-401 ST-BK
: SATA I1II Hard Drive
:35"
: SATA
1111
: Upto 2TB
: Metal&Plastic
: 148 x 188 x 42mm
POWER
SATA
Featuresl Specifictions
3
3. System Requirements
Intel Pentiumll 350 MHz-compatible
Microsoft Windows 2000/XPNISTAl7
1. SATA-equipped system.
2. For SATA speeds, the system must
support SATA specifications.
Mac G3 processor & greater.
MAC as 8.6 or greater
1. SATA-equipped system.
2. For SATA speeds, the system must
support SATA specifications.
System Requirements
4
Page 5

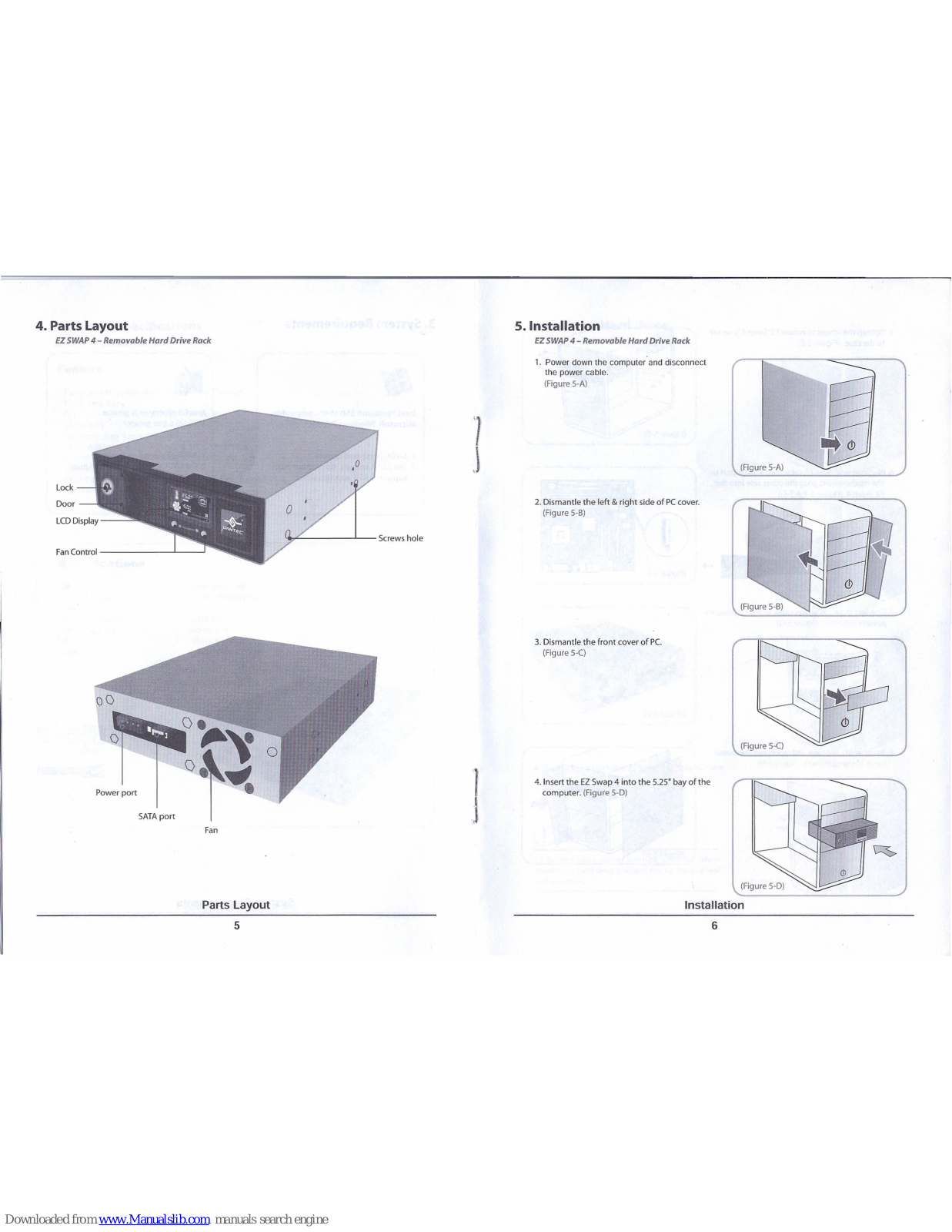

4. Parts Layout
EZ SWAP
4 -
Removable Hard Drive Rack
Lock
Door
~«-
.L--_
Screws hole
Fan
Parts Layout
5
5. Installation
EZ SWAP
4 -
Removable Hard Drive Rack
1. Power down the computer and disconnect
the power cable.
(Figure S-A)
l
J
2. Dismantle the left & right side of PC cover.
(Figure 5-6)
3. Dismantle the front cover of
Pc.
(Figure S-C)
J
(
.I
4. Insert the EZ Swap 4 into the 5.25" bay of the
computer. (Figure S-D)
(Figure S-A)
Installation
6
Page 6

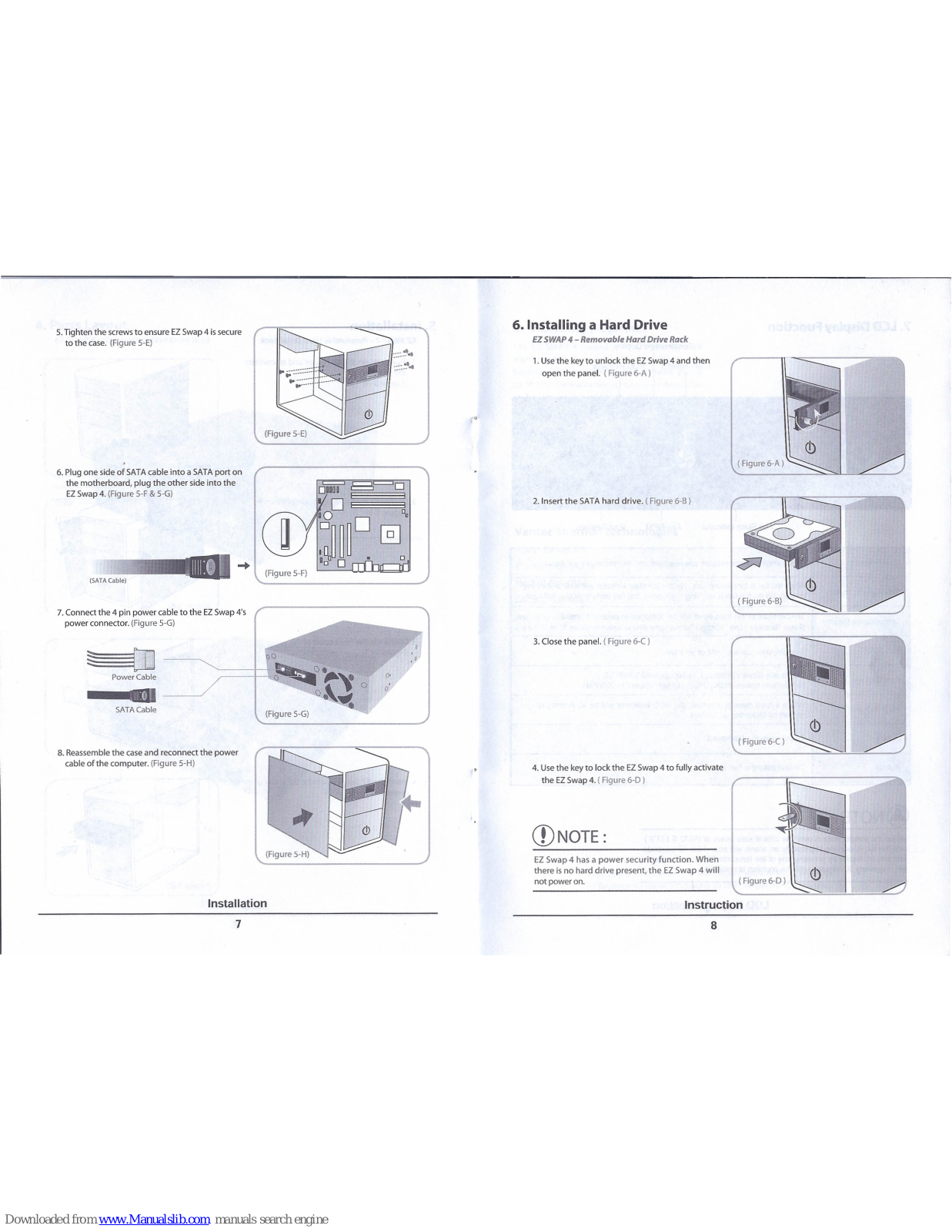

5. Tighten the screws to ensure EZSwap 4 is secure
to the case. (Figure s-E)
6. Plug one side of SATA cable into a SATA port on
the motherboard, plug the other side into the
EZ Swap 4. (Figure s-F & s-G)
(SATA Cable)
7. Connect the 4 pin power cable to the EZ Swap 4's
power connector. (Figure s-G)
6. Installing a Hard Drive
EZ SWAP
4 -
Removable Hard Drive Rack
1. Use the key to unlock the EZ Swap 4 and then
open the panel. (Figure 6-A)
:':.-.~
..
::::~
.•
(Figure s-F)
2. Insert the SATA hard drive. (Figure 6-8)
3. Close the panel. (Figure 6-C)
§
OJ
Power Cable
SATACable
8. Reassemble the case and reconnect the power
cable of the computer. (Figure SoH)
Installation
7
o
0'
o·
(Figure s-G)
4. Use the key to lock the EZ Swap 4 to fully activate
the EZSwap 4. ( Figure 6-0)
'.
CD
NOTE :
EZ Swap 4 has a power security function. When
there is no hard drive present, the EZ Swap 4 will
not power on.
Instruction
8
Page 7

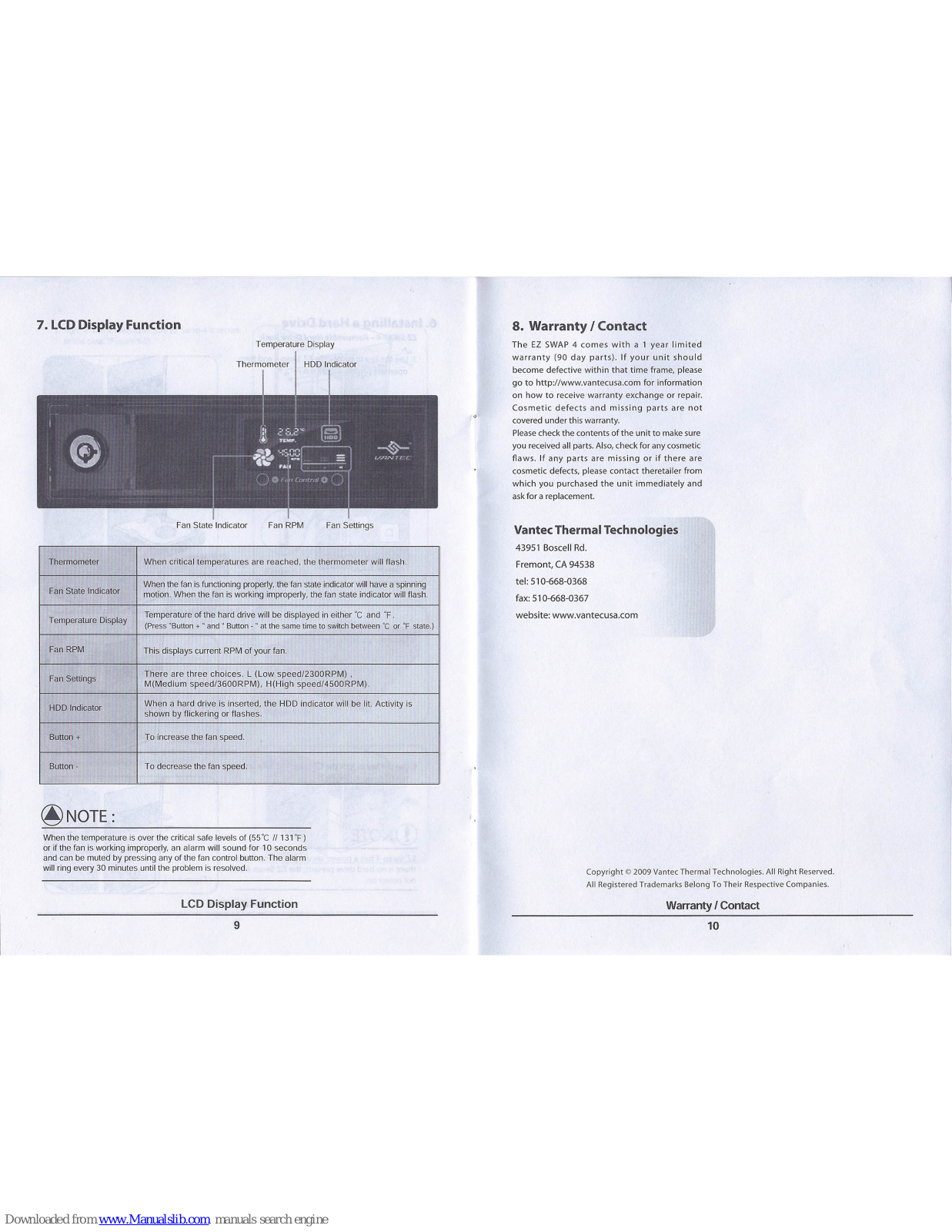

7. LCD Display Function
Temperature Display
Thermometer HDD Indicator
Fan State Indicator Fan RPM Fan Settings
Thermometer
When critical temperatures are reached, the thermometer will flash.
Fan State Indicator
Whenthefan is functioningproperly,the fan stateindicatorwill have a spinning
motion. When the fan isworking improperly, the fan state indicator will flash.
,
Temperatureof the hard drive will be displayed in either °C and of.
Temperature Display
(Press "Button + " and" Button - " at the same time to switch between 'c orOFstate.)
Fan RPM
This displays current RPMofyour fan.
Fan Settings
There are three choices. L (Low speed/2300RPM) ,
M(Medium speed/3600RPM), H(High speed/4500RPM).
HDD Indicator
When a hard drive is inserted, the HDD indicator will be lit.
Activity is
shown by flickering or flashes.
Button
+
To increase the fan speed.
Button - To decreasethe fan speed.
@NOTE:
When the temperature is overthe criticalsafe levels of (55°C/I131°F)
orifthe fan is working improperly, an alarm will sound for 10 seconds
and can be muted by pressing anyof the fan control button.The alarm
will ring every 30 minutes until the
problem is resolved.
LCD Display Function
9
8. Warranty I Contact
The EZ SWAP4 comes with a 1 year limited
warranty (90 day parts). If your unit should
become defective within that time frame, please
go to http://www.vantecusa.com for information
on how to receive warranty exchange or repair.
Cosmetic defects and missing parts are not
covered under this warranty.
Pleasecheckthe contents of the unit to make sure
you received all parts. Also, check for any cosmetic
flaws. If any parts are missing or if there are
cosmetic defects, please contact theretailer from
which you purchased the unit immediately and
askfor areplacement.
Vantec Thermal Technologies
43951 Boscell Rd.
Fremont, CA 94538
tel: 510-668-0368
fax: 510-668-0367
website: www.vantecusa.com
-I
Copyright © 2009 Vantec Thermal Technologies. All Right Reserved.
All Registered Trademarks Belong To Their Respective Companies.
WarrantyIContact
10
