Vantec Laptop Docking Station with Video
User’s Manual
Model: DSH-200U2
www.vantecusa.com
Copyright © 2008 Vantec Thermal Technologies. All Rights Reserved.
Vantec Laptop Docking Station with Video User’s Manual
SAFETY INSTRUCTIONS
Always read the safety instructions carefully:
Keep this User’s Manual for future reference
Keep this equipment away from humidity
If any of the following situations arises, get the equipment checked by a service technician:
The equipment has been exposed to moisture
The equipment has been dropped and damaged.
The equipment has obvious sign of breakage.
The equipment has not been working well or you cannot get it to work according to the User’s
Manual.
Copyright Statement
No part of this publication may be reproduced in any form by any means without prior written permission.
Other trademarks or brand names mentioned herein are trademarks or registered trademarks of their
respective companies.
Disclaimer
This manual is designed for use with the Vantec Laptop Docking Station with Video. Information in this
document is subject to change without notice. The manufacturer does not make any representations or
warranties (implied or otherwise) regarding the accuracy and completeness of this document and shall in no
event be liable for any loss of profit or any commercial damage, including but not limited to special,
incidental, consequential or other damages.
i
Table of Contents
1. Introduction.......................................................................................................1
Features..............................................................................................................2
Package Contents...............................................................................................2
System Requirements.........................................................................................2
Specifications...................................................................................................... 3
Assembly and Disassembly ................................................................................ 5

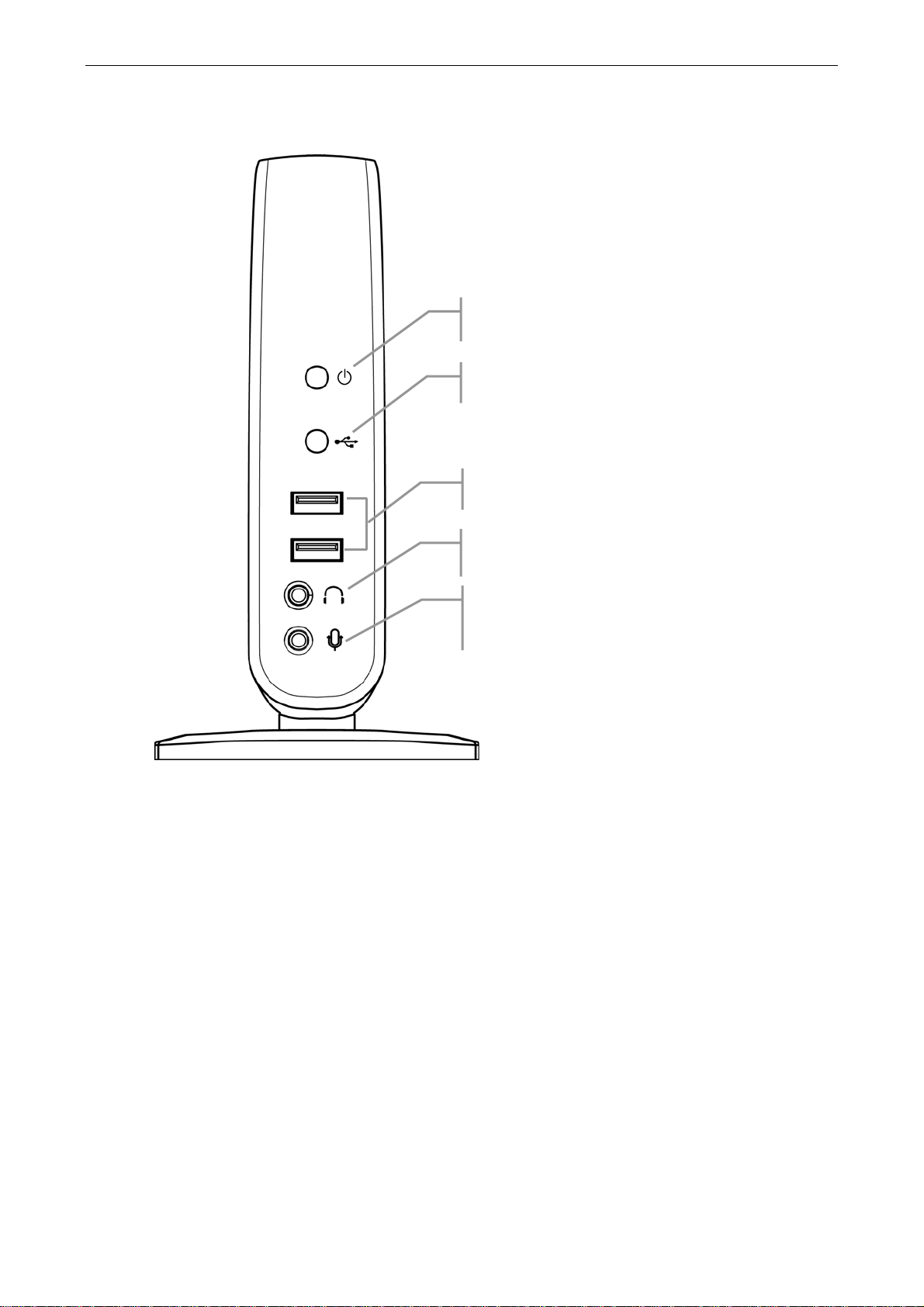

Front Panel .........................................................................................................6

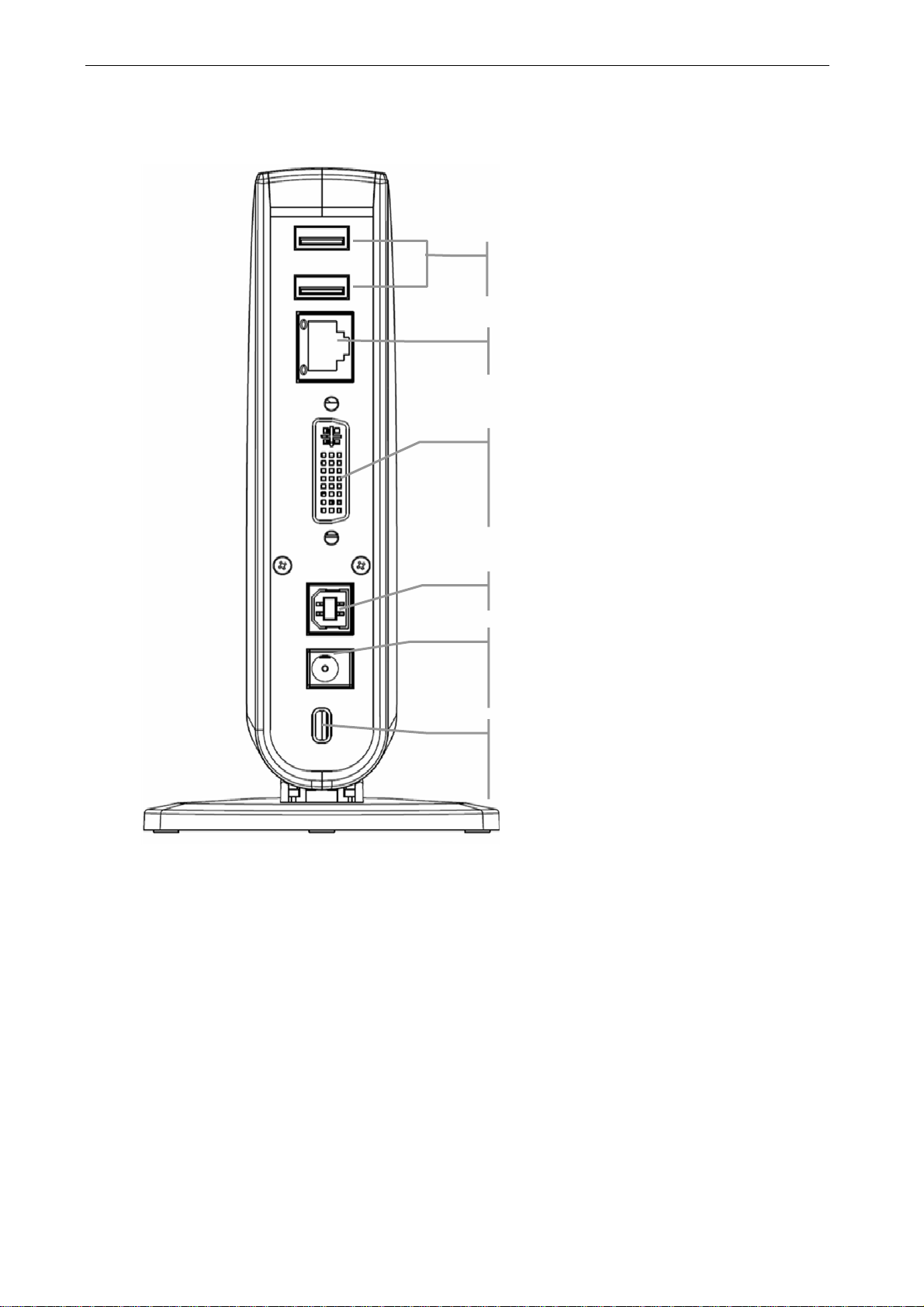

Rear Panel..........................................................................................................7
2. Installation.........................................................................................................8

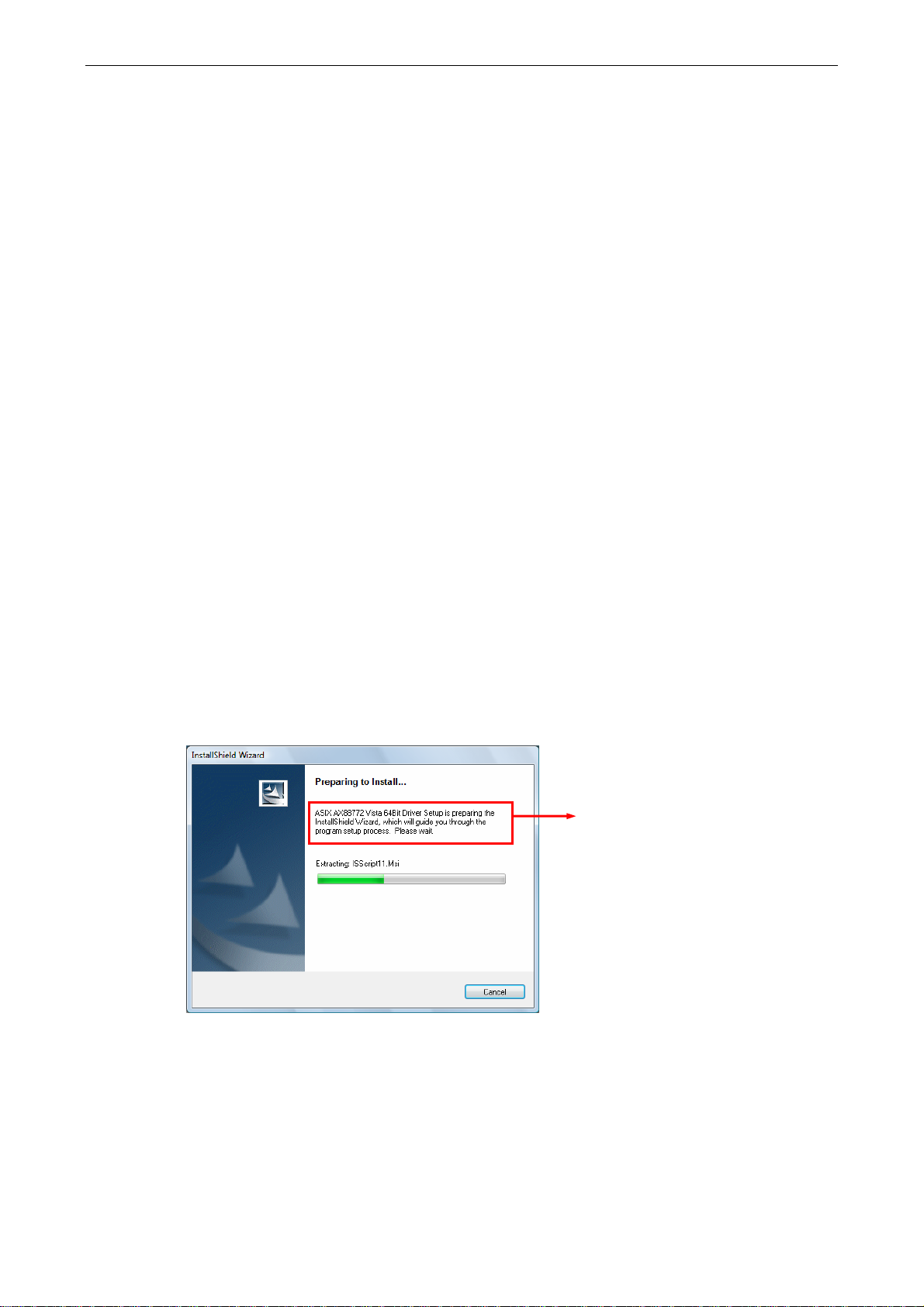

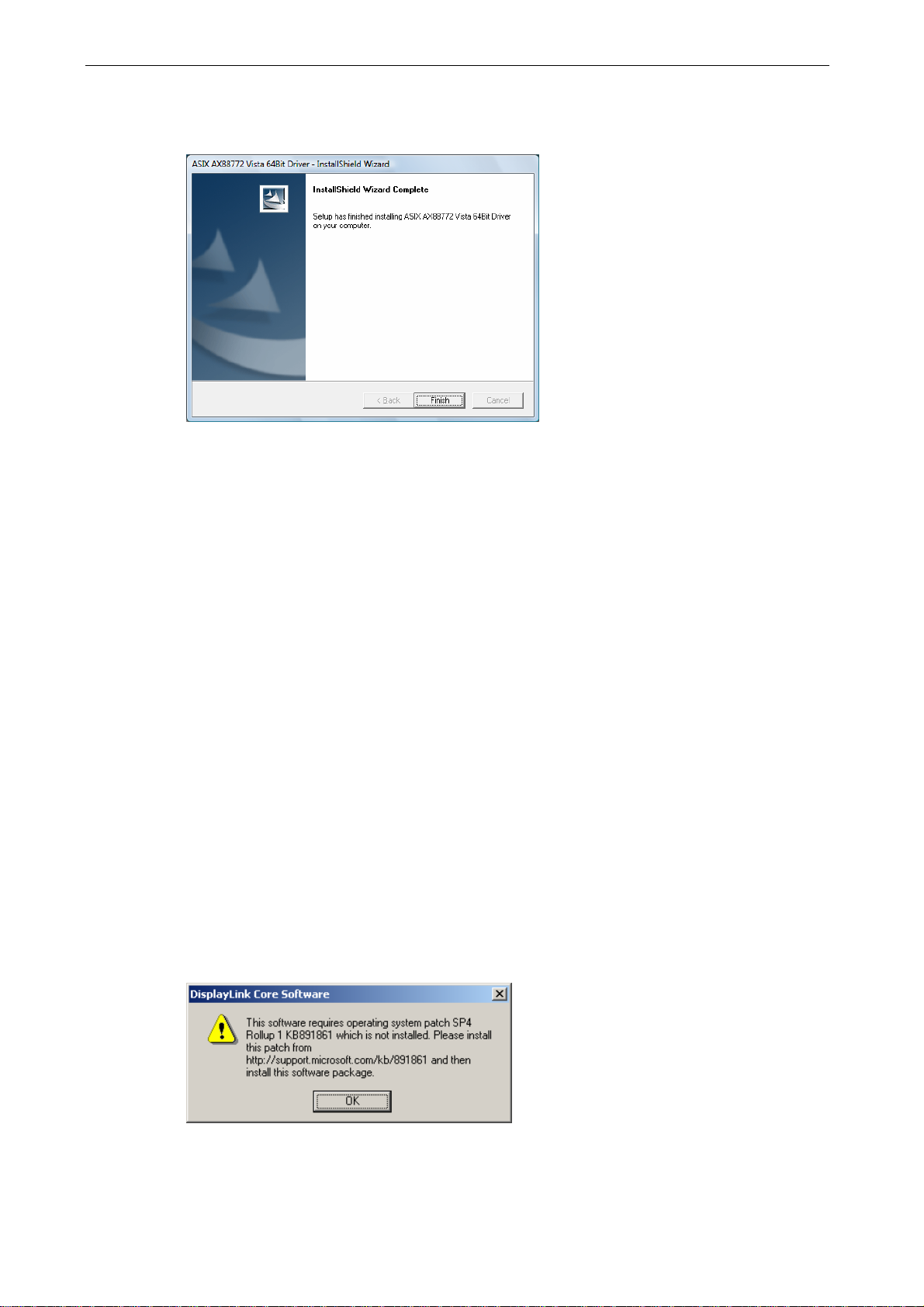

A. Installing the Ethernet Drivers.........................................................................8

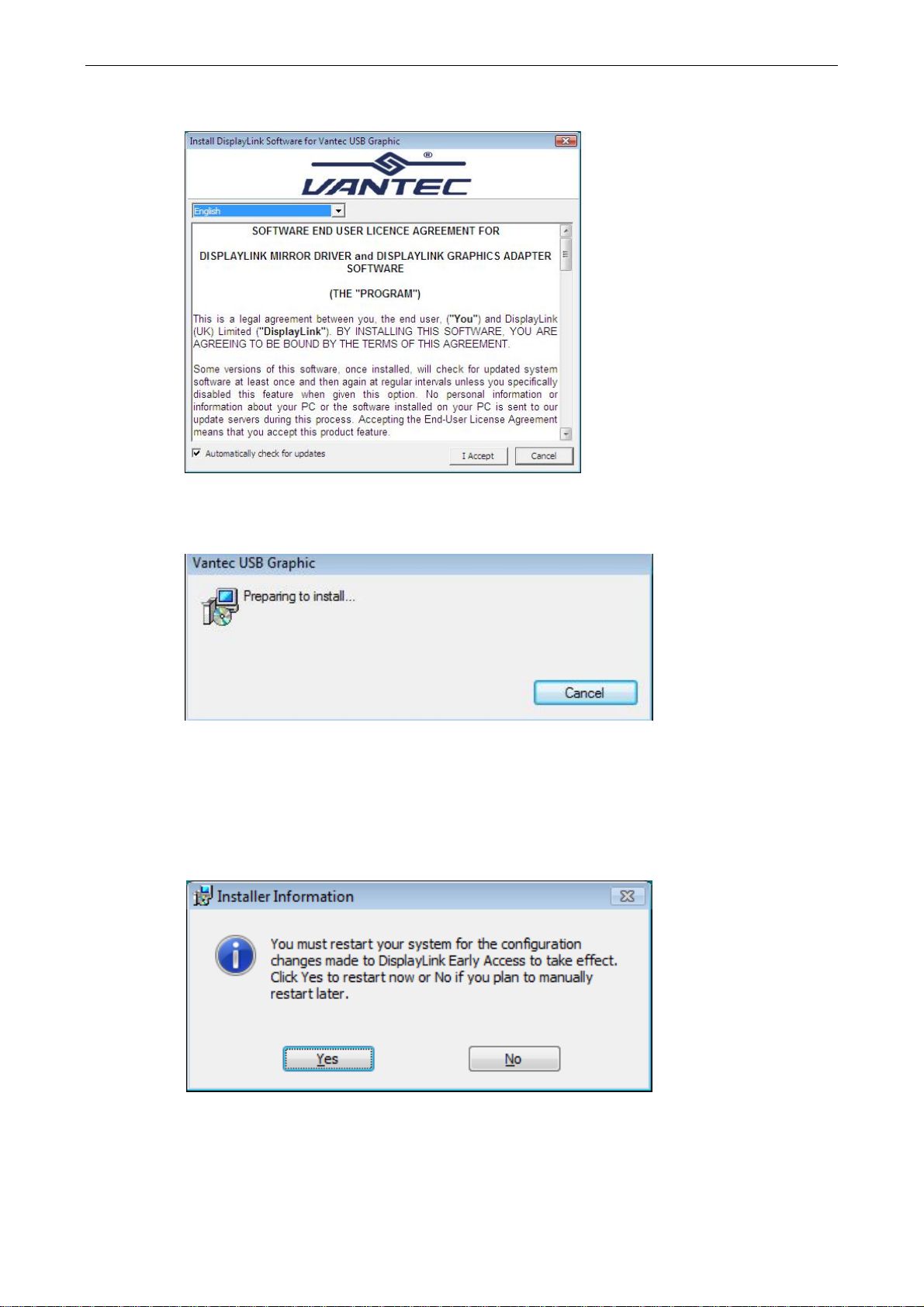

B. Installing the Video Drivers.............................................................................9

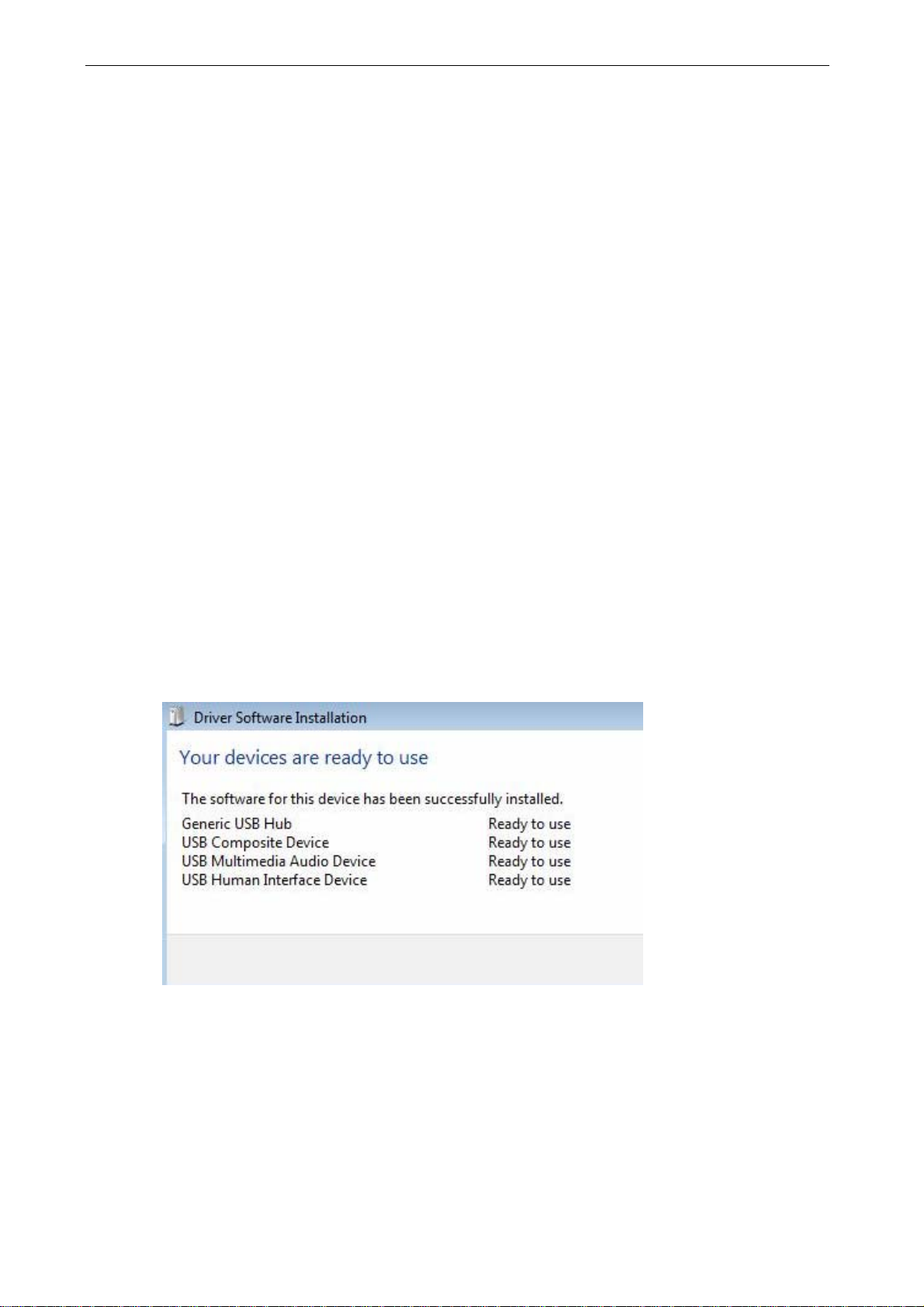

C. Connecting the Docking Station to Computer............................................... 11
Table of Contents
D. Connecting Devices to the Docking Station.................................................. 12
Connecting Ethernet network device.........................................................................12

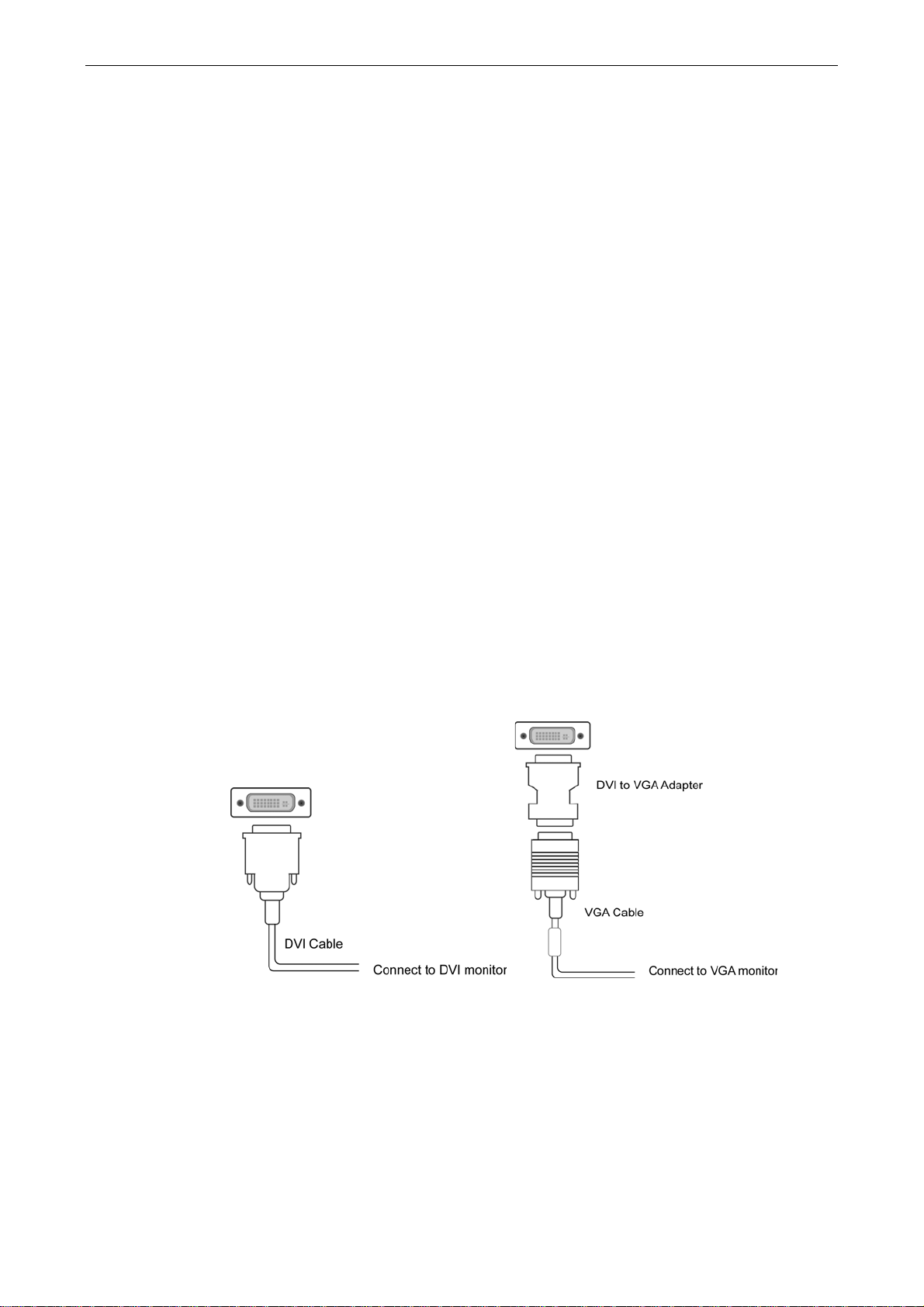

Connecting VGA/DVI Monitor....................................................................................12
Connecting USB Devices ..........................................................................................13
Connecting Microphone and Speaker/Headphones ..................................................13
3. Usi n g t h e Doc k i n g St a t i o n w i th V i d e o..............................................................14
USB 2.0 Ports ................................................................................................... 14
Audio Ports .......................................................................................................14

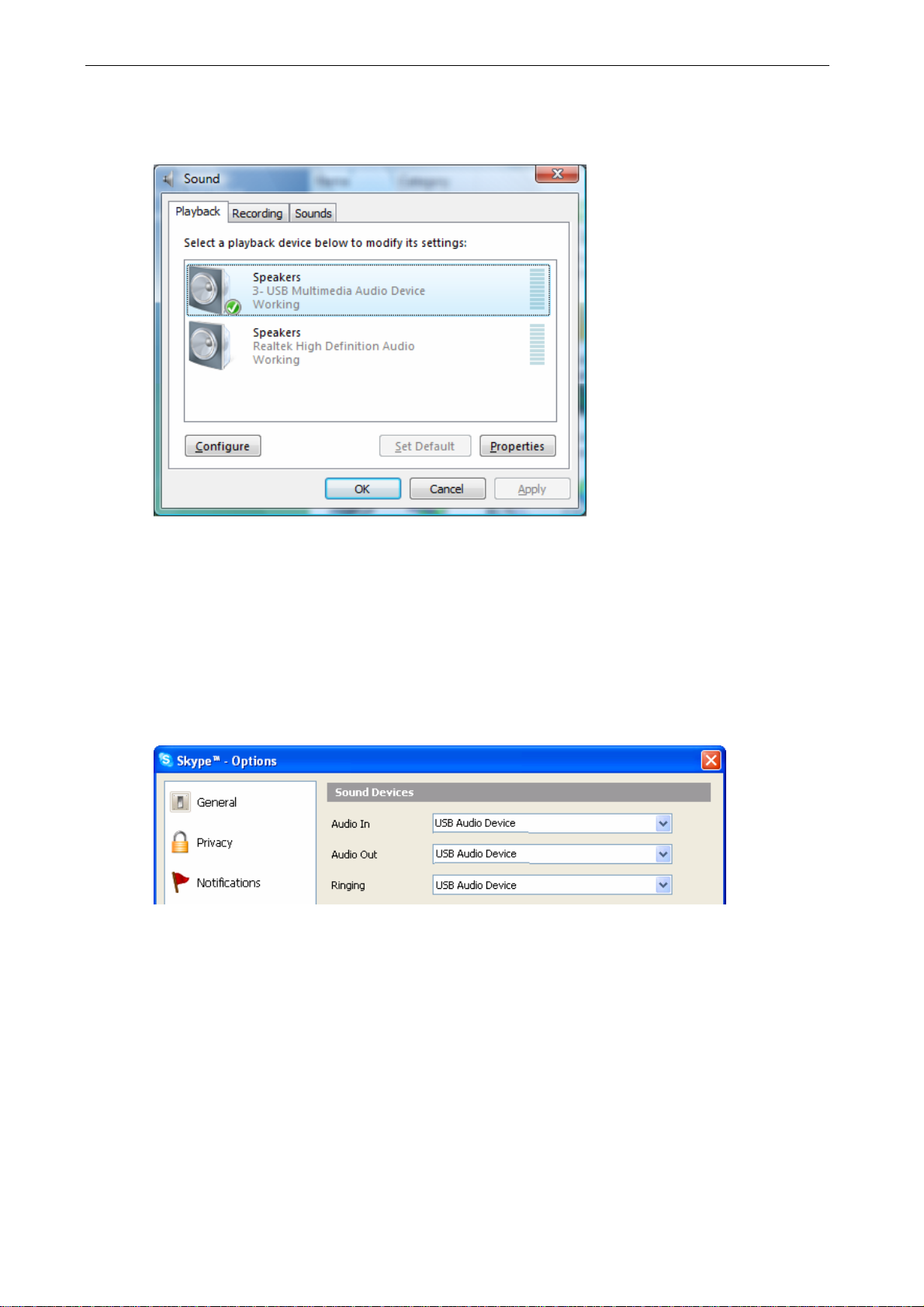

Configuring Windows Audio Device...........................................................................14
Configuring Instant Messaging Software Audio Device .............................................15

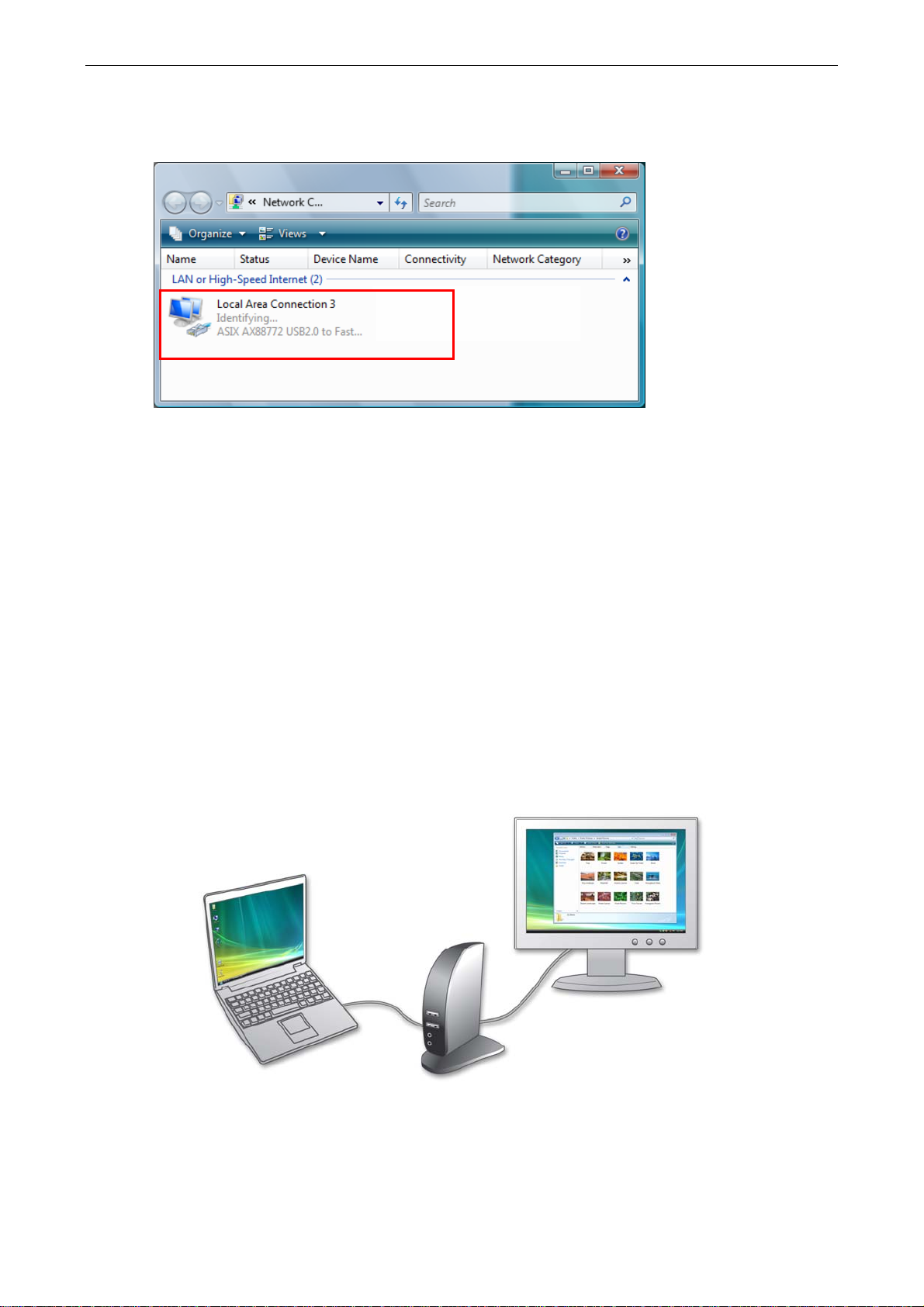

Ethernet Port..................................................................................................... 15
Video Port ......................................................................................................... 16

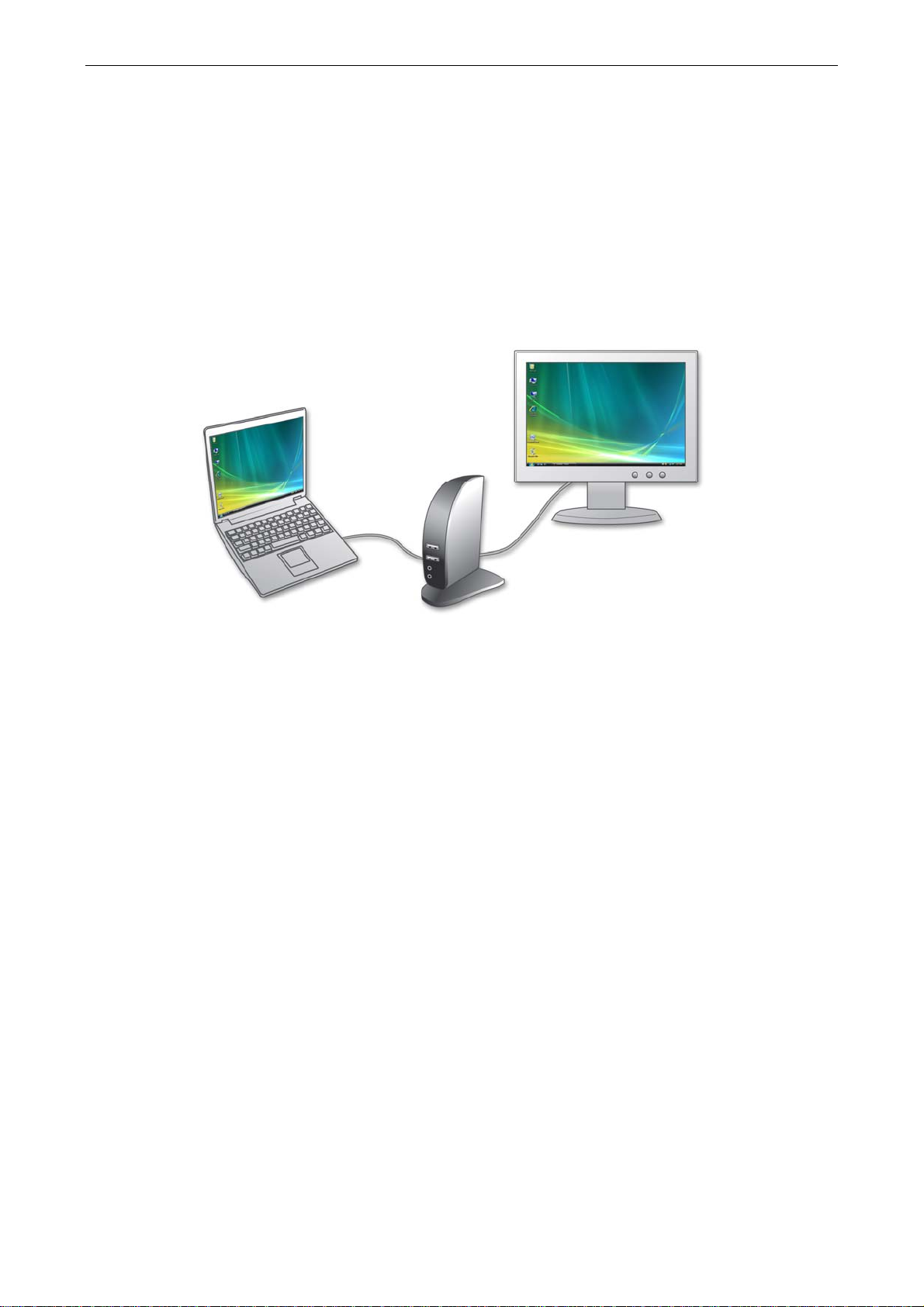

Display Modes ...........................................................................................................16

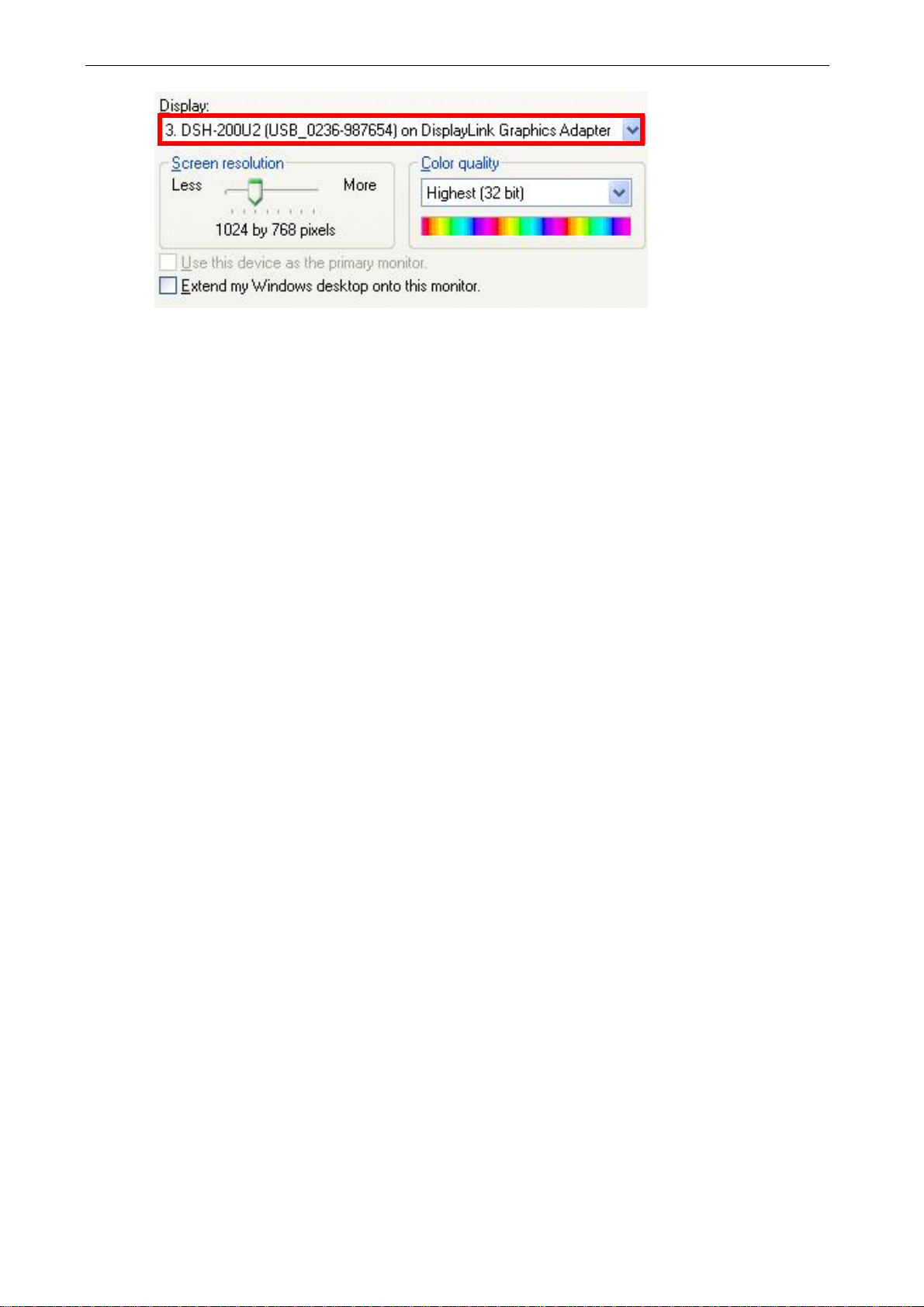

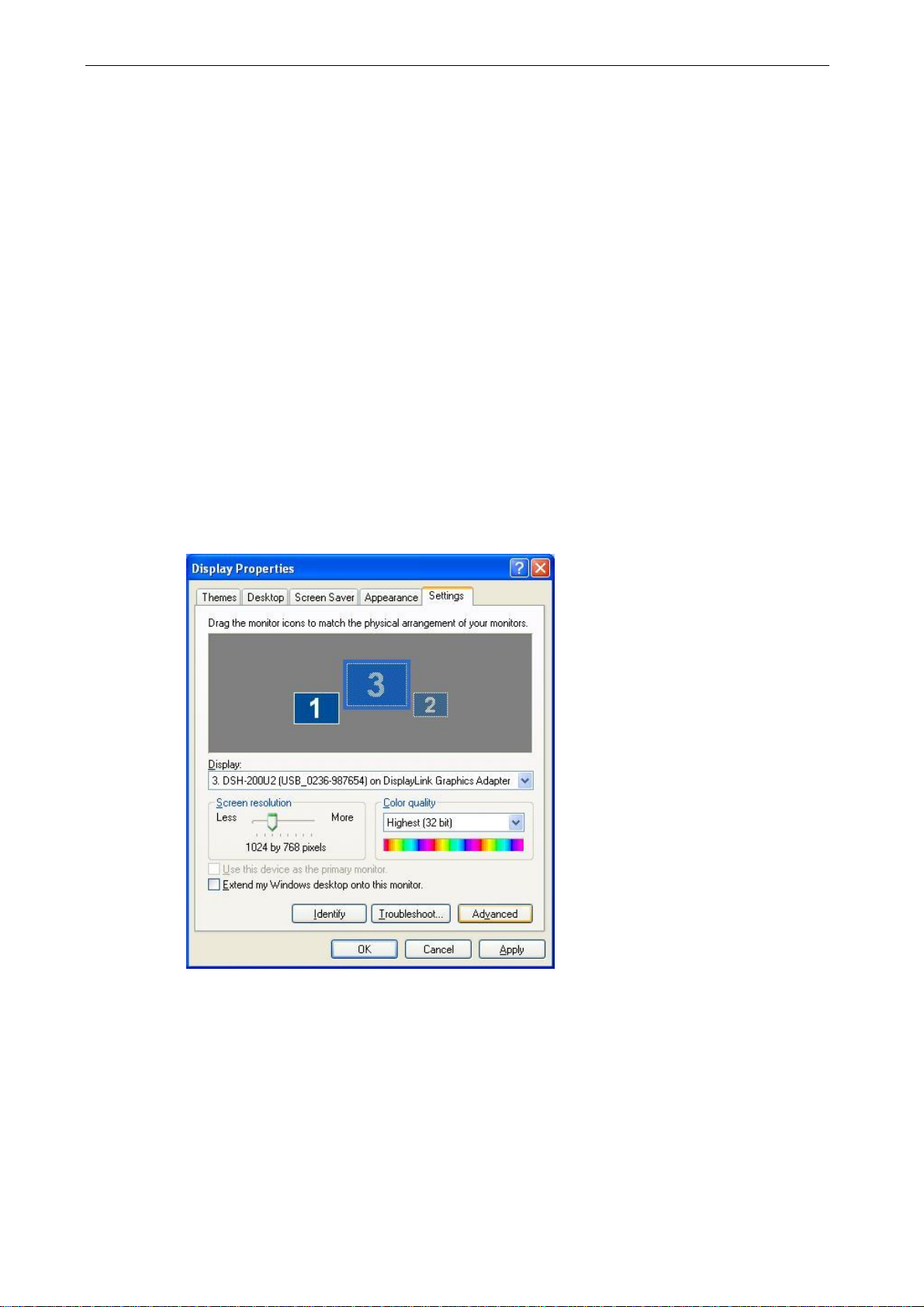

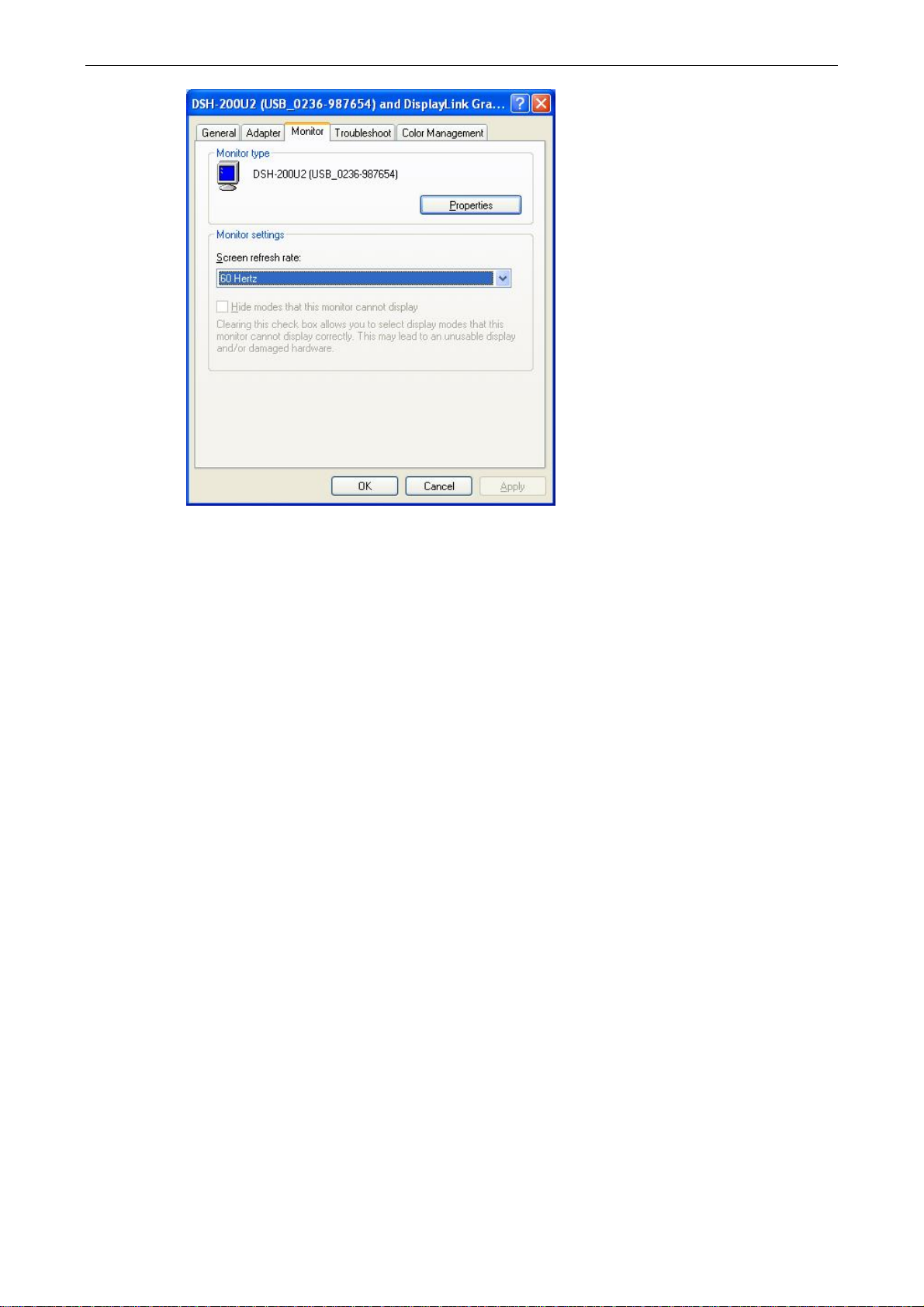

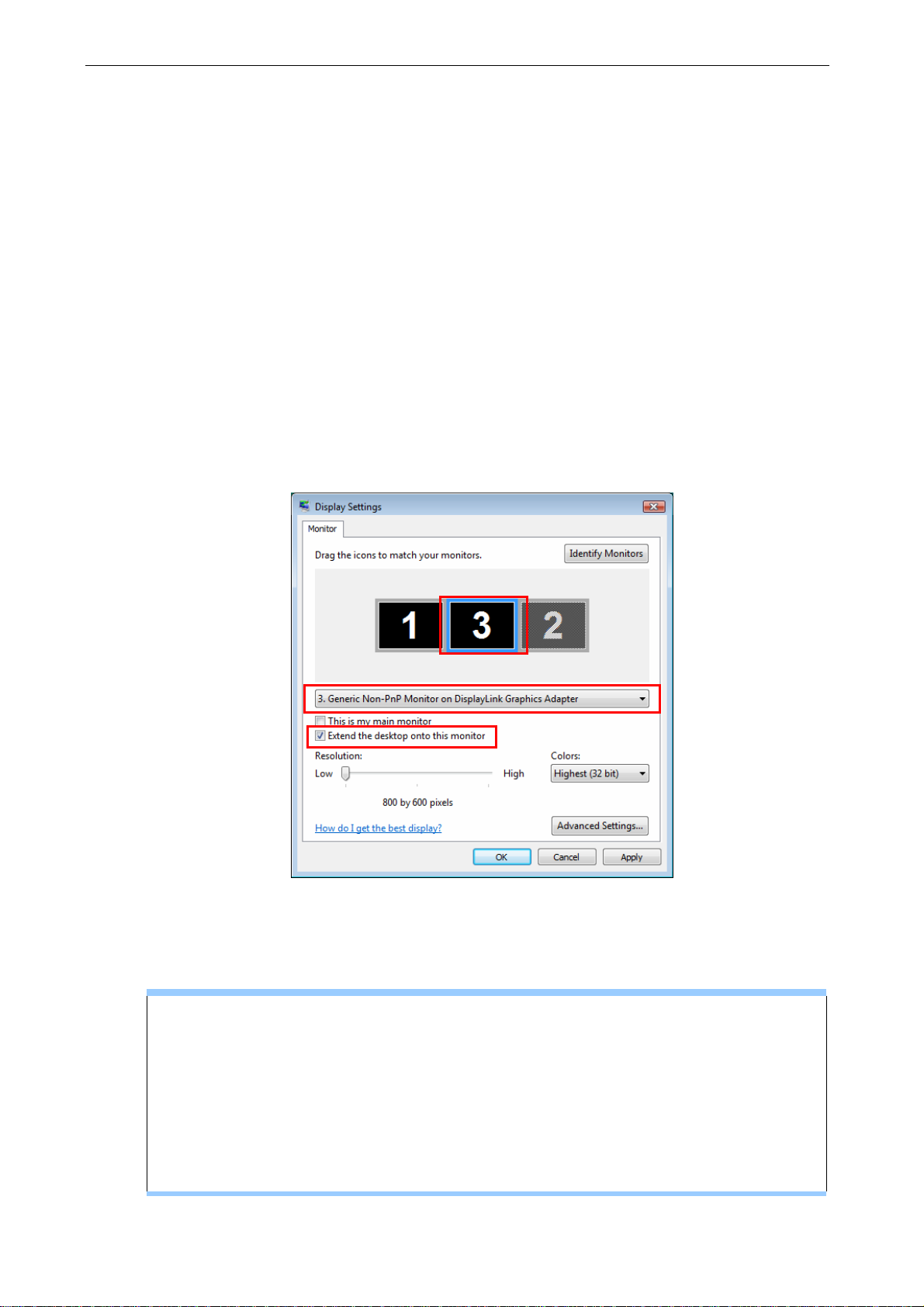

Adjusting Resolution, Color Depth and Refresh Rate................................................19
Disconnecting the Docking Station ............................................................................22
How Standby or Hibernate Mode Affects Devices Attached to the Docking
Station...............................................................................................................22
External Monitors.......................................................................................................22
Other Devices............................................................................................................23
4. Uninstalling the Drivers..................................................................................24

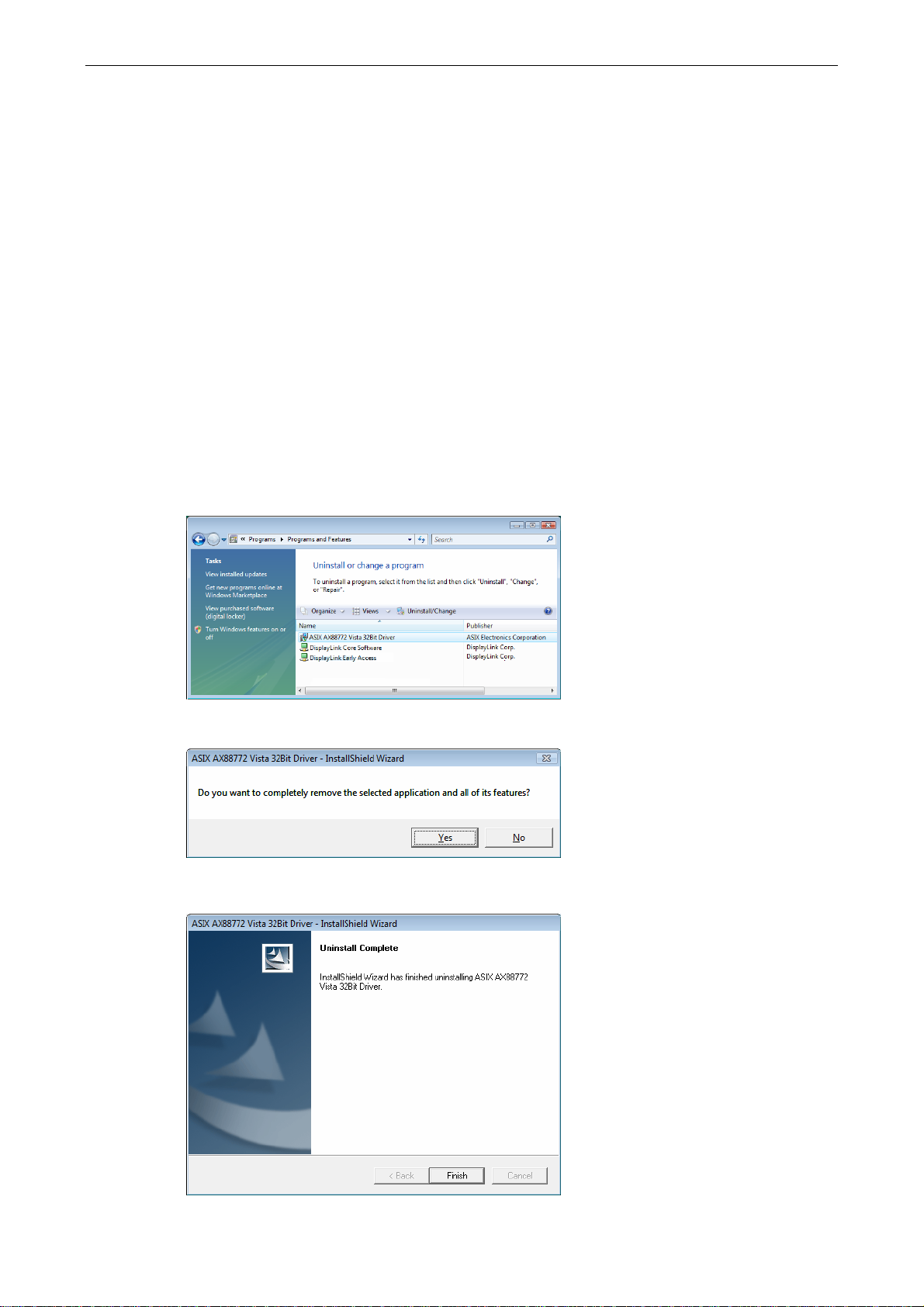

Uninstalling the Ethernet Driver ........................................................................24

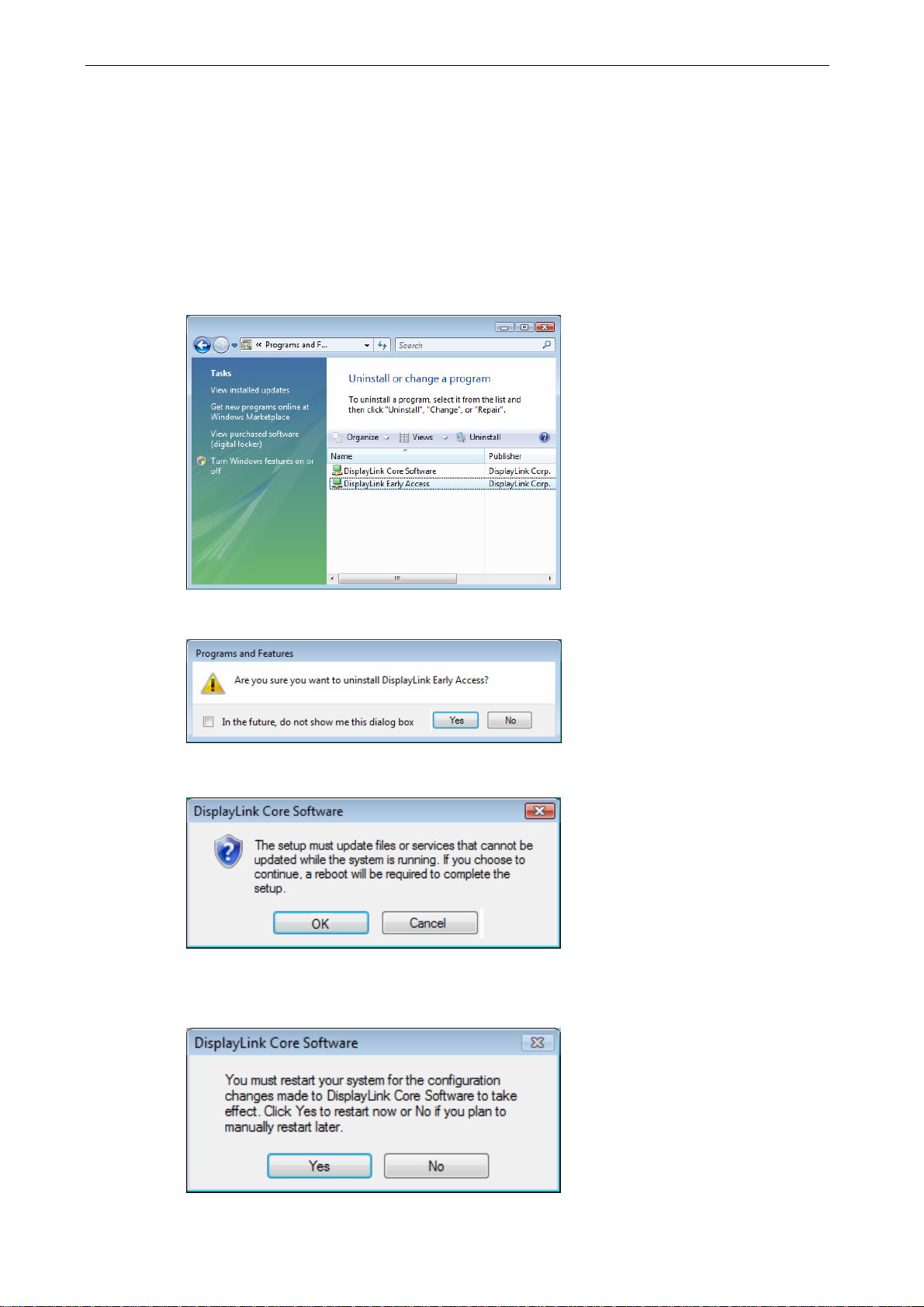

Uninstalling the Video Driver............................................................................. 25
5. Regulatory Compliance..................................................................................26
FCC Conditions ................................................................................................26
ii
Vantec Laptop Docking Station with Video User’s Manual
CE.....................................................................................................................26
WEEE Information ............................................................................................26
iii
1. Introduction
The Vantec Laptop Docking Station with Video Output is a unique expansion device
designed for laptops. With the ease through a single USB connection, you can
access your network, additional display, storage, headset, printer, keyboard, mouse
or any other additional USB peripherals. This is a convenient solution enabling you
to enter and leave your workspace without having to deal with all the wires and
connections. Connect all your peripherals to the Laptop Docking Station and you
can have instant access to them in seconds! Simplify your workspace with the
Vantec Laptop Docking Station and create an office setup without sacrificing
portability.
Simplify Your W orksp ace!
1
Vantec Laptop Docking Station with Video User’s Manual
Features
Great expansion device for laptops
Single connection to network, display, headset, along with other USB
peripherals
2 Front USB 2.0 Ports for Easy Access
Sleek and space saving design
Compatible with Windows 2000/XP/Vista
Video:
Supports DVI or VGA Displays up to 1600 x 1200 resolutions
Supports Widescreen Display Settings
Supports Extended Desktop, Mirror and Primary Modes
Peripherals:
4 USB 2.0 Ports for your USB peripherals
Audio In/Out
1 network port (10/100 Base-T Ethernet RJ-45 connector)
Security slot
Package Contents
Docking Station with Video x1
Base Plate x1
USB 2.0 Cable x1
Power Adapter x1
CD (Driver and User’s Manual) x1
Quick Installation Guide x1
DVI to VGA Adapter x1
System Requirements
Intel Pentium/Celeron or AMD K6/Athlon/Duron with CPU at 1.2GHz or higher
512 MB of RAM
USB 2.0 port
30MB of available disk space
Windows® 2000 SP4, XP SP2, Vista™ (32-bit edition only for all)
Additional requirements for DVD playback on add-on monitor:
Dual Core CPU at 2.0 GHz or higher
2
The add-on screen resolution must be set to 800x600 with 16bit color
Specifications
Model: DSH-200U2
Host Interface: USB 2.0
I/O Port: One Upstream USB 2.0 Port (Type B Port)
Four Downstream USB 2.0 (Type A Ports)
One Ethernet Port (10/100 Base-T Ethernet RJ-45 Connector)
One DVI-I Port (24pin + 5pin Female connector)
One Microphone (3.5mm Stereo Audio In)
One Headphones/Speaker (3.5mm Stereo Audio Out)
Audio Component: Output: 2 CH DAC Output
DAC sampling rate from 8KHz, 16KHz, 44.1KHz to 48KHz with
16-bit resolution. Earphone buffer driving for output
Input: 2 CH ADC Input
ADC sampling rate from 8KHz, 16KHz, 44.1KHz to 48KHz with
16-bit resolution. Digital Linear Microphone Gain Control
function (-6db~33db)
Emission: CE, FCC
Power: Input: AC 100-240V, 50~60Hz
Output: DC 5V / 2.5A
Environments: Operating Temperature: 10°C~40°C
Storage Temperature: -10°C~80°C
Humidity: 90% RH (No Condensing)
Support Video Modes: Extended Desktop, Mirrored Desktop, and Primary Display
Resolutions, Refresh Rate and Color Depth:
Color Depth
Resolution
640x480
Refresh rates available
at 16 bit color quality
60 72 75 60 72 75
Refresh rates available at
32 bit color quality
800x600
1024x768
1280x960
1280x1024
1360x768
1366x768
1368x768
56 60 72 75 85 56 60 72 75 85
60 75 85 60 75 85
60 85 60 85
60 75 85 60 75
60 60
60 60
60 60
3
Vantec Laptop Docking Station with Video User’s Manual
1400x1050
1440x900
1600x1200
1680x1050
60 75 85 60 75 85
60 60
60 60
59 60 59 60
Material: ABS (Plastic)
Dimension: Main body without base: 35 (W) x 90 (D) x 153 (H) mm
Main body with base: 86 (W) x 110 (D) x 160 (H) mm
Weight: Approximately 204g (including base)
4
Assembly and Disassembly
The docking station comes with a base plate to make it self-standing. To assemble
the docking station, slide the body of the docking station firmly as shown below.
Make sure a click is heard to ensure the body snaps into place.
To disassemble the docking station, hold the base with one hand and then use
another hand to push the docking station firmly as shown below.
5
