Fitting Instructions - Read instructions carefully before fitting and follow them for correct use
VG284-3
3 Heavy duty aluminium roof bars - Fiat Doblo 2010 on / Vauxhall Combo 2012 on

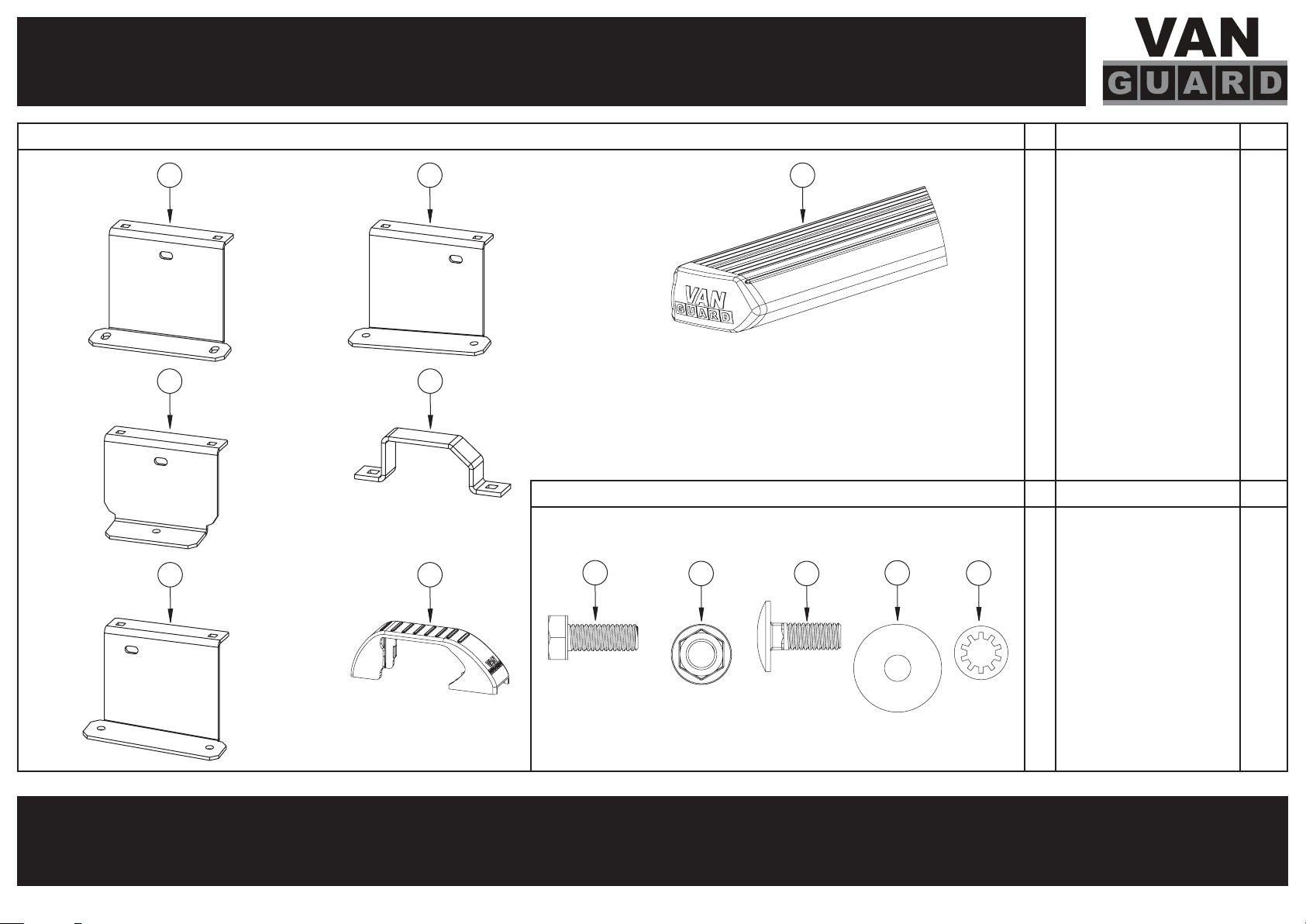

SUPPLIED COMPONENTS #
1
2
5
SUPPLIED FIXING KIT
3
6
1
2 3
74
4
DESCRIPTION QTY
1
REAR BRACKET
2
MIDDLE BRACKET
3
FRONT OFFSIDE BRACKET
4
FRONT NEARSIDE BRACKET
5
TOP HAT
6
TOP HAT COVER
7
ROOF BAR
#
1
2
5
3
4
5
DESCRIPTION QTY
M6x16 HEX BOLT
M6 SERRATED FLANGE NUT
M6x16 COACH BOLT
RUBBER WASHER
M6 SHAKEPROOF
2
2
1
1
6
6
3
10
12
12
10
10
This FITTING INSTRUCTION is the property of VAN GUARD ACCESSORIES LTD. and must not be used for
manufacturing purposes, copied nor communicated in any way to third parties without written
permission from VAN GUARD ACCESSORIES LTD.
IN8098_A - IW - 03/05/2013
TOOLS REQUIRED: 10mm SPANNER / RATCHET
Van Guard Accessories Ltd
Fair Oak Close, Exeter Airport Business Park,
Exeter, Devon, EX5 2UL
www.van-guard.co.uk
VG284-3 - PAGE 1 OF 3
Page 2

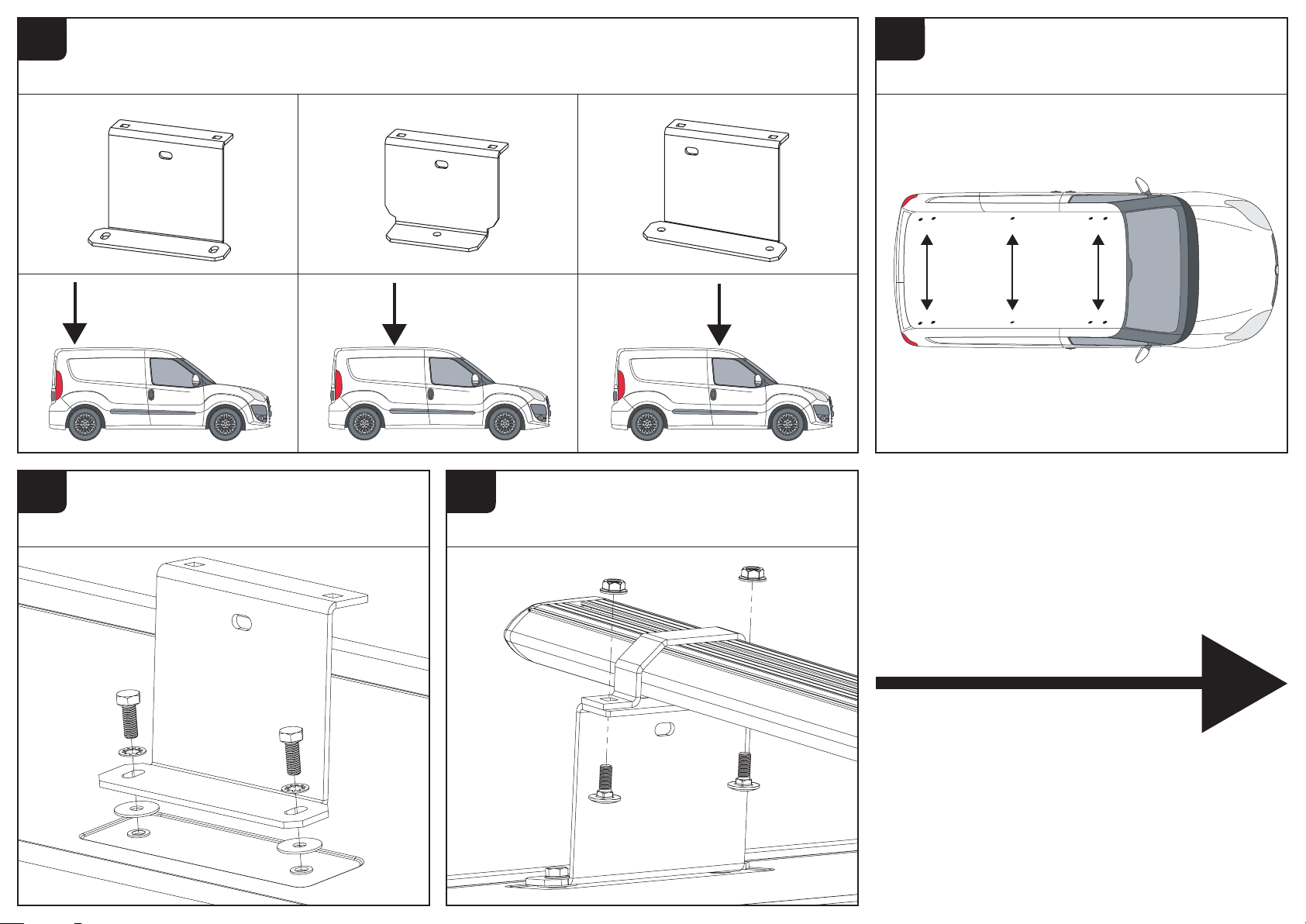

The front roof brackets are handed to suit both sides of the vehicle and are angled to suit the slope of the roof. The
1
brackets need to be positioned on the vehicle as shown below with the top hat flange facing inwards.
FRONT (HANDED) - ILLUSTRATION SHOWS OFFSIDEMIDDLEREAR
Remove roof plugs to reveal the vehicles fixing
2
points.
Secure roof brackets to the vehicles fixing points
3
using M6x16 hex bolts, M6 shakeproofs & rubber
washers. Ensure that the top hat flange is facing inwards.
Place roof bars onto the roof brackets with the t-slot
4
facing upwards, secure using top hat brackets,
M6x16 coach bolts & M6 serrated nuts.
VG284-3 - PAGE 2 OF 3
Page 3

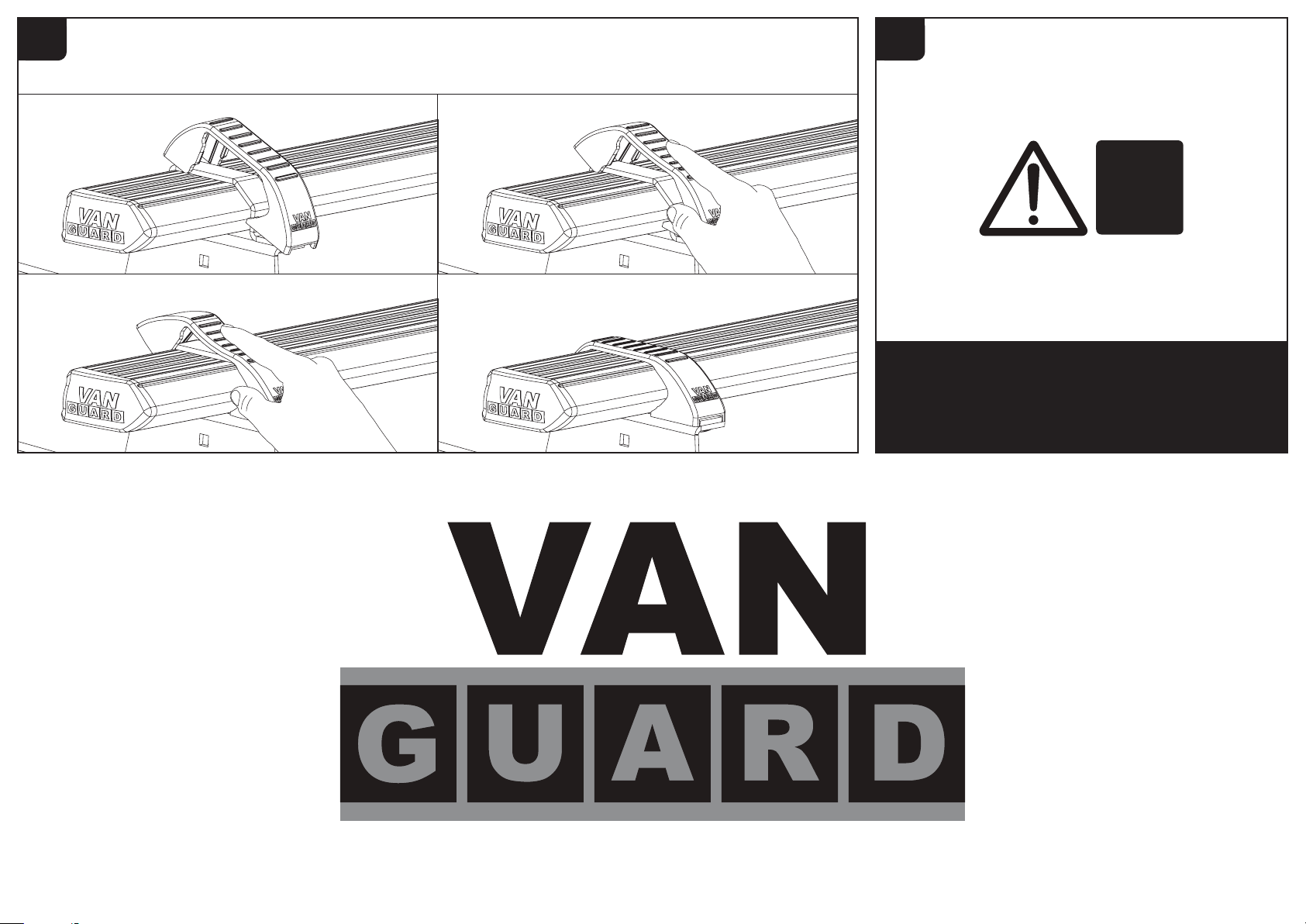

Flex the top hat covers over the top hat brackets into position as shown below. Ensure that the covers click into the
5
front and rear of the top hat brackets.
1. 2.
Once in position tighten all fixings to 8Nm.
6
Periodically check all fixings.
TIGHTEN
TO
8Nm
3.
4.
NOTES:
Maximum load is 55kg per bar. Please check that the vehicle manufacturers
load bearing capacity for the roof is not exceeded. (Refer to the vehicle
handbook)
Periodically check all fixings.
Retain these instructions for future reference.
