Valor™ 7000 Series
Instruction Manual
Valor™ 7000
Series EN-1
1. INTRODUCTION
This manual contains installation, operation and maintenance instructions for the Valor™ 7000
Series. Please read the manual completely before using the scale.
1.1 Definition of Signal Warnings and Symbols
Safety notes are marked with signal words and warning symbols. These show safety issues and
warnings. Ignoring the safety notes may lead to personal injury, damage to the instrument,
malfunctions and false results.
Signal Words
CAUTION for a hazardous situation with low risk, resulting in damage to the device or
the property or in loss of data, or injuries if not avoided.
Note (No symbol)
For useful information about the product
Warning Symbols
Attention Symbol
Alternating Current
1.2 Safety Precautions
Please follow these safety precautions:
Verify that the AC input voltage printed on the data label matches the local AC power
supply.
Do not drop loads on the platform.
Make sure that the power cord does not pose a potential obstacle or tripping hazard.
Do not position the scale in a way that makes it difficult to pull the power plug.
Use only approved accessories and peripherals.
Operate the scale only under ambient conditions specified in these instructions.
Disconnect the scale from the power supply when cleaning.
Do not operate the scale in hazardous or unstable environments.
Do not immerse the scale in water or other liquids.
Do not place the scale upside down on the platform.
Only use weights within the scale’s capacity as specified in these instructions.
Service should be performed only by authorized personnel.
2. INSTALLATION
2.1 Package Contents
Scale
Pan
Sub-platform
Power Cord
Instruction Manual / CD
Warranty Card
In-use Cover
EN-2 Valor™ 7000 Series
2.2 Installing Components
Install the sub-platform and metal pan as shown below. Press to lock the sub-platform into
place.
Figure 2-1. Install the sub-platform and metal pan
2.3 Selecting the Location
Use the scale on a firm, steady surface. Avoid locations with excessive air current, vibrations,
heat sources, or rapid temperature changes. Allow sufficient space around the scale.
2.4 Leveling the Equipment
The Valor Series has a level indicator as a reminder that the scale should be leveled for
accurate weighing. To level the scale, adjust the feet so the bubble is centered in the circle.
Be sure the equipment is level each time its location is changed.
Figure 2-2. Level indicator
Level Indicator
Adjustable feet
Valor™ 7000
Series EN-3
2.5 Connecting Power
AC power is used to power the scale when battery power is not needed. First, connect the AC
power cord (supplied) to the power input jack then connect the AC plug to an electrical outlet.
Figure 2-3A Connect the AC
power plug to the input jack on
the back of scale.
Figure 2-3B Connect AC power plug to
the proper AC supply.
2.5.1 Battery Power:
The scale can be used on AC power immediately. Allow the battery to charge for 12 hours
before using the scale on battery power. The Scale will automatically switch to battery
operation if there is a power failure or the power cord is removed. With AC power, the scale
is constantly charging, so the battery charge indicator (see item 11 in figure 3-2) will remain
lit. The scale can be operated during charging, and the battery is protected against
overcharging.
For maximum operating time, the battery should be charged at room temperature.
During battery operation, the battery symbol indicates the battery charge level remaining.
The indicator will automatically turn off when the batteries are fully charged.
TABLE 2-1
Symbol
Charge level
0 to 10 % Remaining
11 to 40 % Remaining
41 to 70 % Remaining
71 to 100 % Remaining
Notes:
When battery symbol blinks fast, approximately 30 minutes working time is left.
When [lo.bat] is displayed, the scale will shut off.
Charging the scale must be performed in a dry environment.
CAUTION: Battery is to be replaced only by an authorized Ohaus service
dealer. Risk of explosion can occur if the rechargeable battery is replaced with
the wrong type or if it is not properly connected. Dispose of the lead acid
battery according to local laws and regulations.
EN-4 Valor™ 7000 Series
3. OPERATION
3.1 Controls
Figure 3-1. Valor 7000 Front Control Panel with LCD Display.
TABLE 3-1
Button
Functions
On/Zero
Off
3
Yes
Short Press1 (when on): Sets display to zero
(when off): Turns scale on
Long Press2 (when on): Turns the scale off
Short Press (in Menu): Selects/accepts displayed setting
Print
Units
No
Short Press: See Interface Manual for operation description.
Long Press: Toggles through active weighing units
Short Press (in Menu): Toggles through available settings
Function
Mode
Back
Short Press: Selects function setting
Long Press: Selects active Mode
Short Press (in Menu): returns to previous settings
M+
Menu
Exit
Short Press: Accumulates the weight and displays the accumulated
information at 0 load.
Long Press: Enters User Menu
Short Press (in Menu): Quickly exit User Menu
Tare
Short Press: Enter/clear a tare value. Clears the accumulation when
the accumulation information is displayed.
The IR Sensor can be programmed to act as “touchless” buttons.
See section 4.3 for the available settings.
Notes: 1 Short Press: Press less than 1 seconds.
2
Long Press: Press and hold for more than 2 seconds.
3
Press and hold the Off button until OFF is displayed, then release the button.
Valor™ 7000
Series EN-5
IR Sensor
(back)
TABLE 3-2
Item
Description
Item
Description
1
NET symbol
9
Calibration / Menu Mode symbol
2
Center of Zero symbol
10
Dynamic symbol (not used)
3
Negative symbol
11
Battery charge symbol
4
Stable weight symbol
12
Pound, Ounce, Pound:Ounce symbols
5
Preset Tare, Tare symbols
13
Percent symbol
6
Pointer symbols
14
Kilogram, gram symbols
7
IR Sensor symbol
15
Pieces symbol, tonne symbol (both not used)
8
Accumulation symbol
16
Scale symbol (not used)
The colored LED indicators on the left side of the control panel are used in Check mode (section
3.5) and will light up according to the following rules:
(Red) Loads > Upper limit
(Green) Loads ≥ Lower limit and ≤ Upper limit
(Yellow) Loads < Lower limit
Figure 3-3. Valor 7000 back LCD Display
Figure 3-2. LCD Display
1
2
1
3
4
5
6
8
9
10
11
12
13
14
15
16
LED Indicators
EN-6 Valor™ 7000 Series
Figure 3-4. Below view of Valor 7000
IR Sensors
The Valor 7000 is equipped with two IR sensors, one at the front (see figure 3-5) and one at the
rear (see figure 3-3). The front and rear sensors perform the same function. The sensors can be
activated by a hand or other object that is placed at a specified distance in front of the sensor
locations. The sensor activation distance will vary based on the reflective nature of the object. If
unwanted activations occur due to unique situations the sensor can be turned off. See section
4.3 Setup Menu for available settings.
Figure 3-5. Front view of Valor 7000
Power Input
Weigh Below
Access
Lock Switch
IR Sensor
(front)
RS232 and
Option
Interface Port
(below cover)
IR Sensor (front)
Valor™ 7000
Series EN-7
3.2 Turning Scale On/Off
To turn the scale on, press and hold the On/Zero Off button for 1 second. The scale performs a
display test, momentarily displays the software version, and then enters the active weighing
mode.
To turn the scale off, press and hold the On/Zero Off button until OFF is displayed.
3.3 Weigh Mode
This mode is the factory default setting.
1. If needed, press and hold Mode until [wJeIGH] (Weigh) is displayed.
2. If required, place an empty container on the pan and press Tare.
3. Add sample to the pan or container. The display shows the weight of the sample.
3.4 Percent Mode
This mode measures the weight of a sample as a percentage of a reference weight.
1. If required place an empty container on the pan and press Tare.
2. Press and hold Mode until [Percnt] is displayed. [Clr.ref] (clear reference) will then
display. If no reference weight exists, the scale will display [Put.ref], proceed to step 5.
3. Press No to use the stored reference weight and proceed to step 6.
4. Press Yes to establish a new reference. Scale will now display [Put.ref].
5. Add the desired reference material to the pan or container. Press Yes to store the
reference weight. The display shows 100%.
6. Replace the reference material with the sample material. The display shows the
percentage of the sample compared to reference weight.
7. To clear the stored reference press and hold Mode until [Percnt] is displayed. Press Yes
when [Clr.ref] is displayed.
Note: Press Function to view the current reference weight.
EN-8 Valor™ 7000 Series
3.5 Check Mode
Use this mode to compare the Weight or Percent of items to a target range. The scale supports
positive, negative and zero check weighing.
Refer to section 4.5 to set the desired Check sub-mode.
3.5.1 Check Weighing
Set Checkweigh to Weight in the Mode menu. Use this mode to compare the weight of items to
a target weight range.
1. Press and hold Mode until [CHeCk] (Check) is displayed. [CL.lImM] (clear check limits)
will then display.
2. Press No to use the stored check limits and proceed to step 5.
3. Press Yes to establish new check limits. The scale will then display [Set. Lo]. Press Yes
to view the “Low” limit value. Press Yes to accept or No to edit the “Low” limit value. The
stored value then displays with the first digit highlighted [000.000 kg]. Repeatedly press
No until the desired number appears. Press Yes to accept and highlight the next digit.
Repeat until all the digits are correct. Press Yes to accept the “low” limit value, [Set. Hi]
will be displayed.
4. Repeat the same procedure to accept or edit the “high” value.
5. If required, place an empty container on the pan and press Tare.
6. Place sample material on the pan or in the container. If the sample weight is under the
target weight range, the yellow LED will light. If the sample is within the target weight
range, the green LED will light. If the sample is over the target weight range, the red LED
will light.
Note: Press Function to view the low and high check limits.
3.5.2 Check Percent
Set Checkweigh to Percent in the Mode menu. Use this mode to compare the percentage of
items to a target percent range.
1. Press and hold Mode until [CHeCk] (Check) is displayed. [CLr.ref] (clear reference) will
then display.
If no reference weight exists, the scale will display [Put.ref], proceed to step 4.
2. Press No to use the stored reference weight and proceed to step 5.
3. Press Yes to establish a new reference. Scale will now display [Put.ref].
4. Add the desired reference material to the pan or container. Press Yes to store the
reference weight.
5. The scale will display [CL.lImM] (clear Check limits).
6. Press No to use the stored check limits and proceed to step 9.
7. Press Yes to establish new check limits. The scale will then display [Set. Lo]. Press Yes
to view the “Low” limit value. Press Yes to accept or No to edit the “Low” limit value. The
stored value then displays with the first digit highlighted [000.000 %]. Repeatedly press
No until the desired number appears. Press Yes to accept and highlight the next digit.
Repeat until all the digits are correct. Press Yes to accept the “low” limit value, [Set. Hi]
will be displayed.
8. Repeat the same procedure to accept or edit the “high” value.
Valor™ 7000 Series EN-9
9. If required, place an empty container on the pan and press Tare.
10. Place sample material on the pan or in the container. If the sample weight is under the
target percentage range, the yellow LED will light. If the sample is within the target
percentage range, the green LED will light. If the sample is over the target percentage
range, the red LED will light.
Note: Press Function to view the low and high check limits.
Positive Check
Positive check is used to determine when the material added to the scale is within the target
range. In this case the UNDER and OVER limits must be positive values. (The OVER limit must
be greater than the UNDER limit.)
Add material to the scale until it is within the ACCEPT (green) range.
Negative Check
Negative check is used to determine when the material removed from the scale is within the
target range. In this case the UNDER and OVER limits are both negative values.
The UNDER limit must be greater than the OVER limit (for example: UNDER= -10/OVER= -15).
Place the item to be weighed on the scale and press Tare.
Remove a portion of the item until it is within the ACCEPT range.
Zero Check
Zero check is used when comparing subsequent samples to an initial reference sample. In this
case, the UNDER limit must be a negative value and the OVER limit must be a positive value.
Place the reference item on the scale and press Tare. Remove the reference sample and place
the item to be compared on the scale to determine if it is within the ACCEPT range.
EN-10 Valor™ 7000 Series
3.6 Accumulation and Statistics
The Accumulation feature enables manual or automatic totalizing of displayed values. Statistical
data (total accumulated, min and max weight or %, and total number of weighments) is stored in
memory for review and printing. Accumulation works together with each application mode
except Dynamic.
3.6.1 Accumulating Displayed Values
With ACCUMULATE set to MANUAL, place the item on the scale and press the M+ key to add
the weight to accumulation data. The ∑ pointer will keep flashing until the weight is removed.
With ACCUMULATE set to AUTO, place the item on the scale. The displayed value is
accumulated automatically. The ∑ pointer will keep flashing until the weight is removed.
3.6.2 Viewing and Clearing Statistical Data
When the pan is cleared, press the M+ key to display the statistical information. To clear the
accumulation data press the Tare key while the statistical information is displayed. The display
shows [Clr.aCC]. Press the Yes key to clear the stored data and return to current mode.
Notes: The item must be removed from the pan before the next item can be accumulated.
Only stable weights are stored to accumulation data.
Changing the mode will clear the accumulation data.
When Legal for Trade is ON, the display must return to 0 gross. Otherwise, the ∑
pointer will continue flashing. Gross loads and net loads cannot be added to the
same total. If the first load is a gross weight, future loads must also be gross
weights. If the first load is a net weight, future loads must also be net weights.
Example:
In weighing mode; sub menu ACCUmM setting, select mMaNU:
If required, place an empty container on the pan and press Tare.
Step i: Put the weight (0.04 kg) on the pan and press M+ key. The Σ
pointer indicator will keep flashing until the weight is removed.
Step ii: Remove the weight from the pan. Put another
weight (0.03 kg) and press M+ key:
Step iii: Remove the weight from the pan:
Step iv: Press M+ key to display the statistical information:
Step v: If required, follow section 3.6.2 to clear the accumulation data.
mMaNU
*
0.040 kg
*
0.030 kg
*
0.000 kg
N 2
tOtal
*
0.070 kg
mMIN
0.030 kg
0.040 kg
Valor™ 7000
Series EN-11
4. MENU SETTINGS
The User Menu allows the customizing of scale settings.
Note: Additional Sub-Menus may be available if Interface Options are installed. See Interface
User Manual for the additional setting information.
4.1 Menu Navigation
User Menu:
Menu:
C.A.L
S.E.t.U.P
r.E.A.d
M.O.d.E
Menu
Items:
Span
Lin
GEO
End
Reset
Pwr.Un
Zero
A. Tare
Bp.Sig
Bp.Key
IR Func
IR Adj
Accum
End
Reset
Stable
Filter
AZT
Light
A.Off
End
Reset
Weigh
Percnt
Check
End
U.n.i.t
P.r.i.n.t.1
C.O.M.1
L.O.C.k
E.n.d
Menu
Items:
Reset
kg
g
lb
oz
lb:oz
End
Reset
Stable
A.Print
Contnt
Layout
Data.Tr
End
Reset
Baud
Parity
Stop
Handsh
Alt.Cm
End
L.Cal
L.Setup
L.Read
L.Mode
L.Unit
L.Print
L.COM
End
Notes:
Some modes/units may not be available in all models.
When LEGAL FOR TRADE is set to ON (LFT Switch in locked position), the
menu settings are affected as follows:
Calibration (C.A.L) menu is not accessible
Zero Range is locked at 2%
Stable Range setting is locked at 1d
Auto-Zero Tracking setting is locked at 0.5d
Unit menu is locked at the current setting
Stable Only is locked On
Auto Print/ Continuous is disabled
Lb:oz is locked at Off.
IR Sensor and Filter menus may be locked at the current settings, if
required by local weights and measures regulations
EN-12 Valor™ 7000 Series
Summary of button navigation functions in menu mode:
-- Yes Allows entry into the displayed menu.
- Accepts the displayed setting and advances to the next item.
-- No Skips by the displayed menu.
- Rejects the displayed setting or menu item and advances to the next
available item.
-- Back Moves backwards through the upper and middle level menus.
- Backs out of a list of selectable items to the previous middle level menu.
-- Exit Exits from menu directly to the active weighing mode.
For menu items with numeric settings such as Capacity, the current
setting is displayed with all digits flashing.
Press the No button to begin editing.
The first digit is displayed flashing.
Press the No button to increment the digit or press the Yes button to
accept the digit and move to the next digit.
Repeat this process for all digits.
Press the Yes button when the last digit has been set.
The new setting is displayed with all digits flashing. Press the Yes
button to accept the setting or press the No button to resume editing.
This method also applies to setting Checkweigh under and over
targets.
For End menu items, pressing the Yes button advances to the next
menu, while pressing the No button returns to the top of the current
menu.
Valor™ 7000
Series EN-13
4.2 Cal Menu
Enter this menu to perform calibrations.
Initial Calibration
When the scale is operated for the first time, a span calibration is recommended to ensure
accurate weighing results. Before performing the calibration, be sure to have the appropriate
calibration weights as listed in table 4-1. Ensure that the LFT switch / calibration lock is set to
unlock position. See figure 5-1.
Or adjust the GEO setting according to your location (see table 4-2).
Procedure:
Press and hold Menu until [mMeNU] (Menu) is displayed. When the button is released, the display
will show [C.A.L]. Press Yes to accept. [SpaN] will then be shown. Press Yes to begin the span
calibration. [ 0 kg] will be displayed. Press Yes to accept. [--C--] will be displayed while zero
reading is stored. Next, the display shows the calibration weight value. Place the specified
calibration mass on the pan. Press Yes to accept the weight or No to select an alternate weight.
[--C--] will be displayed while the reading is stored. The display will show [done] if the calibration
was successful. The scale returns to the previous application mode and is ready for use.
TABLE 4-1
Required Span Calibration Mass (sold separately)
Capacity
Mass* Capacity
Mass
*
1500g
1.5kg / 3lb
15000g
15kg / 30lb
3000g
3kg / 6lb
30000g
30kg / 60lb
6000g
6kg / 15lb
Notes: When active unit is g or kg, the calibrating unit will be in kg.
When active unit is lb, oz or lb:oz, the calibrating unit will be in lb.
For linearity calibration, the calibration Mass is fixed.
Mid-point is always half of full capacity.
Span [SpaN]
Initiates a span calibration procedure (zero and span)
Lin [LIN]
Initiates a linearity calibration procedure (zero, mid-point and span).
GEO [GEO]
Geographical Adjustment Factor (GEO) is used to adjust the calibration based on the current
location. Settings from 0 to 31 are available with 12 being the default.
Refer to table 4-2 to determine the GEO factor that corresponds to your location.
End Cal [End]
Advance to the next menu or return to the top of the current menu.
Span: Perform
Linearity: Perform
Geographic:
Adjustment: Set 0...12...31*
End Calibration: Exit menu
*Bold always represents factory default value.
EN-14 Valor™ 7000 Series
4.3 Setup Menu
Enter this menu to set scale parameters. Default settings are bold.
Reset [reset]
Reset the Setup menu to factory defaults.
NO = not reset
YES = reset
Power on unit [pwWr.UN]
Set the unit of measure displayed at startup.
AUTO = last unit in use when turned off
kg = kilograms
g = grams
lb = pounds
oz = ounces
lb:oz = pound ounces
Zero Range [ZErO]
Set the percentage of scale capacity that may be zeroed.
2% = zero up to 2 percent of capacity
10% = zero up to 10 percent of capacity
Auto Tare [A.tArE]
Set the automatic tare functionality.
OFF = Automatic Tare is disabled
ON = the first stable gross weight is tared
ON-ACC = stable gross loads within the accept limits are tared (in Check weighing mode)
Beeper Signal [Bp.sIG]
Set how the beeper responds in Check Weighing mode.
OFF = the beeper is disabled
ACCEPT = the beeper will sound when the weight is within the Accept range.
UNDER = the beeper will sound when the weight is below the Under setting.
OVER = the beeper will sound when the weight is above the Over setting.
OVER- = the beeper will sound when the weight is below the Under setting or above the
UNDER Over setting.
Beeper Key [BP.key]
Set whether the beeper sounds when a button is pressed.
OFF = no sound
ON = sound
Reset: no, yes
Power On Unit: auto, kg, g, lb, oz, lb:oz
Zero Range: 2%, 10%
Auto Tare: off, on, on-acc
Beeper Signal: off, accept, under, over, under-over
Beeper Key: off, on
IR Func: disp, zero, func, tare, print
IR Adjust: off, low, high
Accumulation: off, auto, manual
End Setup: Exit menu
Valor™ 7000
Series EN-15
IR Func [IR.F]
Define the sensor function. Both sensors will have the same function.
DISP = turn on backlight
ZERO = scale performs zero operation
FUNC = scale performs function operation
TARE = scale performs tare operation
PRINT = scale performs print operation
IR Adjust [Ir.Adj]
Set the distance at which the sensor will respond.
OFF = disabled
LOW = around 50 mm / 2 inches
HI = around 100 mm / 4 inches
Accumulation [aCCUmM]
Set the accumulation functionality.
OFF = accumulation disabled
AUTO = automatic accumulation
MAN = manual accumulation
End Setup [End]
Advance to the next menu or return to the top of the current menu.
EN-16 Valor™ 7000 Series
4.4 Readout Menu
Enter this menu to set user preferences. Default settings are bold.
Reset [reset]
Reset the Read menu to factory defaults.
NO = not reset
YES = reset
Stable Range [Stable]
Set the amount the reading can vary while the stability symbol remains on.
0.5d = 0.5 scale division
1d = 1 scale division
2d = 2 scale division
5d = 5 scale division
Filter [FILtEr]
Set the amount of signal filtering.
LOW = less stability, faster stabilization time
MED = normal stability, stabilization time
HI = greater stability, slower stabilization time
AZT [AZt]
Set the automatic zero tracking functionality.
OFF = disabled
0.5d = the display will maintain zero until a change of 0.5 divisions per second has
been exceeded.
1d = the display will maintain zero until a change of 1 divisions per second has been
exceeded.
3d = the display will maintain zero until a change of 3 divisions per second has been
exceeded.
Light [LIGHt]
Sets backlight functionality.
OFF = always off
ON = always on
AUTO = turns on when a button is pressed or the displayed weight changes.
Auto off [A.OFF]
Set the automatic shut off functionality.
OFF = disabled
1 = powers off after 1 minute of no activity
5 = powers off after 5 minute of no activity
10 = powers off after 10 minute of no activity
Reset: no, yes
Stable Range: 0.5, 1, 2, 5
Filter: low, medium, high
Automatic-Zero Tracking: off, 0.5, 1, 3
Light: off, on, auto
Auto Off: off, 1, 5, 10
End Readout: Exit menu
Valor™ 7000
Series EN-17
End Readout [End]
Advance to the next menu or return to the top of the current menu.
4.5 Mode Menu
This sub-menu activates modes so they will be available for use with the Mode button. Weigh
mode is always active. Default settings are bold.
Reset [reset]
Reset the Mode menu to factory defaults.
NO = not reset
YES = reset
Weigh [wWEIGH]
Set the status.
OFF = disabled
ON = enabled
Percent [PerCNt]
Set the status.
OFF = disabled
ON = enabled
Check [CHECk]
Set the sub-mode
OFF = disabled
WEIGH = weight mode
PERCNT = percent mode
End Mode [End]
Advance to the next menu or return to the top of the current menu.
Note: Available modes vary by model and local regulations.
4.6 Unit Menu
This sub-menu activates units so they will be accessible with the Units button. The units in the
menu must be turned “on” to be active.
Note: Available units vary by model and local regulations.
Reset: no, yes
Weigh: off, on
Percent: off, on
Check: off, weigh, percnt
End Mode: Exit menu
EN-18 Valor™ 7000 Series
4.7 Print1 Menu
Enter this menu to set printing parameters. Default settings are bold.
Note: The Print2 menu is only displayed if a second interface is installed.
Reset [reset]
Reset the Print menu to factory defaults.
NO = no reset
YES = reset
Stable Only [Stable]
Set the printing criteria.
OFF = values are printed immediately
ON = values are only printed when the stability criteria are met
Auto Print [A.Print]
Set the automatic printing functionality.
OFF = disabled
ON.STAB = printing occurs each time the stability criteria are met
1
INTER = printing occurs at the defined interval
2
CONT = printing occurs continuously
ACCEPT = printing occurs each time the display is within the Checkweigh accept
range and stability criteria are met.
1
When ON.STAB is selected, set the condition for printing, where:
LOAD = printing occurs when the load is stable and greater than zero
LOAD.ZR = printing occurs when any load is stable and equal to or greater
than zero.
2
When INTER is selected, set the Print Interval.
1 to 3600 (seconds)
Reset: no, yes
Stable Only: off, on
Auto Print: off, on stable, interval, continuous, accept
Content: Result (-> off, on)
Gross (-> off, on)
Net (-> off, on)
Tare (-> off, on)
Header (-> off, on)
Footer (-> off, on)
Mode (-> off, on)
Unit (-> off, on)
Info (-> off, on)
Accu (-> off, result, all)
Layout: Format (->S,M)
Feed (->Line, 4 Lines, form)
Data Transfer: off, on
End Print: Exit menu
Valor™ 7000 Series EN-19
Content [CONtNt]
Define the content of the printed data. See section 7.4 for sample printouts.
Result
Set the status.
OFF = disabled
ON = the displayed reading is printed
Gross
Set the status.
OFF = disabled
ON = the gross weight is printed
Net
Set the status.
OFF = disabled
ON = the net weight is printed
Tare
Set the status.
OFF = disabled
ON = the Tare weight is printed
Header
Set the status.
OFF = disabled
ON = the Header is printed
Note: See section 7.3.1 for how to enter Header line.
Footer
Set the status.
OFF = disabled
ON = the Footer is printed
Note: See section 7.3.1 for how to enter Footer line.
Mode
Set the status.
OFF = disabled
ON = the Mode is printed
Unit
Set the status.
OFF = disabled
ON = the Unit is printed
Info
Set the status.
OFF = disabled
ON = the reference information is printed (ex. check limits)
Accu
Set the status.
OFF = disabled
RESULT = the Accumulation result is printed
ALL = all the Accumulation data is printed
EN-20 Valor™ 7000 Series
Layout [layOUt]
Set the format of the data output to a printer or computer.
Format
Set the printing format.
MULTI = a multi-line (single column style) printout is generated.
SINGLE = a single line printout is generated.
Feed
Set the paper feed.
LINE = move a paper up one line after printing
4LF = move a paper up four lines after printing
FORM = a form feed is appended to the printout
Data Transfer [data.tr]
Output weighing results directly to a PC application.
OFF = disabled
ON = enabled
Windows XP Setup:
1. Click Start Menu in Windows XP and click Settings -> open Control Panel.
2. Double click Accessibility Options in Control Panel.
3. Select the General tab.
4. Check Use Serial Keys, and click the Settings button.
5. Select the Serial Port, set the Baud rate to 9600 and click OK.
6. Close the Control Panel.
7. Run Excel to open one blank sheet. Focus the cursor on one item. At this time, if scale
sends data to the PC through the RS232 port, the data will be placed into the cell, and the
cursor will automatically move to the next vertical cell.
Notes:
For Windows 7 setup, contact Ohaus.
If the weighing value is a negative number, set the target cell in TEXT format. Otherwise, Excel
will not distinguish it as a negative number.
Please do not use this function during continuous printing.
End Print [End]
Advance to the next menu or return to the top of the current menu.
Valor™ 7000
Series EN-21
4.8 COM1 Menu
Enter this menu to define communication parameters. Default settings are bold.
Note: The COM2 menu is only displayed if a second interface is installed.
Reset [reset]
Reset the COM menu to factory defaults.
NO = no reset
YES = reset
Baud Rate [BAUD]
Set the baud rate.
300 = 300 bps
600 = 600 bps
1200 = 1200 bps
2400 = 2400 bps
4800 = 4800 bps
9600 = 9600 bps
19200 = 19200 bps
Parity [paritY]
Set the data bits and parity.
7 EVEN = 7 data bits, even parity
7 ODD = 7 data bits, odd parity
7 NONE = 7 data bits, no parity
8 NONE = 8 data bits, no parity
Stop bit [stOP]
Set the number of stop bits.
1 = 1 stop bits
2 = 2 stop bits
Handshake [H.shake]
Set the flow control method. Hardware handshaking is only available for COM1 menu.
NONE = no handshaking
ON-OFF = XON/XOFF software handshaking
Reset: no, yes
Baud Rate: 300…9600…19200
Parity: 7 even, 7 odd, 7 none, 8 none
Stop bit: 1, 2
Handshake: none, On-Off
Alternate command: Print (A…P…Z), Tare (A…T…Z), Zero (A…Z)
End COM: Exit menu
EN-22 Valor™ 7000 Series
Alternate command [Alt.CmM]
Define command character for the Print, Tare and Zero commands
Print
Set the alternate command character for Print
A to Z.
Tare
Set the alternate command character for Tare
A to Z.
Zero
Set the alternate command character for Zero.
A to Z.
End COM1, End COM2 [End]
Advance to the next menu or return to the top of the current menu.
4.9 Lock Menu
The Lock menu is a software controlled option which can lock menu settings to prevent
tampering. Default settings are bold.
Reset [reset]
Reset the Lock menu to factory defaults.
NO = no reset
YES = reset
Lock Cal [l.CAL]
Set the status.
OFF = Calibration menu is not locked
ON = Calibration menu is locked
Lock Setup [L.SetuP]
Set the status.
OFF = Setup menu is not locked
ON = Setup menu is locked
Lock Read [L.read]
Set the status.
OFF = Readout menu is not locked
ON = Readout menu is locked
Reset: no, yes
Lock Cal: off, on
Lock Setup: off, on
Lock Read: off, on
Lock Mode: off, on
Lock Unit: off, on
Lock Print: off, on
Lock COM: off, on
End Menu Lock: Exit menu
Valor™ 7000
Series EN-23
Lock Mode [l.mMod]
Set the status.
OFF = Mode menu is not locked
ON = Mode menu is locked
Lock Unit [l.Unit]
Set the status.
OFF = Unit menu is not locked
ON = Unit menu is locked
Lock Print [l.print]
Set the status.
OFF = Print menu is not locked
ON = Print menu is locked
Lock COM [l.COmM]
Set the status.
OFF = COM menu is not locked
ON = COM menu is locked
End Lock [End] – Advance to the next menu or return to the top of the current menu.
4.10 End Menu
Press ‘No’ to advance to the Calibration menu. Press ‘Yes’ to exit the menu and return to the
current application mode.
EN-24 Valor™ 7000 Series
4.11 Additional Features
To use this feature, remove AC power from the scale and remove the protective cover for the
weigh below opening. Install a suitable hook into the access hole at the bottom of the scale as
shown (refer to section 6.4 for optional hook). Do not over tighten, tighten finger tight. Mount the
scale onto an appropriate assembly that allows free working space below the hook. See figure
4-1.
Note: Never allow the scale to rest directly on the hook.
Figure 4-1. Setup for the Weigh Below Hook
Weigh Below
Hook Access
Valor™ 7000
Series EN-25
TABLE 4-2. GEO CODES
0 325 650 975 1300 1625 1950 2275 2600 2925 3250
325 650 975 1300 1625 1950 2275 2600 2925 3250 3575
0 1060 2130 3200 4260 5330 6400 7460 8530 9600 10660
1060 2130 3200 4260 5330 6400 7460 8530 9600 10660 11730
0°00' 5°46' 5 4 4 3 3 2 2 1 1 0 0
5°46' 9°52' 5 5 4 4 3 3 2 2 1 1 0
9°52' 12°44' 6 5 5 4 4 3 3 2 2 1 1
12°44' 15°06' 6 6 5 5 4 4 3 3 2 2 1
15°06' 17°10' 7 6 6 5 5 4 4 3 3 2 2
17°10' 19°02' 7 7 6 6 5 5 4 4 3 3 2
19°02' 20°45' 8 7 7 6 6 5 5 4 4 3 3
20°45' 22°22' 8 8 7 7 6 6 5 5 4 4 3
22°22' 23°54' 9 8 8 7 7 6 6 5 5 4 4
23°54' 25°21' 9 9 8 8 7 7 6 6 5 5 4
25°21' 26°45' 10 9 9 8 8 7 7 6 6 5 5
26°45' 28°06' 10 10 9 9 8 8 7 7 6 6 5
28°06' 29°25' 11 10 10 9 9 8 8 7 7 6 6
29°25' 30°41' 11 11 10 10 9 9 8 8 7 7 6
30°41' 31°56' 12 11 11 10 10 9 9 8 8 7 7
31°56' 33°09' 12 12 11 11 10 10 9 9 8 8 7
33°09' 34°21' 13 12 12 11 11 10 10 9 9 8 8
34°21' 35°31' 13 13 12 12 11 11 10 10 9 9 8
35°31' 36°41' 14 13 13 12 12 11 11 10 10 9 9
36°41' 37°50' 14 14 13 13 12 12 11 11 10 10 9
37°50' 38°58' 15 14 14 13 13 12 12 11 11 10 10
38°58' 40°05' 15 15 14 14 13 13 12 12 11 11 10
40°05' 41°12' 16 15 15 14 14 13 13 12 12 11 11
41°12' 42°19' 16 16 15 15 14 14 13 13 12 12 11
42°19' 43°26' 17 16 16 15 15 14 14 13 13 12 12
43°26' 44°32' 17 17 16 16 15 15 14 14 13 13 12
44°32' 45°38' 18 17 17 16 16 15 15 14 14 13 13
45°38' 46°45' 18 18 17 17 16 16 15 15 14 14 13
46°45' 47°51' 19 18 18 17 17 16 16 15 15 14 14
47°51' 48°58' 19 19 18 18 17 17 16 16 15 15 14
48°58' 50°06' 20 19 19 18 18 17 17 16 16 15 15
50°06' 51°13' 20 20 19 19 18 18 17 17 16 16 15
51°13' 52°22' 21 20 20 19 19 18 18 17 17 16 16
52°22' 53°31' 21 21 20 20 19 19 18 18 17 17 16
53°31' 54°41' 22 21 21 20 20 19 19 18 18 17 17
54°41' 55°52' 22 22 21 21 20 20 19 19 18 18 17
55°52' 57°04' 23 22 22 21 21 20 20 19 19 18 18
57°04' 58°17' 23 23 22 22 21 21 20 20 19 19 18
58°17' 59°32' 24 23 23 22 22 21 21 20 20 19 19
59°32' 60°49' 24 24 23 23 22 22 21 21 20 20 19
60°49' 62°90' 25 24 24 23 23 22 22 21 21 20 20
62°90' 63°30' 25 25 24 24 23 23 22 22 21 21 20
63°30' 64°55' 26 25 25 24 24 23 23 22 22 21 21
64°55' 66°24' 26 26 25 25 24 24 23 23 22 22 21
66°24' 67°57' 27 26 26 25 25 24 24 23 23 22 22
67°57' 69°35' 27 27 26 26 25 25 24 24 23 23 22
69°35' 71°21' 28 27 27 26 26 25 25 24 24 23 23
71°21' 73°16' 28 28 27 27 26 26 25 25 24 24 23
73°16' 75°24' 29 28 28 27 27 26 26 25 25 24 24
75°24' 77°52' 29 29 28 28 27 27 26 26 25 25 24
77°52' 80°56' 30 29 29 28 28 27 27 26 26 25 25
80°56' 85°45' 30 30 29 29 28 28 27 27 26 26 25
85°45' 90°00' 31 30 30 29 29 28 28 27 27 26 26
Elevation in meters
Elevation in feet
GEO value
Latitude
EN-26 Valor™ 7000 Series
5. LEGAL FOR TRADE
When the scale is used in trade or a legally controlled application it must be set up, verified and
sealed in accordance with local weights and measures regulations. It is the responsibility of the
purchaser to ensure that all pertinent legal requirements are met.
5.1 Capacity Label
A label showing the capacity and readability of the scale must be installed near each display. If
the Capacity Labels were installed prior to delivery, no further action is needed. If the Capacity
Labels were not installed, they have been placed in the packaging material. Affix the labels
above the displays as shown in Figure 5-1.
Note: The Capacity Labels will be destroyed upon removal, so only attempt to install them once.
Figure 5-1. Front and rear display Capacity Label locations
5.2 Settings
Before verification and sealing, perform the following steps:
1. Verify that the menu settings meet the local weights and measures regulations.
2. Perform a calibration as explained in Section 4.2.
3. Set the switch to Locked. See figure 5-2.
The Menu Lock switch limits changes to the Cal, Setup, Readout, Unit and Print menus. The
switch in type approved models may set some scale settings as required by the approval
agency. The switch may be secured using paper or wire seals.
Note: When LEGAL FOR TRADE is set to ON (LFT Switch in locked position), the menu
settings are affected as follows:
Calibration (C.A.L) menu is not accessible
Zero Range is locked at 2%
Stable Range setting is locked at 1d
Auto-Zero Tracking setting is locked at 0.5d
Unit menu is locked at the current setting
Stable Only is locked On
Auto Print/ Continuous is disabled
Lb:oz is locked at Off.
IR Sensor and Filter menus may be locked at the current settings, if required by local
weights and measures regulations
5.3 Verification and Sealing
The local weights and measures official or authorized service agent must perform the
verification procedure.
5.3.1 Physical Seals
For jurisdictions that use the physical sealing method, the local weights and measures official or
authorized service agent must apply a security seal to prevent tampering with the settings.
Refer to the illustration below for sealing methods.
Capacity Label
Valor™ 7000
Series EN-27
Figure 5-1. Sealing
5.3.2 Audit Trail Seal (USA and Canada only)
For jurisdictions that use the audit trail sealing method, the local weights and measures official
or authorized service agent must record the current configuration and calibration event counter
values at the time of sealing. These values will be compared to values found during a future
inspection.
Note: A change to an event counter value is equivalent to breaking a physical seal.
The audit trail uses two event counters to record changes to configuration and calibration
settings.
The configuration event counter (CFG) will index by 1 when exiting the menu if one or
more of the following menu settings are changed: Zero Range, Stable Range, Auto Zero
Tracking (AZT), Units (kg, g, oz, lb or lb:oz) or Stable Only.
The calibration event counter (CAL) will index by 1 when exiting the menu if a Span
Calibration or GEO setting change is made. Note that the counter only indexes once,
even if several settings are changed.
The event counters can be viewed by pressing and holding the MENU button.
While the button is held, the display will show MENU followed by Audit.
Release the button when Audit is displayed to view the audit trail information.
The audit trail information is displayed in the format CFGxxx and CALxxx.
The scale then returns to normal operation
Paper Seal
Wire Seal
Lock Switch
Unlocked Locked with Paper Seal Locked with Wire Seal
EN-28 Valor™ 7000 Series
6. MAINTENANCE
6.1 Cleaning
The housing may be cleaned with a cloth dampened with a mild detergent if necessary. Do not
use solvents, chemicals, alcohol, ammonia or abrasives to clean the housing or control panel.
6.2 Troubleshooting
Table 6-1 lists common problems and possible causes and remedies.
If the problem persists, contact OHAUS or your authorized dealer.
TABLE 6-1
Symptom
Possible Cause
Remedy
Cannot turn on
No power to scale
Verify connections and voltage
Poor accuracy
Improper calibration
Unstable environment
Perform calibration
Move scale to suitable location
Cannot calibrate
LFT locked
See chapter 5 for more information
Cannot access mode
Mode not enabled
Enter menu and enable mode
Cannot access unit
Unit not enabled
Enter menu and enable unit
Battery icon flashing
Low Battery error
Connect the scale to AC power and
charge the battery
Err 8.1
Power On Error
Weight reading exceeds Power On Zero
limit
Err 8.2
Power On Error
Weight reading below Power On Zero
limit
Err 8.3
Over Range Error
Weight reading exceeds Overload limit
Err 8.4
Under Range Error
Weight reading below Underload limit
Err 8.5
Tare out of range
Adjust tare value to be within range
Err 8.6
Display overflow
Weight exceeds 6 digits.
Err 9.5
Calibration data error
Calibration data not present
-------
Busy
Displayed during tare setting, zero
setting, printing
--NO--
Action not allowed
Function not executed
CAL E
Calibration error
Unstable environment
Incorrect calibration
weight
Calibration value outside allowed limits
Move the scale to suitable location
Use correct calibration weight
Lo.rEF
Low reference weight
warning
Increase reference weight
rEF.Err
Unacceptable reference
weight
Reference weight too small. Weight on
the pan is too small to define a valid
reference weight. Increase reference
weight
NO.ACC
Gross and net weights
cannot be accumulated
together
Only accumulate gross or net weights
(only works in LFT)
Battery fails to charge
fully
Battery is defective
Have battery replaced by Ohaus
authorized service dealer.
Valor™ 7000
Series EN-29
6.3 Service Information
If the troubleshooting section does not resolve or describe your problem, contact your
authorized OHAUS service agent. For service assistance or technical support in the United
States call toll-free 1-800-526-0659 between 8:00 AM and 5:00 PM EST. An OHAUS product
service specialist will be available to provide assistance. Outside the USA, please visit our web
site, www.ohaus.com to locate the OHAUS office nearest you.
6.4 Accessories
Ethernet Interface Kit 30037447
2nd RS232 Interface Kit 30037448
USB Interface Kit 30037449
Weighing Below Hook 30037450
In Use Cover 30 007445
In User Cover (10 pcs set) 30007469
Printer Contact Ohaus
Communication Cables Contact Ohaus
EN-30 Valor™ 7000 Series
7. TECHNICAL DATA
The technical data is valid under the following ambient conditions:
Indoor use only
Operating temperature: -10°C to 40°C
Relative humidity: 20% to 85% relative humidity, non-condensing
Altitude: Up to 2000 m
Power: AC power 100-240V 50/60 Hz, internal rechargeable sealed lead-acid battery
Current rating: 0.5A
Mains supply voltage fluctuations: up to ± 10% of the nominal voltage
Installation category: II
Pollution degree: 2
7.1 Specifications
TABLE 7-1
MODEL
V71P1502T
V71P3T
V71P6T
V71P15T
V71P30T
Capacity x Readability
(Max x d non-approved)
1.5 kg x 0.00005 kg
1500 g x 0.05 g
3 lb x 0.0001 lb
48 oz x 0.002 oz
3 kg x 0.0001 kg
3000 g x 0.1 g
6 lb x 0.0002 lb
96 oz x 0.005 oz
6 kg x 0.0002 kg
6000 g x 0.2 g
15 lb x 0.0005 lb
240 oz x 0.01 oz
15 kg x 0.0005 kg
15000 g x 0.5 g
30 lb x 0.001 lb
480 oz x 0.02 oz
30 kg x 0.001 kg
30000 g x 1 g
60 lb x 0.002 lb
960 oz x 0.05 oz
Maximum Displayed
Resolution
1:30000
Capacity x Readability
(Max x e approved)
1.5 kg x 0.0005 kg
1500 g x 0.5 g
3 lb x 0.001 lb
48 oz x 0.02 oz
3 kg x 0.001 kg
3000 g x 1 g
6 lb x 0.002 lb
96 oz x 0.05 oz
6 kg x 0.002 kg
6000 g x 2 g
15 lb x 0.005 lb
240 oz x 0.1 oz
15 kg x 0.005 kg
15000 g x 5 g
30 lb x 0.01 lb
480 oz x 0.2 oz
30 kg x 0.01 kg
30000 g x 10 g
60 lb x 0.02 lb
960 oz x 0.5 oz
Approved Resolution
1:3000
Repeatability
0.0001 kg
0.0002 kg
0.0005 kg
0.001 kg
0.002 kg
Linearity
0.0001 kg
0.0002 kg
0.0005 kg
0.001 kg
0.002 kg
Weighing Units
LFT OFF: g, kg, lb, oz, lb:oz
LFT ON: g, kg, lb, oz
EC and OIML Approved models: g, kg
Tare Range
To capacity by subtraction
Stabilization Time
≤ 1 second
Safe Overload Capacity
150 % of capacity
Front Display
LCD with white LED backlight
6-digit 7-segment, 28 mm / 1.1 inches digit height
Back Display
LCD with white LED backlight
6-digit 7-segment, 18.5 mm / 0.7 inches digit height
Keyboard
5 mechanical buttons
Application Modes
Weighing, Check Weighing, Check Percent, Percent Weighing, Accumulation
Battery Operating Time
(at 20ºC)
210 hours with backlight turned off
Construction
ABS plastic housing with 304 stainless steel platform
Approval Class
III
Pan Dimensions
225 x 300 mm / 8.9 x 11.8 in
Shipping Dimensions
397 x 447 x 195 mm / 15.6 x 17.6 x 7.7 in
Net Weight
4.2 kg / 9.3 lb
Gross Weight
5.45 kg / 12 lb
Valor™ 7000 Series EN-31
7.2 Drawings
Figure 7-1. Dimensions
311 mm / 12.2 in
327 mm / 12.9 in
117 mm /
4.6 in
EN-32 Valor™ 7000 Series
7.3 Communication
The scale is equipped with an RS232 interface (COM1) located under the Options Cover.
Connecting the scale to a computer enables you to operate the scale from the computer, as well
as receive data such as displayed weight.
7.3.1 Interface Commands
Communicate to the scale using the command characters listed in Table 7-2 below.
TABLE 7-2
Command
Function
IP
Immediate Print of displayed weight (stable or unstable).
P
Print displayed weight (stable or unstable).
CP
Continuous Print.
SP
Print on Stability.
xS
0S: Turn off “Stable Only” menu item and allow unstable print. 1S: Turn on
“Stable Only” menu item and only print stable print.
xP
Interval Print x = Print Interval (1-3600 sec), 0P turns auto print OFF
Z
Same as pressing Zero Key.
T
Same as pressing Tare Key.
xT
Download Tare value in grams (positive values only).
Sending 0T clears tare (if allowed).
PU
Print current unit: g, kg, lb, oz, lb:oz
xU
Set scale to unit x: 1=g, 2=kg, 3=lb, 4=oz, 5=lb:oz
xM
Set scale to mode x. Sending only M will scroll to next enabled mode.
PV
Version: print name, software revision and LFT ON (if LFT is set ON).
H x “text”
Enter Header line, where x = line number 1 to 5, “text” = header text up to 24
alphanumeric characters.
F x “text”
Enter Footer line, where x = line number 1 to 2, “text” = rear text up to 24
alphanumeric characters.
\EscR
Global reset to reset all menu settings to the original factory defaults
(Escape key + ‘R’ Key).

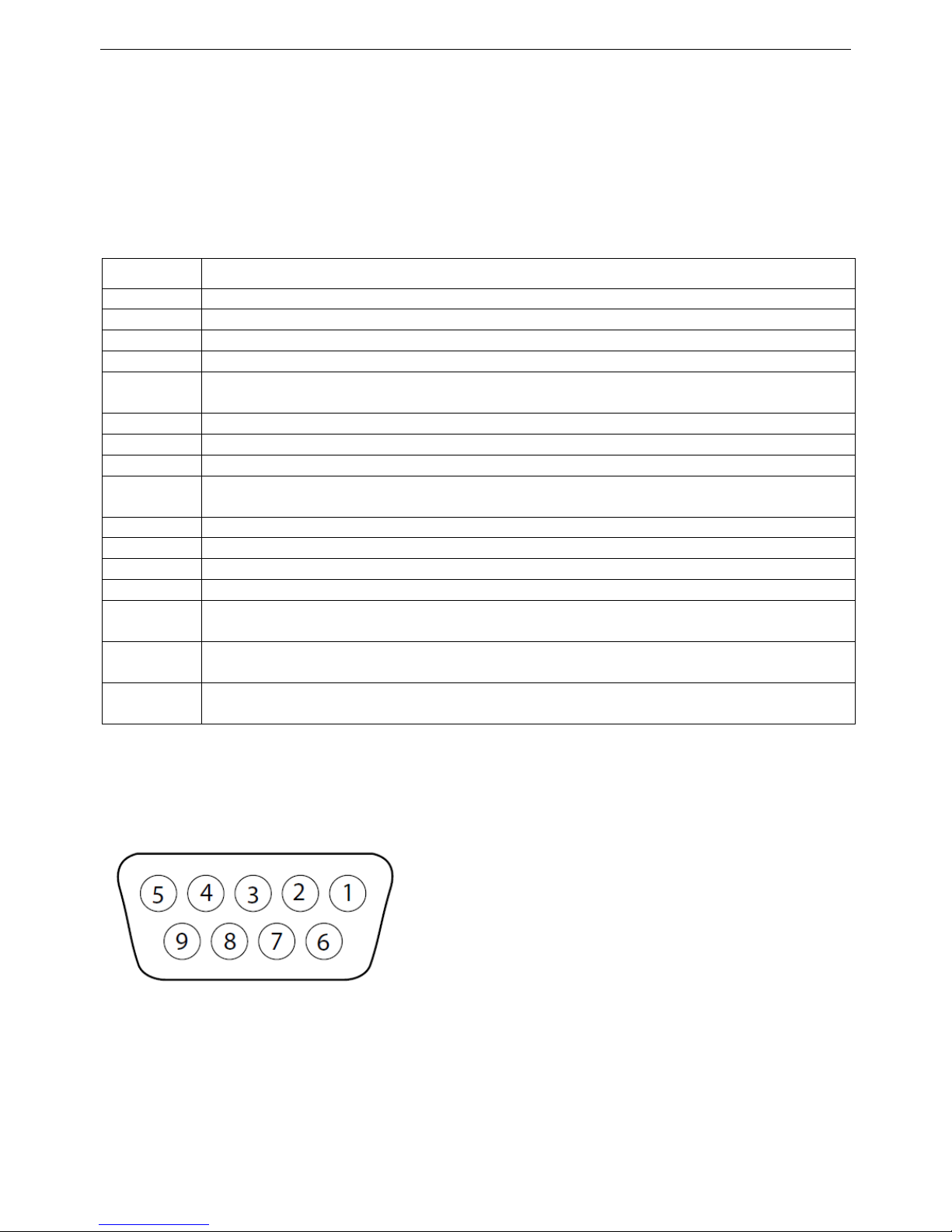

7.3.2 Connections for RS232
The 9-pin female subminiature “D” connector COM1, is provided for interfacing to other devices.
The pin connections are as follows:
Active pins: PIN 2 = TXD, PIN 3 = RXD, PIN 5 = Ground
Figure 7-2. RS232 Pins
Valor™ 7000
Series EN-33
7.4 Printouts
The following sample print outs are generated by the Print button, “P” Command or alternate
print command. The content of the printout is defined in the Print Content menu item. A
maximum of 24 characters can be printed on each line.
Weigh Mode Printout
Description
Comment
11.11 kg NET
Result line
If Printx Content Result is ON
12.34 kg G
Gross value line
If Printx Content Gross is ON and a tare value is entered
11.11 kg NET
Net value line
If Printx Content Net is ON and a tare value is entered
1.23 kg T
Tare value line
If Printx Content Tare is ON and a tare value is entered
MODE: WEIGH
Mode line
If Printx Content Application Mode is ON
<no line printed>
Information line
If Printx Content Info is ON
Weigh Mode with Accumulation Printout
Description
Comment
11.11 kg NET
Result line
If Printx Content Result is ON
12.34 kg G
Gross value line
If Printx Content Gross is ON and a tare value is entered
11.11 kg NET
Net value line
If Printx Content Net is ON and a tare value is entered
1.23 kg T
Tare value line
If Printx Content Tare is ON and a tare value is entered
N: 4
Accumulation line
If Printx Content Accu is All
TOTAL: 49.85 kg
Accumulation line
If Printx Content Accu is All
MIN: 11.11 kg
Accumulation line
If Printx Content Accu is All
MAX: 14.85 kg
Accumulation line
If Printx Content Accu is All
Percent Mode Printout
Description
Comment
100 % NET
Result line
If Printx Content Result is ON
12.34 kg G
Gross value line
If Printx Content Gross is ON and a tare value is entered
11.11 kg NET
Net value line
If Printx Content Net is ON and a tare value is entered
1.23 kg
Tare value line
If Printx Content Tare is ON and a tare value is entered
MODE: PERCENT
Mode line
If Printx Content Application Mode is ON
REF WGT 11.11 kg
Information line
If Printx Content Info is ON
Check Weighing Mode Printout
Description
Comment
11.11 kg NET OVER
Result line
If Printx Content Result is ON, UNDER/ACCEPT/OVER
12.34 kg G
Gross value line
If Printx Content Gross is ON and a tare value is entered
11.11 kg NET
Net value line
If Printx Content Net is ON and a tare value is entered
1.23 kg T
Tare value line
If Printx Content Tare is ON and a tare value is entered
MODE: CHECKWEIGH
Mode line
If Printx Content Application Mode is ON
UNDER TARGET 1.00 kg
Information line
If Printx Content Info is ON
OVER TARGET 2.00 kg
Information line
If Printx Content Info is ON
7.5 Output Format
Weight string print format:
Field
Weight
space
Unit
space
Stability
space
G/N
Space
Term. Char(s)
Length
9 1 5 1 1 1 NET
1
Each field is followed by a single delimiting space (ASCII: 32)
Definitions:
Weight - Up to 9 characters, right justified, - at immediate left of most significant character
(if negative).
Unit - Up to 5 characters, left justified. If the Unit in the Print Content menu was set to
OFF, the unit will be removed in the weight string and replaced by spaces.
EN-34 Valor™ 7000 Series
Stability - “?” character is printed if not stable. If weight is stable neither “?” or following
space is printed.
G/N - “NET” printed if weight is net weight, ‘G’ or nothing printed if weight is a gross
weight.
Terminating Character(s) - terminating character(s) printed depending on FEED menu setting.
7.6 Compliance
Compliance to the following standards is indicated by the corresponding mark on the product.
Mark
Standard
This product conforms to the EMC Directive 2004/108/EC, the Low Voltage
Directive 2006/95/EC and the Non-Automatic Weighing Instrument
Directive 2009/23/EC.
The Declaration of Conformity is available online at
europe.ohaus.com/europe/en/home/support/compliance.aspx.
AS/NZS CISPR 11
CAN/CSA-C22.2 No. 61010-1-12, UL Std. No. 61010-1 (3rd edition)
NSF/ANSI 169–2009
NSF/ANSI/3-A 14159-1-2010
Important notice for verified weighing instrument
Weighing Instruments verified at the place of manufacture bear one of the
preceding marks on the packing label and the green ‘M’ (metrology) sticker on
the descriptive data plate. They may be put into service immediately.
Weighing Instruments to be verified in two stages have no green ‘M’
(metrology) on the descriptive data plate and bear one of the preceding
identification marks on the packing label. The second stage of the initial
verification must be carried out by an authorized and certified service
organization established within the European Community or by the National
Notified Body.
The first stage of the initial verification has been carried out at the manufacturers work. It
comprises all tests according to the adopted European standard EN 45501:1992,
paragraph 8.2.2.
If national regulations limit the validity period of the verification, the user of the weighing
instrument must strictly observe the re-verification period and inform the respective
weights and measures authorities.
Valor™ 7000
Series EN-35
Disposal
In conformance with the European Directive 2002/96/EC on Waste
Electrical and Electronic Equipment (WEEE) this device may not be
disposed of in domestic waste. This also applies to countries outside the
EU, per their specific requirements.
The Batteries Directive 2006/66/EC introduces new requirements from
September 2008 on removability of batteries from waste equipment in EU
Member States. To comply with this Directive, this device has been
designed for safe removal of the batteries at end-of-life by a waste
treatment facility.
Please dispose of this product in accordance with local regulations at the collecting
point specified for electrical and electronic equipment. If you have any questions,
please contact the responsible authority or the distributor from which you purchased
this device.
Should this device be passed on to other parties (for private or professional use), the
content of this regulation must also be related.
Disposal instructions in Europe are available online at
europe.ohaus.com/europe/en/home/support/weee.aspx. Thank you for your
contribution to environmental protection.
FCC Note
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct the interference
at his own expense.
Industry Canada Note
This Class B digital apparatus complies with Canadian ICES-003.
ISO 9001 Registration
In 1994, OHAUS Corporation, USA, was awarded a certificate of registration to ISO 9001 by
Bureau Veritus Quality International (BVQI), confirming that the OHAUS quality management
system is compliant with the ISO 9001 standard’s requirements. On June 21, 2012, OHAUS
Corporation, USA, was re-registered to the ISO 9001:2008 standard.
EN-36 Valor™ 7000 Series
LIMITED WARRANTY
OHAUS products are warranted against defects in materials and workmanship from the date of
delivery through the duration of the warranty period. During the warranty period OHAUS will
repair, or, at its option, replace any component(s) that proves to be defective at no charge,
provided that the product is returned, freight prepaid, to OHAUS. This warranty does not apply if
the product has been damaged by accident or misuse, exposed to radioactive or corrosive
materials, has foreign material penetrating to the inside of the product, or as a result of service
or modification by other than OHAUS. In lieu of a properly returned warranty registration card,
the warranty period shall begin on the date of shipment to the authorized dealer. No other
express or implied warranty is given by OHAUS Corporation. OHAUS Corporation shall not be
liable for any consequential damages.
As warranty legislation differs from state to state and country to country, please contact OHAUS
or your local OHAUS dealer for further details.
OHAUS Corporation
7 Campus Drive
Suite 310
Parsippany, NJ 07054 USA
Tel: +1 973 377 9000
Fax: +1 973 944 7177
With offices worldwide / Con oficinas alrededor del mundo / Avec des bureaux dans le monde
entier / Weltweite Geshäftsstellen / Con uffici in tutto il mondo.
www.ohaus.com
*30048239*
P/N 30048239D © 2014 OHAUS Corporation, all rights reserved / todos los derechos
reservados / tous droits réservés / Alle Rechte vorbehalten / tutti i diritti riservati.
Printed in China / Impreso en la China / Imprimé en Chine / Gedruckt in China / Stampato in
Cina
Loading...
